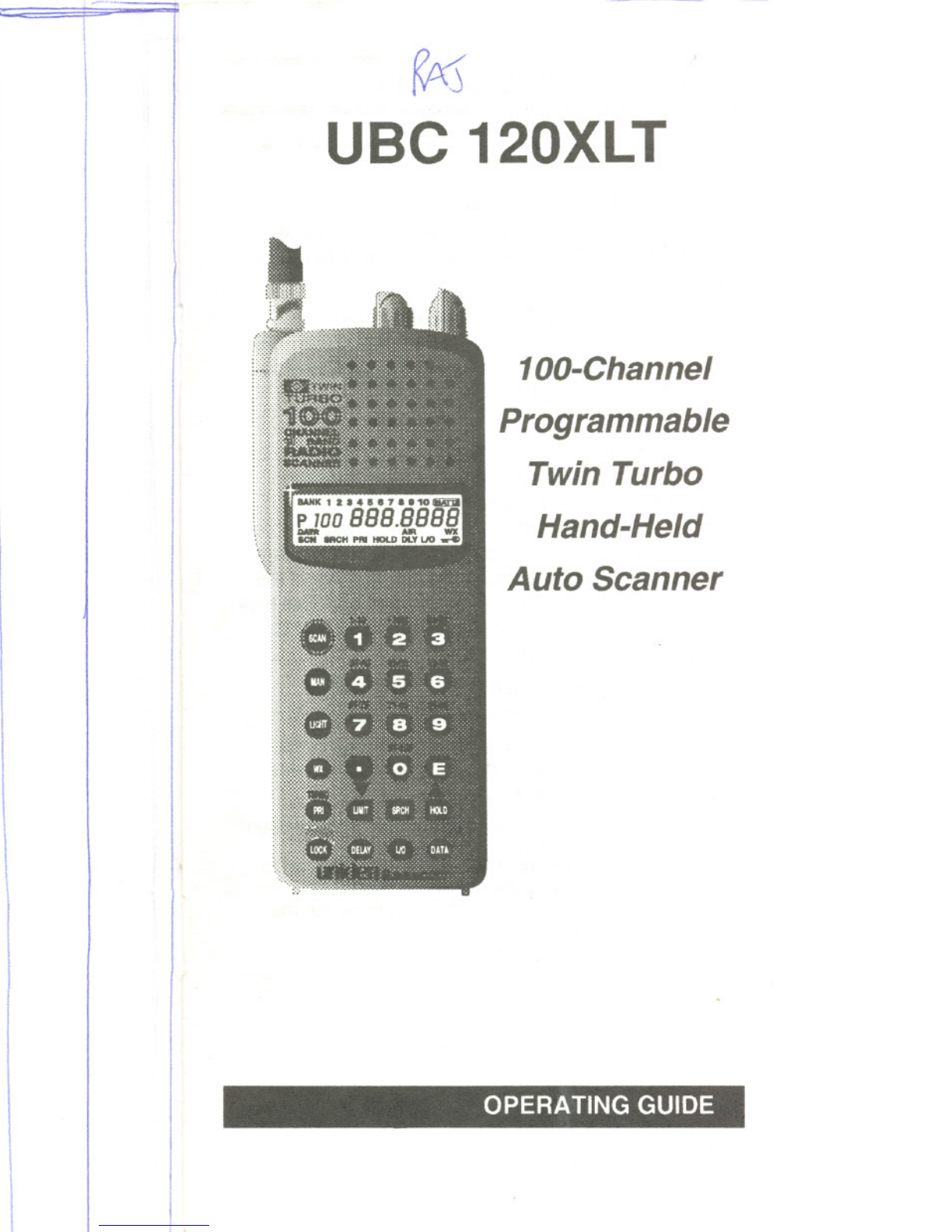

Uniden Bearcat UBC 120XLT User manual

...
~
-====
UBC 120XLT
1OD-Channel
Programmable
Twin Turbo
Hand-Held
Auto Scanner
OPERATING GUIDE
0

~

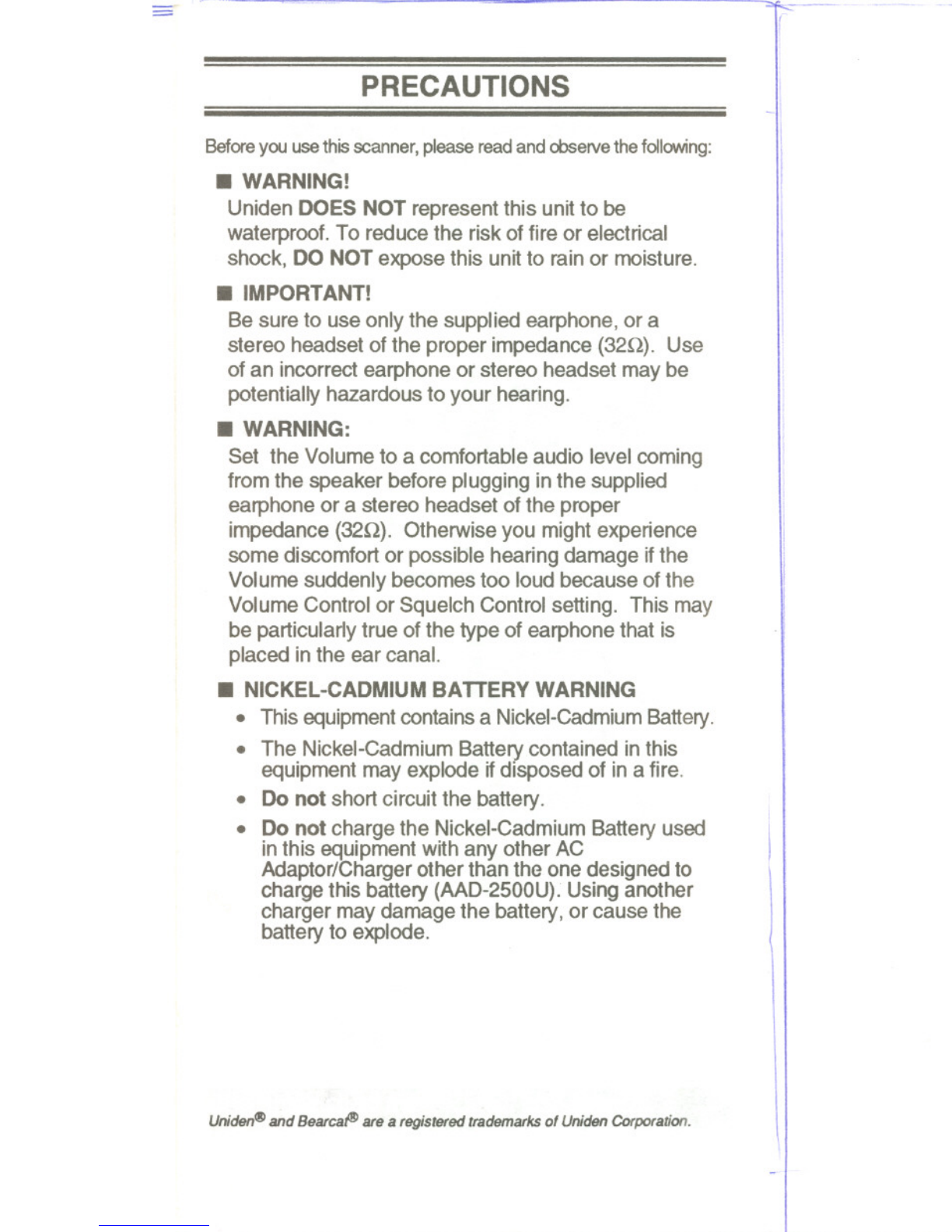

PRECAUTIONS
Before you use this scanner, please read and observe the following:
.WARNING!
Uniden DOES NOT representthis unitto be
waterproof.To reduce the risk of fire or electrical
shock, DO NOT expose this unit to rain or moisture.
. IMPORTANT!
Be sure to use only the supplied earphone, or a
stereo headset of the proper impedance(32(1). Use
of an incorrectearphone or stereo headset may be
potentially hazardousto your hearing.
. WARNING:
Set the Volumeto acomfortable audio level coming
from the speaker before plugging inthe supplied
earphoneor a stereo headset of the proper
impedance (32(1). Otherwiseyoumightexperience
some discomfort or possible hearing damage if the
Volume suddenly becomes too loud because of the
Volume Control or Squelch Control setting. This may
be particularly true of the type of earphone that is
placed inthe ear canal.
. NICKEL-CADMIUMBATTERY WARNING
. This equipmentcontainsa Nickel-CadmiumBattery.
.The Nickel-Cadmium Batterycontained in this
equipment may explode if disposed of in a fire.
.Do notshort circuit the battery.
.Do not charge the Nickel-Cadmium Battery used
inthis equipment with any other AC
Adaptor/Chargerother than the one designed to
chargethis battery (AAD-2500U):Usinganother
charger maydamage the battery, or cause the
batteryto explode.
Uniden~ and BearcaP'> are aregistered trademarks of Uniden Corporation.
-~-
r
-0.1
i
I
I
I
,I
I
0i
~

'<::, ~.....
.-=

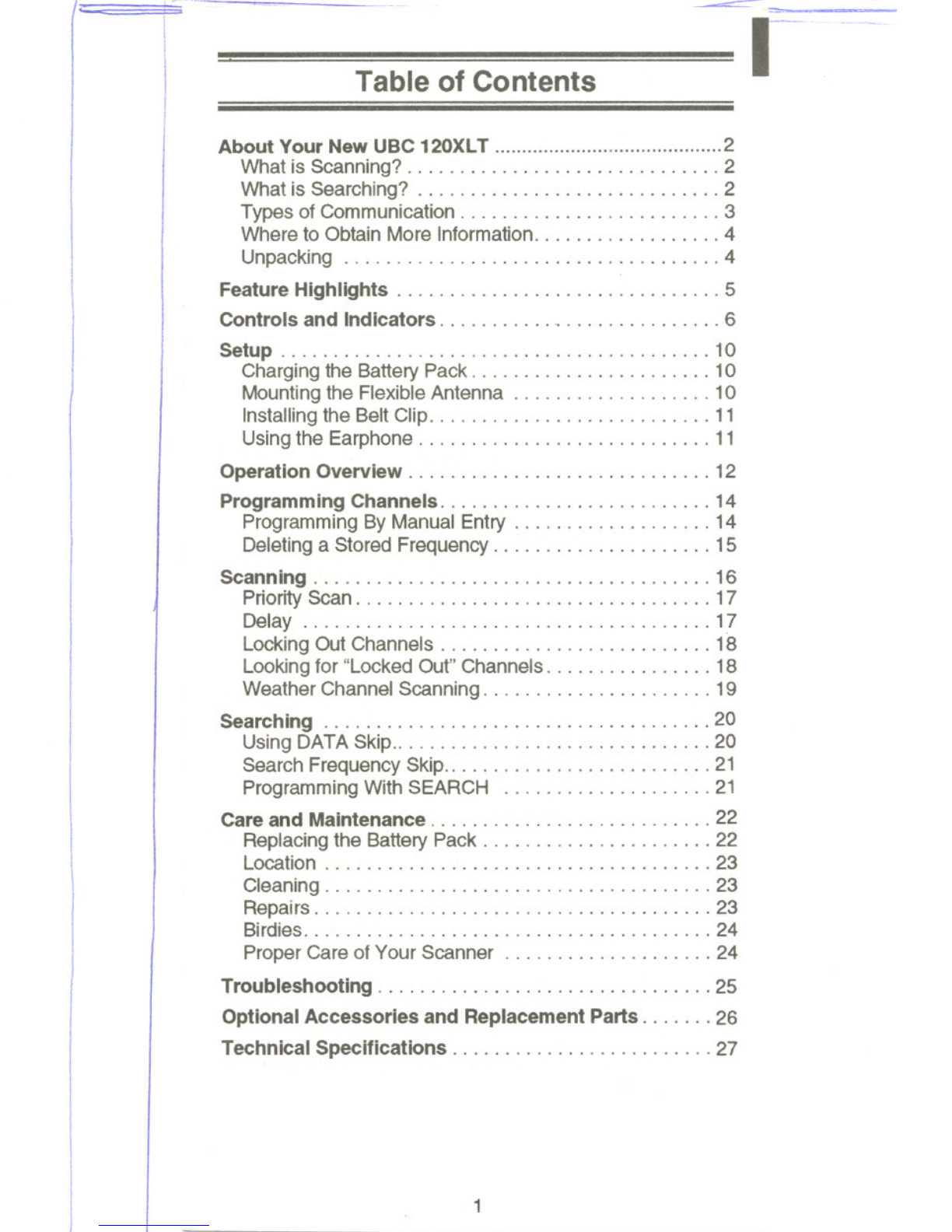

Table of Contents r
About Your New UBC 120XLT 2
WhatisScanning? 2
What is Searching? 2
TypesofCommunication 3
Where to Obtain More Information.. . . . . . . . . . . . . . . . . 4
Unpacking 4
Feature Highlights 5
Controlsandlndicators 6

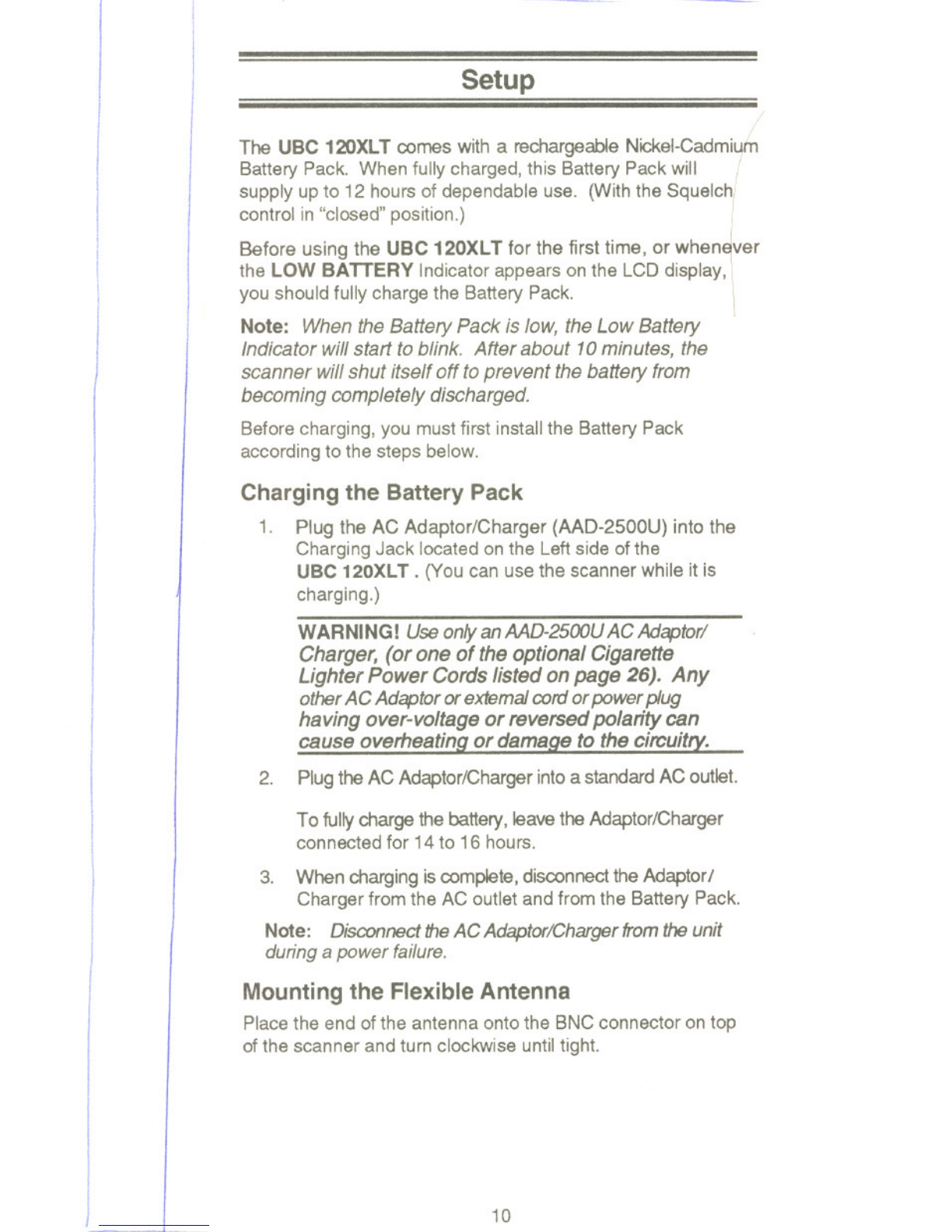

Setup 10
ChargingtheBatteryPack 10
Mountingthe Flexible Antenna. . . . . . . . . . . . . . . . . . . 10
InstallingtheBeltClip .11
UsingtheEarphone 11

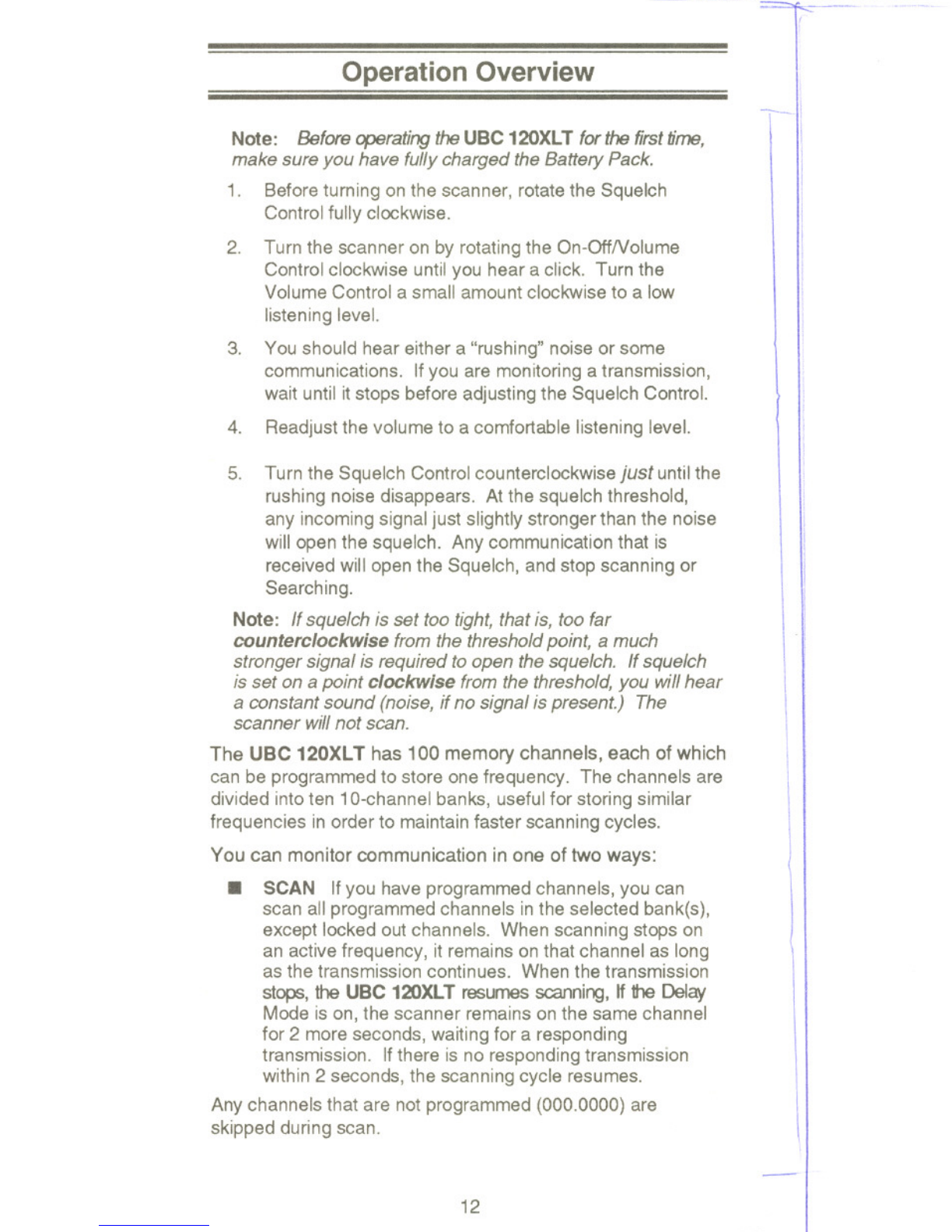

OperationOverview 12
ProgrammingChannels 14
Programming ByManual Entry. . . . . . . . . . . . . . . . . . . 14
DeletingaStoredFrequency 15
Scanning 16

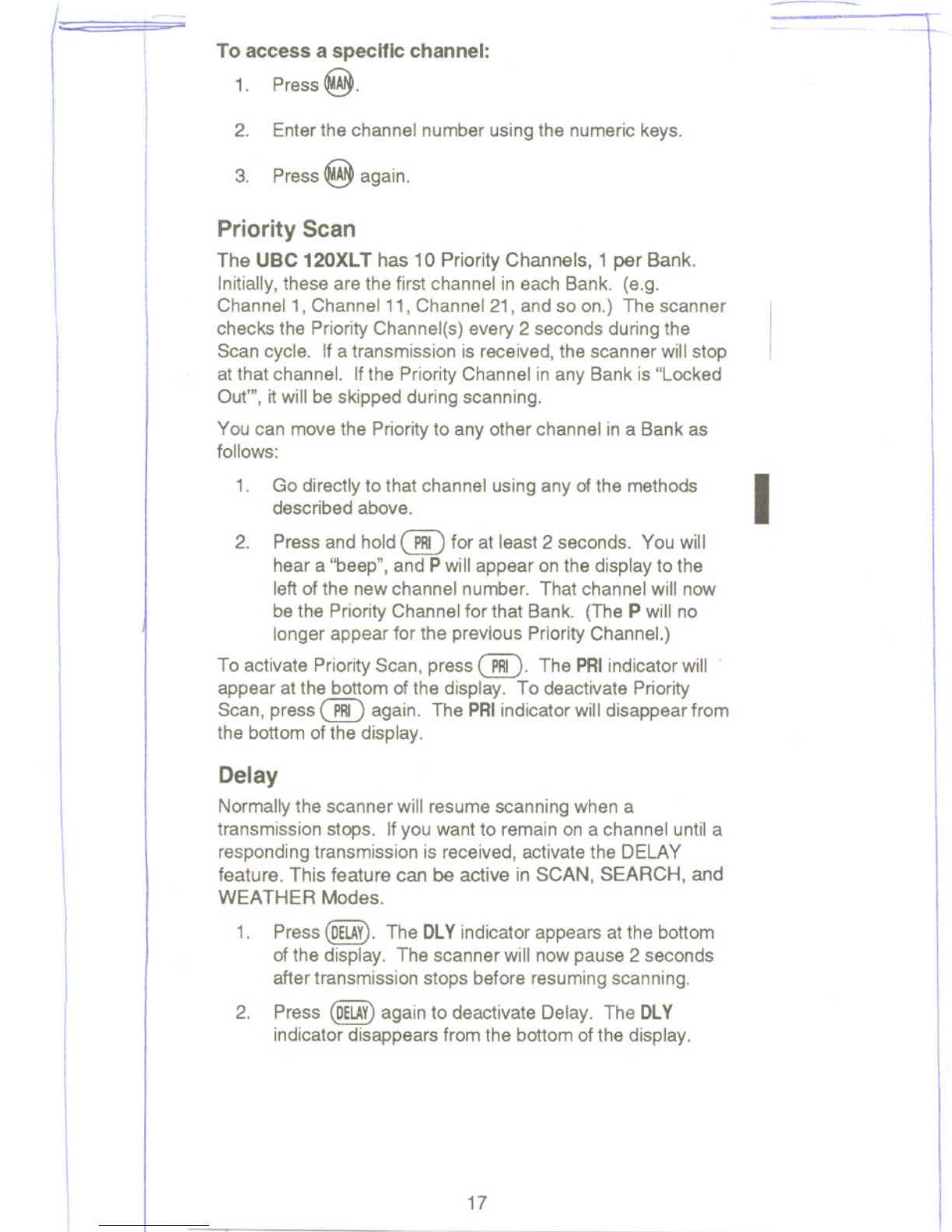

PriorityScan 17
Delay 17

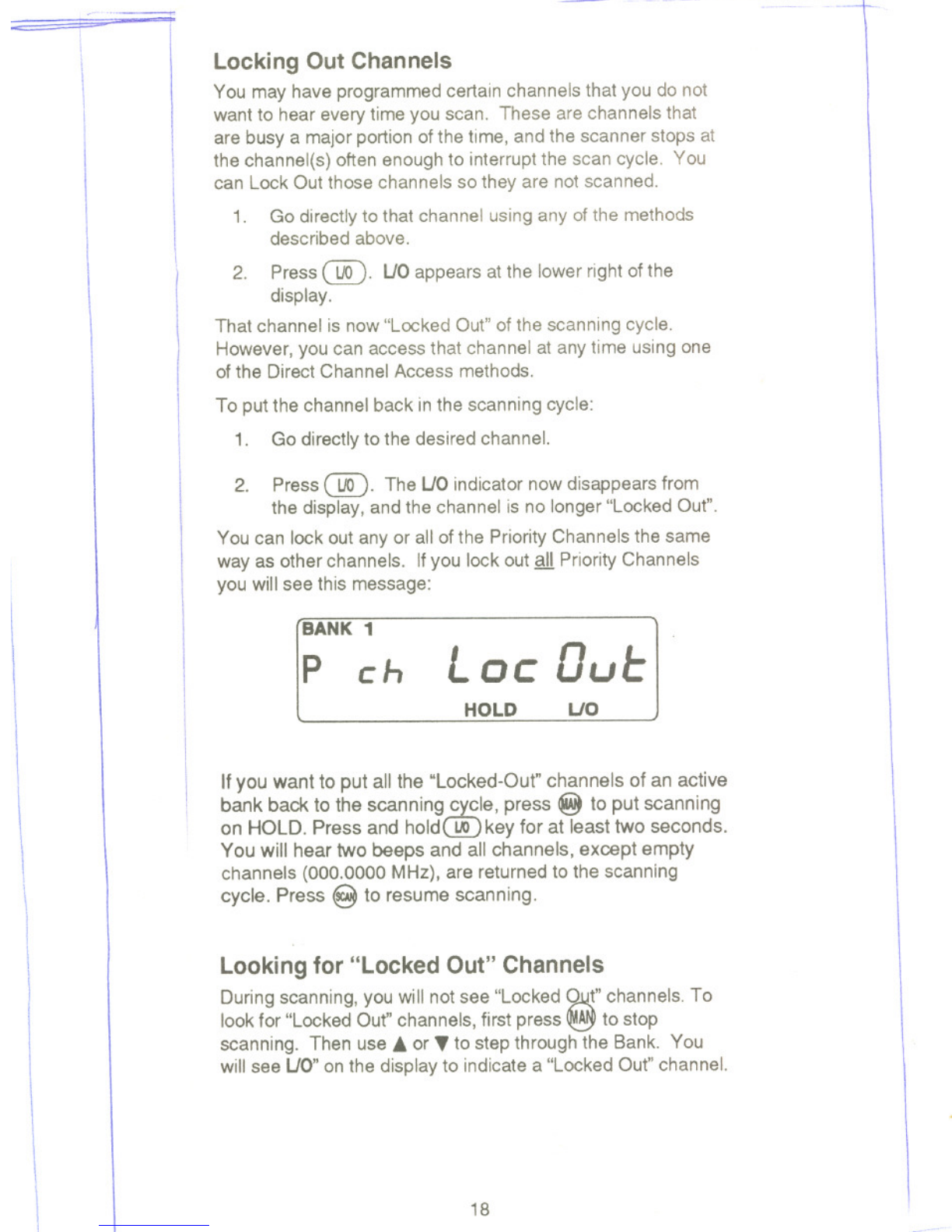

LockingOutChannels 18
Lookingfor "Locked Out"Channels. . . . . . . . . . . . . . . . 18
WeatherChanneIScanning 19
Searching 20
UsingDATASkip 20
SearchFrequencySkip 21
Programming WithSEARCH 21
CareandMaintenance 22
ReplacingtheBatteryPack 22
Location 23
Cleaning 23
Repairs 23
Birdies 24
Proper Care of Your Scanner 24
Troubleshooting 25
Optional Accessories and Replacement Parts. . .. . . .26
TechnicaISpecifications .27
1
F
"

~._.~

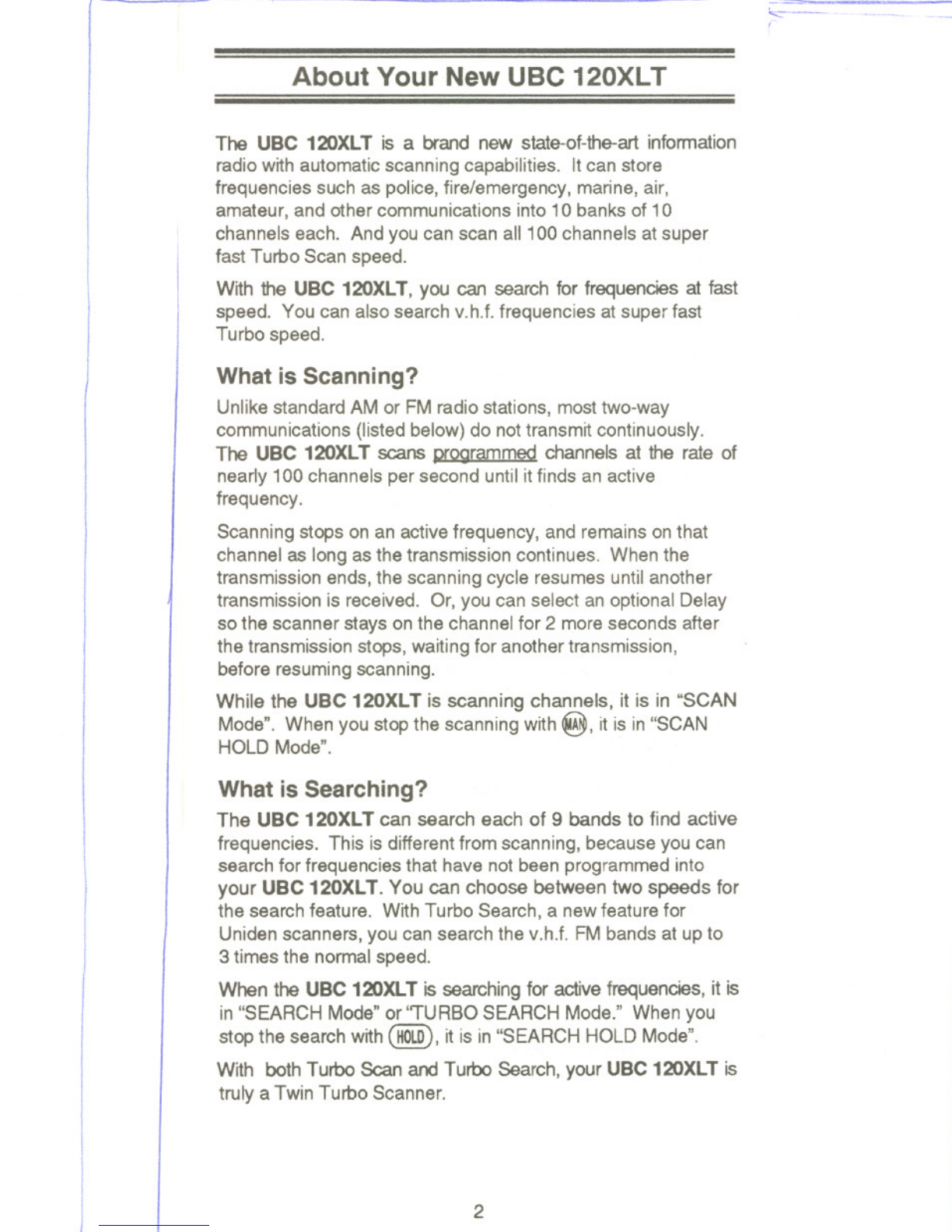

About Your New USC 120XLT
The UBC 120XLT is a brand new state-of-the-art information
radio with automatic scanning capabilities. It can store
frequencies such as police, fire/emergency, marine, air,
amateur, and other communications into 10 banks of 10
channels each. And you can scan all 100 channels at super
fast Turbo Scan speed.
With the UBC 120XLT, you can search for frequencies at fast
speed. You can also search v.h.f. frequencies at super fast
Turbo speed.
What is Scanning?
Unlike standard AM or FM radio stations, most two-way
communications (listed below) do not transmit continuously.
The UBC 120XLT scans prOCJrammed,channels at the rate of
nearly 100 channels per second until it finds an active
frequency.
Scanning stops on an active frequency, and remains on that
channel as long as the transmission continues. When the
transmission ends, the scanning cycle resumes until another
transmission is received. Or, you can select an optional Delay
so the scanner stays on the channel for 2 more seconds after
the transmission stops, waiting for another transmission,
before resuming scanning.
While the UBC 120XL T is scanning channels, it is in "SCAN
Mode". When you stop the scanning with~, it is in "SCAN
HOLD Mode".
What is Searching?
The UBC 120XLT can search each of 9 bands to find active
frequencies. This is different from scanning, because you can
search for frequencies that have not been programmed into
your UBC 120XLT.You can choose between two speeds for
the search feature. With Turbo Search, a new feature for
Uniden scanners, you can search the v.h.f. FM bands at up to
3 times the normal speed.
When the UBC 120XL T is searching for active frequencies, it is
in "SEARCH Mode" or "TURBO SEARCH Mode." When you
stop the search with (HOlD), it is in "SEARCH HOLD Mode".
With both Turbo Scan and Turbo Search,your UBC120XLTis
truly a Twin Turbo Scanner.
2~-_.- --, ,_-_, '-~="=-=",.
~-
,-
-..-.---

-
-
=~

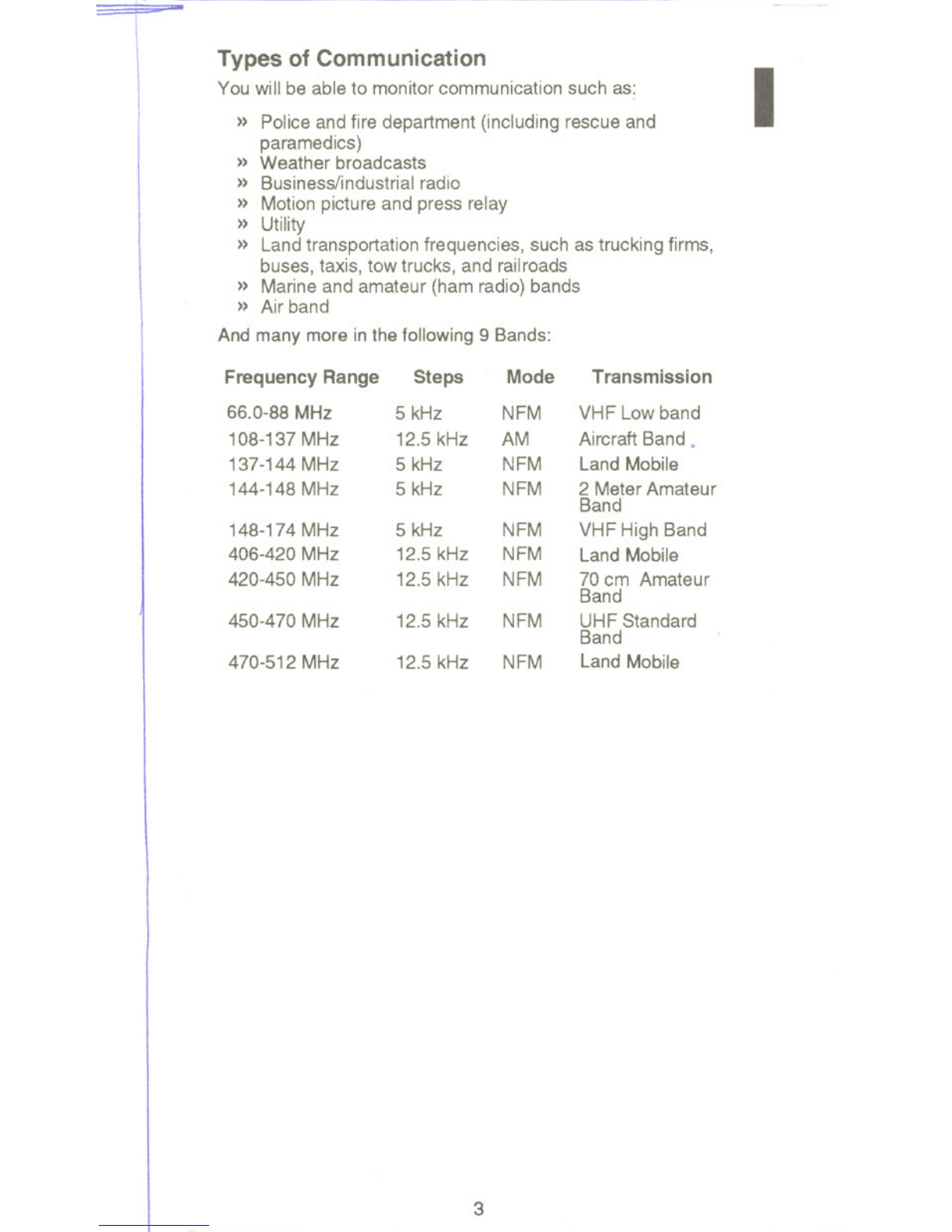

Types of Communication
You will be able to monitor communication such as:
» Police and fire department (including rescue and
paramedics)
» Weather broadcasts
» Business/industrial radio
» Motion picture and press relay
»Utility
» land transportation frequencies, such as trucking firms,
buses, taxis, tow trucks, and railroads
» Marine and amateur (ham radio) bands
» Air band
And many more in the following 9 Bands:
Frequency Range
66.0-88 MHz
108-137 MHz
137-144 MHz
144-148 MHz
148-174 MHz
406-420 MHz
420-450 MHz
450-470 MHz
470-512 MHz
Steps
5 kHz
12.5 kHz
5 kHz
5 kHz
5 kHz
12.5 kHz
12.5 kHz
12.5 kHz
12.5 kHz
Mode
NFM
AM
NFM
NFM
NFM
NFM
NFM
NFM
NFM
3
I
Transmission
VHF low band
Aircraft Band s
land Mobile
2 MeterAmateur
Band
VHF High Band
land Mobile
70cm Amateur
Band
UHFStandard
Band
land Mobile

-::::::==
~.=--- . .
\Unpacking
Carefullycheckthecontentsagainstthislist:
.UBC120XLTTwinTurboScanner
.RubberAntenna
.ACAdaptor/Charger(AAD-2500U)
. Earphone
. BeltClip
. Battery(BP-120),installed
. ThisOperatingGuide
Ifanyitemsare missingordamaged,contactyourplaceof
purchaseimmediately.
PleasereadthisOperatingGuidethoroughlybeforeoperating
the scanner.
4
-E ------
- '-.--.

~=_.. ~
Feature Highlights
. Twin Turbo Scan &Search-This lightning-fast
technology enables the UBC 120XL T to scan nearly 100
channels per second. Search speed is selectable
between 100 and 300 steps per second. (300 steps per
second only in bands with 5 KHz steps.) Because the
frequency coverage is so large (see previous section for
band listing), very fast scanning and searching are
essential. That is why we combined our latest
technology - Twin Turbo - into the UBC 120XLT.
.100 Channels You can program each of these memory
channels to store one frequency,
.9 Bands, 10 Banks Includes 9 Bands, including
Aircraft. 10 Banks of 10 channels each are useful for
storing similar frequencies in order to maintain faster
scanning cycles.
.66 MHz -512 MHz Indicates the range of frequencies
that can be searched within the bands of your scanner.
-~ (Note: The frequency coverage is nottotally continuous
~from 66 MHz to 512 MHz.)
. 0 Priority Channels You can assign one Priority
C nnel in each Bank. Assigning priority channels
allo s you to keep track of activity on your most.
impo ant channel(s) while monitoring other channels for
transm' sions. (Priority Channels are initially set in the
first chan el in each Bank.)
. Weather C nnels Lets your scanner function as a
weather inform 'on radio.
"
Note: Currently, the~ther Service is not provide' .
Australia.
.Unique Data Skip Allows the scanner to skip over
unwanted datatransmissions and reduces birdies.
.Memory Backup The stored channels are retained in
memory for at least 3 days, and typically 14 days, when
the Battery Pack is removed from the scanner.
5
._--
I
/
/

----
<::
Controls and Indicators
D@QO
PHONESQUELCH VOLUME
Top View
Conneqt the rubber antenna to this BNC
connector and turn clockwise until it locks.
SQUELCH
Control
Plug the supplied earphone into this jack for
private listening. When the earphone is
connected, the internal speaker is
isconnected.
No the warning on the Inside Front Cover
and on e 11.
Adjust this co I to set the scan threshold
and to eliminate tl1 ackground rushing
noise heard in the abse 6eRf a.n in.coming
signal. See the Operation SeCtiooJor
adjustment procedure. ~~..~
Use this control to turn the scanner on or~...
and to adjust the volume.
ON-OFF!
VOLUME
Control
Front View
(Refer to the foldout illustration inside the Back Cover)
Complete explanations of the use of these keys are in the
Scanning section, page 16, and Searching section, page 20.
1. LCD DISPLAY - The liquid crystal display (LCD)
shows the current channel and frequency. It also
displays the mode, status, and bank indicators.
A. ScanType Indicator -Indicates BANK Scan
operation.
Channel Number -Indicates the current channel
that the .scanneris on.
B.
6
..,.. - ""'"-' - ..- '-' ... ...-.-"'" .""--- -. -- "' "" :::.c"'=-=f '
,.-

-====

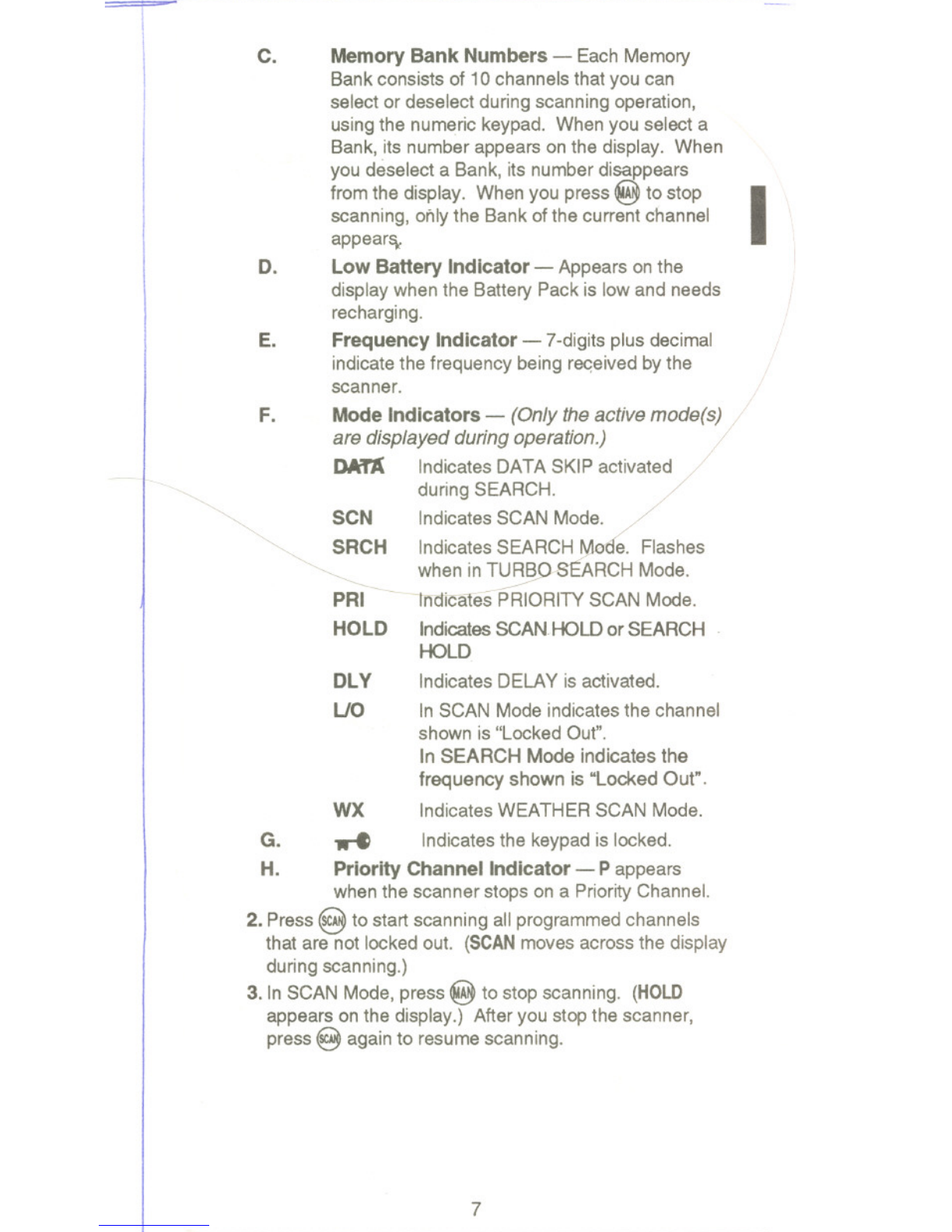

c. Memory Bank Numbers -Each Memory
Bank consists of 10 channels that you can
select or deselect during scanning operation,
using the numeric keypad. When you select a
Bank, its number appears on the display. When
you deselect a Bank, its number disappears
from the display. When you press ~to stop
scanning, only the Bank of the current channel
appear~
Low Battery Indicator - Appears on the
displaywhen the Battery Pack is Iow and needs
recharging.
Frequency Indicator - 7-digits plus decimal
indicatethe frequency being reqeivedby the
scanner.
Mode Indicators -(Only the active mode(s)
are displayed during operation.)
DATJ( IndicatesDATA SKIP activated
duringSEARCH.
SCN IndicatesSCAN Mode.
SRCH IndicatesSEARCH e. Flashes
when inTURB ARCH Mode.
PRI ica es PRIORITYSCAN Mode.
HOLD IndicatesSCAN.HOLDor SEARCH.
HOLD
I
D.
E.
F.
DLY
UO Indicates DELAY is activated.
In SCAN Mode indicates the channel
shown is "locked Out".
In SEARCH Mode indicates the
frequency shown is "Locked Out".
WX Indicates WEATHER SCAN Mode.
... Indicatesthekeypadislocked.
PriorityChannelIndicator- Pappears
when the scanner stops on a Priority Channel.
2. Press @to start scanning all programmed channels
that are not locked out. (SCAN moves across the display
during scanning.)
3. In SCAN Mode,press ~to stop scanning. (HOLD
appears on the display.) After you stop the scanner,
press @again to resume scanning.
G.
H.
7

,.,.,~" = ~. !!!!!!! ~ --~
--
4.Press (UGHT)to turn the display backlight ON for 15
seconds. Press (UGHT)again to manually turn the light
OFF.
5. Use CVto enter the decimal point when programming a
frequency into a channel. If you make an entry error,
press CVkey twice to erase the entry, and start over
again.
6. There are 7 Preprogrammedweather channels
Press00 to findthe active weather channel in
your area. WXappears onthe display in Weather Mode.
7. Use@to set the limits of a range of frequencies for
Search Mode. When Search is stopped. In SCAN
HOLD Mode, use this key to go down to the next
channel. Use T to go down infrequency.
8. While Scanning, press @to enter the PRIORI1Y
SCAN Mode. (PR~ears on the display.) While
Searching, press ~(TURBO) to toggle between 100
steps and 300 steps per second. (When in TURBO
SEARCH Mode, SRCHflashes on the display.)
9. Press(DELAY)to turn ON or OFF the automatic 2-second
delay during scanning or searching for active
frequencies. (In Delay Mode, DLY appears on the
display.) In this mode, when the scanner monitors an
active frequency, searching or scanning will not resume
until transmission stops for 2 seconds.
10. Press and hold(LOCK). ... appears on the d\splay and
you hear two beeps. This disables the keypa~ and
prevents any accidental (ey )ntries. To enable\t .
he
keypad, press and hold LOCK.... disappearskom the
display andyou hear two beeps. \
11. NUMERIC KEYPAD - Usethese keysto prog~m a
channel for scanning. Also useto access a Chan
~
1
directlywith~. During SCAN Mode, use these eys to
select or deselect any of the 10 memory banks. ( nly
the selectedbank indicator(s)appear on the displ y.)
Note: You cannot deactivate al/1 0banks at tl/le
sametime. /
8

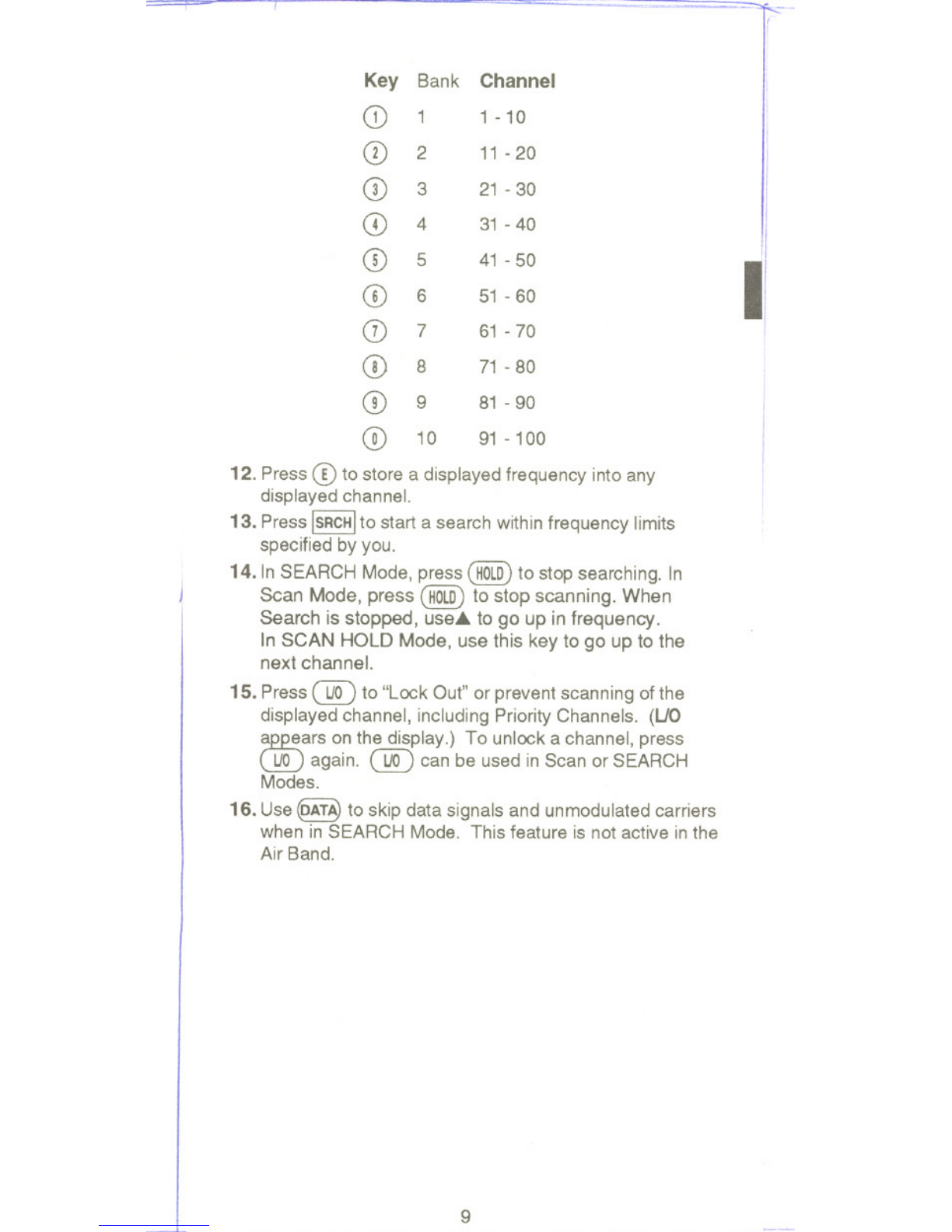

12. Press CD to store a displayed frequency into any
displayed channel.
13. PressISRCHIto start a search within frequency limits
specified by you.
14.ln SEARCH Mode, press (HOLD)to stop searching. In
Scan Mode, press (HOLD)to stop scanning. When
Search is stopped, use. to go up in frequency.
In SCAN HOLD Mode, use this key to go up to the
next channel.
15. Press @to "Lock Out" or prevent scanning of the
displayed channel, including Priority Channels. (UO
~ars on the display.) To unlock a channel, press
UtQJ again. @can be used in Scan or SEARCH
Modes.
16. Use (DAT~to skip data signals and unmodulated carriers
when in SEARCH Mode. This feature is not active in the
Air Band.
9
f
-.-.-.-=-...--- -..
'--,.=--_.. .r
r
Key Bank Channel
CD 11-10
CD 2 11 - 20
CD 3 21 - 30
CD 4 31 - 40
CD 5 41 - 50
CD 651 - 60
CD 7 61 - 70
CD 8 71 - 80
CD 981 - 90
CD 10 91 - 100

<: ."." -. ~ ---,;
I=-= -==
Setup
The USC 120XLT comes with a rechargeable Nickel-Cadmit
Battery Pack. When fully charged, this Battery Pack will
supply up to 12 hours of dependable use. (Withthe Squelch
control in "closed" position.) I
Before using the USC 120XL T for the first time, or whenever
the LOW BATTERY Indicator appears on the LCD display,
you should fully charge the Battery Pack.
Note: When the Battery Pack is Iow, the Low Battery
Indicator will start to blink. After about 10 minutes, the
scanner willshut itself off to prevent the battery from
becoming completely discharged.
Beforecharging, you mustfirst installthe Battery Pack
accordingto the steps below.
Charging the Battery Pack
1. Plug the AC Adaptor/Charger (AAD-2500U) into the
Charging Jack locatedon the Left side of the
UBC 120XLT .(You can use the scanner while it is
charging.)
WARNING! Useonlyan AAD-2500UAC Adaptor/
Charger, (or one of the optional Cigarette
Lighter Power Cords listed on page 26). Any
other AC Adaptor or external cord or power plug
having over-voltage or reversedpolarity can
cause overheating or damage to the circuitry.L-,
Plug the AC Adaptor/Charger into a standard AC outlet.
2.
To fully charge the battery, leave the Adaptor/Charger
connected for 14 to 16 hours.
3. When charging is complete, disconnect the Adaptor!
Charger from the AC outlet and from the Battery Pack.
Note: Disconnect the AC Adaptor/Charger from the unit
during apower failure.
Mounting the Flexible Antenna
Place the end of the antenna onto the BNC connector on top
of the scanner and turn clockwise until tight.
10
r

'= ,--
Installing the Belt Clip
1. Placethe Belt Clip on
the mountingarea on
the back of the
scanner, makingsure
the holes inthe clip
line up withthe
threads inthe back of
the scanner.
~ ~ @@
~I
2. Insertthe 2 screws intothe corresponding holesand
tighten.
CAUTION: Do not tighten the screws too tight. You could
damage the case or clip.
Using the Earphone
The PHONEjack at the top of the UBC 120XLT is a standard
3.5mm stereo phonejack. Youcan use either the supplied
earphone, or a stereo headset. The output of this jack is
monaural audio,but you will hear it in both headphonesof a
stereo headset.
IMPORTANT!
Be sure to use only the supplied earphone, or stereo headset
of the proper impedance (32ft) Use of an incorrect earphone
or stereo headset may be potentially dangerous to your
hearing.
WARNING:Do not plug in the earphone or head-
phones before setting the Volume Control. You
might experience some hearing damage if the
Volume suddenly becomes too loud because of
the volume Control or Squelch Control setting.
This isparticularlytrueofthetypeofearphonethat
is placed inthe ear canal.
J11

Operation Overview
Note: Before operating the UBC 120XL T for the first time,
make sure you have fully charged the Battery Pack.
1. Before turning on the scanner, rotate the Squelch
Control fully clockwise.
2. Turn the scanner on by rotating the On-OffNolume
Control clockwise until you hear a click. Turn the
Volume Control a small amount clockwise to a Iow
listening level.
You should hear either a "rushing" noise or some
communications. If you are monitoring a transmission,
wait until it stops before adjusting the Squelch Control.
Readjust the volume to a comfortable listening level.
3.
4.
5. Turn the Squelch Control counterclockwise just until the
rushing noise disappears. At the squelch threshold,
any incoming signal just slightly stronger than the noise
will open the squelch. Any communication that is
received will open the Squelch, and stop scanning or
Searching.
Note: If squelch is set too tight, that is, too far
counterclockwise from the threshold point, amuch
stronger signal is required to open the squelch. If squelch
is set on a point clockwise from the threshold, you will hear
aconstant sound (noise, if no signal is present.) The
scanner will not scan.
The UBC 120XL T has 100 memory channels, each of which
can be programmed to store one frequency. The channels are
divided into ten 1O-channel banks, useful for storing similar
frequencies in order to maintain faster scanning cycles.
You can monitor communication in one of two ways:
. SCAN If you have programmed channels, you can
scan all programmed channels in the selected bank(s),
except locked out channels. When scanning stops on
an active frequency, it remains on that channel as long
as the transmission continues. When the transmission
stops, the UBC 120XLT resumes scanning, If the Delay
Mode is on, the scanner remains on the same channel
for 2 more seconds, waiting for a responding
transmission. If there is no responding transmission
within 2 seconds, the scanning cycle resumes.
Any channels that are not programmed (000.0000) are
skipped during scan.
12
===f --'- -- -. --.-- -- -- .-..-- .-------.
-~ ~
----
:"~"'._--
-- ~
-----.-..

1<: =-_C~.~=-.~ --=
When the UBC 120XLT is in SCAN Mode, the display will look
something likethis:
(
i
,
SCN PRI
I
I
I
I
I
11
I!
I1
I
I
I
I
I
I
I
!
BANK 1 2 3 4 5 6 7 8 9 10
1Lf SCRN
.SEARCH The Searchfunction is differentfrom Scan.
When you select a frequency band to search, the
scanner searches for any active frequency within the
lower and upper limits you specify. When an active
frequency is found, the scanner stops on that frequency
as long as the transmission lasts. If the Delay Mode is
on, the scanner remains on the same channel for 2
more seconds, waiting for a responding transmission. If
there is no responding transmission within 2 seconds,
the search cycle resumes.
When the UBC 120XLT is in SEARCH Mode, the display will
look something like this:
li
I
i
I
I
!
!
BANK 2
1Lf'-106.0000
DA?ASRCH HOLD DLY
13
' _.- ,-----

!; .~ -
ProgrammingChannels
Before you can scan, you must program the channels within a
bank. You can store one frequency per channel, up to 100
channels.
Note: If appears on the display (keypad Locked),
unlock the keypad by pressing and holding (LocK)until
disappears and you hear two beeps.
There are two ways to program a channel:
. Manually select a channel and frequency, using the
numeric keypad.
. Search a band to find an active frequency, and then
directly store it into a selected channel. (See the
Search section, page 21.)
Programming By Manual Entry
1. Selecta frequency.
Example:Program 125.2500 MHz into Channel 18.
2. Make surethe scanner is inthe SCAN Mode. Ifit is in
the SRCH Mode, press @.
3. Press~ to stop scanning.
i
!
i
"I
i
!
i.i
4. PressCDQ)@ to go to Channel 18.
5. Enter the frequency number using the numeric keypad.
(Be sure to include the decimal point.) As soon as you
enter the first digit of the frequency, the channel number
begins ,to blink.
eD CD CD 0 CD CD.
BANK \~I
-:lB~725.2500
I1\ HOLD
If you make a mistake and want to clear the entry, press
0twice and re-enter the frequency.
14 ,"'---,-,
I

<:: J ,._-==--=,",,=-- -==::::: -
-
-- ~
6. Press CDto store the entry. The channel numberon
the displaystops blinking.
BANK 2
18 125.2500
AIR
HOLD
7. Ifthat frequency is already stored in another channel,
you willhear a "beep", and the other channel number
willappear on the display.
Ifyou want to store the frequency in the selected
channel (18) as well, press CD again. Or, press 0
twice and enter another frequency for the currently
selected channel. The channel number on the display
stops blinking.
Note: Any frequency already stored in any channel
will automatically be replaced by the new one.
If you try to enter a frequency that is outside of the 9
Bands, you willhear a "beep", and the word "Error"
appears on the display.
I
8.
BANK 2
18 Error
HOLD
Press 0twice and re-enter the correct frequency.
9. To program another channel, repeat the above
procedures.
Deleti ng a Stored Freq uency
To delete a frequency from achannel:
1. Displaythe channel and frequency to be deleted.
2. Press CD on the numeric keypad.
Press CD. The current channel is erased, and the
display shows 000.000.
Note: That channel will be skipped during scanning.
3.
15
-. =
J
"

:!:::::=o ,..,,~~,~=.~~-~= -====
Scanning
1.
Note: When you turn the scanner on it will always
be in SCAN Mode.
look at the lower left corner of the display. If SCNis not
displa~ed,press @. The UBC 120XLT shouldbegin
scanning.
2. If HOLD appears at the bottom of the display, press
@to begin scanning.
The indicators for the selected Banks (1 through 10) appear on
the display. The indicator of the Bank currently being
monitored flashes. While the UBC 120XL T is scanning, the
word SCAN moves across the display.
Scanning stops on any active channel that is not "locked Out",
and displays the Channel Number and frequency. Scanning
resumes automatically after the transmission stops.
3. You can deselect any bank(s) from being scanned by
entering the number of the bank. The deselected bank
indicator(s) disappear from the display, and those
channels will not be scanned. This procedure helps to
speed up the scanning cycle.
Note: One Bank must always be active. You cannot
deactivate al/1 0banks at the same time. Ifyou try
to deactivate all 10 Banks, Bank 1will automatically
be active.
4. To restore any bank for scanning, just enter its number
again. The bank indicator will reappear on the display.
5. To stop scanning any time, press~. (HOLD appears
on the display.) The scanner remains on the displayed
channel, and only the bank indicator for that channel
appears. Press @. to resume scanning.
6. When you are stopped at a channel, you can press ~ to
step down a channel, or £ to step up a channel. Press
and hold either key to rapidly step through the
channels.
Note: You do not skip alocked out ('UO'? channel
when you use ~ or £.
16
-. --- .._--

---
To access a specific channel:
1. Press~.
3.
Enter the channel number using the numeric keys.
Press ~again.
2.
Priority Scan
The UBC 120XL T has 10 Priority Channels, 1 per Bank.
Initially, these are the first channel in each Bank. (e.g.
Channel 1, Channel 11, Channel 21, and so on.) The scanner
checks the Priority Channel(s) every 2 seconds during the
Scan cycle. If a transmission is received, the scanner will stop
at that channel. If the Priority Channel in any Bank is "locked
Out"', it will be skipped during scanning.
You can move the Priority to any other channel in a Bank as
follows:
1. Go directly to that channel using any of the methods
described above.
2. Press and hold @for at least 2 seconds. You will
hear a "beep", and P will appear on the display to the
left of the new channel number. That channel will now
be the Priority Channel for that Bank. (The P will no
longer appear for the previous Priority Channel.)
ToactivatePriorityScan,press@. ThePRIindicatorwill .
appear at the bottom of the display. To deactivate Priority
Scan, press@again. The PRIindicator will disappear from
the bottom of the display.
I
Delay
Normally the scanner will resume scanning when a
transmission stops. If you want to remain on a channel until a
responding transmission is received, activate the DELAY
feature. This feature can be active in SCAN, SEARCH, and
WEATHER Modes.
1. Press (DELAY).The DLY indicator appears at the bottom
of the display. The scanner will now pause 2 seconds
after transmission stops before resuming scanning.
2. Press(DELAY)again to deactivate Delay. The DLY
indicator disappears from the bottom of the display.
17
I
~~

\
\
\,
\
- -- --.---
Locking Out Channels
You may have programmed certain channels that you do not
want to hear every time you scan. These are channels that
are busy a major portion of the time, and the scanner stops at
the channel(s) often enough to interrupt the scan cycle. You
can lock Out those channels so they are not scanned.
1. Go directly to that channel using any of the methods
described above.
2. Press @. UO appears at the lower right of the
display.
That channel is now "locked Out" of the scanning cycle.
However, you can access that channel at any time using one
of the Direct Channel Access methods.
To put the channel back in the scanning cycle:
1. Go directly to the desired channel.
2. Press @. The UO indicator now disappears from
the display, and the channel is no longer "locked Out".
You can lock out any or all of the Priority Channels the same
way as other channels. If you lock out all Priority Channels
you will see this message:
BANK 1
pLoc Due
ch HOLD UO
Ifyou want to put all the "Locked-Out" channels of an active
bank back to the scanning cycle, press ~to put scanning
on HOLD. Press and hold@)key for at least two seconds.
You will hear two beeps and all channels, except empty
channels (000.0000 MHz), are returned to the scanning
cycle. Press @to resume scanning.
Looking for "Locked Out" Channels
Duringscanning, you will notsee "locked~" channels.To
look for "locked Out" channels, first press ~to stop
scanning. Then use A or ~ to step through the Bank. You
will seeUO"on the display to indicate a "locked Out"channel.
18
~--- '\
--"--' '
