hank you for choosing award-winning Cinema™speakers and congratulations. You are
about to hear the difference these sonically accurate speakers will make in your music and
home theater system. They are the product of countless hours of comprehensive research and
development and will reward you with exceptional sound for many years.
To ensure proper installation please read this manual and follow all instructions. If you have
further questions contact your Authorized Paradigm®Dealer or visit the Q&A page on our
website at www.paradigm.com.

Y UR NEW SPEAKERS
Paradigm Cinema speakers are ideally suited to a variety of lifestyle applications. They are designed to
allow easy installation throughout your home. To ensure the best performance possible we strongly
recommend that you observe the placement guidelines provided in the “Speaker Placement” section.
Cleaning
Do not use a strong or abrasive cleaner on your speakers. Clean them with a soft damp cloth but do not
get them wet.
n Stands or Wall Mounting
We include tabletop/shelf stands (supports) and wall-mounting brackets for Cinema speakers (varies
by model). See the illustrations later in the manual for how to mount them to stands and wall brackets.
Paradigm floorstanding stands are also available for your new Cinema100s at an additional charge (see
your dealer for more i formatio ).
IMPORTA T! If wall mounting take extra care during the installation process—always use the safety
straps (if included) as secondary restraints.
H W T AV ID SPEAKER DAMAGE
Use an appropriate amplifier. At high volumes, a very powerful amplifier can overdrive your speakers
and damage them. On the other hand, if your amplifier isn’t powerful enough, it can produce clipping
distortion that can easily damage high-frequency drivers (see dealer).
Don’t be fooled by your amplifier’s volume control. It adjusts listening level—it does not indicate
power output. If your speakers begin to sound harsh or grating, or if you hear the bass breaking up turn
the volume down immediately or you will damage your speakers! This type of damage constitutes
abuse and is not covered by warranty!
Tone controls and equalizers can demand even more power from an amplifier, lowering the point at
which it produces clipping distortion. Use them sparingly, if at all, and do not use them when listening
at loud levels.
SPEAKER PLACEMENT
The following placement guidelines will help you get the best performance from your Cinema speakers.
Ilustrations showing you how to attach speakers to stands and wall-mounting brackets are provided in
the section following this one. For the Cinema™Trio, follow placement instructions provided in the
illustration on page 5.
Front Speakers (Left/Right)
On the Stands (See illustration opposite)
For the most accurate timbral balance, place your front speakers so that their high-frequency drivers
(tweeters) point toward the listening area and sound arrives at approximately ear level.
On the Wall (See illustration opposite)
Follow the placement directions provided in the paragraph above.
3

4
Center Speaker
On the Stand (see illustration below)
Place the center speaker on its stand below the display so that sound arrives as close to ear level as
possible. The speaker should sit about the same distance away from the listening area as the front speakers.
(Some receivers and processors electronicall adjust for differences in distance between speakers… check to
see if ours does.)
On the Wall (see illustration below)
Place the center speaker above or below the display, whichever position brings sound closest to ear
level. It should sit about the same distance away from the main listening areas as the front speakers. (See
note above about electronic adjustments for distance.)
OR
OR
OR
OR
Surround and Rear Speakers
When used as surround/rear speakers, Cinema speakers should be kept well away from the listening
area for optimal surround-sound performance (as show o ext page). They can be placed on stands
(supports) or on the wall, following the assembly directions provided for the appropriate model.
5.1 Surround Configuration (5.1 requires 5 speakers plus a subwoofer)
Position speakers on each side, corner, or rear of the listening area as shown on next page.
7.1 Surround Configuration (7.1 requires 7 speakers plus a subwoofer)
Position one surround speaker on each side or corner of the listening area as shown on the next page.
Position additional rear speakers behind the listening area—one slightly to the right, the other slightly to
the left, also as shown on next page.
CINEMA™100, 200 & 400
Cinema™200/400
Left/Right speakers are
wall mountable only.

5
Cinema Trio (Front/Left/Center speakers in one unit)
Place the speaker above or below the display, whichever position brings sound closest to ear level. If also
using surround/rear speakers follow the directions for correct placement provided earlier.
OR
OR
SPEAKER PLACEMENT (C NTINUED)
Surround and rear configurations shown
In a 7.1 configuration, choose side
or corner position for surrounds.
Rears should be positioned as shown.
OROR
OR OR
OR

6
STAND M UNTING (ALL HARDWARE INCLUDED)
CINEMA™100
Push down on terminal clips to
allow wire access. Connect wires
before attaching stand.

7
CINEMA™200 & 400
CINEMA™TRI
Self-adhesive bumper pads
Self-adhesive bumper pads
Stand is only used when speaker
is in a horizontal configuration
Stands are only used when speaker
is in a horizontal configuration
STAND M UNTING (C NTINUED)

8
WALL M UNTING
3.258"
If you are not comfortable performing the following procedures, have a professional perform
the installation (see yo r A thorized Paradigm®Dealer abo t hiring a professional).
TOLERANCE UNLESS OTHERWISE SPECIFIED
5
Step 3Step 2
Step 1
CINEMA™100
Assemble all parts before moving to Step 3
Attach bracket to wall
(screws not supplied)
Vertical:
Speakers tilt left/right
to further improve
stereo imaging
Horizontal:
Speaker tilt up/down
for optimal dialog clarity
Do not tighten completely
with allen key until
you adjust for
desired angle

9
WALL M UNTING (C NTINUED)
Attach locking
cover to bracket
and screw in
Step 5 Step 6
Step 4
Step 6 Step 7
Step 4
Push down on
terminal clips to
allow wire access
Step 4Step 5
Snake wires from
inside wall through
hole in bracket
WIRING INSIDE THE WALL

10
Push down on
terminal clips to
allow wire access
Snake wires
through hole
in locking cover
Attach locking
cover to bracket
and screw in
Step 6 Step 7
Step 4Step 4 Step 4Step 5
WIRING AL NG THE WALL

11
WALL M UNTING (C NTINUED)WALL M UNTING (C NTINUED)

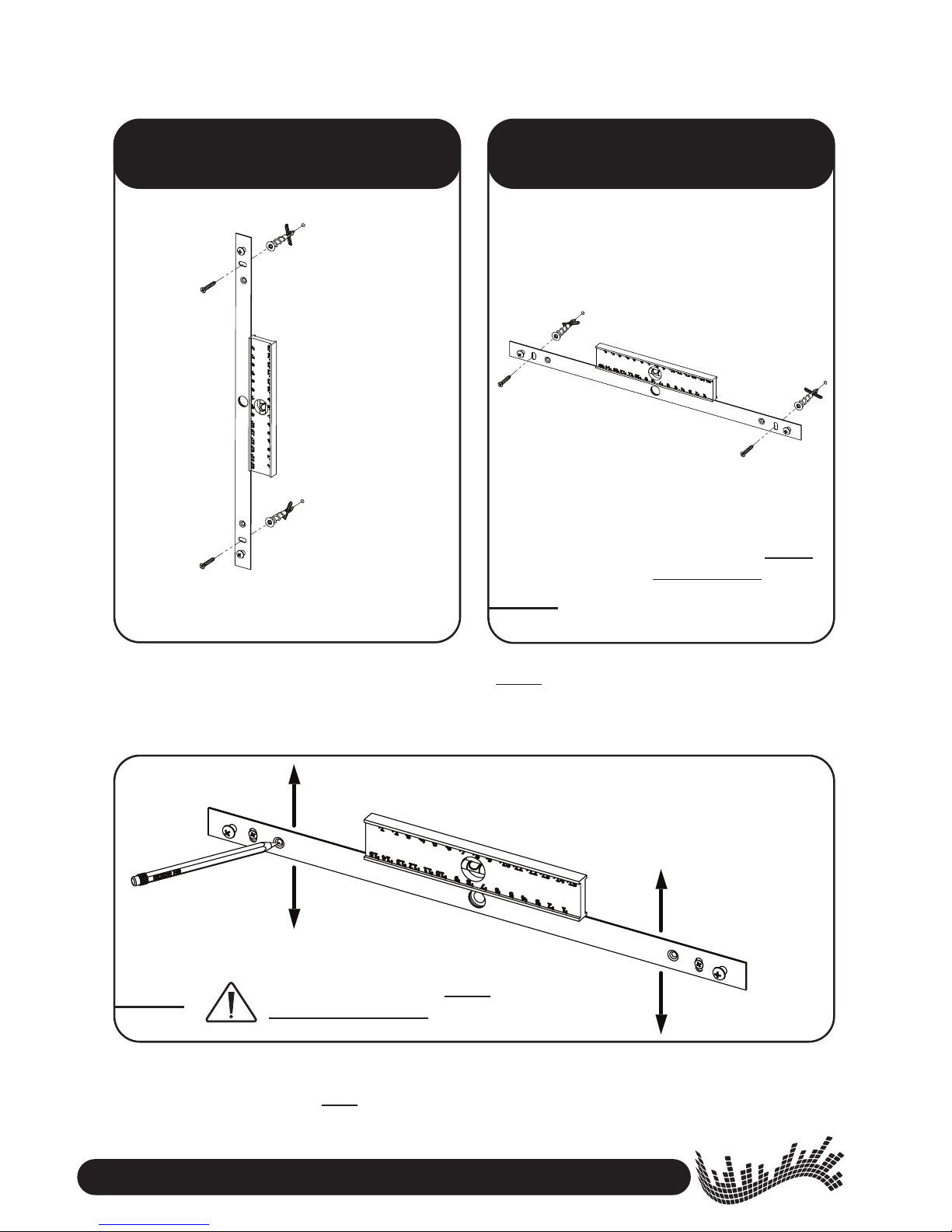

Bracket is slotted (see illustratio ), to allow further adjustment up or down, if necessary. Re-check to
ensure bracket is level. Mark inner screw holes.
Step 2 WAR I G! For stability, all four
screws MUST be used
Position bracket and ensure it is level. Mark the two center screw holes. Drill pilot holes, then press
anchor bolts firmly into drywall and screw in. Follow with flathead screws: DO OT SCREW ALL THE
WAY I AT THIS POI T—leave screw heads protruding slightly.
VERTICAL M UNTING
F R CINEMA™200, 400 & TRI
Wall screws not supplied
Step 1
Position bracket vertically
on wall as shown, then
follow the steps for
horizontal positioning.
OTE: This step is for
positioning only. Screws
will be removed in next
step to allow installation of
additional anchor bolts
H RIZ NTAL M UNTING
F R CINEMA™200, 400 & TRI

12
Remove the two flathead screws ( ot show ). Drill inner pilot holes,
then press anchor bolts firmly into drywall and screw in. Now insert
all four flathead screws and tighten.
WAR I G! All screws must
be inserted straight and fully
tightened to ensure correct
operation of anchor bolts.
Step 3
CINEMA™200 & 400 WIRING
CINEMA™TRI WIRING
Safety strap
attaches here
Safety strap
attaches here

13
3.258"
SPEAKER C NNECTI N
Turn your amplifier OFF before connecting speakers. This will avoid damage
which could result from accidental shorting of speaker cables.
LE GTH DIAMETER GAUGE
Under 4.5 m (15 ft) 1.3 mm (0.05 in) 16 awg
Under 9 m (30 ft) 1.6 mm (0.06 in) 14 awg
Over 9 m (30 ft) 2.0 mm (0.08 in) 12 awg
MI IMUM GAUGE REQUIREME TS
Your speakers are equipped with binding posts that can be used with pin connectors, as well as with
bare wire. Refer to the diagram below and using high-quality speaker cable (see your dealer), connect
one speaker at a time to your receiver/amplifier. Connect the red (+) amplifier terminal to the red (+)
speaker terminal and the black (–) to the black (–) (see next page). Push binding posts to secure.
Turn your amplifier on and listen to your speakers. If you notice a complete lack of mid-bass and a
dislocated image, one or more of your speakers may be connected out-of-phase (their polarity is
reversed). Re-check to ensure that each speaker’s cable is connected with correct polarity: red (+) to
red (+) and black (–) to black (–). Make sure wires are firmly fastened. Push binding posts to secure.
The following chart identifies the minimum gauge requirements for various cable lengths:
Align keyhole slots (see i set) on rear of speaker with protruding screw heads on the bracket, then using
an “in and down” motion mount speaker on bracket.
CINEMA™200, 400 & TRI
WALL M UNTING (C NTINUED)

14
SOLUTIO
PROBLEM
No Sound
from One or
More Speakers
No Sound
Lack of Bass or
Dislocated Image
• Make sure receiver, preamp or amplifier is plugged in and turned on.
Check power outlet at the wall is working.
• Are headphones plugged in, or is the system on Mute?
• Re-check all connections.
• Check your balance control or VC-150 Volume Control (if using).
• Check that all power cords are properly plugged in and functioning
• Swap a non-working speaker with one that works to determine if the
problem is with the speaker or something else (i.e. wiring, amplifier).
• One or more speakers may be connected out of phase (their polarity
is reversed).
• Re-check to ensure that each speaker’s cable is connected with correct
polarity: red (+) to red (+) and black (-) to black (-).
TR UBLESH TING GUIDE
CINEMA™TRI
CINEMA™100, 200 & 400

15
Design
Crossover(s)
High-Frequency Driver(s)
Bass / Midrange Driver(s)
Bass Driver(s)
Low-Frequency Extension*
Frequency Response:
On-Axis
30˚ Off-Axis
Sensitivity – Room / Anechoic
Suitable Amplifier Power Range
Maximum Input Power†
Impedance
Dimensions (h x w x d)
Weight ( npacked)
Finishes
2-driver, 2-way acoustic suspension,
stand-mounted / wall-mounted
2nd-order electro-acoustic
at 1.8 kHz
25-mm (1 in) S-PAL™satin-
anodized pure-aluminum dome,
ferro-fluid damped and cooled
90-mm (3-1/2 in) mineral-filled
polypropylene cone, 25-mm (1 in)
high-temperature voice coil,
oversize ceramic / ferrite magnets
n/a
85 Hz (DIN)
±2 dB from 125 Hz – 20 kHz
±2 dB from 125 Hz – 15 kHz
88 dB / 85 dB
15 – 100 watts
50 watts
Compatible with 8 ohms
21.2 cm x 12.2 cm x 15.7 cm
8-3/8 in x 4-13/16 in x 6-3/16 in
1.8 kg / 4.0 lb per speaker (with stand)
Black Gloss
TECHNICAL SPECIFICATI NS
CI EMA™100 CI EMA™200
3-driver, 2-way LCR, acoustic
suspension, on-wall with option to
sit center speaker on a table or
shelf with supports included
2nd-order electro-acoustic
at 1.8 kHz
25-mm (1 in) S-PAL™satin-
anodized pure-aluminum dome,
ferro-fluid damped and cooled
Two 90-mm (3-1/2 in) mineral-
filled polypropylene cones, 25-mm
(1 in) high-temperature voice coil,
oversize ceramic / ferrite magnets
n/a
80 Hz (DIN)
±2 dB from 120 Hz – 20 kHz
±2 dB from 120 Hz – 15 kHz
90 dB / 87 dB
15 – 150 watts
70 watts
Compatible with 8 ohms
50.5 cm x 16.1 cm x 10.4 cm
19-7/8 in x 6-5/16 in x 4-1/16 in
3.7 kg / 8.3 lb per speaker
Black Gloss

16
Design
Crossover(s)
High-Frequency Driver(s)
Bass / Midrange Driver(s)
Bass Driver(s)
Low-Frequency Extension*
Frequency Response:
On-Axis
30˚ Off-Axis
Sensitivity – Room / Anechoic
Suitable Amplifier Power Range
Maximum Input Power†
Impedance
Dimensions (h x w x d)
Weight ( npacked)
Finishes
5-driver, 2-1/2-way LCR, acoustic
suspension, on-wall with option to
mount center configuration on
table or shelf
2nd-order electro-acoustic at 2.1
kHz; 2nd-order electro-acoustic
at 500 Hz (bass drivers)
25-mm (1 in) S-PAL™satin-
anodized pure-aluminum dome,
ferro-fluid damped and cooled
Two 90-mm (3-1/2 in) mineral-
filled polypropylene cones, 25-mm
(1 in) high- temperature voice coil,
oversize ceramic / ferrite magnets
Two 90-mm (3-1/2 in) mineral-
filled polypropylene cones, 25-mm
(1 in) high- temperature voice coil,
oversize ceramic / ferrite magnets
75 Hz (DIN)
±2 dB from 115 Hz – 20 kHz
±2 dB from 115 Hz – 15 kHz
95 dB / 92 dB
15 – 200 watts
100 watts
Compatible with 8 ohms
67.0 cm x 16.1 cm x 10.4 cm
26-3/8 in x 6-5/16 in x 4-1/16 in
5.8 kg / 12.8 lb per speaker
Black Gloss
CI EMA™400 CI EMA™TRIO
All-in-one left / right / center:
7-driver, 3-channel, 2-way,
acoustic suspension
2nd-order electro-acoustic
at 1.8 kHz
Three 25-mm (1 in) S-PAL™satin-
anodized pure-aluminum domes,
ferro-fluid damped and cooled
Four 90-mm (3-1/2 in) mineral-
filled polypropylene cones, 25-mm
(1 in) high- temperature voice coil,
oversize ceramic / ferrite magnets
n/a
85 Hz (DIN)
±2 dB from 125 Hz – 20 kHz
±2 dB from 125 Hz – 15 kHz
89 dB / 86 dB
15 – 150 watts
70 watts per channel
Compatible with 8 ohms
16.1 cm x 91.5 cm x 10.4 cm
6-5/16 in x 36 in x 4-1/16 in
7.6 kg / 16.8 lb per speaker
Black Gloss
* DIN 45 500 I dicates -3 dB i a typical liste i g room.
† With typical program source, provided the amplifier clips o more tha 10% of the time.

17
LIMITED WARRANTY
Paradigm®speakers covered in this manual are warranted to be and remain free of manufacturing
and/or material defects for a period of five (5) years from the date of original purchase.
Within the time periods specified, repair, replacement or adjustment of parts for manufacturing and/or
material defects will be free of charge to the original owner.
Thermal r Mechanical Abuse/Misuse Is Not Covered Under Warranty.
Limitations:
• Warranty begins on date of original retail purchase from an Authorized Paradigm®Dealer only. It is
not transferable
• Warranty applies to product in normal home use only. If product is subjected to any of the
conditions outlined in the next section, warranty is void
• Warranty does not apply if the product is used in professional or commercial applications
Warranty is Void if:
• The product has been abused (intentionally or accidentally)
• The product has been used in conjunction with unsuitable or faulty equipment
• The product has been subjected to damaging signals, derangement in transport, mechanical
damage or any abnormal conditions
• The product (including cabinet) has been tampered with or damaged by an unauthorized
service facility
• The serial number has been removed or defaced
wner Responsibilities:
• Provide normal/reasonable operating care and maintenance
• Provide or pay for transportation charges for product to service facility
• Provide proof of purchase (your sales receipt given at time of purchase from your Authorized
Paradigm®Dealer must be retained for proof-of-purchase date)
Should servicing be required, contact your nearest Authorized Paradigm®Dealer, Paradigm Electronics
Inc. or Import Distributor (outside the U.S. and Canada) to arrange, bring in or ship prepaid, any defective
unit. Visit our website, www.paradigm.com for more information.
Paradigm Electronics Inc. reserves the right to improve the design of any product without assuming any
obligation to modify any product previously manufactured.
This warranty is in lieu of all other warranties expressed or implied, of merchantability, fitness for any
particular purpose and may not be extended or enlarged by anyone. In no event shall Paradigm
Electronics Inc., their agents or representatives be responsible for any incidental or consequential
damages. Some jurisdictions do not allow limitation of incidental or consequential damages, so this
exclusion may not apply to you.
Retain this manual and our sales receipt for proof of warrant term and proof of purchase.

M DE D’EMPL I
M
C

1
Paradigm NE FOURNI PAS le matériel pour monter les enceintes sur
un mur. Le matériel de montage illustré l’est à titre d’exemple
uniquement; le matériel variera en fonction du type de mur.
Effectuez l’installation dans une cloison sèche de 1/2 po (13 mm) ou de
5/8 po (16 mm) uniquement. Les vis doivent être assez longues pour
traverser les boulons d’ancrage et bien se fixer dans la cloison sèche (voir
le médaillon, page 12).
IMP RTANT : veuillez lire cette section avant de monter les enceintes
sur un mur.
Fixez les enceintes de façon sécuritaire pour ne pas qu’elles tombent
et causent des blessures ou des dommages. Lorsque vous les monter
sur un mur, vous devez utiliser des courroies de sécurité (ci comprises)
dans le manuel.
NON-RESONSABILI É : nous savons que les pièces pour le montage au mur
fournies avec les enceintes Cinema peuvent être utilisées à des fins et de façons
autres que celles pour lesquelles elles sont conçues. Le fabricant,le distributeur, le
revendeur et leurs agents respectifs ne peuvent être tenus responsables de
blessures ou dommages directs, indirects ou consécutifs découlant de l’utilisation
de ces pièces ou de l’incapacité de les utiliser de façon sûre et convenable. ous
les efforts ont été déployés afin de fournir des instructions d’installation exactes
et exemptes d’erreurs. Paradigm Electronics Inc. décline toute responsabilité
concernant des difficultés pouvant découler d’une interprétation incorrecte des
renseignements fournis dans le présent manuel.
Paradigm Electronics Inc. 205 Annagem Blvd., Mississauga, O Canada L5T 2V1 032511
DIRECTIVES EUROPEENNES SUR LE RECYCLAGE ET LE TRAITEMENT DES DECHETS
Dans le respect de la directive WEEE (Waste Electrical & Electronic Equipment) mise en place par les institutions Européennes à compter du 3 Août 2005, nous souhaitons vous informer
que nos enceintes peut contenir des matières devant faire l’objet d’une procédure de recyclage ou de traitement approprié des déchets. Dans cette optique, Paradigm Electronics Inc
(fabricant des enceintes Paradigm et des électroniques Anthem) avec ses Distributeurs agréés dans l’Union Européenne, ont mis en place une procédure de collecte et de retraitement
gratuite. Pour en savoir davantage sur cette procédure veuillez contacter votre revendeur, ou notre Distributeur dans votre pays (vous en obtiendrez les coordonnées sur simple demande
ou en consultant notre site internet www.paradigm.com).
Notez que seul le produit fini est concerné par cette directive et ses obligations. S’agissant de son emballage et de ses accessoires de transport nous vous recommandons de les recycler
selon les procédures mises en place par votre commune ou votre département.
