Paradise Datacom U000-0780 User manual

READ AND SAVE THESE INSTRUCTIONS
Low Voltage LED
Garden Light
Fixture Kit
5007-M41829032000-EN_060613
FOR LANDSCAPE LIGHTING SYSTEMS ONLY. OUTDOOR USE ONLY.
THE DEVICE IS ACCEPTED AS A COMPONENT OF A LANDSCAPE LIGHTING SYSTEM WHERE THE SUITABILITY OF THE COMBINATION SHALL
BE DETERMINED BY CSA OR LOCAL INSPECTION AUTHORITIES HAVING JURISDICTION.
CATALOG # M41829032000
CATALOG # M41829
MODEL # U000-0780
INSTRUCTIONS PERTAINING TO A RISK OF FIRE, OR INJURY TO PERSONS
IMPORTANT SAFETY INSTRUCTIONS
Lighted lamp is HOT!
WARNING - To reduce the risk of FIRE OR INJURY TO PERSONS:
• Do not touch hot lens or the enclosure.
• Keep lamp away from materials that may burn.
• There are no serviceable parts inside the body and it is not recommended to remove the lens cover assembly.
• Do not operate the luminaire fitting with a missing or damaged lens.
• WARNING - Risk of Electric Shock. Install all luminaires 10 feet (3.05 m) or more from a pool, spa or fountain.
• Install in accordance with all local codes and ordinances.
Only for use with low voltage power units with a maximum output rating of 12V, 300W per secondary.
DEAR CUSTOMER,
Congratulations on your purchase of a PARADISE® lighting product. Our products will help to enhance the beauty of your home and provide many
years of enjoyment. PARADISE® offers a wide selection of lighting products of the highest professional quality. Ask your dealer about the many
other PARADISE® products that will help to create your own paradise.
To ensure the maximum performance of your garden light, please read and save these instructions.
Replacement parts may be ordered by using the fixture model number and the part’s name.
CUSTOMER SERVICE
1-888-867-6095 • cust[email protected] • www.paradisegardenlighting.com
x2
Floodlight
6W LED
Landscape wire
18 gauge • 35’
SPT2W AWG18
22W Power packRemote

1. Assembly of the Light Fixture
1.1 Carefully remove the fixture from its protective
packaging.
1.2 Run the wire through the notch in the top of
the spike and attach the spike to the post by
turning clockwise.
1.3 Adjust the fixture’s angle by loosening the
adjustment screw and retightening it.
NOTE: The lens should point up and never
towards the ground.
NOTE: The remote sensor must point up.
Body
Lens Cover
Wire
Adjustment Screw
Remote Sensor
Post
Notch
Spike
2. Run the Landscape Wire (Included)
The landscape wire should run from the transformer to each light without being cut. Do not run
the landscape wire within 10 feet (3m) of a pool, spa or fountain. If the landscape wire is too long,
cut it with a cable cutter.
The landscape wire should be protected by routing it close to proximity of the light fixture or next
to a building, deck or fence.
Maximum amount of fixtures for this kit.
* llustration of xtures is for example only.
Fixtures
Cable
Power Pack
3. Choosing Lighting Fixture Location
For uniform brightness and longer fixture life, attach first fixture at least 10 feet from transformer.
Once you have decided where you will install your fixtures, verify the type of soil.
• If the soil is of a loose, sandy or organic type, grasp the fixture post, close to the spike, with both hands and firmly push into the ground.
• If the soil is heavy or stony, dig a small hole, insert the fixture spike, replace the soil and tap down.
Never push the fixture into the ground by the fixture head. WARNING: When planting the spike, ensure there are no underground utilities or pipes.
5.2 Align and fit the main low
voltage cable vertically to the
slot of wire connector as shown.
5.3 Press the wire connector together until fully
seated and locked around the cable. The pre-
set prongs will pierce the cable insulation and
establish contact. Turn on the power unit. If the
light fixture does not turn on, repeat operations
5.2 and 5.3.
5.4 Once the clip-on connector is in place, wrap
it with electrical tape for additional protection.
5. Connect the Fixture Wire to the Landscape Wire
5.1 Place the wire connector on
opposite sides of the low voltage
cable where the fixture will be
located.
CAUTION
BE CAREFUL!
THE WIRE STABS
ARE VERY
SHARP!
4. Connect the Power Pack and the Wire
4.1 Connect the wire to the power pack.
4.2 Screw the watertight protector by turning clockwise.
4.2 Plug the power pack into the GFCI receptacle.
+ + =
22W6W6W6W
Make sure to position
the wire vertically

The unit must be operated with the provided remote control. If the remote is lost or broken, please call 1 888 867-6095 for a replacement.
6.1 INTENSITY SELECTION
Control the light intensity of the fixture
Turns off the unit and disables all timers.
Dims the intensity of the fixture for a more discrete lighting.
Sets the intensity of the fixture to the maximum light output.
6.2 FIXED COLOR SELECTION
Sets the fixture on the desired color
6.3 COLOR ROAMINGS
Slowly roams from color to color to create an ever changing effect. Our patent pending technology lets you choose the roaming palette of
colors. For best effects, it is recommended to use a palette that is similar to the environment you want to light. See next page for example of
color roaming selection.
6.4 TIMER & AUTO SHUT OFF
5 hour timer and 10 hour timer
1. With fixed color or color roaming activated, press one of
the timer buttons.
2. The fixture will blink to confirm the command has been
received.
3. The fixture will turn off after 5 or 10 hours depending on
which button was pressed.
4. The following day, if the OFF button has not been pressed,
the fixture will turn ON at the same time that it was set
the previous day and then turn off after 5 or 10 hours
depending on which button was initially pressed.
5. To change the starting time, press one of the timer
buttons at the desired start time.
6. To disable the timer, press OFF and then the desired color mode.
8H AUTO SHUT-OFF
1. With the desired color mode press the 8H Auto Shut-Off
button.
2. The fixture will blink to confirm the command has been
received.
3. The fixture will turn off after 8 hours. Unlike the timer
mode, the unit will not turn back on automatically the
next day.
6. Remote Operation
6.3 COLOR ROAMINGS
FULL PALETTE
WHITE YELLOW
RED MAGENTA
GREEN PURPLE
BLUE CYAN
OFF DIM BRIGHT
RED PALETTE
GREEN PALETTE
BLUE PALETTE
6.2 FIXED COLOR
6.4 TIMER FUNCTIONS
8H AUTO SHUT-OFF
10H TIMER
5H TIMER
6.1 INTENSITY SELECTION
Push tab
down using
pin-like tool
1
2
Pousser la
languette à
l’aide de l’outil
en forme
d’aiguille
1
2
REMOTE CONTROL BATTERY REPLACEMENT
1. Push tab down using pin-like tool (not included), while
pulling out battery compartment as shown. (ill.1)
2. Remove used battery and replace with either a new
CR2032 or a CR2025 3V Lithium battery in proper polarity
as indicated. (ill.1)
Clean the battery contacts.
3. Close battery door on the remote control.
Note: If the remote distance is significantly reduced,
replacing the battery should improve the range.
ill.1
Note: Do not expose remote to wet locations

7. Color Roaming Selection
For outstanding visual efects, it is recommended that you select the color roaming that matches the object to be lit. Of course you are not
limited to those options. Bring out the lighting designer in you and experiment light effects to suit your tastes and lifestyle.
FULL PALETTE
COLOR ROAMING
MULTI COLOR ARRANGEMENTS
RED COLOR ARRANGEMENTS
GREEN COLOR ARRANGEMENTS
BLUE COLOR ARRANGEMENTS
COLOR ROAMING IN
RED COLOR FAMILY
COLOR ROAMING IN
GREEN COLOR FAMILY
COLOR ROAMING IN
BLUE COLOR FAMILY
Roaming in red color family cycles
through the different tones of red.
Roaming in green color family
cycles through the different
tones of green.
Roaming in blue color family
cycles through the different
tones of blue.
Flowers
Flowers
Architectural
Element
Bushes
Bricks
Bricks
Leaves
Leaves
Flowers
Bushes
Tr e e
8. Operating Multiple Fixtures
Note: For best results, it is recommended to operate the remote at night.
To control many distant fixtures,
you can press and hold the button
and swipe across all fixtures.
If many fixtures are close to each
other, they will react together. Each fixture can be individually controlled for a truly personnalized
decor.
1
2
3

LIFETIME LIMITED WARRANTY
This product, excluding electronic and/or electrical parts (if applicable), is guaranteed to be free from defects in material and workmanship for life. The fixture’s finish is guaranteed against peeling for two
(2) years. The electronic and electrical parts are guaranteed against defects for one (1) year. Should a defect occur, please contact our customer service line at 1-888-867-6095 or at the following email
address: [email protected]. A proof of purchase (sales receipt) is required. If we cannot replace the defective part you require, you can return your product to the original point of purchase
for a full refund or a replacement product. The consumer is responsible for the removal and reinstallation of the product. Damage to any parts as such by accident, misuse, or improper installation is NOT
covered by this warranty. Our policy does not include liability for incidental or consequential damages. Some states or provinces do not allow the exclusion or limitation of consequential damages; therefore,
the above exclusion may not apply to you. This warranty gives you specific legal rights and you may also have other rights that vary from place to place.
CUSTOMER SERVICE
1-888-867-6095 • cust[email protected] • www.paradisegardenlighting.com
All of the lights
fail to work
• Check that the power is on.
• Check if there is a loose connection
at the transfomer screw terminal.
• Check that the power switch is not in
the OFF setting.
• Change the battery of the remote
12 . Maintenance
• To clean, wash with a damp soft cloth.
• Replacement parts may be ordered by using the fixture
model number and the part’s name.
• The problem here is with the fixture.
• C
heck the connector to make sure the
wire stabs have pierced the landscape wire.
• Clean the remote sensor.
• At close range, point the remote
control at the fixture and press the
W Button.
Only some
lights work
11 . Troubleshooting

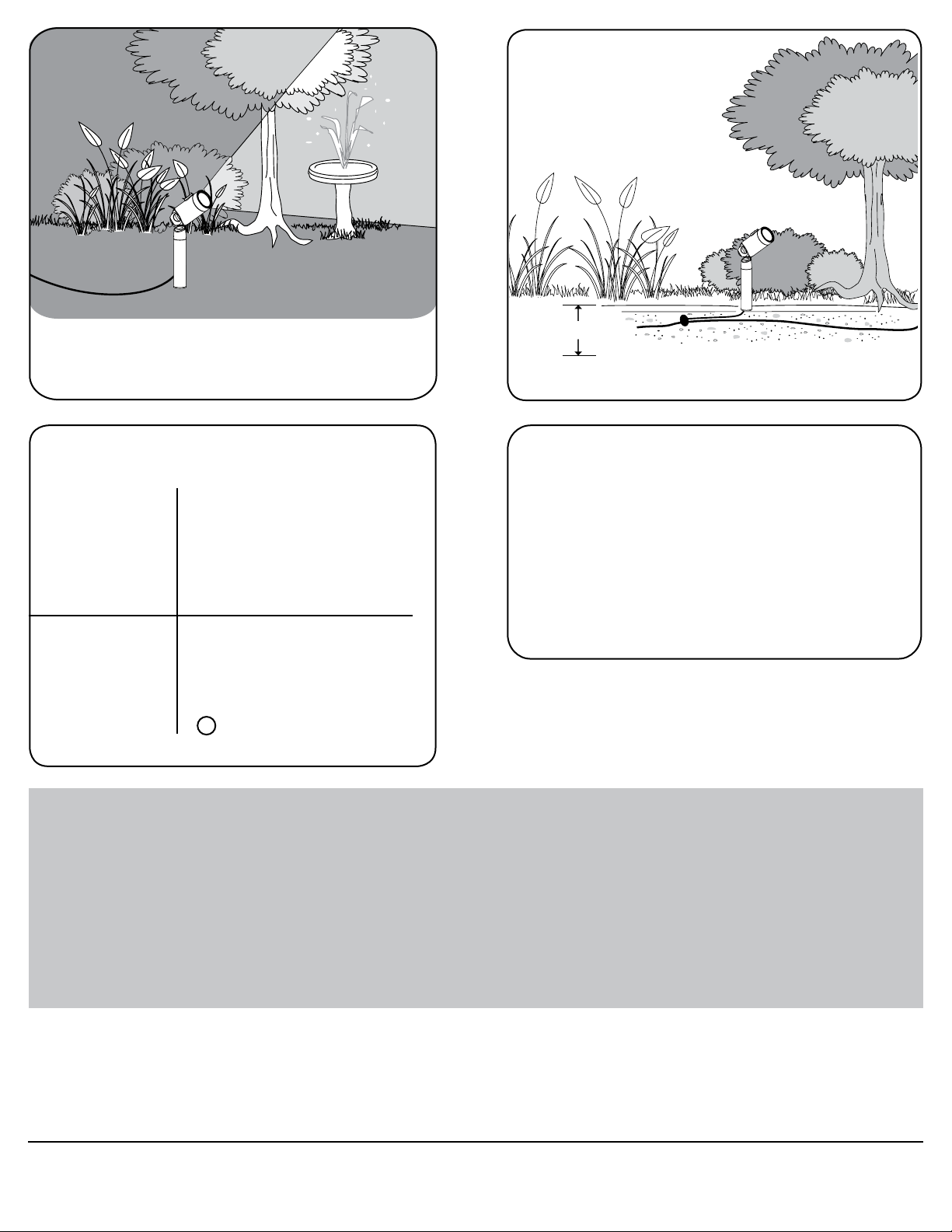

9. Light Adjustment
* llustration of xture is for example only.
It is recommended to adjust your lighting effect at night before
burying the cable.
6 ’’ (15,24cm) max.
* llustration of xture is for example only.
10. Bury the Landscape Wire
You can bury the cable under the soil or concealed under
non-flammable material at a maximum depth of 6” (15,24cm).
Made in China
• Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.”
• NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna
• Increase the separation between the equipment and receiver
• Connect the equipment into an outlet on a circuit differentfrom that to which the receiver is connected
• Consult the dealer or an experienced radio/TV technician for help
