Paradyne Hotwire 8300 User manual

Hotwire®8300 Endpoint
User’s Guide
Document No. 8300-A2-GB20-00
April 2003

AApril 2003 8300-A2-GB20-00
Copyright © 2003 Paradyne Corporation.
All rights reserved.
Printed in U.S.A.
Notice
This publication is protected by federal copyright law. No part of this publication may be copied or distributed,
transmitted, transcribed, stored in a retrieval system, or translated into any human or computer language in any form or
by any means, electronic, mechanical, magnetic, manual or otherwise, or disclosed to third parties without the express
written permission of Paradyne Corporation, 8545 126th Ave. N., Largo, FL 33773.
Paradyne Corporation makes no representation or warranties with respect to the contents hereof and specifically
disclaims any implied warranties of merchantability or fitness for a particular purpose. Further, Paradyne Corporation
reserves the right to revise this publication and to make changes from time to time in the contents hereof without
obligation of Paradyne Corporation to notify any person of such revision or changes.
Changes and enhancements to the product and to the information herein will be documented and issued as a new
release to this manual.
Warranty, Sales, Service, and Training Information
Contact your local sales representative, service representative, or distributor directly for any help needed. For
additional information concerning warranty, sales, service, repair, installation, documentation, training, distributor
locations, or Paradyne worldwide office locations, use one of the following methods:
 Internet: Visit the Paradyne World Wide Web site at www.paradyne.com. (Be sure to register your warranty at
www.paradyne.com/warranty.)
 Telephone: Call our automated system to receive current information by fax or to speak with a company
representative.
— Within the U.S.A., call 1-800-870-2221
— Outside the U.S.A., call 1-727-530-2340
Document Feedback
We welcome your comments and suggestions about this document. Please mail them to Technical Publications,
Paradyne Corporation, 8545 126th Ave. N., Largo, FL 33773, or send e-mail to [e-mail]. Include the
number and title of this document in your correspondence. Please include your name and phone number if you are
willing to provide additional clarification.
Trademarks
ACCULINK, COMSPHERE, EtherLoop, FrameSaver, Hotwire, MVL, NextEDGE, OpenLane, Performance Wizard,
TruePut, and the Paradyne logo are registered trademarks of Paradyne Corporation. BitStorm, GrandVIEW,
GranDSLAM, Hotwire Connected, ReachDSL, StormPort, and StormTracker are trademarks of Paradyne Corporation.
All other products and services mentioned herein are the trademarks, service marks, registered trademarks, or
registered service marks of their respective owners.
CE Marking
When the product is marked with the CE mark on the equipment label, a supporting Declaration of Conformity may be
downloaded from the Paradyne World Wide Web site at www.paradyne.com. Select Library → Technical Manuals →
CE Declarations of Conformity.

8300-A2-GB20-00 April 2003 i
Contents
About This Guide
 Document Purpose and Intended Audience . . . . . . . . . . . . . . . . . . . . v
 Document Summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . v
 Product-Related Documents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . vi
 Typographic Conventions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . vi
1 About the Hotwire 8300 Endpoint
 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1
 Features of the 8300 Endpoint. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3
Performance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3
SNMP Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3
Intelligent WAN Access Architecture . . . . . . . . . . . . . . . . . . . . . . . 1-3
 Overview and Advantages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3
 Features Summary. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4

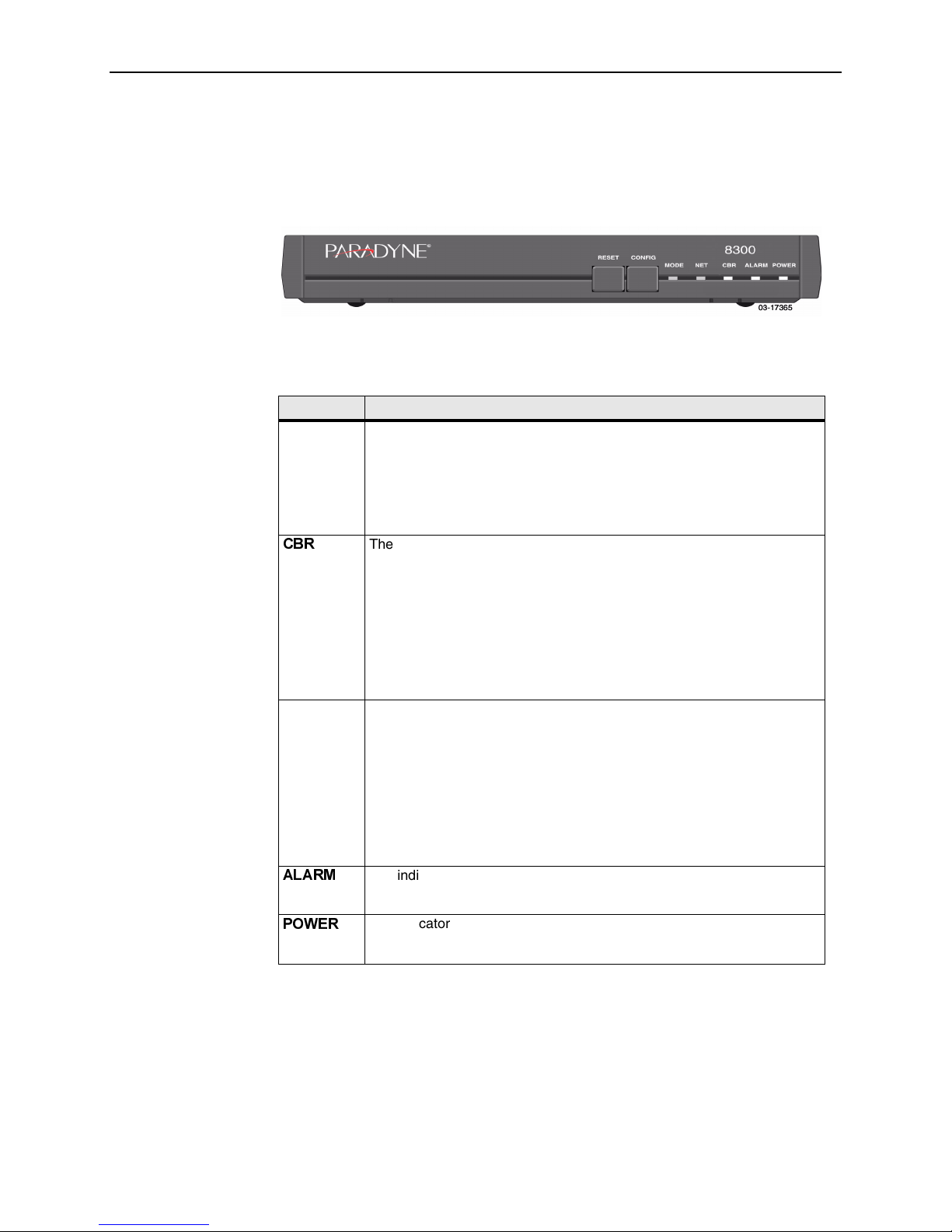

 Front Panel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6
 Rear Panel Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-8
Power Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-8
Supervisory Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-9
10/100 Ethernet Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-9
Serial Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-9
CBR Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-10
Network Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-10
2 Web Server Interface
 Web Server Access . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2
Layout of Interface Screens. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2
 Unit Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3
Maintenance Reset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4
Save and Restart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-5

Contents
ii April 2003 8300-A2-GB20-00
 Interfaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-5
Network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-6
CBR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-14
Serial . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-19
10/100 Ethernet (IP Service Details) . . . . . . . . . . . . . . . . . . . . . . . 2-22
Supervisory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-24
 Services . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-25
Service Details Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-26
IP Service Details Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-27
ATM Service Details Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-27
CES Service Details Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-34
HDLC/PPP Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-42
 Applications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-43
Service Aware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-43
SNMP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-46
Trap Log . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-47
Top Talkers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-48
IP Gateway . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-49
Originate Ping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-64
Network Address Translation (NAT) . . . . . . . . . . . . . . . . . . . . . . . 2-65
Dynamic Host Configuration Protocol (DHCP) . . . . . . . . . . . . . . . 2-71
Bridge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-76
Simple Mail Transfer Protocol (SMTP) . . . . . . . . . . . . . . . . . . . . . 2-79
 Utilities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-81
Upload/Save . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-81
Password . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-82
Log Out . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-83
3VT100Interface
 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1
Screen Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1
Cursor Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2
Field Types . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2
Menu Structure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3
 System Screen. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4
Maintenance Reset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-5
Save and Restart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-6

Contents
8300-A2-GB20-00 April 2003 iii
 Interfaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-6
Network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-7
CBR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-17
Serial . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-22
10/100 Ethernet (IP Details) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-26
Supervisory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-27
 Services . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-29
Service Details Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-29
IP Service Details Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-30
ATM Service Details Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-30
CES Service Details Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-37
HDLC/PPP Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-43
 Applications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-44
Service Aware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-44
Trap Log . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-47
IP Gateway . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-48
Network Address Translation (NAT) . . . . . . . . . . . . . . . . . . . . . . . 3-62
Bridge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-68
TFTP Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-72
SNMP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-73
Top Talkers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-74
Originate Ping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-75
Dynamic Host Configuration Protocol (DHCP) . . . . . . . . . . . . . . . 3-76
Simple Mail Transfer Protocol (SMTP) . . . . . . . . . . . . . . . . . . . . . 3-81
A Specifications
 Network Interface - SHDSL Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-1
 CBR Interface. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-1
E1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-2
T1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-2
 Serial Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-2
 IP Gateway. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-2
10/100 Ethernet (IP Gateway or Management) . . . . . . . . . . . . . . . A-2
 Management Interfaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-3
Embedded Operations Channel . . . . . . . . . . . . . . . . . . . . . . . . . . A-3
10/100 Ethernet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-3
Supervisory Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-3
 Diagnostics. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-3
 Alarms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-3

Contents
iv April 2003 8300-A2-GB20-00
 Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-3
 Mechanical . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-3
 Environmental . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-4
 Industry Listings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-4
Standards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-5
 Ordering Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-5
Standard Equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-5
Optional Equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-6
 Connector Pin Assignments. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-7
Serial Interface Pin Assignments, DTE Mode (Packet Use Only) . A-7
Serial Interface Pin Assignments, DCE Mode . . . . . . . . . . . . . . . A-8
Ethernet Connection Pin Assignments . . . . . . . . . . . . . . . . . . . . . A-9
Network Interface Pin Assignments. . . . . . . . . . . . . . . . . . . . . . . . A-9
CBR Interface Pin Assignments . . . . . . . . . . . . . . . . . . . . . . . . . . A-9
Supervisory Port Pin Assignments . . . . . . . . . . . . . . . . . . . . . . . . A-10
B SNMP Agent
 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-1
 SNMP Configuration Parameters. . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-1
 SNMP MIBs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-2
 SNMP Trap Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-3
 Generic MIB Loading Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-3
Index

8300-A2-GB20-00 April 2003 v
About This Guide
Document Purpose and Intended Audience
This guide describes the features, configuration, and use of the
Hotwire®8300 Endpoint. It is intended for installers and operators of the product.
Installation instructions for the 8300 Endpoint can be found in the
Hotwire 8300
Endpoint Installation Instructions
(document number 8300-A2-GN10).
Document Summary
A master glossary of terms and acronyms used in Paradyne documents is
available online at www.paradyne.com. Select
Support → Technical Manuals →
Technical Glossary
.
Section Description
Chapter 1, About the Hotwire
8300 Endpoint
Introduces the features of the 8300 Endpoint, and
describes the LEDs, switches, and ports.
Chapter 2, Web Server
Interface
Describes how to manage the device using the web
server interface.
Chapter 3,
VT100 Interface Describes how to manage the device using the VT100
interface.
Appendix A, Specifications Lists the specifications of the Hotwire 8300 Endpoint,
including pin assignments for the ports.
Appendix B,
SNMP Agent Describes how to manage the device using its SNMP
agent.
Index Lists key terms, concepts, and sections in alphabetical
order.

About This Guide
vi April 2003 8300-A2-GB20-00
Product-Related Documents
Complete documentation for this product is available online at
www.paradyne.com. Select
Support → Technical Manuals → Hotwire DSL
Systems
.
To order a paper copy of a Paradyne document, or to speak with a sales
representative, please call 1-727-530-2000.
Typographic Conventions
The following table lists the graphic conventions used throughout this guide.
Document Number Document Title
8300-A2-GN10 Hotwire 8300 Endpoint Installation Instructions
8335-A2-GB20 Hotwire ATM Line Cards, Models 8335, 8355, 8365, and
8385, User's Guide
Convention Description
A Notice calls attentions to important features or instructions.
A Caution alerts you to serious risk of data loss or other
results that may cause you or the unit trouble if the warning is
not heeded.
A Warning alerts you to the risk of serious damage to the unit
or injury and possible death to the end user.

8300-A2-GB20-00 April 2003 1-1
1
About the Hotwire 8300 Endpoint
Introduction
The Hotwire®8300 Endpoint is a feature-rich, intelligent integrated access device
(IAD) that manages voice and data applications in an ATM network. The
8300 Endpoint terminates a standards-based Symmetric High-Bit Rate Digital
Subscriber Line (SHDSL) that originates from a Digital Subscriber Line Access
Multiplexer (DSLAM) and provides interfaces for the end user’s communications
equipment.
The 8300 Endpoint is a service-aware IAD with the following hardware:
 SHDSL network interface
 Constant Bit Rate (CBR) port configurable as T1 or E1
 Serial port software-configurable for V.35, V.36, X.21, RS-232, RS-449, or
EIA-530
 10/100Base-T Ethernet port
 Asynchronous Supervisory port
 Five tri-color status LEDs
 Front panel reset and factory configuration buttons
The Circuit Emulation Service (CES) support provides for the encapsulation of
TDM traffic from end-user equipment into ATM cells for transport across the WAN
to the DSLAM and on to the ATM network. This allows for the continued use of
existing TDM equipment at the customer premises while the ATM network
continues to grow and move further out to the edge. This unit supports CES over
the CBR port and the Serial port.
A router or bridge using PPP/HDLC protocols connects to the 8300 Endpoint’s
Serial port. The unit encapsulates the PPP data into ATM cells using Internet
Engineering Task Force (IETF) RFC 1483. Any router/bridge supporting PPP over
AT M (P P Po A ) RFC 1483 encapsulation can be used at the other end of this ATM
connection.
The IP Gateway feature enables IP packet routing throughout a LAN/WAN
network architecture using static routing configuration or dynamic routing protocols
RIP (Routing Information Protocol) 1 and RIP 2, or OSPF (Open Shortest Path
First), Dynamic Host Communications Protocol
( DHCP), and Network Address
Translation (NAT).

1. About the Hotwire 8300 Endpoint
1-2 April 2003 8300-A2-GB20-00
RIP 1 and RIP 2 allow routers to exchange routing information. The 8300 Endpoint
then uses this information exchange to build routing tables for IP Packet routes.
After building the routing tables, the unit periodically broadcasts the contents to
neighboring routers so your network can choose the most efficient routes
available.
OSPF uses link-state routing algorithms to calculate routes based on the number
of routers, transmission speeds, delays, and route costs. Using the OSPF
protocol, the 8300 Endpoint works with other routers in your telecommunications
fabric to dynamically change routes on the fly to make use of the most efficient and
cost-effective transit across your network.
Bridging separate LANs together is another option for the IP traffic. Using the IEEE
Standard 802.1D Transparent Bridging specification, the 8300 Endpoint can
simplify your network architecture by allowing you to bridge separate LANs across
a WAN so they operate as a single LAN.
Because IP Gateway enables the 8300 Endpoint to route IP traffic either statically
or dynamically or to bridge IP traffic across your LAN/WAN architecture, your need
for costly routers is substantially reduced. This one-stop solution can help you
meet the requirements of your many different applications.
DHCP uses a server-client architecture to assign IP Addresses to PCs and
workstations on the LAN. The DHCP server dynamically assigns these IP
Addresses, which can be either temporary or permanent, to each PC or
workstation (DHCP client). These IP Addresses are housed on the DHCP server.
The flexibility to reassign IP Addresses saves the end user money by eliminating
the need for a single IP Address for each piece of equipment on the LAN.
NAT enables an enterprise to set up two sets of IP Addresses: one set for internal
network use (or LAN traffic) and one set for external use (or Internet traffic). This
can provide a layer of security for a company by eliminating outside access to
internal IP Addresses from the Internet.
The 8300 Endpoint gives service providers and enterprise customers the
capability to monitor end-to-end network performance (with support of up to 16
virtual channels); isolate performance problems to the LAN, local loop, or ATM
network; determine appropriate bandwidth needs; and monitor network trends to
aid in future capacity planning.
All of the 8300 Endpoint’s installation, performance configuration, traffic
monitoring, alarm reporting, and diagnostic capabilities can be configured through
the unit’s embedded web server interface using Microsoft®Internet Explorer™.
The web server interface can be accessed locally through the Ethernet port or the
Supervisory port, or remotely through the Network port. Especially advantageous
is the unit’s advanced monitoring and control capability that gives network
administrators the ability to plan future capacity requirements.
The unit’s built-in Service Aware technologylets network managers maximize
available WAN bandwidth and verify SLAs. This management platform lets the
end user see network activity and problems on any permanent virtual circuit
(PVC), access line, or physical circuit.

1. About the Hotwire 8300 Endpoint
8300-A2-GB20-00 April 2003 1-3
Features of the 8300 Endpoint
Performance
Historically, WAN access devices have tended to perform well as single-function
devices such as CSU/DSUs, but have not been optimized to address higher-level
traffic issues such as service levels and integration. The 8300 Endpoint’s
architecture and web-based user interface work together to address all access
issues such as services and applications, rather than as circuits and protocols, for
exceptional WAN management performance.
The 8300 Endpoint also allows firmware to be upgraded via the web from a
standard browser, with password control if desired.
SNMP Management
With integrated SNMP in-band management, enterprise managers can now
manage 8300 Endpoints and their integral CSU/DSUs as a single unit. With only
one LAN segment in the network, the 8300 Endpoint can be managed by SNMP.
By downloading all configuration parameters from the central site, no interaction is
required at remote sites to establish connectivity. The unit allows any port to be
configured for any of its available service technologies through simple software
configuration. Network managers can now fine tune the enterprise network for the
lowest cost and highest performance.
Intelligent WAN Access Architecture
The 8300 Endpoint’s WAN access architecture is built around a PowerPC™
processor with 50 MIPS of processing power and 16 Mbytes of onboard memory,
and works with non-proprietary network management solutions via SNMP. An
embedded web server supplies a simple-to-use interface for configuration and
statistics collection, with a service table for mapping services to ports and a user
table for monitoring and controlling traffic.
Overview and Advantages
The 8300 Endpoint is an innovative, highly intelligent, software-based WAN
access device optimized for ATM over G.shdsl access. This unit provides network
managers with all the tools necessary to monitor and troubleshoot voice, data, and
network transmission systems. The ability to use the 8300 Endpoint as an IP
Gateway greatly increases its flexibility, while reducing networking costs. In
addition, the 8300 Endpoint is a valuable tool for the following:
 Measuring and reporting performance
 Managing network resources to ensure optimum performance
 Analyzing trends to aid in network planning
8300 Endpoint advantages include the following:
 Uses the international standard G.shdsl.

1. About the Hotwire 8300 Endpoint
1-4 April 2003 8300-A2-GB20-00
 Allows for continued use of existing TDM equipment by supporting CES via
AAL1.
 Reduces the need for costly routers with its IP Gateway feature.
 Offers easy installation and configuration, reducing maintenance and
sparing costs.
 Controls recurring ATM access costs by optimizing the use of valuable
bandwidth.
 Allows for use of existing routers without changing the external router’s
configuration by running PPP over an ATM network.
Features Summary
 Powerful core architecture
— SHDSL network port for symmetrical data rates ranging from 192 kbps
to 2.312 Mbps
— T1 or E1 circuit emulation
— 10/100Base-T Ethernet port and asynchronous Supervisory port
— Serial data port, user-selectable V.35, V.36, RS-232, or EIA-530
— Intuitive web browser for management
 CES
— Constant Bit Rate (CBR) port configurable for T1 or E1 supporting the
following modes:
—UnframedT1
− 1.544 Mbps raw bit stream
—T1ESF
—T1D4
— Unframed E1 (G.703) framing
− 2.048 Mbps raw bit stream
— E1 CCS framing
— E1 CAS framing
— AAL1 ATM encapsulation
— Structured Nx64 basic service supporting full or partial T1/E1
circuits
— Structured Nx64 service with Channel Associated Signaling (CAS)
supporting E1 CAS signaling, T1 robbed-bit signaling, and full or
partial T1/E1 circuits with signaling
— Unstructured service (2.048 Mbps E1 or 1.544 Mbps T1)
— Configurable for synchronous or adaptive timing
— User configurable Cell Delay Variation
— User configurable partial cell fill

1. About the Hotwire 8300 Endpoint
8300-A2-GB20-00 April 2003 1-5
— User configurable scrambling/descrambling of ATM cell Payload using
an x43+1 polynomial
— User configurable time slot multiplexing between the CBR port and the
Serial port
— For Nx64 basic and CAS services, the user can individually
configure the CES channels for the CBR port or for the Serial port
— For Unstructured E1 service, the user can configure all channels for
either the CBR port or the Serial port
 IP Gateway
— 10/100BaseT Ethernet port
—Staticroutes
— Static Address Resolution Protocol (ARP)
— Dynamic routing protocols, including RIP 1, RIP 2, and OSPF
— Unnumbered network
— Address Management: NAT and DHCP
— Bridging
— Programmable alarm thresholds
—IPoA
 Serial Port Configurable for PPP or CES
— Supports V.35, V.36, EIA-530, or RS-232
—PPPoA
 Management Interfaces
— An innovative web-based user interface
— Embedded HTTP server for remote configuration and real-time
reporting via web browser
— Decreased installation and configuration time for service employees
— Simplified troubleshooting and fault isolation of network problems
— Optimal management of ATM-based services
— Saves and downloads configuration files from remote server
— EOC for SHDSL-related parameters
—SNMP
—VT100

1. About the Hotwire 8300 Endpoint
1-6 April 2003 8300-A2-GB20-00
Front Panel
The front panel of the 8300 Endpoint is shown below in Figure 1-1.
Figure 1-1. Front Panel of 8300 Endpoint
The front panel’s five LED status indicators are described below:
Indicator Description
MODE Normally, this indicator lights green .
The indicator lights amber while configuration is being set by the front
panel buttons or when the configuration is changed by SNMP or through
the web interface. The indicator will remain amber until the changed
configuration is saved; it will revert to green when the new configuration
has been saved.
CBR
The indicator is off (not illuminated) when the CBR port has not been
configured.
The indicator lights green when the CBR port link is up and is receiving
AAL1 cells.
The indicator lights red when the CBR port has been configured and no
AAL1 cells are received.
The indicator lights amber when the CBR port link is up but AAL1 cells
are not being received.
NET The indicator is off (not illuminated) when the Network port has not been
configured.
The indicator lights
green when the Network port link is up and the ATM
protocol is established.
The indicator lights red when the Network port link is down and the ATM
protocol is not established.
The indicator lights amber when the Network port link is up, but the ATM
protocol is not established.
ALARM
The indicator lights red if an alarm condition exists.
The indicator lights
amber if a yellow alarm condition exists.
POWER
The indicator lights green when power is applied to the unit.
The indicator lights amber when the unit is in a test mode loopback.

1. About the Hotwire 8300 Endpoint
8300-A2-GB20-00 April 2003 1-7
The user-activated input control buttons are described below:
Button Description
RESET Provides a hardware reset to the unit.
CONFIG Sets the unit back to its factory default Ethernet or HDLC configuration;
this is the same as a maintenance reset.
To initiate this function, you must press and hold the CONFIG button
during a power-up sequence. The CONFIG button must be held until the
MODE LED lights amber and remains illuminated for the default
configuration to take effect.

1. About the Hotwire 8300 Endpoint
1-8 April 2003 8300-A2-GB20-00
Rear Panel Connections
The rear panel of the 8300 Endpoint has five connectors. From left to right, these
are as follows:
POWER , SUPERVISORY PORT , 10/100 ETHERNET , SERIAL , CBR ,
and NETWORK as shown in Figure 1-2. below.
Figure 1-2. 8300 Endpoint Rear Panel
Power Port
The POWER port on the 8300 Endpoint is a standard, grounded, three-prong
connector. To apply power to the unit, simply plug the supplied power cord into the
unit’s
POWER port and then connect the wall plug to an appropriate electrical
outlet. The unit has no power switch.
When power is applied to any 8300 Endpoint, the front panel indicators flash for
approximately 10 to 15 seconds as the unit initializes. The green
POWER LED on
the front panel will remain illuminated as long as the unit receives power. This LED
turns amber when the unit is in test mode.
CAUTION: Always connect the power cord to a grounded electrical outlet.
NOTICE: Per UL 1950 and CSA 60950 Clause 1.7.2, if the power supply
cord is intended to serve as a disconnect device, an easily
accessible socket must be installed near the equipment.
Power Failure
If the indicator does not illuminate, check the power connections and the primary
circuit breaker.
The 8300 Endpoints provide nonvolatile memory retention of the unit configuration
in case of a power failure. The unit will automatically restore normal service
following a power loss and will retain pre-existing time and date information.

1. About the Hotwire 8300 Endpoint
8300-A2-GB20-00 April 2003 1-9
Supervisory Port
The SUPERVISORY port is a DB-9 female DCE connector configured for 8 bits, no
parity, and 1 stop bit. Bit rates are configured through the web server interface.
(See
Unit Access Details on page 2-24.) The Supervisory port speed can be set to
1200, 2400, 4800, 9600, 19200, 38400, 57600, or 115200 bps. The initial default
rate of the Supervisory port is 19200 bps.
On power-up, the Supervisory port sends out diagnostic messages at the bit rate
of 115.2 kbps until the Supervisory service acquires the Supervisory port, after
which the port speed is changed to the setting in the Supervisory interface screen.
NOTICE: For information on pinout assignments for this connector, refer to
Supervisory Port Pin Assignments in Appendix A, Specifications .
See
Standard Equipment in Appendix A, Specifications , for
information on cables for this connector.
10/100 Ethernet Port
The 8300 Endpoint provides a single 10/100 ETHERNET interface port for IP
Gateway, SNMP, and web browser access. This interface is an eight-pin modular
jack that complies with standard twisted-pair, 10/100Base-T requirements. The
10/100Base-T cable is supplied by the end user. Refer to
Ethernet Connection Pin
Assignments
in Appendix A, Specifications for pin assignments and cable
descriptions.
Ethernet LED Indicators
There are two unlabeled indicator LEDs on either side of the 10/100 Ethernet jack.
The LED on the left side of the jack pulses amber to indicate data activity (either
transmit or receive). The LED on the right side of the jack lights green to indicate
that the link layer is operational.
Serial Port
The SERIAL interface port located on the 8300 Endpoint rear panel is a
multi-protocol interface presented physically as a DB-25 connection. The protocols
supported by this interface are RS-232, V.35, V.36, EIA-530, X.21, and RS-449.
Cables that adapt the DB-25 interface to the 34-pin V.35 interface are available.
DB-25 to DB-25 cables are also available if your installation needs require them.
See
Standard Equipment in Appendix A, Specifications for details. Pin
assignments for the Serial interface are listed in
Serial Interface Pin Assignments,
DTE Mode (Packet Use Only)
and Serial Interface Pin Assignments, DCE Mode in
Appendix A,
Specifications .
CAUTION: FCC rules require that interconnecting cables carrying high-speed
data be shielded appropriately to minimize radio frequency
interference.

1. About the Hotwire 8300 Endpoint
1-10 April 2003 8300-A2-GB20-00
CBR Port
The CBR interface port located on the 8300 Endpoint rear panel is an RJ-48C,
eight-pin modular jack that can be software-selectable for T1 or E1. As a T1 port,
it terminates as 100 ohms, and as an E1 port at 120 ohms. This port is used to
transport TDM traffic using a T1/E1 framer to provide ATM adaptation Layer 1 with
Circuit Emulation Services (AAL1-CES).
NOTICE: This port must not be connected to outside building wiring. Connect it
only to T1 or E1 equipment within the building.
To view the pinout assignments for this interface, refer to
CBR Interface Pin
Assignments
in Appendix A, Specifications .
Network Port
The 8300 Endpoint has one rear panel NETWORK interface port. This connection
is a standard RJ-48C, eight-pin modular jack that terminates as 135 ohms.
To view the pinout assignments for this interface, refer to
Network Interface Pin
Assignments
in Appendix A, Specifications .

8300-A2-GB20-00 April 2003 2-1
2
Web Server Interface
The 8300 Endpoint has an innovative, embedded web-based user interface for
remote configuration and real-time reporting via Microsoft Internet Explorer 5.0 or
higher. Access to the web server interface and how the interface is used to
configure the 8300 Endpoint are described in detail below.
NOTICE: Use of Microsoft’s Internet Explorer 5.0 or higher is recommended.
If you use other Internet browsers to access the web server
interface, some screen elements will not be displayed as described
in this manual.
NOTICE: The material presented in this chapter follows the order listed in the
navigation bar on the left side of the Web Server interface screen.
However, because the parameters you specify in the Service Table
attach protocols to interfaces, you must configure the Service Table
first. (See
Services on page 2-25.) You will not be able to allocate
channels (see
Channel Table Details Screen on page 2-38) until the
Service Table has been configured.
Configuration through the VT100 interface is covered in Chapter 3,
VT100
Interface
.

2. Web Server Interface
2-2 April 2003 8300-A2-GB20-00
Web Server Access
You can access the Web Server interface by connecting to its IP address. This
connection can be directly through the 10/100 Ethernet port, in-band via PPP over
any port, or in-band via encapsulated IP traffic on the ATM WAN circuit.
NOTICE: Any changes to the unit’s configuration MUST be followed by a
Submit if there is a Submit button on the menu. If you change the
Service Table, you must perform a Save and Restart.
To access the Web Server interface, type the unit’s IP address in the browser’s
Address (or Location) field and press the Enter key.
Layout of Interface Screens
When you first access the Web Server interface, your browser will display a
screen that is divided into three frames. The upper frame forms a border across
the top of the screen; it identifies the unit in service and displays the hardware and
software revision and serial numbers under which the unit is operating. The far
right corner of the upper frame displays whether or not a Save and Restart is
necessary when parameters are changed on the currently displayed screen.
The area beneath the upper frame is divided into two side-by-side frames. The
frame on the left side of this area depicts a hierarchical tree structure used to
navigate through the various interface screens. Each branch on the tree guides
you to more specific upper-level information about the unit and its configuration.
Note that the Interfaces, Applications, and Utilities branches do not link to a page;
these branches simply provide structure for navigation. The frame on the right side
of the screen displays the actual configuration screen. The screen images
throughout this chapter show only the configuration portion of the screen, except
in the case of the Unit screen, which shows the left and right frames. The Unit
screen represents the top of the navigation tree.
