Paradyne Hotwire 6341 User manual

1
Hotwirer6341/6342 Symmetric DSL Routers
Installation Instructions
Document Number 6341-A2-GN10-00
February 2000
Contents
Hotwire 6341/6342 SDSL Routers Overview 2. . . . . . . . . . . . . . . . . . . . . . . . . .
Wiring and Cables Needed 3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installing the DSL Access Wiring 4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Connecting to the DSL Access Wiring 6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installing the Hotwire 6341/6342 SDSL Router 7. . . . . . . . . . . . . . . . . . . . . . . .
Troubleshooting 12. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cables & Connectors 14. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Important Safety Instructions 19. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Product Documentation on the World Wide Web
We provide complete product documentation online. This lets you search the
documentation for specific topics and print only what you need, reducing the waste of
surplus printing. It also helps us maintain competitive prices for our products.
Complete documentation for this product is available at www.paradyne.com.
Select Library →Technical Manuals →Hotwire DSL and MVL Systems.
Select the following document:
6371-A2-GB20
Hotwire DSL Routers User’s Guide
To request a paper copy of a Paradyne document:
HWithin the U.S.A., call 1-800-PARADYNE (1-800-727-2396)
HOutside the U.S.A., call 1-727-530-8623
Product-Related Documents
Document Number Document Title
8000-A2-GB26 Hotwire MVL, RADSL, and Packet SDSL Cards, Models
8310/8312, 8510/8373/8374, and 8343/8344, User’s Guide
8000-A2-GB27 Hotwire Network Design Guide: Bridged Model

2
Hotwire 6341/6342 SDSL Router Overview
The Hotwirer6341 and 6342 Symmetric DSL Routers are components in the Hotwire
DSLAM (Digital Subscriber Line Access Multiplexer) system. Both Hotwire SDSL
Routers interoperate with either the Hotwire 8343 or 8344 Packet SDSL Card:
HHotwire 6341 SDSL Router with one Ethernet port
HHotwire 6342 SDSL Router with a four-port Ethernet hub
Both the Hotwire 6341 and the Hotwire 6342 SDSL Routers operate as an IP router
connecting a DSL link to an Ethernet network. The Hotwire SDSL packet-based system
provides high-speed Internet or corporate LAN access over traditional twisted-pair
copper telephone wiring. These products are configurable from 144 kbps up to
2.3 Mbps.
Copper pairs run from the central office to the customer premises to create the local
loop. The local loop terminates on the customer premises at the demarcation point in a
punchdown block or network interface device (NID).

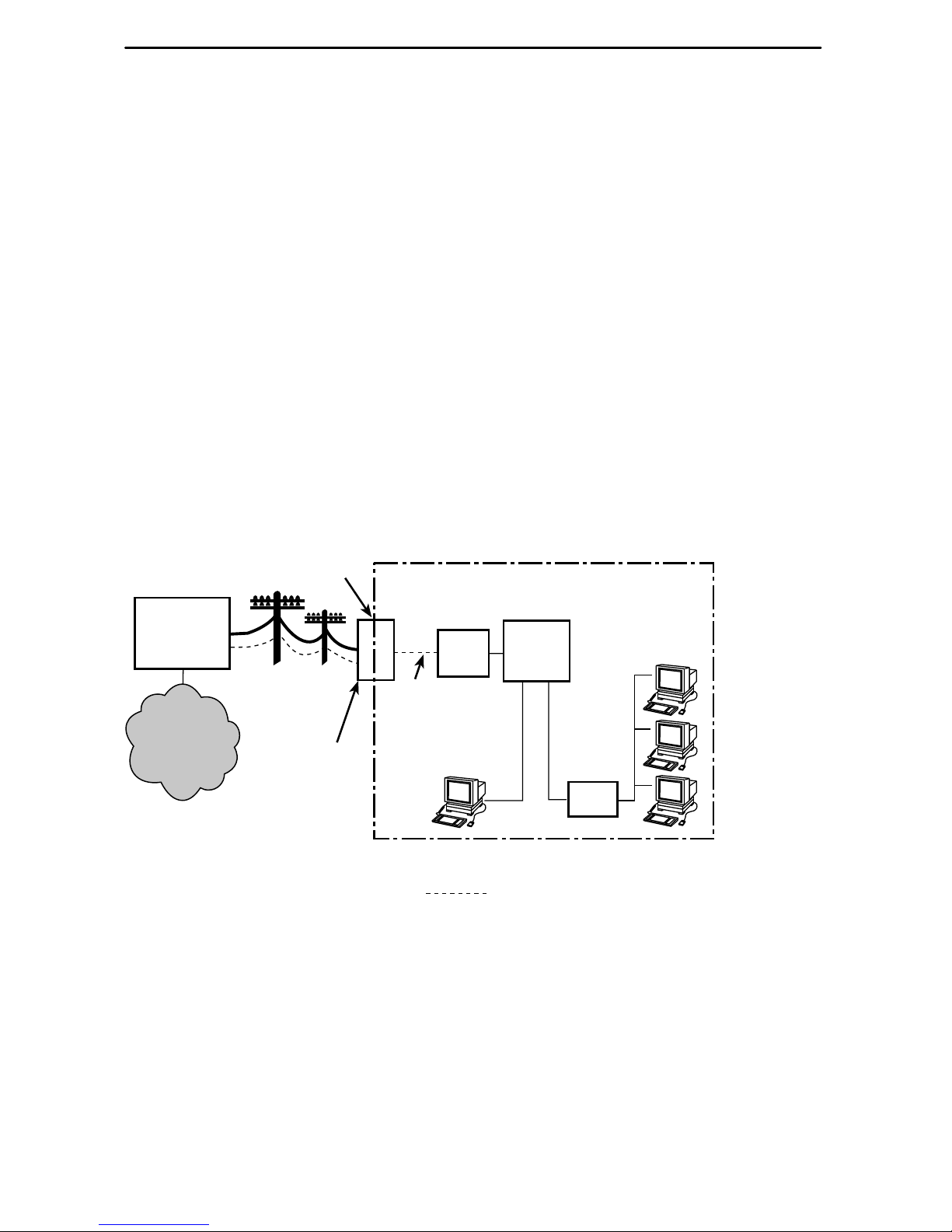

Network Overview with a Hotwire 6341 SDSL Router
99-16588
Punchdown
Block or NID
DSL
Jack 6341
SDSL
Router
Customer Premises (CP)
DSL Ethernet
Crossover
Cable Ethernet
Cable
or
Central
Office
(CO)
Demarcation
Point
Local Loop
Hub
End-user
Systems
DSL – Digital Subscriber Line New Wiring Connections
NID – Network Interface Device
Service
Provider

3
Network Overview with a Hotwire 6342 SDSL Router
99-16639
Punchdown
Block or NID
DSL
Jack 6342
SDSL
Router
Customer Premises (CP)
DSL
Ethernet
Crossover
Cable
Ethernet Straight
Through Cables
Central
Office
(CO)
Demarcation
Point
Local Loop
Hub
End-user
Systems
DSL –Digital Subscriber Line New Wiring Connections
NID –Network Interface Device
Service
Provider
NOTE:
For Ethernet cabling details, refer to Installing the Hotwire 6341/6342 SDSL Router
on page 7.
Package Checklist
Verify that your package contains the following:
-Model 6341 or Model 6342 SDSL Router
-DSL interface cable with RJ11 modular plugs
-Power cord with power transformer
Wiring and Cables Needed
You will need the following wiring and standard connectors with this product:
-Standard RJ11 wall jack for the DSL cabling.
-DSL cabling: New or existing unshielded twisted-pair wiring (CAT3 or better). The
CAT3 wiring must meet EIA/TIA-568 specifications with 24 AWG (.5 mm) or
26 AWG (.4 mm).
-Ethernet cabling: New or existing shielded twisted-pair wiring (CAT5 or better). The
CAT5 wiring must meet EIA/TIA-568 specifications with 24 AWG (.5 mm) or
26 AWG (.4 mm). A straight-through or crossover Ethernet cable is used.
Refer to Installing the Hotwire 6341/6342 SDSL Router on page 7 for cabling details.

4
Optional Cable
The Hotwire 6341/6342 SDSL Routers are typically configured remotely by the service
provider. The following optional cabling and adapter are only used with this product to
configure the router locally:
-Console cabling: Straight-through cable with 8-pin non-keyed modular plugs
(Part No. 035-0276-1431)
-Console adapter:
—8-pin modular to DB9 adapter plug (Part No. 002-0093-0031), or
—A configurable RJ to DB9 adapter wired as shown in Cables & Connectors
on page 14.
Installing the DSL Access Wiring
The local loop terminates at the punchdown block or NID. Wiring must be connected
from the customer premises side of the punchdown block or the NID to an RJ11 jack.
Typically, the punchdown block is installed in commercial locations and the NID is
installed in residential locations.
"Procedure
1. Access the punchdown block or NID.
!WARNING:
Do not continue unless the DSL access line from the local loop has been
disconnected at the NID or punchdown block. Refer to Important Safety
Instructions on page 19.

5

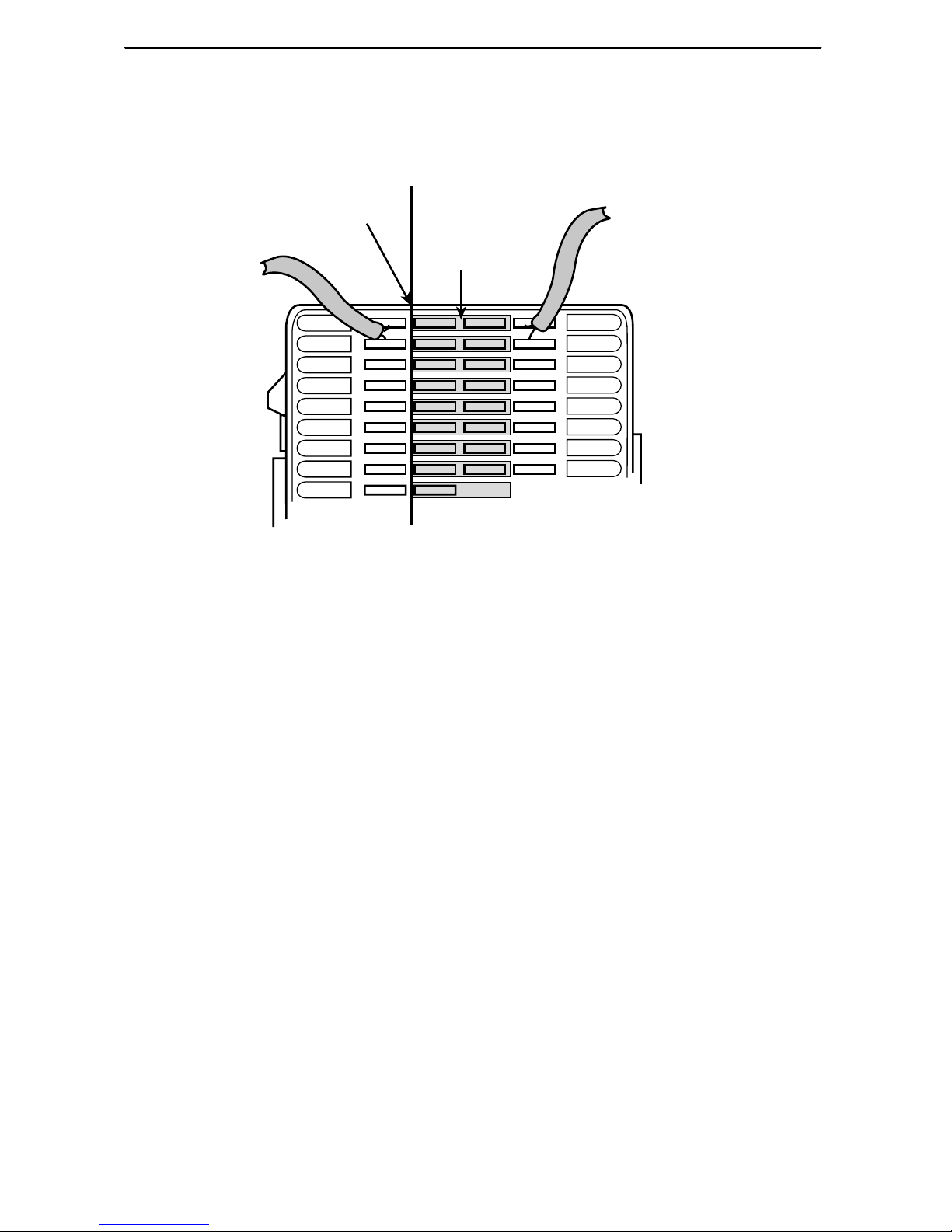

2. Disconnect the DSL access pair from the local loop.
A punchdown block is used in the following example.
ABCD
DSL
Access
from Local
Loop
Wiring to
DSL Jack
Bridge Clip
Punchdown Block
97-15348
Demarcation Point
Customer Premises
3. Locate the DSL pair of T1/R1 connectors on the customer premises side of the
NID or punchdown block. Attach the wiring that will be connected to the DSL jack.
NOTES:
In this document:
—End-user system is used to represent any host with an Ethernet connection.
—Service provider is used to represent any Internet Service Provider (ISP) or
remote LAN provider.

6

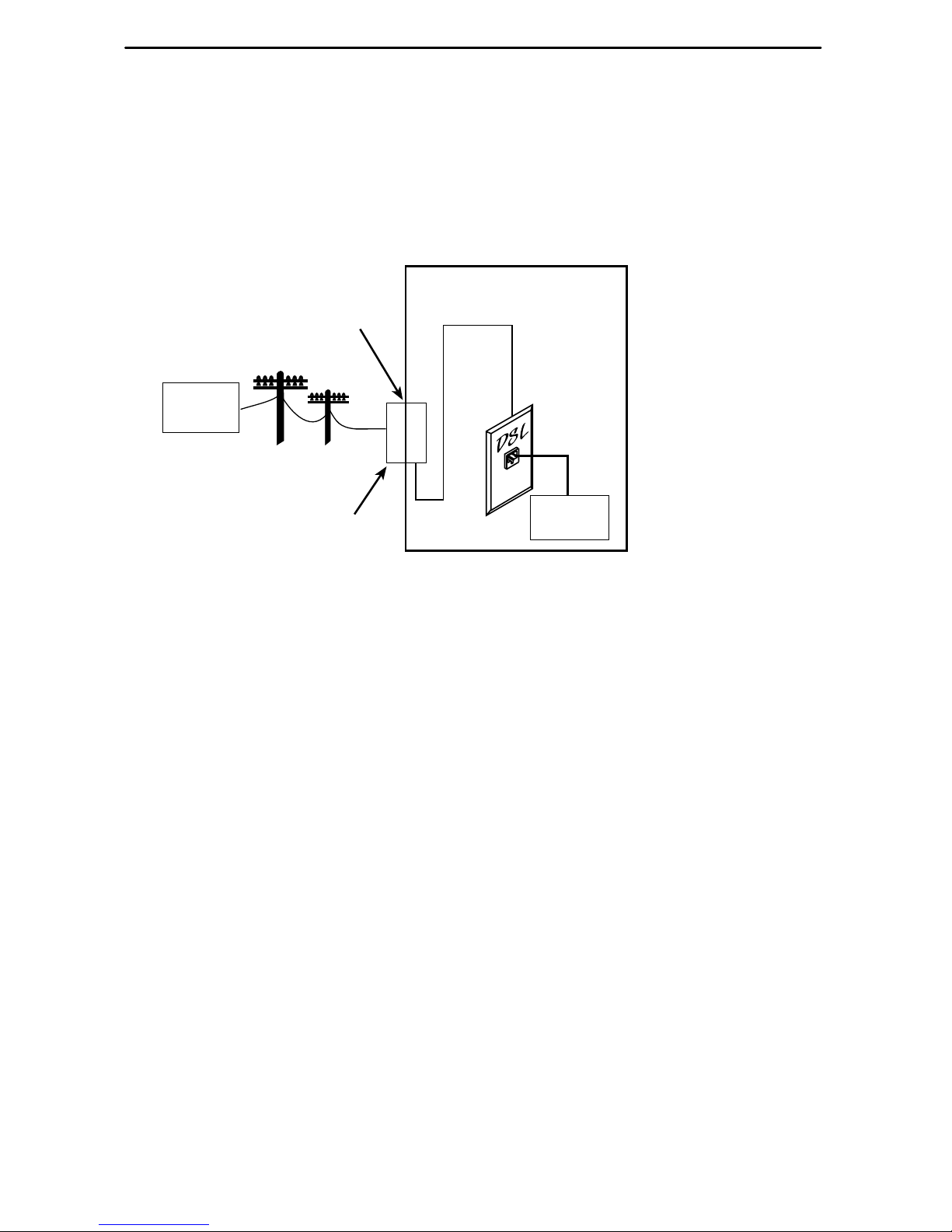

Connecting to the DSL Access Wiring
The Hotwire 6341 or 6342 SDSL Router connects to the local loop via wiring from the
demarcation point to an RJ11 wall jack. The DSL twisted-pair wiring from the local loop
terminates at a new or existing wall jack. It may be necessary to install a standard
single RJ11 jack or replace a single jack with a double RJ11 jack.
99-16589
DSL
RJ11
Jack
Central
Office
Punchdown
Block or NID
Customer Premises
DSL
Local Loop
Demarcation Point DSL
Twisted-pair
Wiring
DSL
Router
"Procedure
1. Wiring can be run from the punchdown block or NID to a new or existing wall jack.
Match the pair colors on both ends.
2. Label the DSL jack.
3. Reconnect the DSL access pair at the punchdown block or NID. Tighten both
terminal screws with a flat-blade screwdriver.
The RJ11 6-pin jack uses the center two pins. For pin assignments, refer to Cables &
Connectors on page 14.

7
Installing the Hotwire 6341/6342 SDSL Router
Place the Hotwire 6341/6342 SDSL Router on a flat surface with clearance for the rear
connectors.
NOTE:
The following illustrations show the Hotwire 6342 SDSL Router with a 4-port
Ethernet hub. The Hotwire 6341 SDSL Router is identical except that it has one
Ethernet port.
"Procedure
1. Use the RJ11 6-pin cable for the DSL connection. Insert one end of the cable into
the jack labeled DSL. Insert the other end into the wall jack labeled DSL.
99-16581
DSL
Jack
POWER
CONSOLE DSL
2
1ETHERNET
34
6342 SDSL Router
If you are installing a . . . Then go to . . .
Hotwire 6341 SDSL Router page 8
Hotwire 6342 SDSL Router page 9

8
2. Use an 8-pin Ethernet cable for the Ethernet connection. Insert one end of the
cable into the jack labeled ETHERNET.
If you are installing the Hotwire 6342 SDSL Router, go to page 9.
HFor a 6341 SDSL router, use a straight-through cable to connect the other end
to an Ethernet hub. Do not connect a straight-through cable to the external
hub’s UPLINK connection (this connection requires a crossover cable).
POWER
CONSOLE
DSL
ETHERNET
99-16506
Ethernet
Line
Ethernet
Hub
Ethernet
Straight-through
Cable
87654321
6341 SDSL Router
-or-
HFor a 6341 SDSL router, use an Ethernet crossover cable and connect the
other end to a PC with an Ethernet Network Interface Card (NIC) installed.
POWER
CONSOLE
DSL
ETHERNET
99-16637
PC with Ethernet
Network Interface
Card (NIC) Ethernet
Line
Ethernet
Crossover
Cable
6341 SDSL Router

9
If you are installing the Hotwire 6341 SDSL Router, go to page 8.
HFor a 6342 SDSL router, use a straight-through cable to connect the other end
to a PC with an Ethernet Network Interface Card (NIC) installed.
-and/or-
HUse an Ethernet crossover cable to connect the other end to an external hub.
99-16583
Ethernet
Crossover
Cable
Ethernet
Hub
87654321
Ethernet
Line
POWER
CONSOLE
DSL
2
1ETHERNET
34
6342 SDSL Router
For the SDSL router cable pin assignments, refer to Cables & Connectors on
page 14.
3. The Console port acts as a DCE and uses an 8-pin straight-through cable for the
connection to a VT100-compatible terminal or a PC running a terminal emulation
program.
This is an optional connection used only for local configuration of the DSL router.
For details, refer to Local Console Access on page 13.
Connect the DB9 adapter to the PC and connect the cable to a PC or laptop. lnsert
one end of the straight-through cable into the jack labeled CONSOLE. Insert the
other end into the DB9 adapter for the serial port of the VT100 terminal or PC.
POWER
CONSOLE DSL
2
1ETHERNET
34
6342 SDSL Router
VT100 Terminal
or PC
(9-pin Adapter)
99-16584
Console
Serial Line

10
4. Insert the supplied power cord’s round end into the jack labeled POWER. Plug the
transformer into an ac outlet.
POWER
CONSOLE
DSL
2
1ETHERNET
34
99-16585
18 Vdc
800 MA
Transformer
Power
Jack 6342 SDSL Router
The Hotwire 6341/6342 SDSL Router hardware installation is now complete. When the
power cord is installed, the SDSL router goes through a power-on self-test.
Power-On
When power is applied, the Hotwire 6341/6342 SDSL Router performs self-diagnostics
and the PWR LED is on. The self-diagnostics includes a power-on self-test. During the
power-on self-test, all of the LEDs turn on for one second.
TST DSL ETHERNET ALMPWR
TM
00-16503-01
Power –green
Alarm –red
Test –yellow
Digital Subscriber Line –green
Ethernet Link 1 to 4 –green
6342
1234
Refer to Troubleshooting on page 12 for LED indications requiring action.

11
Status LEDs
All of the LEDs turn on and off during the power-on self-test. After a successful
self-test, the LEDs should appear as indicated in BOLD in the Condition column below.
LED Condition Status
PWR ON The SDSL router has power.
ALM Blinking
OFF
ON
The SDSL router has detected a system failure.
No active alarms.
An alarm condition exists.
TST OFF
ON
No active tests.
The TST LED is on during the power-on self-test and
during a test initiated by the service provider.
DSL Blinking
ON
OFF
The SDSL router is establishing the active DSL link. The
LED blinks on and off about five times per second.
The DSL link is now active and ready to transmit and
receive data.
The DSL link has not been established.
ETHERNET
LINKS 1–4ON
OFF
The Ethernet connection is active.
No Ethernet 10/100BaseT device is detected.

12
Troubleshooting
LED Symptom Action
All LEDs are on. If the LEDs remain on after ten minutes, the SDSL router is not
functional. Contact the service provider.
ALM LED remains
on. The power-on self-test may have failed. Unplug the unit and reapply power. If the alarm LED is still on, contact the service
provider.
ALM and TST
LEDs are blinking. Firmware download may be in progress. If firmware download is not in progress or the LEDs continue blinking after ten
minutes, contact the service provider.
DSL LED is off. Verify that the DSL cable is securely installed on both ends. If
the problem continues, contact the service provider.
DSL LED continues
to blink after the
power-on self-test.
The SDSL router is attempting to establish the DSL link or
adjusting the rate of the DSL line due to line conditions. If the
DSL LED continues to blink for more than ten minutes, contact
the service provider.
DSL LED is on and
there is no data
transmission.
The DSL link has been established but there is no data
transmission. First, verify the Ethernet connection. If the
problem persists, contact the service provider.
DSL & ETHERNET
LEDs are on and
there is no data
transmission.
The DSL link and the Ethernet link have been established but
there is no data transmission. If the problem continues, contact
the service provider.
ETHERNET LED is
off. Verify that the Ethernet cable is securely installed at both ends,
and at least one PC is connected and powered on.
Verify that the correct straight-through or crossover cable is
installed. Refer to Installing the Hotwire 6341/6342 SDSL
Router on page 7.
PWR LED is off. Check that the power cord is securely installed on both ends.
If no LEDs are on, the power supply may be defective. Test the
outlet to verify power. If the problem persists, contact the
service provider.
If other LEDs are on, the PWR LED may be burned out. Unplug
the unit and reapply power; watch all LEDs during the
power-on self-test to verify that the PWR LED is functioning.
TST LED is on. A test initiated by the service provider may be active. Wait five
minutes. If the TST LED does not go off, contact the service
provider.

13
Hotwire 6341/6342 SDSL Router Configuration Setup
The Console cable is connected to a VT100-compatible terminal or a PC running a
terminal emulation program. Verify the terminal settings:
HData rate set to 19.2 kbps (19200 bps)
HCharacter length set to 8
HParity set to None
HStop bits set to 1
HFlow control set to Off or None
Local Console Access
When the local console connection is first established, access control to the SDSL
router displays an initial prompt of Login>.
"Procedure
1. At the initial prompt of Login>, enter the factory default Login ID of paradyne.
2. At the password> prompt, enter the factory default Password of abc123.
3. At the next prompt for System ID, the factory default is CUSTOMER>.
Type show system to display hardware/firmware information and Selftest Results
(optional).
Refer to the Hotwire DSL Routers User’s Guide for configuration settings and
command line entries.
Increasing the Number of End-User Systems
The Hotwire 6341/6342 SDSL Router can support differing numbers of end-user
systems depending on the functions that are enabled and traffic loading. Typical
configurations will provide support for up to 32, 64, or 256 hosts (end-user systems).
The number of end-user systems can be increased with the use of subnets utilizing
static addressing or by using a default gateway connection.
Increasing the number of PCs may require cabling changes. Refer to Cables &
Connectors on page 14.
Refer to the Hotwire DSL Routers User’s Guide for configuration settings and
command line entries.

98-15304-01
6-Pin
RJ11 Plug
DSL
Cable
Pin #1
Pin #6
97-15678
8-Pin
Plug
Console Port
Cable
Pin #1
Pin #8
98-16050
DB9
to RJ45
14

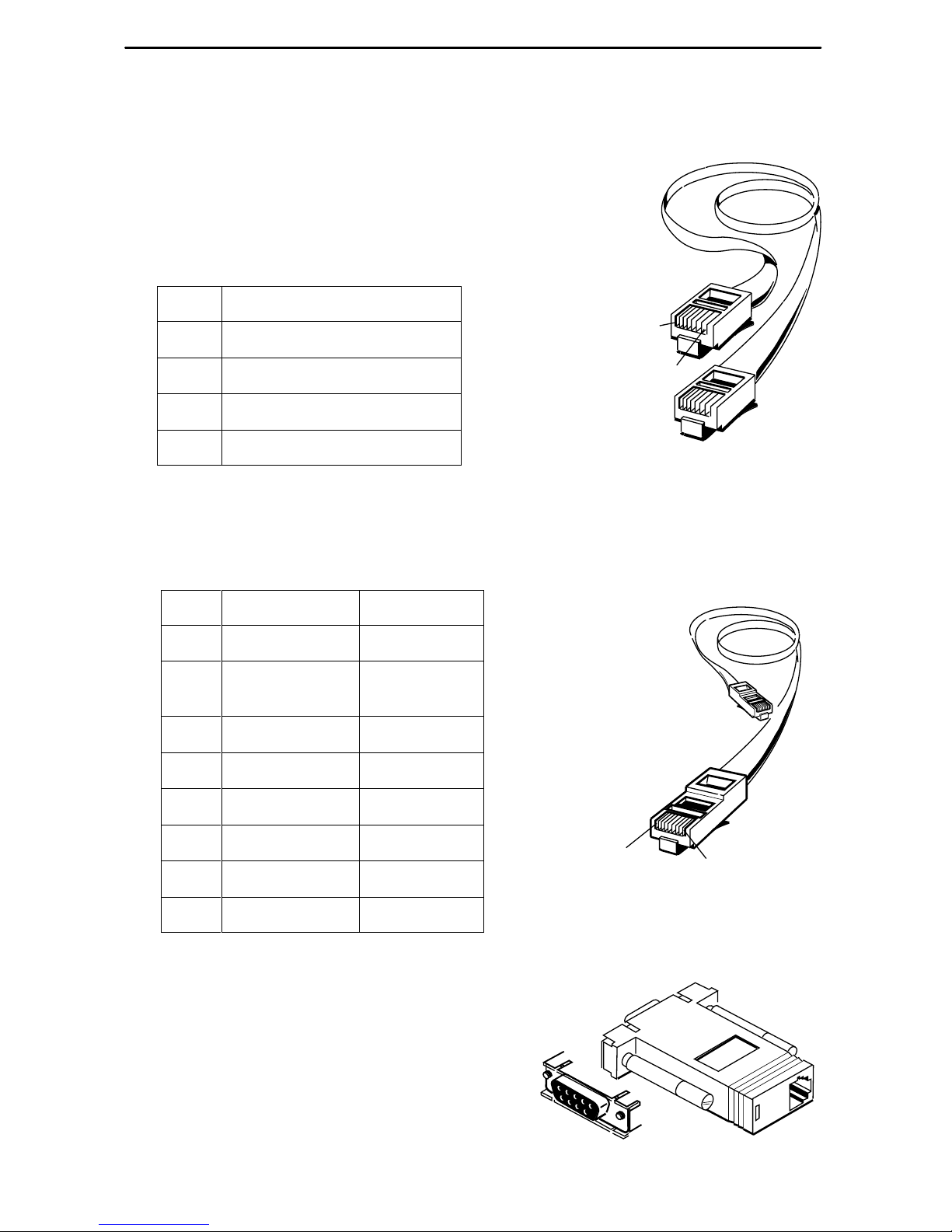

Cables & Connectors
This section is reference information.
Use a CAT3 or better cable for the DSL line.
HThe DSL interface connector uses a 6-pin,
non-keyed modular plug.
RJ11 6-Pin Connector
Pin # Function
1 & 2 Not used
3DSL Ring
4DSL Tip
5 & 6 Not used
HThe Console connector uses 8-pin non-keyed modular plugs and a DB9 adapter.
See Hotwire 6341/6342 SDSL Router Configuration Setup on page 13.
RJ45 8-Pin Connector
Pin # Circuit Direction
1Not used —
2DTR Input to
Console port
3 TXD Input
4Signal Ground —
5Signal Ground —
6 RXD Output
7 DSR Output
8Not used —
DB9 Adapter Plug

98-16055a
8-Pin
Plug
Ethernet
Cable
Pin #1
Pin #8
15
HThe Ethernet interface connector uses an 8-pin, non-keyed modular plug.
Use shielded twisted-pair CAT5 or better cables.
—To connect to 6341 SDSL router to an Ethernet hub or a 6342 SDSL router to
a PC with an Ethernet NIC card installed, use the straight-through connection.
8-Pin Straight-Through Connection
Pin # Function
110/100BaseT TX D+
210/100BaseT TX D–
310/100BaseT RX D+
4 & 5 Not used
610/100BaseT RX D–
7 & 8 Not used
—To connect a 6341 SDSL router to a PC with an Ethernet NIC card installed or
a 6342 SDSL router to an external hub, use an Ethernet crossover cable.
10/100BaseT TX D+
10/100BaseT TX D–
10/100BaseT RX D+
Not Used
Not Used
10/100BaseT RX D–
Not Used
Not Used
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
10/100BaseT TX D+
10/100BaseT TX D–
10/100BaseT RX D+
Not Used
Not Used
10/100BaseT RX D–
Not Used
Not Used
Function Pin # FunctionPin #
8-Pin Ethernet Crossover Cable
99-16518
Pin #1/2 = Orange/White
Twisted Pair Pin #3/6 = Blue/White Twisted Pair

16
Optional Hotwire 6341/6342 SDSL Router Wall
Placement
The Hotwire 6341/6342 SDSL Router is designed for tabletop placement. The SDSL
router can also be mounted on a wall. To mount the SDSL router, you will need:
-Three slotted-head #6 self-threading screws with molly bolts
-Drill and 3/16″drill bit for the molly bolts
-Screwdriver
A template with the dimensions for the three screws is provided. See SDSL Router
Hardware Template on page 17.
"Procedure
To mount the SDSL router:
1. Use a drill to install the plastic anchors (molly bolts).
2. Use a screwdriver to install the screws. Do not install the screws flush with the
wall. Leave enough clearance to hang the SDSL router housing from the screws.
Wall
Fasteners
99-16170-02

17
SDSL Router Hardware Template
Front
(LEDs)
98-16171
5.43"
7.55"
To Bottom
Hole

18
Model 6341/6342 SDSL Router Technical Specifications
Item Specification*
Height x Width x Depth 1.43″x 6.00″x 8.75″(3.64 cm x 15.24 cm x 22.23 cm)
Weight 1 lb. 1 oz. (0.48 kg)
External Power Supply
Class 2 Transformer normal
service input voltage range
Input: 100 Vac (+10%), 50 Hz;
120 Vac (+10%), 60 Hz; or
230 Vac (+10%), 50/60 Hz
Output: 18 Vdc nominal at 0.8A
Unit Power Consumption HModel 6341: 5 watts (nom)
HModel 6342: 8 watts (nom)
Approvals
FCC Part 15
CISPR 22
Safety Certifications
Class B Subpart B digital device
Class B
Refer to equipment’s label for approvals on product.
Physical Environment
Operating temperature
Storage temperature
Relative humidity
Shock and vibration
32°F to 104°F (0°C to 40°C)
–4°F to 158°F (–20°C to 70°C)
5% to 95% (noncondensing)
Withstands normal shipping and handling
Interface Connectors
DSL Interface
Console Interface
Ethernet Type II Frame
RJ11 6-pin
8-pin
10/100BaseT 8-pin
HModel 6341: One Ethernet connector
HModel 6342: Four Ethernet connectors
*Technical Specifications subject to change without notification.

19
!Important Safety Instructions
1. Read and follow all warning notices and instructions marked on the product or
included in the manual.
2. Slots and openings in the cabinet are provided for ventilation. To ensure reliable
operation of the product and to protect it from overheating, these slots and
openings must not be blocked or covered.
3. Do not allow anything to rest on the power cord and do not locate the product
where persons will walk on the power cord.
4. Do not attempt to service this product yourself, as opening or removing covers
may expose you to dangerous high voltage points or other risks. Refer all servicing
to qualified service personnel.
5. General purpose cables are used with this product for connection to the network.
Special cables, which may be required by the regulatory inspection authority for
the installation site, are the responsibility of the customer. Use a UL Listed, CSA
certified, minimum No. 24 AWG line cord for connection to the Digital Subscriber
Line (DSL) network.
6. When installed in the final configuration, the product must comply with the
applicable Safety Standards and regulatory requirements of the country in which it
is installed. If necessary, consult with the appropriate regulatory agencies and
inspection authorities to ensure compliance.
7. A rare phenomenon can create a voltage potential between the earth grounds of
two or more buildings. If products installed in separate buildings are
interconnected, the voltage potential may cause a hazardous condition. Consult a
qualified electrical consultant to determine whether or not this phenomenon exists
and, if necessary, implement corrective action prior to interconnecting the products.
8. Input power to this product must be provided by one of the following: (1) a UL
Listed/CSA certified power source with a Class 2 or Limited Power Source (LPS)
output for use in North America, or (2) a certified transformer, with a Safety Extra
Low Voltage (SELV) output having a maximum 240 VA available, for use in the
country of installation.
9. In addition, since the equipment is to be used with telecommunications circuits,
take the following precautions:
—Never install telephone wiring during a lightning storm.
—Never install telephone jacks in wet locations unless the jack is specifically
designed for wet locations.
—Never touch uninsulated telephone wires or terminals unless the telephone
line has been disconnected at the network interface.
—Use caution when installing or modifying telephone lines.
—Avoid using a telephone (other than a cordless type) during an electrical
storm. There may be a remote risk of electric shock from lightning.
—Do not use the telephone to report a gas leak in the vicinity of the leak.

20
Canada
EMI Warnings
!WARNING:
To Users of Digital Apparatus in Canada:
This Class B digital apparatus meets all requirements of the Canadian
interference-causing equipment regulations.
Cet appareil numérique de la classe B respecte toutes les exigences du
règlement sur le matérial brouilleur du Canada.
Notice to Users of the Canadian Telephone Network
The Industry Canada label identifies certified equipment. This certification means that
the equipment meets telecommunications network protective, operational and safety
requirements as prescribed in the appropriate Terminal Equipment Technical
Requirements document(s). The Department does not guarantee the equipment will
operate to the user’s satisfaction.
Before installing this equipment, users should ensure that it is permissible to be
connected to the facilities of the local telecommunications company. The equipment
must also be installed using an acceptable method of connection. The customer should
be aware that compliance with the above conditions may not prevent degradation of
service in some situations.
Repairs to certified equipment should be coordinated by a representative designated by
the supplier. Any repairs or alterations made by the user to this equipment, or
equipment malfunctions, may give the telecommunications company cause to request
to disconnect the equipment.
Users should ensure for their own protection that the electrical ground connections of
the power utility, telephone lines and internal metallic water pipe system, if present, are
connected together. This precaution may be particularly important in rural areas.
CAUTION:
Users should not attempt to make such connections themselves, but should
contact the appropriate electric inspection authority, or electrician, as
appropriate.
The Ringer Equivalence Number (REN) assigned to each terminal device provides an
indication of the maximum number of terminals allowed to be connected to a telephone
interface. The termination on an interface may consist of any combination of devices
subject only to the requirement that the sum of the Ringer Equivalence Numbers of all
the devices does not exceed 5.
If your equipment is in need of repair, refer to Warranty, Sales, Service, and Training
Information on page 23.
