Installation & Service Instructions
CVM-105P
MPS-31 Series Sensor
ISSUED: June, 2003
Supersedes: July, 2002
Doc.# CVM-105P, ECN030385, Rev. 2
Introduction
Follow these instructions when installing, operating, or
servicing the product.
!
ANSI
Mounting Bracket Kit (Included Parts)
2 Mounting Brackets
Cautions
The MPS-31 Pressure Sensor is designed to monitor pressure
and is not a safety measure to prevent accidents.
The compatibility of the sensor is the responsibility of the
designer of the system and specifications.
Operating Environment
•Parker / Convum Sensors have not been investigated for
explosion-proof construction in hazardous environments.
•Do not use with flammable gases, liquids, or in hazardous
environments.
•Avoid installing the sensor in locations where excessive
voltage surges could damage or affect the performance of
the sensor.
Operations
•Dedicate a power supply of 10.8 to 30VDC to the sensor
and set the ripple to Vp-p10% or less. Avoid excessive
voltage. Avoid voltage surges.
•A small amount of internal voltage drop is possible. Ensure
the power supply minus any internal voltage drop exceeds
the operating load.
•Verify the operating media is compatible with the specified
sensor. Check the chemical make-up, operating
temperatures, and maximum pressure ranges of the system
before installing.
•Installation of air dryer system is recommended to remove
moisture.
Installation
•Never insert an object into the pressure port other than an
appropriate fluid connector.
•Avoid short-circuiting the sensor. Connect the brown lead
to V+ and blue lead to 0V.
•Do not connect the output lead wires (black / white) to the
power supply.
•Outputs not being used should be trimmed and insulated.
•Install as shown using the metal mounting bracket.

Output Modes Switch Output
Window Comparator Output
2
1
4
3

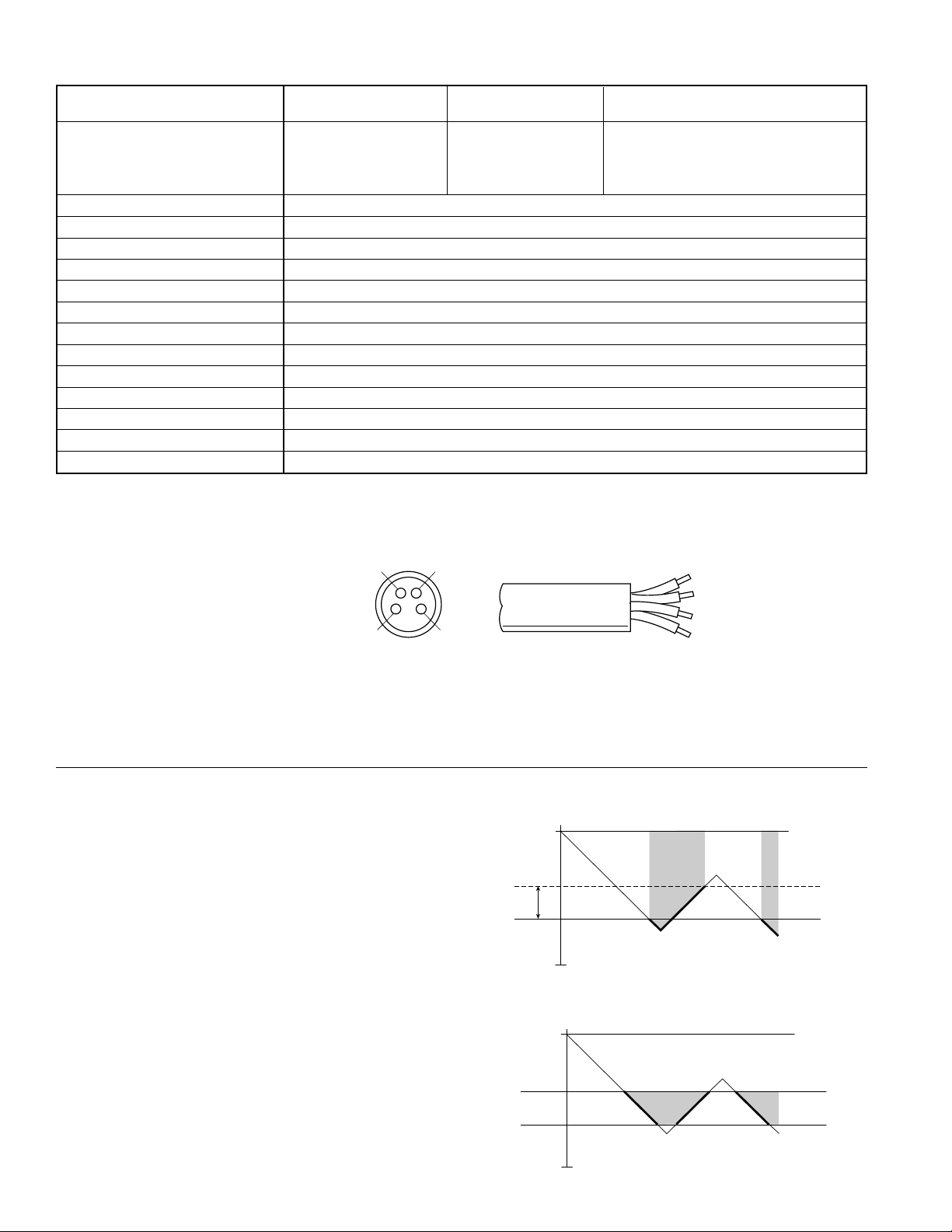

Lead Wiring
MPS-31 Series Sensor CVM-105P
2
Sensor Pin Out
h
H
off off
0
-30 in Hg
on on
A
b
off
off off
-30 in. Hg
0
on on
Pin #
1 Brown:24VDC
2 Black: NPN/PNP Open Collector Output
3 Blue: 0VDC
4 Not Used
The MPS-31 Series Sensor has one independent NPN or PNP
open collector output signal. The Switch Output Mode has a
switch point programmed by the user at a specific pressure. The
Hysteresis Range (h) adjustment controls the output signal 0 to
100% below the Switch Point (H).
The Window Comparator Mode provides two Switchpoint Settings
(A) and (b) that control the output signals (NPN / PNP) between
two pressures. This is referred to as the “High / Low” setting.
Specifications
Brown V+
White NPN / PNP Output
Blue 0V
Black Not Used
Operating Pressure Range Vacuum (V) Positive (P) Compound (R)
(0 to -30 inHg) (0 to 145 PSI) (-14.7 to +72.5 PSI)
bar: 0.001 bar: 0.01 bar: 0.01
Units of Measure kPa: 0.1 MPa: 0.001 kPa: 1
Display Resolution mmHg: 1 kgf/cm2: 0.01 kgf/cm2: 0.01
inHg: 0.1 PSI: 1 PSI: 0.1
Media Air and Non-Corrosive Gases
Pressure Port N: 1/8" NPSF, R: 1/8" Female BSPT, G: 1/8" BSPP Female
Proof Pressure V: 145 PSI, P: 290 PSI, R: 217 PSI
Operating Temperature 32 to 122°F (0 to 50°C)
Storage Temperature 14 to 140°F (-10 to 60°C)
Humidity 35 to 85% RH
Electrical Connection C: 4-Pin, M8 Connector, G: Grommet Open Lead
Power Supply 10.8 to 30VDC, Ripple Vp-p 10% Max., Reverse Voltage Protection
Display 3-Digit, 7-Segment LED
Display Refresh .1 to 3.0 sec. (Factory set at 0.1)
Output Circuit NPN (Sinking), PNP (Sourcing) Open Collector Transistor, 30VDC, 125mA
Switch Outputs 2 Output Signals, NPN or PNP, Normally Open or Closed, LED Indicator
Output Modes Hysteresis or Window Comparator

MPS-31 Series Sensor CVM-105P
3

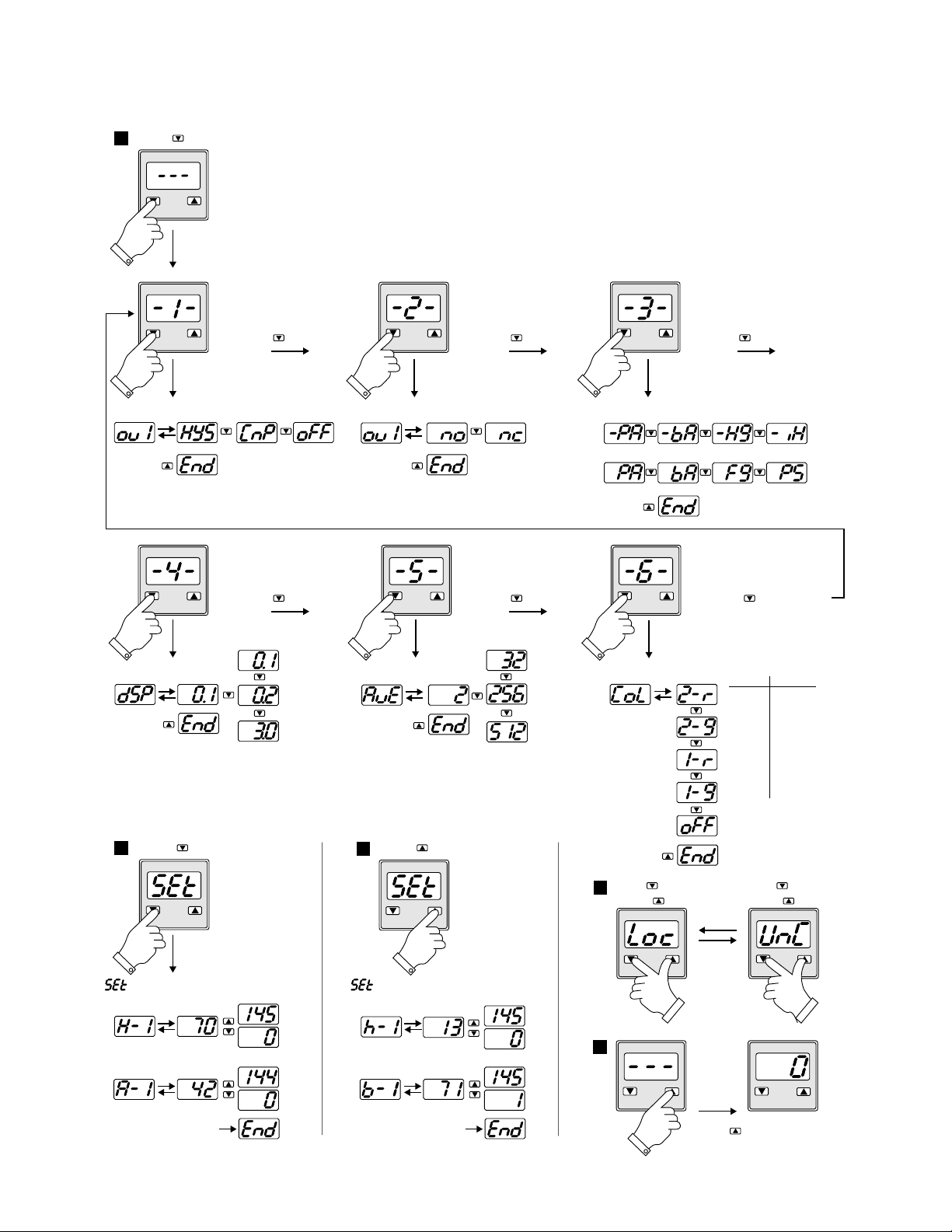

Programming
Output Normally
Open or Closed
Operating
Output Mode
Display
Refresh
Begin Programming
Select Units
of Measure
Switch Output
Setting and
Low Setting
Hysteresis
Setting and
High Setting
Hysteresis ModeHysteresis Mode
Window Comparator Mode
Output Response
Selection
Display Color Choices
Red and / or Green,
Energy Save
Lock Unlock
1
23
4
Zero
Reset
5
Red
Green
Red
Green
Green
Red
Red
Green
Low High
Press for 3 Seconds
Press 1 x Press 1 x
Hold
Press 1 x
Hold
Press 1 x
Press for3 Sec.
Or Press 1x to Proceed
Or Press 1x to Proceed Or Press 1x to Proceed Or Press 1x to Return
Or Press 1x to Proceed Or Press 1x to Proceed
Wait 3 Seconds
Wait 3 Seconds
Will Display for 1 Second Will Display for 1 Second
Wait 5 Seconds
Wait 3 Seconds Wait 3 Seconds
Wait 3 Seconds Wait 3 Seconds
Output
On Off
Window Comparator Mode
Wait 5 Seconds

MPS-31 Series Sensor CVM-105P
4
Error Messages
Display Description Solutions
Err Zero Reset Error Reset Zero Below
3% of F.S.
Er1 System Error (Internal) Contact Factory
CE1 Over current of Output 1 Load current exceeds
FFF Applied pressure exceeds Apply pressures with
–FF pressure range the rating of the sensor
MPS-ACCH7
Panel Mounting
Bracket
1.57
(40)
1.72
(43,8)
1.57
(40)
1.31
(33,4)
1.42
(36)
(+0.5, -0.2)
1.42
(36)
(+0.5, -0.2)
Knockout
2
1
Accessories
Cables
.196 (5) Dia
6.56 ft
(2m)
6.56 ft
(2m)
1.26
(32)
CB-M8-4P-2M
CB-M8-4P-5M CB-M8-4P-M8-2M
CB-M8-4P-M12-2M
CB-M8-4P-5M-90
.196 (5) Dia
.38
(9,7) Dia
16.40 ft
(5m)
1.26
(32)
.38
(9,7) Dia
.47
(12) Di
a
.38
(9,7) Dia
.196 (5) Dia
6.56 ft
(2m)
1.26
(32)
2.09
(53)
.196 (5) Dia
.38
(9,7) Dia
16.40 ft
(5m)
.87
(22)
.42
(10,7)
.75
(19)
Replacement Kit
MPS-ACCK1 ............................................ Mounting Bracket Kit
