Parker DCP3 User manual

Drive Controlled Pump
Installation Manual DCP3

Drive Controlled Pump
Parker Hannifin Corporation
Hydraulics Group
DCP Manual innen A4 UK.indd 06.11.17
2
Manual
The installation manual contains only the most
important information.
For detailed information please refer to manual
HA501718U001 on the site
www.parker.com/ssd/
(Literature/Manuals).
FAILURE OR IMPROPER SELECTION OR IMPROPER USE OF THE PRODUCTS DESCRIBED HEREIN OR RELATED ITEMS
CAN CAUSE DEATH, PERSONAL INJURY AND PROPERTY DAMAGE.
This document and other information from Parker-Hannifin Corporation, its subsidiaries and authorized distributors provide
product or system options for further investigation by users having technical expertise.
The user, through its own analysis and testing, is solely responsible for making the final selection of the system and components
and assuring that all performance, endurance, maintenance, safety and warning requirements of the application are met. The
user must analyze all aspects of the application, follow applicable industry standards, and follow the information concerning
the product in the current product catalog and in any other materials provided from Parker or its subsidiaries or authorized
distributors.
To the extent that Parker or its subsidiaries or authorized distributors provide component or system options based upon data or
specifications provided by the user, the user is responsible for determining that such data and specifications are suitable and
sufficient for all applications and reasonably foreseeable uses of the components or systems.
Offer of Sale
Please contact your Parker representation for a detailed ”Offer of Sale”.
WARNING – USER RESPONSIBILITY

Drive Controlled Pump
Parker Hannifin Corporation
Hydraulics Group
DCP Manual innen A4 UK.indd 06.11.17
3
Manual
Content Page
Safety 5
Introduction 7
Initial steps
• Installation
• Operation
• Programming (Parker Drive Quicktool) –
• pc programming tool
• PC requirements

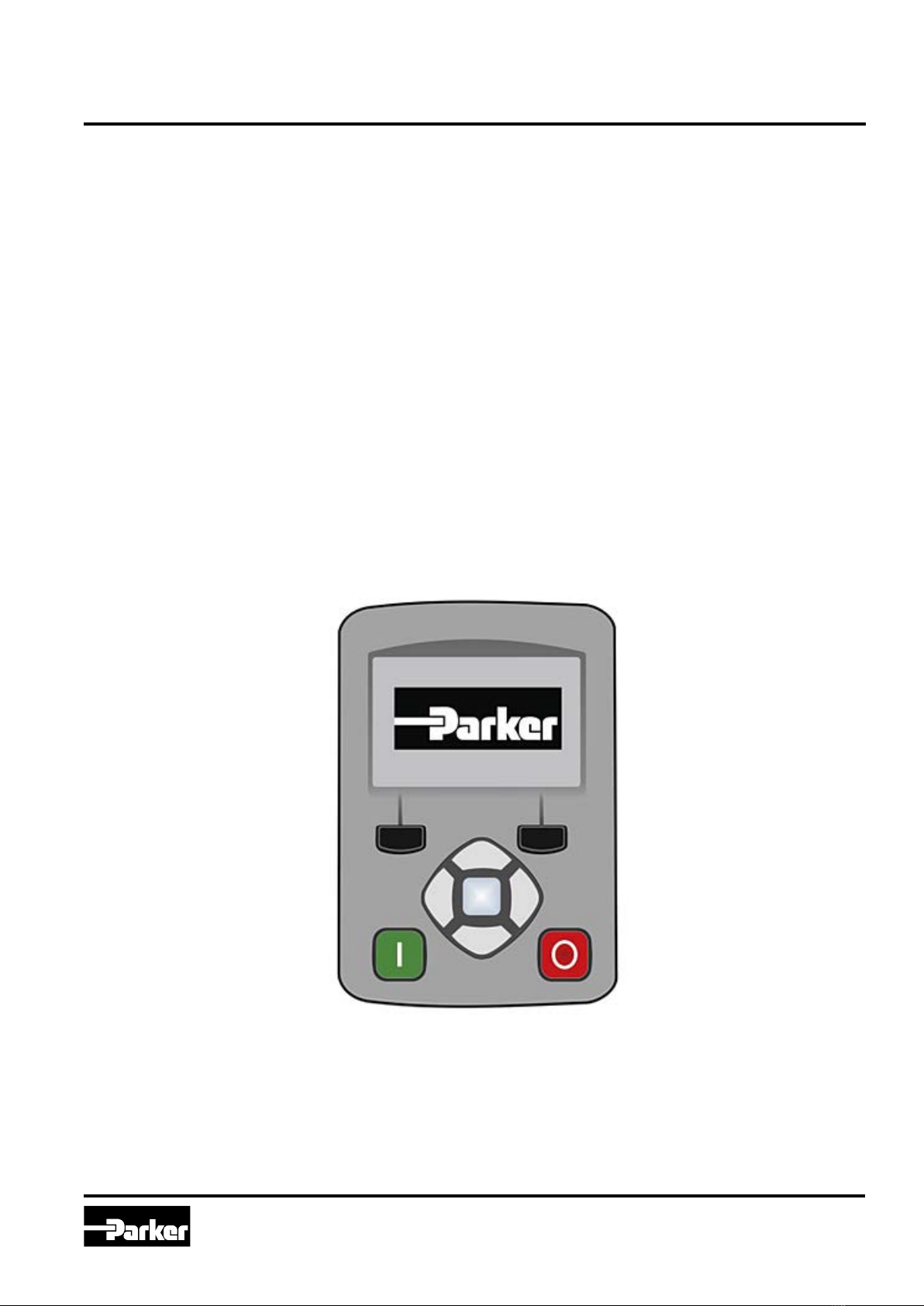

• The Graphical Keypad
7
7
7
7
7
7
7
Power ratings 8

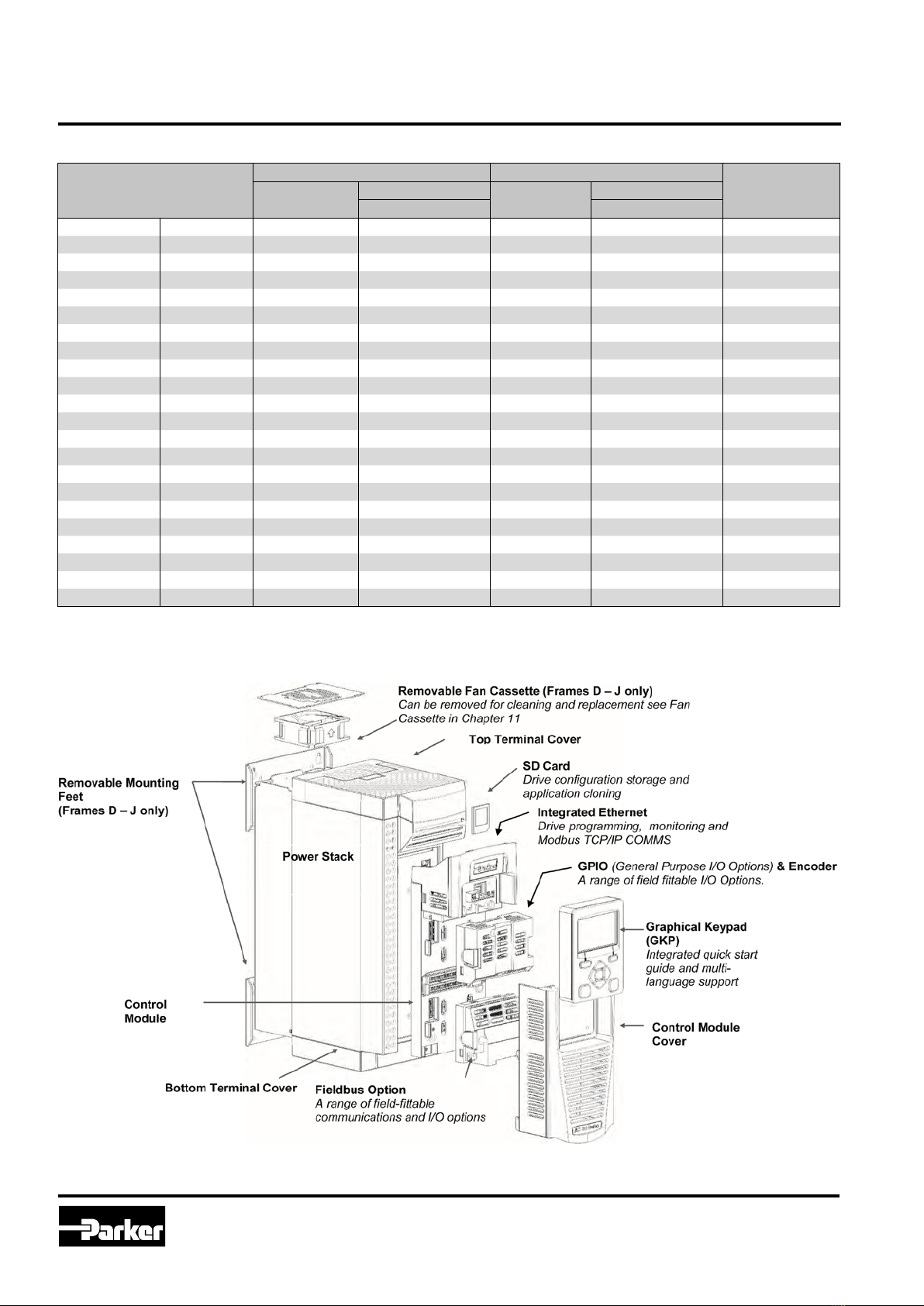

Construction 9
Mounting

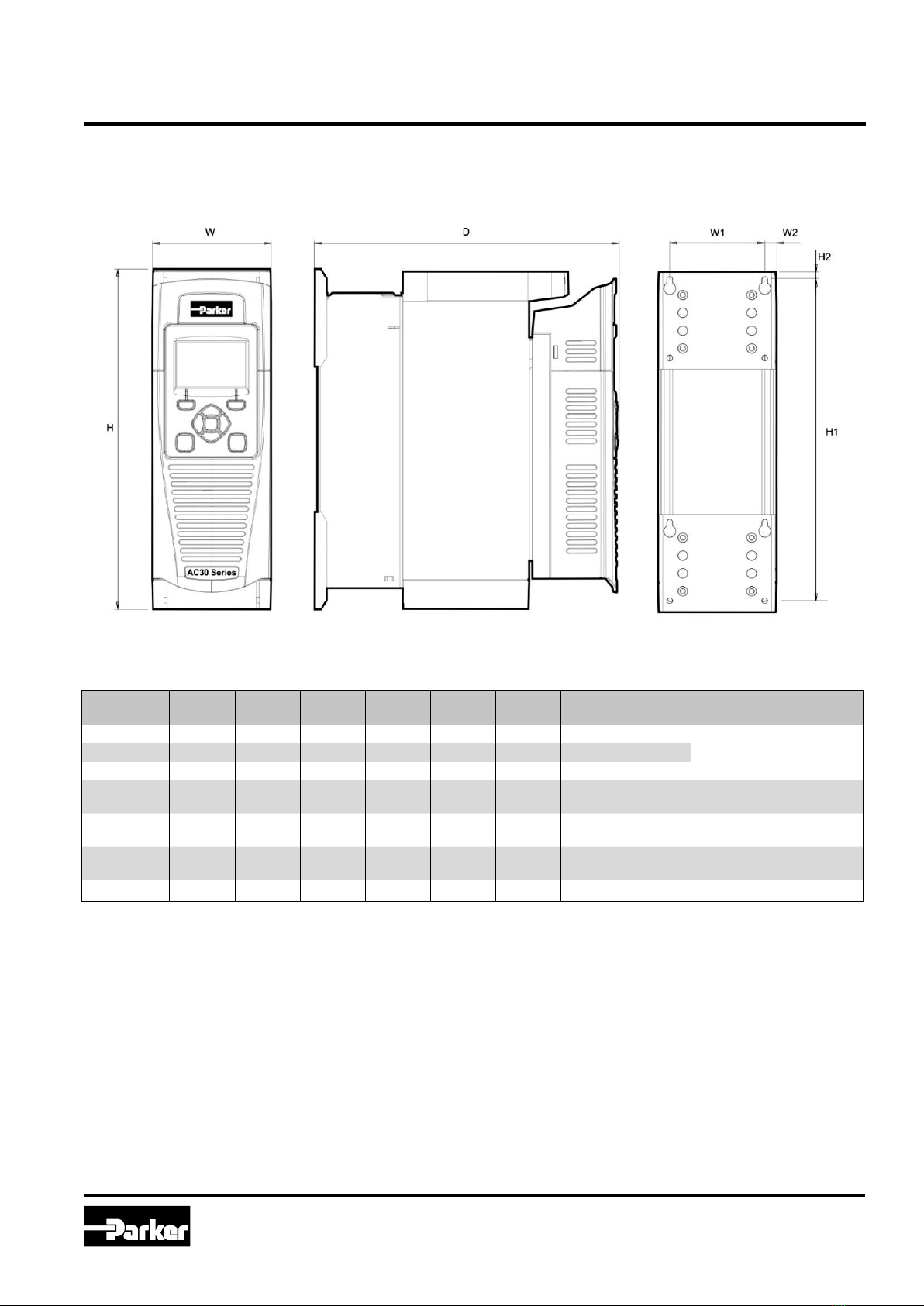

• Cubicle Mount
10
10
Mounting
• Mounting the drive
• Ventilation

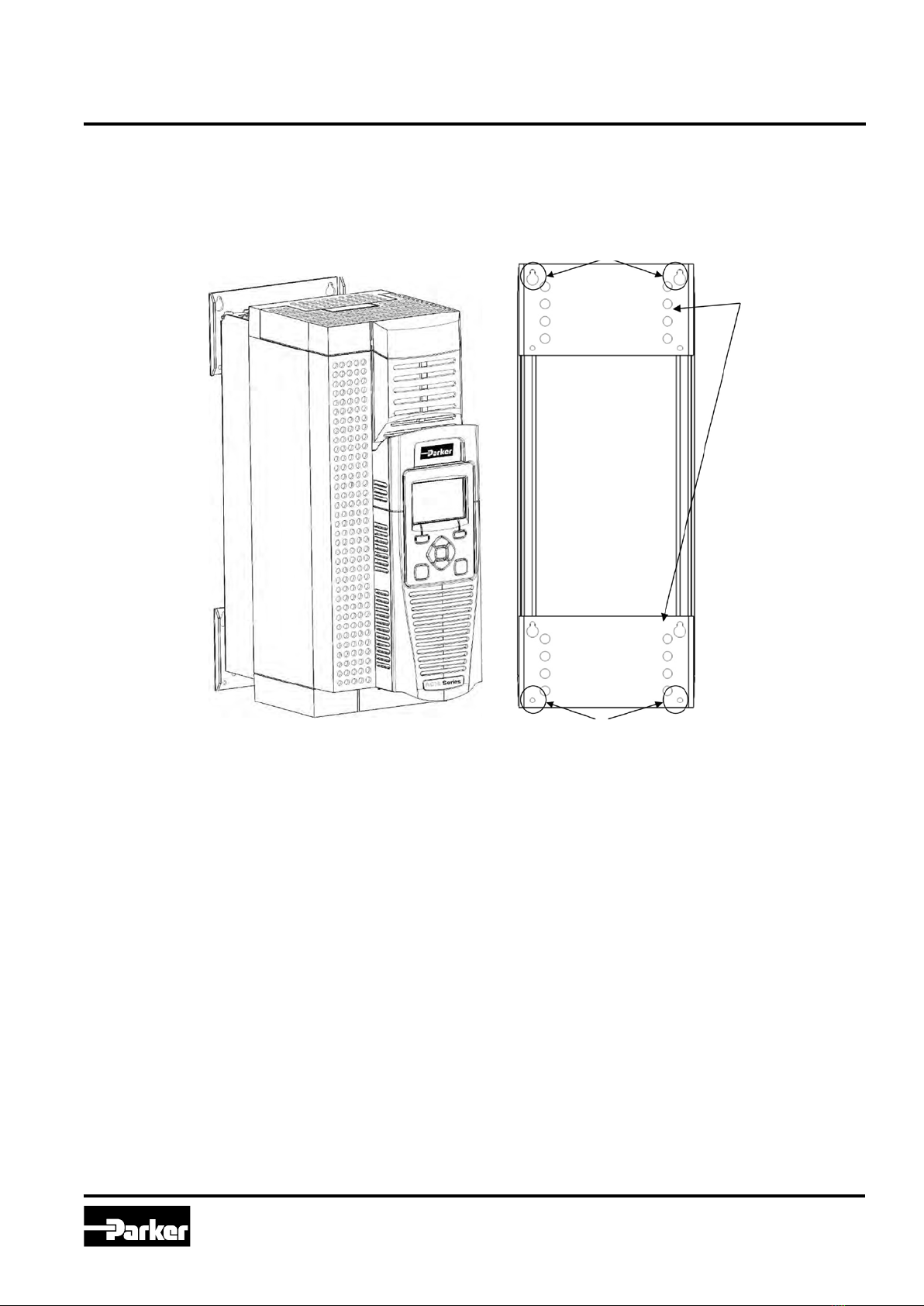

• Mounting Brackets
• Through Panel Mount

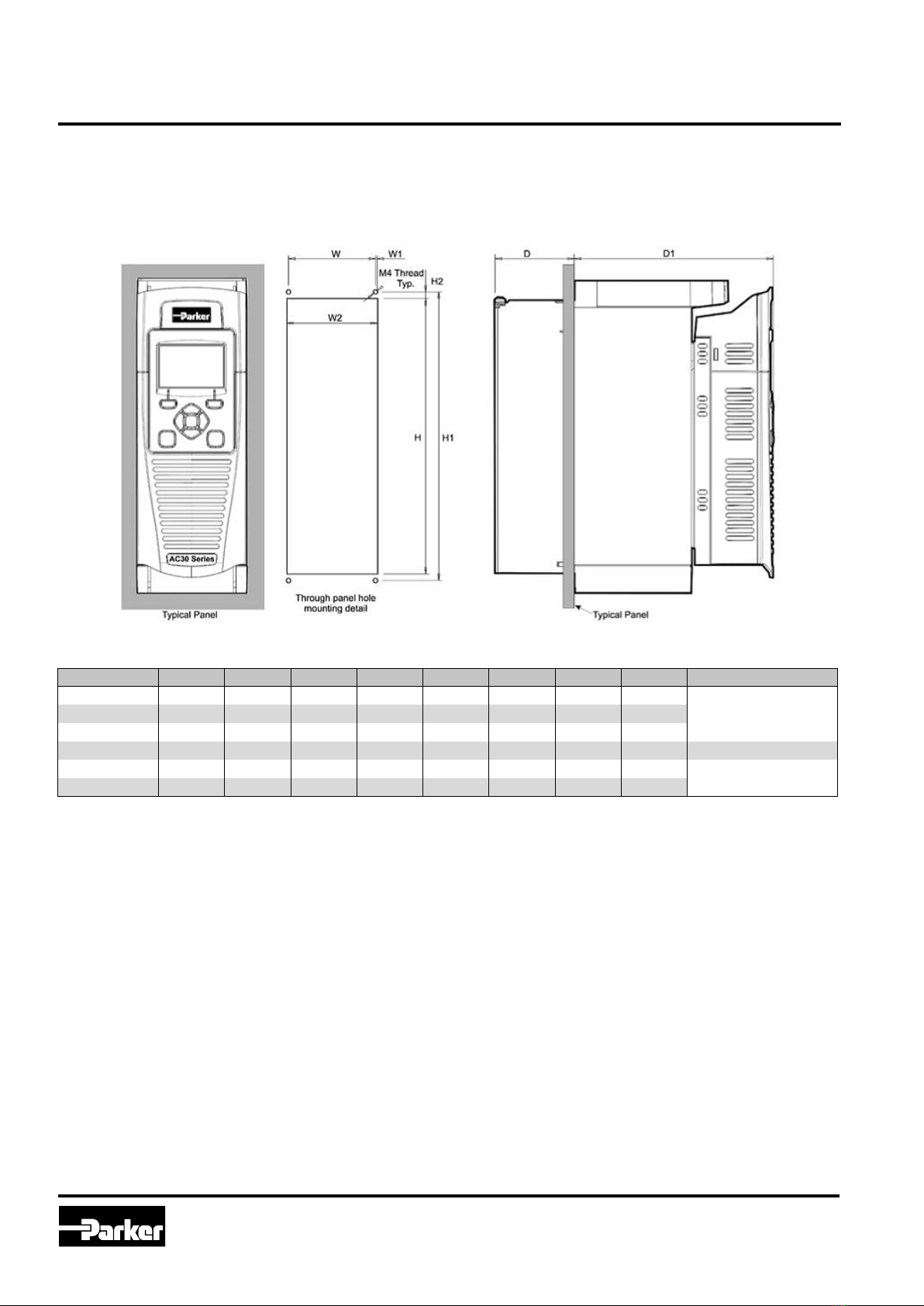

• Through panel mounting details (all frame sizes)

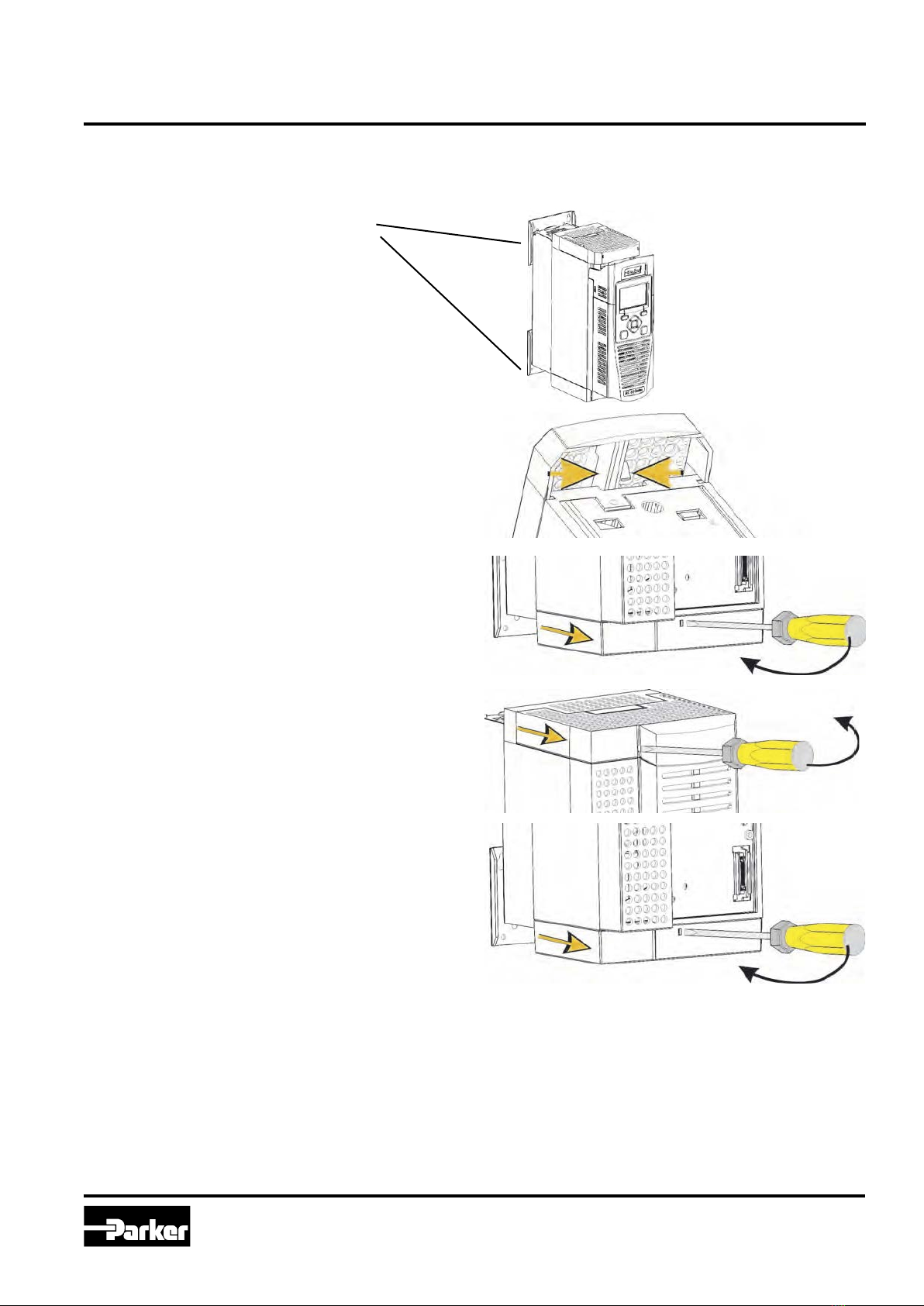

• Cabling Bracket for Control & Main Cable
10
10
10
11
12
13
14
Installation
• Wiring instructions
• Power connections
15
15
15

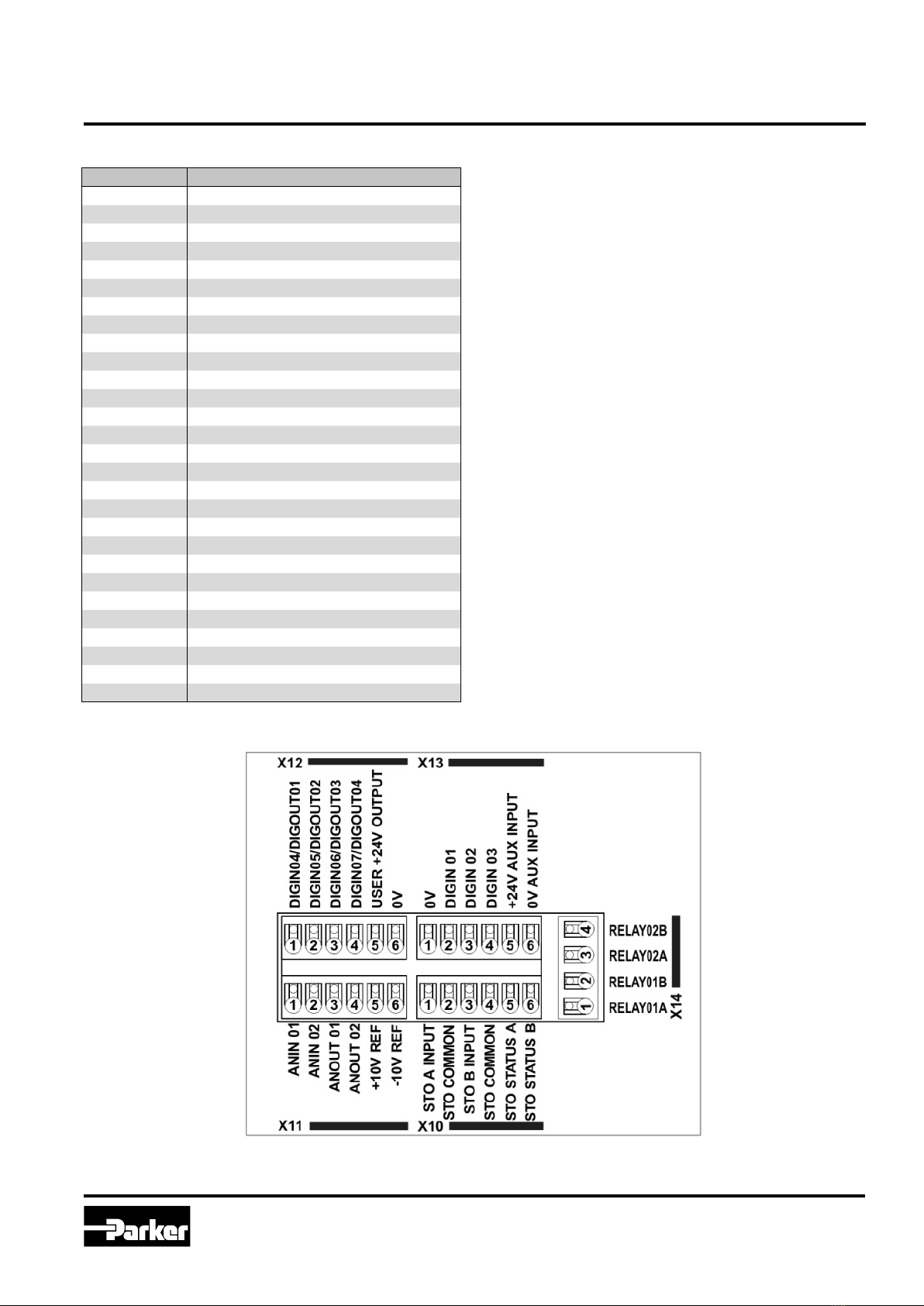

Control wiring connections
• Inputs – Analogue (DCP3xxxA)
• Inputs – Fieldbus (DCP3xxxC/D/E/P/N)
• Control word (2021)
• Outputs – Analogue (DCP3xxxA)
• Status word (2022)
17
18
18
18
19
19
Option Modules
• Analogue Inputs
• Encoder and Motor Thermisor
20
21
21
Ethernet
• Introduction
• Status monitoring
• Setting the IP Address
• Connecting to a Network
• Manually Setting the IP Address
• Automatically Assigning an IP Address using DHCP
• Automatically Assigning an IP Address using Auto-IP
• Using Both DHCP and Auto-IP
23
23
23
23
23
24
24
24
24
Profibus Communication with S7
• Cyclic Communication
• Acyclic Communication
25
25
25

Drive Controlled Pump
Parker Hannifin Corporation
Hydraulics Group
DCP Manual innen A4 UK.indd 06.11.17
4
Manual
Content Page
STO Functional description
• Safe Torque Off SIL3/PLe
• General Information
• User connections
• Truth table
• Applications that do not require STO function
• Applications
• Description
• Features
• Requirements
• Volume flow control (Q Control)
• Pressure control (p Control)
• Volume flow control with superimposed pressure control (p/Q Control)
28
28
28
29
29
30
30
30
30
30
31
31
31
The Graphical Keypad
• Fitting a remote GKP
• The Display
• Keys
• Soft key action indication
• Menu Organisation
32
32
33
33
34
35
Parker Drive Quicktool (PDQ) PC-Software
• Installation
• Starting the wizard
• Task selection
37
37
38
38
Parameter description 44
Parameter list 51
Trips and Fault Finding 54
Technical data
• Environmental details
• Earthing/Safety Details
• Electrical Ratings (400 V build variant)
• Input fuse rating
• Internal brake switch
• Analogue inputs/outputs
• Digital inputs
• Digital outputs
59
59
59
60
60
64
65
65
66
Configure the drive
• Quick Setup
• Set of Motor data
• Motor type
• Motor name plate
• Set of in- and outputs
• Communication
67
67
68
68
68
68
68
Commissioning the drive
• Perform signal check
69
69

Drive Controlled Pump
Parker Hannifin Corporation
Hydraulics Group
DCP Manual innen A4 UK.indd 06.11.17
5
Manual
Safety Information
Please read these important safety notes before installing and operating this equipment
CAUTION
Caution notes in the manual warn of danger
to equipment.
WARNING
Notes in the manual warn of danger to per-
sonel.
Installation details
Model Number
(see product label)
Where installed
(for your own information)
Unit used as a:
(refer to Certification)
Component
Relevant Apparatus Unit fitted: Cubicle mounted Through Panel Mounted
DANGER
Risk of electric shock
WARNING
Hot surfaces
Caution
Refer to documentation
Earth/Ground
Protective Conductor
Terminal
DANGER! - Ignoring the following may result in injury
5. For measurements use only a meter to IEC 61010
(CAT III or higher). Always begin using the highest
range. CAT I and CAT II meters must not be used on
this product.
6. Allow at least 5 minutes for the drive's capacitors to
discharge to safe voltage levels (<50 V). Use the
specified meter capable of measuring up to 1000 V
dc & ac rms to confirm that less than 50 V is pres-
ent between all power terminals and between pow-
er terminals and earth.
7. Unless otherwise stated, this product must NOT be
dismantled. In the event of a fault the drive must be
returned. Refer to "Routine Maintenance and Repair".
1. This equipment can endanger life by exposure to ro-
tating machinery and high voltages.
2. The equipment must be permanently earthed due
to the high earth leakage current, and the drive mo-
tor must be connected to an appropriate safety earth.
3. Ensure all incoming supplies are isolated before
working on the equipment. Be aware that there may
be more than one supply connection to the drive.
4. There may still be dangerous voltages present at
power terminals (motor output, supply input phases,
DC bus and the brake, where fitted) when the motor
is at standstill or is stopped.
Hazards
Application area
The equipment described is intended for industrial motor
speed control utilising AC induction motors or AC perma-
nent magnet synchronous machines.
Personnel
Installation, operation and maintenance of the equipment
should be carried out by competent personnel. A compe-
tent person is someone who is technically qualied and
familiar with all safety information and established safe-
ty practices; with the installation process, operation and
maintenance of this equipment; and with all the hazards
involved.
Safety
Requirements
Intended users
This manual is to be made available to all persons who
are required to install, congure or service equipment de-
scribed herein, or any other associated operation.
The information given is intended to highlight safety is-
sues, and to enable the user to obtain maximum benet
from the equipment.
Complete the following table for future reference detail-
ing how the unit is to be installed and used.

Drive Controlled Pump
Parker Hannifin Corporation
Hydraulics Group
DCP Manual innen A4 UK.indd 06.11.17
6
Manual
Ignoring the following may result in injury or damage to equipment
Where there is conflict between EMC and Safety requirements, personnel safety shall always take
precedence.
Safety
• Never perform high voltage resistance checks on the
wiring without first disconnecting the drive from the cir -
cuit being tested.
• Whilst ensuring ventilation is sufficient, provide guard-
ing and /or additional safety systems to prevent injury
or damage to equipment.
• When replacing a drive in an application and before
returning to use, it is essential that all user defined pa-
rameters for the product’s operation are correctly in-
stalled.
• All control and signal terminals are SELV, i.e. protect-
ed by double insulation. Ensure all external wiring is
rated for the highest system voltage.
• Thermal sensors contained within the motor must have
at least basic insulation.
• All exposed metalwork in the Inverter is protected by
basic insulation and bonded to a safety earth.
• RCDs are not recommended for use with this product
but, where their use is mandatory, only Type B RCDs
should be used.
EMV
• In a domestic environment this product may cause ra-
dio interference in which case supplementary mitiga-
tion measures may be required.
• This equipment contains electrostatic discharge (ESD
sensitive parts. Observe static control precautions when
handling, installing and servicing this product.
• This is a product of the restricted sales distribution
class according to IEC 61800-3. It is designated as
“professional equipment” as defined in EN61000-3-2.
Permission of the supply authority shall be obtained
before connection to the low voltage supply.
Control Unit Removal / Fitting
Isolate supply before plugging or unplugging control unit to the power stack.
CAUTION!
APPLICATION RISK
• The specifications, processes and circuitry described
herein are for guidance only and may need to be adapt-
ed to the user’s specific application. We can not guar-
antee the suitability of the equipment described in this
Manual for individual applications.
RISK ASSESSMENT
Under fault conditions, power loss or unintended oper-
ating conditions, the drive may not operate as intended.
In particular:
• Stored energy might not discharge to safe levels as
quickly as suggested, and can still be present even
though the drive appears to be switched off
• The motor's direction of rotation might not be controlled
• The motor speed might not be controlled
• The motor might be energised
A drive is a component within a drive system that may
influence its operation or effects under a fault condition.
Consideration must be given to:
• Stored energy
• Supply disconnects
• Sequencing logic
• Unintended operation

Drive Controlled Pump
Parker Hannifin Corporation
Hydraulics Group
DCP Manual innen A4 UK.indd 06.11.17
7
Manual
Introduction
Initial steps
Use the manual to help you plan the following:
Installation
Know your requirements:
• certification requirements, CE/UL/CUL conformance
• conformance with local installation requirements
• supply and cabling requirements
Programming (Parker Drive Quicktool) – pc pro-
gramming tool
Know your application:
• Install the Parker Drive Quicktool (PDQ) after down-
loading it from www.parker.com/ssd/pdq
• Connect your pc to your Drive via Ethernet
• Commission your Drive with the Parker Drive Quick-
tool wizard
• Go to Appendix D Parameter Reference for more in-
formation
PC REQUIREMENTS
Minimum system requirements:
• 1GB RAM
• 1GHz Pentium
• 1GB free Hard Disk space
• 1024x768 screen resolution
Operating Systems:
• Windows XP
• Windows Vista (32 bit)
• Windows 7 (32 & 64 bit)
• Windows 8 (32 & 64 bit)

Drive Controlled Pump
Parker Hannifin Corporation
Hydraulics Group
DCP Manual innen A4 UK.indd 06.11.17
8
Manual
Power ratings
Bestellschlüssel
Normalbetrieb Überlastbetrieb
Baugröße
kW Ausgangsstrom Aeff kW Ausgangsstrom Aeff
400 VAC 400 VAC
DCP3 3P5 1,1 3,5 0,75 2,5 D
DCP3 4P5 1,5 4,5 1,1 3,5 D
DCP3 5P5 2,2 5,5 1,5 4,5 D
DCP3 7P5 3 7,5 2,2 5,5 D
DCP3 010 4 10 3 7,5 D
DCP3 012 5,5 12 4 10 D
DCP3 016 7,5 16 5,5 12 E
DCP3 023 11 23 7,5 16 E
DCP3 032 15 32 11 23 F
DCP3 038 18 38 15 32 F
DCP3 045 22 45 18 38 G
DCP3 060 30 60 22 45 G
DCP3 073 37 73 30 60 G
DCP3 087 45 87 37 73 H
DCP3 105 55 105 45 87 H
DCP3 145 75 145 55 105 H
DCP3 180 90 180 75 145 J
DCP3 205 110 205 90 180 J
DCP3 260 132 260 110 205 J
DCP3 380 200 380 160 315 K
DCP3 440 250 440 200 380 K
DCP3 315 160 315 132 260 K
Product overview
Product Range
AC30V FRAME D, E, F, G, H, J, K

Drive Controlled Pump
Parker Hannifin Corporation
Hydraulics Group
DCP Manual innen A4 UK.indd 06.11.17
9
Manual
Mounting
Cubicle Mount
Mechanical Dimensions for AC30V Drive - Size D Illustrated
Dimensions for cubicle mount installation
All dimensions are in millimetres
Models Max.
Weight H H1 H2 W W1 W2 D Fixings
Size D 4.5 kg 286 270 6.5 100 80 10 255 4.5 mm slots & holes
M4 fixings
Size E 6.8 kg 333 320 6.5 125 100 12.5 255
Size F 10 kg 383 370 6.5 150 125 12.5 255
Size G 22.3 kg 480 465 7.25 220 190 13 287 5.5 mm slots & holes
M5 fixings
Size H 42.8 kg 670 650 10 260 220 20 316 6.8 mm slots & holes
M6 fixings
Size J 89 kg 800 780 10 260 285 23 374 9.0 mm slots & holes
M6 fixings
Size K 125 kg 1310 1282 15 400 280 60 457 M10 fixings

Drive Controlled Pump
Parker Hannifin Corporation
Hydraulics Group
DCP Manual innen A4 UK.indd 06.11.17
10
Manual
Mounting
Isolated forced
air flow
Natural air flow on Frames D – F
Fan assisted air flow on Frames G - J
Heatsink
Clearances for IP20 Product (mm)
A B C
Size D–H 10 75 75 minimum (excludes cabling requirements)
Size J 10 100 100 minimum (excludes cabling requirements)
Size K 10 200 200
(Europe: IP2x, USA/Canada: Open Type).
The drive must be mounted in a suitable cubicle.
Air Clearance for a Cubicle Mount Product/Application, Frame D Illustrated.
Mounting the drive
These units are not suitable for wall mounting.They must
be mounted vertically inside an additional enclosure. De-
pending on required level of EMC compliance refer to Ap-
pendix C "Compliance".
Note: Frame H, J & K only
These models are heavy and will require two people to lift,
or the use of a fork lift to install it. The product will stand
vertically on flat surfaces.
Ventilation
The drive gives off heat in normal operation and must
therefore be mounted to allow the free flow of air through
the ventilation slots and heatsink.
Maintain minimum clearances for ventilation as given in
the tables below to ensure adequate cooling of the drive,
and that heat generated by
other adjacent equipment is not transmitted to the drive.
Be aware that other equipment may have its own clear-
ance requirements. When
mounting two or more AC30V units together, these clear-
ances are additive. Ensure that the mounting surface is
normally cool.
Minimum Air Clearance (size D, E, F, G, H, J & K)
Cubicle-Mount Product/Application

Drive Controlled Pump
Parker Hannifin Corporation
Hydraulics Group
DCP Manual innen A4 UK.indd 06.11.17
11
Manual
Fixing holes
Note: Frame H, J and K have a single mounting plate which cannot be moved.
Mounting brackets, frames D, E, F & G
The brackets can be moved up/down by using the alternative holes, which are set at 15 mm intervals.
Rear view showing xing
holes for cubicle mount
Cubicle mounting details (all frame size)
Series AC30V

Drive Controlled Pump
Parker Hannifin Corporation
Hydraulics Group
DCP Manual innen A4 UK.indd 06.11.17
12
Manual
Through Panel Mount
Through panel mounting a drive in a cubicle allows you to use a smaller cubicle because much of the heat generat-
ed by the drive is dissipated outside the cubicle.
Dimensions for through panel installation sizes D, E, F, G, H and J
All dimensions are in millimetres
Model H H1 H2 W W1 W2 D D1 Fixings
Size D 250 262 6 79 1.5 82 72 181
Use M4 fixingsSize E 297 309 6 102 1 104 72 181
Size F 347 359 6 127 1 129 72 181
Size G 440 455.8 7.9 195 0.4 195.8 95 190 Use M5 fixings
Size H 617 641 12 218 4.5 227 99 211 Use M6 fixings
Size J 745 765 10 275 12.5 300 128 242.6
Through panel installation for frame size K is not possible.

Drive Controlled Pump
Parker Hannifin Corporation
Hydraulics Group
DCP Manual innen A4 UK.indd 06.11.17
13
Manual

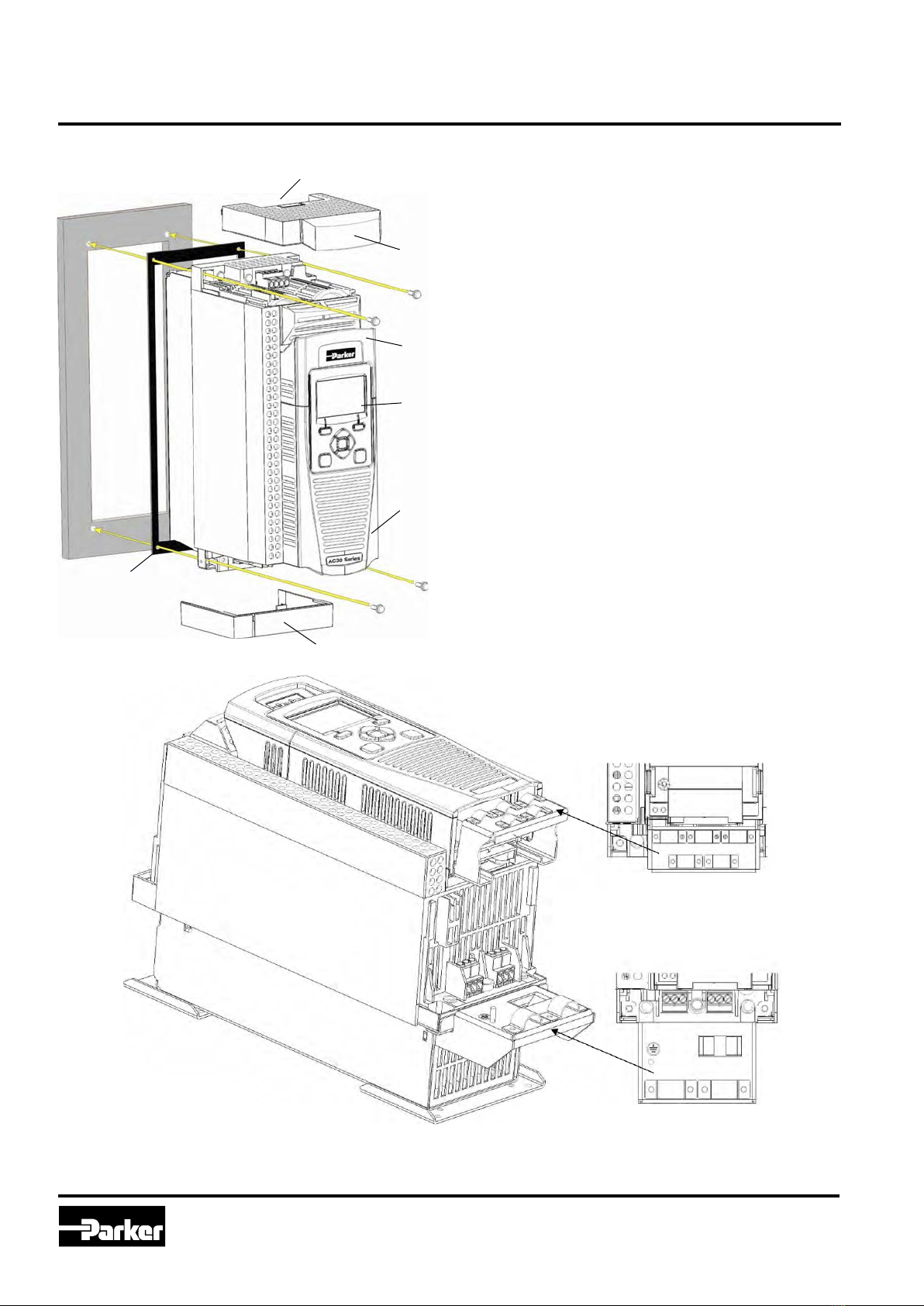

Through panel mounting details (all frame sizes)
To allow mounting; first disassemble the drive by following instructions 1 to 4 and then instructions 5 to 7 for mounting:
1. Unscrew and remove mounting bracket(s).
2. Remove Control Module Cover.
3. Remove Control Module.
4. Top & Bottom Cover Removal Instructions.
Frame D only
Top Cover: Squeeze together the bracket under the top
cover and lift off cover.
Bottom Cover: After inserting a screwdriver into the slot
slightly push to the left to release the catch.
Frames E, F, G, H and J
Top Cover:
To remove insert a screwdriver into the slot and move to
the right to release the catch, and then slide off cover.
Bottom Cover:
To remove bottom cover insert a screwdriver into the slot
and move to the left to release the catch, and then slide
off cover.
5. Fit gasket to the drive so that an air-tight seal will be
made between the drive and the panel.
Through Panel Kits, can be purchased from Parker
using the following part numbers:
Size D – LA502668
Size E – LA502669
Size F – LA502670
Size G – LA502471
Size H – LA502472
Size J – LA502793
Size K – not applicable
6. Tighten all screws in place as shown, according to panel
insert requirements.
7. At this stage you can wire the power cables.

Drive Controlled Pump
Parker Hannifin Corporation
Hydraulics Group
DCP Manual innen A4 UK.indd 06.11.17
14
Manual
Control cable
wiring bracket
Frame E illustrated
Cabling Bracket for Control & Main Cable
With the bottom cover off you can screw the cabling
brackets in place, if required.
The cabling brackets are standard with C2 filtering
products and can also be obtained from Parker using
the following part numbers:
Size D – LA501935U001
Size E – LA501935U002
Size F – LA501935U003
Size G– LA501935U004
Size H – LA501935U005
Size J – LA501935U006
Size K – not applicable
Main cable
wiring bracket
Parts are not included in the standard delivery.
Snap out to allow entry to
the braking terminals
Upper
Terminal
Cover
Cover
Front
Upper
Control Unit Terminal
Cover
(Cover Front Lower)
Lower Terminal Cover
GKP
Gasket

Drive Controlled Pump
Parker Hannifin Corporation
Hydraulics Group
DCP Manual innen A4 UK.indd 06.11.17
15
Manual
Wiring instructions
Important: The control board 0V must be connect-
ed to protective earth outside of the product to meet
EMC and safety requirements.
Note:You can still operate the drive in Local mode, if nec-
essary, with any Application selected.
Power Wiring Connections
Protective Earth (PE) Connections
The unit must be permanently earthed according to EN
61800-5-1 - see below. Protect the incoming mains sup-
ply using a suitable fuse or circuit breaker (circuit breaker
types RCD, ELCB, GFCI are not recommended).
Installation
Important: The drive is only suitable for earth refer-
enced supplies (TN) when fitted with an internal fil-
ter. External filters are available for use on TN and IT
(non-earth referenced) supplies.
For installations to EN 61800-5-1 in Europe:
• For permanent earthing, two individual incoming pro-
tective earth conductors (<10 mm² cross-section) or
one conductor (>10 mm² cross-section) are required.
Each earth conductor must be suitable for the fault cur-
rent according to EN 60204.
Power connections
Power Wiring Connections
Feed the power supply and motor cables into the drive un-
der the cable clamps using the correct cable entries, and
connect to the power terminals. Tighten all terminals to
the correct tightening torque; refer to the Terminal Tight-
ening Torques table.

Drive Controlled Pump
Parker Hannifin Corporation
Hydraulics Group
DCP Manual innen A4 UK.indd 06.11.17
16
Manual
Control Module Cover Removal
To gain access to the control wiring first remove the con-
trol module cover as follows:
1. First remove the GKP by pulling from the top down,
and remove.
2. Undo the screw and slide the control module cover
down slightly, then remove.
Control Module Removal
Isolate supply before plugging or unplugging
control unit to the power stack.
1. Unscrew captive screw.
2. Lift lower edge of assembly.
3. Slide assembly upwards, as far as possible,
to unlatch from unit.

Drive Controlled Pump
Parker Hannifin Corporation
Hydraulics Group
DCP Manual innen A4 UK.indd 06.11.17
17
Manual
Control wiring connections
Control Wiring Layout Diagram
Terminal Cable Specification
Solid minimum H05(07)V-U 0.2 mm2.
Solid maximum H05(07)V-U 1.5 mm2.
Flexible minimum H05(07)V-K 0.2 mm2.
Flexible maximum H05(07)V-K 1.5 mm2.
W.wire end Ferrule DIN462228 Pt 1 minimum 0.25 mm2.
W.wire end Ferrule DIN462228 Pt 1 maximum 1.5 mm2.
W.plastic collar Ferrule DIN462228 Pt4 minimum 0.25 mm2.
W.plastic collar Ferrule DIN462228 Pt4 maximum 0.75 mm2.
Terminal ID Function
X10/01 STO A Input
X10/02 STO Common
X10/03 STO B Input
X10/04 STO Common
X10/05 STO Status A
X10/06 STO Status B
X11/01 Anin 01 (+10V, 0-10V, 0-20mA, 4-20mA)
X11/02 Anin 02 (+10V, 0-10V)
X11/03 Anout 01 (+10V, 0-10V)
X11/04 Anout 02 (0-10V, 0-20mA, 4-20mA)
X11/05 +10V reference
X11/06 -10V reference
X12/01 Digin 04 / Digout 01
X12/02 Digin 05 / Digout 02
X12/03 Digin 06 / Digout 03
X12/04 Digin 07 / Digout 04
X12/05 User +24V output
X12/06 0 V
X13/01 (LH) 0 V
X13/02 DIGIN 1
X13/03 DIGIN 2
X13/04 DIGIN 3
X13/05 +24V AUX input
X13/06 0V AUX input
X14/01 (BOT) Relay 01 (contact A)
X14/02 Relay 01 (contact B)
X14/03 Relay 02 (contact A)
X14/04 Relay 02 (contact B)

Drive Controlled Pump
Parker Hannifin Corporation
Hydraulics Group
DCP Manual innen A4 UK.indd 06.11.17
18
Manual
1) Not required (can be used to display)
Inputs – Analogue (DCP3xxxA)
Analogue / Digital Inputs
Inputs – Fieldbus (DCP3xxxC/D/E/P/N)
Analogue / Digital Inputs
Control wiring connections
Control word (2021)
Selected Hydraulic Application (Control Type)
Terminal Q Control p Control p/Q Control LS Control Accumulator Control
ANIN01 (X11/01) Pressure Feedback 1) Pressure Feedback Pressure Feedback Pressure Feedback p0 Pressure Feedback
ANIN02 (X11/02) Flow Setpoint Pressure Setpoint Flow Setpoint Pressure Feedback
LS1 not used
ANIN11 (X21/02)
(optional) not used not used Pressure Setpoint Pressure Setpoint not used
DIGIN01 (X13/02) Start Drive
DIGIN02 (X13/03) No Stop
DIGIN03 (X13/04) Reset
DIGIN04 (X12/01) Pump 1 On/Off Switch On Signal
DIGIN05 (X12/02) Pump 2 On/Off Switch off Signal
DIGIN06 (X12/03) Terminal used as DIGOUT 03
DIGIN07 (X12/04) Terminal used as DIGOUT 04
Selected Hydraulic Application (Control Type)
Terminal Q Control p Control p/Q Control LS Control Accumulator Control
ANIN01 (X11/01) Pressure Feedback 1) Pressure Feedback Pressure Feedback Pressure Feedback p0 Pressure Feedback
ANIN02 (X11/02) not used Pressure Feedback
LS1 not used
ANIN11 (X21/02)
(optional) not used
DIGIN01 (X13/02) not used
DIGIN02 (X13/03) not used
DIGIN03 (X13/04) not used
DIGIN04 (X12/01) not used Switch on Signal
DIGIN05 (X12/02) not used Switch off Signal
DIGIN06 (X12/03) Terminal used as DIGOUT 03
DIGIN07 (X12/04) Terminal used as DIGOUT 04
Selected Hydraulic Application (Control Type)
Bit Q Control p Control p/Q Control LS Control Accumulator Control
0 Start Drive
1 No Stop
2 Reset
3 Pump 1 on/off Switch on signal
4 Pump 2 on/off Switch off signal
5..15 reserved

Drive Controlled Pump
Parker Hannifin Corporation
Hydraulics Group
DCP Manual innen A4 UK.indd 06.11.17
19
Manual
Outputs – Fieldbus (DCP3xxxC/D/E/P/N/T)
Status word (2022)
Outputs – Analogue (DCP3xxxA)
Analogue / Digital Outputs
1) If internal speed setpoint < minimum speed then DIGOUT 03 = TRUE else FALSE, can be used to control a bypass valve (not included)
Selected Hydraulic Application (Control Type)
Bit Q Control p Control p/Q Control LS Control Accumulator Control
0 Drive running
1 Not tripped
2 Bypass Valve 1)
3 Flow reached Pressure reached Flow reached Pressure reached reserved
4 reserved Pressure reached reserved
5..15 reserved
Selected Hydraulic Application (Control Type)
Terminal Q Control p Control p/Q Control LS Control Accumulator Control
ANOUT 01 (X11/03) Actual motor speed
ANOUT 02 (X11/04) Command signal for pressure relief valve
RELAY 01
(X14/01 & X14/02) Drive running
RELAY 02
(X14/03 & X14/04) Not Tripped
DIGOUT 01 (X12/01) Terminal used as DIGIN 04
DIGOUT 02 (X12/02) Terminal used as DIGIN 05
DIGOUT 03 (X12/03) Bypass Valve*
DIGOUT 04 (X12/04) Flow reached Pressure reached Flow reached Pressure reached Pressure reached
DIGOUT 11 (X20/01)
(optional) Pressure reached

Drive Controlled Pump
Parker Hannifin Corporation
Hydraulics Group
DCP Manual innen A4 UK.indd 06.11.17
20
Manual
General Purpose I/O Option
Option Modules
There are a range of Option Cards that may come factory-fitted to the AC30V.
Note:
If any of X20/01 to X20/04 is to be configured as digital
output, then X20/05 must be connected to the positive
output from a 24V supply and X20/06 must be connect-
ed to the negative output from the same supply.
Digital input and output ports are fully isolated from the
drive electronics. Therefore it is essential that X20/06 is
grounded at an appropriate point in the system.
Example:
Product Code Description
7004-01-00 General Purpose I/O Option, referred to as GPIO
Digital Inputs or Outputs, Analogue Inputs,
Motor Thermistor Input, Volt-free Relay
Outputs, Real-Time Clock
7004-02-00 Motor Thermistor Input
7004-03-00 Motor Thermistor and Real-Time Clock
7004-04-00 Pulse Encoder and Motor Thermisto
Terminal Name Range Description
X20/01 DIN11/
DOUT11
0 to
24 VDC
Digital Input / Output 11 See
the notes below.
X20/02 DIN12/
DOUT12
0 to
24 VDC
Digital Input / Output 11 See
the notes below.
X20/03 DIN13/
DOUT13
0 to
24 VDC
Digital Input / Output 11 See
the notes below.
X20/04 DIN14/
DOUT14
0 to
24 VDC
Digital Input / Output 11 See
the notes below.
X20/05 24V DC
Input
24 V ±
10 %
24V DC Input. Required to
power digital outputs
DOUT11 to DOUT14.
See the notes below.
X20/06 DIG 0V 0 V
0 V reference for digital inputs
and outputs.
See the notes below.
