Parker Series VP1-045/-075 Installation and operation manual

Bulletin HY30-8222-INST/UK
Installation and
Startup Manual
Hydraulic Pumps
Series VP1-045/-075
Effective: September 01, 2016
Supersedes: August 25, 2011
Visit our homepage for additional support
parker.com/pmde

Variable displacement pump
Series VP1-045 / -075
Bulletin HY30-8222-INST/UK
Installation information
2
Parker Hannifin
Pump & Motor Division Europe
Trollhättan, Sweden
Important installation
information
1. Make sure max input torque and max
bending moment of the PTO (including
the VP1 pump) are not exceeded.
Also, make sure the direction of rotation
of the VP1 pump correspond to the PTO,
and that pump and PTO specifications
are not exceeded in the application.
2. When VP1-045/075 is assembled to an
engine PTO make sure that the pump
isn’t overheated in the off-load mode. For
more information, see page 4, BPV-VP1
unloading valve.
3. Never use excessive force when install-
ing a gear, coupling or sleeve on the VP1
pump shaft.
4. The pump should be installed below the
lowest oil level in the reservoir (fig. 6, pg.
5);
if this is not possible, please contact
Parker Hannifin for further information.
5. A separate drain line must be installed
between the control drain port T and the
reservoir (refer to fig. 6, pg. 5); connect
the drain line directly to the oil cooler (if
the hydraulic system is so equipped).
6. A pressure relief valve is recommended
in the outlet (pressure) line from the
pump; it should be set 15–20 bar higher
than max pressure setting of the pump.
Example: The main pressure relief
valve located in the direc-
tional control valve.
7. Fill the pump with oil and bleed the pump
before start-up.
NOTE: - The suction fitting must be orde-
red separately (refer to pg. 7)
- VP1-045 / -075 installation on
a PTO:
please refer to page 3 for
information.
NOTE: Always run a function,
after adjusting the standby pres-
sure or the max pressure setting,
before you read the value.
Inlet (suction)
port (BSP 11/4")
Outlet/press.
port (BSP 1")
'Top' purge port
(BSP 1/4")
Load sens-
ing port 'LS'
(BSP 1/4")
Control drain
port 'T' (BSP
1/4")
Outlet gauge
port (BSP 1/4")
Arrow indicates
pump rotation
(left hand shown)
'Bottom' purge
port (BSP 1/4";
not shown)
Inlet (suction)
port (BSP 11/4")
Outlet (press.)
port (BSP 1")
Outlet gauge
port (BSP 1/4")
Arrow indicates
pump rotation
(right hand shown)
'Bottom' purge
port (BSP 1/4";
(not shown)
'Top' purge port
(BSP 1/4")
Load sens-
ing port 'LS'
(BSP 1/4")
Control drain
port 'T' (BSP
1/4")
Fig. 1. Ports, right hand rotating pump.
Fig. 2. Ports, left hand rotating pump.

Variable displacement pump
Series VP1-045 / -075
Bulletin HY30-8222-INST/UK
Installation information
3
Parker Hannifin
Pump & Motor Division Europe
Trollhättan, Sweden
The VP1 input shaft must not be subject to
external radial and/or axial forces (see
illustration to the right).
Installation examples:
a) A gear drive with a bearing supported
gear is acceptable (as shown in the illus-
tration below)
b) A gear mounted directly on the VP1 input
shaft is usually not acceptable
c) A belt drive pulley installed directly on
the VP1 input shaft is usually not allowed
Fig. 3. Usually, no external radial and/or
axial forces are allowed on the VP1 shaft
VP1 installation on a PTO /engine PTO
NOTE: If an installation according to
b) or c) above, is considered,
contact Parker Hannifin.
VP1_to_PTO_install_09-02-12.ai
Leif A.
Fig. 4. VP1-045/075 shown with a bearing supported gear on an engine PTO adapter
(example).
VP1-045/075_no_shaft_loads.ai
Leif A./11-02-04

Variable displacement pump
Series VP1-045 / -075
Bulletin HY30-8222-INST/UK
Installation information
4
Parker Hannifin
Pump & Motor Division Europe
Trollhättan, Sweden
51.5 32
8.5
41
92
9�40
30
53
φ
6.5
(x2)
TP
S
X
BPV-VP1_unloading_valve.ai
Leif A./09-04-15
4 mm
hex key
BSP 1/4"
(x3)
BPV-VP1
unloading valve

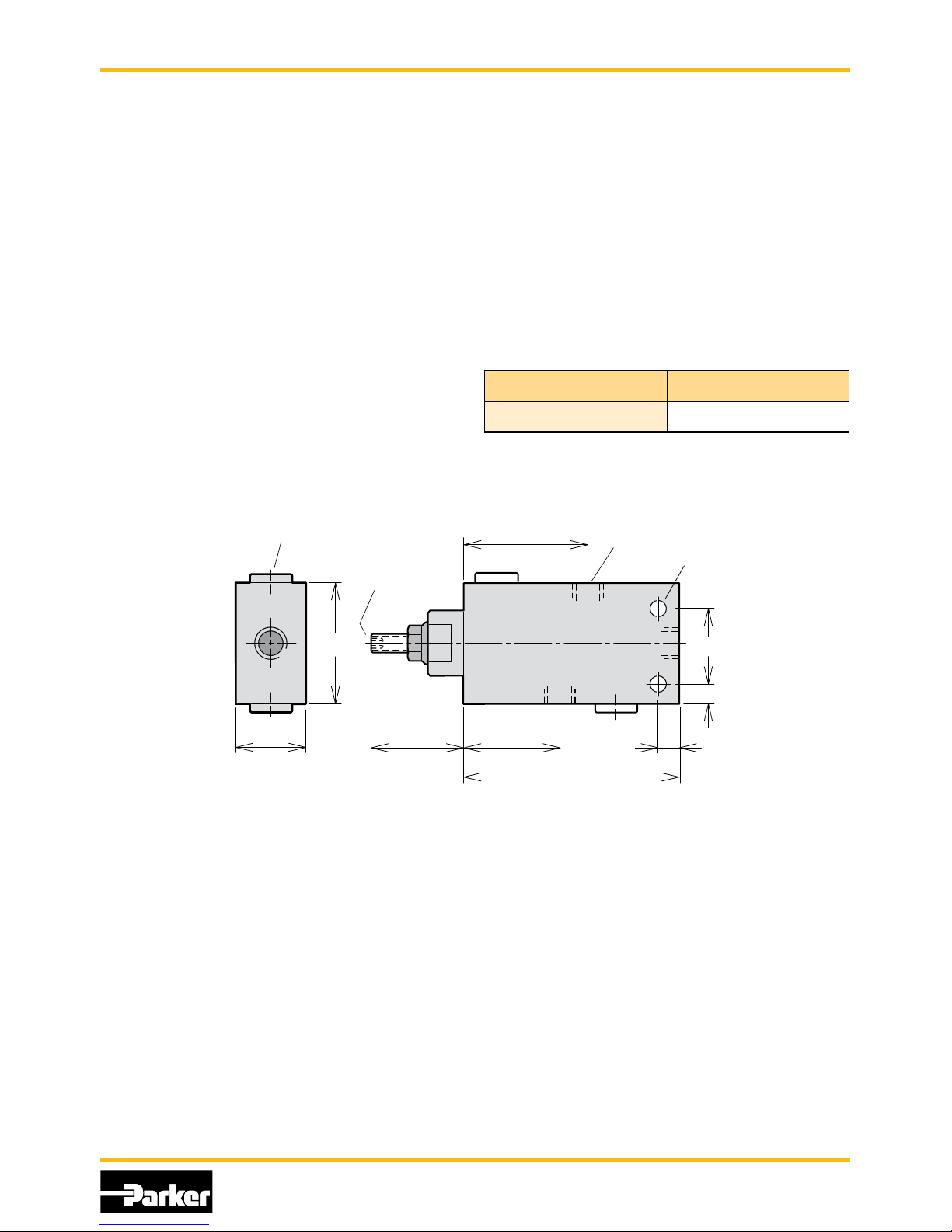

Fig. 5. BPV-VP1 unloading valve.
For more information also see HY30-8226-INST/UK,
Installation Information Unloading Valve BPV for VP1
VP1 installation on an engine PTO
BPV-VP1 unloading valve
The BPV-VP1 unloading valve is utilized in
hydraulic systems where the pump is in
constant operation.
The valve protects the pump from being
overheated in the off-load mode by allow-
ing a small flow through the pump. When
load sensing valve function is engaged, the
bypass flow is cut off (as port ‘X’ is being
pressurized).
The valve will also de-air the suction line
and the pump body after a long standstill.
(The pump is assembled above the oil-
tank and during the standstill some of the oil
in the pump housing has been drained back
to the oil-tank)
Valve type Ordering number
BPV-VP1 379 8799

Variable displacement pump
Series VP1-045 / -075
Bulletin HY30-8222-INST/UK
Installation information
5
Parker Hannifin
Pump & Motor Division Europe
Trollhättan, Sweden
Start-up procedure
- Make sure the entire hydraulic system is
as clean as possible before filling it with
a recommended fluid.
- The pump must be filled with fluid and
then purged before start-up (fig. 6).
Please note, that purging should only be
performed when the pump is connected
to the reservoir and the entire system is
filled with hydraulic fluid.
- Air in the VP1 (or in the rest of the
hydraulic system) can cause excessive
noise and damage pump performance.
- When starting up the system, activate
high flow/low pressure in order to purge
the hydraulic system properly.
- As previously pointed out, a separate
drain line is required between control
port T and the reservoir (fig. 6).
- Do not install a suction filter in the inlet
line.
Fluids
Suitable fluids: Mineral based, hydraulic flu-
ids type HLP (DIN 51524), ATF (automatic
transmission fluids) and API/CD motor oils.
Fluid temperature
Main circuit: Max 75 °C.
Viscosity
Recommended viscosity: 20 – 30 mm2/s
(cSt).
Operating viscosity limits:
- Min 10 mm2/s; max 400 mm2/s
- At start-up: max 1000 mm2/s.
Filtration
- 25 µm (absolute) in clean environment
and/or low pressures (<200 bar)
- 10 µm (absolute) in contaminated envi-
ronment and/or high pressures (200 bar
and above).
- Fluid cleanliness should follow ISO
standard 4406, code 20/18/13.
NOTE: Before start-up, open the uppermost
purge plug and purge the pump.
After purging, make sure the plug is
tightened but not to more than 30 Nm.
VP1 purging.ai
Leif A./06-03-15
'Lower purge plug' 'Upper purge plug'
Separate drain line from
control port 'T'
Inlet (suction)
line
Separate drain line
from control port 'T'
Fig. 6. Purging the VP1.

Variable displacement pump
Series VP1-045 / -075
Bulletin HY30-8222-INST/UK
Installation information
6
Parker Hannifin
Pump & Motor Division Europe
Trollhättan, Sweden
Tandem coupling VP1-045/075
The VP1 pump has a through-shaft which
means that an additional pump, such as a
fixed displacement F1, can be installed in
tandem with the VP1 by means of an adap-
tor kit (fig. 7).
NOTE:
The bending moment caused by the weight
of a tandem assembly normally exceeds
that allowed by the PTO.
To prevent damage, the auxiliary pump
should be supported by a bracket attached
to the gearbox; it must not be fastened to
the truck chassis.
Likewise, when the tandem assembly is
installed on a separate bracket and driven
by a cardan shaft, the auxiliary pump should
have a support attached to the pump bracket.
Fig. 7 Adaptor kit (P/N 379 7795) for tandem coupling.
IMPORTANT
Contact Parker Hannifin for additional
information when considering tandem
mounting a second VP1 pump.
Installation information tandem coupling
1. The pump must be filled with oil and then
purged before start-up.
2. Adaptor between the pumps shall be mounted
with the purge plug pointing upwards, fill and
purge the adaptor with oil.
3. Set the standby pressure on the controls
with a difference of 5 bar (Example 27 bar on
pump 1 and 32 bar on pump 2).
Purge plug

Variable displacement pump
Series VP1-045 / -075
Bulletin HY30-8222-INST/UK
Installation information
7
Parker Hannifin
Pump & Motor Division Europe
Trollhättan, Sweden
NOTE: Always run a function,
after adjusting the standby pres-
sure or the max pressure setting,
before you read the value.

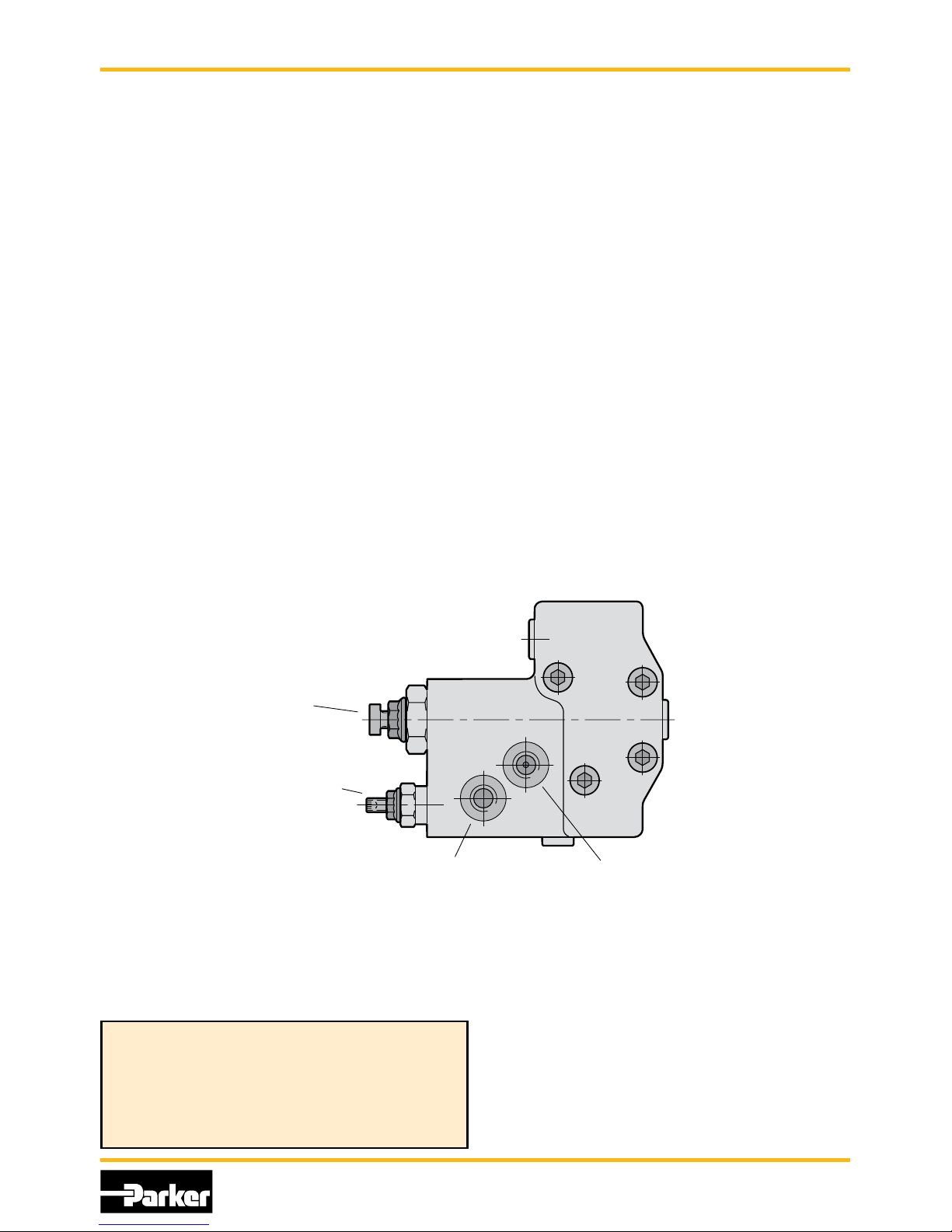

Fig. 8. LS control adjustments.
LS control adjustments
Signal pressure limiter
- The signal pressure relief valve is factory set at
330 bar (fig. 8).
- The LS pressure relief valve must not, under
any circumstance, be set higher than 380 bar
when the hydraulic system is being delivered to
a customer.
- Make sure max pressure not exceed 400 bar.
The pressure can easily be measured in the
gauge port on the pump housing.
Differential pressure setting
- The standby pressure, ∆p, is factory set at
25 bar but is adjustable to 35 bar.
- This 25 bar setting and the installed, standard
orifices usually provide an acceptable directiona l
valve characteristic as well as system stability.
For additional information, please contact
Parker Hannifin.
LS
T
LS adjustments.ai
Leif A./06-03-15
Control drain port
(BSP 1/4")
Load sensing port
(BSP 1/4")
∆p (standby
pressure)
adjustment
Signal pressure
limiter (factory
set at 330 bar)

Variable displacement pump
Series VP1-045 / -075
Bulletin HY30-8222-INST/UK
Installation information
8
Parker Hannifin
Pump & Motor Division Europe
Trollhättan, Sweden
45° adapter
C1ØC2
mm
A
mm
B
mm
Order no.
BSP 3/4” 2” 71 154 379 9563
BSP 1” * 2 1/2” 64 147 379 9562
*Above 100 l/min
Fig. 9. Suction fittings.
C2
C2
C2
C1
C1
C1
Fittings_install_GB.eps
Leif A./020115
A
B
A
B
Pressure
fitting
45° adjustable
suction fitting
Fitting kits for VP1-045 and
-075 pumps
Kits with 45° and 90° suction fitting
Nipplar_ny.eps
Leif A./05-01-21
13 C
ØA
ØB
ØB
ØA
44 13
C
45° adapter
ØA ØB
inch
C
mm
Ordering no.
BSP 11/4" 2" 18 00509035116
BSP 11/4" 21/2" 18 00509021916
90° adapter
ØA ØB
inch
C
mm
Ordering no.
BSP 11/4" 2" 18 00509034616

Variable displacement pump
Series VP1-045 / -075
Bulletin HY30-8222-INST/UK
Installation information
9
Parker Hannifin
Pump & Motor Division Europe
Trollhättan, Sweden
If any oil should come out of the indication-hole on the pump;
- Stop the system immediately.
- Determine the cause of leakage.
- Replace damaged parts.
- Make sure you have corrected the source of the problem, not only
the symptom.
Parker can not be held responsible for damage to PTO, engine and gear-
box caused by improper maintenance of the hydraulic system.
VP1-45/75 cross section
Leif A./020115
Fig. 10. Indication hole.

Variable displacement pump
Series VP1-045 / -075
Bulletin HY30-8222-INST/UK
Installation information
10
Parker Hannifin
Pump & Motor Division Europe
Trollhättan, Sweden
Position notification regarding Machinery Directive 2006/42/EG:
Products made by the Pump & Motor Division Europe (PMDE) of Parker Hannifin are
excluded from the scope of the machinery directive following the “Cetop” Position Paper on
the implementation of the Machinery Directive 2006/ 42/ EC in the Fluid Power Industry.
All PMDE products are designed and manufactured considering the basic as well as the
proven safety principles according to:
• SSENISO13849-2:2008-09,C.2andC.3and,
• SSEN982+A1:2008,
so that the machines in which the products are incorporated meet the essential health and
safety requirements.
Confirmations for components to be proven component, e. g. for validation of hydraulic
systems, can only be provided after an analysis of the specific application, as the fact to be
a proven component mainly depends on the specific application.
Dr. Hans Haas
General Manager Pump & Motor Division Europe
Chemnitz, Chomutov, Trollhättan, Kingswinford

Variable displacement pump
Series VP1-045 / -075
Bulletin HY30-8222-INST/UK
Installation information
11
Parker Hannifin
Pump & Motor Division Europe
Trollhättan, Sweden
FAILURE OR IMPROPER SELECTION OR IMPROPER USE OF THE PRODUCTS DESCRIBED
HEREIN OR RELATED ITEMS CAN CAUSE DEATH, PERSONAL INJURY AND PROPERTY
DAMAGE.
This document and other information from Parker-Hannifin Corporation, its subsidiaries and author-
ized distributors provide product or system options for further investigation by users having technical
expertise.
The user, through its own analysis and testing, is solely responsible for making the final selection
of the system and components and assuring that all performance, endurance, maintenance, safety
and warning requirements of the application are met. The user must analyze all aspects of the
application, follow applicable industry standards, and follow the information concerning the product
in the current product catalog and in any other materials provided from Parker or its subsidiaries or
authorized distributors.
To the extent that Parker or its subsidiaries or authorized distributors provide component or system
options based upon data or specifications provided by the user, the user is responsible for deter-
mining that such data and specifications are suitable and sufficient for all applications and reason-
ably foreseeable uses of the components or systems.
Offer of Sale
Please contact your Parker representation for a detailed ”Offer of Sale”.
WARNING – USER RESPONSIBILITY

Parker Hannifin Manufacturing Sweden AB HY30-8222-INST/UK
Pump & Motor Division Europe Art. No 3780474-09
461 82 Trollhättan
Sweden © Copyright 2016
Tel.+46(0)520404500 Allrightsreserved
www.parker.com/pmde
Variable displacement pump
Series VP1-045 / -075
Bulletin HY30-8222-INST/UK
Installation information
