Parkside 73787 User manual

SANDBLASTER GUN PDSP 1000 A1
SANDBLASTER GUN
Operation and Safety Notes
Translation of original operation manual
PAINEILMAKÄYTTÖINEN
HIEKKAPUHALLUSPISTOOLI
Käyttö- ja turvaohjeet
Alkuperäisen käyttöohjeen käännös
BLÄSTRINGSPISTOL, TRYCKLUFT
Bruksanvisning och säkerhetsanvisningar
Översättning av bruksanvisning i original
DRUCKLUFT-SANDSTRAHLPISTOLE
Bedienungs- und Sicherheitshinweise
Originalbetriebsanleitung
IAN 73787

GB/IE Operation and Safety Notes Page 5
FI Käyttö- ja turvaohjeet Sivu 17
SE Bruksanvisning och säkerhetsanvisningar Sidan 29
DE/AT / CH Bedienungs- und Sicherheitshinweise Seite 41
Before reading, unfold the page containing the illustrations and familiarise yourself with all
functions of the device.
Käännä ennen lukemista kuvallinen sivu esiin ja tutustu seuraavaksi laitteen kaikkiin toimintoihin.
Vik ut bildsidan och ha den till hands när du läser igenom anvisningarna och gör dig bekant
med apparatens/maskinens funktioner.
Klappen Sie vor dem Lesen die Seite mit den Abbildungen aus und machen Sie sich anschließend
mit allen Funktionen des Gerätes vertraut.
DRUCKLUFT-SANDSTRAHLPISTOLE
Bedienungs- und Sicherheitshinweise
Originalbetriebsanleitung

15
34
C
A EB
1.
2.
2

5GB/IE
Introduction
Proper use................................................................................ Page 7
Features and equipment......................................................... Page 8
Included items ......................................................................... Page 8
Technical data......................................................................... Page 8
Safety advice................................................................... Page 9
Operation
Connecting the compressed air source ................................. Page 11
Filling the blast medium container.......................................... Page 11
Using the sandblasting gun.................................................... Page 12
Cleaning ............................................................................... Page 12
Service................................................................................... Page 13
Warranty............................................................................. Page 13
Disposal................................................................................ Page 14
Declaration of Conformity/
Manufacturer................................................................... Page 15
Table of contents

6 GB/IE
Introduction

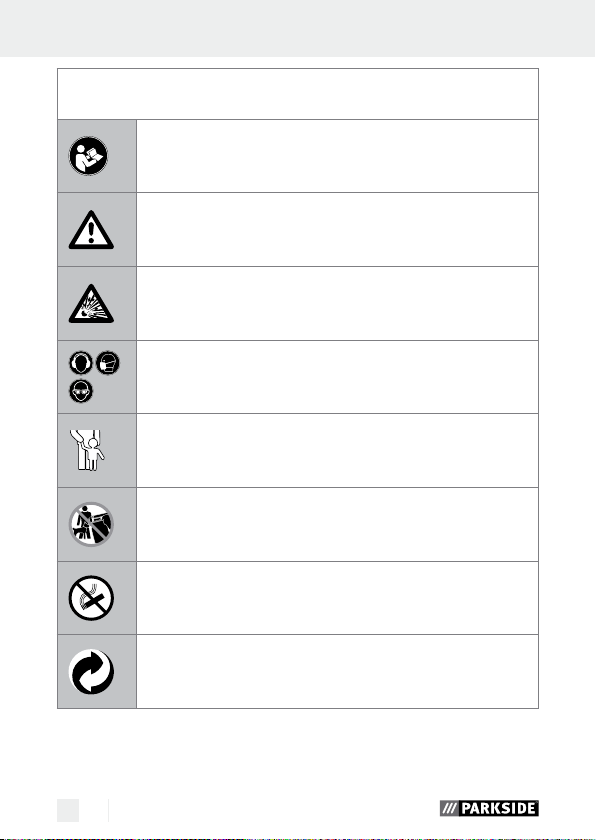

The following pictograms are used in these operating
instructions/on the device:
Read instruction manual!
Observe caution and safety notes!
Risk of explosion!
Wear hearing protection, dust protection mask
and protective glasses.
Keep children away from the device!
Never point the device at people or animals.
No smoking!
Dispose packaging and appliance in an
environmentally-friendly way!

7GB/IE
Introduction
Sandblaster gun PDSP 1000 A1
Q
Introduction
We congratulate you on the purchase of your new device.
You have chosen a high quality product. The instructions for
use are part of the product. They contain important information
concerning safety, use and disposal. Before using the product, please
familiarise yourself with all of the safety information and instructions for
use. Only use the unit as described and for the specified applications.
If you pass the product on to anyone else, please ensure that you also
pass on all the documentation with it.
Q
Proper use
This device is intended for the removal of rust and paint from metal
surfaces. Any other use or modification to the device shall be considered
as improper use and could give rise to considerable risk of accident.
We will not accept liability for loss or damage arising from improper
use. The device is intended for private, domestic use only.
Q
Features and equipment
1Sandblaster gun
2Trigger
3Plug-in nipple for compressed air connection
4Blast medium container
5Blast nozzle

8 GB/IE
Q
Included items
1 Sandblaster gun PDSP 1000 A1
1 Operating instructions
Q
Technical data
Max. Working pressure: 8bar
Recommended working air pressure: 3–5bar
Compressed air consumption: 130–260l / min
Nozzle ø: 2.8mm
Container capacity: 1000ml
Volume flow rate: typically 200–220g/Min.
Required air quality: Cleaned and oil-free
Working settings: Working air pressure setting at
the pressure reducer max. 8 bar.
Sound pressure level: 86dB(A)
Sound power level: 98dB(A)
Values determined in accordance with EN 14462 (EN1953/A1:2009).
Safety advice
Read all the safety advice and instructions.
Even minor failures to observe the safety advice and instructions could
lead to severe injury.
keep all the safety advice and instructions in a safe place
for future reference.
Safety adviceIntroduction/Safety advice

9GB/IE

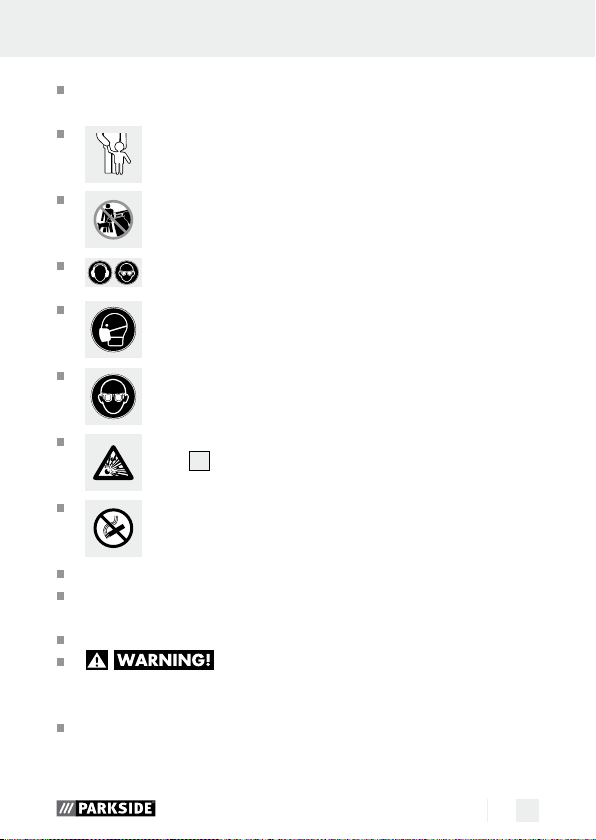

Check the device for damage before bringing it into
use. Do not use the device if you discover any defects.
Keep children and other people away while
you are operating the sandblasting gun. Dis-
tractions can cause you to lose control of the device.
RISK OF INJURY! IMPROPER USE! Never point
the device at people or animals.
For your own safety, wear suitable personal
protective equipment.
Wear an approved dust mask /
protective hood!
Wear protective glasses!
RISK OF EXPLOSION! Do not use the sandblasting
gun 1in environments containing gases, open flames,
fires or gas-operated water heaters.
NO SMOKING!
Work in adequately ventilated spaces only.
Never use oxygen or other combustible gas as the
energy source.
Never exceed the maximum working air pressure of 8bar.
RECOIL FORCES! High working pressures can
give rise to recoil forces that under certain conditions can result in
danger from continuous loading.
DANGER OF INJURY! Disconnect the device from the com pressed
air source before carrying out any repairs or maintenance of the
device or moving it to another location.
Safety adviceIntroduction/Safety advice

10 GB/IE
DANGER OF INJURY! Disconnect the device from the com-
pressed air source before filling it with blast medium.
NOTE! Please observe the safety advice provided by the manu-
facturer of the blast medium.
Use only materials for the blast medium that are suit-
able for the sandblasting gun. Do not use quartz sand.
There is the danger of toxic silicon dust forming.
Take precautions to ensure that other people are not
contaminated (dust generation).
Ensure that the spent blast medium is trapped and
collected so that it can be disposed of in an environ-
mentally compatible manner.
Do not remove rating plates or labels–they are safety-relevant
parts of the device.
If you are inexperienced in the use of this type of device, you should
seek out information or training to learn how to handle it safely.
Q
Operation
Q
Connecting the compressed air source
NOTE: Operate the sandblasting gun 1only with cleaned, conden-
sate- and oil-free compressed air and never exceed the maximum
working air pressure at the device of 8 bar.
NOTE: The compressed air source must be fitted with a (filter) / pres-
sure reducer so that the air pressure can be regulated.
Connect the sandblasting gun to a suitable compressed air source
by connecting the quick-release coupling of the air supply hose with
the plug-in nipple 3to the sandblasting gun 1. It locks itself in
place automatically.
OperationSafety advice/Operation

11GB/IE
Q
Filling the blast medium container
Always use a suitable blast medium for your sand blasting work.
NOTE: We recommend using a silica-free blast medium
(e.g. ground blast furnace slag) with a grading of 0.2mm–0.8mm.
Ensure that the blast medium is completely dry and not too coarse.
NOTE: The maximum particle size is 0.8mm.
Turn the bayonet cap of the blast medium container 4to open it.
Pull the blast medium container 4off downwards.
Fill the blast medium container 4with the desired amount of
blast medium.
Ensure that the maximum capacity of the container (1000 ml) is
not exceeded.
Screw the blast medium container 4back on and lock it in place
by inserting and turning it on to the container lid (see Figs. A).
Q
Using the sandblasting gun
(see Figs. B, C)
Carefully prepare the workpiece before sand blasting it.
Clean it if necessary.
NOTE: Deposits of dust and grease can have a considerably
detrimental effect on the result.
Carefully mask or tape off everything that is not to be sand blasted.
Ensure that there is always a minimum distance of 20cm between
the sandblasting gun 1and the surface being sand blasted.
Switching on:
Press the trigger 2to start operating the sandblasting gun 1.
OperationSafety advice/Operation

12 GB/IE
Switching off:
Release the trigger 2to stop operating the sandblasting gun 1.
After you finish work, disconnect the device from the compressed
air source.
NOTE: First disconnect the hose from the compressed
air source and only then disconnect the compressed
air supply hose from the device. This will ensure that the
compressed air supply hose does not wave around in an uncon-
trolled manner.
Q
Cleaning
DANGER OF INJURY! Always disconnect
the device from the compressed air source before you clean or
maintain it.
Clean the sandblasting gun 1and blast medium container 4
after you finish working. Blow out the sandblasting gun 1and
the blast medium container 4with compressed air.
Store the sandblasting gun 1in a dry, enclosed room.
Q
Service
Have your sandblasting gun repaired
only by qualified specialist personnel using original
manufacturer parts only. This will ensure that your sandblast-
ing gun remains safe to use.
WarrantyOperation/Cleaning/Service

13GB/IE
Q
Warranty
The warranty for this appliance is for 3 years from the
date of purchase. The appliance has been manufactured
with care and meticulously examined before delivery.
Please retain your receipt as proof of purchase. In the
event of a warranty claim, please make contact by tele-
phone with our Service Department. Only in this way
can a post-free despatch for your goods be assured.
The warranty covers only claims for material and maufacturing defects,
but not for transport damage, for wearing parts or for damage to frag-
ile components, e.g. buttons or batteries. This product is for private use
only and is not intended for commercial use.
The warranty is void in the case of abusive and improper handling, use of
force and internal tampering not carried out by our authorized service
branch. Your statutory rights are not restricted in any way by this warranty.
The warranty period will not be extended by repairs made unter warranty .
This applies also to replaced and repaired parts. Any damage and de-
fects extant on purchase must be reported immediately after unpacking
the appliance, at the latest, two days after the purchase date. Repairs
made after the expiration of the warranty period are subject to pay ment.
GB
Service Great Britain
Tel.: [phone]
(0,10 GBP/Min.)
e-mail: k[email protected]
IAN 73787
WarrantyOperation/Cleaning/Service

14 GB/IE
IE
Service Ireland
Tel: [phone]
(0,08 EUR/Min. (peak)
0,06 EUR/Min. (off peak))
e-mail: k[email protected]
IAN 73787
Q
Disposal
The packaging is made entirely of recyclable materials,
which you may dispose of at local recycling facilities.
Do not dispose of the device with your household rubbish!
For details of disposing of the appliance at the end of its useful life,
please contact your district or city council.
Q
Declaration of Conformity/Manufacturer
We, Kompernaß GmbH, the person responsible for documents: Mr Semi
Uguzlu, Burgstr. 21, D-44867 Bochum, Germany, hereby declare that
this product complies with the following standards, normative documents
and EU directives:
Machinery Directive
(2006/ 42 /EC)
Declaration of Conformity/Manufacturer.../Disposal/Declaration of Conformity/Manufacturer

15GB/IE
Applicable harmonised standards:
DIN EN 1953:1998+A1:2009
(EN1953:1998+A1:2009), DIN 31000:1979+A1:2007
Type /Device description:
Sandblaster gun PDSP 1000 A1
Date of manufacture (DOM): 03–2012
Serial number: IAN 73787
Bochum, 31.03.2012
Semi Uguzlu
- Quality Manager -
We reserve the right to make technical modifications in the course of
further development.
Declaration of Conformity/Manufacturer.../Disposal/Declaration of Conformity/Manufacturer

16
Sisällysluettelo

17FI
Sisällysluettelo
Johdanto
Määräystenmukainen käyttö....................................................Sivu 19
Varustus .....................................................................................Sivu 19
Toimitukseen kuuluu ..................................................................Sivu 20
Tekniset tiedot............................................................................Sivu 20
Turvallisuusohjeet..........................................................Sivu 20
Käyttö
Paineilmalähteen liittäminen.....................................................Sivu 22
Hioma-aineen täyttö..................................................................Sivu 23
Paineilma-hiekkapuhalluspistoolin käyttö ................................Sivu 23
Puhdistus ...............................................................................Sivu 24
Huolto.......................................................................................Sivu 24
Takuu........................................................................................Sivu 25
Hävittäminen.....................................................................Sivu 26
Vaatimustenmukaisuusvakuutus/
Valmistaja.............................................................................Sivu 26

18 FI
Johdanto
Tässä käyttöohjeessa/laitteessa käytetään seuraavia
kuvakkeita:
Lue käyttöohje!
Huomioi varoitus- ja turvaohjeet!
Räjähdysvaara!
Käytä kuulonsuojainta, hengitys-/ pölysuojainta
ja suojalaseja.
Pidä lapset loitolla laitteesta!
Älä suuntaa laitetta ihmisiä ja/ tai eläimiä kohti.
Tupakointi kielletty!
Hävitä pakkaus ja laite ympäristöystävällisesti!

19FI
Johdanto
Paineilmakäyttöinen hiekkapuhalluspistooli
PDSP 1000 A1
Q
Johdanto
Onnittelemme sinua hyvästä valinnastasi. Valitsit erittäin
korkealaatuisen tuotteen. Käyttöohje on osa tätä tuotetta. Se
sisältää tärkeitä turvallisuusohjeita sekä käyttöä ja hävitystä
koskevia ohjeita. Tutustu ennen tuotteen käyttöä huolellisesti kaikkiin
käyttöja turvallisuusohjeisiin. Käytä tuotetta ainoastaan ohjeen mukaan
ja siinä mainittuihin tarkoituksiin. Anna kaikki ohjeet mukaan, jos luovu-
tat tuotteen edelleen.
Q
Määräystenmukainen käyttö
Tämä laite on tarkoitettu ruosteen ja maalin poistoon metallipinnoilta.
Kaikki muunlainen käyttö tai muutosten teko laitteeseen on määräys-
tenvastaista ja voi aiheuttaa huomattavia tapaturmavaaroja. Emme ota
mitään vastuuta määräystenvastaisesta käytöstä aiheutuneista vahingoista.
Laite on tarkoitettu ainoastaan yksityiskäyttöön.
Q
Varustus
1Paineilmakäyttöinen hiekkapuhalluspistooli
2Laukaisukahva
3Ilmaliitäntä
4Puhallusainesäiliö
5Puhallussuutin

20 FI
TurvallisuusohjeetJohdanto/Turvallisuusohjeet
Q
Toimitukseen kuuluu
1 Paineilmakäyttöinen hiekkapuhalluspistooli PDSP 1000 A1
1 Käyttöohje
Q
Tekniset tiedot
Max. työpaine: 8bar
Suositeltava työpaine: 3–5 bar
Ilmankulutus: 130–260l /min
Suutin ø: 2,8mm
Säiliön tilavuus: 1000ml
Läpivirtausmäärä: tyypillinen 200–220g / min.
Tarvittava ilmanlaatu: puhdistettu ja öljytön
Töiden säätöarvot: säädetty työpaine paineensäätimellä tai
suodatuspainemittarilla max. 8bar.
Äänenpainetaso: 86dB(A)
Äänitehotaso: 98dB(A)
Mittausarvo laskettu EN 14462 (EN1953/A1:2009) mukaisesti.
Turvallisuusohjeet
Lue kaikki turvallisuusohjeet ja käyttöoh-
jeet huolellisesti läpi. Mikäli turvallisuusohjeiden ja määräysten
noudattaminen laiminlyödään, siitä voi olla seurauksena vakavia
loukkaantumisia ja/tai aineellisia vahinkoja.
