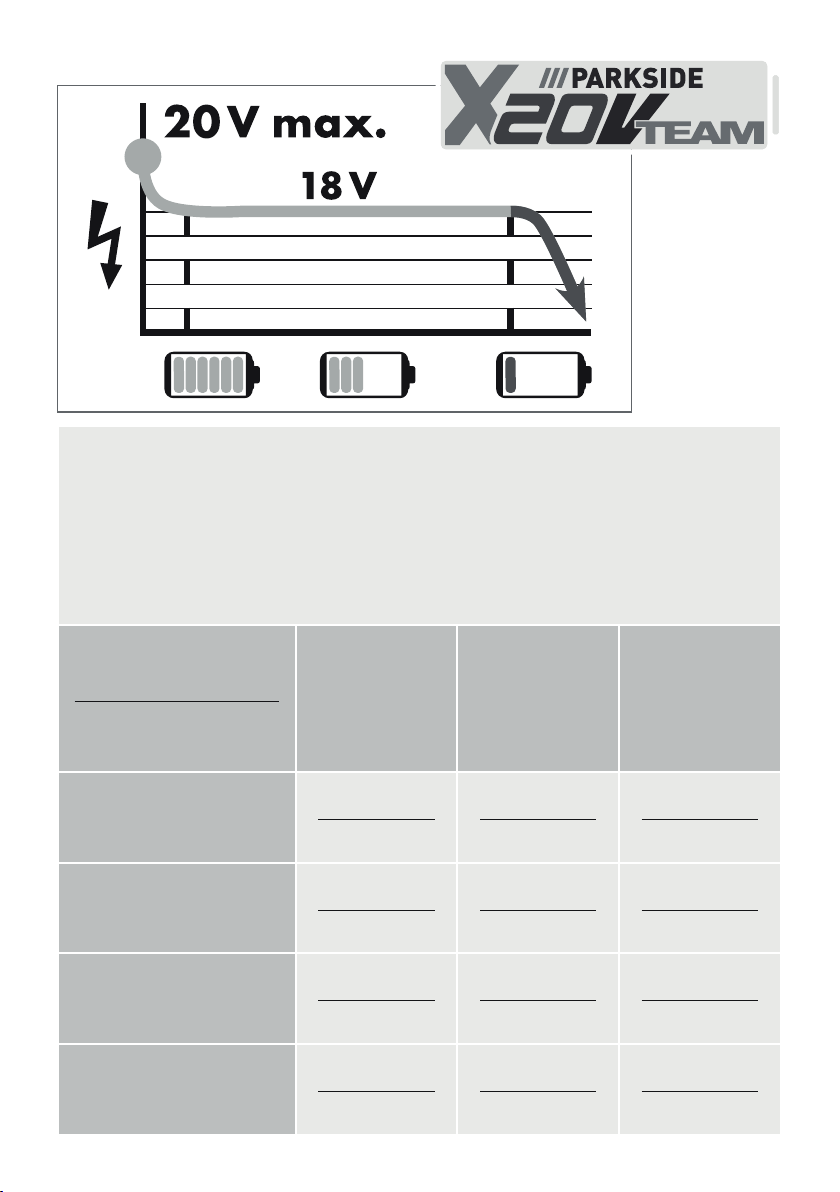

Ladezeiten
Charging times
Temps de charge
Ladeströme
Charging currents
Courants de charge
2 Ah
Akku
Battery pack
Batterie
PAP 20 A1/B1
3 Ah
Akku
Battery pack
Batterie
PAP 20 A2
4 Ah
Akku
Battery pack
Batterie
PAP 20 A3/B3
max. 2,4 A
Ladegerät PLG 20 A1/A4/C1
Charger
Chargeur
60 min
2,4 A
90 min
2,4 A
120 min
2,4 A
max. 3,5 A
Ladegerät PLG 20 A2
Charger
Chargeur
45 min
3,5 A
60 min
3,5 A
80 min
3,5 A
max. 4,5 A
Ladegerät PLG 20 A3/C3
Charger
Chargeur
35 min
3,8 A
45 min
4,5 A
60 min
4,5 A
max. 4,5 A
Ladegerät PDSLG 20 A1
Charger
Chargeur
35 min
3,8 A
45 min
4,5 A
60 min
4,5 A

PKA 20-Li A1 GB│IE │ 1 ■
Contents
Introduction............................................................2
Intended use........................................................................2
Features ...........................................................................2
Package contents ....................................................................3
Technical specifications ...............................................................3
General power tool safety warnings .......................................4
1. Work area safety ..................................................................4
2.Electricalsafety...................................................................4
3. Personal safety....................................................................5
4. Power tool use and care ............................................................5
5. Battery tool use and care............................................................6
6.Service..........................................................................6
Appliance-specific safety instructions .....................................................6
Extended safety guidelines.............................................................7
Safety guidelines for battery chargers and blowers..........................................7
Before use ............................................................. 8
Charging the battery pack (seefig.A)....................................................8
Attaching/disconnecting the battery pack to/from the appliance...............................8
Checking the battery charge level .......................................................8
Operation .............................................................8
Switching on and off .................................................................9
Display............................................................................9
Setting the pressure ..................................................................9
Use...................................................................9
Inflation with blower hose .......................................................9
Deflation with compressedairhose...............................................10
Adapters..........................................................................10
Inflation .....................................................................10
Adapters..........................................................................10
Maintenance, storage and cleaning .......................................11
Disposal..............................................................11
Kompernass Handels GmbH warranty ....................................12
Service...............................................................13
Importer .............................................................13
Original declaration of conformity ........................................14
Ordering a replacement battery..........................................15
Telephone ordering .................................................................15

PKA 20-Li A1
■ 2 │ GB│IE
20V CORDLESS COMPRESSOR
AND AIR PUMP PKA 20-Li A1
Introduction
Congratulations on the purchase of your new appli-
ance. You have chosen a high-quality product. The
operating instructions are part of this product. They
contain important information about safety, usage
and disposal. Before using the product, please
familiarise yourself with all operating and safety
instructions. Use the product only as described and
for the range of applications specified. Please also
pass these operating instructions on to any future
owner.
Intended use
The appliance is suitable for inflating bicycle tyres
and inflatable toys, sports and beach articles using
the adapters supplied. The appliance is not suitable
for the operation of pneumatic tools. It is also suit-
able for measuring the current pressure in an inflated
item. The pressure display is not calibrated.
The compressor is not suitable for inflating
car tyres.
The appliance is not intended for commercial use.
Any other usage or modification of the appliance is
deemed to be improper and carries a significant
risk of accidents. The manufacturer accepts no
responsibility for damage attributable to misuse.
NOTE
► Store these operating instructions in the imme-
diate vicinity of the compressor and make
them available to all operators.
Features
Appliance handle
Release button for the battery pack
Battery pack*
“−” button
ON/OFF button (for the display)
“+” button
ON/OFF switch (2 steps fan switch)
Display
Storage compartment
(for the compressed air hose)
Compressed air hose valve adapter
Compressed air hose
Foot
Blower hose
Adapter nozzle
Adapter nozzle
Connection for the blower hose
Air outlet on the appliance
Air inlet on the appliance
Storage compartment (for the blower hose)
Storage compartment (for the accessories)
Battery charge level button
Battery display LED
High-speed charger*
Red charge control LED
Green charge control LED
Valve adapter (Dunlop valve)
Ball needle
Universal adapter

PKA 20-Li A1 GB│IE │ 3 ■
Package contents
1 20V cordless compressor and air pump
1 compressed air hose with valve adapter
1 blower hose
1 valve adapter (Dunlop valve)
1 ball valve (ball needle)
1 plastic adapter (universal adapter
for valves with an inner Ø of approx. 8mm)
1 set of operating instructions
Technical specifications
Rated voltage 20 V (DC)
Max. pressure 10.3 bar (150 psi)
Max. Speed 3500 rpm
Operating mode Continuous operation
at constant load
Air flow rate blower 380 l/min
Air flow rate compressor 21 l/min
Protection class IP 30, Protection against
solid foreign objects with
a diameter of ≥ 2.5 mm,
no protection against
water
Weight, without
battery pack approx. 1.425 kg
Battery PAP 20 A1*
Type LITHIUM ION
Rated voltage 20 V (DC)
Capacity 2 Ah
Cells 5
High-speed battery charger PLG 20 A1*
INPUT
Rated voltage 230–240 V ∼,
50 Hz (AC)
Rated power
consumption 65 W
Fuse (internal) 3.15 A T3.15A
OUTPUT
Rated voltage 21.5 V (DC)
Rated current 2.4 A
Charging time approx. 60 min
Protection class II/ (double insulation)
* BATTERY AND CHARGER ARE NOT INCLUDED
Risk of burns caused by hot surfaces!
Wear hearing protection!
For indoor use only!
Do not expose to rain!
Noise emission value
The measured values were determined in accord-
ance with the European Directives 2000/14/EC
and 2005/88/EC. The A-weighted noise level is
typically as follows:
Cordless compressor
Sound pressure level LpA = 71.3 dB (A)
Uncertainty KPA = 3 dB
Sound power level LWA = 84.2 dB (A)
Uncertainty KWA= 2.03 dB
Battery-operated air pump
Sound pressure level LpA = 71.3 dB (A)
Uncertainty KPA = 3 dB
Sound power level LWA = 84.2 dB (A)
Uncertainty KWA= 2.03 dB
Total vibration value
Total vibration values (vector total of three direc-
tions) determined in accordance with EN 62841:
Vibration emission value ah =3.845 m/s²
Uncertainty K = 1.5 m/s²
Sound power level LWA data in dB.

PKA 20-Li A1
■ 4 │ GB│IE
NOTE
► The vibration emission values and the noise
emission values given in these instructions
have been measured in accordance with a
standardised test procedure and can be used
for comparison of the power tool with
another tool.
► The specified total vibration values and the
noise emission values can also be used to
make a provisional load estimate.
WARNING!
► Depending on the manner in which the
power tool is being used, and in particular
the kind of workpiece that is being worked,
the vibration and noise emission values can
deviate from the values given in these instruc-
tions during actual use of the power tool.
► Try to keep the load as low as possible.
Measures to reduce the vibration load are,
e.g. wearing gloves and limiting the working
time. Wherein all states of operation must be
included (e.g. times when the power tool is
switched off and times where the power tool
is switched on but running without load).
General power tool
safety warnings
WARNING!
►Read all safety warnings, instructions, illus-
trations and specifications provided with
this power tool. Failure to follow all instruc-
tions listed below may result in electric shock,
fire and/or serious injury.
Save all warnings and instructions for future
reference.
The term „power tool“ in the warnings refers
to your mains-operated (corded) power tool or
battery-operated (cordless) power tool.
1. Work area safety
a) Keep work area clean and well lit. Cluttered
or dark areas invite accidents.
b) Do not operate power tools in explosive
atmospheres, such as in the presence of
flammable liquids, gases or dust. Power tools
create sparks which may ignite the dust or
fumes.
c) Keep children and bystanders away while
operating a power tool. Distractions can cause
you to lose control.
2. Electrical safety
a) Power tool plugs must match the outlet. Never
modify the plug in any way. Do not use any
adapter plugs with earthed (grounded)
power tools. Unmodified plugs and matching
outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or
grounded surfaces, such as pipes, radiators,
ranges and refrigerators. There is an
increased risk of electric shock if your body is
earthed or grounded.
c) Do not expose power tools to rain or wet
conditions. Water entering a power tool will
increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord
for carrying, pulling or unplugging the power
tool. Keep cord away from heat, oil, sharp
edges or moving parts. Damaged or entan-
gled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use
an extension cord suitable for outdoor use.
Use of a cord suitable for outdoor use reduces
the risk of electric shock.
f) If operating a power tool in a damp location
is unavoidable, use a residual current device
(RCD) protected supply. Use of an RCD
reduces the risk of electric shock.

PKA 20-Li A1 GB│IE │ 5 ■
3. Personal safety
a) Stay alert, watch what you are doing and use
common sense when operating a power tool.
Do not use a power tool while you are tired
or under the influence of drugs, alcohol or
medication. A moment of inattention while
operating power tools may result in serious
personal injury.
b) Use personal protective equipment. Always
wear eye protection.
Protective equipment
such as a dust mask, non-skid safety shoes, hard
hat or hearing protection used for appropriate
conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the
switch is in the off-position before connecting
to power source and/or battery pack, picking
up or carrying the tool. Carrying power tools
with your finger on the switch or energising
power tools that have the switch on invites
accidents.
d) Remove any adjusting key or wrench before
turning the power tool on. A wrench or a key
left attached to a rotating part of the power tool
may result in personal injury.
e) Do not overreach. Keep proper footing and
balance at all times. This enables better control
of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or
jewellery. Keep your hair and clothing away
from moving parts. Loose clothes, jewellery or
long hair can be caught in moving parts.
g) If devices are provided for the connection of
dust extraction and collection facilities, ensure
these are connected and properly used. Use
of dust collection can reduce dust-related
hazards.
h) Do not let familiarity gained from frequent
use of tools allow you to become complacent
and ignore tool safety principles. A careless
action can cause severe injury within a fraction
of a second.
4. Power tool use and care
a) Do not force the power tool. Use the correct
power tool for your application. The correct
power tool will do the job better and safer at
the rate for which it was designed.
b) Do not use the power tool if the switch does
not turn it on and off. Any power tool that
cannot be controlled with the switch is
dangerous and must be repaired.
c) Disconnect the plug from the power source
and/or remove the battery pack, if detach-
able, from the power tool before making any
adjustments, changing accessories, or storing
power tools. Such preventive safety measures
reduce the risk of starting the power tool acci-
dentally.
d) Store idle power tools out of the reach of
children and do not allow persons unfamiliar
with the power tool or these instructions to
operate the power tool. Power tools are
dangerous in the hands of untrained users.
e) Maintain power tools and accessories. Check
for misalignment or binding of moving parts,
breakage of parts and any other condition
that may affect the power tool’s operation. If
damaged, have the power tool repaired
before use. Many accidents are caused by
poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly
maintained cutting tools with sharp cutting
edges are less likely to bind and are easier to
control.
g) Use the power tool, accessories and tool bits
etc. in accordance with these instructions,
taking into account the working conditions
and the work to be performed. Use of the
power tool for operations different from those
intended could result in a hazardous situation.
h) Keep handles and grasping surfaces dry,
clean and free from oil and grease. Slippery
handles and grasping surfaces do not allow for
safe handling and control of the tool in unex-
pected situations.

PKA 20-Li A1
■ 6 │ GB│IE
5. Battery tool use and care
a) Recharge only with the charger specified by
the manufacturer. A charger that is suitable for
one type of battery pack may create a risk of
fire when used with another battery pack.
b) Use power tools only with specifically desig-
nated battery packs. Use of any other battery
packs may create a risk of injury and fire.
c) When battery pack is not in use, keep it away
from other metal objects, like paper clips,
coins, keys, nails, screws or other small metal
objects, that can make a connection from one
terminal to another. Shorting the battery termi-
nals together may cause burns or a fire.
d) Under abusive conditions, liquid may be
ejected from the battery; avoid contact. If
contact accidentally occurs, flush with water.
If liquid contacts eyes, additionally seek
medical help. Liquid ejected from the battery
may cause irritation or burns.
e) Do not use a battery pack or tool that is
damaged or modified. Damaged or modified
batteries may exhibit unpredictable behaviour
resulting in fire, explosion or risk of injury.
f) Do not expose a battery pack or tool to fire
or excessive temperature. Exposure to fire or
temperature above 130 °C (265°F) may
cause explosion.
g) Follow all charging instructions and do not
charge the battery pack or tool outside the
temperature range specified in the instruc-
tions. Charging improperly or at temperatures
outside the specified range may damage the
battery and increase the risk of fire.
CAUTION! RISK OF EXPLOSION!
Never charge non-rechargeable
batteries!
Protect the recharge-
able battery from heat, for example from
continuous exposure to sunlight, fire, water
and moisture. There is a risk of explosion.
6. Service
a) Have your power tool serviced by a qualified
repair person using only identical replace-
ment parts. This will ensure that the safety of
the power tool is maintained.
b) Never service damaged battery packs.
Service of battery packs should only be
performed by the manufacturer or authorized
service providers.
Appliance-specific safety instructions
■ This appliance may not be used by children or
people with reduced physical, sensory or
mental capabilities or a lack of experience and
knowledge. Do not allow children to use the
appliance as a toy. Cleaning and user mainte-
nance tasks may not be carried out by children
unless they are supervised.
■ Protect the unit from rain and moisture.
■ Avoid using the compressor at temperatures
below 5°C.
■ Never leave the compressor unsupervised
while it is in use.
■ Caution! Operate the compressor for short
periods only. The appliance may overheat if
operated for longer than 10 minutes. Switch
the appliance off immediately and allow it to
cool down for at least 10 min.

PKA 20-Li A1 GB│IE │ 7 ■
■ Risk of injury! Do not pump any objects up to
more than the intended pressure. They could
burst and cause injuries and/or material
damage.
■ Do not exceed the permissible output range of
the compressor. Do not use the compressor to
pump up lorry, tractor or other large tires.
■ Do not work on materials that are or could be
potentially flammable or explosive.
■ Never use the appliance for purposes other
than those for which it was designed.
■ The appliance must always be kept clean, dry
and free from oil or grease.
■ Never use petrol or other flammable liquids to
clean the appliance! Vapours remaining in the
appliance can be ignited by sparks and cause
the appliance to explode.
■ Remain alert at all times! Do not use the appli-
ance if you are distracted or feeling unwell.
■ Avoid heavy loads on the pipe system by using
flexible hose connections to avoid kinks.
Extended safety guidelines
■Do not use a damaged or modified battery.
Damaged or modified batteries may behave
unexpectedly and cause fires, explosions or
pose a risk of injury.
■Do not expose a battery to fire or excessively
high temperatures. Fire or temperatures in
excess of 130°C (265°F) can cause an explo-
sion.
■Follow all instructions regarding charging
and never charge the battery or the cordless
tool outside the temperature range given in
the operating instructions. Incorrect charging
or charging outside of the permissible tempera-
ture range can destroy the battery and increase
the risk of fire.
Safety guidelines for battery
chargers and blowers
■ This appliance may be used by
children aged 8 years and above
and by persons with limited physical,
sensory or mental capabilities or
lack of experience and knowledge,
provided that they are under super-
vision or have been told how to use
the appliance safely and are aware
of the potential risks. Do not allow
children to use the appliance as a
toy. Cleaning and user maintenance
tasks may not be carried out by
children unless they are supervised.
The charger is suitable
for indoor use only.
WARNING!
■ To avoid potential risks, damaged mains
cables should be replaced by the manufac-
turer, their customer service department or
a similarly qualified person.
ATTENTION!
♦ This charger can only charge the following
batteries: PAP 20 A1/PAP 20 A2/PAP20
A3/PAP 20 B1/PAP 20 B3.
♦ A current list of battery compatibility can
be found at www.Lidl.de/Akku.

PKA 20-Li A1
■ 8 │ GB│IE
Before use
Charging the battery pack
(seefig.A)
CAUTION!
► Always unplug the charger before you remove
the battery pack from or connect it to the
charger.
NOTE
► Never charge the battery pack at an ambient
temperature of below 10°C or above 40°C.
If a lithium-ion battery is going to be stored
for an extended period, the charge level
should be checked regularly. The optimum
charge level is between 50% and 80%. The
storage climate should be cool and dry and
the ambient temperature should be between
0°C and 50°C.
♦ Connect the battery pack to the high-speed
battery charger (see fig. A).
♦ Insert the mains plug into the mains socket.
The control LED lights up red.
♦ The green control LED indicates that the
charging process is complete and the battery
pack is ready for use.
ATTENTION!
♦ If the red control LED flashes, this means
that the battery pack has overheated and
cannot be charged.
♦ If the red and green control LEDs both
flash, this means that the battery pack is
defective.
♦ Switch off the charger for at least 15 minutes
between successive charging sessions. Also
disconnect the power plug from the mains
power socket.
Attaching/disconnecting the battery
pack to/from the appliance
Inserting the battery pack
♦ Allow the battery pack to click into place in
the appliance.
Removing the battery pack
♦ Press the release button and remove the
battery pack .
Checking the battery charge level
♦ Press the battery charge level button to check
the status of the battery (see also figure A on
the fold-out page).
The status/remaining charge will be shown on
the battery display LED as follows:
RED/ORANGE/GREEN = maximum charge
RED/ORANGE = medium charge
RED = low charge – charge the battery
Operation
NOTE
► The appliance vibrates during operation.
Place it on a solid surface during operation.
There are four feet on the bottom of the
appliance for this purpose.
ATTENTION!
►This appliance is not designed for contin-
uous operation. The appliance may be used
for a maximum of 10 minutes continuous
operation. If the appliance overheats, remove
the battery pack . Allow the appliance to
cool down completely and then try using it
again.
♦ Remove the required accessories from the
storage compartment .
♦

PKA 20-Li A1 GB│IE │ 9 ■
Switching on and off
Switching on the appliance (air pump)
♦ Set the ON/OFF switch to the position
.
Switching on the appliance (compressor)
♦ Set the ON/OFF switch to the position .
♦ The appliance starts as soon as you switch on
the display (see section “Display”).
NOTE
► The compressor will not work if the display
is switched off.
Switching off the appliance
♦ Set the ON/OFF switch to the position .
Display
♦ Press the ON/OFF button to switch on
the display .
♦ After two seconds, the current pressure of the
connected item is shown.
NOTE
► If the compressed air hose is not connected
to a suitable item, the display indicator
shows "0".
♦ You can switch between “bar”, “psi” and “kpa”
on the display by pressing the ON/OFF
button .
NOTE
► The display (and also the compressor)
switches off after around three minutes of
inactivity.
► The compressor will not work if the display
is switched off.
► The compressor switches off automatically
when the preset pressure has been reached.
♦ Press and hold the ON/OFF button for
5 seconds to turn off the display .
Setting the pressure
♦ Press the “+” button or the “−” button to
set the desired pressure.
TIP
► When you press and hold the "+" button
or the "-" button for a little longer, the
pressure setting changes quickly.
Use
Inflation with blower hose
♦ Remove the valve cap of the item you want
to inflate.
♦ Remove the blower hose from the storage
compartment .
♦ Fit the connection of the blower hose onto
the air outlet . Screw it in tight by turning it
clockwise.
♦ Fit the appropriate adapter or onto
the blower hose .
♦ Push the adapter or into the valve of
the item.
♦ Switch the appliance on by moving the
ON/OFF switch to the position .
♦ Once the desired level of inflation has been
reached, switch off the appliance by moving
the ON/OFF switch to the position .
♦ Now remove the adapter or .
♦ Replace the valve cap on the item that you
have inflated.

PKA 20-Li A1
■ 10 │ GB│IE
Deflation with
compressedairhose
♦ Remove the valve cap of the item you want to
deflate.
♦ Remove the blower hose from the storage
compartment .
♦ Push the connection of the blower hose onto
the air inlet .
♦ Fit the appropriate adapter or onto the
blower hose .
♦ Push the adapter or into the valve of the
item.
♦ Switch the appliance on by moving the ON/
OFF switch to the position .
♦ Once the item is fully deflated, switch off the
appliance by moving the ON/OFF switch
to the position .
♦ Now remove the adapter or .
Adapters
Adapter
For standard valves with an internal diameter of
8 mm.
Adapter
For inflatable items with a screw valve. Deflation is
only possible with an unscrewed valve and with
this adapter.
Inflation
♦ Switch on the display (see section
“Display”).
♦ Select the desired pressure (see section “Setting
the pressure”).
♦ Remove the compressed air hose from the
storage compartment .

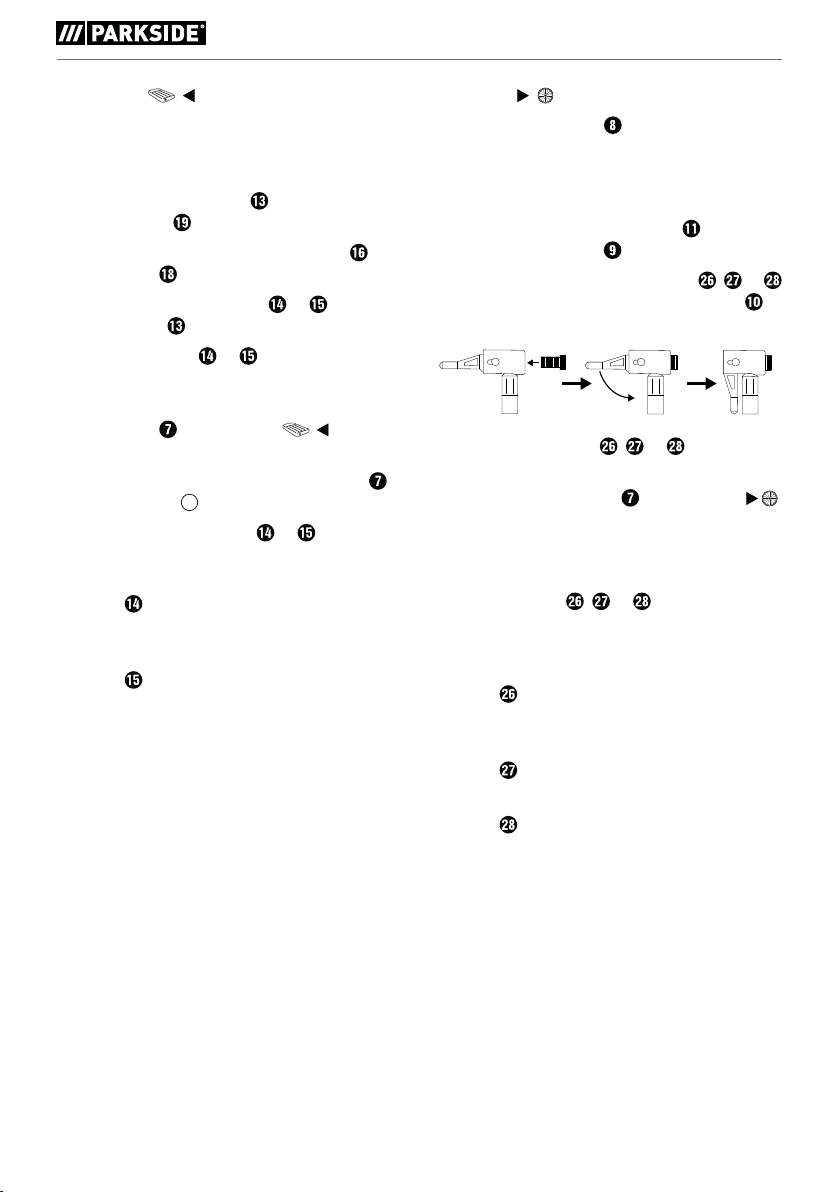

♦ Plug in one of the supplied adapters , or
into the compressed air hose valve adapter
(see illustration).
♦ Connect the adapter , or to the object
you want to inflate.
♦ Set the ON/OFF switch to the position .
The appliance starts.
♦ The compressor switches off automatically when
you reach the preset pressure.
♦ Pull the adapter , or out of the now
inflated item.
Adapters
Adapter
The Dunlop valve can be used for inflating bicycle
tyres.
Adapter
The ball needle can be used to inflate various balls.
Adapter
The universal adapter can be used to inflate air
mattresses or similar.

PKA 20-Li A1 GB│IE │ 11 ■
Maintenance, storage and
cleaning
WARNING! RISK OF ELECTROCU-
TION! Before cleaning, disconnect
the charger from the mains socket.
NOTE
► Before carrying out any work on the appli-
ances, ensure that the battery pack has
been removed. This prevents the appliance
from being switched on unintentionally.
■ The cordless appliances are maintenance-free.
■ The appliances must always be clean, dry and
free from oil or grease.
■ Never allow liquids to get into the appliances.
■ Use a soft cloth to clean the housing. Never use
petrol, solvents or cleansers which can damage
plastic.
■ Always ensure the appliances and attachments
are clean, free of dust and dry before storing.
■ If you do not intend to use the appliances for a
longer time, remove the batteries and store them
in a clean, dry place away from direct sunlight.
■ If a lithium-ion battery is going to be stored for
an extended period, the charge level should be
checked regularly. The optimum charge level is
between 50% and 80%. The optimum storage
environment is cool and dry.
■ Never try to repair damaged batteries. Batteries
should only be maintained by the manufacturer
or an approved customer service centre.
NOTE
► Replacement parts that are not listed (such as
batteries, chargers) can be ordered via our
Service Hotline.
Disposal
The packaging is made from environ-
mentally friendly material and can be
disposed of at your local recycling
centres.
Do not dispose of power tools
in the normal domestic waste!
European Directive 2012/19/EU
requires that worn-out power tools
be collected separately and recycled in an environ-
mentally compatible manner.
Do not dispose of batteries in
your normal household waste!
Defective or worn-out rechargeable
batteries must be recycled according
to Directive 2006/66/EC. Take the
battery pack and/or the appliance to a nearby
collection facility.
Please contact your local authority or town council
for information about disposal options for used
power tools/battery packs.
Dispose of the packaging in an
environmentally friendly manner.
Note the labelling on the packaging
and separate the packaging material
components for disposal if necessary. The pack-
aging material is labelled with abbreviations (a)
and numbers (b) with the following meanings:
1–7: plastics, 20–22: paper and cardboard,
80–98: composites.
Your local community or municipal
authorities can provide information on
how to dispose of the worn-out product.
The product is recyclable, subject to
extended producer responsibility and is
collected separately.

PKA 20-Li A1
■ 12 │ GB│IE
Kompernass Handels GmbH
warranty
Dear Customer,
This appliance has a 3-year warranty valid from the
date of purchase. If this product has any faults, you,
the buyer, have certain statutory rights. Your statu-
tory rights are not restricted in any way by the
warranty described below.
Warranty conditions
The warranty period starts on the date of purchase.
Please keep your receipt in a safe place. This will
be required as proof of purchase.
If any material or manufacturing fault occurs within
three years of the date of purchase of the product,
we will either repair or replace the product for you
or refund the purchase price (at our discretion).
This warranty service requires that you present the
defective appliance and the proof of purchase
(receipt) within the three-year warranty period,
along with a brief written description of the fault
and of when it occurred.
If the defect is covered by the warranty, your
product will either be repaired or replaced by us.
The repair or replacement of a product does not
signify the beginning of a new warranty period.
X 12 V and X 20 V Team Series battery packs
come with a 3-year warranty valid from the date of
purchase.
Warranty period and statutory claims
for defects
The warranty period is not prolonged by repairs
effected under the warranty. This also applies to
replaced and repaired components. Any damage
and defects present at the time of purchase must be
reported immediately after unpacking. Repairs
carried out after expiry of the warranty period shall
be subject to a fee.
Scope of the warranty
This appliance has been manufactured in accord-
ance with strict quality guidelines and inspected
meticulously prior to delivery.
The warranty covers material faults or production
faults. The warranty does not extend to product
parts subject to normal wear and tear or to fragile
parts which could be considered as consumable
parts such as switches or parts made of glass.
The warranty does not apply if the product has
been damaged, improperly used or improperly
maintained. The directions in the operating instruc-
tions for the product regarding proper use of the
product are to be strictly followed. Uses and
actions that are discouraged in the operating
instructions or which are warned against must be
avoided.
This product is intended solely for private use and
not for commercial purposes. The warranty shall be
deemed void in cases of misuse or improper
handling, use of force and modifications/repairs
which have not been carried out by one of our
authorised Service centres.
The warranty period does not apply to
■ Normal reduction of the battery capacity
overtime
■ Commercial use of the product
■ Damage to or alteration of the product by the
customer
■ Non-compliance with safety and maintenance
instructions, operating errors
■ Damage caused by natural hazards

PKA 20-Li A1 GB│IE │ 13 ■
Warranty claim procedure
To ensure quick processing of your case, please
observe the following instructions:
■ Please have the till receipt and the item number
(e.g.IAN12345) available as proof of purchase.
■ You will find the item number on the type plate
on the product, an engraving on the product,
on the front page of the operating instructions
(below left) or on the sticker on the rear or
bottom of the product.
■ If functional or other defects occur, please
contact the service department listed either by
telephone or by e-mail.
■ You can return a defective product to us free of
charge to the service address that will be
provided to you. Ensure that you enclose the
proof of purchase (till receipt) and information
about what the defect is and when it occurred.
You can download these instructions
along with many other manuals,
product videos and installation
software at www.lidl-service.com.
This QR code will take you directly to the Lidl
service page (www.lidl-service.com) where you
can open your operating instructions by entering
the item number (IAN) 363935_2010.
WARNING!
■Have your appliances repaired by the
Service Centre or a qualified electrician
and only using genuine replacement parts.
This will ensure that the safety of the appli-
ance is maintained.
■Always ensure that the power plug and
power cord are replaced only by the manu-
facturer of the appliance or the company
customer service. This will ensure that the
safety of the appliance is maintained.
Service
Service Great Britain
Tel.: [phone]
E-Mail: [email protected]
Service Ireland
Tel.: [phone]
(0,08 EUR/Min., (peak))
(0,06 EUR/Min., (off peak))
E-Mail: ko[email protected]
IAN 363935_2010
Importer
Please note that the following address is not the
service address. Please use the service address
provided in the operating instructions.
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
GERMANY
www.kompernass.com

PKA 20-Li A1
■ 14 │ GB│IE
Original declaration of conformity
We, KOMPERNASS HANDELS GMBH, documents officer: Mr. Semi Uguzlu, BURGSTR. 21,
44867 BOCHUM, GERMANY, hereby declare that this product complies with the following
standards, normative documents and EC directives:
Machinery Directive (2006/42/EC)
EC Low Voltage Directive (2014/35/EU, only charger)
Noise emission directive (2000/14/EC), (2005/88/EC)
Sound power level LWA: Guaranteed: 86 dB (A)
EMC (Electromagnetic Compatibility) (2014/30/EU)
RoHS Directive (2011/65/EU)*
* The manufacturer bears the full responsibility for compliance with this conformity declaration. The subject of the
declaration described above meets the requirements of Directive 2011/65/EU of the European Parliament and
Council of 8 June 2011 on the limitations of use of certain dangerous substances in electrical and electronic
appliances.
Related harmonised standards
EN 62841-1:2015
EN 1012-1:2010
EN ISO 12100:2010
EN 60335-1:2012/A2:2019
EN 60335-2-29:2004/A11:2018
EN 62233:2008
EN 55014-1:2017
EN 55014-2:2015
EN 61000-3-2:2014
EN 61000-3-3:2013
EN IEC 63000:2018
Type designation of machine: 20V Cordless Compressor and Air Pump PKA 20-Li A1
Year of manufacture: 12–2020
Serial number: IAN 363935_2010
Bochum, 08/12/2020
Semi Uguzlu
- Quality Manager -
We reserve the right to make technical changes in the context of further product development.

PKA 20-Li A1 GB│IE │ 15 ■
Ordering a replacement battery
If you want to order a replacement battery for your tool, you can do so easily via the Internet on
www.kompernass.com or by telephone.
Due to limited stocks, this item may sell out in a relatively short time.
NOTE
► Online ordering of replacement parts is not possible in all countries. If this is the case, please contact
the Service hotline.
Telephone ordering
Service Great Britain Tel.: [phone]
Service Ireland Tel.: [phone] (0,08 EUR/Min.; peak · 0,06 EUR/Min.; off peak)
To ensure fast processing of your order, have the article number of your appliance to hand
(e.g. IAN 363935) in case of questions. The article number can be found on the type plate
or the title page of these instructions.

PKA 20-Li A1
■ 16 │ GB│IE
