EXPERT TEPEE
Installation manual:
Parrot MKi + Parrot
CK3100 range
The brand name PEUGEOT EXPERT TEPEE and the PEUGEOT logo are the property of AUTOMOBILES PEUGEOT.
This document is only valid for the vehicle model EXPERT TEPEE® year 2007 to 2011, excluding all other models in the same range and excluding
later modifications made to the vehicle by the manufacturer.
The Parrot brand name and logos are the exclusive property of Parrot SA.

207
EXPERT TEPEE
This sheet is designed to help you with the installation of a Parrot product and is provided purely for information purposes. The installer is
solely responsible for any installation carried out in accordance with the instructions in this sheet and for the quality of the installation. All
rights reserved © Copyright 2011 PARROT SA, a French Société Anonyme (Public Limited Company) Registered on the Paris Trade and
Companies Register under No. 394 149 496 Reproduction not permitted without authorisation from Parrot SA. Images not contractually
binding.

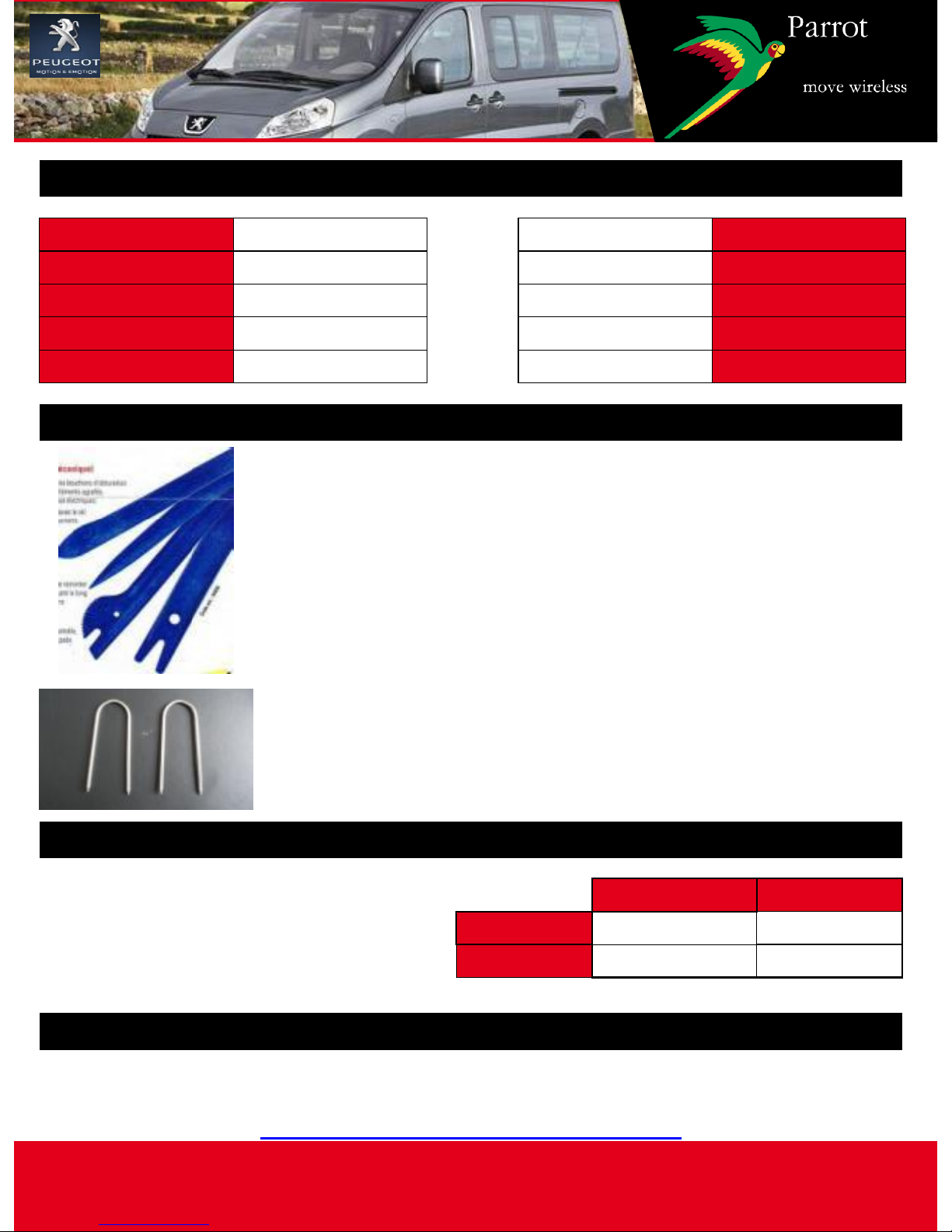

Accessories required
Disassembly
15min
Kit installation
15min
Refitting
15min
Testing
15min
Total
1 hour
NO
ACC wire
YES
ISO
N/A
UNIKA
FRONT SPEAKER
TEL mode
ALL
MUSIC mode
Fitting time (estimated) / Main features
Tools
- Multimeter or Test lamp
- Hose clamp
- Electrical tape
"Please contact your Wholesaler to purchase
accessories."
Updating
Plastic trim removal tools
FACOM / BERNER
FACOM Sleeve
DX-25 (n°4 spanners)
Kram ref.
Dealer ref.
CK range
N/A
9706 AR
MKi range
N/A
9706 AR
To get the most out of your hands-free kit we recommend that you update your
software regularly. The update procedure can be found at
www.parrot.com/usa/support/downloads

207
EXPERT TEPEE
This sheet is designed to help you with the installation of a Parrot product and is provided purely for information purposes. The installer is
solely responsible for any installation carried out in accordance with the instructions in this sheet and for the quality of the installation. All
rights reserved © Copyright 2011 PARROT SA, a French Société Anonyme (Public Limited Company) Registered on the Paris Trade and
Companies Register under No. 394 149 496 Reproduction not permitted without authorisation from Parrot SA. Images not contractually
binding.
Disassembly

207
EXPERT TEPEE
This sheet is designed to help you with the installation of a Parrot product and is provided purely for information purposes. The installer is
solely responsible for any installation carried out in accordance with the instructions in this sheet and for the quality of the installation. All
rights reserved © Copyright 2011 PARROT SA, a French Société Anonyme (Public Limited Company) Registered on the Paris Trade and
Companies Register under No. 394 149 496 Reproduction not permitted without authorisation from Parrot SA. Images not contractually
binding.

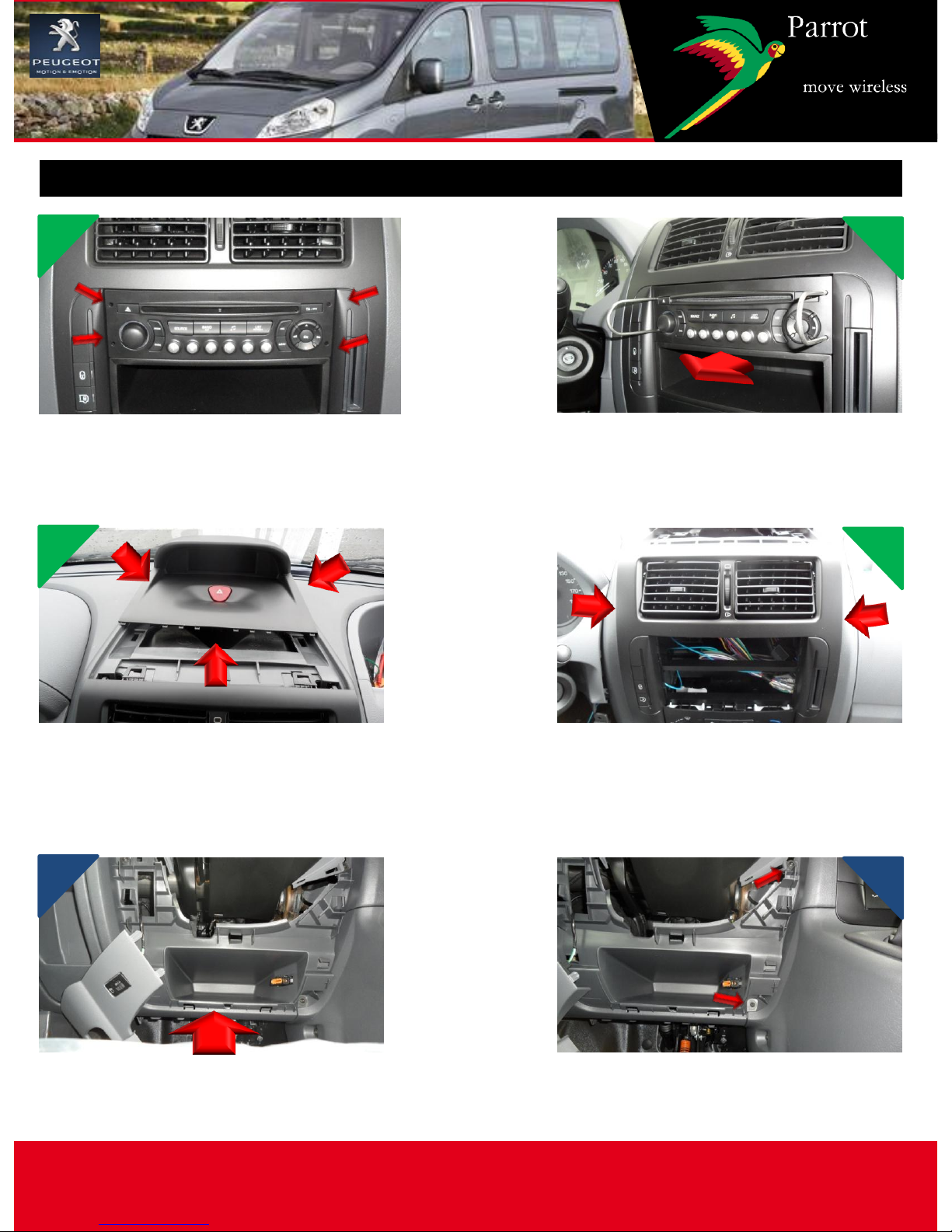

Disassembly 1 / 2
Insert the removal tools into the
slots on each side of the radio.
Unclip, pull and remove the radio
taking care to unplug
the connector and the antenna.
1 2
Using a plastic trim tool, unclip the
screen surround on the top of the
dashboard starting from the
bottom.
Using a plastic trim tool, unclip
and half open the air vent
surround from the top.
3 4
5 6
Using a plastic trim tool, unclip the
panel under the steering wheel
starting from the bottom.
Remove screws 1 and 2, then unclip
and half open the panel under the
steering wheel.
1
2

207
EXPERT TEPEE
This sheet is designed to help you with the installation of a Parrot product and is provided purely for information purposes. The installer is
solely responsible for any installation carried out in accordance with the instructions in this sheet and for the quality of the installation. All
rights reserved © Copyright 2011 PARROT SA, a French Société Anonyme (Public Limited Company) Registered on the Paris Trade and
Companies Register under No. 394 149 496 Reproduction not permitted without authorisation from Parrot SA. Images not contractually
binding.

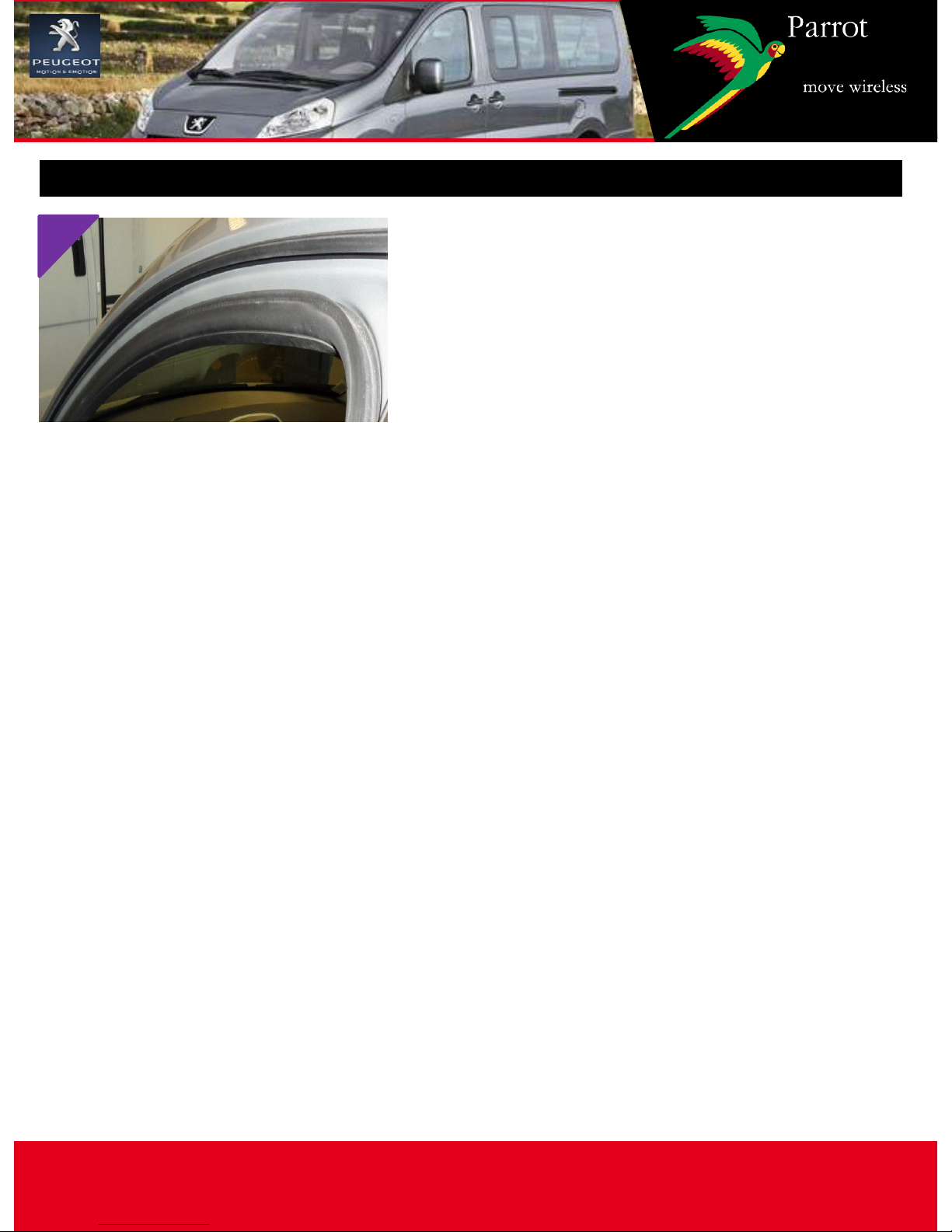

Disassembly 2 / 2
Remove the door seal on the
driver’s side.
7

207
EXPERT TEPEE
This sheet is designed to help you with the installation of a Parrot product and is provided purely for information purposes. The installer is
solely responsible for any installation carried out in accordance with the instructions in this sheet and for the quality of the installation. All
rights reserved © Copyright 2011 PARROT SA, a French Société Anonyme (Public Limited Company) Registered on the Paris Trade and
Companies Register under No. 394 149 496 Reproduction not permitted without authorisation from Parrot SA. Images not contractually
binding.

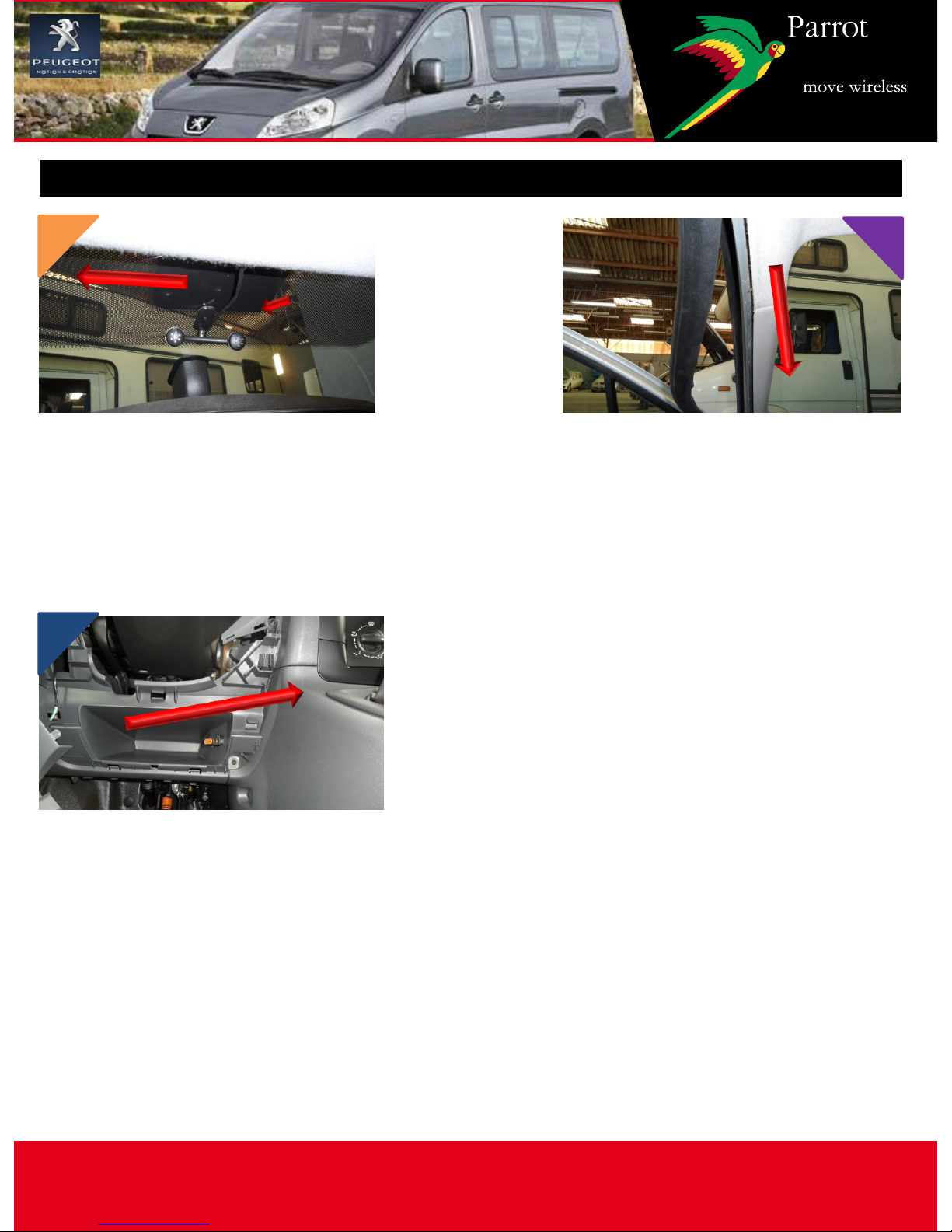

Microphone passage
Stick the microphone bracket
(supplied) to the windscreen
after thoroughly cleaning the
surface. Then run the cable
under the headliner towards the
driver's side door.
Run the cable replacing the seal
on the driver's side door.
1 2
Then run it under the dashboard
towards the radio, attaching it with
wire ties.
3

207
EXPERT TEPEE
This sheet is designed to help you with the installation of a Parrot product and is provided purely for information purposes. The installer is
solely responsible for any installation carried out in accordance with the instructions in this sheet and for the quality of the installation. All
rights reserved © Copyright 2011 PARROT SA, a French Société Anonyme (Public Limited Company) Registered on the Paris Trade and
Companies Register under No. 394 149 496 Reproduction not permitted without authorisation from Parrot SA. Images not contractually
binding.

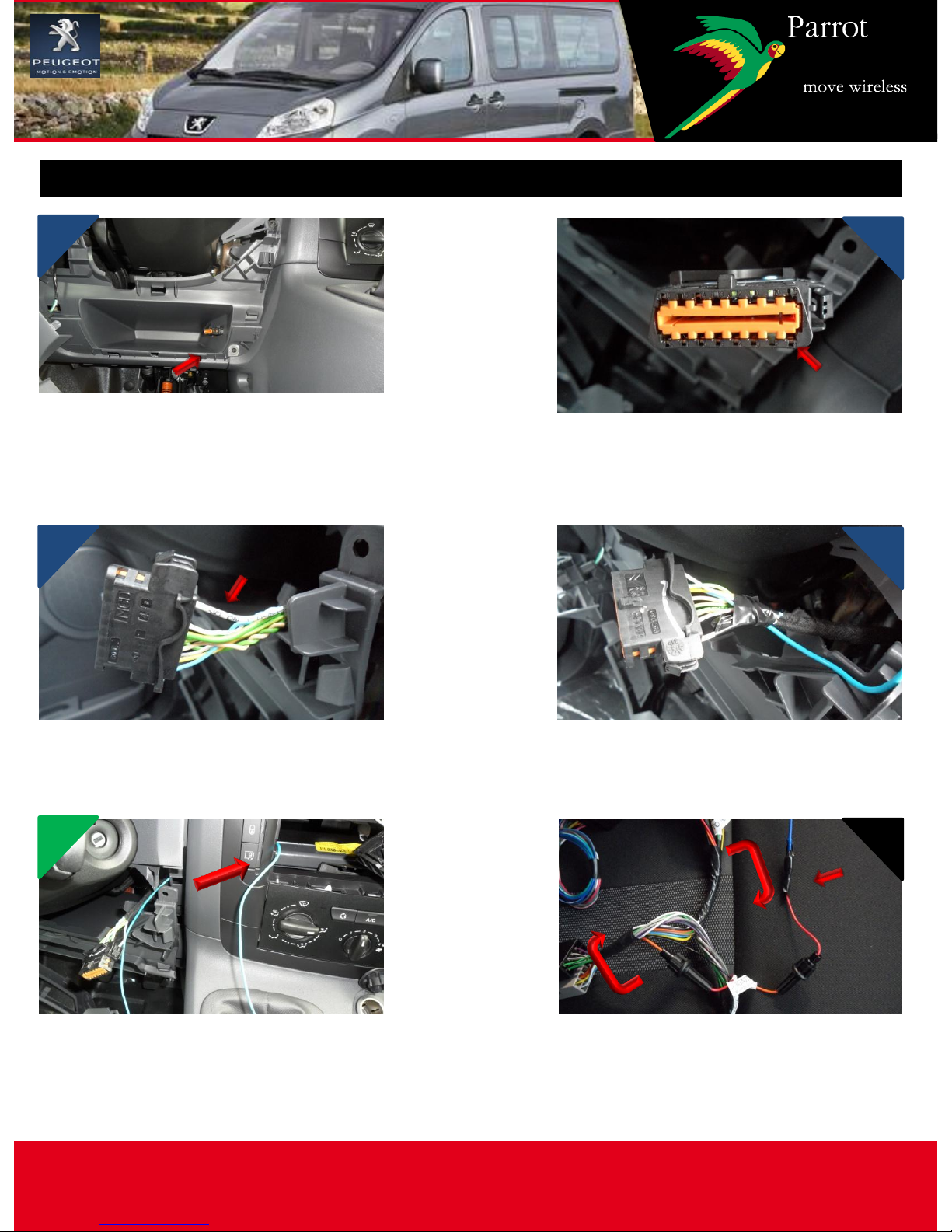

Finding an ACC wire
Unclip the DIAG socket and pull
it out from behind, towards the
top of the panel under the
steering wheel.
Find position 1 using a
multimeter, check the presence
of +12V after ignition.
1 2
10
3
On the corresponding white
wire, make a pigtail connection. Or use a jumper to connect a
wire.
3 4
3
Pass it towards the radio
housing.
Swap the RED and ORANGE
fuses. Cut the red wire between
the fuse and the ISO connector.
Connect the ACC wire.
5 6

207
EXPERT TEPEE
This sheet is designed to help you with the installation of a Parrot product and is provided purely for information purposes. The installer is
solely responsible for any installation carried out in accordance with the instructions in this sheet and for the quality of the installation. All
rights reserved © Copyright 2011 PARROT SA, a French Société Anonyme (Public Limited Company) Registered on the Paris Trade and
Companies Register under No. 394 149 496 Reproduction not permitted without authorisation from Parrot SA. Images not contractually
binding.

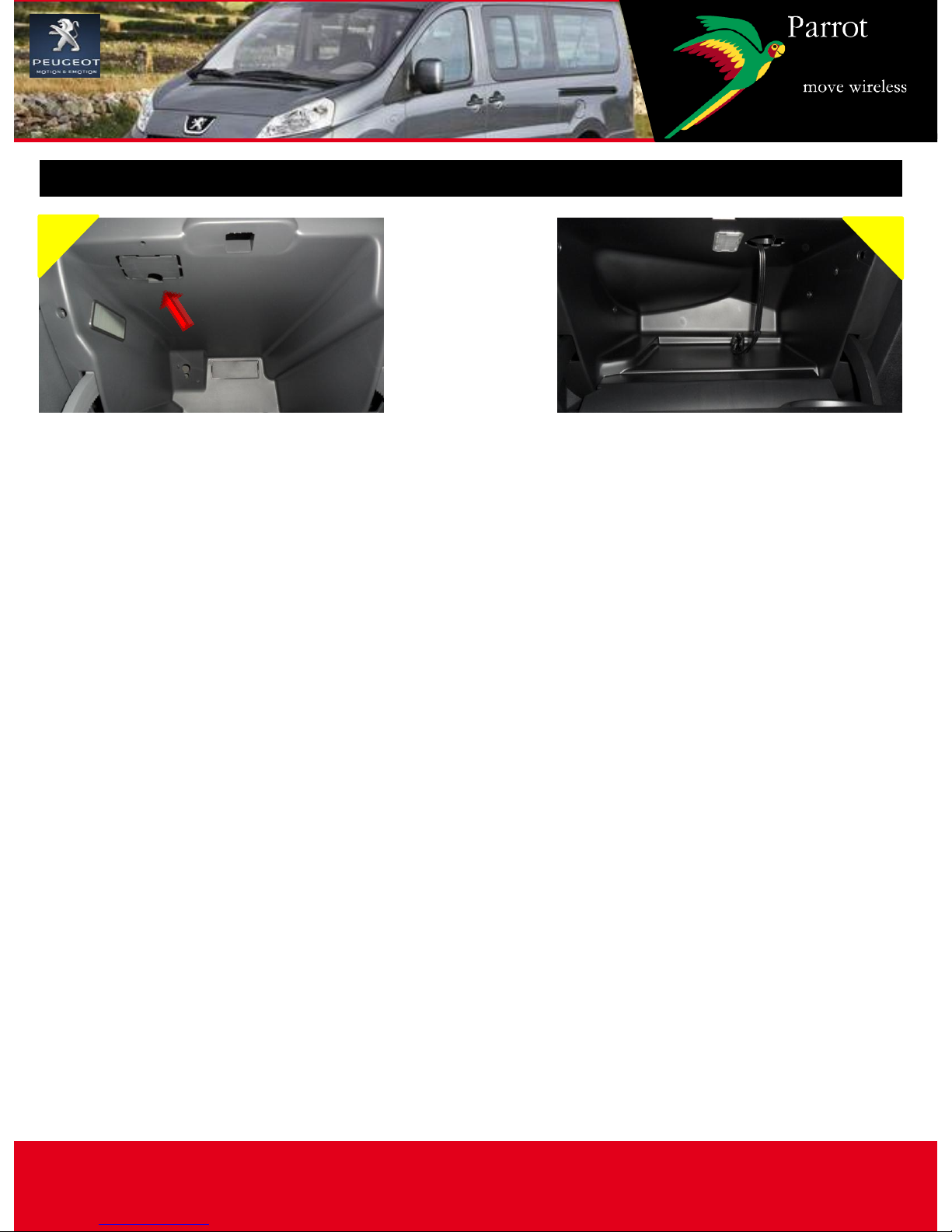

Feeding the accessory cable
Using a guide, feed the cable into
the hole towards the car stereo
housing.
Then place the cable being
careful to leave enough length.
1 2

207
EXPERT TEPEE
This sheet is designed to help you with the installation of a Parrot product and is provided purely for information purposes. The installer is
solely responsible for any installation carried out in accordance with the instructions in this sheet and for the quality of the installation. All
rights reserved © Copyright 2011 PARROT SA, a French Société Anonyme (Public Limited Company) Registered on the Paris Trade and
Companies Register under No. 394 149 496 Reproduction not permitted without authorisation from Parrot SA. Images not contractually
binding.
Fitting the hands-free system 1 / 2
Connect all the factory cables (supplied) or with
the 9706AR CK/Mki manufacturer to the blue
box as shown in the diagram below. Test the
assembly before reassembly, then slide the
assembly down to the back of the radio
housing.
1
ISO
adapter

207
EXPERT TEPEE
This sheet is designed to help you with the installation of a Parrot product and is provided purely for information purposes. The installer is
solely responsible for any installation carried out in accordance with the instructions in this sheet and for the quality of the installation. All
rights reserved © Copyright 2011 PARROT SA, a French Société Anonyme (Public Limited Company) Registered on the Paris Trade and
Companies Register under No. 394 149 496 Reproduction not permitted without authorisation from Parrot SA. Images not contractually
binding.
Fitting the hands-free system 2 / 2
Feed the cable through the left
side of the centre console
surround. (To do this lift it up
using a plastic trim tool towards
the radio.)
Clip the centre console and the
display surround back on. (Make
sure that you DO NOT cut the
cable.) Then stick the bracket to
the screen (supplied) after
having cleaned the surface.
2 3
!

207
EXPERT TEPEE
This sheet is designed to help you with the installation of a Parrot product and is provided purely for information purposes. The installer is
solely responsible for any installation carried out in accordance with the instructions in this sheet and for the quality of the installation. All
rights reserved © Copyright 2011 PARROT SA, a French Société Anonyme (Public Limited Company) Registered on the Paris Trade and
Companies Register under No. 394 149 496 Reproduction not permitted without authorisation from Parrot SA. Images not contractually
binding.
Testing
Before refitting the system, switch the kit on using the
ignition (or by starting the car). By pushing the central knob
of the remote control, check:
1 - That the menu is displayed on the screen. (Language or
iPod.)
2 - That the system can be muted. (Click in the blue box)
3 - That there is no sound coming from the speakers.
4 - That the sound from the voice menu is coming out of the
front speakers.
5 - Then turn off the ignition, check that the kit switches off
and that the "goodbye" message appears on the screen. (If
this fails, reverse the fuses on the kit's wiring harness.)
6 - Pair a telephone with the kit to make a call. (Check that
both the microphone and the kit are working.)

207
EXPERT TEPEE
This sheet is designed to help you with the installation of a Parrot product and is provided purely for information purposes. The installer is
solely responsible for any installation carried out in accordance with the instructions in this sheet and for the quality of the installation. All
rights reserved © Copyright 2011 PARROT SA, a French Société Anonyme (Public Limited Company) Registered on the Paris Trade and
Companies Register under No. 394 149 496 Reproduction not permitted without authorisation from Parrot SA. Images not contractually
binding.
Reassembly
Refit the system using the following procedure:
1 - Slide the radio back in, then reconnect the ISO and the antenna. (Be careful
with the screen cable.)
2 - Clip the DIAG socket back on.
3 - Clip the panel under the steering wheel back on and replace screws 1 and 2.
4 - Clip the fuse box cover back on under the steering wheel.
