PARRY C2LU User manual

INSTRUCTION REF: IN120
ISSUE No. 3
DATE 17.08.15
Page 1 of 26
www.parry.co.uk
INSTRUCTIONS
LAMP & HEATED BASE UNITS
MODELS:
C2LU / C3LU / C4LU
CCBM / CCSU2
3021 / 3022
SAFETY INSTRUCTIONS
TECHNICAL DATA
INSTALLATION INSTRUCTIONS
OPERATION INSTRUCTIONS
MAINTENANCE INSTRUCTIONS
EXPLODED VIEW / PARTS LIST
FAULT DIAGNOSTICS
WIRING DIAGRAM
WARRANTY INFORMATION
DISPOSAL INFORMATION
Customer Information
MODEL NUMBER:
______________________
SERIAL NUMBER:
______________________
PURCHASE DATE:
______________________
DISTRIBUTOR:
______________________

INSTRUCTION REF: IN120
ISSUE No. 3
DATE 17.08.15
Page 2 of 26
www.parry.co.uk
SAFETY INSTRUCTIONS
IMPORTANT: PLEASE READ INSTRUCTIONS FULLY BEFORE USE
These appliances have been designed to keep food hot prior to serving and therefore
during its use parts of the appliance will become very hot. All personnel must be given
sufficient supervision and training in the safe use of this appliance.
ALL APPLIANCES OTHER THAN THOSE FITTED WITH A SEALED MOULDED PLUG
MUST BE FITTED BY A QUALIFIED ELECTRICIAN, IN ACCORDANCE WITH
CURRENT REGULATIONS.
The unit should be installed in compliance with the INSTALLATION INSTRUCTIONS and
the NATIONAL REGULATIONS in force at the time. Particular attention should be paid to
the Health and Safety at Work Act.
To prevent shocks, all appliances whether gas or electric, must be earthed.
To avoid scratching the highly polished exterior surface of this equipment whilst in transit,
the protective film on the exterior surfaces has NOT been removed.
It is IMPORTANT that this protective film is peeled off before the equipment is used.
ENSURE THE APPLIANCE IS ISOLATED FROM THE POWER SUPPLY BEFORE
INSTALLING, CLEANING OR MAINTAINING THE APPLIANCE
These products have been designed, constructed and marketed in compliance with
safety requirements of :
EEC Directive “Low voltage” 73/23;
EEC Directive 93/68.
This product is suitable for contact with foodstuffs, and complies with EEC Directive
89/109.
The product(s) stated above are designed and built to comply with the following standards:
BS EN 60335-1

INSTRUCTION REF: IN120
ISSUE No. 3
DATE 17.08.15
Page 3 of 26
www.parry.co.uk
TECHNICAL DATA
Lamp Units
C2LU
C3LU
C4LU
Nominal Voltage
240v 50Hz ~ AC
Nominal Current (Amps)
4.1a
5.4a
8.3a
Nominal Wattage (Watts)
1000w
1300w
2000w
External Dimensions (W x
D x H mm)
795x 450 x 725
1095 x 450 x 725
1425 x 450 x 725
Weight: (kg)
14
19
28
Carvey Units
CCBM
CCSU2
Nominal Voltage
240 v 50Hz ~ AC
Nominal Current (Amps)
4a
5.5a
Nominal Wattage (Watts)
850w
1300w
External Dimensions (W x
D x H mm)
660 x 330 x 850
970 x 441 x 850
Weight: (kg)
14
24
Heated Base Units
3021
3022
Nominal Voltage
240 v 50Hz ~ AC
Nominal Current (Amps)
2a
3.5a
Nominal Wattage (Watts)
400w
800w
External Dimensions (W x
D x H mm)
675 x 500 x 85
975 x 500 x 85
Weight: (kg)
10
12

INSTRUCTION REF: IN120
ISSUE No. 3
DATE 17.08.15
Page 4 of 26
www.parry.co.uk
INSTALLATION INSTRUCTIONS
ELECTRICAL INSTALLATION
ALL APPLIANCES OTHER THAN THOSE FITTED WITH A SEALED MOULDED PLUG
MUST BE FITTED BY A QUALIFIED ELECTRICIAN, IN ACCORDANCE WITH
CURRENT REGULATIONS.
.
Instructions To Mount Sneeze Guard
(C2LU / C3LU / C4LU / CCSU2)
To locate the sneeze guard, align the holes in the
sneeze guard with the holes in the underside of
the gantry.
The sneeze guard may be fitted on either side of
the machine. Once the holes are aligned tighten
up using the screws and washers provided.
The above applies for machines listed below.

INSTRUCTION REF: IN120
ISSUE No. 3
DATE 17.08.15
Page 5 of 26
www.parry.co.uk
Instruction To Fit Heated Lamps
(C2LU / C3LU / C4LU / CCBM /CCSU2)
Fit lamps into lamp holders by screwing them in to the lamp holders
Operation
1. Switch on power supply, the red lamp will indicate power is ON
2. Turn the temperature dial to the required setting (1-2½ can be used for simmering
and 3 for maximum continuous heat) the green lamp will show indicating power to
the element and will extinguish when the desired temperature is reached.
This procedure will be repeated automatically as the thermostat maintains a
constant temperature.
Use for serving from cook pots (except in the case of the carvery unit). Wipe down regularly
after switching off from the mains.

INSTRUCTION REF: IN120
ISSUE No. 3
DATE 17.08.15
Page 6 of 26
www.parry.co.uk
CLEANING AND MAINTENANCE
ENSURE THE APPLIANCE IS ISOLATED FROM THE POWER SUPPLY BEFORE
INSTALLING, CLEANING OR MAINTAINING THE APPLIANCE
Ensure that the appliance has cooled sufficiently.
Cleaning should be carried every day. Clean the external surfaces of the appliance with a
damp cloth. Avoid using abrasive materials.
CAUTION: Never clean the appliance with water jets.
Appliance should be annually P.A.T (Portable Appliance Testing) tested for continued
electrical safety.
MAINTENANCE INSTRUCTIONS
Servicing
This appliance should be routinely serviced to prolong its lifetime. Parry
recommends that the appliance is serviced every 12 months by a Parry authorised
engineer. Failure to service your product within the initial 12 month warranty period
will cause the 24 month warranty to become void.
MAINTENANCE AND SERVICE MUST ONLY BE UNDERTAKEN BY A QUALIFIED
ELECTRICIAN / ENGINEER
IF THE SUPPLY CORD BECOMES DAMAGED, IT MUST BE REPLACED BY THE
MANUFACTURER, ITS SERVICE AGENT OR SIMILARLY QUALIFIED PERSONS IN
ORDER TO AVOID A HAZARD

INSTRUCTION REF: IN120
ISSUE No. 3
DATE 17.08.15
Page 7 of 26
www.parry.co.uk

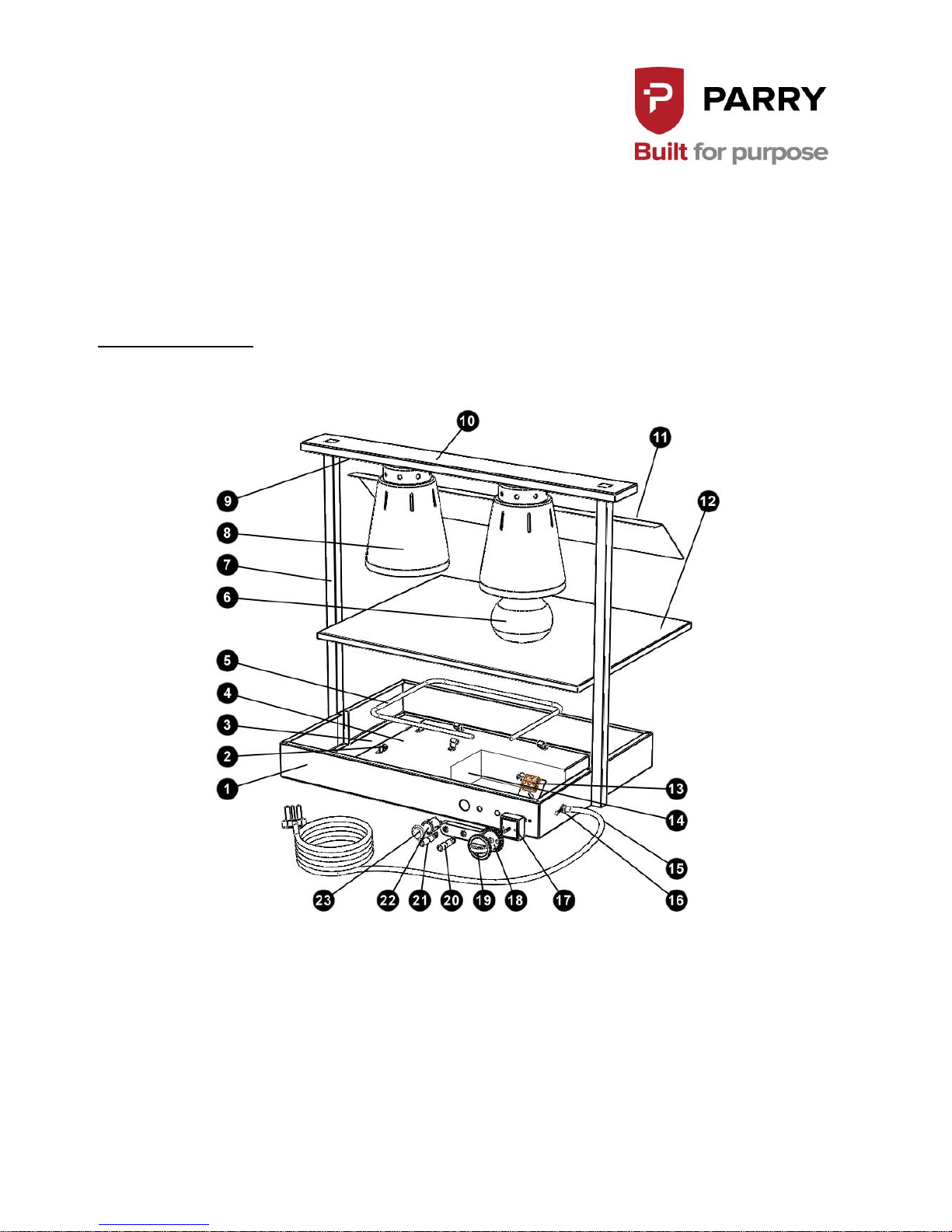

EXPLODED VIEW
C2LU / C3LU / C4LU
C2LU unit shown above

INSTRUCTION REF: IN120
ISSUE No. 3
DATE 17.08.15
Page 8 of 26
www.parry.co.uk
PARTS LIST
C2LU / C3LU / C4LU
NO.
Description
C2LU
C3LU
C4LU
1
*Body
NO CODE
NO CODE
NO CODE
2
Element Clip
AS2640ELC
AS2640ELC
AS2640ELC
3
*Base
NO CODE
NO CODE
NO CODE
4
*Element Stand
NO CODE
NO CODE
NO CODE
5
Element
ELDU00400
ELDU00400
ELPS40800
6
Lamp
ELHL27275
ELHL27275
ELHL27275
7
*Gantry Leg
NO CODE
NO CODE
NO CODE
8
Lamp Holder & Shade
CPSH00001
CPSH00001
CPSH00001
9
*Gantry Bottom
NO CODE
NO CODE
NO CODE
10
*Gantry Top
NO CODE
NO CODE
NO CODE
11
Sneeze Screen
HDPB50792
HDPB5104
HDPB51423
12
*Top
NO CODE
NO CODE
NO CODE
13
Terminal Block
TERMBRKT1
TERMBRKT1
TERMBRKT1
14
*Wire Guard
NO CODE
NO CODE
NO CODE
15
Mains Cable
MAINSLEAD
MAINSLEAD
MAINSLEAD
16
Cable Bush
BUSR06003
BUSR06003
BUSR06003
17
Simmerstat
SATT37071
SATT37071
SATT37071
18
Bezel
BEZELCBOX
BEZELCBOX
BEZELCBOX
19
Control Knob
KNOBTYPED
KNOBTYPED
KNOBTYPED
20
Red Neon
LNRE2211P
LNRE2211P
LNRE2211P
21
Green Neon
LNGN2211P
LNGN2211P
LNGN2211P
22
Round Switch
SWRE00008
SWRE00008
SWRE00008
23
Round Switch Cover
SWRE00008C
SWRE00008C
SWRE00008C

INSTRUCTION REF: IN120
ISSUE No. 3
DATE 17.08.15
Page 9 of 26
www.parry.co.uk
EXPLODED VIEW
CCBM

INSTRUCTION REF: IN120
ISSUE No. 3
DATE 17.08.15
Page 10 of 26
www.parry.co.uk
PARTS LIST
CCBM
NO.
Description
CCBM
1
*Body
NO CODE
2
*Gantry
NO CODE
3
2/3 65mm Gastronorm
BAMA23065
4
2/3 20mm Gastronorm Perforated
BALD23065
5
1/3 150mm Gastronorm Pot and Lid set
BAMA30150
6
*Gantry Top
NO CODE
7
*Gantry Bottom
NO CODE
8
Lamp Holder & Shade
CPSH00001
9
Lamp
ELHL27275
10
Element Clip
AS2640ELC
11
*Side Guard
NO CODE
12
Element
ELBM60892
13
*Front Guard
NO CODE
14
*Element Stand
NO CODE
15
*Rear Guard
NO CODE
16
*Base
NO CODE
17
Simmerstat
SATT37071
18
Bezel
BEZELCBOX
19
Control Knob
KNOBTYPED
20
Red Neon
LNRE2211P
21
Green Neon
LNGN2211P
22
Cable Bush
BUSR06003
23
Mains Lead
MAINSLEAD
24
Terminal Block
TERMBRKT1

INSTRUCTION REF: IN120
ISSUE No. 3
DATE 17.08.15
Page 11 of 26
www.parry.co.uk
EXPLODED VIEW
CCSU2

INSTRUCTION REF: IN120
ISSUE No. 3
DATE 17.08.15
Page 12 of 26
www.parry.co.uk
PARTS LIST
CCSU2
NO.
Description
CCSU2
1
*Body
NO CODE
2
*Top
NO CODE
3
*Front Guard
NO CODE
4
*Side Guard
NO CODE
5
*Gantry Leg
NO CODE
6
*Rear Guard
NO CODE
7
Lamp
ELHL27275
8
Lamp Holder & Shade
CPSH00001
9
*Gantry Bottom
NO CODE
10
*Gantry Top
NO CODE
11
Sneeze Screen
HDPB51032
12
1/3 150mm Gastronorm Pot and Lid Set
BAMA30150
13
2/3 20mm Gastronorm Perforated
BALD23065
14
2/3 65mm Gastronorm
BAMA23065
15
Element
ELBM80902
16
Terminal Block
TERMBRKT1
17
Element Clip
AS2640ELC
18
Cable Bush
BUSR06003
19
Mains Cable
MAINSLEAD
20
Simmerstat
SATT37071
21
Bezel
BEZELCBOX
22
Control Knob
KNOBTYPED
23
Red Neon
LNRE2211P
24
Green Neon
LNGN2211P
25
Round Switch (Rectangle Switch prior 21/5/2014)
SWRE00008 (SWRE06165)
26
Round Switch Cover
SWRE00008C
27
*Base
NO CODE

INSTRUCTION REF: IN120
ISSUE No. 3
DATE 17.08.15
Page 13 of 26
www.parry.co.uk

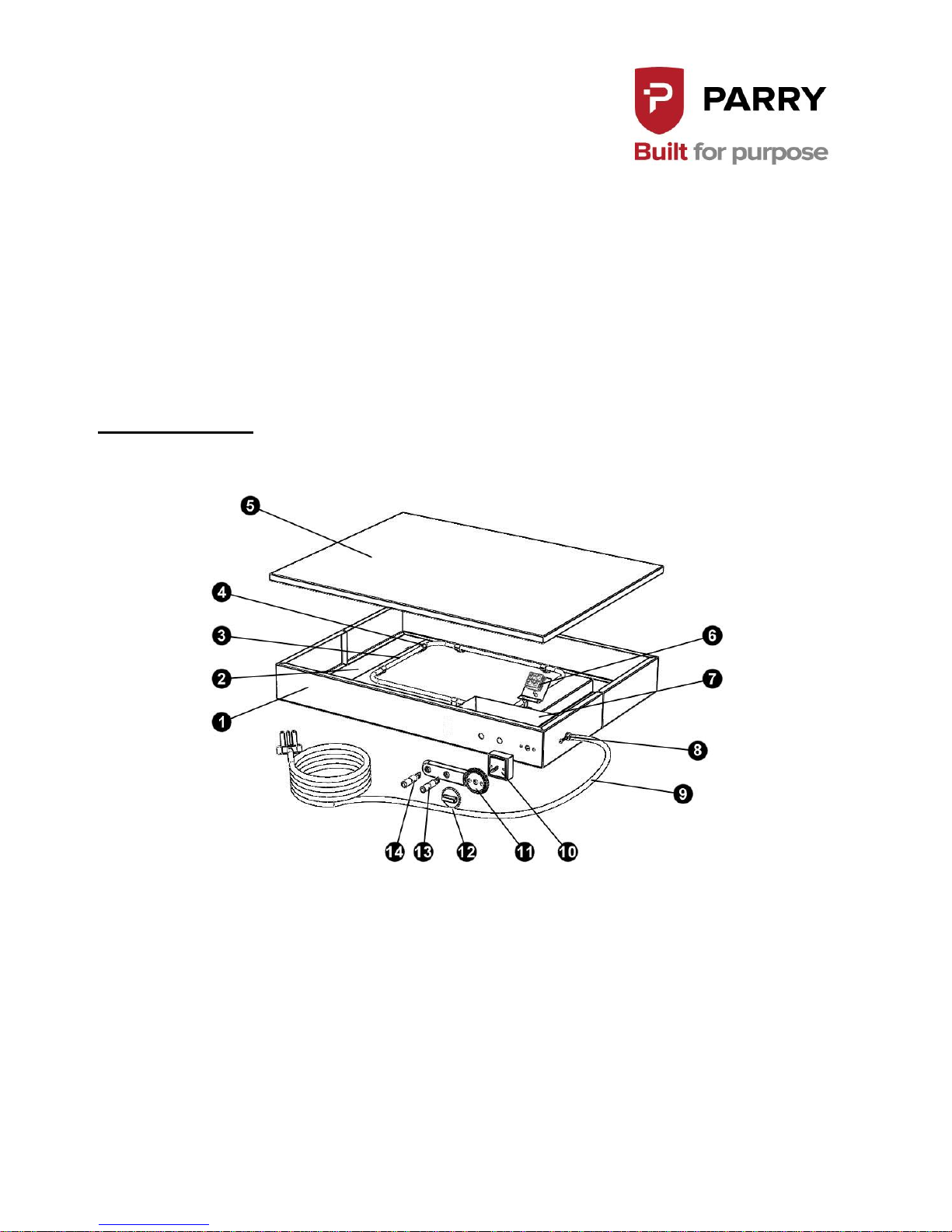

EXPLODED VIEW
3021 / 3022

INSTRUCTION REF: IN120
ISSUE No. 3
DATE 17.08.15
Page 14 of 26
www.parry.co.uk
PARTS LIST
3021 / 3022
FAULTS
The most common fault is that the unit is not connected with the mains supply, and so the
mains light does not come on.
Try another appliance in the socket, check the socket is turned on, check the wiring to and
in the plug, and the plug fuse. One of these may cure your fault. If this is not the case, and
for any other problems, first contact your distributor.
Any spares or replacements must conform to the relevant standards and the Health and
Safety at Work Act and only be fitted by a qualified electrician or competent person.
NO.
Description
3021
3022
1
*Body
NO CODE
NO CODE
2
*Base
NO CODE
NO CODE
3
Element
ELDU00400
ELBM80902
4
Element Clip
AS2640ELC
AS2640ELC
5
*Top
NO CODE
NO CODE
6
Terminal Block
TERMBRKT1
TERMBRKT1
7
*Wire Guard
NO CODE
NO CODE
8
Cable Bush
BUSR06003
BUSR06003
9
Mains Cable
MAINSCABLE
MAINSCABLE
10
Simmerstat
SATT37071
SATT37071
11
Bezel
BEZELCBOX
BEZELCBOX
12
Control Knob
KNOBTYPED
KNOBTYPED
13
Red Neon
LNRE2211P
LNRE2211P
14
Green Neon
LNGR2211P
LNGR2211P

INSTRUCTION REF: IN120
ISSUE No. 3
DATE 17.08.15
Page 15 of 26
www.parry.co.uk

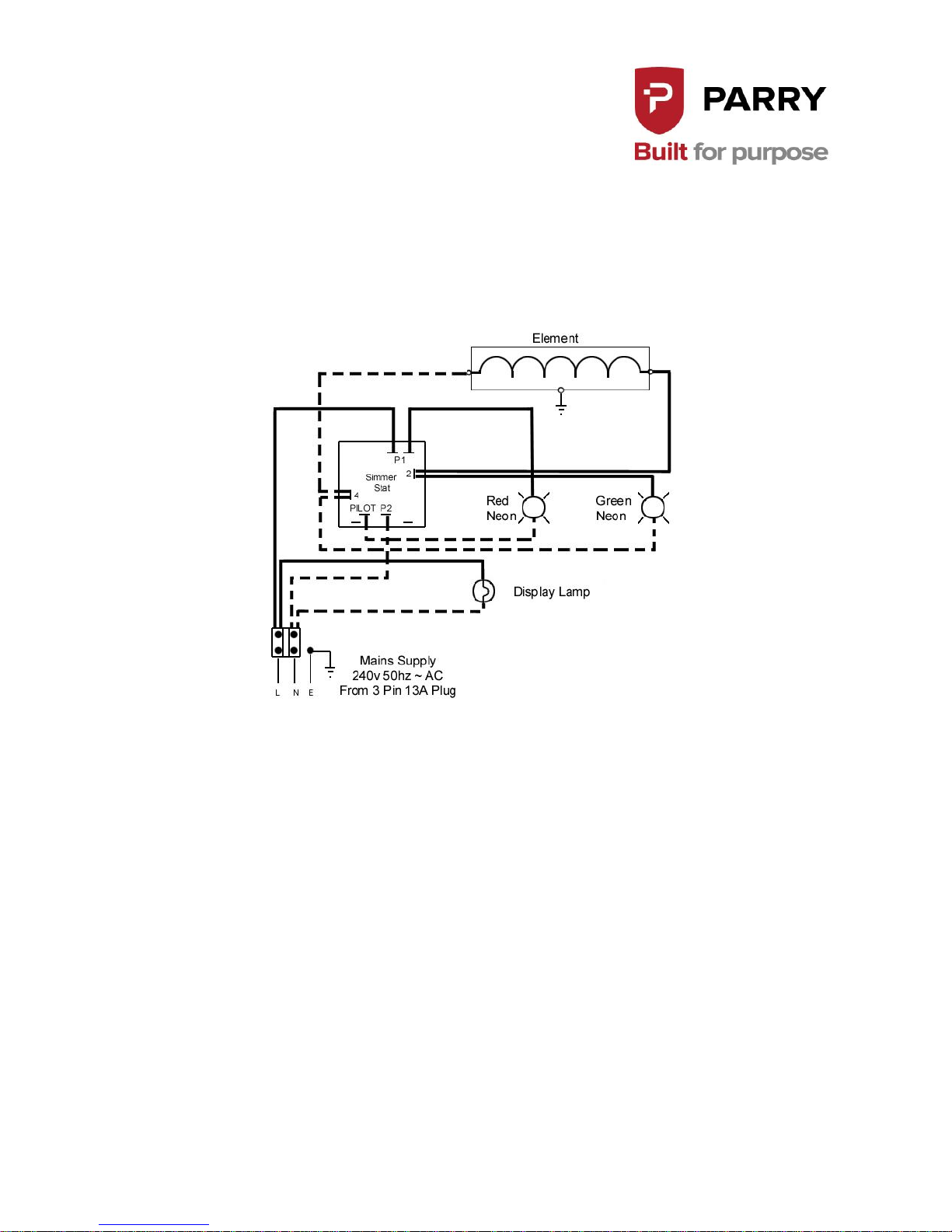

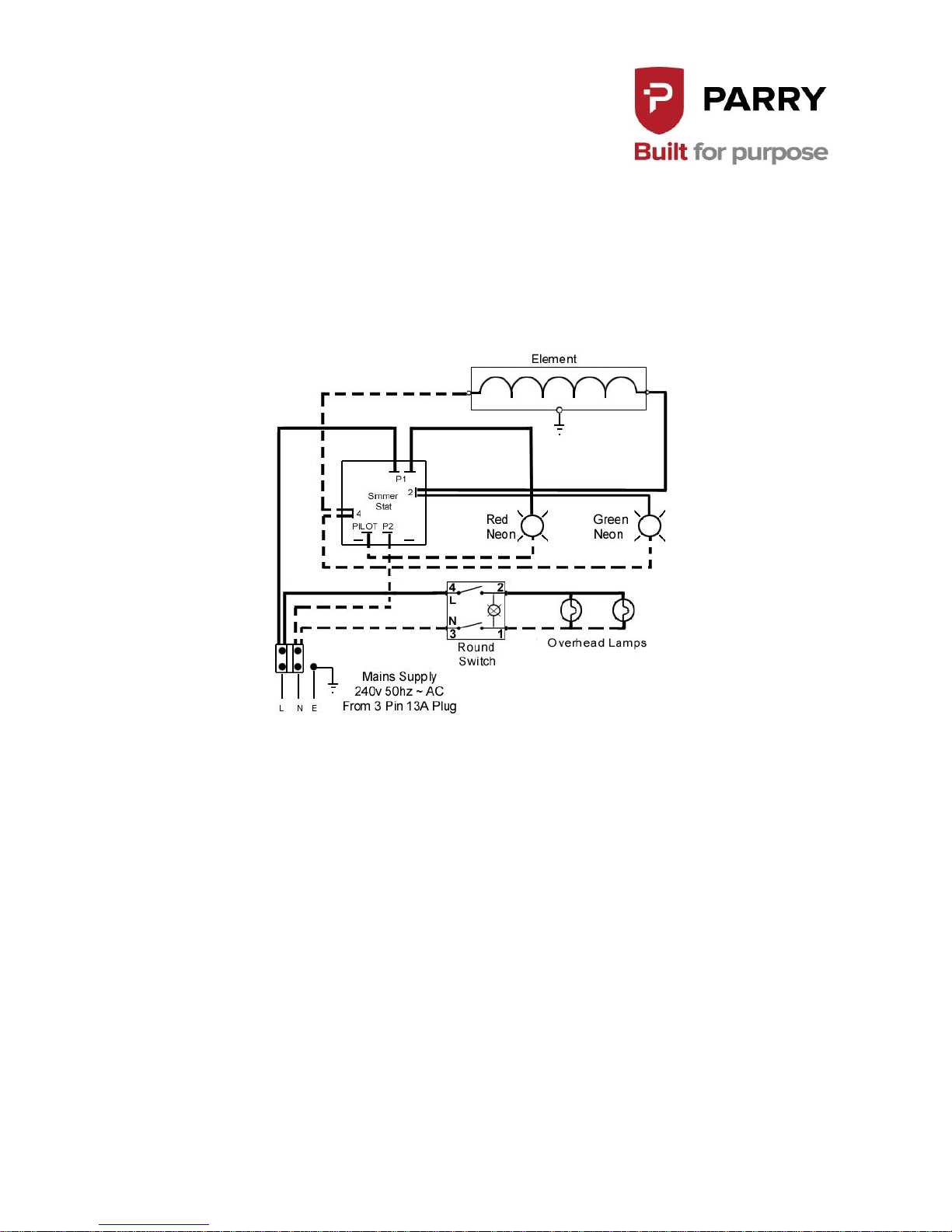

WIRING DIAGRAMS
C2LU

INSTRUCTION REF: IN120
ISSUE No. 3
DATE 17.08.15
Page 16 of 26
www.parry.co.uk
C3LU

INSTRUCTION REF: IN120
ISSUE No. 3
DATE 17.08.15
Page 17 of 26
www.parry.co.uk
C4LU

INSTRUCTION REF: IN120
ISSUE No. 3
DATE 17.08.15
Page 18 of 26
www.parry.co.uk
CCBM

INSTRUCTION REF: IN120
ISSUE No. 3
DATE 17.08.15
Page 19 of 26
www.parry.co.uk
CCSU2 (with rectangle switch)

INSTRUCTION REF: IN120
ISSUE No. 3
DATE 17.08.15
Page 20 of 26
www.parry.co.uk

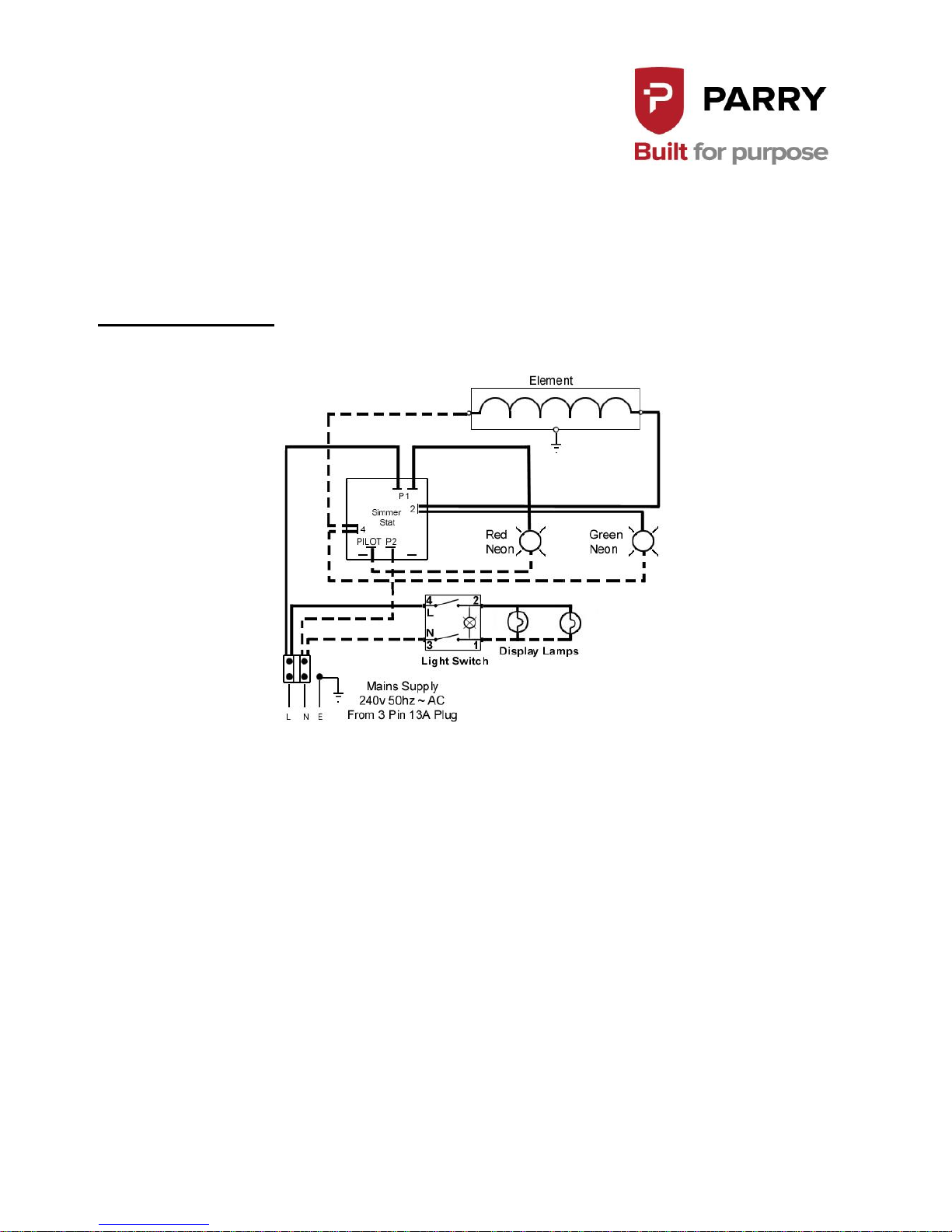

CCSU2 (with round switch)
