MF-2352
Service Manual

2
Copyright and Trademark
Copyright
This publication, including all photographs, illustrations and software, is protected under
international copyright laws, with all rights reserved. Neither this manual, nor any of the material
contained herein, may be reproduced without written consent of the author.
Disclaimer
The information in this document is subject to change without notice. The manufacturer makes
no representations or warranties with respect to the contents hereof and specically disclaims any
implied warranties of merchantability or tness for any particular purpose.
The manufacturer reserves the right to revise this publication and to make changes from time to
time in the content hereof without obligation of the manufacturer to notify any person of such
revision or changes.
Trademark Recognition
All product names used in this manual are the properties of their respective owners and are
acknowledged.
About this manual
The service manual provides service information. This manual is designed to help train service
personnel to locate and x failing parts on the device.
This manual consists of the following sections:
Chapter 1 Removal and Replacement Procedures: This chapter covers removing
compartements.
Manual Release Date
2017/12/01

3
Contents
Copyright and Trademark ................................................................................................. 2
About this manual ............................................................................................................ 2
Removal and Replacement Procedures............................................................................5
Tools Required .................................................................................................................. 5
Service Considerations....................................................................................................... 5
Removing Battery.............................................................................................................. 6
Removing Lower Case ....................................................................................................... 7
Removing Customer Display............................................................................................... 9
Removing Interface Board ............................................................................................... 11
Removing Fingerprint Scanner ......................................................................................... 13
Removing Camera, Speaker and Vibrator .......................................................................... 14
Removing Waterproof Rubber Gasket ............................................................................... 15
Removing Mainboard....................................................................................................... 16
Removing MSR................................................................................................................ 17
Removing MSR................................................................................................................ 18
Removing Rear Board...................................................................................................... 19
Removing Printer Roller ................................................................................................... 22
Removing Barcode Scanner ............................................................................................. 23
Removing 4G and GPS antennas ...................................................................................... 25
Removing RFID antenna.................................................................................................. 27
Removing Keypad ........................................................................................................... 28
Removing LCD Module .................................................................................................... 29
Removing Rubber Gasket................................................................................................. 30
Removing Tear Bar and Printer Module ............................................................................. 31

4

1
5
Removal and Replacement
Procedures
This section describes how to remove and install components from the device.
Tools Required
The following tools are required to perform maintenance on the device:
• Phillips screwdriver
• Tweezers
• Plastic pry
Service Considerations
Do the following prior to performing any maintenance procedures:
1. Unplug the AC adapter and remove all cables connections.
2. Turn o the device.
3. Place the device on a at and stable surface.

6
Removing Battery
1. Slide the release latch to
unlock the battery cover.
2. Lift the battery cover to
remove it
3. Lift the battery pack to
remove it.

7
Removing Lower Case
Prerequisite:
• Removing Battery on page
6
1. Unfasten the 6 screws
securing the lower and
upper cases.
2. Open the printer lid cover
and remove the 2 screws.
3. Carefully remove the lower
case.
CAUTION: Do not
completely remove the
lower case, cables are still
connected underneath.

8

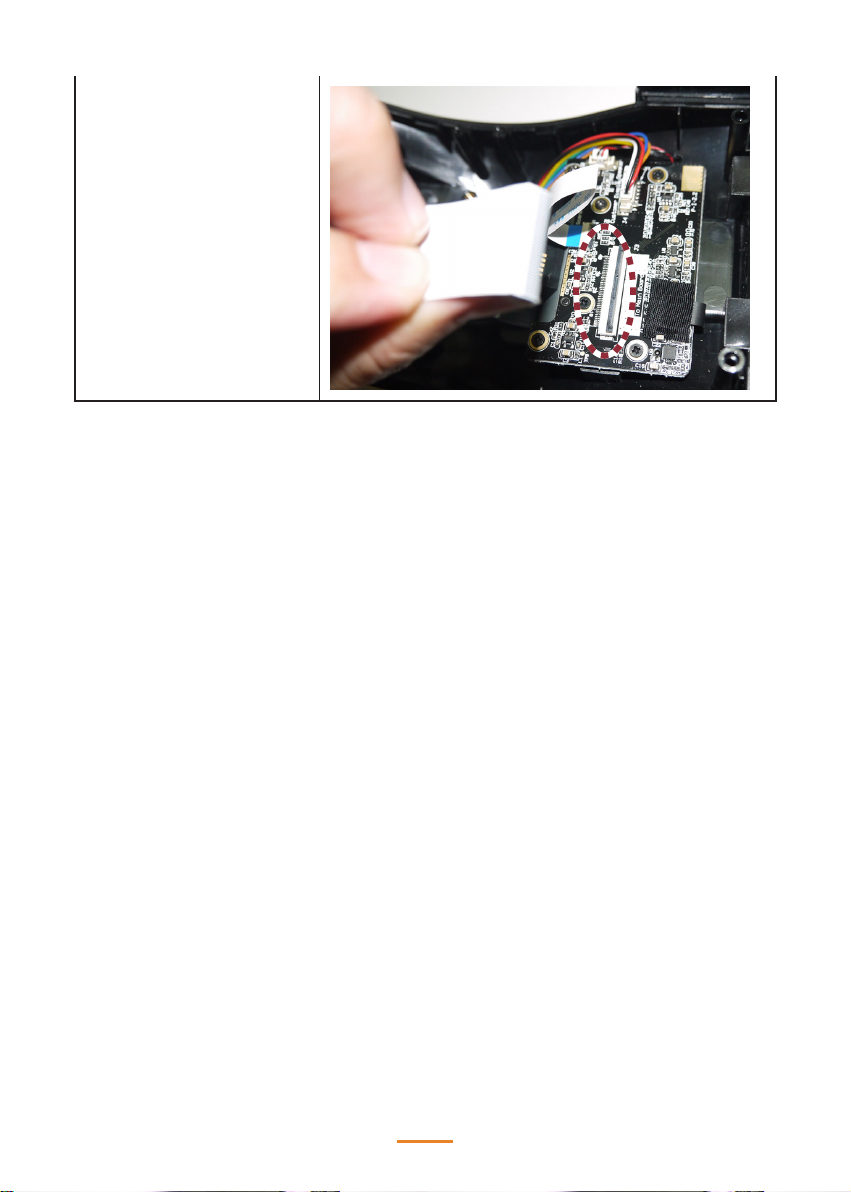

4. Disconnect the cable
from the interface board
connector. This releases
the lower case completely
o the upper case.

9
Removing Customer Display
Prerequisite:
• Removing Battery on page
6
• Removing Lower Case on
page 7
1. Unfasten the 2 screws.
2. Remove the customer
display bracket.
3. Disconnect the customer
display cable from the
interface board.

10
4. Remove the customer
display.

11
Removing Interface Board
Prerequisite:
• Removing Battery on page
6
• Removing Lower Case on
page 7
• Removing Customer Display
on page 9
1. Unfasten the 4 screws
securing the interface
board to the lower case.
2. Disconnect the speaker
cable.
3. Disconnect the Fingerprint
scanner cable.
4. Disconnect the camera
cable.

12

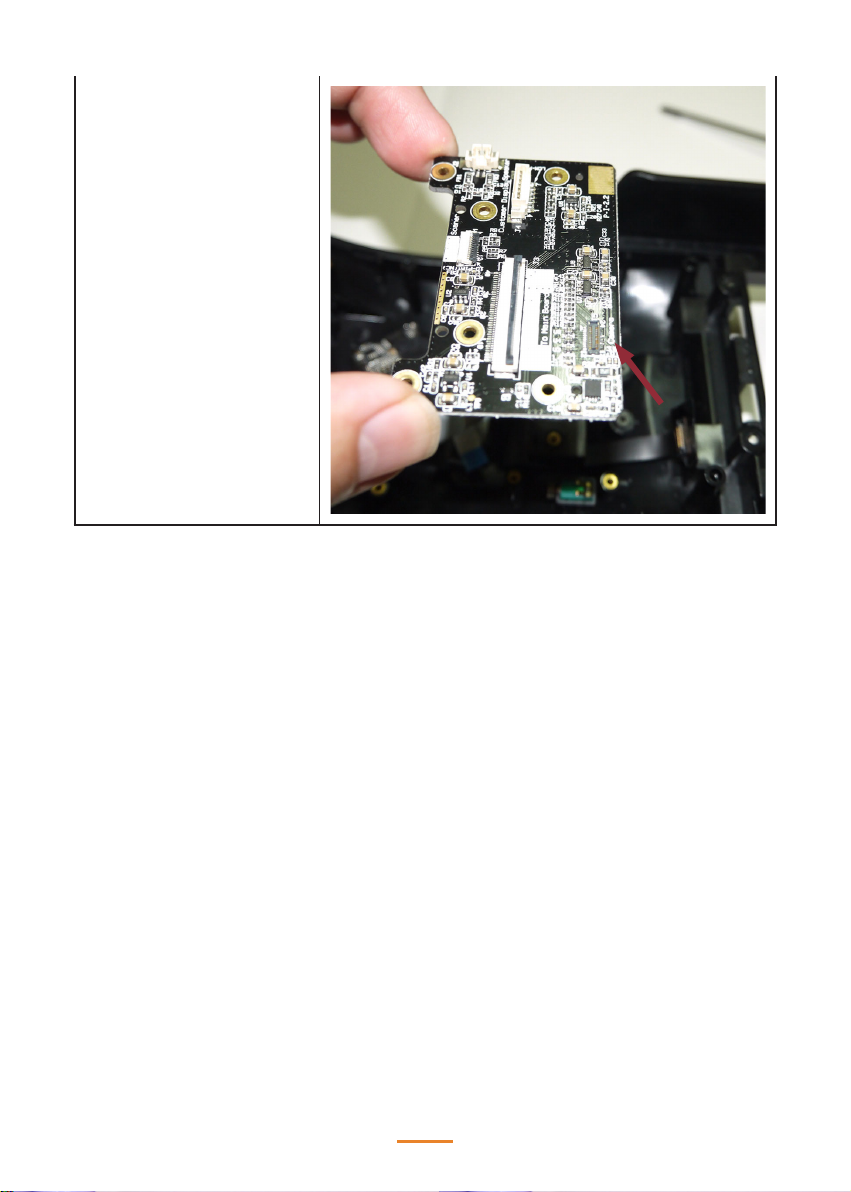

5. Remove the interface
board.

13
Removing Fingerprint Scanner
Prerequisite:
• Removing Battery on page
6
• Removing Lower Case on
page 7
• Removing Customer Display
on page 9
• Removing Camera, Speaker
and Vibrator on page 14
1. Unfasten the 2 screws
from the Fingerprint
scanner bracket.
2. Remove the Fingerprint
scanner.

14
Removing Camera, Speaker and Vibrator
Prerequisite:
• Removing Battery on page
6
• Removing Lower Case on
page 7
• Removing Customer Display
on page 9
• Removing Camera, Speaker
and Vibrator on page 14
1. Remove the camera
module.
2. Remove the speaker.
3. Remove the vibrator.

15
Removing Waterproof Rubber Gasket
Prerequisite:
• Removing Battery on page
6
• Removing Lower Case on
page 7
1. Remove the waterproof
rubber gasket from the
lower case.

16
Removing Mainboard
Prerequisite:
• Removing Battery on page
6
• Removing Lower Case on
page 7
1. Disconnect the printer
cable from the mainboard.
2. Unfasten the 2 screws.
3. Carefully disconnect the
mainboard from the rear
board and remove it.

17
Removing MSR
• Removing Battery on page
6
• Removing Lower Case on
page 7
• Removing Mainboard on
page 16
1. Unfasten the 2 screws
from the MSR.
2. Press the MSR into the
case.
3. Remove the MSR.

18
Removing MSR
• Removing Battery on page
6
• Removing Lower Case on
page 7
• Removing Mainboard on
page 16
1. Unfasten the 2 screws
from the MSR.
2. Disconnect the MSR cable.
3. Press the MSR into the
case.
4. Remove the MSR.

19
Removing Rear Board
• Removing Battery on page
6
• Removing Lower Case on
page 7
• Removing Mainboard on
page 16
• Removing MSR on page 18
1. Disconnect the printer
cable.
2. Disconnect the RFID cable.
3. Disconnect the WIFI&BT
antenna.

20
4. Disconnect the 4G
antenna.
5. Disconnect the GPS
antenna.
6. Unfasten the 9 screws
from the rear board.
