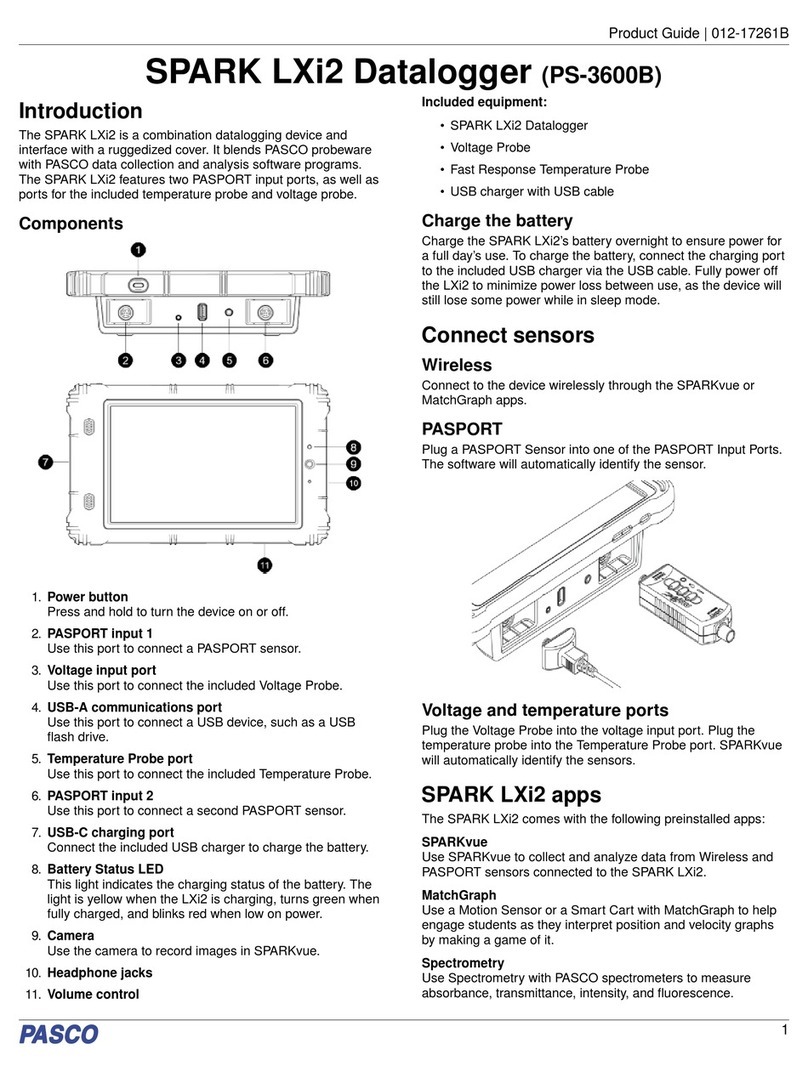

PASCO SPARK LXi2 User manual

SPARK LXi2 Datalogger (PS-3600B)
Included Equipment
•Voltage Probe
•Fast Response Temperature Probe
•USB Charger with USB Cable
Introduction
The SPARK LXi2 is a combination datalogging device and
interface with a ruggedized cover. It blends PASCO
probeware with PASCO data collection and analysis
software programs. The SPARK LXi2 features two
PASPORT input ports as well as ports for the included
temperature probe and voltage probe. The USB-A
Communication Port allows USB devices such as thumb
drives to be connected.
Components
1. Power Button
Press and hold to turn the device on or off.
2. PASPORT Input 1
Use this port to connect a PASPORT sensor.
3. Voltage Input Port
Use this port to connect the included Voltage Probe.
4. USB-A Communications Port
Use this port to connect a USB device, such as a
USB flash drive.
5. Temperature Probe Port
Use this port to connect the included Temperature
Probe.
6. PASPORT Input 2
Use this port to connect a second PASPORT sensor.
7. USB-C Charging Port
Connect the included USB charger to charge the
battery.
8. Battery Charging Status Light
This light indicates the charging status of the battery.
The light is yellow when charging and turns green
when fully charged.
9. Camera
Use the camera to record images in SPARKvue.
10. Headphone Jacks
11. Volume Control
Product Guide | 012-17261A
1

Connecting Sensors
Wireless
Connect to the device wirelessly through the SPARKvue
or MatchGraph apps.
PASPORT
Plug a PASPORT Sensor into one of the PASPORT Input
Ports. The software will automatically identify the sensor.
Voltage and Temperature Ports
Use the voltage and temperature ports to collect data
using SPARKvue. Plug the Voltage Probe into the Voltage
Input Port. Plug the probe into the Temperature Probe
Port. SPARKvue will automatically identify the sensor.
SPARK LXi2 Apps
The SPARK LXi2 comes with the following preinstalled
apps:
SPARKvue
Use SPARKvue to collect and analyze data from Wireless
and PASPORT sensors connected to the SPARK LXi2.
MatchGraph
Use a Motion Sensor or a Smart Cart with MatchGraph to
help engage students as they interpret position and
velocity graphs by making a game of it.
Spectrometry
Use Spectrometry with PASCO spectrometers to measure
absorbance, transmittance, intensity, and fluorescence.
Periodic Table
A period table that can be used for quick reference.
Calculator
A standard scientific calculator.
Files
Access the files contained on your SPARK LXi2
datalogger.
Set Up
Use this app to access various settings, including WiFi,
Bluetooth, display, and sound.
SPARK LXi Help
Use this help guide to learn more about the features and
applications contained on the SPARK LXi2 datalogger.
SPARK LXi2 Datalogger | PS-3600B
2

Technical Support
Need more help?
Our knowledgeable and friendly Technical Support staff is
ready to answer your questions or walk you through any
issues.
Chat pasco.com
Phone [phone] x1004 (USA)
[phone] (outside USA)
Email [e-mail]
