Patriot Lighting OF81311EB User manual

Questions, problems, missing parts?
Before returning to your retailer, call our customer service at 1-800-887-6326
Monday – Friday 9:00 a.m. – 5:00 p.m. CST
SKU Number: 356-4700
2-LIGHT OUTDOOR FLUSH MOUNT
Model Number: OF81311EB
PACKAGE CONTENTS
200730
Mounting Screw
X2
End Pad
X1
Wire Connector
X3
AA BB
CC
EE
DD
Clip
X8
Mounting Strap Unit
X1
Washer
X1
FF
GG Metal Pad
X1
HARDWARE CONTENTS Note: Hardware not shown actual size.
A
B

Please read and understand this entire manual before attempting to assemble, operate or install the product.
WARNING
●Turn off electricity at main fuse box (or circuit breaker box) before beginning installation by removing fuse (or
switching off circuit breaker).
●Be careful not to damage or cut the wire insulation (covering) during fixture installation. Do not permit wires to contact
any surface having a sharp edge. To do so may damage or cut the wire insulation, which could cause serious injury
or death from electric shock.
CAUTION
●All electrical connections must be in agreement with local codes, ordinances or the national electric code (NEC).
Contact your municipal building department to learn about your local codes, permits and/or inspections.
●Risk of fire – most dwellings built before 1985 have supply wire rated for 140°F/60ºC. Consult a qualified electrician
before installation.
●Do not connect this fixture to an electrical system that does not provide a means for equipment grounding. Never use
a fixture in a two-wire system that is not grounded. If you are not sure your lighting system has a grounding means,
do not attempt to install this fixture. Contact a qualified, licensed electrician for information with regards to proper
grounding methods as required by the local electrical code in your area.
PREPARATION
Before beginning assembly, installation or operation of product, make sure all parts are present. Compare parts with
package contents list and diagram on previous page. If any part is missing or damaged, do not attempt to assemble,
install or operate the product.
Tools Required for Assembly (not included): Slotted Screwdriver, Phillips Screwdriver, Pliers, Electrical Tape, Wire
Cutters, Safety Glasses, Ladder, Wire Stripper.
SAFETY INFORMATION
Page 2 of 4
200730

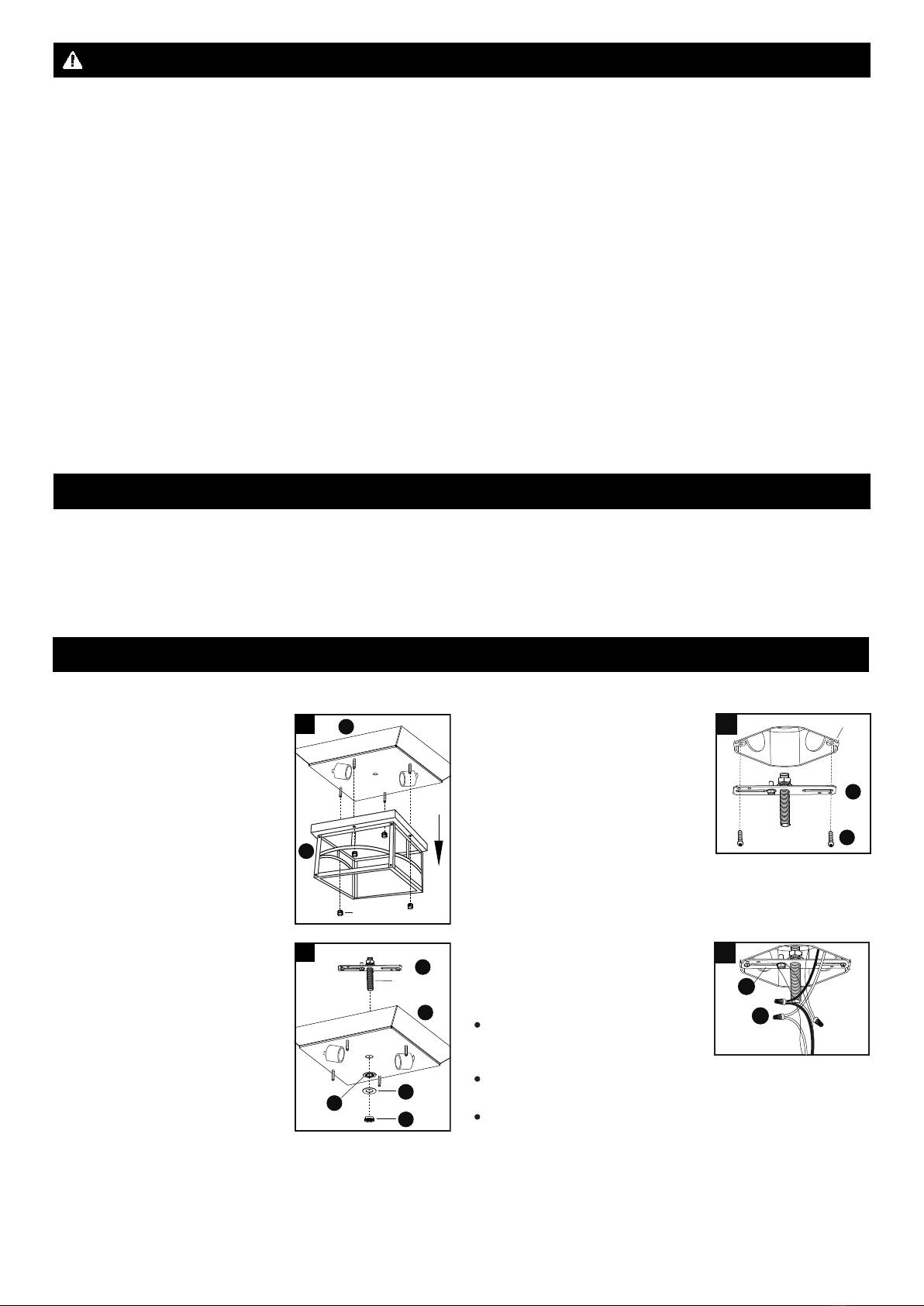

ASSEMBLY INSTRUCTIONS
3. Attach the ceiling pan (A) to the
mounting strap unit (AA) by
inserting the threaded pipe,
then secure it with the washer
(FF), metal pad (GG) and end
cap (DD).
1. Remove the four bolt nuts from
the metal frame (B).
Turn off the power at fuse or circuit box.
2. Secure mounting strap unit (AA)
to outlet box by using two
mounting screws (BB).
Note: The depth of threaded
pipe on the mounting unit may
need to be adjusted to properly
fit the fixture.
2
AA
BB
Outlet Box
AA
CC
4
Threaded
Pipe
3
AA
GG
FF
A
DD
1
A
B
Bolt Nut
4. Pull out the source wires from the
outlet box. Make wire connections
using wire connectors (CC) as
follows:
Connect the smooth wire
(marked) from the fixture to the
black wire (hot) from the power source.
Connect the ribbed wire (unmarked) from the fixture to
the white wire (neutral) from the power source.
Attach the fixture grounding wire to the mounting strap
unit (AA) with the green grounding screw. Then,
depending on local code, connect it to the house
grounding wire with the wire connector (CC).
Carefully put the wires back into the outlet box.

Page 3 of 4
200730
ASSEMBLY INSTRUCTIONS (continued)
The following parts are available for reorder if damaged or missing. Call our toll free at 1-800-887-6326.
Spare Parts List:
Assembly Kit
X-HTL05EB (1 SET)
6. Place the bottom glass panel
into the metal frame (B), then
secure it with eight clips (EE)
at the bottom of the metal
frame (B). Place each side
glass panel into the metal
frame (B) inserting the bottom
into the clips (EE). Secure
each glass panel into place
by bending clips on top of frame over the side of each piece of glass.
7. Attach the metal frame (B) to the ceiling pan (A), then secure it with four
bolt nuts.
Bolt Nut x 4
X-BNTL-EB
Side Glass Panel
X4
981311S
Bottom Glass Panel
X1
981311B
Turn on the power at fuse or circuit box.
6b
Clip
Side Glass Panel
Bottom Glass Panel
Bending Clip
B
6a
Side Glass
Panel
Bottom Glass Panel
Clip
B
Bottom Glass Panel
EE
6
5. Install the bulbs (not included).
See relamping label at socket area or packaging for maximum wattage allowed .
Max.60W Type A Bulb
(not included)
5
Bolt Nut
7
B
A
Mounting Screw
X2
End Pad
X1
Wire Connector
X3
AA BB
CC
EE
DD
Clip
X8
Mounting Strap Unit
X1
Washer
X1
FF
GG Metal Pad
X1

Page 4 of 4
200730
Questions, problems, missing parts?
Before returning to your retailer, call our customer service at 1-800-887-6326
Monday – Friday 9:00 a.m. – 5:00 p.m. CST
FIVE-YEAR LIMITED WARRANTY: If, during normal use, this PATRIOT LIGHTING lighting fixture breaks or fails
due to a defect in material workmanship within five (5) years from the date of original purchase, simply bring this
lighting fixture with the original sales receipt back to your nearest MENARDS retail store. At its discretion, PATRIOT
LIGHTING agrees to have the product or any defective part(s) repaired or replaced with the same or similar PATRIOT
LIGHTING product or part free of charge, within the stated warranty period, when returned by the original purchaser
with original sales receipt. This warranty; (1) excludes expendable parts including but not limited to light bulbs; (2) does
not cover damage that has resulted from abuse or misuse; and (3) does not cover any losses, labor, injuries to
persons/property or costs. This warranty does give you specific legal rights and you may have other rights, which vary
from state to state.
R
R
R
R
●Toclean, turn off and wipe with a damp, non-abrasive cloth.
1) Thelight does not come on at all:
a) Make sure the wall switch and circuit breaker are on.
b) Make sure the wiring is correct.
2) Fuse blows or circuit trips when lightis turned on.
Check for crossed wires, ensure wiring is correct.
If unable to fix any of the above issues, please consult a certified electrician.
CARE AND MAINTENANCE
TROUBLESHOOTING
