Patriot Lighting DJ2113 TXTBLK User manual

Questions, problems, missing parts?
Before returning to your retailer, call our customer service at 1-800-887-6326
Monday – Friday 9:00 a.m. – 5:00 p.m. CST
SKU Number: 356-1294
356-1295
221017
1-Light Outdoor Motion Sensing Wall Light
Model Number: DJ2113 TXTBLK
DJ2114 TXTWHT
HARDWARE CONTENTS Note: Hardware not shown actual size.
Crossbar Unit
X1
Mounting Screw
X2
Wire Connector
X3
Bolt Nut
X2
Rubber Pad
X2
AA BB
CC DD
EE Set Screw
X2
FF
PACKAGE CONTENTS
B
C
D
A
5S
TIME
3MIN
TEST AUTO SENSITIVITY
PC

Page 2 of 6
221017
Turn off the power at fuse or circuit box.
Installation Steps
1. Unscrew the two bolt nuts (DD)
Remove the two rubber pads
(EE) and the crossbar unit (AA)
from the backplate (A).
Please read and understand this entire manual before attempting to assemble, operate or install the product.
WARNING
●Turn off electricity at main fuse box (or circuit breaker box) before beginning installation by removing fuse (or
switching off circuit breaker).
●Be careful not to damage or cut the wire insulation (covering) during fixture installation. Do not permit wires to contact
any surface having a sharp edge. To do so may damage or cut the wire insulation, which could cause serious injury
or death from electric shock.
CAUTION
●All electrical connections must be in agreement with local codes, ordinances or the national electric code (NEC).
Contact your municipal building department to learn about your local codes, permits and/or inspections.
●Risk of fire – most dwellings built before 1985 have supply wire rated for 140°F/60ºC. Consult a qualified electrician
before installation.
●Do not connect this fixture to an electrical system that does not provide a means for equipment grounding. Never use
a fixture in a two-wire system that is not grounded. If you are not sure your lighting system has a grounding means,
do not attempt to install this fixture. Contact a qualified, licensed electrician for information with regards to proper
grounding methods as required by the local electrical code in your area.
●
Before beginning assembly, installation or operation of product, make sure all parts are present. Compare parts with
package contents list and diagram on previous page. If any part is missing or damaged, do not attempt to assemble,
install or operate the product. Contact customer service for replacement parts.
Tools Required for Assembly (not included): Slotted Screwdriver, Phillips Screwdriver, Pliers, Electrical Tape, Wire
Cutters, Safety Glasses, Ladder, Wire Stripper, Silicone Caulk.
PREPARATION
ASSEMBLY INSTRUCTIONS
SAFETY INFORMATION
Only a general ON/OFF wall switch applies for this fixture, a dimmable wall switch shouldn’t be used.
Maximum Wattage: 60W
Work Temperature: - 22°F~104°F
Important to know
1. This fixture requires a 120VAC, 60Hz power source.
2. Make sure the power is switched OFF before installation.
3. Motion sensor: turns light ON automatically when motion is detected and turns light OFF automatically when motion
stops.
4. Photocell keeps the light OFF during the daytime.
1
DD
EE
A
AA
2. Attach the crossbar unit (AA) to
the outlet box by using two
mounting screws (BB). Adjust the
length of the preinstalled fixture
mounting screws if necessary.
Note: Make sure that the fixture
mounting screws are lined up
horizontally to make the fixture
level.
AA
BB
2
Fixture Mounting Screw

Page 3 of 6
221017
ASSEMBLY INSTRUCTIONS (continued)
3. Install the bulb (not included).
See relamping label at socket
area or packaging for maximum
wattage allowed.
5. Attach the dome (C) to the frame (D)
by aligning holes and inserting the
two set screws (FF) from the
frame (D) into the holes on the
dome (C), then secure them with
the two set screws (FF).
4. Remove the finial (B) from the
assembly kit, and insert the
threaded pipe of the assembly
kit from the bottom of the
dome (C) through the open hole,
then secure it with the finial (B).
Turn on the power at fuse or circuit box
6. Pull out the source wires from
the outlet box. Make wire
connections using wire
connectors (CC) as follows:
• Connect the hot wire (black
insulation) from the fixture to
the black wire from the power
source.
• Connect the neutral wire (white insulation) from the
fixture to the white wire from the power source.
• Attach the fixture ground wire (bare wire) to the
crossbar unit (AA) with the green ground screw, then
depending on local code, connect it to the house
ground wire with the wire connector (CC).
Carefully put all of the wires back into the outlet box.
7. Attach the backplate (A) of the fixture to the crossbar unit (AA) by aligning and inserting
the two fixture mounting screws from the crossbar unit (AA) into the open holes on the
backplate (A), then place the two rubber pads (EE) over the exposed fixture mounting
screws before screwing the two bolt nuts (DD) on to screws.
Note: With silicone caulk compound, caulk completely around where the backplate
meets with the wall surface to prevent water from seeping into the outlet box.
CC
AA
6
7
DD
EE
AD
AA
3
Max.60W Type A Bulb
(not included)
5
C
D
FF
4a
B
Threaded Pipe
Rubber Pad
Metal Pad Lock Nut
Choose a mode by sliding the slide switch. The light will turn on immediately when power is applied. Wait for 30
seconds to allow the sensor to warm up.
1. TEST MODE (daytime and nighttime operation.)
● The light will turn on when motion is detected, and stay on as long as the motion continues. The light will turn off
after 5 seconds when motion is no longer detected.
FUNCTIONS AND OPERATIONS
4
B
C
Assembly Kit
Assembly Kit
Green Ground Screw

Page 4 of 6
221014

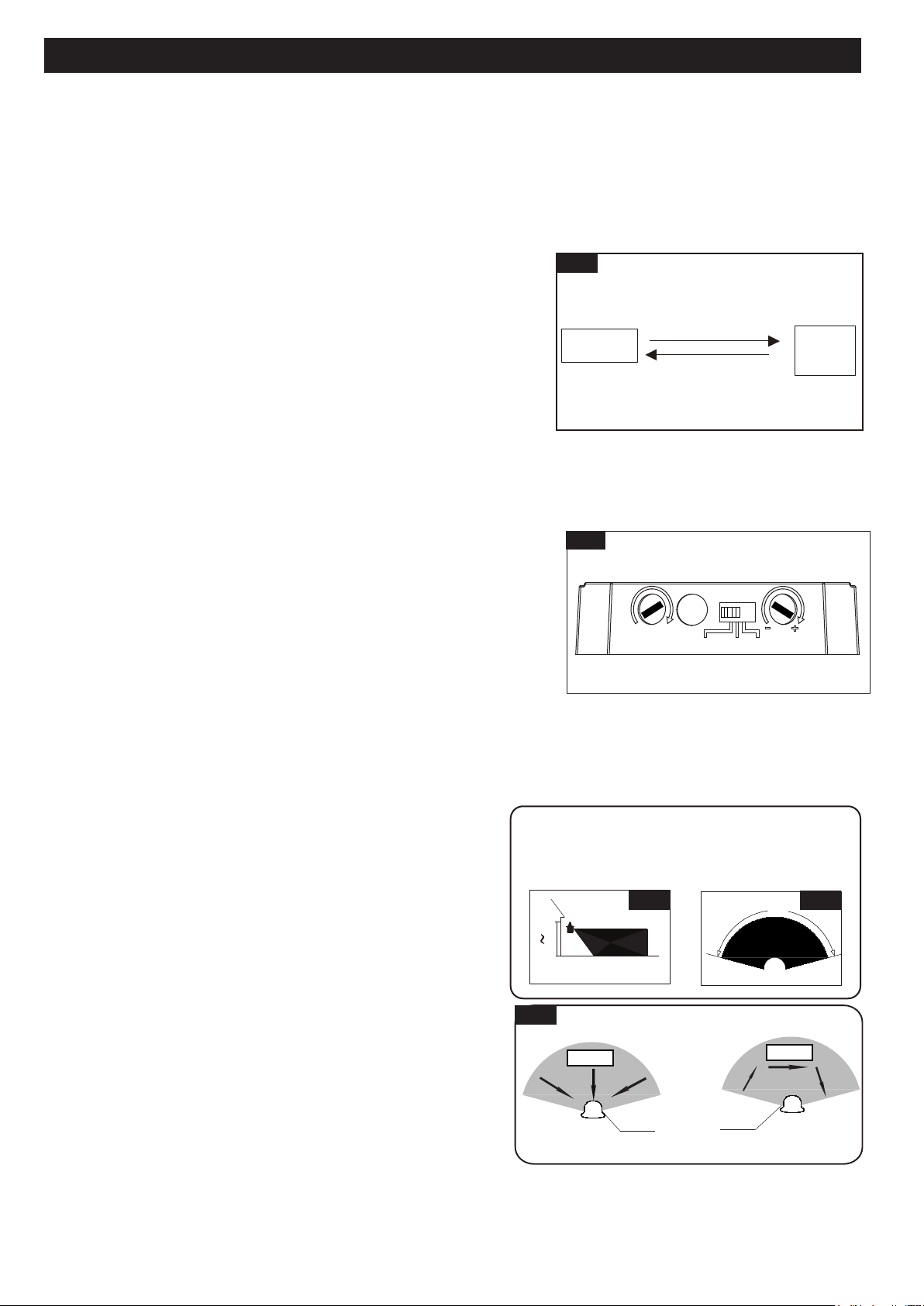

FUNCTIONS AND OPERATIONS
Customization Options
Shut-off Delay
1. The Shut-off delay is the length of time that the light will stay on
after motion stops.
2. The Shut-off delay can be adjusted by using the "TIME" knob when
the slide switch is set in "AUTO" mode.
3. The range of shut-off delay is 5 seconds to 3 minutes.
4. Rotate the knob clockwise for increasing the shut-off delay.
5. Rotate the knob counterclockwise for decreasing the shut-off delay.
Sensitivity of Motion Sensor
1. The sensitivity can be adjusted from 5 to 30 feet by using the "SENSITIVITY" knob. (See Fig.2).
2. Turn the knob clockwise for increased sensitivity.
3. Turn the knob counterclockwise for decreased sensitivity.
Fig. 2 (View from bottom of sensor lens)
Mode
NOTE:
1. The sensitivity of the motion sensor will increase as the
environmental temperature gets colder. For best performance,
gently clean the lens with a soft cloth every 1 or 2 months to
ensure maximum sensitivity.
2. When installed at a height of 6.5 feet, at 77 degrees Fahrenheit,
the light will provide a maximum detection distance of 30 feet
and detection range of 150 degrees. (See Fig.3 Fig.4)
3. The sensor will be more sensitive to motion across its
detection path than motion directly towards it. (See Fig.5)
4. To reduce possible nuisances, do not mount the fixture
near a heat source like an air conditioner, vent or furnace
exhaust, or in a direction facing any reflecting object or
other light source.
Where you install your lantern is important:
Be sure the light is mounted straight on the wall;
otherwise, the detection distance may be limited.
5`
6`
10`
30`
Fig. 3 Fig. 4
150˚
Least sensitivity Most sensitivity
Sensor
Fig. 5
Motion Motion
Auto Mode Manual
Override
Manual Override Operation Diagram
Turn wall switch OFF-ON
in 0.5~3 Seconds
Turn wall switch OFF-ON
in 0.5~3 Seconds
Fig.1
4. Manual Override MODE (nighttime operation only)
● To shift to the manual override mode, set the switch to "AUTO" mode.
Turn the wall switch "OFF" and then turn it "ON" within 3 seconds.
The light will stay on through all night. To restore to the "AUTO"
mode, turn the wall switch "OFF" and then turn it "ON" within 3
seconds again. (See Fig.1)
● The light will last for one night only and turn off automatically at
dawn.
Note: 1. Always keep the wall switch in the "ON" position
(including the daytime).
2. Please notice the warm up time is 30 seconds, any
operations are invalid during this time.
2. AUTO MODE (nighttime operation only)
● At dusk, the light will turn on when motion is detected, and stay on as long as the motion continues. When the
motion stops, the light will remain on for the predetermined time set (5~180 seconds) and then turn off.
● The light will turn off automatically at dawn.
3. PC MODE (nighttime operation only)
● The light will turn on automatically at dusk and turn off automatically at dawn.
5S
TIME
3MIN
TEST AUTO SENSITIVITY
PC

Page 5 of 6
221017
The following parts are available for reorder if damaged or missing. Call our toll-free at 1-800-887-6326.
Spare Parts List:
Assembly Kit
6562MM (1 SET) for 356-1294
6563MM (1 SET) for 356-1295
Crossbar Unit
X1
Mounting Screw
X2
Wire Connector
X3
Bolt Nut
X2
Rubber Pad
X2
AA BB
CC DD
EE Set Screw
X2
FF
●Toclean, turn off and wipe with a damp, non-abrasive cloth.
CARE AND MAINTENANCE
TROUBLESHOOTING
Refer to following information to solve your problems.
Set the slide switch in the test mode for testing.
Night
If the light
isn’t on
SYMPTOM DAY/NIGHT POSSIBLE CAUSE SOLUTION
Day
Slide switch is not set in the test
mode.
Wall switch or circuit breaker is off. Turn on wall switch or circuit breaker.
Test the light bulb on normal working light fixture.
Tighten the light bulb.
Check wire connections.
Relocate fixture away from western facing wall.
Eliminate or turn off other light source, block other
light source from shining onto sensor, or relocate
fixture.
Light bulb may be burned out.
Light bulb is loose.
Incorrect or loose wire connections.
Too much sunlight is shining onto
sensor in the early evening.
Too much light is shining onto
sensor due to another light source,
such as a street lamp or other light
fixture.
The fixture may be installed in
shaded area. Only need to relocate fixture.
No corrective action needed.
On cloudy or overcast days, the light
may stay on longer than anticipated.
Still on the manual override mode. Turn off the light, then turn it on after 5 seconds.
False triggering caused by a heat
source, such as a heater, dryer vent,
or heated swimming pool.
Eliminate heat source or relocate fixture.
The knob is not set in any mode. Rotate it again to the mode you want.
Day
Night
If the light
stays on

Page 6 of 6
221017
If unable to fix any of the above issues, please consult a certified electrician.
FIVE-YEAR LIMITED WARRANTY: If, during normal use, this PATRIOT LIGHTING lighting fixture breaks or fails
due to a defect in material workmanship within five (5) years from the date of original purchase, simply bring this
lighting fixture with the original sales receipt back to your nearest MENARDS retail store. At its discretion, PATRIOT
LIGHTING agrees to have the product or any defective part(s) repaired or replaced with the same or similar PATRIOT
LIGHTING product or part free of charge, within the stated warranty period, when returned by the original purchaser
with original sales receipt. This warranty; (1) excludes expendable parts including but not limited to light bulbs; (2) does
not cover damage that has resulted from abuse or misuse; and (3) does not cover any losses, labor, injuries to
persons/property or costs. This warranty does give you specific legal rights and you may have other rights, which vary
from state to state.
R
R
R
R
Questions, problems, missing parts?
Before returning to your retailer, call our customer service at 1-800-887-6326
Monday – Friday 9:00 a.m. – 5:00 p.m. CST
The light
comes on for
no apparent
reason
If the light
is blinking Night
Night
False triggering caused by a heat
source, such as a heater, dryer vent,
or heated swimming pool.
Eliminate heat source or relocate fixture.
SYMPTOM DAY/NIGHT POSSIBLE CAUSE SOLUTION
Passing cars and reflective objects
interfere with the sensor. Relocate fixture.
Street or sidewalk traffic is triggering
motion sensor.
Adjust the "SENSITIVITY" knob to reduce the
sensitivity.
TROUBLESHOOTING (continued)
