50” TV Wall Mount Kit Installation Instructions
Page 1 of 2
PDi Communication Sys tems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664
SCOPE:
TO MOUNT A TV USING A PDI PD168-226 ARTICULATING WALL MOUNT KIT.
TOOL LIST
1. P1 OR P2, PHILLIPS SCREW DRIVER
2. SAFETY GLASSES/GOGGLES
3. LEVEL
SAFETY STEPS:
1. ALWAYS WEAR SAFETY GLASSES/GOGGLES TO PREVENT INJURYFROMDEBRIS.
2. FOLLOW THE INSTALLATION/REMOVAL INSTRUCTIONS FOR YOUR EXISTING PRODUCTS.

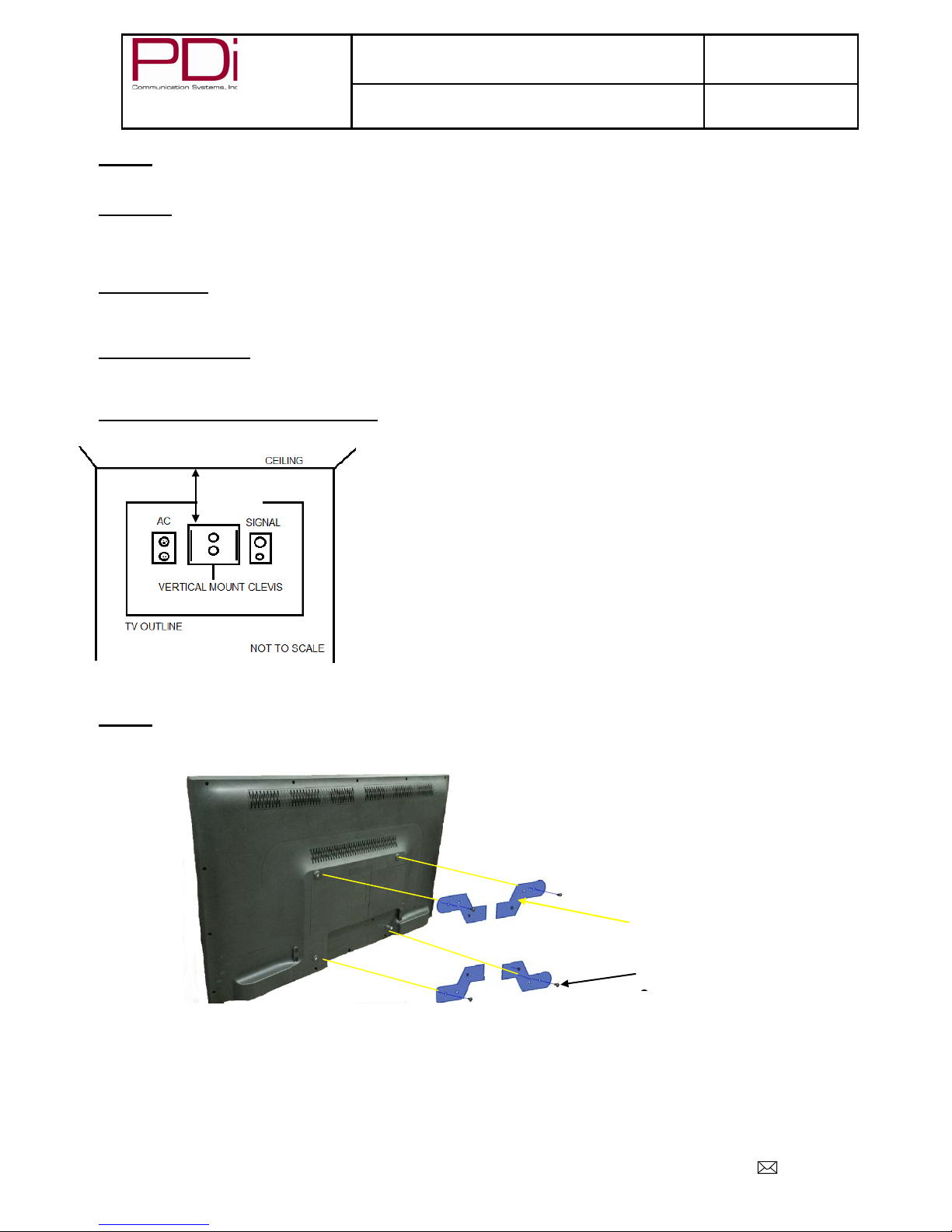

MOUNTING DISTANCE
16.6” MINIMUM FROMCLEVIS TO CEILING FOR 50”PLASTIC LED TV.
PROCEDURE TO MOUNT AN E50 LED TV:
STEP 1:
ATTACH THE (4) PD181-825 MOUNTING BRACKETS (#1) TO THE BACK OF THE E50 LED TV USING FOUR
PDIPPHMSM6X110 SCREWS (#3).
16.6”
1
3
9

A Leader in Patient Co mmunica tion
Solutions™
MODEL NUMBER:
PD168-229
Doc umen t Nu mb er:
PD196-369R1
50” TV Wall Mount Kit Installation Instructions
Page 2 of 2
PDi Communication Sys tems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664
STEP 2:
ATTACH THE PD181-707 MOUNTING BRACKET (#2) TO THE PD181-825 MOUNTINGPLATES (#1) USING FOUR
PDIPPHMSM6X110 SCREWS (#4). THESE SCREWS ARE SUPPLIED WITH PD181-707 MOUNTING BRACKET KIT.
ITEM
PART NUMBER
DESCRIPTION
QTY
1
PD181-825
50” TV ADAPTER BRACKET
4
2
PD181-707
ARTICULATING WALL BRACKET
1
3
PDIPPHMSM6X110
M6 x 1.0 x 10mm PHILIPS HEAD SCREWS
4
4
PDIPPHMSM6X110
M6 x 1.0 x 10mm PHILIPSHEAD SCREW (SUPPLIED
WITH PD181-707 KIT)
4
