PDi PDI-MCA24-AC User manual

ASSEMBLY INSTRUCTIONS
Document Number: PD196-412R2
mymedTV.com

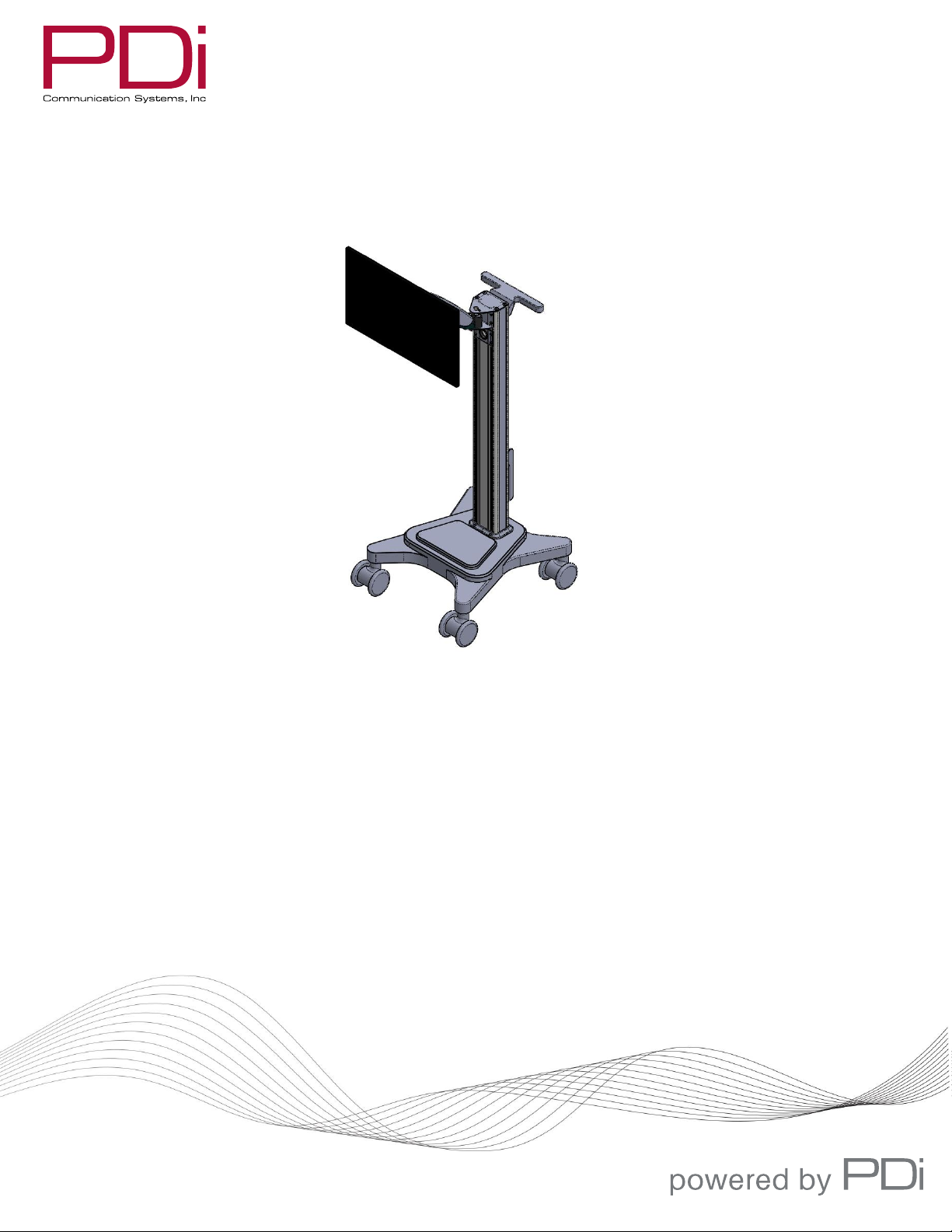

TV Mobile Cart
PDI-MCA24-AC, Mobile Cart with Flat-time TV Mount
Works with PDi 24” A-Series Hospital LED HDTV

MODEL NUMBER:
PDI-MCA24-AC
Document Number:
PD196-412R2
Assembly Instructions
Page 2 of 8
PDi Communication Systems, Inc. ▪40 Greenwood Ln ▪Springboro, Ohio 45066 USA ▪www.pdiarm.com and www.mymedTV.com ▪Phone [phone]
SAFETY INFORMATION
Overhead Falling Hazard
TV can pose a striking hazard when mounted at an
elevated position. Use only PDi mounting brackets,
support arms, and appropriate hardware to assure
TV will not fall from the mounted position. Failure
to do so may cause injury or death.
Rain and Moisture
WARNING: To avoid the hazards of fire or electrical
shock, DO NOT expose this apparatus to rain or
moisture.

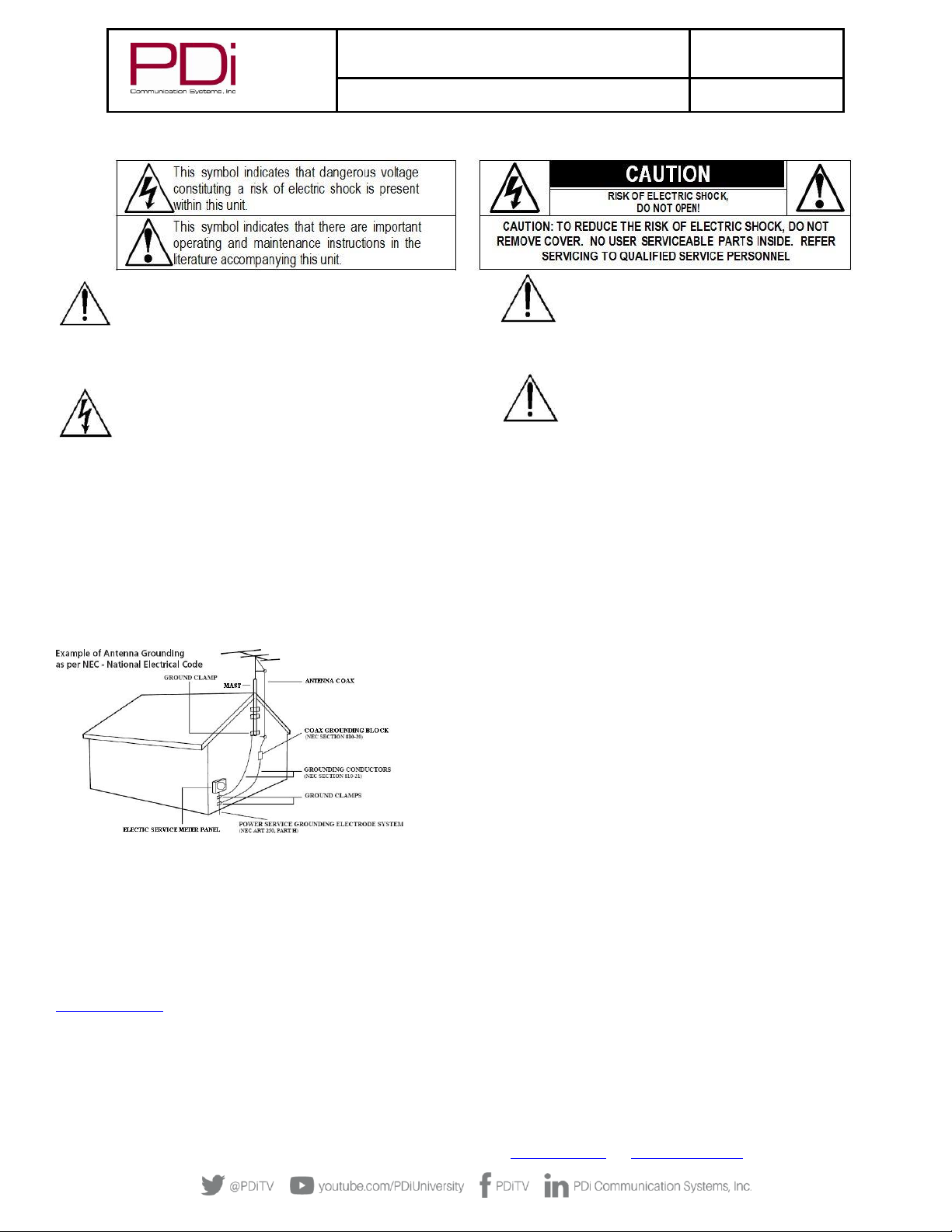

Note to Cable TV Installer
This reminder is provided to call the cable TV systems
installer’s attention to Article 820-40 of the National Electrical
Code. The code provides guidelines for proper grounding and,
in particular, specifies that the cable ground shall be connected
to the grounding system of the building, as close to the point of
the cable entry as practical. Canadian installations shall be
properly grounded in accordance with the Canadian Electrical
Code, Part 1.
Cleaning and Disinfection
For the associated A-Series 24” PDi TV: Clean the exterior of this
television by removing dust with a lint-free cloth. Spot test a new
disinfectant by test cleaning a non-obvious small spot on the TV’s
back cabinet, keypad, and LCD panel. PDi recommends using a
premoistened disinfectant cloth, like PD600-001 Super Sani-Cloth
or similar, or spraying cleaner onto a dry cloth and then wiping
the unit. Specific recommendations can be found at
www.pdiarm.com. CAUTION: To avoid damage to the surface of
the television, do not use abrasive or chemical cleaning agents.
Oxygen Environment
WARNING: Do not use in any oxygen tent or
oxygen chamber. Such use may cause a fire
hazard.
Wet Location
Do not use this apparatus near water. Apparatus
shall not be exposed to dripping or splashing and
no objects filled with liquids, such as vases, shall
be placed on the apparatus.
Trademarks
© 2020 PDi Communication Systems, Inc. All rights reserved.
PDi®, medTV®and medTAB®are registered trademarks of PDi
Communication Systems, Inc. Manufactured under license from
Dolby Laboratories. Dolby, Dolby Audio, and the double-D symbol
are trademarks of Dolby Laboratories. The terms HDMI, HDMI
High-Definition Multimedia Interface, and the HDMI Logo are
trademarks or registered trademarks of HDMI Licensing
Administrator, Inc. Product logos, brands and other trademarks
displayed within PDi’s products are the property of their
respective trademark holders, who are not affiliated with,
endorsing, or sponsoring PDi Communication Systems, Inc. or our
products.
Disclaimer
The author and publisher have used their best efforts in
preparing this manual. PDi Communication Systems, Inc.
makes no representation or warranties with respect to the
accuracy or completeness of the contents of this manual and
specifically disclaims any implied warranties or
merchantability or fitness for any particular purpose and shall
in no event be liable for any loss of profit or any other damages.
The information contained herein is believed accurate, but is
not warranted, and is subject to change without notice or
obligation.

MODEL NUMBER:
PDI-MCA24-AC
Document Number:
PD196-412R2
Assembly Instructions
Page 3 of 8
PDi Communication Systems, Inc. ▪40 Greenwood Ln ▪Springboro, Ohio 45066 USA ▪www.pdiarm.com and www.mymedTV.com ▪Phone [phone]
SAFETY INSTRUCTIONS
THIS INSTALLATION SHOULD BE MADE BY A QUALIFIED SERVICE PERSON AND SHOULD CONFORM TO ALL LOCAL
CODES.
READ AND FOLLOW THE SAFETY INSTRUCTIONS BEFORE ATTEMPTING THIS INSTALLATION
1.
1. Read these Instructions –All the safety and operating instructions
should be read before the product is operated.
2. Keep these Instructions –The safety and operating instructions
should be retained for future reference.
3. Heed all warnings –All warnings on the product and in the
operating instructions should be adhered to.
4. Follow all instructions –All warnings on the product and in the
operating instructions should be followed.
5. Do not use this apparatus near water –for example, near a
bathtub, wash bowl, in a wet basement; or near a swimming pool;
and the like.
6. Cleaning –Please see specific recommendations under
“Cleaning and Disinfection” on previous page.
7. Do not block any ventilation openings. Install in accordance with
the manufacturer’s instructions. The openings should never be
blocked by placing the product on a bed, sofa, rug, or other similar
surface.
8. Do not install near any heat sources such as radiators, heat
registers, stoves, or other apparatus (including amplifiers) that
produce heat.
9. DO NOT defeat the safety purpose of the polarized or grounding-
type plug. This product is equipped with a three-wire grounding-
type plug, a plug having a third (grounding) pin. This plug will
only fit into a grounding-type power outlet. This is a safety
feature. If you are unable to insert the plug into the outlet, contact
your electrician to replace your obsolete outlet.
10. Protect the power cord from being walked on or pinched
particularly at plugs, convenience receptacles, and the point
where they exit from the product.
11. Attachments only use attachments/accessories specified by the
manufacturer.
12. Use only with the cart, stand, tripod,
bracket, or table specified by the
manufacturer, or sold with the
apparatus. When a cart is used, use
caution when moving the
cart/apparatus combination to avoid injury
from tip-over.
2.
13. Unplug this apparatus during lightning storms or when unused for
extended periods of time.
14. Refer all servicing to qualified service personnel. Servicing is
required when the apparatus has been damaged in any way, such
as power-supply cord or plug is damaged, liquid has been spilled
or objects have fallen into the apparatus, the apparatus has been
exposed to rain or moisture, does not operate normally, or has
been dropped.
15. Power Sources –This product should be operated only from the
type of power source indicated on the marking label. If you are
not sure of the type of power supply to your home, consult your
product dealer or local power company. For products intended to
operate from battery power, or other sources, refer to the
operating instructions.
16. Oxygen Environment –Do not use in an oxygen tent or oxygen
chamber. Such use may cause a fire hazard.
17. Lightning –For added protection for this product during a
lightning storm, or when it is left unattended and unused for
extended periods of time, unplug it from the wall outlet and
disconnect the antenna or cable system. This will prevent
damage to the product due to lightning and power-line surges.
18. Servicing –Do not attempt to service this product yourself as
opening or removing covers may expose you to dangerous
voltage or other hazards. Refer all servicing to qualified service
personnel.

MODEL NUMBER:
PDI-MCA24-AC
Document Number:
PD196-412R2
Assembly Instructions
Page 4 of 8
PDi Communication Systems, Inc. ▪40 Greenwood Ln ▪Springboro, Ohio 45066 USA ▪www.pdiarm.com and www.mymedTV.com ▪Phone [phone]
SAFETY INSTRUCTIONS (FRENCH)
Danger chute d’objets
AVERTISSEMENT: Afin d’éviter toute blessure, cet
appareil doit être solidement fixé au sol/mur
conformément aux instructions d'installation. Les
télévisions peuvent présenter un risque de heurt
lorsqu’elles sont montées en position élevée. Utiliser
uniquement des supports de montage, des bras de
support et le matériel approprié de PDi afin d’assurer
que la télévision ne tombe pas de sa position de
montage. Le non-respect de ces instructions peut causer
des blessures ou la mort.
Pluie et humidité
AVERTISSEMENT: Afin d’éviter les risques d'incendie ou de
choc électrique, NE PAS exposer cette télévision à la pluie ou
à l'humidité ou l’utiliser dans un endroit humide.
Environnement d'oxygène
AVERTISSEMENT: Ne pas utiliser dans une tente à oxygène
ou chambre à oxygène. Une telle utilisation peut causer un
risque d'incendie.
CONSIGNES DE SÉCURITÉ IMPORTANTES
CETTE INSTALLATION DOIT ÊTRE EFFECTUÉE PAR UN TECHNICIEN QUALIFIÉ ET DOIT ÊTRE CONFORME À TOUS LES CODES LOCAUX. LIRE ET
SUIVRE LES CONSIGNES DE SÉCURITÉ AVANT DE PROCÉDER À L’INSTALLATION.
1. Lire ces instructions. Toutes les consignes de sécurité et d’utilisation
doivent être lues avant d'utiliser le produit.
2. Conserver ces instructions. Les consignes de sécurité et d’utilisation
doivent être conservées pour référence future.
3. Respecter tous les avertissements. Tous les avertissements sur le
produit et dans les consignes d'utilisation doivent être respectés.
4. Suivre toutes les instructions. Tous les avertissements sur le produit et
dans les consignes d'utilisation doivent être suivis.
5. Ne pas utiliser cet appareil près de l'eau - par exemple près d'une
baignoire, d'un lavabo, dans un sous-sol humide, ou près d'une piscine
ou similaire.
6. Veuillez voir les recommandations sous “Nettoyage et Désinfection” à la
Page précédente.
7. Ne pas obstruer les ouvertures de ventilation.Installer conformément
aux instructions du fabricant. Les ouvertures ne doivent jamais être
obstruées en plaçant le produit sur un lit, uncanapé, un tapis ou toute
autre surface similaire.
8. NE PAS installer près de sources de chaleur telles que radiateurs,
registres de chaleur, poêles ou tout autre appareil (y compris les
amplificateurs) qui produit de la chaleur.
9. NE PAS neutraliser le dispositif de sécurité de la fiche polarisée ou de
terre. Ce produit est équipé d'une prise de terre à trois fils, une fiche
ayant une troisième broche (mise à la terre). Cette fiche ne peut
s'insérer que dans une prise de courant avec mise à la terre. Il s'agit
d'une caractéristique de sécurité. Si vous êtes incapable d’insérer la
fiche dans la prise, contacter votre électricien pour remplacer votre
prise obsolète.
10. Protéger le cordon d'alimentation pour qu’il ne soit pas piétiné ni pincé,
en particulier au niveau des fiches, des prises de courant et au point de
sortie de l’appareil.
11. Accessoires - Utiliser uniquement les attaches/accessoires
recommandés par le fabricant.
12. Utiliser uniquement avec un chariot, stand, trépied, support ou table
recommandé par le fabricant ou vendu avec l'appareil. Lorsqu’un
chariot est utilisé, faire attention lors du déplacement de l'ensemble
chariot/appareil afin d’éviter des blessures en cas de basculement.
13. Débrancher cet appareil en cas d'orages ou lorsqu'il reste inutilisé
pendant de longues périodes.
14. Confier toute réparation à un personnel de service qualifié. Des
réparations sont nécessaires si l'appareil est endommagé d'une façon
quelconque, par exemple : cordon ou prise d'alimentation endommagé,
liquide renversé ou des objets sont tombés dans l'appareil, l'appareil a
été exposé à la pluie ou à l'humidité, ne fonctionne pas normalement ou
s'il est tombé.
15. Sources d'alimentation - Ce produit doit être utilisé uniquement à partir
du type de source d'alimentation indiqué sur l'étiquette. Si vous n'êtes
pas sûr sur le type d'alimentation de votre domicile, consultez le
détaillant de votre produit ou la compagnie d'électricité locale. Pour les
produits proposés de fonctionner par piles, ou autres sources
d’alimentation, reportez-vous aux consignes d’utilisation.
16. Environnement d’oxygène - Ne pas utiliser sous une tente à oxygène ou
chambre à oxygène. Une telle utilisation peut causer un risque
d'incendie.
17. Foudre - Pour une protection supplémentaire pour ce produit lors d’un
orage, ou lorsqu'il est laissé sans surveillance et inutilisé pendant de
longues périodes de temps, le débrancher de la prise murale et
déconnecter l'antenne ou le système de câble. Cela permettra d’éviter
tout dommage à l'appareil causé par la foudre et par les surtensions des
lignes électriques.
18. Entretien - N'essayez pas de réparer vous-même ce produit, car
l'ouverture ou le retrait des capots peut vous exposer à des tensions
dangereuses ou à d'autres dangers. Confiez toute réparation à un
personnel qualifié.

MODEL NUMBER:
PDI-MCA24-AC
Document Number:
PD196-412R2
Assembly Instructions
Page 5 of 8
PDi Communication Systems, Inc. ▪40 Greenwood Ln ▪Springboro, Ohio 45066 USA ▪www.pdiarm.com and www.mymedTV.com ▪Phone [phone]
This document provides the information for the assembly instructions for the Medical Flat-time Cart that works with the 24” A-Series PDi
hospital HDTV.
Tool List
Safety glasses/goggles
Phillips Screwdriver
Adjustable Wrench
Hex Wrench Set –Inch Series
Included in the Boxes:
The following items are included in the packaging of the Flat-time Cart (NOTE: 24” PDi A-Series Hospital TV and PDi TV Programming
Remote PD108-420 are sold separately.)
•Medical Cart Base,
•Medical Cart Column
•Cord Wrap
•Handle
•Short-arm TV Mounting Bracket
•Hardware Kit:
✓1 each; PD219-142 - 5mm Hex Wrench
✓1 each; PD219-143 –6mm Hex Wrench
✓4 each; PDIBHSCSM8X20 –Screw, M8 x 20mm long, Hex Socket Button Pan Head, Black Oxide
✓4 each; PDIBHSCS103238Z –Screw, #10-32UNF x 0.375", Hex Socket Button Head, Zinc Plated
✓4 each; PDIBHSCS252050 –Screw, 0.250-20UNC x 0.500", Hex Socket Button Head, Zinc Plated
✓4 each; PD197-001 –Nut Plate, 0.250-20UNC
✓4 each; PD151-003-13 –Self-Threading Screw
✓4 each; PD151-003-12 –Screw, M8 x 30mm long, Hex Socket Head
✓4 each; PDIETLWM8 –Lock Washer, M8, External Tooth
✓4 each; PDIPPHMSM4X710, Screw, M4 x 10mm Lg, Phillips Pan Head, Zinc Plated.
Cart Assembly
1. Set the Column sub-assembly on the workbench as shown.
2. Pre-assemble the Cord Wrap, PD181-851, with the
screws (2), PDIBHSCS252050, and Nut Plates (2),
PD197-001. Leave nuts loose.
3. Slide the nuts into the slot on the column from the top,
with the Cord Wrap oriented as shown, until the bottom
edge is approximately 7inches from the bottom edge of
the column. Tighten the screws with 5/32” hex wrench.
Tighten screws to 30in-lbs.
4. If the unit included an optional Wire Basket, PD151-003-
15, or Bin, PD180-038, pre-assemble according to the
directions for these items, and assemble to the column
before installing the Handle.
5. Pre-assemble the Handle, PD151-003-10, with the
screws (2), PDIBHSCS252050, and Nut Plates (2),
PD197-001. Leave nuts loose.
6. Slide the nuts into the slot on the column from the top,
with the Cord Wrap oriented as shown, until the bottom
edge is approximately 7inches from the bottom edge of
the column. Tighten the screws with 5/32” hex. Tighten
screws to 30in-lbs.

MODEL NUMBER:
PDI-MCA24-AC
Document Number:
PD196-412R2
Assembly Instructions
Page 6 of 8
PDi Communication Systems, Inc. ▪40 Greenwood Ln ▪Springboro, Ohio 45066 USA ▪www.pdiarm.com and www.mymedTV.com ▪Phone [phone]

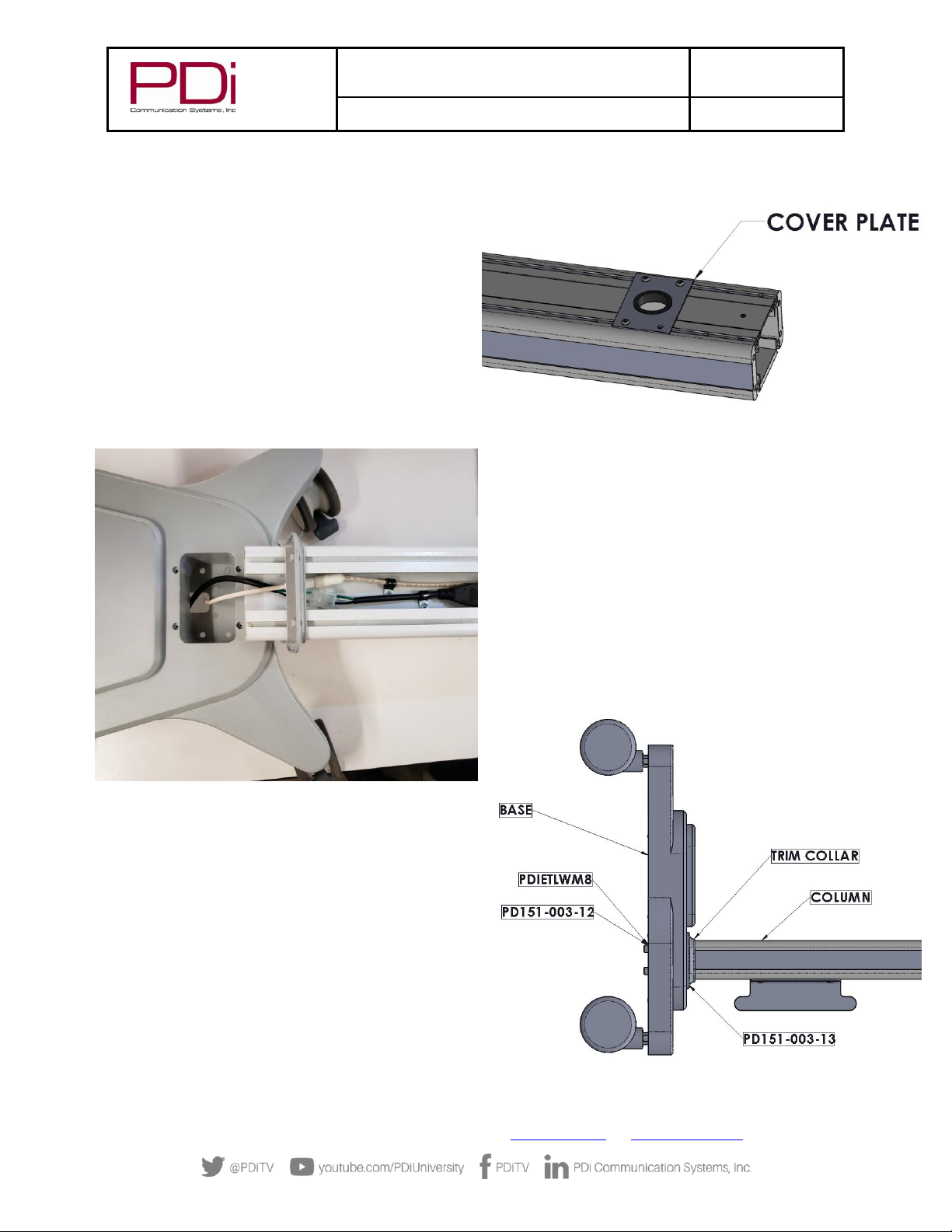

Mount the Column
1. Set the base on the workbench on its wheels and set the
brakes to keep the base from rolling.
2. Turn over the column so it is resting on the handle and the
bottom end is resting on the base.
3. Remove the Cover Plate shown in the photo by removing
the four (4) #10-32 button head cap screws with a 1/8”
Hex Wrench. Do not completely remove from the assembly.
This step will allow free movement of the Column Plate to
gain access to connect the cables.
4. Slide the column plate up to allow access to the cables at
the base of the column.
5. Connect the coax cable in the base to the coax cable in the
column. Tighten to 10 in-lbs. torque.
6. Connect the Molex connectors for the power cord.
7. Tip the base up and insert the bottom into the pocket in
the base. Be sure that the column rests firmly at the
bottom of the pocket and is not pinching the cables (The
Column Plate should still be moveable to ensure there is
no interference.).
8. Attach the Column to the Base with the (4) M8 x 30 SHCS,
PD151-003-12, and Lock washers PDIETLWM8.
Tighten to 100 in-lbs. torque. The cart can now be
positioned upright on its casters.
9. Slide the Trim Collar down the column so it rests flush
against the Base.
10. Attach the Trim Collar to the Base with the (4) Self-
Threading screws, PD151-003-13 (max tightening
torque is 6in-lbs.
11. Re-position the Cover Plate that was removed in step 3
and re-install with the same screws with a 1/8” hex
wrench. Tighten the screws to 20-25 in-lbs. torque.

MODEL NUMBER:
PDI-MCA24-AC
Document Number:
PD196-412R2
Assembly Instructions
Page 7 of 8
PDi Communication Systems, Inc. ▪40 Greenwood Ln ▪Springboro, Ohio 45066 USA ▪www.pdiarm.com and www.mymedTV.com ▪Phone [phone]
Mount the TV to the Bracket
1. Unpack TV (sold separately) and place on workbench face down.
If necessary, place protective mat on workbench to ensure the
viewing surface is not damaged.
2. Attach the Arm Mounting Assembly for the TV as shown, with the
four M4 x 10mm screws.
Mount TV Bracket to Cart
NOTE: It is recommended that two people work together to
mount the TV to the column of the cart. One person should
hold the TV while the other inserts the screws as shown in
the photo.
1. While holding the TV in position, screw in the four (4)
M8 x 20 Button Head Socket Cap Screws. The maximum
tightening torque is 80in-lbs. Use the 5mm hex wrench
to tighten until setting the torque.
2. Using the 4mm hex wrench, insert the four (4) M6 x 10
Button Head Socket Cap Screws. The maximum
tightening torque is 6in-lbs.
3. Connect the AC Power cord and the Coax cable to the
appropriate locations on the 24”TV.

MODEL NUMBER:
PDI-MCA24-AC
Document Number:
PD196-412R2
Assembly Instructions
Page 8 of 8
PDi Communication Systems, Inc. ▪40 Greenwood Ln ▪Springboro, Ohio 45066 USA ▪www.pdiarm.com and www.mymedTV.com ▪Phone [phone]
Optional Wire Basket
1. Pre-assemble the Wire Basket, with the screws (4), PDIBHSCS103238Z, and Nut Plates (2), PD197-004. Leave nuts loose.
2. After installing the Cord Wrap, but BEFORE installing the handle and the TV, slide the Nut Plates into the slot on the column
from the top, as shown behind the PS4. Using 1/8” Hex Wrench, tighten the screws in the Nut Plates once it is positioned as
desired. Tighten screws to 25in-lbs.
NOTE: Installing the basket to the rear of the column allows the cart to be pushed up closer to a patient in bed.
Optional Storage Bin
1. Pre-assemble the Bin, PD180-038, with the screws (2), PDIBHSCS103238Z, and Nut Plates (2), PD197-001. Leave nuts loose.
2. After installing the Cord Wrap, but BEFORE installing the handle and the TV, slide the Nut Plates into the slot on the column
from the top, as shown behind the PS4. Using 1/8” Hex Wrench, tighten the screws in the Nut Plates once it is positioned as
desired. Tighten screws to 25in-lbs.
Limited Warranty
PDi Communication Systems Inc., (“PDi”) standard warranty information is found at pdiarm.com. For information regarding authorized
servicing and all other information pertaining to this warranty, please contact PDi COMMUNICATION SYSTEMS, INC. at 40 Greenwood Ln,
Springboro, Ohio 45066 or phone [phone] and ask for the PDi ProServices team.
