peerless-AV DS-C555-3X2 User manual

12014-05-30 #:009-9084-8 (2018-06-15)
ENG
DS-C555-3X2
46" - 55"
(117 - 140 cm)
600 lb
(272 kg)
MAX

22014-05-30 #:009-9084-8 (2018-06-15)
To properly tighten screws: Tighten until screw
head makes contact, then tighten another 1/2
turn. Do not overtighten screws.
1
2
+1/2
4
3
Symbols
ENG
WARNING
ENG
Display center.
ENG
x3
Screws must get at
least three full turns
and t snug.
ENG
Do not overtighten screws.
ENG
ENG - Do not begin to install product until you have read and understood the instructions and warnings
contained in this user guide. Always use an assistant or mechanical lifting equipment to safely lift and position
equipment. This product must be installed onto at, hard, level surface to prevent tipping. Use with heavier
displays may result in instability causing tip over resulting in death or serious injury. The cart or stand is not
afxed or secured to the oor, and may therefore tip over and/or fall if screen and/or stand is shaken or hit. This
product is intended for indoor use only. Use of this product outdoors could lead to product failure or personal
injury. Screws must be tightly secured. Do not overtighten screws or damage can occur and product may fail.
Never exceed the Maximum Load Capacity. Be careful not to pinch ngers when operating the mount. Death or
serious injury may occur when children climb on audio and/or video equipment furniture. A remote control or toys
placed on the furnishing may encourage a child to climb on the furnishing and as a result the furnishing may tip
over on to the child. Relocating audio and/or video equipment to furniture not specically designed to support
audio and/or video equipment may result in death or serious injury due to the furnishing collapsing or over turning
onto a child. For support please call customer care at 1-800-865-2112.
WARNING

32014-05-30 #:009-9084-8 (2018-06-15)

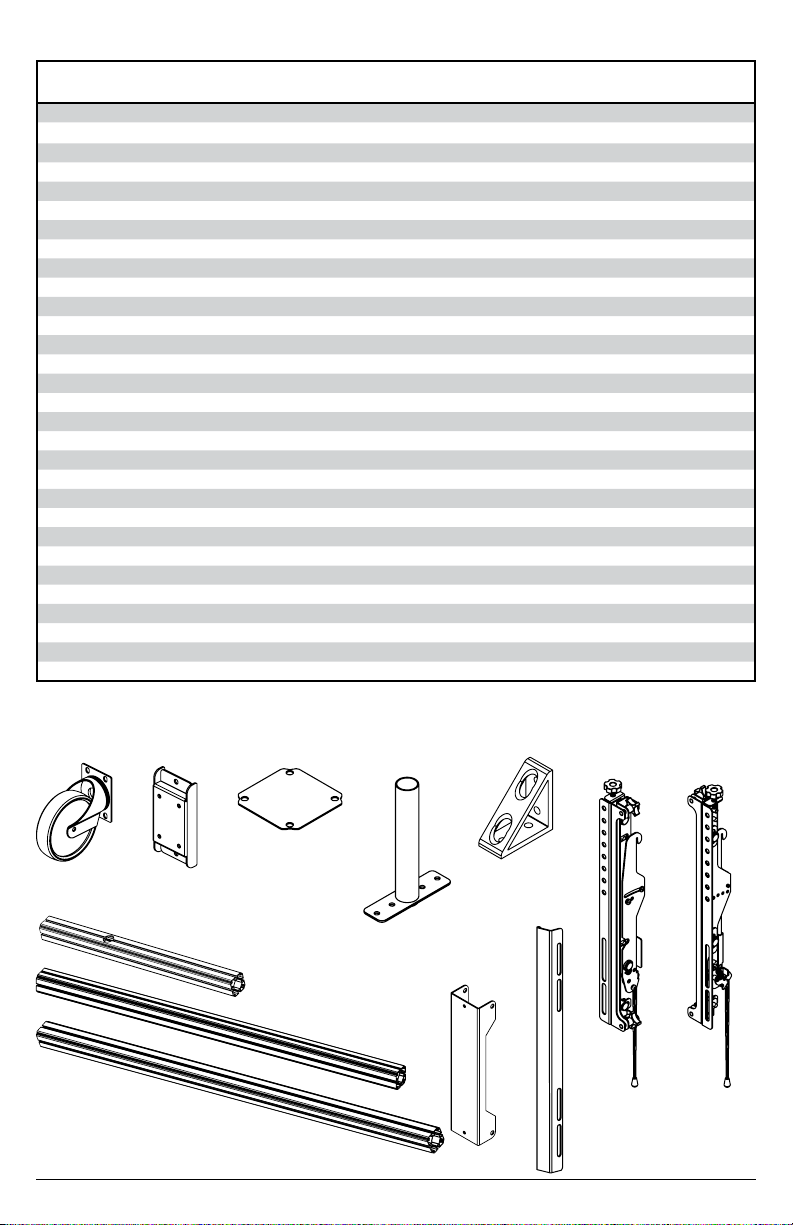

Parts (Before beginning, make sure you have all parts shown below).
Parts List
Part #Description Qty
Acaster, 5" swivel 4 600-0026
Bcaster support 4 145-T1799
Ccover 6 145-T1809
Dbase leg 2 145-T1767
Ehorizontal leg support 1 145-T1785
Fbase support tube 2 145-T1812
Gbase support 8 560-T1261
Hvertical leg support 2 146-T1131
Ileft adaptor bracket 6 146-1609
Jright adaptor bracket 6 146-1608
Kside support bracket 2 145-T1807
Lvertical support bracket 4 145-T1806
Mcomputer cover 1 145-T1930
Ncomputer shelf 1 145-T1931
Odual cross support 2 146-T1905
Pcord bracket 4 146-T1321
Qknurled knob 4 560-1160
Rcross support 2 146-T1904
Splate connections 4 145-T1821
TM8 x 16mm socket button screw 132 520-9527
UM8 square nut 48 530-1066
Vcover clip 24 590-0317
WM5 x 10mm type-f, socket pin screw 14 520-1164
X1/4" power bit 1 560-0263
Y5mm allen wrench 1 560-9640
Zbar nut 16 146-1319
AA nylon shoulder washer 24 590-2233
BB M6 x 12mm socket pin screw 24 520-1050
CC 4mm allen wrench 1 560-9646
DD M8 x 20mm screw 4 520-1754
A (4)
caster
B (4)
caster support
C (6)
cover
D (2)
base leg
E (1)
horizontal leg
support
F (2)
base support
tube
G (8)
base support
H (2)
vertical leg
support
L (4)
vertical support
bracket
K (2)
side support
bracket
J (6)
right adaptor
bracket
I (6)
left adaptor
bracket

42014-05-30 #:009-9084-8 (2018-06-15)
R (2)
cross support
CC (1)
4mm allen
wrench
M (1)
computer cover
O (2)
dual cross
support
T (132)
M8 x 16mm
U (48)
M8 square nut
V (24)
cover clip
W (14)
M5 x 10mm
X (1)
1/4" power bit Y (1)
5mm allen
wrench
AA (24)
nylon shoulder
washer
BB (24)
M6 x 12mm
S (4)
plate
connections
N (1)
computer shelf
P (4)
cord
bracket
Q (4)
knurled
knob
bar nut
Z (16)
DD (4)
M8 x 20mm

52014-05-30 #:009-9084-8 (2018-06-15)
1-1
1-2
T (4)
A
B
T (2)
U (2)
Do not fully tighten hardware
SIDE VIEW
x4
x4
Y
Y

62014-05-30 #:009-9084-8 (2018-06-15)
2
T (4)
T (4)
F
F
U (4)
U (4)
D
U (4)
x2 Y

72014-05-30 #:009-9084-8 (2018-06-15)
3
Casters must be ush to end of horizontal leg support.
ENG
4
SIDE VIEW
Do not fully tighten hardware
x8 Z (2)
G
T (4)
TIGHTEN
CONNECTING
HARDWARE
FLUSH
EDGES
ENG
x2 Y
Y
D

82014-05-30 #:009-9084-8 (2018-06-15)
6
E
5
H
TIGHTEN
CONNECTING
HARDWARE
TIGHTEN
CONNECTING
HARDWARE
x2
LOCK WHEELS
Y
Y

92014-05-30 #:009-9084-8 (2018-06-15)
DISPLAY HEIGHT
TIGHTEN
CONNECTING
HARDWARE
7-1
7-2
T (6)
U (4)
L
1/8"
(3mm)
1/8"
(3mm)
x4
Y
Y

10 2014-05-30 #:009-9084-8 (2018-06-15)
8-1
8-2
8-3
O
R
T (4)
T (4)
U (4)
U (2)
DD (2)
S (2)
x2
x2
x2
Y
Y
Y

11 2014-05-30 #:009-9084-8 (2018-06-15)
9
Cross supports must center on vertical leg supports.
Must install bottom row rst.
TIGHTEN
CONNECTING
HARDWARE
Tighten.
ENG Tighten. ENG
Y

12 2014-05-30 #:009-9084-8 (2018-06-15)
10
Cross supports must center on vertical leg supports.
Must install top row last.
TIGHTEN
CONNECTING
HARDWARE
Tighten.
ENG Tighten. ENG
Y

13 2014-05-30 #:009-9084-8 (2018-06-15)
11
K
K (2)
T (2)
T (4)
U (2)
U (4)
Y

14 2014-05-30 #:009-9084-8 (2018-06-15)
12
P
Q
TIGHTEN
CONNECTING
HARDWARE
TOP VIEW
OPTIONAL: Unlock wheels to move cart to
desired location; Lock wheels before hanging
screens.
P (4)
Q (4)
LOCK WHEELS

15 2014-05-30 #:009-9084-8 (2018-06-15)
X
X
13-1
J
I
13-2
Center adapter brackets
vertically on back of screen.
ENG
J
I
x3
AA BB T
OR
CC
x6
x6
Y

16 2014-05-30 #:009-9084-8 (2018-06-15)
Must hang displays to bottom row rst; Secure pin
in "locked" position.
Must hang displays on top row second; Secure pin
in "locked" position.
14-1
14-2
14-3
OPTIONAL: Insert M5 x 10mm type-F socket pin screws
(W) to lock latches. CC
W
"LOCKED"
POSITION
"LOCKED"
POSITION
x12

17 2014-05-30 #:009-9084-8 (2018-06-15)
IN
TILT BACKWARD
OUT
TILT RIGHT
TILT FORWARD
TILT LEFT
SIDE
SIDE
SIDE
TOP
SIDE
TOP
Display Adjustment
UP DOWN
ROTATE LEFT ROTATE RIGHT

18 2014-05-30 #:009-9084-8 (2018-06-15)
15
N

19 2014-05-30 #:009-9084-8 (2018-06-15)
N
W (2)
N
M
TIGHTEN
CONNECTING
HARDWARE
16-1
16-2
1/8"
(3mm)
CC

20 2014-05-30 #:009-9084-8 (2018-06-15)
17
C (6)
V (24)
