PEERLESS Mounts DS-VL-H036 Guide

Maximum Load Capacity: 350 lb (158.8 kg)
Installation and Assembly:
36" Wall Plate Accessory
Model: DS-VL-H036
3215 W. North Ave. • Melrose Park, IL 60160 • [phone] or [phone] • Fax: [phone] • www.peerlessmounts.com
ISSUED: 06-04-10 SHEET #: 120-9085-1

2 of 6 ISSUED: 06-04-10 SHEET #: 120-9085-1
• Do not begin to install your Peerless product until you have read and understood the instructions and warnings
contained in this Installation Sheet. If you have any questions regarding any of the instructions or warnings, please
call Peerless customer care at 1-800-865-2112.
• This product should only be installed by someone of good mechanical aptitude, has experience with basic building
construction, and fully understands these instructions.
• Make sure that the supporting surface will safely support the combined load of the equipment and all attached hard-
ware and components.
• Never exceed the Maximum Load Capacity. See page 1.
• If mounting to wood wall studs, make sure that mounting screws are anchored into the center of the studs. Use of
an "edge to edge" stud nder is highly recommended.
• Always use an assistant or mechanical lifting equipment to safely lift and position equipment.
• Tighten screws rmly, but do not overtighten. Overtightening can damage the items, greatly reducing their holding
power.
• This product is intended for indoor use only. Use of this product outdoors could lead to product failure and personal
injury.
• This product was designed and intended to be mounted to the following supporting surfaces checked below with
the hardware included in this product as specied in the installation sheet. To mount this product to an alternative
supporting surface, contact Peerless customer care at 1-800-865-2112.
• This product was designed to be installed on the following wall construction only;
WALL CONSTRUCTION ADDITIONAL HARDWARE REQUIRED
x Wood Stud None
x Wood Beam None
x Solid Concrete Contact Customer Service
x Cinder Block Contact Customer Service
Metal Stud Do not attach except with Peerless accessory kit for metal studs;
Contact Customer Service for Peerless accessory kit for metal studs.
Brick Contact Customer Service
Other or unsure? Contact Customer Service
WARNING
NOTE: Read entire instruction sheet before you start installation and assembly.
Tools Needed for Assembly
• stud nder ("edge to edge" stud nder is recommended)
• 5/16" socket wrench
• drill
• level
• 5/32" drill bit for wood studs
• 5/16" drill bit for concrete
Table of Contents
Parts List.................................................................................................................................................................................3
Installation to Wood Stud Wall................................................................................................................................................4
Installation to Solid Concrete/Cinder Block walls ...................................................................................................................5
Accessories:
• DS-ACC-LDCM
cable management accessory (optional)
• ACC-DSV240 adapter brackets (optional)
• ACC-DSV329 adapter brackets (optional)
• ACC-DSV499 adapter brackets (optional)
• ACC-DSV503 adapter brackets (optional)
• ACC-DSV745 adapter brackets (optional)

3 of 6 ISSUED: 06-04-10 SHEET #: 120-9085-1
When installing additional wall plate (Sold separately), attach two wall plate connectors (D) on either end of wall
plate (A) and fasten with eight M4 x 12 serrated washer head socket pin screws (B) as shown below.
1
Installing Additional Wall Plates (optional)
B
D
A
BACK VIEW
Skip to step 2 on page 5 for
installation to solid concrete or
cinder block walls.
Some parts may appear slightly different than illustrated.
Before you begin, make sure all parts shown are included with your product.
A
BD E
F
C

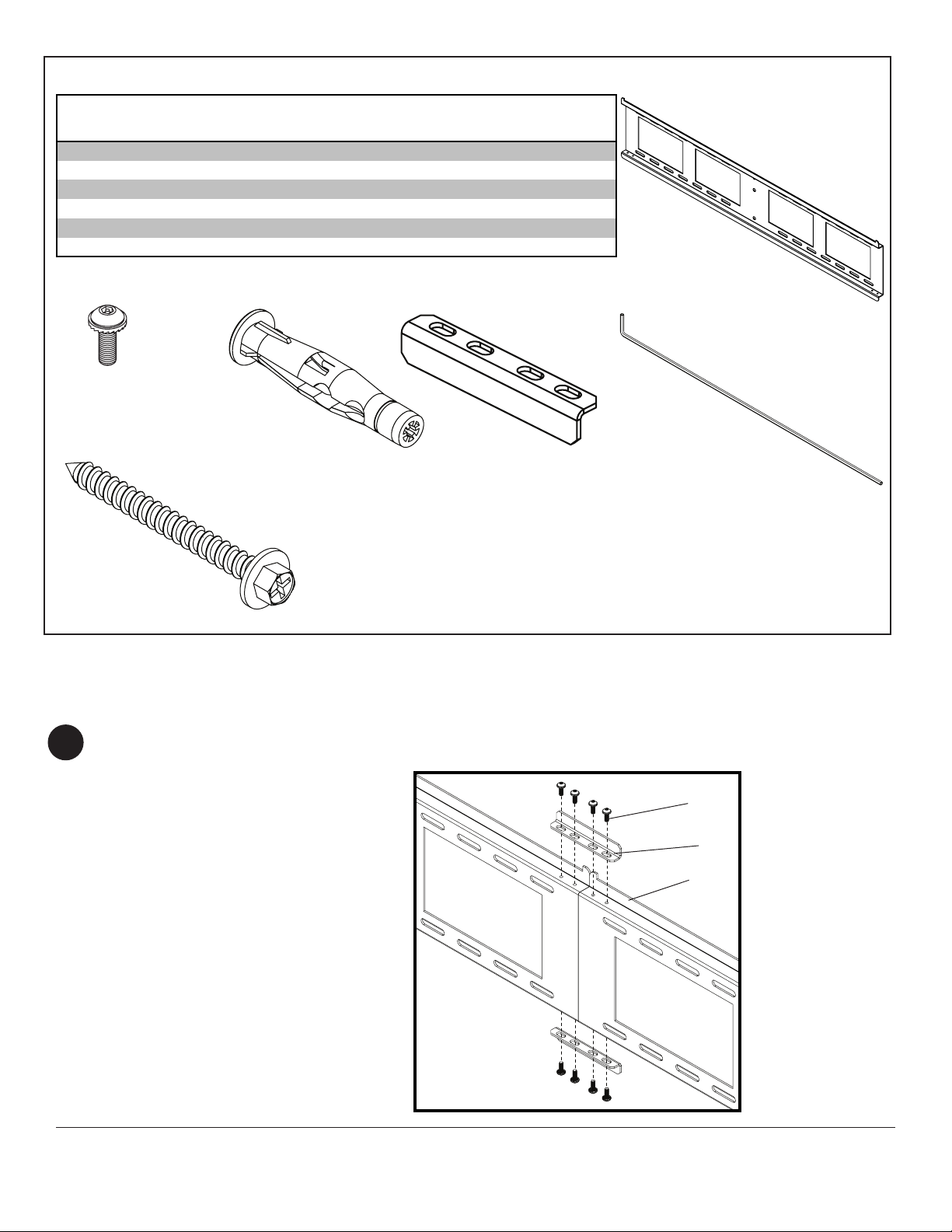

PARTS LIST
Description Qty. Part #
A
wall plate 1 145-1141
BM4 x 12 mm socket pin serrated washer head screw 8 510-1079
C8 mm concrete anchor 4 590-0320
Dwall plate connector 2 024-1045
E18" 4 mm allen wrench 1 560-1727
F# 14 x 2.5 hex head wood screw 4 5S1-015-C03

4 of 6 ISSUED: 06-04-10 SHEET #: 120-9085-1
Installation to Double Wood Stud Wall
• Installer must verify that the supporting surface will safely support the combined load of the equipment and all
attached hardware and components.
• Tighten wood screws so that wall plate is rmly attached, but do not overtighten. Overtightening can damage the
screws, greatly reducing their holding power.
• Never tighten in excess of 80 in. • lb (9 N.M.).
• Make sure that mounting screws are anchored into the center of the stud. The use of an "edge to edge" stud nder
is highly recommended.
• Hardware provided is for attachment of mount through standard thickness drywall or plaster into wood studs. Install-
ers are responsible to provide hardware for other types of mounting situations.
WARNING
g. 2.1
g. 2.2
ASTUD
F
A
2Wall plate (A) can be mounted to four studs that are 16" apart. Use a stud nder to locate the edges of the studs.
Use of an edge-to-edge stud nder is highly recommended. Based on their edges, draw a vertical line down each
stud’s center. Place wall plate on wall as a template. Level plate, and mark the center of the four mounting holes.
Make sure that the mounting holes are on the stud center lines. Drill four 5/32" (4 mm) dia. holes 2.5" (65 mm)
deep. Make sure that the wall plate is level, secure it using four #14 x 2.5" wood screws (F) as shown in gure 2.2.

5 of 6 ISSUED: 06-04-10 SHEET #: 120-9085-1
Installation to Solid Concrete or Cinder Block
• When installing Peerless wall mounts on cinder block, verify that you have a minimum of 1-3/8" of actual concrete
thickness in the hole to be used for the concrete anchors. Do not drill into mortar joints! Be sure to mount in a solid
part of the block, generally 1" minimum from the side of the block. Cinder block must meet ASTM C-90 specica-
tions. It is suggested that a standard electric drill on slow setting is used to drill the hole instead of a hammer drill to
avoid breaking out the back of the hole when entering a void or cavity.
• Concrete must be 2000 psi density minimum. Lighter density concrete may not hold concrete anchor.
• Make sure that the supporting surface will safely support the combined load of the equipment and all attached hard-
ware and components.
WARNING
• Always attach concrete anchors directly to load-
bearing concrete.
• Never attach concrete anchors to concrete covered
with plaster, drywall, or other nishing material.
If mounting to concrete surfaces covered with
a nishing surface is unavoidable, the nishing
surface must be counterbored as shown below.
Be sure concrete anchors do not pull away from
concrete when tightening screws. If plaster/drywall
is thicker than 5/8", custom fasteners must be
supplied by installer.
WARNING
• Tighten screws so that wall plate is rmly attached,
but do not overtighten. Overtightening can damage
screws, greatly reducing their holding power.
• Never tighten in excess of 80 in. • lb (9 N.M.).
WARNING
F
A
C
solid concrete
cinder block
21
3
2
C
Drill holes and insert anchors (C).
Place plate (A) over anchors (C) and secure with screws (F).
Tighten all fasteners.
A
C
F
concrete
surface
CUTAWAY VIEW
INCORRECT CORRECT
wall
plate
wall
plate
plaster/
dry wall
plaster/
dry wall
concrete concrete
Make sure that wall plate (A) is level, use it as a
template to mark four mounting holes. Drill four
5/16" (8 mm) dia. holes to a minimum depth of 2.5"
(64 mm). Insert anchors (C) in holes ush with wall
as shown (right). Place wall plate over anchors and
secure with #14 x 2.5" screws (F). Level, then tighten
all fasteners.

6 of 6 ISSUED: 06-04-10 SHEET #: 120-9085-1
© 2010, Peerless Industries, Inc. All rights reserved.
All other brand and product names are trademarks or registered trademarks of their respective owners.
Installing Multiple Wall Plates and Screens
ACC-DSV240
(SOLD SEPARATELY)
Install adapter brackets (sold separately) to screens using adapter bracket instructions.
Multiple wall plates and adapter brackets (sold separately) can be used to create multiple screen displays.
WALL PLATE MAY APPEAR
DIFFERENT THAN ILLUSTRATED
3
