Peg-Perego PRIMO VIAGGIO 4-35 NIDO User manual

Do not install or use this child restraint
until you read and understand all
instructions in this manual. To avoid
serious injuries to your baby, follow the
instructions carefully and be sure to buckle
your baby using the 5-point harness.
WARNING: Child Requirements:
Weight limits: 4 - 35 lbs (1.8 - 15.9 kg)
Maximum height: 32 inches (81.3 cm)
USA
Instructions for use EN
FIUS1703I253
PRIMO VIAGGIO 4-35 NIDO
OWNER’S MANUAL

- 2 -
Table of Contents
Before You Start page 3
Customer Service/Registration Form page 4
Safety Rules page 5
Your Car Seat page 8
Your Car Seat Base page 10
Travel System page 11
Serial Numbers page 12
Assembly before first use page 13
Installation Instructions page 14
LATCH SYSTEM overview page 15
Vehicle seat belt overview page 16
Non compatible vehicle belt designs
or seating positions page 24
Installing the Base page 25
Using the load leg page 26
How to level the base in the vehicle page 27
How to Install the Base
using the LATCH SYSTEM page 28
How to install the Base using
your VEHICLE SEAT BELT page 32
How to install the Base using a lap/shoulder
INFLATABLE SHOULDER BELT page 35
Installing the Base with
different Types of Seat Belts page 36
Installing the Car Seat on the Base page 37
Installing the Car Seat without the Base page 39
Installing the Car Seat with different
Types of Seat Belts page 41
Use of a Locking Clip page 42
How to buckle your baby
into the Car Seat page 43
How to raise or lower
the Shoulder Straps page 48
Dual Cushion System page 50
Using the Car Seat outside the Vehicle page 51
How to use the Car Seat on Aircraft page 53
Cleaning and Maintenance page 54
How to wash the chair padding
- Cover removal page 55
How to wash the chair padding
- Refitting page 59
Replacement Parts page 60

- 3 -
1Please read this manual carefully. Keep this manual in the rear compartment of your
child car seat.
2Review car seat parts and read through instructions. Read and understand the
labels and all the instructions before using this car seat.
3Fill in and return the registration form (see page 4).
4All assembly must be performed by an adult.
5Do not use the car seat if damaged or parts are missing.
6Use only parts or accessories approved by Peg-Perego. Do not modify or repair any part.
7Remember: this car seat is to be installed rear facing only.
8Peg-Perego has the right to make changes to the product at any time without notice.
Before You Start
© 2017 Peg-Perego. All rights reserved.

- 4 -
Call Peg-Perego USA Customer Service at
1-800-671-1701 (toll free) for information
about repairs or spare parts. If any part is
missing or damaged, replace with Peg-
Perego parts only. See page 60 for a list of
replacement parts.
If you want more than one base, you can
purchase it from your local dealer, or you
can call 1-800-671-1701 (toll free), or you
can go to www.pegperego.com.
Important! Child restraints could be
recalled for safety reasons. You must
register this restraint to be reached in
a recall. Send your name, address and
the restraint’s model number and
manufacturing date to:
Peg-Perego U.S.A., Inc.
3625 Independence Drive
Fort Wayne, IN 46808
Or call 1-800-671-1701 (toll free)
Or register online at
www.carseat-registration.pegperego.com
For recall information, call the U.S.
Government’s Vehicle Safety Hotline at
1-888-327-4236 (TTY: 1-800-424-9153).
Or go to http://www.NHTSA.gov
Important! This information is already
available on the registration form attached
to your new car seat. All that you can do is
tearoffthepartindicatedandsendthrough
ordinary mail. We have already paid for it.
Complete and send in the registration
form right away.
Customer Service Registration Form

- 5 -
WARNING
• This car seat meets or exceeds all
applicable Federal Motor Vehicle Safety
Standard 213 requirements for use in
motor vehicles and aircraft.
• Read all instructions before use. Keep
instructions for future reference in the
dedicated pocket located in the rear
compartment of this car seat.
• Your child could be seriously injured
if you do not follow instructions and
warning labels correctly.
• Use this car seat rear facing only. This seat
is not designed to face forward. Serious
injury or death can occur in an accident
if you install the seat facing forward.

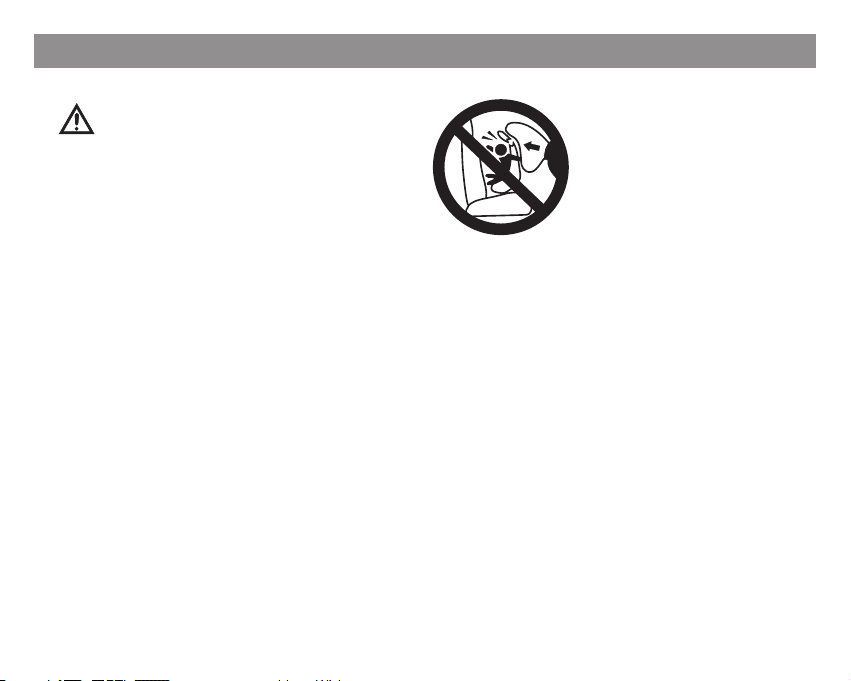

• If your vehicle has air bags, do not install
this carseaton aseating positionequipped
with an active air bag. In case of air bag
deployment the restraint could be hit
with severe force. Death or serious injuries
can occur to the restraint occupant.
• If your vehicle is equipped with air bags,
refer to your Vehicle Owner’s Manual for
Safety Rules
instructions on where to
install a child car seat.
•Do not install an inflatable
shoulder belt under the
Right Tight lockoff clip
For additional information,
please refer to your Vehicle
Owner's Manual.
• Owners of vehicles with front (or rear)
passenger side air bags should refer to
their Vehicle Owner’s Manual for child
restraint installation instructions.
• This car seat is certified for use with
or without base. Use of the base is
highly recommended for ease of proper
installation. Install this car seat without
the base only if needed.
• This car seat base is equipped with a
load leg. The car seat is certified for use
with and without the load leg. However,
the load leg guarantees a more stable
installation and less rotation of the seat
in a frontal collision.
• Do not use the load leg if the adjustable
foot is not in contact with the vehicle
floor.

- 6 -
WARNING
• If your vehicle has a floor panel that is
designed to fold/open, please check
your Owner's Vehicle Manual to see if a
load leg is allowed.
• Never install the car seat in the front
vehicle seat unless instructed by your
vehicle manual. According to accident
statistics,childrenaresaferwhenproperly
restrained in the rear seating positions
than in the front seating positions.
• NEVER leave the child unattended.
• Always buckle your baby into the car
seat with the harness. Be sure to latch
buckles correctly.
• Fallhazard:child'sactivitycanmovecarrier.
NEVER place carrier on countertops, table
or any other elevated surface.
• Do not use in the seating area or across
the top of shopping carts.
• Suffocation hazard: child carrier
can roll over on soft surfaces and
suffocate child. NEVER place carrier
on beds, sofas or other soft surfaces.
• Strangulation hazard: children have
STRANGLED in loose or partially buckled
harness straps. Fully restrain the child
even when carrier is used outside the
vehicle.
• In case of accident: if this car seat is
involved in a car accident, it may be
no longer safe to use. You may need to
get a new unit. Call customer service
at 1-800-671-1701 (toll free) for more
information.
• Do not use this carrier if it is broken or
damaged.
• If you use a lap belt or lap/shoulder
belt to install the base, you must use
a seat belt that locks in place. Please
refer to your Owner's Vehicle Manual for
additional information. You may need
to use a locking clip, not provided with
this seat.
• When lifting the seat out of the base, be
sure you first secure the handle into the
carrying position.
• Keep fingers away from moving parts.
Safety Rules

- 7 -
WARNING
•Use only with children who weigh
between 4 and 35 pounds (1.8 and 15.9
kg) and whose height is 32 inches (81.3
cm) or less. If your baby was born with
low birth weight, ask your doctor for
special instructions on using a child car
seat.
•Never leave your baby alone in the car
seat. He/she could get tangled in the
straps and be seriously injured or could
move or tip the seat.
•Install this car seat on front facing
seats only. Do not use on rear facing or
side facing seats or in cars with door-
mounted or motorized shoulder belts.
•Use this car seat in vehicles with
standard lap or lap/shoulder belts or
universal lower anchors. If your vehicle
has lower anchors, use those to secure
the car seat instead of the standard
seat belt. Read your vehicle manual to
locate the lower anchors.
•Be sure the car seat is properly leveled.
If the car seat reclines too much, your
baby can be injured or ejected from
the seat. If the car seat is too upright, it
can cause your baby to have breathing
problems, which could lead to injury or
death.
•Do not leave the car seat or base
unsecured in the vehicle, even if not
occupied. A loose car seat can injure
other passengers in a crash.
•Do not use this unit after seven (7) years
from the date of production labeled on
the seat.
•Do not hang toys on handle of seat.
•Use only approved parts. Use of
unapproved parts can affect the safety
of the car seat and cause serious injury
or death in an accident.
Safety Rules

- 8 -

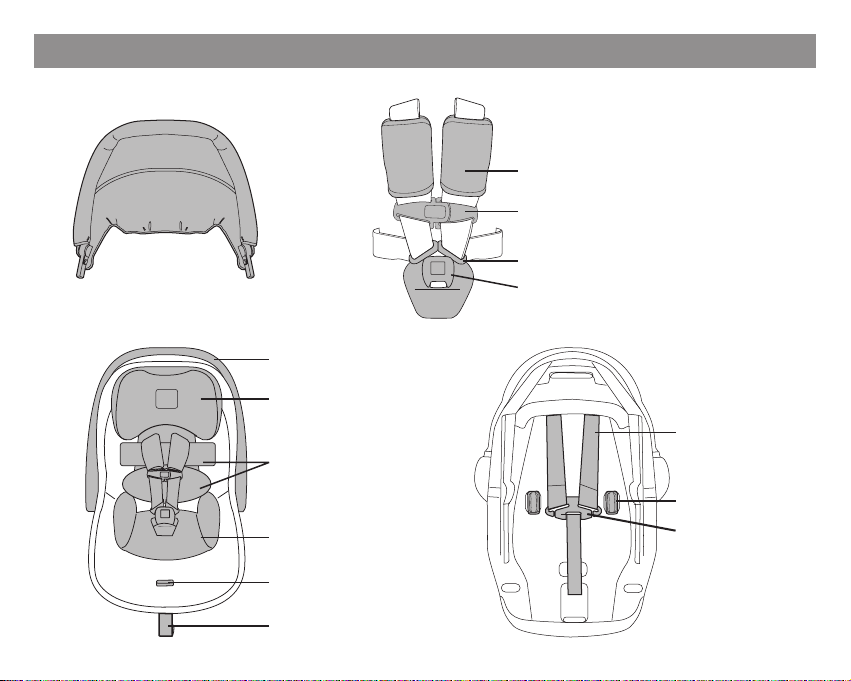

PAGODA HOOD
Splitter plate
Harness
shoulder straps
Waist anchors
BACK
Chest clip
Harness buckle
Harness latch plate
5 POINT HARNESS SYSTEM
Shoulder pads
FRONT
Seat handle
First stage cushion
Second stage cushion
Side Impact
Head protection
Harness adjuster button
Harness adjuster strap
Your Car Seat

- 9 -

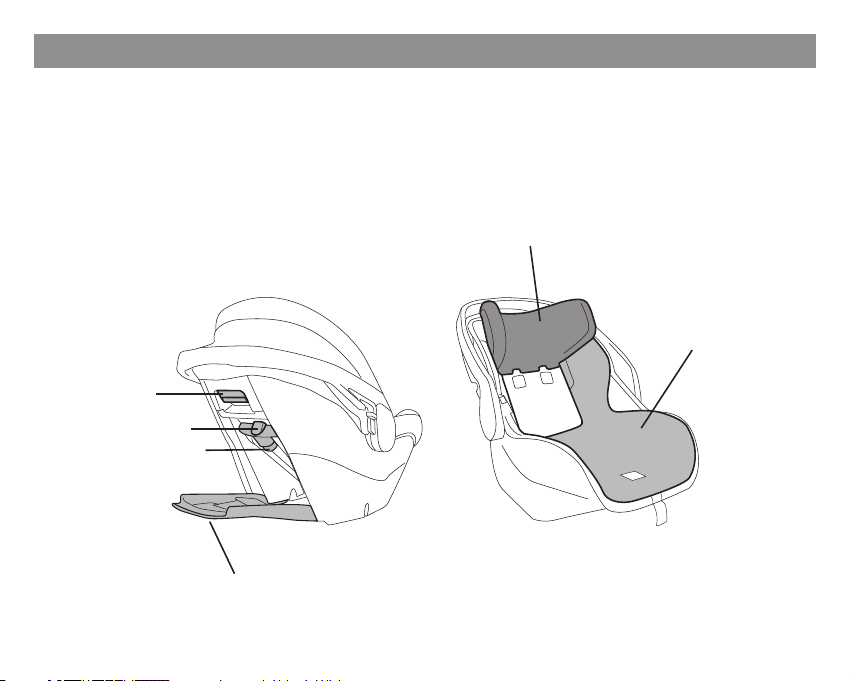

Rear compartment door
Sliding harness plate
Release lever
Energy absorbing
Expanded Polypropylene (EPP)
foam lined headrest.
Energy absorbing
Expanded Polystyrene (EPS)
foam lined shell.
Harness plate button
Your Car Seat

- 10 -

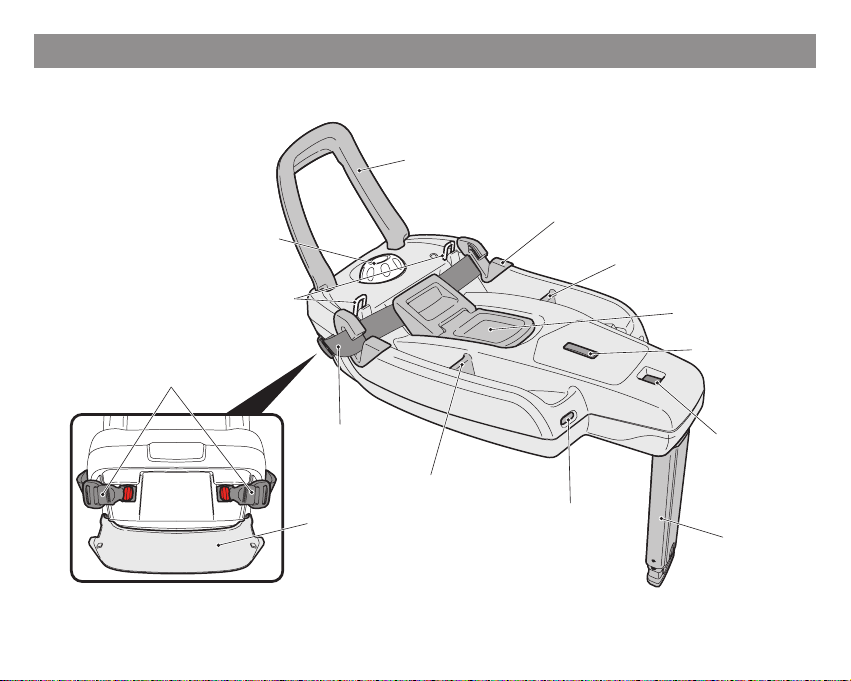

Your Car Seat Base
Latch strap
Red/Green
indicator
Angle adjuster knob
Front latches
Anti rebound bar
Color coded belt slots
Integrated Right
Tight lockoff clip
Rear latches
Rear latches
Load leg
Level indicator
Latch connector
Front cover
Leg deployment
indicator

- 11 -

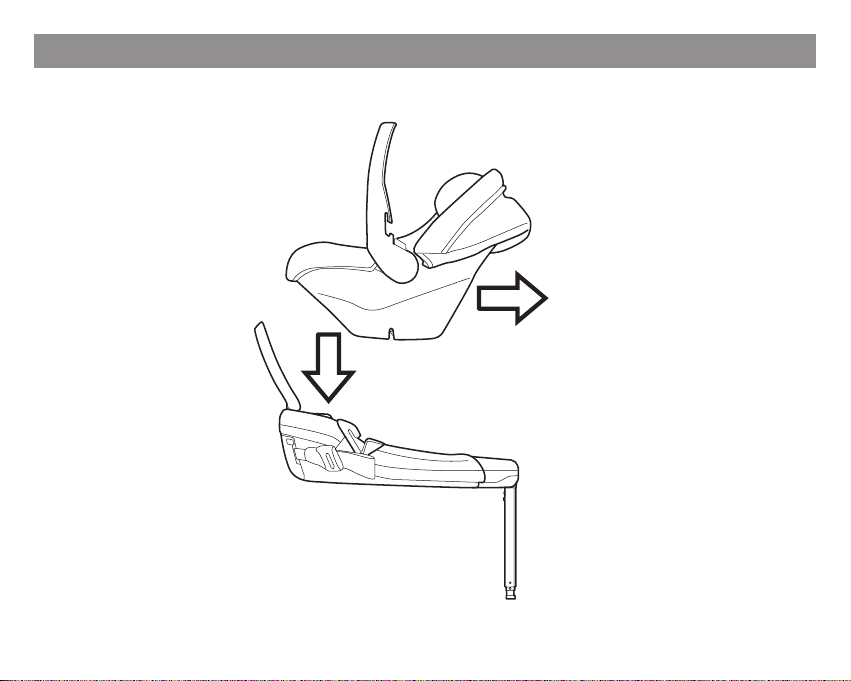

Seat
Base
Chassis,
Stroller
Travel System

- 12 -

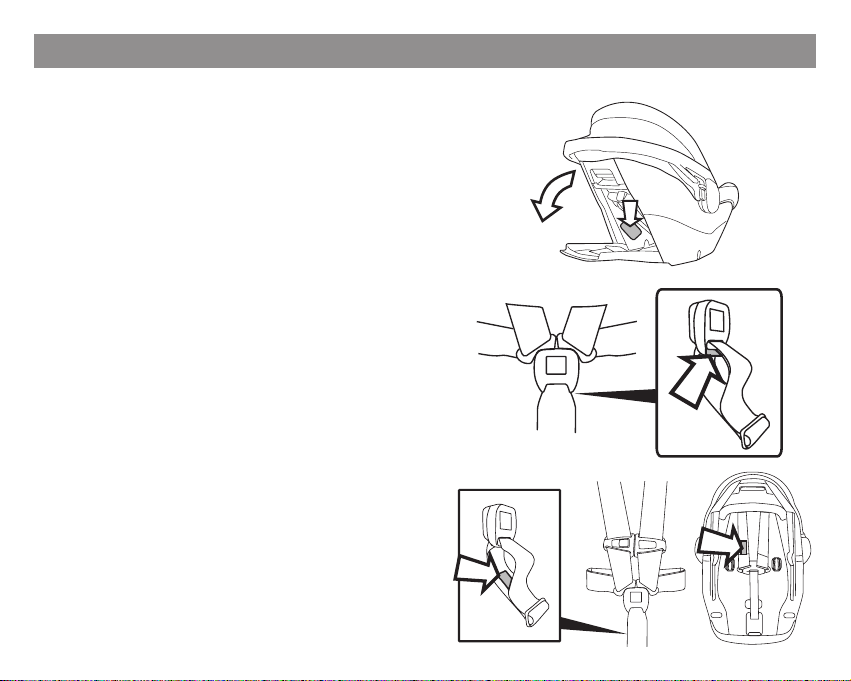

Serial Numbers
Open the rear compartment door to read
the product identity label as shown in the
picture. The label carries the following
information: product name, production
date and serial number, which identify
your product uniquely.
Every buckle and harness used on this car
seat is marked with a production serial
number located as shown in the pictures.
In the event of problems with the product,
these details may be requested by Peg-
Perego Customer Service.

- 13 -
Assembly before first use
This car seat is almost ready for use.
Disconnect the car seat from the base
following instructions at page 27.

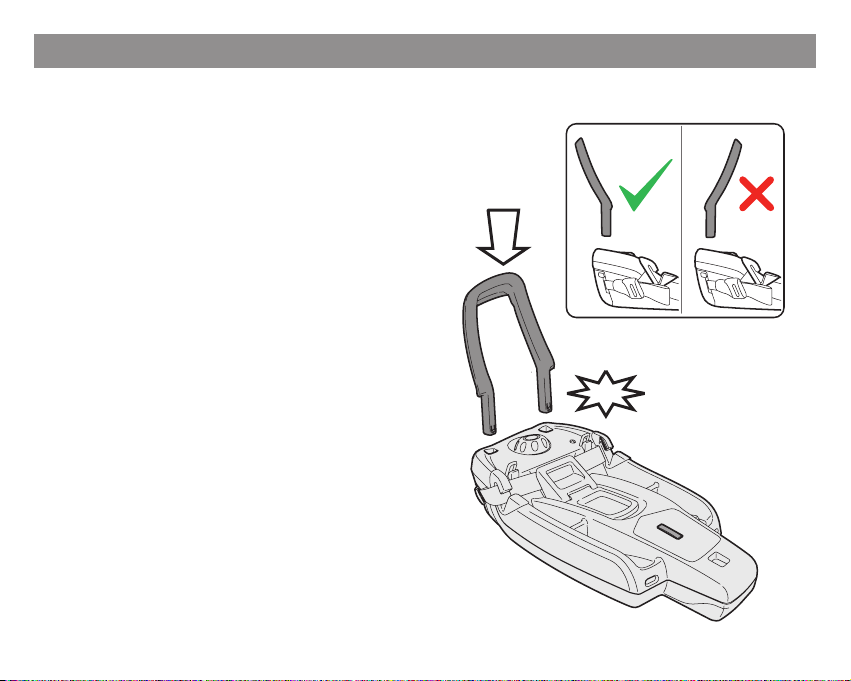

Snap fit the anti-rebound bar into the
base as shown in the picture.
Check that the bar is properly installed by
pulling on top of it trying to detach the
bar from the base.
IMPORTANT NOTE: the anti rebound bar
provides extra protection in case of a
rear collision or during the movement of
the seat in a crash. Always assemble it
properly.
click

- 14 -
Installation Instructions
Peg-Perego Primo Viaggio 4-35 Nido is
certified for use with or without the base.
Use of the base is highly recommended
because it makes installation easier and
therefore safer.

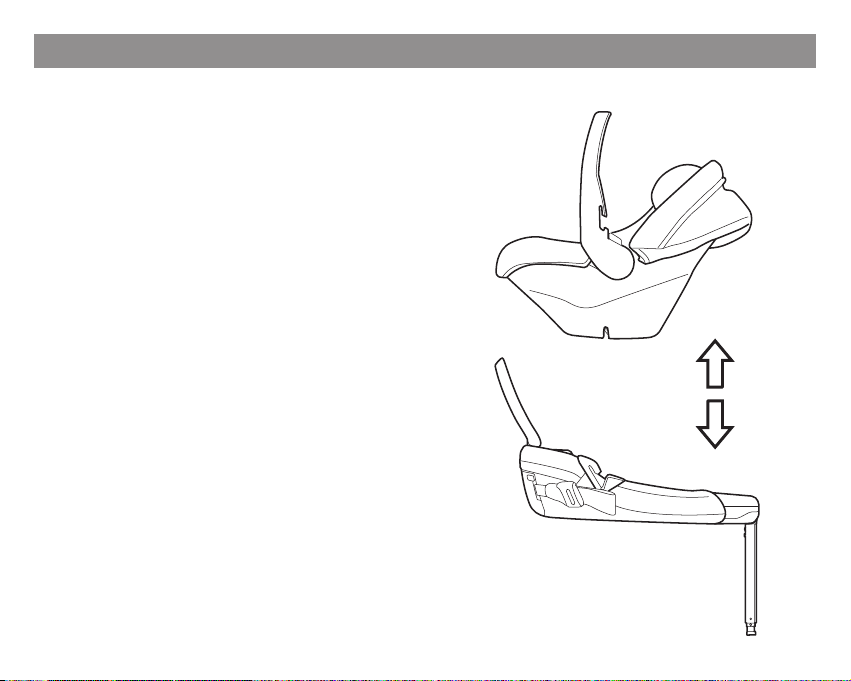

Unlatch the seat from the base following
instructions at page 27, then re-latch and
repeat this operation until you are familiar
with this important feature.

- 15 -
LATCH SYSTEM overview
11'' - 28 cm

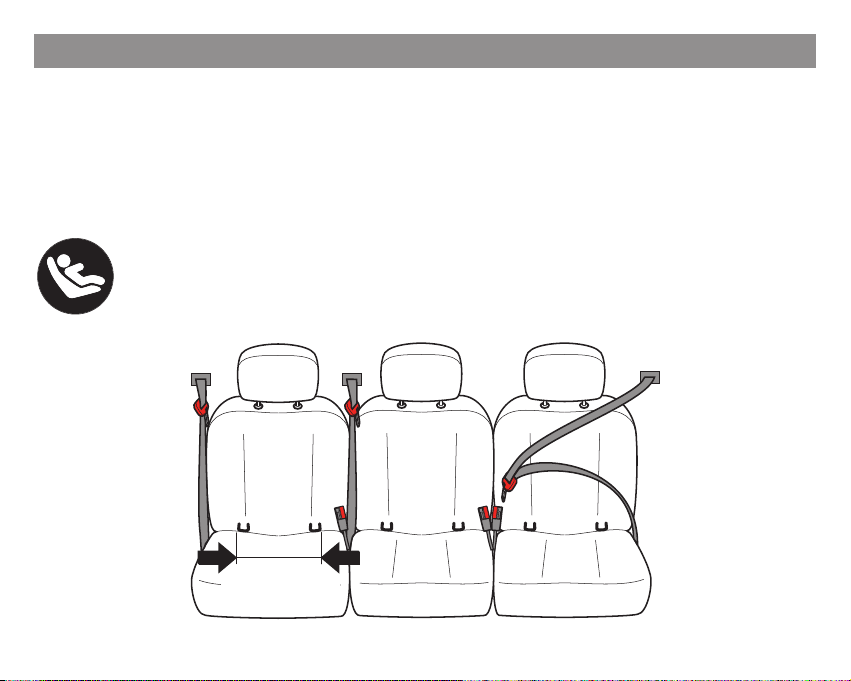

This car seat is equipped with latch connectors on the base (refer to page 28 for latch
operation). Latches must be connected to your vehicle latch anchors located at the
junction of the seat and backrest in your vehicle seat. There are two anchors for each
seating position and they are spaced by about 11" (28 cm). They may be visible or slightly
recessed into the vehicle upholstery and can be protected by plastic or fabric shields.The
LATCH anchor can be located by this symbol:
Check your Vehicle Owner's Manual to nd the LATCH anchor locations in
your vehicle and the possible combinations of use of a child restraint in it.

- 16 -
Vehicle seat belt overview
VEHICLE SEATBELTS: this car child seat is designed to be installed with vehicle belts.
There are many dierent vehicle belt designs. Unfortunately, some may be unsuitable
for a safe installation of this car seat. Please read carefully the pages below.
Check your Vehicle Owner’s Manual or call Peg-Perego Customer Service @ 1-800-671-
1701 for additional help.

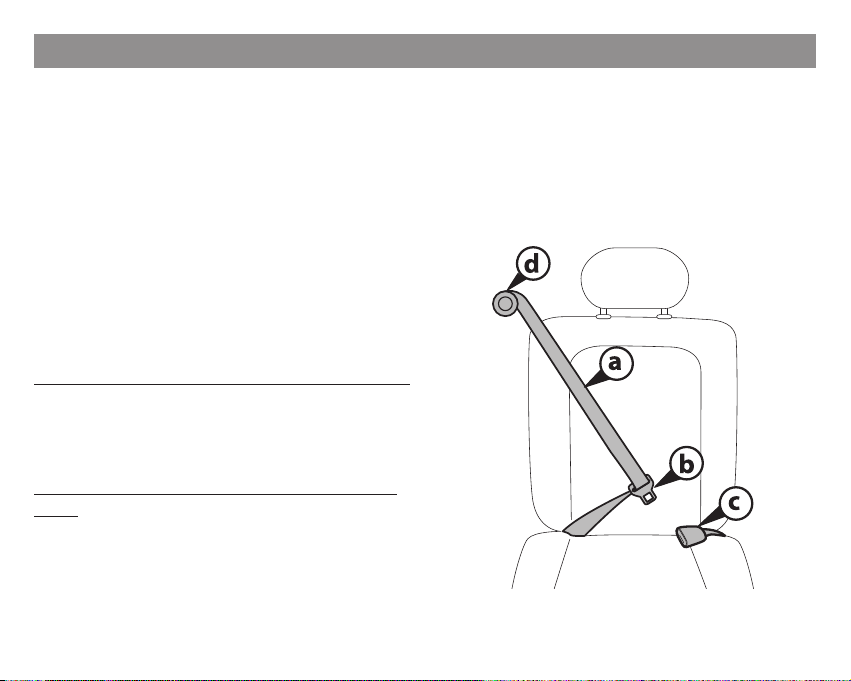

The most common vehicle belt is
composed of a web strap (a), a latch
plate (b), a buckle (c) and a retractor (d).
A retractor is a spring loaded device that
rolls the seatbelt automatically when not
in use. Common retractors are:
Emergency Locking Retractor (ELR)
allows the occupant to have free
movement while buckled up, but in an
emergency situation or crash the retractor
instantly locks securing the occupant.
Switchable Locking Retractor (ELR —>
ALR) Switches from Emergency Locking
Retractor (ELR) to an Automatic Locking
Retractor (ALR). This allows the user to
lock the retractor at a set position (also
called child restraint mode) used for
securing child seats.

- 17 -
Vehicle seat belt overview
ALR mode is activated by extending the
retractor all the way out until a "click" is
heard, next let the seat belt (webbing)
retract into the retractor to the desired
length and stop the belt at that point.
The retractor locks and will not let the belt
lengthen at that point (only retract).
To cancel ALR mode and return the
retractor to the ELR mode, just let the
retractor retract the webbing all the way
back into the retractor.

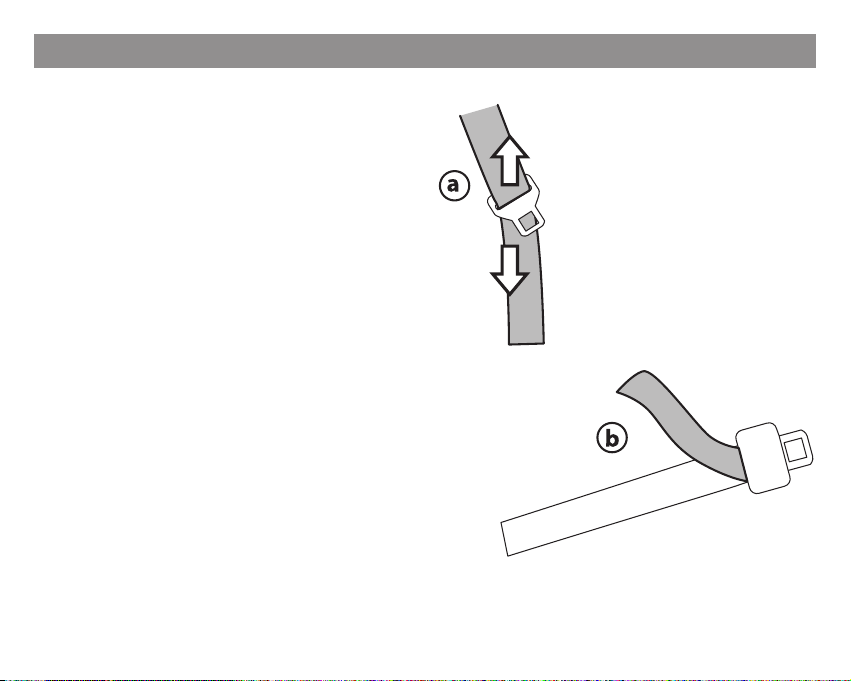

A latch plate can be a sliding latch plate (a)
or a locking latch plate (b). A sliding latch
plate is available on lap/shoulder belt
only and moves freely along the strap. A
Locking latch plate has a mechanism to
lock the movement of the plate on the
strap.

- 18 -

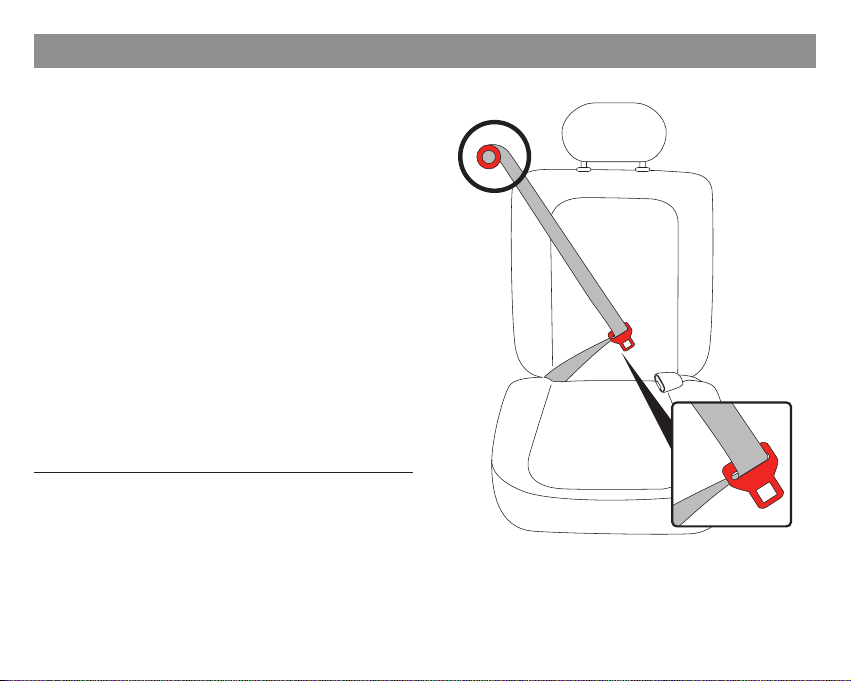

Lap/shoulder belt (3-point) with
Switchable Locking Retractor (ELR —>
ALR) and free sliding latch plate. This
type of seat belt has a latch plate that
moves freely along the belt. To activate
ALR for child restraint installation, some
vehicle models may require to pull the
belt all the way out; some other vehicle
models may require to pull the belt for
a certain length (check Vehicle Owner’s
Manual for details).
For installation of this car seat, leave the
seatbelt in ELR mode and use the locko
clip integrated in the child seat base.
A locking clip may be required when the
child seat is used without base (refer to
page 42).
ELR ALR
X
Vehicle seat belt overview

- 19 -

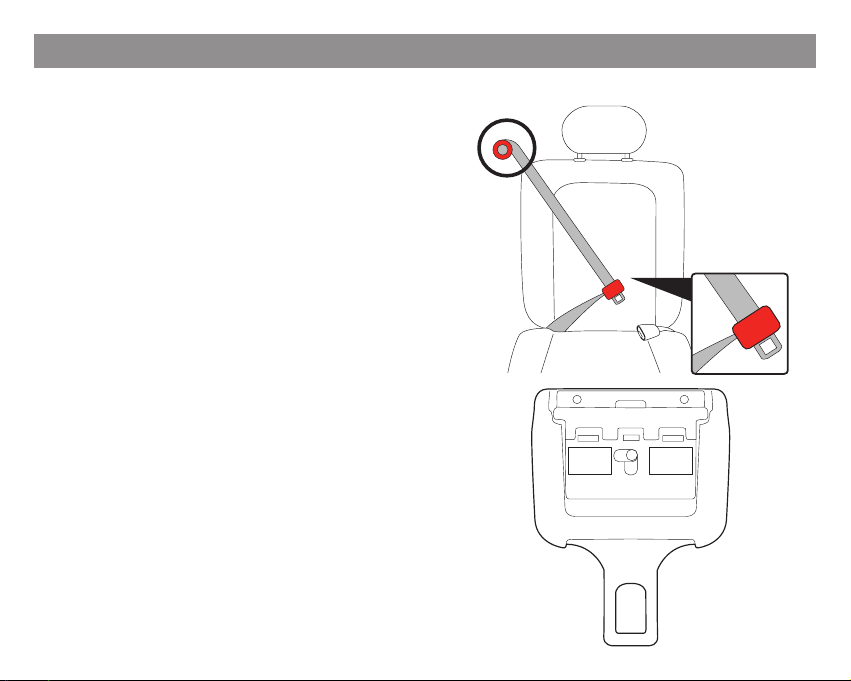

Lap/shoulder belt (3-point) with
Emergency Locking Retractor (ELR) and
with a locking latch plate. This type of
belt can be adjusted by pulling/releasing
the strap at the latch plate adjuster. Please
refer to your Vehicle Owner’s Manual for
details.
A locking clip may be required when the
child seat is used without base (refer to
page 42).
Note: Some locking latch plates need to
have the web positioned at the correct
angle for proper locking. Make sure the
latch plate properly locks when installing
the car seat with a locking latch plate.
Note: some vehicles are equipped with
switchable latch plate that can switch
from a sliding type to a locking type. In
this specic case, make sure that the latch
plate is in a locking mode.
ELR
SLIDE LOCK
Vehicle seat belt overview

- 20 -
Vehicle seat belt overview

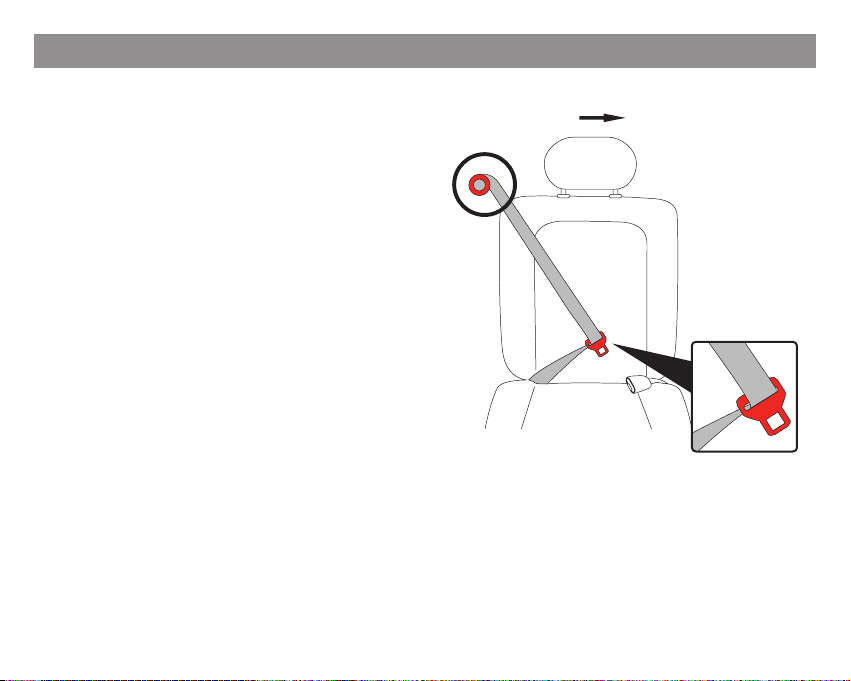

Lap/shoulder belt (3-point) with
Emergency Locking Retractor (ELR)
and free sliding latch plate. This type
of seat belt has a latch plate that moves
freely along the belt; it will only lock in an
emergency (sudden stop or crash).
For installation of this car seat, leave the
seatbelt in ELR mode and use the locko
clip integrated in the child seat base.
A locking clip may be required when the
child seat is used without base (refer to
page 42).
If additional help is needed, consult with a
Child Passenger Safety Technician (CPST).
To locate a technician go to the website at
http://www.nhtsa.gov/cps/cpstting/index.cfm
ELR
