Pentagram Nomad GT User manual

Operation Manual
PENTAGRAM Nomad GT (P 5220)
The latest versions of manuals, drivers and software are available on www.pentagram.eu
2009-09-01

NOTE! All information and technical specifications are subject to change without prior notice and/or its indication
in this manual.
© 2009 PENTAGRAM
All rights reserved, duplication and copying forbidden

PENTAGRAM Nomad GT (P 5220)
3
TABLE OF CONTENTS
INTRODUCTION .................................................................................................................................................. 5
SYSTEM REQUIREMENTS.......................................................................................................................... 5
BOX CONTENTS.......................................................................................................................................... 5
MOUNTING IN A CAR ......................................................................................................................................... 5
PREPARATION FOR OPERATION..................................................................................................................... 6
PRECAUTIONS ............................................................................................................................................ 6
USING THE TOUCH SCREEN ..................................................................................................................... 6
DEVICE IN PICTURES.................................................................................................................................. 7
MEMORY CARD........................................................................................................................................... 8
BATTERY CHARGING................................................................................................................................. 8
AV-IN............................................................................................................................................................. 9
CONNECTING TO THE COMPUTER.................................................................................................................. 9
FIRMWARE UPGRADE................................................................................................................................ 9
DEVICE OPERATION........................................................................................................................................ 10
MAIN MENU................................................................................................................................................ 10
NAVIGATION MENU................................................................................................................................... 10
PHOTO MENU ............................................................................................................................................ 11
BLUETOOTH MENU................................................................................................................................... 13
MUSIC MENU ............................................................................................................................................. 22
VIDEO MENU.............................................................................................................................................. 25
SETTINGS MENU....................................................................................................................................... 28
TROUBLESHOOTING ....................................................................................................................................... 40
SPECIFICATION*............................................................................................................................................... 41

PENTAGRAM Nomad GT (P 5220)
4

PENTAGRAM Nomad GT (P 5220)
5
Introduction
Thank you for purchasing the PENTAGRAM Nomad GT navigation system. The device incorporates a GPS
receiver, sound and video files player, photo browser, and has a built-in SD/MMC card reader, Video input and
FM transmitter. Additionally, the device supports the communication with Bluetooth equipment.
System requirements
These requirements are only important when connecting the device to a computer.
•A PC with an available USB port
•Operating system: Windows Me / 2000 / XP / Vista
Box contents
•PENTAGRAM Nomad GT (P 5220)
•USB cable
•Quick operation manual
•AC charger (option)
•Car charger
•Windscreen mounting kit (a sucker with an arm and a holding frame for the navigation system)
•SD card (option)
Mounting in a car
NOTE! If you have to connect the navigation system to the car cigarette lighter socket, start the engine
first. Power surges during the ignition may damage the device permanently.
Use the supplied windscreen mounting kit (the sucker with the arm and the holding frame) to attach the system
to the vehicle windscreen. Make sure that:
•the device location does not obstruct the visibility for the driver,
•the sucker is firmly holding to the windscreen,
•the device is firmly held in the frame,
•the frame with the device is properly mounted on the sucker arm,
•the system is not mounted near the airbag.
In case of any doubts regarding the navigation system mounting, contact the technical support.

PENTAGRAM Nomad GT (P 5220)
6
Preparation for operation
Precautions
•Using a satellite navigation system does not mean that the user can disobey traffic regulations
(lights, signs, etc.), stop behave politely when driving or stop using common sense.
•Avoid placing the device under direct sun. Do not store it in dusty places or where the temperature is
extremely low or high (e.g. car interior with the windows closed in the summer).
•Do not drop or shake the device.
•Do not let moisture or foreign objects get into the device.
•When cleaning the device, do not use chemicals, such as white spirit or detergents.
•Clean the device with a soft, dry cloth.
•Before cleaning, turn off the device and disconnect it from the computer or the power source.
•Do not modify or repair the device yourself, because it may void the guarantee.
•Do not operate the device with wet hands. It might damage the device or cause an electric shock.
•Do not disconnect the device from the computer when transferring data. They might get irrecoverably
lost.
•Files and data stored in the device memory and on the memory card are prone to damage like any other
files. For this reason, if necessary, make the backup copies of those files and data.
Using the touch screen
You can use your finger to operate the touch screen. However, as the screen surface area is big, the stylus is
much more precise and just a little bit less comfortable. The stylus is located in the back of the device casing.
You can use the stylus to perform four basic operations:
•tapping – light touching the screen surface with the stylus,
•double tapping – quick tapping twice with the stylus on the same point of the screen,
•dragging – touching and dragging the stylus on the screen,
•holding – touching and holding the stylus several seconds on the same point of the screen.
Always operate the touch screen with the stylus or a clean finger. Using other objects might scratch the
screen, rendering the device operation difficult, or it might even void the guarantee.

PENTAGRAM Nomad GT (P 5220)
7
Device in pictures
1
23 4 5
6
7
8
11
10
9

PENTAGRAM Nomad GT (P 5220)
8
Legend:
1. Sleep button:
•To turn on the sleep mode (energy saving), press and hold the button for approx. 5 seconds.
•To turn off the sleep mode (energy saving), press and hold the button for approx. 3 seconds.
2. Microphone.
3. LCD touch screen.
4. Battery charging LED.
5. Stylus – allows precise operation of the device.
6. SD card slot.
7. Headphones socket – when connected, the headphones are used instead of the built-in loudspeaker.
8. Video input (AV-IN) – option; an external video device can be connected here.
9. USB socket.
10. Loudspeaker – if no headphones are connected to the device, all the sounds will be played through the
built-in loudspeaker.
11. Switch – when in ON position (left side), the device is turned on. To turn it off, just slide the switch to the
OFF position (right side).
Memory card
Insert the memory cards into the device in such a way so that when looking at the device front, the card label is
visible, and when looking at the device back, the card connectors are visible.
To remove the card from the device, press the card so that it gently slides out, and then pull it out. Prior to
removing the card, make sure that all the applications accessing it (like the media player, the navigation
application) have been closed and that no files are being transferred from/to the card. Some navigation
applications use the memory card for storing the configuration and map files. If you remove such a card, it may
cause the application to operate improperly, and in extreme cases even the necessity to reinstall the application.
NOTE! Removing the card when it is in use can cause damage or loss of data, application crash or it
can even freeze the device.
Battery charging
In the top right corner of the main menu there is the icon representing the battery charge. When the icon is filled
with bars, it means the battery is fully charged. If the icon is empty, the battery is very low and you have to
charge it as quickly as possible. The battery will start charging automatically after connecting the device to the
AC charger or the car charger, plugged in the appropriate socket. During charging, the bars in the icon appear
and disappear one by one, and you can operate the device as normal. The LED under the touch screen is an
additional battery charge indicator – it is red during charging and becomes green when the charging is
complete.

PENTAGRAM Nomad GT (P 5220)
9
To charge the battery:
•connect the device to the computer USB port, or
•connect the device to the mains socket using the AC charger (option), or
•connect the device to the car lighter socket using the car changer.
AV-IN (option)
Using this connector and the included cable, you can connect an external video device to the navigation system.
The picture from the external device will appear on the system display immediately after it is connected. If
necessary, select the appropriate option in the Settings / Video Input menu.
Connecting to the computer
NOTES:
•Only use the device built-in flash memory (visible as “ResidentFlash” or “NANDFlash”) or the
inserted memory card (visible as “SDMMC”) for the installation of applications and storage of
own files. All files stored outside these locations will be deleted when the system is turned off.
•When the data are being transferred, do not disconnect the device from the computer to prevent
the possible damage or loss of data.
The device works with the following operating systems: Windows Me / 2000 / XP / Vista.
When connected to the computer, the system is visible as USB Mass storage device. The built-in flash memory
(ResidentFlash or NANDFlash) and the inserted memory card (SDMMC) are treated as normal removable
storage. You can copy files directly from/to those storage media.
Firmware upgrade
If necessary, you can upgrade the device firmware to a newer version. The latest firmware is downloadable from
www.pentagram.eu . The downloaded new firmware archive contains detailed information on
preparing and performing the upgrade.

PENTAGRAM Nomad GT (P 5220)
10
Device operation
Main menu
When you turn on the device, the welcome screen will be displayed for a moment. Then, the main system menu
will be launched.
Navigating the menu is very simple – tap the appropriate icon with the stylus to launch it.
In the top right corner of the display the battery status icon is visible, and in the left corner the clock is displayed.
Below there is the main menu elements list along with the corresponding functions.
Navigation menu
If the navigation application has been properly installed and configured, tapping the icon will launch the
program. Before you start using the application, configure the path to its main executable file. You can do this in
the Settings / Nav Setup menu. If you turn off the device before closing the application, it may result in losing
the entered data – for this reason, we recommend closing the application before you turn off the device.

PENTAGRAM Nomad GT (P 5220)
11

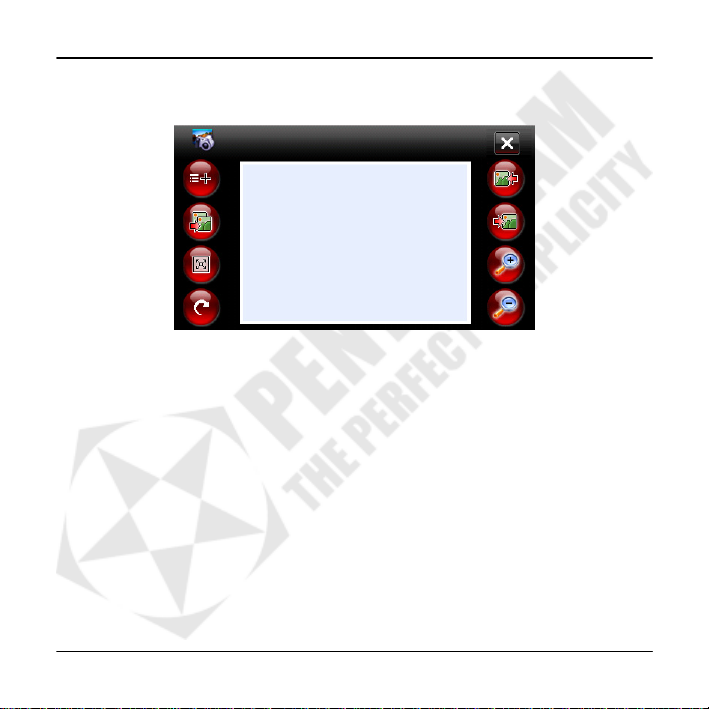

Photo menu
Tap the icon to open the graphic files browser.
➉
➅
➀
➁➆
➄
➂ ➇
➃➈
1. The list of files allowing the selection of the folder and file to be displayed.
2. Turn on the slide show. In this mode, the full screen mode is automatically activated. Tap the screen to
exit the full screen mode and end the slide show.
3. Turn on the full screen mode. Tap the screen to exit the full screen mode.
4. Rotate the picture by 90° CW.
5. File display area. If the file is zoomed in, dragging will move the displayed file.
6. Previous file.
7. Next file.
8. Picture zoom in.
9. Picture zoom out.
10. Back to the main menu.

PENTAGRAM Nomad GT (P 5220)
12

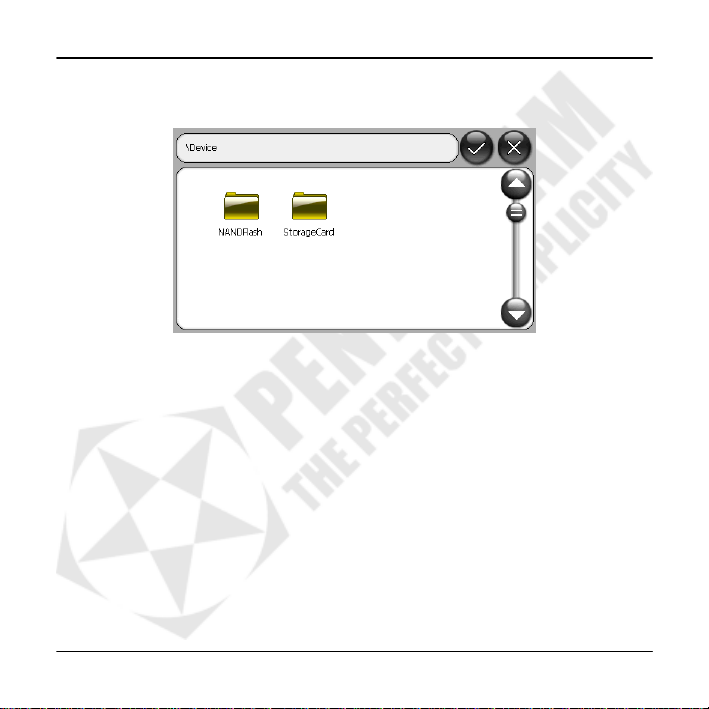

List of files
Double tap a folder to display its contents. Double tap a file to open it. Only the file types supported in this mode
are displayed on the list.
➀➃➄
➁➂
1. Path to the current folder.
2. Current folder contents.
3. Scroll bar.
4. Confirm the selection (equivalent to the double tap).
5. Exit the list of files without selecting a file to display.

PENTAGRAM Nomad GT (P 5220)
13

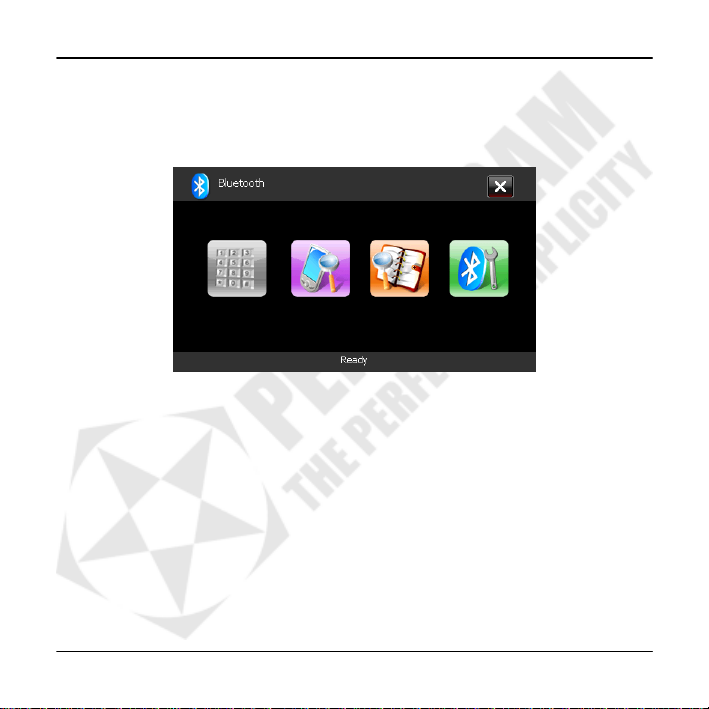

Bluetooth menu
Tap the icon to turn on the device Bluetooth module and display the menu allowing you to configure and use the
Bluetooth connection. Enabling the Bluetooth module increases battery power consumption, hence we
recommend disabling it when not in use. Because of this, the Bluetooth module is disabled by default when you
exit to the main menu (You can change it in the Settings window of the Bluetooth menu).
➅
➀➁➂➃
➄
1. Open the Dial Pad window used for making a phone call.
2. Open the Pair window used for pairing with another Bluetooth device.
3. Open the Paired Devices window with the list of known Bluetooth devices.
4. Open the Settings window with the Bluetooth options.
5. Bluetooth connection status bar.
6. Back to the main menu.

PENTAGRAM Nomad GT (P 5220)
14
Telephone call window
This window is not accessible from the menu level, but is displayed every time you make (or have made) an
inbound or outbound phone call. The window looks different depending on the connection type and status.

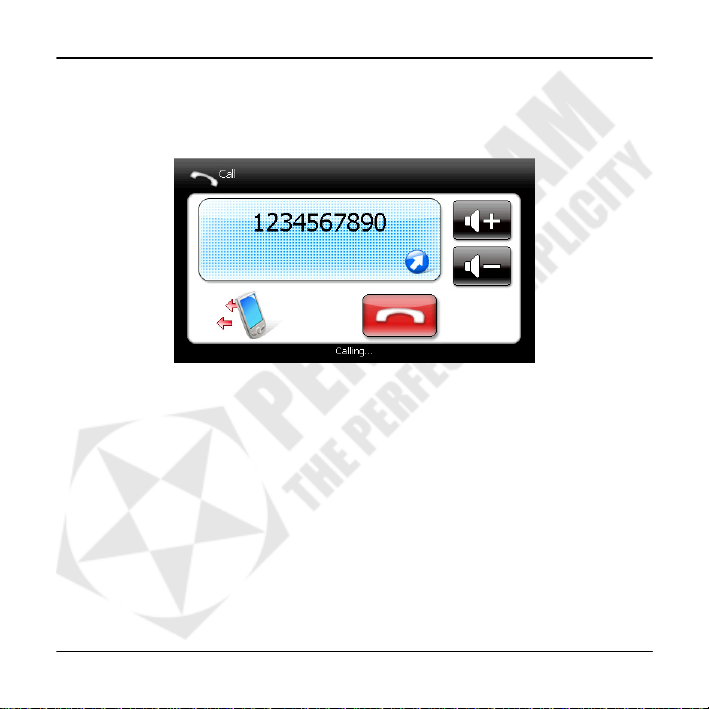

Outbound call
➀➁
➂
1. Called phone number.
2. Volume adjustment buttons.
3. Cancel the call and go back to the previous menu.

PENTAGRAM Nomad GT (P 5220)
15
Inbound call
➀
➁
➃
➂
1. Calling phone number.
2. Volume adjustment buttons.
3. Accept the inbound call.
4. Reject the inbound call and go back to the previous menu.
In-call
➀➃
➁➂
➅➆
➇
➄
1. Calling/called phone number.
2. Elapsed call time.

PENTAGRAM Nomad GT (P 5220)
16
3. Connection type icon (blue – outbound, green – inbound).
4. Volume adjustment buttons.
5. Mic mute.
6. Show or hide on-screen keypad for, e.g. dialing the extension number.
7. Forward the call to the phone or back to the device.
8. End the call and go back to the previous menu.
Dial Pad window
The window allows you to make a phone call with the given phone number.
➀➁
➆
➃
➂
➄
➅
1. Phone number to be called.
2. Delete the last digit.
3. Key pad for dialing.
4. Establish connection with the dialed phone number.
5. Establish connection with the last dialed phone number.
6. Open the Call Log window with the list of the last calls.
7. Back to the previous menu.

PENTAGRAM Nomad GT (P 5220)
17
Call Log window
Contains the lists of the last calls (outbound, answered, missed).
➆
➂
➀➃
➁➄
➅
1. Items of the currently selected list.
2. List scroll bar.
3. Outbound calls list.
4. Answered calls list.
5. Missed calls list.
6. Call the number selected on the list.
7. Back to the previous menu.

PENTAGRAM Nomad GT (P 5220)
18
Pair window
In order to pair the device with a mobile phone, enable the Bluetooth module in the paired phone, then search
for it and add to the devices list (the documentation that came with the phone should contain detailed
instructions on Bluetooth enabling and configuration). The navigation system is identified as GPS, and the
default pairing PIN code is 1234 (you can change the PIN code in the Settings window). After pairing, connect
the phone and the device. To exit the screen without pairing, tap the icon in the top right corner of the display.

PENTAGRAM Nomad GT (P 5220)
19
Paired Devices window
The window contains the list of known Bluetooth devices.
➅
➀➂
➃
➁
➄
1. The name identifying the Bluetooth device. The red dot marks the active connection.
2. List scroll bar.
3. Connect with the selected device. It is not accessible if any connection is active.
4. End the connection with the selected device.
5. Clear the list. You will have to pair the connected device again.
6. Back to the previous menu.

PENTAGRAM Nomad GT (P 5220)
20
Settings window
This window contains the Bluetooth-related device settings.
➅
➀
➁ ➂
➃
➄
1. Name identifying the device (read-only).
2. PIN code required for pairing with other Bluetooth devices.
3. Open the Pincode Reset window for entering a new PIN code.
4. When this option is selected, the Bluetooth module will remain enabled after you exit the Bluetooth menu.
This is not recommended because the enabled Bluetooth module consumes more power.
5. When this option is selected, all incoming connections will be accepted automatically.
6. Back to the previous menu.
