Pentair SUDMO P740 User manual

1 / 34
Copy of the original operating instructions
BAA RV Solid
en
Disk type non-return valves
RV Solid series
Type: P740, P741, P745, P750 and P760
Size:
DN 010 – 150, OD 0.50” – 6.00”, ISO 008 – 125
- Copy of the original operating manual -
Version 1.01
Operating Instructions

Operating Instructions
Disk type non-return valves
RV Solid series
Type: P740, P741, P745, P750 and P760
DN 010 – 150, OD 0.50” – 6.00”, ISO 008 – 125
2 / 34
Copy of the original operating instructions
BAA RV Solid
en

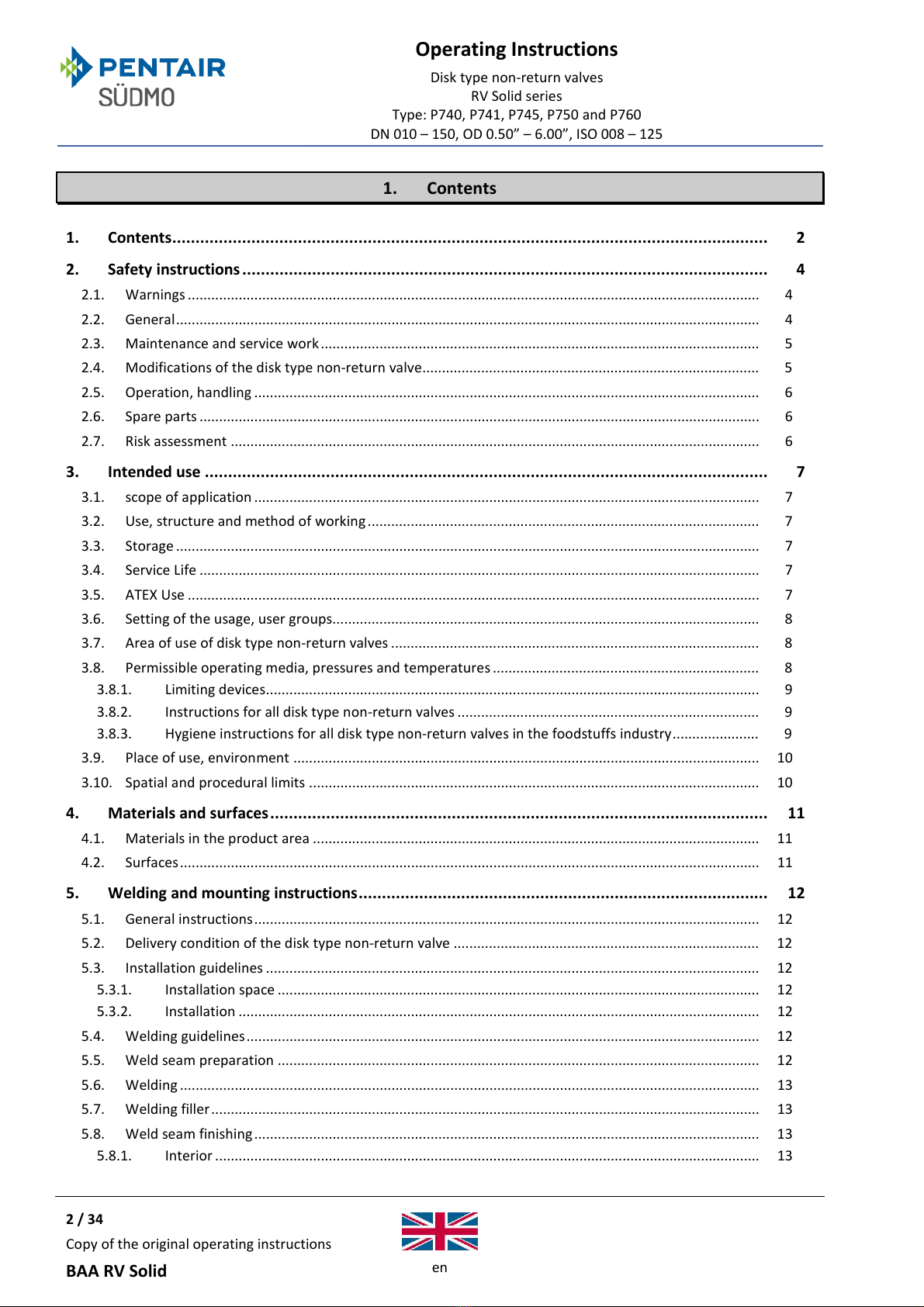

1. Contents
1. Contents................................................................................................................................ 2
2. Safety instructions................................................................................................................. 4
2.1. Warnings .................................................................................................................................................. 4
2.2. General..................................................................................................................................................... 4
2.3. Maintenance and service work ................................................................................................................ 5
2.4. Modifications of the disk type non-return valve...................................................................................... 5
2.5. Operation, handling ................................................................................................................................. 6
2.6. Spare parts ............................................................................................................................................... 6
2.7. Risk assessment ....................................................................................................................................... 6
3. Intended use ......................................................................................................................... 7
3.1. scope of application ................................................................................................................................. 7
3.2. Use, structure and method of working .................................................................................................... 7
3.3. Storage ..................................................................................................................................................... 7
3.4. Service Life ............................................................................................................................................... 7
3.5. ATEX Use .................................................................................................................................................. 7
3.6. Setting of the usage, user groups............................................................................................................. 8
3.7. Area of use of disk type non-return valves .............................................................................................. 8
3.8. Permissible operating media, pressures and temperatures .................................................................... 8
3.8.1. Limiting devices.............................................................................................................................. 9
3.8.2. Instructions for all disk type non-return valves ............................................................................. 9
3.8.3. Hygiene instructions for all disk type non-return valves in the foodstuffs industry...................... 9
3.9. Place of use, environment ....................................................................................................................... 10
3.10. Spatial and procedural limits ................................................................................................................... 10
4. Materials and surfaces........................................................................................................... 11
4.1. Materials in the product area .................................................................................................................. 11
4.2. Surfaces.................................................................................................................................................... 11
5. Welding and mounting instructions........................................................................................ 12
5.1. General instructions................................................................................................................................. 12
5.2. Delivery condition of the disk type non-return valve .............................................................................. 12
5.3. Installation guidelines .............................................................................................................................. 12
5.3.1. Installation space ........................................................................................................................... 12
5.3.2. Installation ..................................................................................................................................... 12
5.4. Welding guidelines................................................................................................................................... 12
5.5. Weld seam preparation ........................................................................................................................... 12
5.6. Welding .................................................................................................................................................... 13
5.7. Welding filler............................................................................................................................................ 13
5.8. Weld seam finishing ................................................................................................................................. 13
5.8.1. Interior ........................................................................................................................................... 13

Operating Instructions
Disk type non-return valves
RV Solid series
Type: P740, P741, P745, P750 and P760
DN 010 – 150, OD 0.50” – 6.00”, ISO 008 – 125
3 / 34
Copy of the original operating instructions
BAA RV Solid
en
5.8.2. Exterior .......................................................................................................................................... 13
5.9. Cleaning of the valve................................................................................................................................ 13
5.10. Valve assembly......................................................................................................................................... 13
6. Commissioning of disk type non-return valve......................................................................... 14
7. Maintenance of disk type non-return valves .......................................................................... 15
7.1. Inspection of the disk type non-return valve........................................................................................... 15
7.2. Maintenance, troubleshooting and repair of the disk type non-return valve ......................................... 15
7.2.1. Seal gaskets.................................................................................................................................... 15
8. Cleaning, disinfection ............................................................................................................ 16
9. Operating equipment and auxiliary media ............................................................................. 16
9.1. External cleaner (foam, gel or spray cleaner for external cleaning of disk type non-return valves) ....... 16
10. Decommissioning.................................................................................................................. 17
11. Disposal ................................................................................................................................ 17
12. Technical data....................................................................................................................... 18
12.1. Dimensions .............................................................................................................................................. 18
12.2. Weights .................................................................................................................................................... 19
12.3. Valve use.................................................................................................................................................. 20
13. Valve connection piping ........................................................................................................ 20
13.1. Installation position ................................................................................................................................. 20
13.2. Valve connections .................................................................................................................................... 20
13.3. Installation details for disk type non-return valves ................................................................................. 20
14. Disassembly – Assembly........................................................................................................ 21
14.1. Preparatory measures for disassembly – assembly................................................................................. 21
14.2. Spare parts............................................................................................................................................... 22
14.3. Assembly tools ......................................................................................................................................... 22
14.4. Assembly of joint clamp........................................................................................................................... 22
14.5. Assembling the O-rings ............................................................................................................................ 23
14.5.1. Dismantling the O-rings ................................................................................................................. 23
14.5.2. Installing the O-rings...................................................................................................................... 23
14.6. Replacement of the seals in contact with the product............................................................................ 23
14.6.1. Disk type non-return valve, type P740, P741, P745 and P760 ...................................................... 23
14.6.2. Disk type non-return valve, type P750 .......................................................................................... 25
15. Malfunctions – troubleshooting............................................................................................. 26
16. Replacement parts lists ......................................................................................................... 27
16.1. Disk type non-return valve, type P740, P741, P745 and P760................................................................. 27
16.2. Disk type non-return valve, type P750 .................................................................................................... 29
17. Service address ..................................................................................................................... 34

Operating Instructions
Disk type non-return valves
RV Solid series
Type: P740, P741, P745, P750 and P760
DN 010 – 150, OD 0.50” – 6.00”, ISO 008 – 125
4 / 34
Copy of the original operating instructions
BAA RV Solid
en
2. Safety instructions
2.1. Warnings
DANGER
Death, severe injury or significant damage will occur if the corresponding precautionary
measures are not taken.
WARNING
Death, severe injury or significant damage may occur if the corresponding precautionary
measures are not taken.
CAUTION
Slight injury may occur if the corresponding precautionary measures are not taken.
Information/notice
You can get information and notes to effectively and safely carry out the following activities
here.
2.2. General
Information/notice
Each person involved with the assembly, commissioning, operation and maintenance of this
disk type non-return valve must have read and understood the complete operating
instructions consisting of the below mentioned documents.
Operating Instructions for disk type non-return valves, RV Solid series
EC Declaration of Conformity
Disk type non-return valves by Pentair Südmo GmbH have been built using state-of-the-art standards and recog-
nized safety regulations. However, these disk type non-return valves may constitute a hazard if used improperly
by operating personnel or for a purpose other than the intended one. This can result in danger to the life and limb
of the user or third parties, or damage the functionality of the disk type non-return valve and other material assets.
The following points ensure the proper use of the disk type non-return valve:
the observance of all safety instructions in the operating instructions for the disk type non-return valve.
the observance of all applicable national and international laws, ordinances, regulations, directives and other
rules at the installation location.
In-house operation and safety regulations.
The carrying out of regular inspection and maintenance work.

Operating Instructions
Disk type non-return valves
RV Solid series
Type: P740, P741, P745, P750 and P760
DN 010 – 150, OD 0.50” – 6.00”, ISO 008 – 125
5 / 34
Copy of the original operating instructions
BAA RV Solid
en
Information/notice
Pentair Südmo GmbH shall not be liable for damage arising from the improper use of the
disk type non-return valve.
The exact specification of the disk type non-return valve, such as
order number of the valve
seal sets
operating pressure
control air pressure
etc.
can be found on the label attached to the valve body.
2.3. Maintenance and service work
Any maintenance and service work on the disk type non-return valves must only be carried out by trained and
qualified personnel.
Training or instruction according to the currents standards of the safety regulations.
For systems with explosion protection: Training or instruction or authorization to carry out work on the
systems subject to explosion hazards (observe ATEX regulations).
Get information on possible risks that could be caused by residues of the operating material and take appropriate
measures if necessary (safety gloves, safety goggles etc.), before carrying out maintenance and service work on
the disk type non-return valve.
Prior to carrying out any maintenance and service work, make sure that
the work is only carried out in a depressurized state and with the media supply shut off.
Before starting with a disassembly, the disk type non-return valve must be rinsed with cold water for a sufficient
period in order to ensure that no cleaning products or hot water can be found. (Afterwards the disk type non-
return valve must be emptied).
the disk type non-return valve and all piping elements leading to the valve have been drained, cleaned or
flushed.
the fittings have cooled down.
the commissioning of the system by a third party is ruled out.
The pressure build-up which may form in pipelines is counteracted.
disassembly - assembly of the disk type non-return valve is carried out according to the assembly instructions
(see chapter “Disassembly - Assembly” of the relevant assembly instructions).
the disk type non-return valve is removed from the pipeline section, if possible.
Avoid any working method that impairs the safety and function of the disk type non-return valve.
2.4. Modifications of the disk type non-return valve
DANGER
Operate the disk type non-return valve in accordance with regulations and having due
regard for safety and an awareness for hazards.
Only operate the disk type non-return valve in a perfect technical condition.
Modifications of the disk type non-return valve are strictly forbidden.

Operating Instructions
Disk type non-return valves
RV Solid series
Type: P740, P741, P745, P750 and P760
DN 010 – 150, OD 0.50” – 6.00”, ISO 008 – 125
6 / 34
Copy of the original operating instructions
BAA RV Solid
en
2.5. Operation, handling
DANGER
Never touch the valve or pipelines if hot media are being processed or if the sterilization
process is running.
Operating parameters (see "Permissible operating media, pressures and temperatures")
must always be strictly observed.
The disk type non-return valves are to be operated exclusively by competent and trained operating personnel.
The operator of the disk type non-return valves must draw up operating instructions so that all the information
required for the operation of the fittings is available to the operating personnel.
The operator of the disk type non-return valves must ensure that the described required safety and limiting sys-
tems in the environment of the fittings are continually functional and that they cannot be switched off during
operation or changed with respect to their intended use.
Do not touch or otherwise manipulate the disk type non-return valves during operation or while operating the
system in which these valves are installed.
The operating personnel must be instructed by the disk type non-return valve operator to wear protective clothing
(gloves and safety goggles) during cleaning, flushing and sterilization work.
2.6. Spare parts
Information/notice
Only use original spare parts.
Original spare parts, see spare parts of the respective disk type non-return valve.
Smooth operation of the disk type non-return valve is only guaranteed when using orig-
inal spare parts.
2.7. Risk assessment
All safety instructions in this operating manual are the result of risk assessment for the disk type non-return valve.

Operating Instructions
Disk type non-return valves
RV Solid series
Type: P740, P741, P745, P750 and P760
DN 010 – 150, OD 0.50” – 6.00”, ISO 008 – 125
7 / 34
Copy of the original operating instructions
BAA RV Solid
en
3. Intended use
3.1. scope of application
These operating instructions are only valid for the following valves:
Disk type non-return valves
Type P740 / P741 / P745 / P750 / P760
Sizes DN 010 – 150
OD 0.50” – 6.00”
ISO 008 – 125
3.2. Use, structure and method of working
The disk type non-return valves stop the return flow of fluid media against the desired direction of flow.
These spring-loaded disk type non-return valves are characterized by the fact that a flow path can be closed in one
particular direction by a closing body fitted with an elastomer seal by way of a spring, and opened in the other
direction thanks to the pressure of the flowing liquid.
When in the closed position, the closing body is pressed into the seal seat either by way of spring tension or by
way of the superposition of the spring tension with a parallel compressive force.
If a level pressure that is able to overcome the aforementioned restoring forces builds up in the forward direc-
tion, the closing body is then lifted from the seal seat and the flow is released.
The disk type non-return valves each have a valve seat and a closing body
The valve seats are each axially sealed.
It is preferable to install disk type non-return valves downstream of the pumps in piping systems.
If they are installed there, the valves stop media from being able to flow back into a system area with a lower
pressure level (e.g. in a pre-separation tank) in the event there is a pump fault in a system area with a higher
pressure level (e.g. a pressure tank).
3.3. Storage
Store the valve in a dry place protected against external influences.
Do not expose to direct sunlight
Prior to handling (disassembly of the valve body), temporarily store the valves in a dry place at an ambient tem-
perature of ≥ 5° C for at least 24 hours.
3.4. Service Life
The foreseeable service life of disk type non-return valves is 15 years.
3.5. ATEX Use
The disk type non-return valves comply with the requirements of Directive 2014/34/EU of the European Parliament
and the Council and are suitable for use in potentially explosive atmospheres.
The valves must not be operated outdoors, if its service location there is classified as area with risk of explosion
pursuant to Directive 2014/34/EU of the European Parliament and of the Council.
Usage of the disk type non-return valves ”underground” is not permitted.

Operating Instructions
Disk type non-return valves
RV Solid series
Type: P740, P741, P745, P750 and P760
DN 010 – 150, OD 0.50” – 6.00”, ISO 008 – 125
8 / 34
Copy of the original operating instructions
BAA RV Solid
en
The service rooms must be free of dust.
Dust deposits on the fittings must be avoided.
The system in which the disk type non-return valves are installed must be grounded.
The ignition temperatures of existing potentially explosive media must not be exceeded by hot media within the
fittings or the hot surface temperatures of the fittings.
The disk type non-return valves have a corresponding fitting identification, which corresponds to Directive
2014/34/EU of the European Parliament and the Council as well as the standard DIN EN 80079-36:2016-12.
The specifications on the respective type plate apply to each disk type non-return valve.
II 2 G Ex h IIB 80°C…150°C Gb
II 2 D Ex h IIIC T150°C Db
3.6. Setting of the usage, user groups
The fittings are only intended for commercial use.
Private use of the fittings is not permitted.
The fittings may only be unpacked, transported, mounted, assembled, connected, commissioned, operated, ser-
viced, repaired, dismantled, decommissioned, stored and disposed of by qualified personnel.
Heavy valves must be transported with suitable load handling equipment in accordance with the valid national,
regional and internal company regulations.
3.7. Area of use of disk type non-return valves
Use of Pentair Südmo disk type non-return valves, for example in breweries
the beverage industry
the foodstuffs industry
the pharmaceutical industry
the chemical industry
the cosmetic industry
3.8. Permissible operating media, pressures and temperatures

Operating Instructions
Disk type non-return valves
RV Solid series
Type: P740, P741, P745, P750 and P760
DN 010 – 150, OD 0.50” – 6.00”, ISO 008 – 125
9 / 34
Copy of the original operating instructions
BAA RV Solid
en
3.8.1. Limiting devices
In order to prevent the operating thresholds, such as pressures and temperatures, described in “Permissible operating
media, pressures and temperatures” either being exceeded or not reached, the system, in which the disk type non-
return valves are integrated, must be equipped with the following limiting devices:
Control devices:
Suitable, manually or automatically operable control devices to maintain the operating parameters within the per-
missible threshold values.
Monitoring devices:
Suitable monitoring devices, which enable appropriate manual or automatic intervention, trigger corrective
measures and/or shutting down or locking, in order to maintain the operating parameters within the permissible
threshold values.
Safety devices:
Suitable safety devices such as safety valves or burst disk safeguards, which ensure, as the last hazard prevention
measure, that the permissible operating pressures described in "Permissible operating media, pressures and tem-
peratures” are not exceeded.
3.8.2. Instructions for all disk type non-return valves
DANGER
If liquids, emulsions or fluids in the valve are above their evaporation temperature at
atmospheric pressure, sudden evaporation of the entire contents of the pipeline into the
operating chamber and consequently a risk of injury for persons in the operating room may
occur when the valve is switched on or when leakage occurs due to seal wear.
The disk type non-return valve operator must ensure that hot media do not exceed the
ignition temperature in the pipeline system.
Information/notice
When using ready-made cleaning agents or other aggressive media, make sure that these
are suitable for the stainless steel and sealing material used and that they do not cause any
damages to these materials.
In case of doubt, please consult the valve manufacturer.
3.8.3. Hygiene instructions for all disk type non-return valves in the foodstuffs industry
The operator of the disk type non-return valves must ensure that the valves are used exclusively in accordance with
their intended use.
This particularly applies to the exclusive use of admissible media, to the exclusion of inadmissible media and compliance
with the permissible concentrations and temperatures of cleaning agents and disinfectants.
It also applies in particular to compliance with the measures as described in a maintenance plan, which ensure that the
required hygiene status of the fittings is maintained within fixed intervals. These measures include regular cleaning-in-
place (short: “CIP”) of the valve interior. In some cases, this includes regular “Sanitization-in-place" disinfection (short:
“SIP“) of the valve interior.

Operating Instructions
Disk type non-return valves
RV Solid series
Type: P740, P741, P745, P750 and P760
DN 010 – 150, OD 0.50” – 6.00”, ISO 008 – 125
10 / 34
Copy of the original operating instructions
BAA RV Solid
en
DANGER
Hazards resulting from pollution or contamination caused by the use of
non-permissible media in the valves or
due to improper cleaning or
improper disinfection
of the valves and which can lead to an adverse effect on the processed foods in the valves.
Examples:
Substances which result from corrosion
Residues of cleaning media
Residues of disinfection media
Failure to comply with the hygiene instructions
Risk of accidents severe injuries may occur
3.9. Place of use, environment
The disk type non-return valves are mainly used in breweries, as well as the food and beverage, and pharmaceuti-
cal, chemical and cosmetic industries.
They are used in service room locations with floors resistant to acids and alkalis.
The locations must be equipped with normal room lighting so that the labels and warning signs on the valves are
clearly visible at all times.
Permissible ambient temperature: -10 °C – +55 °C
Air humidity: 100% relative up to a temperature of 25 °C.
Wet area.
3.10. Spatial and procedural limits
The disk type non-return valve described here generally extends in terms of space up to the pipe connections, as
illustrated in the following dimensional drawings.
Welded process connectors that are not explicitly illustrated are not included for calculating the spatial contents
of the fittings.
Spatial and process engineering limits of the disk type non-return valves are diagrammatically presented in the
chapter “Technical Data”.
3.11. Operating media and operating limits
Permissible minimum temperatures for operating media:
Disk type non-return valve with the sealing material EPDM
≥ -10.0 °C for gases
≥ -10.0 °C for fluid media with freezing point ≤ -10 °C
> 1.0 K above freezing point for fluid media with freezing point > -10 °C
Disk type non-return valve with the sealing material FKM
≥ +1.0° C for gases
≥ +1.0 °C for fluid media with freezing point ≤ 0° C
> 1.0 K above freezing point for fluid media with freezing point > 0° C
Maximum permissible operating pressures in connection with permissible operating media, maximum permissible
operating temperatures and the applicable sealing materials at the “Product connections” process engineering
interfaces are shown in the chapter "Permissible operating media, pressures and temperatures”.

Operating Instructions
Disk type non-return valves
RV Solid series
Type: P740, P741, P745, P750 and P760
DN 010 – 150, OD 0.50” – 6.00”, ISO 008 – 125
11 / 34
Copy of the original operating instructions
BAA RV Solid
en
Media suitable in principle:
Liquids, e.g., water, beverages, etc.
Non-condensable gases, e.g., air, oxygen, nitrogen, etc.
Emulsions that can flow and be pumped, e.g., milk, cream, crèmes, cosmetics, etc.
Foams that can flow and be pumped, e.g., desserts, ice-cream, etc.
Non-abrasive suspensions that can flow and be pumped, e.g., fruit preparations, etc.
Cleaning agents and disinfectants suitable in principle:
Aqueous cleaning base (based on sodium hydroxide solution)
Aqueous cleaning acid (based on nitric acid)
Aqueous disinfectants (based on peracetic acid)
Culinary steam, pure steam, high-quality pure steam (as specified)
Excluded media:
Hazardous gaseous media pursuant to the Pressure Equipment Directive 2014/68/EU
Radioactive media
Toxic and highly toxic media
Media harmful to the environment
Abrasive media
Black steam, unclean steam or steam containing particulate matter
Overheated media (liquid media above their evaporation temperatures at atmospheric pressure)
4. Materials and surfaces
4.1. Materials in the product area
Stainless steels 1.4404 (AISI 316 L)
1.4571 (AISI 316Ti)
Stainless steel materials with even higher corrosion resistance
Elastomers EPDM
FKM
4.2. Surfaces
Parts in contact with the product Standard Ra 0.8 m
Surface finishes - e-polished
- high-quality surfaces

Operating Instructions
Disk type non-return valves
RV Solid series
Type: P740, P741, P745, P750 and P760
DN 010 – 150, OD 0.50” – 6.00”, ISO 008 – 125
12 / 34
Copy of the original operating instructions
BAA RV Solid
en
5. Welding and mounting instructions
5.1. General instructions
Information/notice
Welding work must only be carried out by qualified skilled personnel
(DIN EN ISO 9606-1 W8).
Pentair Südmo will not be liable for damages caused as a result of improper use.
5.2. Delivery condition of the disk type non-return valve
Factory-tested
Completely assembled
5.3. Installation guidelines
5.3.1. Installation space
Determine and define the terminal axes before mounting. Refer to the dimension drawings for the installation dimen-
sions.
Ensure that there is sufficient space available for both operation and servicing.
5.3.2. Installation
Exclude tensile and compressive stresses.
5.4. Welding guidelines
Field of application: Welded connections of weld-on fittings with pipes according to DIN 11850 series
1, 2; ASTM A270; DIN EN ISO 1127
Welding procedure: TIG (tungsten inert gas welding)
Weld seam: Preparation of weld seam according to DIN 2559 (edge forms I / for I seams)
Weld seams correspond to DIN EN ISO 5817
Evaluation group B (high)
5.5. Weld seam preparation
Saw off the pipe ends planar at a right angle and debur them (pipe saw M882).
Align the welding ends of the valve body and piping radially and axially for a flush fit (centering device).
Information/notice
Avoid too large a gap at the flush-fitting welding ends.
Make sure that enough forming gas arrives at the welding seam.

Operating Instructions
Disk type non-return valves
RV Solid series
Type: P740, P741, P745, P750 and P760
DN 010 – 150, OD 0.50” – 6.00”, ISO 008 – 125
13 / 34
Copy of the original operating instructions
BAA RV Solid
en
5.6. Welding
Connect the forming gas.
Tack at 3 – 4 tack welds.
Weld valve Type of welding TIG manual or orbital (automatic welding).
5.7. Welding filler
Material allocation Material of parts to
be welded
Suitable welding filler
1.4430 1.4440 1.4519
1.4404 X
1.4435 X X X
5.8. Weld seam finishing
5.8.1. Interior
Depending on requirements, for example
untreated.
scotching (at accessible points).
5.8.2. Exterior
Subsequent-treatment procedure
Pickling - ensure proper disposal of pickling paste
Brushing
Grinding
Polishing
5.9. Cleaning of the valve
Clean thoroughly before assembly.
5.10. Valve assembly
Assemble according to the assembly instructions (see chapter “Disassembly - Assembly”).

Operating Instructions
Disk type non-return valves
RV Solid series
Type: P740, P741, P745, P750 and P760
DN 010 – 150, OD 0.50” – 6.00”, ISO 008 – 125
14 / 34
Copy of the original operating instructions
BAA RV Solid
en
6. Commissioning of disk type non-return valve
DANGER
The operator of the disk type non-return valves must ensure that those valves where the
media connections are not fully integrated into an enclosed pipeline or tank system and
therefore can be accessed from outside are provided with devices that reliably prevent
such access during commissioning and/or during operation of the valves.
The operator of the fittings must ensure that all people who have access to the disk type
non-return valves are made aware of the hazards.
CAUTION
Ensure that no foreign objects are present in the piping system.
Avoid temperature shock!
Warm up the fitting slowly to the operating temperature.
The disk type non-return valves are to be commissioned exclusively by competent and trained commissioning per-
sonnel.
The operator of the disk type non-return valves must draw up operating instructions so that all the information
required for the commissioning of the valves is available to the operating personnel.
The operator of the disk type non-return valves must ensure that the required safety and limiting systems of the
fittings as described in the “limiting systems” chapter are continually functional and that they cannot be switched
off whilst operating or changed with respect to their intended use.
Commissioning of the disk type non-return valves includes
a wet test, including testing of the valve opening behavior
a pressure and sealing test
thorough cleaning of the valves, if they are earmarked for processing foodstuffs.
Wet test, opening behavior, pressure and sealing test:
Run cold water through the valves.
Opening of the disk type non-return valves must be possible in a secure fashion with a primary pressure of
0.1 bar.
Pressurize valves.
To do this, seal the media supply line filled entirely with cold water located downstream of the disk type non-
return valves with a suitable isolation valve and apply the test pressure upstream of the disk type non-return
valves.
Test sealing of fittings by visual check.
In case valves are not watertight, de-pressurize, empty and disassemble them.
Check the appearance and assembly status of seals; replace seals if necessary.
Conduct pressure and sealing test again.
Repeat the process as many times as required until there are no further leakages.
Basic cleaning:
If the disk type non-return valves come in contact with foodstuffs, the operator of the valves should clean the
fittings thoroughly before food is processed in it.
See the chapter “Cleaning, Disinfection” for this purpose.

Operating Instructions
Disk type non-return valves
RV Solid series
Type: P740, P741, P745, P750 and P760
DN 010 – 150, OD 0.50” – 6.00”, ISO 008 – 125
15 / 34
Copy of the original operating instructions
BAA RV Solid
en
7. Maintenance of disk type non-return valves
DANGER
The operator of the fittings must ensure that all people carrying out activities on the
fittings are suitably qualified and also able to recognize whether the closing bodies of
these fittings are located in their immobile final locations within the fittings.
In addition, the operator of the fittings must ensure that these people are instructed not
to reach into the media connections on the fittings if this is not already the case.
During servicing, maintenance, and disassembly of the disk type non-return valves, it
must be ensured that power-driven switching operations can only be initiated by people
working directly on the valves.
The operator of the disk type non-return valves must ensure that all people who carry
out this activity are suitably qualified and are also able to recognize whether power-
driven switching operations on the fittings, apart from by themselves, can be actuated
by someone else.
7.1. Inspection of the disk type non-return valve
Disk type non-return valves must be checked at regular intervals and maintained as required.
7.2. Maintenance, troubleshooting and repair of the disk type non-return valve
Maintenance, troubleshooting and repairs may only be executed by competent and trained staff.
Before starting maintenance, troubleshooting or repair work, the fittings must be rinsed with cold water for a
sufficient period in order to ensure that no cleaning products or hot water are left behind.
The valves are to be emptied thereafter.
Prior to the maintenance, troubleshooting and repair work, the operator of the system in which the disk type non-
return valves have been installed, must ensure that the fittings are de-pressurized and cannot be refilled with
agents or re-pressurized during the entire period of work.
The operator of the system in which the disk type non-return valves have been installed, must ensure that the
system area in which the maintenance, troubleshooting and repair work takes place, has been cordoned off against
access by unauthorized persons, and that the exclusion zone will be maintained during the entire period of work.
7.2.1. Seal gaskets
Practice-oriented maintenance intervals can only be determined by the respective user/operator because they depend
on the following application parameters:
Operating time per day
Switching intervals
Process parameter (temperature, pressure, flow)
Type of product (fat content, aromas, acids)
Type of cleaning (CIP / SIP / Disinfection)
Sealant
Maintenance intervals of 6-24 months are recommended as a standard value in compliance with the permissible pa-
rameters (see chapter "Permissible operating media, pressures and temperatures") and proper use.

Operating Instructions
Disk type non-return valves
RV Solid series
Type: P740, P741, P745, P750 and P760
DN 010 – 150, OD 0.50” – 6.00”, ISO 008 – 125
16 / 34
Copy of the original operating instructions
BAA RV Solid
en
8. Cleaning, disinfection
Cleaning and disinfection of the disk type non-return valves may only be done by competent and trained operating staff.
If the disk type non-return valves come into contact with food, the operator of the valves must prepare a maintenance
plan containing a system of measures to ensure that the required hygiene status of the fittings is maintained within
fixed intervals.
These measures include regular cleaning-in-place (short: “CIP”) of the valve interior. In some cases, this includes regular
“Sanitization-in-place" disinfection (short: “SIP“) of the valve interior.
It is characteristic of CIP and SIP processes that they must be carried out when the disk type non-return valves are
installed, e.g. together with a pipe cleaning or pipe disinfection or together with the cleaning or disinfection of the
system in which the valves are installed.
The disk type non-return valves must not be removed from the system in which they are installed for the purpose of
cleaning and disinfection!
Only permissible cleaning and disinfection media within the operating limits specified in chapter “Permissible operating
media, pressures and temperatures” may be used!
Recommended cleaning procedure:
Pre-rinsing (water) - alkaline cleaning - intermediate rinsing (water) - acid cleaning - rinsing (water)
Recommended procedure for chemical disinfection (only disinfect previously cleaned valves):
Pre-rinsing (water) - disinfection (chemical disinfection medium) - rinsing (sterile water)
Recommended procedure for thermal disinfection (only disinfect previously cleaned valves):
Rinse (water) - Drain - Disinfect (steam) - Condensate - Rinse (sterile water)
Recommended cleaning and disinfection parameters
(Temperatures, media, media concentrations, times, flow rates, clock cycles):
Flow rate: > 1.5 m/s
Media, media concentrations, media temperatures: Dependent on the type and extent of contamina-
tion, the sealing material in the valve and the fre-
quency of cleaning or disinfection
Cleaning and disinfection times: Dependent on the type and extent of contamina-
tion and the frequency of cleaning or disinfection
Operators and maintenance personnel should be instructed to wear appropriate protective clothing (e.g. gloves, gog-
gles) during automatic CIP and SIP processes!
The maintenance plans for cleaning and/or disinfection are to be validated by the operator of the disk type non-return
valves in accordance with their requirements.
9. Operating equipment and auxiliary media
9.1. External cleaner (foam, gel or spray cleaner for external cleaning of disk type non-return valves)
Compatibility of the external cleaner used with the surface materials of the disk type non-return valves (stainless
steels, plastics) must be ensured.

Operating Instructions
Disk type non-return valves
RV Solid series
Type: P740, P741, P745, P750 and P760
DN 010 – 150, OD 0.50” – 6.00”, ISO 008 – 125
17 / 34
Copy of the original operating instructions
BAA RV Solid
en
10. Decommissioning
Decommissioning the disk type non-return valves can be done with or without disassembly. In case of decommis-
sioning with disassembly, all disassembly steps described in the respective relevant operating instructions should
be additionally observed.
Before starting with a decommissioning, the disk type non-return valves must be rinsed with cold water for a suf-
ficient period in order to ensure that no cleaning products or hot water can be found.
The valves are to be emptied thereafter.
Prior to decommissioning without disassembly, the operator of the disk type non-return valves must ensure that
the fittings remain de-pressurized for a long time and cannot be refilled with agents or re-pressurized.
When decommissioning, physically separate disk type non-return valves from all media pipelines that could be
used to inadvertently supply media to the fittings!
11. Disposal
The disk type non-return valves must be disassembled in accordance with the disassembly steps described in the
operating instructions (See the “Disassembly – Assembly” chapter).
Dispose of disk type non-return valves according to local provisions and guidelines in country of use

Operating Instructions
Disk type non-return valves
RV Solid series
Type: P740, P741, P745, P750 and P760
DN 010 – 150, OD 0.50” – 6.00”, ISO 008 – 125
18 / 34
Copy of the original operating instructions
BAA RV Solid
en
12. Technical data
12.1. Dimensions
DN Pipe ø øD1øD2øD3øD4øD5øD6øD7øD8øG L1L2L3L4L5L6
DN 010 13 x 1.5 13.0 10.0 43.0 65.0 34.0 43.0 62.5 43.0 Rd 28 x 1/8" 68.0 64.0 60.0 110.0 88.5 109.0
DN 015 19 x 1.5 19.0 16.0 43.0 65.0 34.0 43.0 62.5 43.0 Rd 34 x 1/8" 52.0 64.0 60.0 110.0 82.5 103.0
DN 020 23 x 1.5 23.0 20.0 43.0 65.0 34.0 43.0 62.5 43.0 Rd 44 x 1/6" 52.0 64.0 60.0 110.0 85.5 109.0
DN 025 29 x 1.5 29.0 26.0 55.0 77.0 50.5 55.0 84.0 55.0 Rd 52 x 1/6" 75.0 75.0 75.0 125.0 103.5 132.0
DN 040 41 x 1.5 41.0 38.0 68.5 92.0 50.5 68.5 96.0 68.5 Rd 65 x 1/6" 80.0 80.0 80.0 130.0 112.5 145.0
DN 050 53 x 1.5 53.0 50.0 85.0 104.0 64.0 85.0 109.0 85.0 Rd 78 x 1/6" 82.5 82.5 82.5 132.5 117.0 151.5
DN 065 70 x 2.0 70.0 66.0 104.0 123.0 91.0 104.0 126.0 104.0 Rd 95 x 1/6" 89.0 89.0 89.0 139.0 128.5 168.0
DN 080 85 x 2.0 85.0 81.0 126.0 130.0 106.0 126.0 141.0 126.0 Rd 110 x 1/4" 99.0 99.0 99.0 149.0 143.5 188.0
DN 100 104 x 2.0 104.0 100.0 153.0 159.0 119.0 153.0 161.0 153.0 Rd 130 x 1/4" 114.0 114.0 114.0 164.0 167.5 221.0
DN 125 129 x 2.0 129.0 125.0 190.0 203.0 155.0 190.0 200.0 190.0 Rd 160 x 1/4" 146.0 146.0 138.0 198.0 191.5 237.0
DN 150 154 x 2.0 154.0 150.0 227.0 241.0 183.0 227.0 230.0 227.0 Rd 190 x 1/4" 162.5 162.5 152.5 212.5 212.0 261.5
Welding end / Welding end
DIN 11866
Sandwich style
Welding end DIN 11866
Welding end / Thread
DIN 11866 / DIN 11851
Thread / Thread
Size in mm

Operating Instructions
Disk type non-return valves
RV Solid series
Type: P740, P741, P745, P750 and P760
DN 010 – 150, OD 0.50” – 6.00”, ISO 008 – 125
19 / 34
Copy of the original operating instructions
BAA RV Solid
en
DN Pipe ø øD1øD2øD3øD4øD5øD6øD7øD8øG L1L2L3L4L5L6
OD 0.50" 12.70 x 1.65 12.70 9.40 43.0 65.0 25.0 43.0 62.5 ------ ---------------- 68.0 67.0 60.0 110.0 ------ ------
OD 0.75" 19.05 x 1.65 19.05 15.75 43.0 65.0 25.0 43.0 62.5 ------ ---------------- 64.0 67.0 60.0 110.0 ------ ------
OD 1.00" 25.40 x 1.65 25.40 22.10 55.0 77.0 50.5 55.0 84.0 ------ ---------------- 78.0 75.0 75.0 125.0 ------ ------
OD 1.50" 38.10 x 1.65 38.10 34.80 68.5 92.0 50.5 68.5 96.0 ------ ---------------- 82.0 80.0 80.0 130.0 ------ ------
OD 2.00" 50.80 x 1.65 50.80 47.50 85.0 104.0 64.0 85.0 109.0 ------ ---------------- 84.5 82.5 82.5 132.5 ------ ------
OD 2.50" 63.50 x 1.65 63.50 60.20 104.0 123.0 77.5 104.0 126.0 ------ ---------------- 94.0 94.0 94.0 144.0 ------ ------
OD 3.00" 76.20 x 1.65 76.20 72.90 126.0 130.0 91.0 126.0 141.0 ------ ---------------- 104.0 104.0 104.0 154.0 ------ ------
OD 4.00" 101.60 x 2.11 101.60 97.38 153.0 159.0 119.0 153.0 161.0 ------ ---------------- 116.0 114.0 114.0 164.0 ------ ------
OD 6.00" 152.40 x 2.77 152.40 146.86 227.0 241.0 167.0 227.0 230.0 ------ ---------------- 164.5 162.5 152.5 212.5 ------ ------
ISO 008 13.5 x 1.6 13.50 10.30 43.0 65.0 25.0 43.0 62.5 ------ ---------------- 68.0 67.0 60.0 110.0 ------ ------
ISO 010 17.2 x 1.6 17.20 14.00 43.0 65.0 25.0 43.0 62.5 ------ ---------------- 64.0 67.0 60.0 110.0 ------ ------
ISO 015 21.3 x 1.6 21.30 18.10 43.0 65.0 50.5 43.0 62.5 ------ ---------------- 62.0 64.0 60.0 110.0 ------ ------
ISO 020 26.9 x 1.6 26.90 23.70 55.0 77.0 50.5 55.0 84.0 ------ ---------------- 75.0 75.0 75.0 125.0 ------ ------
ISO 025 33.7 x 2.0 33.70 29.70 68.5 92.0 50.5 68.5 96.0 ------ ---------------- 85.0 80.0 80.0 130.0 ------ ------
ISO 040 48.3 x 2.0 48.30 44.30 85.0 104.0 64.0 85.0 109.0 ------ ---------------- 82.5 82.5 82.5 132.5 ------ ------
ISO 050 60.3 x 2.0 60.30 56.30 104.0 123.0 77.5 104.0 126.0 ------ ---------------- 94.0 99.0 89.0 139.0 ------ ------
ISO 065 76.1 x 2.0 76.10 72.10 126.0 130.0 91.0 126.0 141.0 ------ ---------------- 104.0 104.0 99.0 149.0 ------ ------
ISO 080 88.9 x 2.3 88.90 84.30 153.0 159.0 106.0 148.0 161.0 ------ ---------------- 123.0 133.0 114.0 164.0 ------ ------
ISO 100 114.3 x 2.3 114.30 109.70 183.0 203.0 130.0 183.0 200.0 ------ ---------------- 151.0 165.0 138.0 198.0 ------ ------
ISO 125 139.7 x 2.6 139.70 134.50 217.4 241.0 155.0 217.4 230.0 ------ ---------------- 167.5 180.0 152.5 212.5 ------ ------
12.2. Weights
Weights (kg)
Valve
type DN 010 DN 015 DN 020 DN 025 DN 040 DN 050 DN 065 DN 080 DN 100 DN 125 DN 150
P740 0.77 0.72 0.77 1.19 1.67 2.20 3.04 4.26 6.04 11.50 17.40
P741 0.81 0.78 0.87 1.33 1.87 2.46 3.45 4.88 6.81 12.66 19.32
P745 0.73 0.66 0.66 1.06 1.48 1.94 2.64 3.65 5.23 10.33 15.44
P750 1.64 1.67 1.65 2.91 3.69 4.54 5.74 7.02 9.27 18.22 24.94
P760 0.64 0.62 0.60 1.02 1.26 1.66 2.42 3.19 4.34 9.39 13.74
Valve
type OD 0.50" OD 0.75" OD 1.00" OD 1.50" OD 2.00" OD 2.50" OD 3.00" OD 4.00" OD 6.00"
P745 0.73 0.70 1.11 1.54 2.02 2.89 4.03 5.50 15.96
P750 1.65 1.66 2.98 3.77 4.62 6.32 7.77 9.44 25.07
P760 0.62 0.61 1.04 1.29 1.70 2.34 3.14 4.29 12.67
Valve
type ISO 008 ISO 010 ISO 015 ISO 020 ISO 025 ISO 040 ISO 050 ISO 065 ISO 080 ISO 100 ISO 125
P745 0.73 0.67 0.66 1.06 1.62 1.97 2.91 4.04 6.29 10.89 15.72
P750 1.66 1.66 1.66 2.92 3.75 4.60 5.86 7.16 9.52 18.68 25.48
P760 0.63 0.63 0.78 1.03 1.32 1.71 2.46 3.16 5.12 9.83 13.89

Operating Instructions
Disk type non-return valves
RV Solid series
Type: P740, P741, P745, P750 and P760
DN 010 – 150, OD 0.50” – 6.00”, ISO 008 – 125
20 / 34
Copy of the original operating instructions
BAA RV Solid
en
12.3. Valve use
Application: disk type non-return valve
Use: hygienic processes
Shut-off tightness: 10 bar (145 psi) max.
Information/notice
If the column of water is less than 2 m in height (0.2 bar pressure), this may result in a
slight leak from the seal seat of the valve.
Please refer to the “Disassembly - Assembly” chapter for details of how to carefully
mount the O-ring.
13. Valve connection piping
13.1. Installation position
Preferred installation position: vertical
Information/notice
If the installation position is horizontal, increased wear and tear should be expected depending
on the operating conditions.
13.2. Valve connections
Connections: - Welding end
Detachable connection required for maintenance
- Threaded connection
- Clamp connection
- Small-flange connection
For welding instructions, refer to the “Welding and Mounting Instructions” chapter.
13.3. Installation details for disk type non-return valves
Disk type non-return valve as per the assembly instructions.
Weld or mount the disk type non-return valve into the pipeline.
Information/notice
Welding instruction
Dismantle the seals before welding.
Shrink-wrap valve body free from tension and distortions.
Welding work must only be carried out by qualified skilled personnel (DIN EN ISO 9606-
1 W8).
Assembly instructions
No foreign matter must remain in the pipeline when the valves are assembled.
For assembly instructions, refer to the “Disassembly - Assembly” chapter.
0
