OWNER'S MANUAL
Hydraulic-Motor Frame Mounted
Centrifugal Pump Direct Coupling Drive
© 2013 Pentair, Ltd. All Rights Reserved. BE583 (Rev. 02/25/13)
INSTALLATION AND OPERATING INSTRUCTIONS
REPAIR PARTS LIST
3949 0401
IMPORTANT
For best possible performance and continuous, satisfactory operation,
read these instructions before installing your new pump.
Should service be required, this manual can be a valuable guide.
It should be kept near the installation for ready reference.
Record nameplate data from pump on blank nameplate inside this
manual for future reference.

Page
  ................................................................................................................................. 3
 
General Information .................................................................................................................. 3
 
Check Pump Rotation............................................................................................................... 4
Priming.................................................................................................................................. 
 
General Pump Care.............................................................................................................. 
Packing ..................................................................................................................................... 9

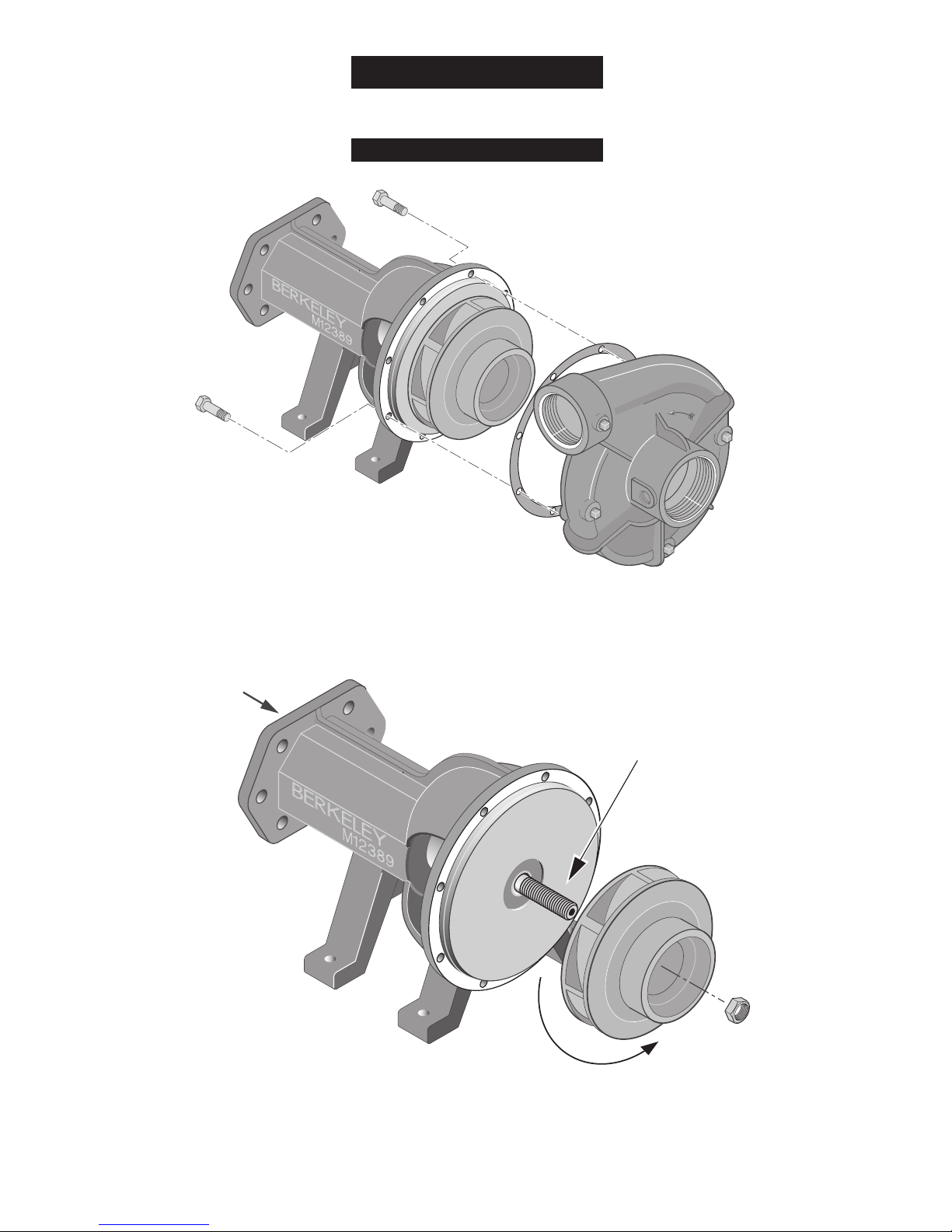

Impeller Replacement.............................................................................................................10
Shaft Maintenance/Replacement............................................................................................11
 
Parts Breakdown...............................................................................................................
  .....................................................................................................14
  .......................................................................................................................15
Page 2 BE583
Table of Contents



This is the safety alert symbol. When you see this
symbol on your pump or in this manual, look for one of
the following signal words and be alert to the potential
for personal injury.
warns about hazards that will cause
serious personal injury, death or major property
damage if ignored.
warns about hazards that will or can
cause serious personal injury, death or major property
damage if ignored.
warns about hazards that will or can
cause minor personal injury or property damage if
ignored.
The label  indicates special instructions which
are important but not related to hazards.
Carefully read and follow all safety instructions in this
manual and on pump.
Keep safety labels in good condition.
Replace missing or damaged safety labels.
Do not allow pump, piping, or any other system
component containing water to freeze. Freezing may
damage system, leading to injury or flooding. Allowing
pump or system components to freeze will void
warranty.
Pump approved liquids only with this pump.
Periodically inspect pump and system components.
Wear safety glasses at all times when working on
pumps.
Keep work area clean, uncluttered and properly
lighted; store properly all unused tools and equipment.
Keep visitors at a safe distance from the work areas.

This product and related accessories
contain chemicals known to the State of California to
cause cancer, birth defects or other reproductive harm.
:
Careful attention should be taken to assure that Net
Positive Suction Head Available (NPSHA) exceeds Net
Positive Suction Head Required (NPSHR) by the pump
or reduced performance and severe pump damage
may result. See Figure 3, Page 5.
 Subtract 1.2 feet from the NPSHA for each
1000 feet of elevation above sea-level.
     
  Use care and proper lifting equipment when
handling pump for installation. Size and weight of some
units will require hoists for safe handling.
When properly positioned, the unit will be level, and
the suction and discharge openings of the pump will be
aligned with system piping.
:
System piping should be at least one commercial pipe
size larger than pump connections and flow velocity
should not exceed eight (8) feet per second. Suction
and discharge pipes must be naturally aligned with
pump connections.
 Misalignment of piping with pump case or
excessive pipe strain can cause distortion of pump
components resulting in rubbing, breakage and
reduced pump life.
Insure that piping is supported in a manner that
prevents the exertion of force on pump connections.
This can be checked by the following procedure. With
the pump shut down, remove pipe flange bolts. If the
mating flanges come apart or shift, misalignment is
present and causing pressure on the connections.
Adjust pipe supports until flanges mate without any
force. This procedure can be done throughout piping
system.
BE583 Page 3
General Information
Safety First


Stay clear of equipment and
keep shields in place while
pump is running.
Stop motor or engine before
servicing pump.
Read owner’s manual before
using equipment.


Page 4 BE583
General Information
Safety First
 :
Before pump is put into operation, rotational direction
must be checked to assure proper performance of
pump. See Figure 1.
This pump has
Rotation
when viewed from this end.
Start pump momentarily
to observe direction
of rotation.
C
l
o
c
k
w
i
s
e
r
o
t
a
t
i
o
n
As viewed
12
6
39
C
o
u
n
t
e
r
c
l
o
c
k
w
i
s
e
r
o
t
a
t
i
o
n
As viewed
12
6
39
This pump has

Rotation when viewed from this end.
3950 0401

MODEL S.N. OR DATE
IMPELLER DIA. B.M.
788 0394
B54598
G100894
B3TPMS
6-1/8"
MODEL S.N. OR DATE
IMPELLER DIA. B.M.
344 1093
Record your nameplate data here.

Locate the Berkeley nameplate on the pump. The
plate is normally on the bearing bracket. Information
found on this plate is shown below. To be sure of
receiving correct parts, provide all nameplate data
when ordering. The     number
is most important.
Write your nameplate information on the blank
nameplate below for future reference as nameplates
can become worn or lost.

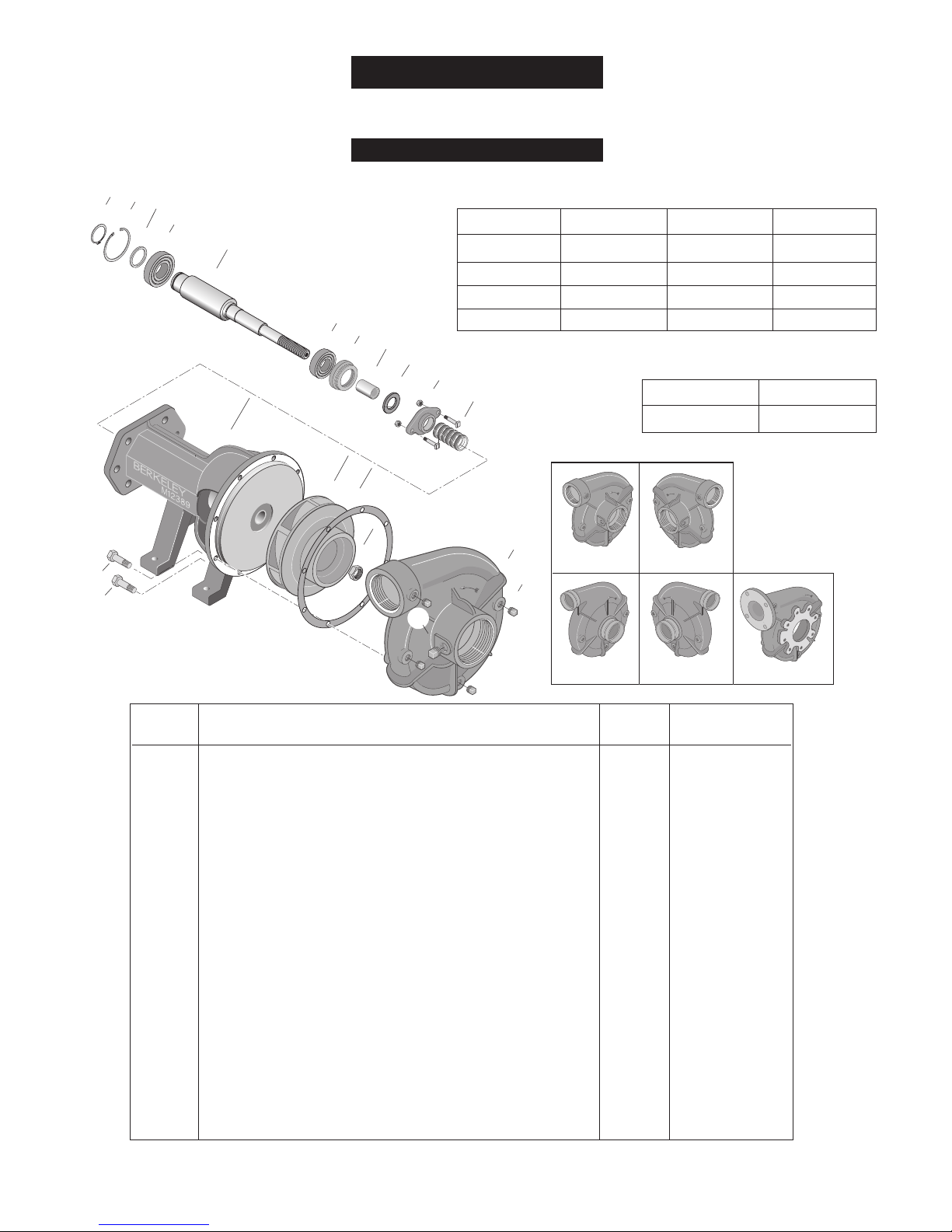

Refer to the exploded view drawing on Page 12
when ordering any replacement parts.
Sample Nameplate Record Your Nameplate Data Here

BE583 Page 5

Pump priming is the displacement of air with water
in the pump and suction piping. Pump 
completely filled with water when operating.
Refer to Page 6 for instruction on priming the pump
with suction lift (water source below pump), using the
Han-Dee Primer.
:
 Never run pump dry. Running pump without
water will overheat pump and damage internal parts.
Always make sure pump is primed prior to start-up.
 If pump has packing, refer to maintenance
section for adjustment prior to start-up.
Prime pump. Turn on power to pump.
Check with motor instruction and operation manual
or motor manufacturer to determine how rotation is
defined, then use illustration on Page 4 for proper
connection.
Pump Priming
Start-up
Maximum
Suction Lift
is 18' with
foot valve
3951 0401

EXAMPLE
ONLY
A Model B3ZRM operating
at 450 GPM with 68 Feet of
Head has a  of .......... 
A Model B3ZRM operating
at 550 GPM with 58 Feet of
Head has a  of........... 
Static Lift = 7.0 Feet 7.0 Feet
9.5 Feet
16.5 Feet
16.5 Feet
Theoretical static
lift of centrifugal
pump at sea level =
Total = 15.5 Feet
Total Friction Loss = 8.5 Feet
Safety Factor - 6.0 Feet
Minus 15.5 Feet
Practical Limit = 28.0 Feet 28.0 Feet

34.0 Feet 34.0 Feet
-6.0 Feet



300 400 500 600 700 800
0
10
20
30
30
40
60
80
100
TDH
NPSH in Feet
Gallons Per Minute

NPSHR at this point
= 10 Feet NPSHR at this point
= 14 Feet
B3ZRM
1800 RPM
450 GPM 550 GPM
3952 0401

7 Feet
Static Lift
8.5 Feet total friction loss
@ 450 Gallons per minute.
9.5 Feet total friction loss
@ 550 Gallons per minute.


Page 6 BE583

• Open air vent (or pipe plug)in the highest tapped
opening in pump case.
• Open inlet isolation valve, allowing water to fill the
pump completely. This will force all air out through
vent.
• Rotate shaft slowly allowing any air trapped in
impeller to escape.
• Closeventopeningwhenwaterwithoutairemerges.

 Pump must be primed before operation. Use
engine vacuum or hand primer when water source is
below pump.
• Closedischargeprimingvalve.
• Han-DeePrimeroperation:
1.OpenHan-DeePrimerisolationvalve.
2. Work handle of Han-Dee primer up and down to
evacuate air from the suction line.
(Refer to primer owner’s manual for proper
procedure).
3. When water flows freely from primer, close Han-
Dee Primer isolation valve.
(Pump case should now be filled with water).
• Immediatelystartpump.
• Slowly open discharge valve (if used) until desired
flow is achieved.
(Discharge Priming Valve will open automatically).
Pump Priming
Start-up



3953 0401
Suction to
Water Source
Primer Isolation
Valve



:
LIQUID END of pump requires no lubrication. Wear
rings and packing rings are lubricated by the liquid
being pumped. Do not run dry!
:
Periodically check the output of the pump. If perform-
ance is noticeably reduced, refer to Troubleshooting
Chart.

When the pump and system operation have been
stabilized, verify that pump unit is operating properly.
Observethefollowing:
Vibration: All rotating machines can be expected to
produce some vibration, however, excessive vibration
can reduce the life of the unit. If the vibration seems
excessive, discontinue operation, determine cause of
the excessive vibration, and correct.
Noise: When the unit is operating under load, listen
closely for unusual sounds that might indicate that the
unit is in distress. Determine the cause and correct.
Operating Temperature:During operation, heat is
dissipated from the pump and the driver. After a short
period of time, the surface of the pump bracket will be
quite warm (as high as 150°F), which is normal. If the
surface temperature of the pump bracket or driver is
excessive, discontinue operation, determine cause of
the excessive temperature rise, and correct. Bearings
will run hotter for a brief run-in period after packing
which is normal. However, worn bearings will cause
excessive temperatures and need to be replaced. The
pump unit is cooled by the water flowing through it, and
will normally be at the temperature of the water being
pumped.
STUFFING BOX: After a short period of operation,
verify that the stuffing box area and gland are not
hot. If heating is detected, loosen the gland nuts
evenly until water is just running out of stuffing box
in a DROPLET form (approximately 40-60 drops per
minute). Water must not be streaming or spraying
out. Verify cool operation periodically. Adjust gland
nuts EVENLY as necessary for lubrication and cooling
of the packing. If packing has been tightened to the
limit of the packing gland travel, additional packing is
necessary.
Onlyadjustpackingglandnutswhenpumpis
running. If the pump is stopped and you think that the
packing gland needs adjusting, start the pump before
adjusting the nuts.
Starting new pump.
Before starting pump for the first time, loosen gland
nuts and retighten finger tight. Proceed with pump
start-up procedure. Allow packing to leak liberally for a
few moments. Then, with pump running, tighten gland
nuts one complete turn at a time each until leakage is
reduced to 40 to 60 drops per minute.
:
Refer to illustration on Page 9.


SYSTEM DRAINS: Provide drain valves to empty
system, including pump case, to prevent freezing
damage.
SHELTER: If possible, provide shelter for unit to
protect it from weather. Allow adequate space around
pump unit for service. When effectively sheltered, a
small amount of heat will keep temperature above
freezing. Provide adequate ventilation for unit when
running. Protect truck-mounted pumps from flying
debris.
CONDENSATION:When the temperature of metal
parts is below dew point and the surrounding air is
moist, water will condense on the metal surfaces and
can cause corrosion damage. In severe situations, a
space heater can be installed to warm the unit.
BE583 Page 7
General Information
Maintenance


A well maintained pumping system will extend the life
of the unit and will require fewer repairs. This means
less down time which can be very critical when a
constant delivery of water is required.
A routine maintenance and inspection schedule should
be set up on a weekly, quarterly, and annual basis with
records kept of these actions. For weekly checks see
observational maintenance on Page 7. For quarterly
and annual maintenance, refer to check list on the
following page. Copy page as necessary for continual
usage.

It is recommended that the following spare parts be
kept on-site as a minimum back-up to service your
pump and reduce down-time. Check your model/style
against parts breakdown drawing on Page 12 when
selecting spares.
• PackingSetandPackingHooks
• ShaftSleeve(s)
• ShaftKit
• RetainingRings
If having a pump non-operational has severe con-
sequences, a back-up pump should be considered.
Otherwise, a back-up impeller, volute case, bearings
and shaft, would be prudent.

If pump is to be out of service for an extended period of
time, such as the winter months, the following storage
procedures should be followed.
• Remove exterior dirt and grime or any substance
that may trap moisture. Exposed metal is subject to
oxidation, prime and repaint if necessary. If this is
not possible, coat with grease or heavy oil.
• Flush suction and discharge lines. Check for leaks
at this time and replace any worn gaskets.
• Remove lowest plug in pump and drain pump
casing and suction and discharge lines.
• If possible, keep unit clean and dry during storage
period to guard against corrosion.
• Sealallopenportstokeepoutforeignobjectssuch
as insects, rodents, dust and dirt.
• Rotatedrivershaftperiodicallytopreventfreeze-up
of internal components.
• Shelterunitfromelementsifpossible.
• Work oil into impeller wear ring by dripping oil into
the gap while rotating by hand.

• Visualinspection.
• Rotatebyhand,ifanybindingoccurs,disassemble
and inspect.
Page 8 BE583
Maintenance
General Pump Care

• Unfasten hardware holding Packing Gland in place
and slide back on shaft to expose packing rings. A
solid Packing Gland with bolts is shown.
• Remove packing rings from Stuffing box using two
commercially available Packing Hooks as shown.
• Slide Lantern Ring (if used) back to expose any
remaining rings, including metallic. Remove them in
the same manner.
BE583 Page 9
Packing Ring Replacement
Maintenance
Removal
• CleanshaftsleeveandPackingGland.
• Inspectshaftsleeveforwear,replaceifneeded.
• Install new packing rings in stuffing box by placing
them over shaft sleeve and pushing them in as far
as they will go.
• Rotate ring joint 90 degrees when installing each
ring as shown.
• Slide packing gland into position, then gently and
evenly tighten nuts to force rings into place and seat
(do not overtighten). Loosen nuts again to hand tight.
• Start primed pump and allow packing to leak
liberally.
• While pump is running, tighten gland nuts one
complete turn at a time each until leakage is
reduced to 40 to 60 drops per minute.
Installing New Rings
3955 0401
Metallic Ring
Lantern Ring
Stagger ring
joints 90 degrees
apart.
Packing
Rings

Shaft
Pump liquid end removed
for  only.
Procedure and
parts may vary
slightly depending
on pump model.
Packing
Gland
Packing
Hook
Packing
Ring
3954 0401
Shaft
Pump liquid end removed
for  only.
Shaft
2
1

• Removevolutetoexposeimpeller.
• PeeloffoldgasketorO-Ringanddiscard.
Page 10 BE583
Impeller Replacement
Maintenance
Threaded Shaft
• Holdimpellerstationaryandremoveimpellerscrew
and associated hardware.
• Holdshaftstationaryandremoveimpellerbyturning
the direction shown for either clockwise or counter-
clockwise pump rotation.
 Do not use impeller vanes for leverage.
• Reverse steps for reassembly. Use a new gasket
or O-Ring when reassembling to prevent leakage
(a coat of grease on gasket will aid in future
disassembly and maintenance.
3956 0401
3957 0401
R
E
M
O
V
E
 as viewed
from shaft end.
Thread
Hold shaft
stationary
being careful
not to damage
shaft.
A
pump that rotates
counterclockwise
will have a left-hand
thread on the shaft
for both the impeller
and the locknut.


• Periodically tear down the bearing frame shaft
assembly to check shaft, sleeve and bearings
for pitting or wear. At the same time, inspect the
shaft for worn parts, and clean and re-grease it.
Replace worn components as necessary. Parts
may be ordered separately as required, or for some
models, shaft kits are available that are completely
assembled and ready for installation.

• Removepumpvolute andimpellerasdescribedon
Page 10.
• Removepackingglandandpackingarrangementas
described on Page 9.
• Removethehydraulicmotorfromthebracket
flange.

Be sure to relieve all pressure on hydraulic lines
before breaking connections or removing lines.
• Remove the large C-clip from the bearing housing.
Remove the bearing cap from the bracket and slide
the shaft and bearing assembly out of the bracket.
• Cleanandinspectallcomponents.

• Thoroughlysteamcleanorsolventwashthebearing
cavity in the bearing bracket to remove old grease
and dirt. Check surface of bracket for cracks,
extreme corrosion, or other defects that may make
replacement of the bracket necessary.
• Coatthebearingboresofbracketwithoil.Orientshaft
assembly in the direction shown above. Slide shaft
and bearing assembly into bearing bracket. When
threaded end of pump shaft comes through inner
bearing bore, place the bearing cap, packing gland
and lantern ring over the end of the shaft. Slide shaft
on through stuffing box until the first bearing makes
contact with the bracket. Carefully align bearing with
the bearing bore and press or tap bearing assembly
into place. Do not use excessive force.
• Reassemblepump parts andreinstall unit inpiping
system. Refer to Installation section in this manual
for correct procedure.
• Reinstall hydraulic motor on bracket. Follow
procedures in motor owner’s manual.
BE583 Page 11
Shaft Maintenance/Replacement
Maintenance
3960 0401



Procedure and parts may vary slightly depending
on pump model.

Page 12 BE583
Parts Breakdown
B3ZRM Bearing Frame Mount
Pump Nomenclature
800A
800B
35
802
13
14
24
17
40
19
2
6
73
18
16
816
817
72
800C
4570 0404
1
810A
810B
B81203
B80357 B80360
B81204 B81205
   
    
1 Volute 1 See Chart
2 Impeller (Clockwise Rotation) 1 M13582
2 Impeller (Counterclockwise Rotation) 1 M13583
6 Shaft (Clockwise Rotation) 1 1000000880*
6 Shaft (Counterclockwise Rotation) 1 1000000879*
13 Packing Ring 6 S08281
14 Shaft Sleeve 1 S05127*
16 Single Row Ball Bearing - Small 1 M12395*
17 Packing Gland 1 S04948
18 Single Row Ball Bearing - Large 1 M12394*
19 Bracket 1 M12389
24 Impeller Nut (Clockwise Rotation) 1 M10220
24 Impeller Nut (Counterclockwise Rotation – LH Thread) 1 U36-189SS
35 Inner Bearing Cap 1 S19033
40 Slinger 1 S12260
72 Washer 1 M12392*
73 Volute Gasket 1 S05126
800A 3/8-16x7/8” Lg. Hex Hd. Capscrew 6 S26825
800B 3/8-16x1-1/8” Lg. Hex Hd. Capscrew 2 S26827
800C 3/8-16 Sq. Hd. Machine Bolt 2 S23761
802 3/8-16 BRS Hex Nut 2 S23343
810A 1/4” NPT Sq. Hd. Pipe Plug 4 S23715
810B 1/2” NPT Sq. Hd. Pipe Plug 1 S23717
816 Bearing Retaining Ring 1 M12486*
817 Shaft Retaining Ring 1 M12487*

B80519 CW
B80518 CCW
* Items included in the Shaft Replacement Kit.
    
B80357 CW H00689 NPT
B80360 CCW H00698 NPT
B81203 CW H04040 Victaulic
B81204 CCW H04041 Victaulic
B81205 CW H05130 Flanged

BE583 Page 13
Parts Breakdown
B4ZRK Bearing Frame Mount
Pump Nomenclature
800A
800B
35
802B
13
14
24
17
40
19
2
6
73
67
18
16
816 817 72
800F
3984 0501
1
9
800
800
802A
835
804A
804B
810A
810B
810B
73B
850
800
   
    
1 Volute 1 H02505
2 Impeller 1 M13584
 • ImpellerSpacer 1 S15405
6 Shaft (Clockwise Rotation) 1 1000000880*
9 Suction Cover 1 L04108
13 Packing Ring 6 S08281
14 Shaft Sleeve 1 S05127*
16 Single Row Ball Bearing - Small 1 M12395*
17 Packing Gland 1 S04948
18 Single Row Ball Bearing - Large 1 M12394*
19 Bracket 1 M12389
24 Impeller Nut (Clockwise Rotation) 1 M10220
35 Inner Bearing Cap 1 S19033
40 Slinger 1 S12260
72 Washer 1 M12392*
73A Volute Gasket 1 S05126
73B Blind Gasket 1 S10364
800A 3/8-16 x 1” Lg. Hex Hd. Capscrew 6 S26826
800B 3/8-16 x 1-1/8” Capscrew 2 S26827
800C 3/8-16 x 3/4” Capscrew 1 S26824
800D 5/8-11 x 1-3/4” Capscrew 4 S27001
800E 3/8-16 x 1-1/4” Lg. Hex Hd. Capscrew 7 S26828
800F 3/8-16X2-1/2”Sq.Hd.MachineBolt 2 S23762
802A 3/8-16 Hex Nut, SS 1 S23103
802B 3/8-16 BRS Hex Nut 2 S23343
804A Clack Weight 1 S14842
804B Clack Weight 1 S15325
810A 1/2” NPT Sq. Hd. Pipe Plug 1 S23717
810B 1-1/2” MPT Sq. Hd Pipe Plug 2 S23695
816 Bearing Retaining Ring 1 M12486*
817 Shaft Retaining Ring 1 M12487*
835 Rubber Clack 1 L04119
850 Companion Flange 1 S15933
 
B80468 CW

B80519 CW
•NotIllustrated.
* Items included in the Shaft Replacement Kit.

Page 14 BE583
Troubleshooting
Maintenance
Engine Drive Pumps
      

A. Speed too low Refer to engine manufacturer’s manual.
B. Rotating and/or Refer to engine manufacturer’s manual.
reciprocating parts drag
C. Speed too high Refer to pump and engine power curves. Adjust.
D. Loose or broken parts Refer to engine manufacturer’s manual.

 A. Flow through pump completely or Locate and remove obstruction. Refer to Repair Instructions
partially obstructed for disassembly.
B. Wrong direction of rotation Reverse rotation of three phase motor by interchanging any two leads.
See manufacturer’s Instructions for reversing single phase motor.
C. Pump not primed Reprime. Inspect suction system for air leaks.
D. Internal leakage Check impeller for wear of controlled clearances (See Repair Instructions).
E. Loose parts Inspect. Repair.
F. Stuffing box not properly adjusted Adjust gland.

A. Pressure required by system at design Compare pump pressure and flow rate against pump characteristic curve.
flow rate exceeds pressure rating of pump Check for closed or partially closed valve in discharge piping system.
Reduce system pressure requirement. Increase pressure capability of pump.
 B.Obstructioninsuctionpiping Locateandremoveobstruction.
C. Pressure rating of pump exceeds pressure Compare pump pressure and flow rate against pump characteristic curve.
requirement of system at design flow rate Inspect discharge piping system for breaks, leaks, open by-pass valves, etc.
If necessary, reduce flow rate by partially closing discharge valve.
       
    
    
              
 Pumpruns,butnowaterdelivered X X   X  X    X X
 Notenoughwaterdelivered X X   X X  X   X X
 Notenoughpressure X X   X X  X   X X
 Excessivevibration   X X X X   X   X X
 Abnormalnoise   X X X X X  X X  X X
 Pumpstops  X  X          
 Overheating  X X X  X  X X X   X

BE583 Page 15
Warranty
Berkeley

BERKELEY warrants to the original consumer purchaser (“Purchaser” or “You”) of the products listed below, that they will be
free from defects in material and workmanship for the Warranty Period shown below.
 

Water Systems Products — jet pumps, small centrifugal pumps, submersible pumps and
related accessories
whicheveroccursfirst:
12 months from date of original installation, or
18 months from date of manufacture
Pro-Source™ Composite Tanks 5 years from date of original installation
Pro-Source™ Steel Pressure Tanks 5 years from date of original installation
Pro-Source™ Epoxy-Lined Tanks 3 years from date of original installation
Sump/Sewage/Effluent Products 12 months from date of original installation, or
18 months from date of manufacture
Agricultural/Commercial:
Centrifugals – close-coupled motor drive, frame mount, SAE mount, engine drive, VMS,
SSCX,SSHM,solidshandling,submersiblesolidshandling
12 months from date of original installation, or
24 months from date of manufacture
Submersible Turbines, 6” diameter and larger 12 months from date of original installation, or
24 months from date of manufacture
Ourlimitedwarrantywillnotapplytoanyproductthat,inoursolejudgement,hasbeensubjecttonegligence,misapplication,
improper installation, or improper maintenance. Without limiting the foregoing, operating a three phase motor with single phase
power through a phase converter will void the warranty. Note also that three phase motors must be protected by three-leg,
ambient compensated, extra-quick trip overload relays of the recommended size or the warranty is void.
Your only remedy, and BERKELEY’s only duty, is that BERKELEY repair or replace defective products (at BERKELEY’s
choice). You must pay all labor and shipping charges associated with this warranty and must request warranty service through
the installing dealer as soon as a problem is discovered. No request for service will be accepted if received after the Warranty
Period has expired. This warranty is not transferable.
BERKELEYSHALLNOTBELIABLEFORANYCONSEQUENTIAL,INCIDENTAL,ORCONTINGENTDAMAGES
WHATSOEVER.
THEFOREGOINGLIMITEDWARRANTIESAREEXCLUSIVEANDINLIEUOFALLOTHEREXPRESSANDIMPLIED
WARRANTIES,INCLUDINGBUTNOTLIMITEDTOIMPLIEDWARRANTIESOFMERCHANTABILITYANDFITNESSFOR
APARTICULARPURPOSE.THEFOREGOINGLIMITEDWARRANTIESSHALLNOTEXTENDBEYONDTHEDURATION
PROVIDEDHEREIN.
Some states do not allow the exclusion or limitation of incidental or consequential damages or limitations on the duration of an
implied warranty, so the above limitations or exclusions may not apply to You. This warranty gives You specific legal rights and
You may also have other rights which vary from state to state.
This Limited Warranty is effective June 1, 2011 and replaces all undated warranties and warranties dated before June 1, 2011.


