1 Safety
1.1 Validity
The chapter “Safety” is valid as instruction manual.
Specific processes and instructions in this instruction manual require special provisions to
guarantee the safety of the operating personnel.
1.2 Symbols Used
This document contains symbols for the identification of warning messages and of informative
messages.
Warning Messages
You will find warning messages, whenever dangers may arise from your actions. It is mandatory
that you observe these warning messages for your personal safety and in order to avoid
property damage.
Depending on the risk level, the warning messages are displayed in descending order as
follows:
Informative Symbols
Action
This symbol indicates a paragraph with instructions. You are prompted to perform an action or
a sequence of actions.
1.3 System Operator and Personnel
Responsibility for planning, assembly, commissioning, operation, maintenance, and
dismounting lies with the plant operator.
The personnel must be appropriately trained and qualified in order to carry out mounting,
installation, commissioning, operation, maintenance, and dismounting of the device. The
trained and qualified personnel must have read and understood the instruction manual.
Danger!
This symbol indicates an imminent danger.
Non-observance will result in personal injury or death.
Warning!
This symbol indicates a possible fault or danger.
Non-observance may cause personal injury or serious property damage.
Caution!
This symbol indicates a possible fault.
Non-observance could interrupt the device and any connected systems and plants, or result in
their complete failure.
Note!
This symbol brings important information to your attention.

2018-07
6
VisuNet GMP RM/PC 200 series
Safety
1.4 Pertinent Laws, Standards, Directives, and further Documentation
Observe laws, standards, and directives applicable to the intended use and the operating
location. Observe Directive 1999/92/ C in relation to hazardous areas.
The corresponding datasheets, manuals, declarations of conformity, U-type examination
certificates, certificates, and control drawings if applicable (see datasheet) are an integral part
of this document. You can find this information under www.pepperl-fuchs.com.
Due to constant revisions, documentation is subject to permanent change. Please refer only to
the most up-to-date version, which can be found under www.pepperl-fuchs.com.
1.5 Intended use
The device is only approved for appropriate and intended use. Ignoring these instructions will
void any warranty and absolve the manufacturer from any liability.
The devices must not be repaired, changed or manipulated. If there is a defect, the product
must always be replaced with an original device.
1.6 Installation and commissioning
The device must only be operated in the specified ambient temperature range and at the
specified relative humidity without condensation.
Use shielded cable
To connect interfaces only use shielded cable.
Screwing/locking connectors
To advance the cable shield screw/lock the connectors.
The device must be disconnected from the power supply prior to installation and maintenance.
The power supply may be activated only after all the circuits required for operation have been
fully assembled and connected.
eading of data cables and power circuit lines
Lead data cable and power circuit line in separate cable channels.
Check cables and connectors
Before commissioning the system check all cables and connectors.

VisuNet GMP RM/PC 200 series
Product Specifications
2018-07
7
2 Product Specifications
2.1 Overview
GMP (“Good Manufacturing Practice”) is a set of guidelines for assuring the quality of
production processes in controlled industries and closely follow the guidelines issued by the
uropean Commission or the FDA in the US. GMP applications are typically used in the
pharmaceutical and food industries. However, products that conform with GMP guidelines are
also required for the manufacture of cosmetics, flavour and nutrition.
The materials selected, design of the surfaces and architecture of the overall system should
prevent the accumulation of fluids and dirt. Cleaning, maintenance, inspection and servicing
must be as safe and easy as the processes employed for the disinfection of mechanical
components.
The VisuNet GMP product portfolio extends from simple direct monitors and remote monitor
systems with thernet connection to a host, to complete PCs available with single or dual
monitor systems and various mounting options. Both, models with 19", 21.5" (Full HD) and 22"
displays (with optional touch screen) are available. The stainless steel housings have an IP65
degree of protection. Remote monitors and PCs are equipped with thernet, USB and
RS232/RS485 interfaces.
Figure 2.1 Several models
The VisuNet GMP product family guarantees a perfect fit for every system infrastructure. Four
models are available depending on the functions required, the display and input unit and the
distance over which the data is transferred. This manual describes the following two models:

2018-07
8
VisuNet GMP RM/PC 200 series
Product Specifications
VisuNet GMP PC - Special Features
■Available as 19'', 21.5" or 22'' monitor
■Network based data transfer via thernet
■Adapted for distances up to 100 m (or 2 km by using an optionbox)
VisuNet GMP RM - Special Features
■Available as 19'', 21.5" or 22'' monitor
■Can also be operated as xtended Desktop, Clone Display and with several host PCs
■Network based data transfer via thernet (optional RDP, VNC or ICA)
■Adapted for distances up to 100 m (or 2 km by using an optionbox)
2.2 Technical Data VisuNet GMP RM/PC219
The remote monitor automatically connects to
the host using RDP, ICA or VNC, enabling via
the network.

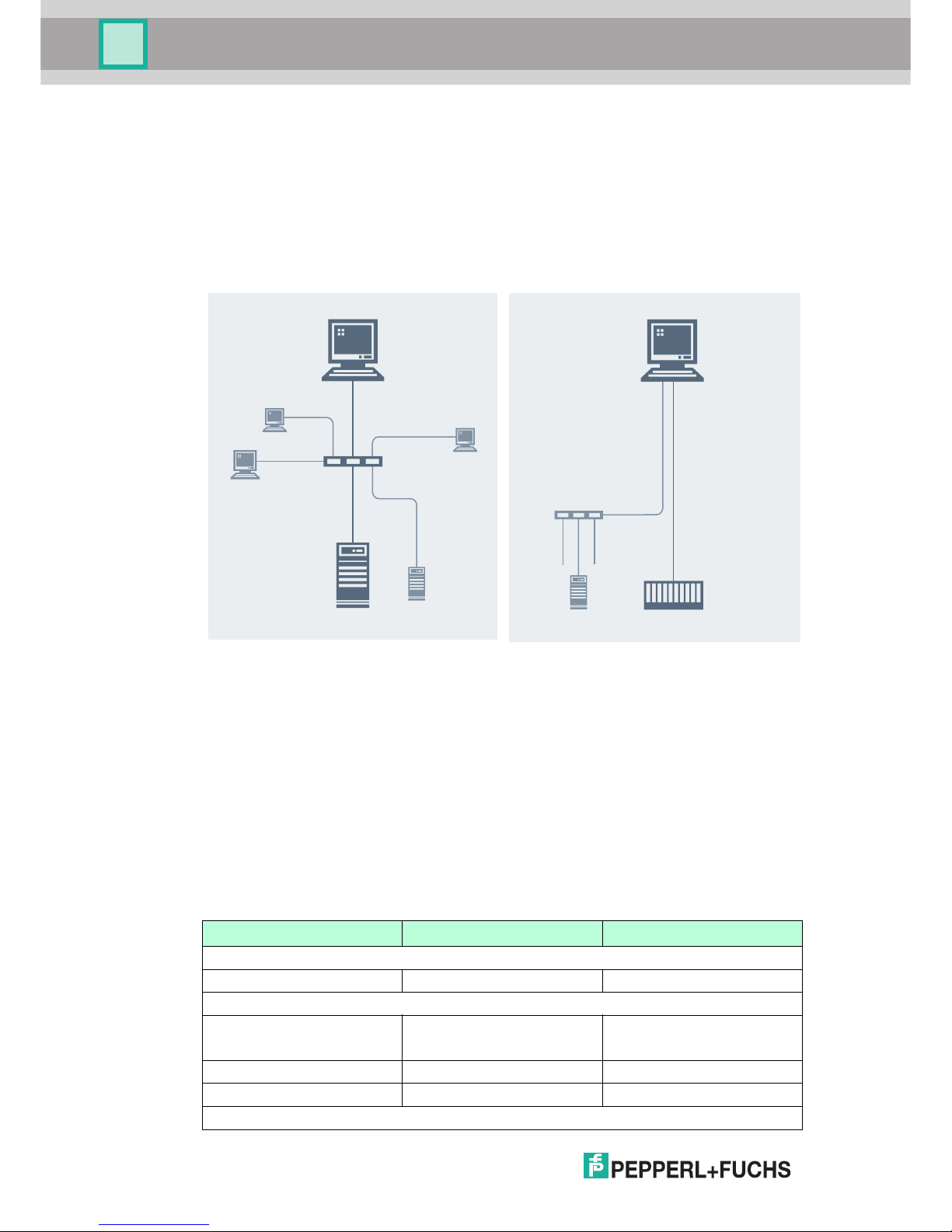

The following drawing shows a typical system
topology:
The complete panel PC system has many
standard interfaces (network, USB, serial).
The operating system used is Windows 7
Ultimate (32-bit or 64-bit) or Windows 10 IoT
Enterprise LTSB (x 64). Customers can,
therefore, install software packages for
control, visualization and production. The
system operates independently of any
external computing power.
The following drawing shows a typical system
topology:
RM
ETHERNET
SWITCH
HOST
RM
HOST
RM
RM
PC
PLC
ETHERNET
HOST
VisuNet GMP RM219 VisuNet GMP PC219
General specifications
Type Remote Monitor Panel PC
Hardware
Processor Thin Client - 1.46 GHz Intel®
Atom™ 3826
Intel® Atom™ 3826 1.46 GHz
RAM Up to 8 GB RAM
Mass storage 120 GByte Solid State Drive
Supply
4 GB RAM
compact flash: 32 GB CFAST

VisuNet GMP RM/PC 200 series
Product Specifications
2018-07
9
Rated voltage 24 V DC or 115 V AC / 230 V AC
Input voltage range 20 ... 30 V DC or 90 ... 240 V AC
Power consumption max. 60 W
Indicators/operating means
Display
Type TFT, LCD
Screen diagonal 48.3 cm (19 inch)
Resolution 1280 x 1024 Pixel
Color depth 16.7 Mio. (24 bit, true color)
Contrast 2000:1
Brightness 300 cd/m2
Life span 50.000 h @ 25 °C
Input devices Analog resistive touchscreen (optional) ,
Keyboard with integrated mouse functionality: optical
trackball/touchpad/joystick versions available
lectrical specifications
Inrush current
max. 100 A @ 240 VAC approx. 0.5 ms
Interface
Interface type 2x RS 232
2x USB (Usage depends on
chosen remote protocol)
2x USB (for keyboard/mouse
connection)
2x Network RJ45
2x RS 232
2x USB
2x USB (for keyboard/mouse
connection)
2x Network RJ45
Software
Operating system
Windows 7 mbedded
Standard (RM Shell 4) or
Windows 7 Ultimate F S (32-
bit or 64-bit) or Windows 10
Compliance with standards and directives
Standard conformity
lectrical safety N 60950-1 Class I equipment
Ambient conditions
Ambient temperature
0 ... 50 °C (32 ... 122 °F)
Altitude
2000 m above MSL (version AC)
Mechanical specifications
Degree of protection IP65
Material
Surface stainless steel 1.4301 / AISI 304
Surface quality Ra ≤ 0.8 µm
Mounting type slim line housing
several mounting types (pedestal, wall bracket, wall arm -
each turnable or fix) available
Mass approx. 12 kg
Dimensions 568 mm x 450 mm x 73 mm
VisuNet GMP RM219 VisuNet GMP PC219
Windows 10 IoT (RM Shell 5) IoT Enterprise LTSB (x 64)

2018-07
10
VisuNet GMP RM/PC 200 series
Product Specifications
2.3 Technical Data VisuNet GMP RM/PC221
VisuNet GMP RM221 VisuNet GMP PC221
General specifications
Type Remote Monitor Panel PC
Hardware
Processor Thin Client - 1.46 GHz Intel®
Atom™ 3826
Intel® Atom™ 3826 1.46 GHz
RAM Up to 8 GB RAM
Mass storage 120 GByte Solid State Drive
Supply
Rated voltage 24 V DC or 115 V AC / 230 V AC
Input voltage range 20 ... 30 V DC or 90 ... 240 V AC
Power consumption max. 60 W
Indicators/operating means
Display
Type TFT, LCD
Screen diagonal
54.6 cm (21.5 inch)
Resolution
1920 x 1080 pixel
Color depth 16.7 Mio. (24 bit, true color)
Contrast
5000:1
Brightness 300 cd/m2
Life span 50.000 h @ 25 °C
Input devices Analog resistive touchscreen (optional) ,
Keyboard with integrated mouse functionality: optical
trackball/touchpad/joystick versions available
lectrical specifications
Inrush current max. 100 A @ 240 VAC approx. 0,5 ms
Interface
Interface type 2x RS 232
2x USB (Usage depends on
chosen remote protocol)
2x USB (for keyboard/mouse
connection)
2x Network RJ45
2x RS 232
2x USB
2x USB (for keyboard/mouse
connection)
2x Network RJ45
Software
Operating system
Compliance with standards and directives
Standard conformity
lectrical safety N 60950-1 Class I equipment
Ambient conditions
Ambient temperature
0 ... 50 °C (32 ... 122 °F)
Altitude
2000 m above MSL (version AC)
Mechanical specifications
Degree of protection IP65
Windows 7 mbedded
Standard (RM Shell 4) or
Windows 7 Ultimate F S (32-
bit or 64-bit) or Windows 10
Windows 10 IoT (RM Shell 5) IoT Enterprise LTSB (x 64)
4 GB RAM
compact flash: 32 GB CFAST

VisuNet GMP RM/PC 200 series
Product Specifications
2018-07
11
2.4 Technical Data VisuNet GMP RM/PC222
Material
Surface stainless steel 1.4301 / AISI 304
Surface quality Ra ≤ 0.8 µm
Mounting type slim line housing
several mounting types (pedestal, wall bracket, wall arm -
each turnable or fix) available
Mass
approx. 13 kg
Dimensions
625 mm x 450 mm x 73 mm
VisuNet GMP RM221 VisuNet GMP PC221
VisuNet GMP RM222 VisuNet GMP PC222
General specifications
Type Remote Monitor Panel PC
Hardware
Processor Thin Client - 1.46 GHz Intel®
Atom™ 3826
Intel® Atom™ 3826 1.46 GHz
RAM Up to 8 GB RAM
Mass storage 120 GByte Solid State Drive
Supply
Rated voltage 24 V DC or 115 V AC / 230 V AC
Input voltage range 20 ... 30 V DC or 90 ... 240 V AC
Power consumption max. 60 W
Indicators/operating means
Display
Type TFT, LCD
Screen diagonal 55.9 cm (22 inch)
Resolution 1680 x 1050 pixel
Color depth 16.7 Mio. (24 bit, true color)
Contrast 1000:1
Brightness 300 cd/m2
Life span 50.000 h @ 25 °C
Input devices Analog resistive touchscreen (optional) ,
Keyboard with integrated mouse functionality: optical
trackball/touchpad/joystick versions available
lectrical specifications
Inrush current max. 100 A @ 240 VAC approx. 0,5 ms
Interface
Interface type 2x RS 232
2x USB (Usage depends on
chosen remote protocol)
2x USB (for keyboard/mouse
connection)
2x Network RJ45
2x RS 232
2x USB
2x USB (for keyboard/mouse
connection)
2x Network RJ45
4 GB RAM
compact flash: 32 GB CFAST

2018-07
12
VisuNet GMP RM/PC 200 series
Product Specifications
2.5 Dimensions VisuNet GMP PC/RM219
Figure 2.2 Dimensions VisuNet GMP PC/RM219
Software
Operating system
Compliance with standards and directives
Standard conformity
lectrical safety N 60950-1 Class I equipment
Ambient conditions
Ambient temperature 0 ... 45 °C (32 ... 113 °F)
Altitude
2000 m above MSL (version AC)
Mechanical specifications
Degree of protection IP65
Material
Surface stainless steel 1.4301 / AISI 304
Surface quality Ra ≤ 0.8 µm
Mounting type slim line housing
several mounting types (pedestal, wall bracket, wall arm -
each turnable or fix) available
Mass approx. 13 kg
Dimensions 625 mm x 450 mm x 73 mm
VisuNet GMP RM222 VisuNet GMP PC222
9
10
9
10
228.5
378
39.5
568
450
73
Windows 7 mbedded
Standard (RM Shell 4) or
Windows 7 Ultimate F S (32-
bit or 64-bit) or Windows 10
Windows 10 IoT (RM Shell 5) IoT Enterprise LTSB (x 64)

VisuNet GMP RM/PC 200 series
Product Specifications
2018-07
13

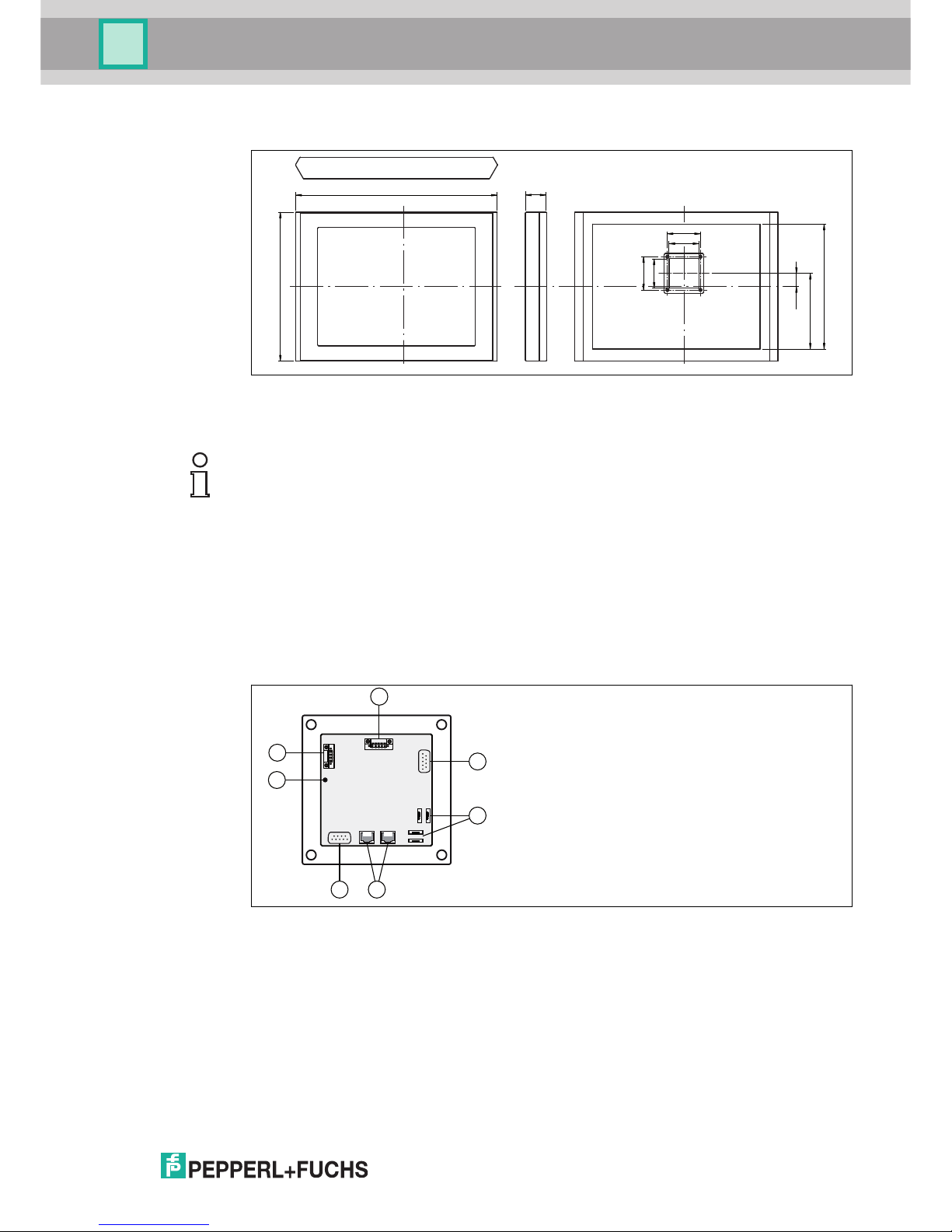

2.6 Dimensions VisuNet GMP PC/RM221 and PC/RM222
Figure 2.3 Dimensions VisuNet GMP PC/RM221 and PC/RM222
2.7 Image Sticking
2.8 Interfaces and Connections
The interfaces and connections of the VisuNet GMP are located within the V SA adapter at the
back of the housing.
Figure 2.4 V SA adapter at the back of the VisuNet GMP housing
9
10
9
10
228.5
378
39.5
625
450
73
Note!
Image Sticking
Displaying a fixed pattern may cause burn-in-effects (image sticking due to the LCD
characteristics).
To avoid image sticking change pattern frequently or activate screen saver.
Please note that damages at the display caused to burn-in-effects are not included in the
warranty.
A Serial interface RS 232/RS485 (COM3)
B4x USB (2x USB reserved fpr keyboard/mouse connection)
C2x network RJ45
DSerial interface RS 232 RS 232 (COM1)
EGrounding bolt (M4)
FPower supply Phoenix DFK-MSTB 2,5/ 4-GF-5,08
GConnection Barcode handheld (COM6)
1
4
16
6
1
1818
A
4
1
1
4
D
E
F
C
B
15
G

2018-07
14
VisuNet GMP RM/PC 200 series
Product Specifications
2.8.1 RS232/RS485
9-pin D-sub plug required for serial device connection. Connection layout according to IA-232
(RS232).
2.8.2 USB 2.0
4-pin USB socket (type A).
2.8.3 Network RJ 45
8-pin socket required for ethernet connection (10/100/1000 Base-TX).
Use Cat.5e cable (AWG24) or better for wiring.
2.8.4 Ground Connection
For connecting to a low resistance grounding point at the housing: see chapter 3.2.1
For connecting to a low resistance grounding point at pedestal/wall arm:
RS232 RS485
Picture Pin Signal Pin Signal
1 (Data) Carrier Detect 1 RS485 D-
2 Receive Data 2 n.c.
3 Transmit Data 3 RS485 D+
4 Data Terminal Ready 4 n.c.
5 GND 5 n.c.
6 Dataset Ready 6 n.c.
7 Request to Send 7 n.c.
8 Clear to Send 8 n.c.
9 Ring Indicator 9 GND
1
6 7 8 9
2 3 4 5
Picture Pin Signal Description
1 VCC USB power supply
2 USB- data
3 USB+ data
4 GND grounding
1 2 3 4
Picture Pin Signal
1 D1+ / TX+
2 D1- / TX-
3 D2+ / RX+
4 D3+
5 D3-
6 D2- / RX-
7 D4+
8 D4-
1 8

VisuNet GMP RM/PC 200 series
Product Specifications
2018-07
15
2.8.5 Supply Voltage 24 V
4-pin socket required for supply voltage connection (Phoenix Contact DFK-MSTB 2,5/ 4-GF-
5,08).
The VisuNet GMP KM has inverse-polarity protection.
Matching plug: Phoenix Contact MSTBT 2,5/ 4-STF-5,08
2.8.6 Supply Voltage 120/230 V (AC)
4-pin socket required for supply voltage connection (Phoenix Contact DFK-MSTB 2,5/ 4-GF-
5,08).
Matching plug: Phoenix Contact MSTBT 2,5/ 4-STF-5,08
2.8.7 Connection Barcode handheld
5-pin socket required for connecting Barcode handhelds (Phoenix Contact DFK-MSTB 2,5/ 5-
GF-5,08).
Matching plug: Phoenix Contact MSTBT 2,5/ 5-STF-5,08
Picture Pin Signal
1 GND
2 GND
3 + 24 V DC
4 + 24 V DC
1
2
3
4
41
Danger!
lectric shock
lectric shock with heaviest personal injury to death. Heaviest property damage.
Connect the 4-pin socket as shown in the following table. Only connect the voltage suppy when
the device is completely installed.
Picture Pin Signal 120/230 V AC
1 P
2 n. c.
3 L
4 N
1
2
3
4
41

2018-07
16
VisuNet GMP RM/PC 200 series
Product Specifications
2.9 Accessories
The following accessories are available.
2.9.1 Keyboards
There are several keyboard models available. All keyboards have an antibacterial coating. For
this reason the keyboards are perfectly suitable for environments with high hygienic standards.
Keyboard TA3-K4
Keyboard with touchpad for controlling the mouse pointer.
2 separate buttons below the touchpad assume the function of left and right mouse button.
Figure 2.5 Keyboard with touchpad
Picture Pin Signal
1 12 V
2 GND
3 Rx
4 Tx
5 n.c.
5
4
3
2
1
51
TA3-K4
General specifications
Type Keyboard with touchpad
Supply
Rated voltage via data line
Indicators/operating means
Keyboard 105 short stroke keys
Keyboard layout: US international, German,
French, (further keyboard layouts on demand)

VisuNet GMP RM/PC 200 series
Product Specifications
2018-07
17
Keyboard TA3-K6
Keyboard with joystick for controlling the mouse pointer.
2 separate buttons below the joystick assume the function of left and right mouse button.
Figure 2.6 Keyboard with joystick
Touchpad
Active Principle capacitive
Resolution 40 Pts./mm
Dimensions 66 x 50 mm
Driver Microsoft Mouse ® , USB
Interface
Interface type USB
Conformity
Protection degree IP65
Ambient conditions
Ambient temperature -20 ... 55 °C (-4 ... 131 °F)
Storage temperature -20 ... 70 °C (-4 ... 158 °F)
Relative humidity max. 85 % , non-condensing
Mechanical specifications
Material anodized aluminium , Polyester foil
Mass 1.2 kg
Dimensions 482.6 mm x 177.8 mm x 45 mm
Cable length 1.8 m , wire end ferrule
TA3-K6
General specifications
Type Keyboard with joystick
Supply
Rated voltage via data line
TA3-K4

2018-07
18
VisuNet GMP RM/PC 200 series
Product Specifications
Keyboard TA3-K8
Keyboard with optical trackball for controlling the mouse pointer.
2 separate buttons below the trackball assume the function of left and right mouse button.
Figure 2.7 Keyboard with optical trackball
Indicators/operating means
Keyboard 105 short stroke keys
Keyboard layout: US international, German,
French, (further keyboard layouts on demand)
Joystick
Driver Microsoft Mouse ® , USB
Interface
Interface type USB
Conformity
Protection degree IP65
Ambient conditions
Ambient temperature -20 ... 55 °C (-4 ... 131 °F)
Storage temperature -20 ... 70 °C (-4 ... 158 °F)
Relative humidity max. 85 % , non-condensing
Mechanical specifications
Material anodized aluminium , Polyester foil
Mass 1.2 kg
Dimensions 482.6 mm x 177.8 mm x 45 mm
Cable length 1.8 m , wire end ferrule
TA3-K8
General specifications
Type Optical trackball
Supply
TA3-K6

VisuNet GMP RM/PC 200 series
Product Specifications
2018-07
19
2.9.2 Pedestals
Figure 2.8 Pedestal models for VisuNet GMP
Rated voltage via data line
Indicators/operating means
Keyboard 105 short stroke keys
Keyboard layout: US international, German,
French, (further keyboard layouts on demand)
Trackball
Diameter 50 mm
Material [...] [...]
Driver Microsoft Mouse ® , USB
Interface
Interface type USB
Conformity
Protection degree IP65
Ambient conditions
Ambient temperature 0 ... 55 °C (32 ... 131 °F)
Storage temperature -10 ... 70 °C (14 ... 158 °F)
Relative humidity max. 85 % , non-condensing
Mechanical specifications
Material anodized aluminium , Polyester foil
Mass 1.2 kg
Dimensions 482.6 mm x 177.8 mm x 45 mm
Cable length 1.8 m , wire end ferrule
TA3-K8
A A AB B B A
1500
500
1000
155
300
1270
1000
560
750
420 225 350
540
2 3 4 5 6 71

2018-07
20
VisuNet GMP RM/PC 200 series
Product Specifications
2.9.3 Wall arm versions

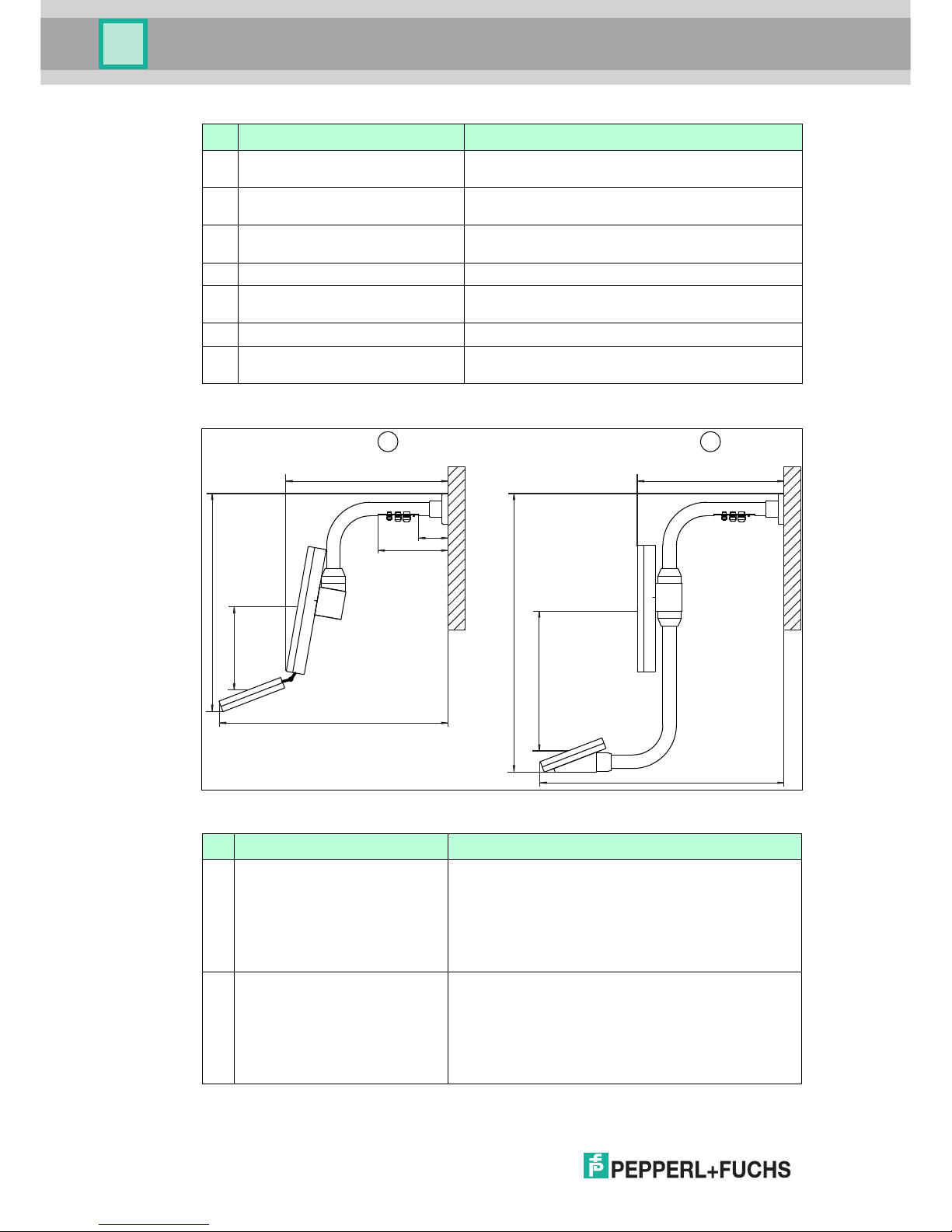

Figure 2.9 Wall arms for VisuNet GMP
Model number Description
1 P D STAL1-150-1V-KP-G-T-304 Pedestal, turnable approx. 350°, inclination of
monitor 10°, with pipe for keyboard
2 P D STAL1-150-1V-KP-G-F-304 Pedestal, fix mounted, inclination of monitor 10°,
with pipe for keyboard
3 P D STAL1-150-1V-NP-G-T-304 Pedestal, turnable approx. 350°, inclination of
monitor 10°
4 P D STAL1-150-1V-NP-G-F-304 Pedestal, fix mounted, inclination of monitor 10°
5 P D STAL1-130-3V-NP-G-T-304 Pedestal, turnable approx. 350°, inclination of
monitor 30°
6 P D STAL1-130-3V-NP-G-F-304 Pedestal, fix mounted, inclination of monitor 30°
7 P D STAL1-56-3V-NP-G-T-304 Pedestal turnable approx. 350°, inclination of
monitor 30°
Model number Description
1 WALL-ARM1-55-1V-NT-G-*-304 Wall arm, inclination of monitor 10°, without pipe for
keyboard
2 models available:
■WALL-ARM1-55-1V-NT-G-F-304: fix
■WALL-ARM1-55-1V-NT-G-T-304: approx. 350°
turnable
2 WALL-ARM1-55-0V-KT-G-*-304 Wall arm, without inclination of monitor, with pipe for
keyboard
2 models available:
■WALL-ARM1-55-0V-KT-G-F-304: fix
■WALL-ARM1-55-0V-KT-G-T-304: approx. 350°
turnable
21
B B
500
775
575
100
250
815
520
865
990
285
