Pepperl+Fuchs HPTB/32/TR-AI-03 User manual

DOCT-B3K6
Product Installation Manual
For
HPTB/32/TR-AI-03

PRODUCT INSTALLATION MANUAL DOCT-B3K6 PAGE 2OF 21
MODEL LISTING
Model Part Number Channels / Function
HPTB/32/TR-AI-03
907912
32-AI
To avoid damage, failure, or improper operation, read this manual carefully before installing
and operating the equipment
Disclaimer
While the HART Interface Solution (HIS) Replacement Panels from Pepperl+Fuchs, Inc. (“HIS Replacement
Panels”) are designed to extract the digital HART data from standard 4-20mA loops, the HIS Replacement
Panels may not provide all of the features, or duplicate all the functions, of the panels they replaced, and
Pepperl+Fuchs, Inc. makes no warranty or representation (and specifically disclaims any express or implied
warranty or representation) that such HIS Replacement Panels are identical to, or will provide all of the
same features or duplicate all of the same functions of, the panels they replace. The terms, conditions and
limitations of any product warranties covering HIS Replacement Panels may be obtained from
Pepperl+Fuchs, Inc.
The information set forth in this Manual is designed to assist the Purchaser in the installation, operation and
maintenance of an HIS Replacement Panel. Such information should not be construed as a warranty or
representation, express or implied, regarding the HIS Replacement Panel or its use in, or suitability for, a
particular application, any such warranties or representations being specifically disclaimed. The terms,
conditions and limitations of any product warranties covering HIS Replacement Panels may be obtained
from Pepperl+Fuchs, Inc. Pepperl+Fuchs, Inc. reserves the right to modify or improve the designs,
specifications, features and/or functions of HIS Replacement Panels at any time without notice.
Copyright and Trademark Information
This manual is copyright of Pepperl+Fuchs with all rights reserved. This manual may not be copied, in
whole or in part, without the written consent of Pepperl+Fuchs. Pepperl+Fuchs reserves the right to make
changes to this manual without notice.
Asset Management Solutions (AMS) is a registered trademark of Emerson Process Management. HART is
a registered trademark of the HARTCommunication Foundation. Windows is a trademark of Microsoft
Corporation. All other marks are property of their respective owners.

PRODUCT INSTALLATION MANUAL DOCT-B3K6 PAGE 3OF 21
Table of Contents
1. GENERAL INFORMATION....................................................................................................................................4
1.1. INTRODUCTION ...............................................................................................................................................4
1.1.1. System Overview......................................................................................................................................4
1.1.2. HART Overview........................................................................................................................................4
1.1.3. Asset Management Solutions (AMS) Software Overview...........................................................................4
1.2. TECHNICAL SPECIFICATIONS ............................................................................................................................5
1.2.1. MUX 2700 Specifications..........................................................................................................................5
1.2.2. HPTB Termination Board Specifications....................................................................................................5
1.2.3. RS-485 Line Specifications .......................................................................................................................6
1.3. QUALITY ASSURANCE......................................................................................................................................6
1.4. SAFETY INTEGRITY LEVEL (SIL)........................................................................................................................6
2. INSTALLATION.....................................................................................................................................................8
2.1. STORAGE.......................................................................................................................................................8
2.2. UNPACKING AND INSPECTION ...........................................................................................................................8
2.3. ENVIRONMENTAL CONDITIONS..........................................................................................................................8
2.4. INTRINSIC SAFETY...........................................................................................................................................9
2.5. MOUNTING .....................................................................................................................................................9
2.6. CABLES .........................................................................................................................................................9
2.7. WIRING........................................................................................................................................................10
2.7.1. Power.....................................................................................................................................................11
2.7.2. Grounding...............................................................................................................................................11

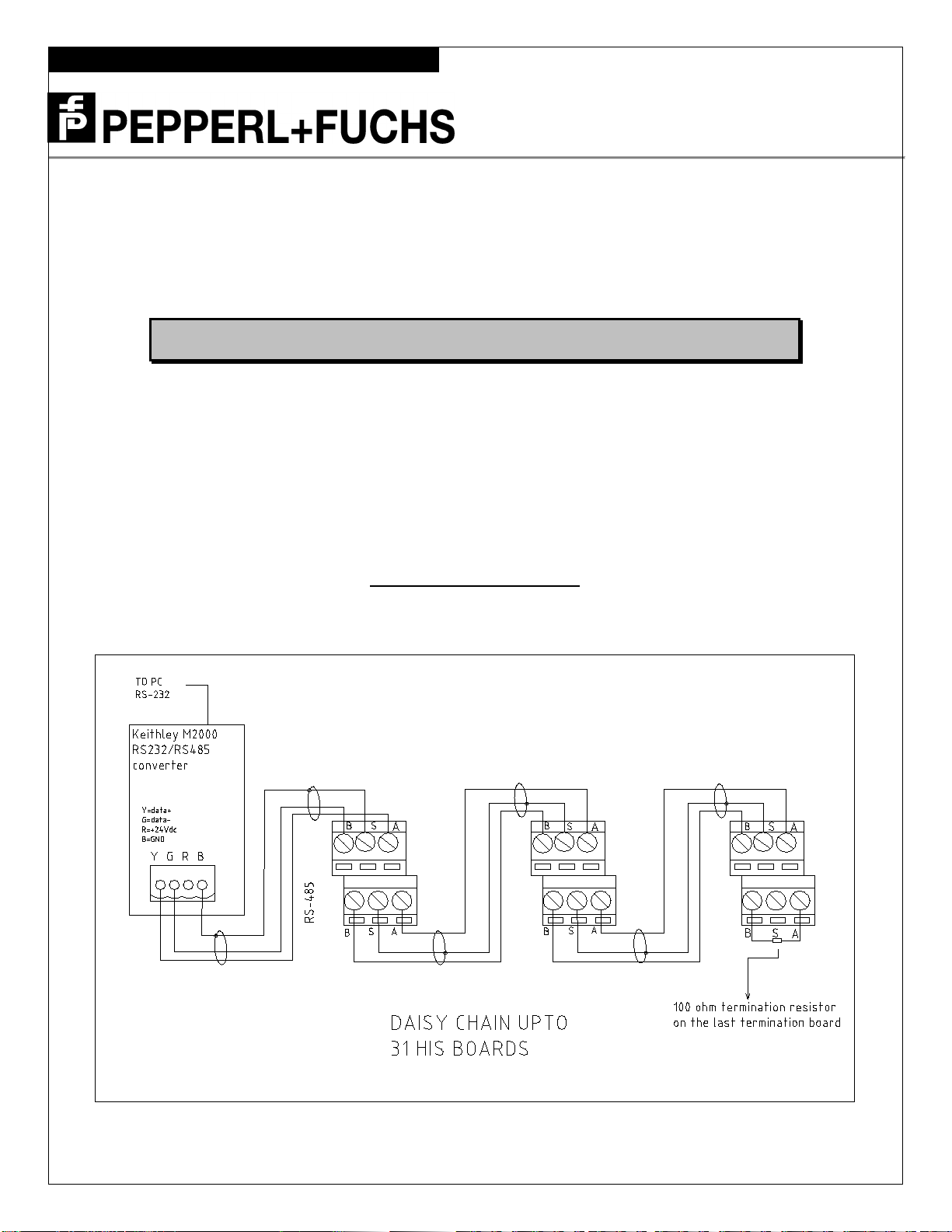

2.7.3. RS-485 ...................................................................................................................................................12

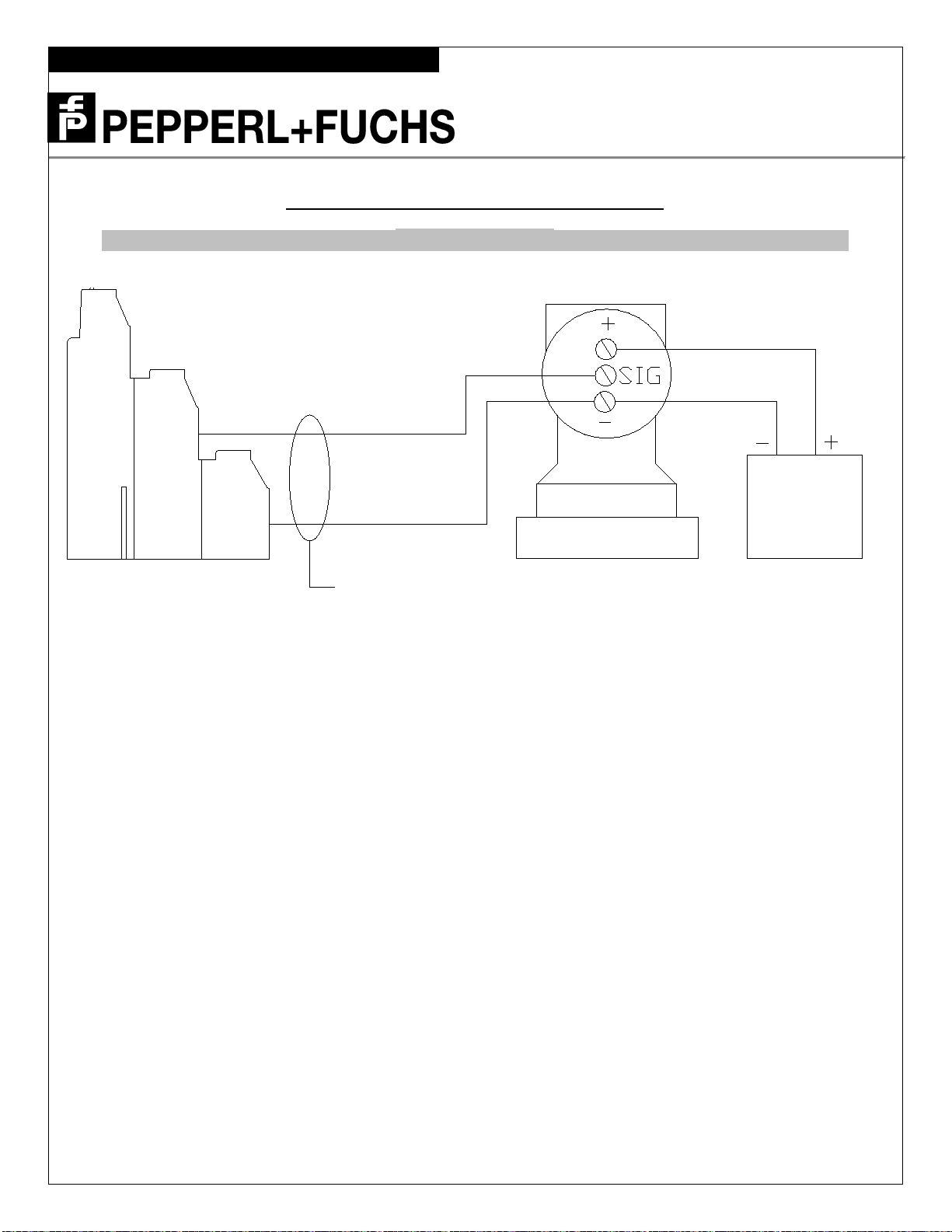

2.7.4. Field Connections ...................................................................................................................................13
2.7.5. Control Connections................................................................................................................................16
2.7.6. HART Communicator..............................................................................................................................16
3. OPERATION........................................................................................................................................................16
3.1. INITIAL SETUP...............................................................................................................................................16
3.1.1. 2700 Settings..........................................................................................................................................16
3.1.2. MUX Addressing.....................................................................................................................................17
3.1.3. Baud Rate...............................................................................................................................................17
3.1.4. RS-232/RS-485 Converter ......................................................................................................................17
3.2. START-UP SEQUENCE ...................................................................................................................................17
3.3. CONFIGURATION ...........................................................................................................................................17
3.4. MUX INDICATORS .........................................................................................................................................17
3.5. MODES OF OPERATION..................................................................................................................................18
3.6. SYSTEM OPERATION .....................................................................................................................................18
4. TROUBLESHOOTING.........................................................................................................................................19
4.1. GENERAL .....................................................................................................................................................19
4.2.MUX 2700...................................................................................................................................................19
5. MAINTENANCE...................................................................................................................................................20
6. GLOSSARY.........................................................................................................................................................20
7. CONTACT INFORMATION..................................................................................................................................21

PRODUCT INSTALLATION MANUAL DOCT-B3K6 PAGE 4OF 21
1. GENERAL INFORMATION
1.1. INTRODUCTION
This manual provides guidance for the installation, operation, and maintenance of your P+F Multiplexer
2700 and termination board. The solution herein is specifically designed for easy Multiplexer integration with
the Triconex TRICON system. Below is a list of termination boards and the Triconex I/O modules with which
they were designed to interface.
HPTB/32/TR-AI-03 3704E
The P+F Multiplexer 2700 will be referred to in this manual as the MUX 2700. All further general references
to the listed termination boards will be simply HPTB. When referring to the combination of a MUX 2700 and
an HPTB, they will be called the HART Interface Solution, or simply HIS.

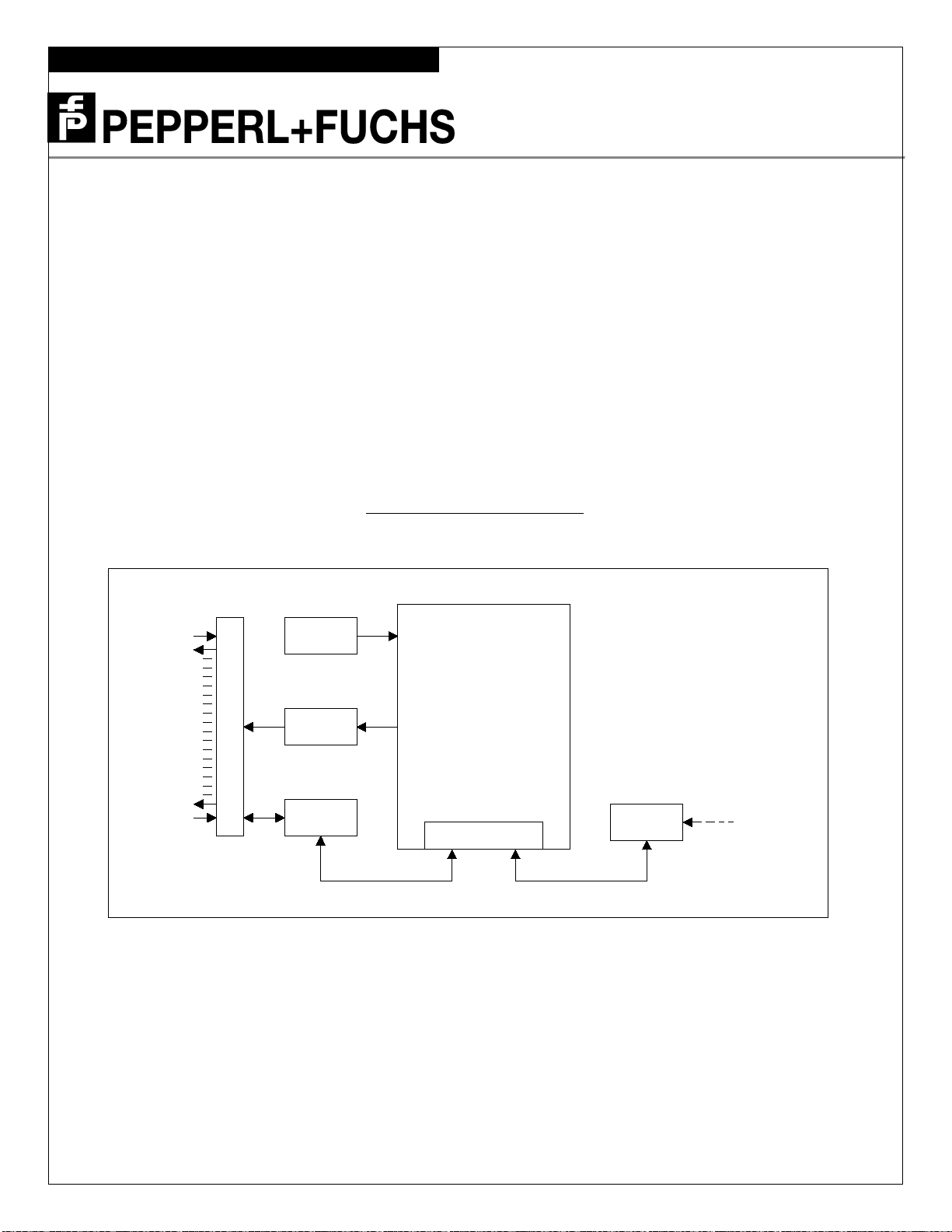

1.1.1. SYSTEM OVERVIEW
Your HART Interface Solution interfaces up to 32 field located HART devices. The MUX 2700 is a HART
signal multiplexer unit which allows access to HART communications on existing 4-20mA wiring. It acts as
a gateway device routing communications between the maintenance workstation PC and the HART
devices. The MUX 2700 uses Manchester encoding of the HART protocol for the RS-485 link to the
maintenance workstation PC. To link to each of the HART devices the MUX 2700 communicates using Bell
202 Frequency Shift Keying (FSK). It interrogates each HART device, retrieves device information, and
stores it in an internal database. This information is available to the maintenance workstation software. In
this way, the MUX 2700 gives the user access to each HART device as if connected directly at the device
itself. A maintenance workstation PC can use this information for configuration, maintenance, calibration,
diagnostics, and data access.
The termination board design allows the DCS and field device wiring to be brought together with the MUX to
complete the system. Various HPTB board designs allow interface with different I/O cards and may include
configurable options including fused / filtered signal lines, loop or device powered instrument lines and 4-
20mA or 1-5 VDC signals. HART Interface Solutions are supplied by P+F in several models in order to
allow simple and reliable connection between SMART devices and various DCS systems.
1.1.2. HART OVERVIEW
HART is an acronym for "Highway Addressable Remote Transducer". The HART protocol makes use of the
Bell 202 FSK standard to superimpose digital signals at a low level on top of the 4-20mA signal. This
enables two-way communication and makes it possible for additional information beyond just the normal
process variable to be communicated to/from a SMART field instrument. The HART protocol allows a host
application (master) to get two or more digital updates per second from a field device. As the digital FSK
signal is phase continuous, there is no interference with the 4-20mA signal.
1.1.3. ASSET MANAGEMENT SOLUTIONS (AMS) SOFTWARE OVERVIEW
AMS software provides an easy-to-use means for integrating various device management software
packages into a unified system. AMS operates under the Microsoft® Windows® format. It combines the
various device (or asset) management tasks into an application with a common look-and-feel and
centralized data storage.
AMS provides access to functionality available via the HART communications protocol for any HART device
whose Device Description (DD) is registered with the HART Communication Foundation.
For more information on installation of AMS software, consult the AMS Installation Guide.

PRODUCT INSTALLATION MANUAL DOCT-B3K6 PAGE 5OF 21
1.2. TECHNICAL SPECIFICATIONS
1.2.1. MUX 2700 SPECIFICATIONS
Power Supply 24 VDC nominal [-15%, +25%]
Fuse
Internal (not user serviceable)
Connector Style 2 half pitch 1.27mm 40 pin connectors
Environmental Conditions
Operating Temperature Range 0 to 55°C (32 to 131°F)
Storage Temperature Range -20 to 70°C (-4 to 158°F)
Relative Humidity 5 to 90% non-condensing
Signal Channels Up to 32 unbalanced signal loops
Input Impedance >5000 Ω
Communication Port RS-485, differential pair plus GND
Communication Speed 9600 or 19200 baud
1.2.2. HPTB TERMINATION BOARD SPECIFICATIONS
Mounting
T type (EN50022, DIN46277-3) or
G type (EN50035, DIN 46277-1) DIN rail
Connections
Power Combicon style 5.08mm removable screw
terminals
Field Wiring
5.08mm screw terminals
Control Wiring
56 pin ELCO style connector
RS-485 Combicon style 5.08mm removable screw
terminals
Power Fuse 3.15 A 5x20

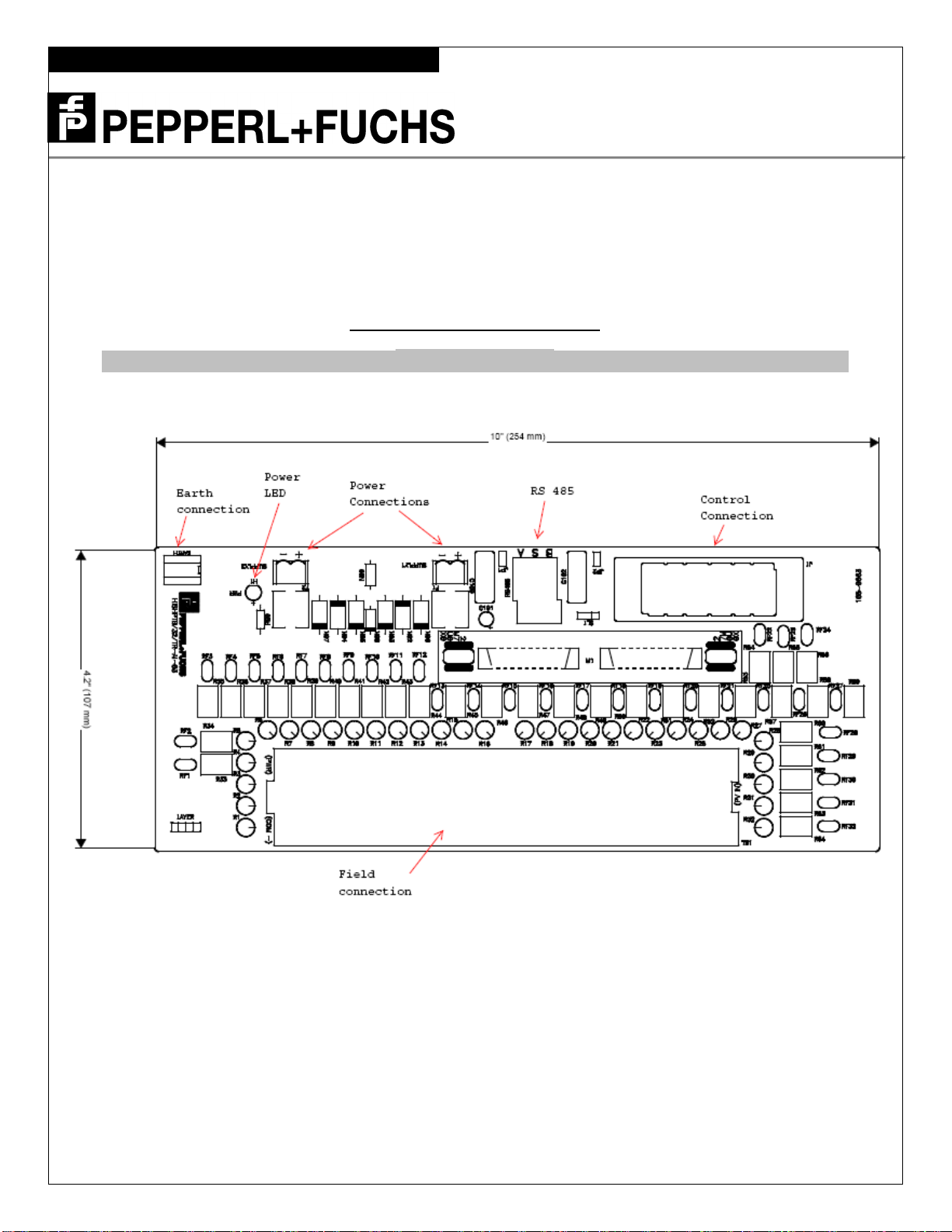

Dimensions
Length 254 mm (10.0”)
Width 107 mm (4.2”)
Height 79 mm (3.1”) without MUX,
208 mm (8.2”) with MUX

PRODUCT INSTALLATION MANUAL DOCT-B3K6 PAGE 6OF 21
1.2.3. RS-485 LINE SPECIFICATIONS
Communication Port RS-485, differential pair (isolated)
Communication Speed
9600 or 19200 baud
Multi-Drop Addressing Up to 31 MUX 2700 modules with 32
channels each
Multi-Network Operation Software selectable
Up to 4 serial lines
Network Addressing
Up to 31 MUX 2700 modules
Network Capacity
Up to 992 loops
SMART Protocol Supported HART
Total Number of Bits
11
Number of Data Bits
8
Parity Odd
Number of Stop Bits
1
Transmission Type 2 wire
1.3. QUALITY ASSURANCE
Pepperl+Fuchs is an ISO9000 certified company and as such all production is performed under a Quality
Assurance program following written procedures which are specific for each product family. During the
manufacturing, intermediate testing and inspection, and final inspection phases all products are built
according to controlled documentation.
Each MUX 2700 unit undergoes accelerated thermic aging (burn-in) for a minimum 200 hours at 50°C
(122°F) with at least 1 cooling thermic cycle at 0°C (32°F) and back to 50°C (122°F). The purpose is to
identify weak components that may develop initial fault mechanisms due to "Infant Mortality". Only after a
positive burn-in test does the MUX 2700 undergo a complete final inspection which is performed with
computerized testing equipment specifically developed by P+F for this purpose.
1.4. SAFETY INTEGRITY LEVEL (SIL)
The following is assumed for SIL installations:
1.) Both 24V_A and 24V_B must be supplied from separate sources.
2.) Transmitter must be able to output an overscale current upto 22mA with 12V at its terminals.
3.) Supply voltage to this motherboard must be at least 26Vdc, with a minimum current output of 0.75A
4.) DCS system has a 99% diagnostics coverage to go to safe state if input is 0V.
5.) DCS system is not affected by presence of HART signal.
6.) DCS system is expecting a 1V to 5V input from mother board.
See FMEDA report for complete SIL information
WARNING!
The boards may have deviations in the converted signal values by too high potential
difference between the negative supply terminal for powering the electronics and earth
ground, or by ground loops present in the installation. (See section2.7.1 and 2.7.2 below for
further details.)
Ensure that the grounding of the installation is appropriate for industrial applications. Follow
the rules for grounding as applicable in the place of installation.

PRODUCT INSTALLATION MANUAL DOCT-B3K6 PAGE 7OF 21

PRODUCT INSTALLATION MANUAL DOCT-B3K6 PAGE 8OF 21
2. INSTALLATION
2.1. STORAGE
In case of storage of instruments and accessories, proper care should be taken to protect them from any
possible damage. Always store instruments in their sealed original packaging until they are installed.
Provide adequate protection to prevent damages that may be caused by exposure to:
•Rain, excessive humidity and/or temperature excursions (inadequate sheltering).
•Dust (build-up of a corrosive patina that may cause oxidations and reduce isolation).
•Aggressive and polluting atmospheres with consequent corrosion.
•Access by insects/rodents (damage of packing or content).
•Mechanical shocks or unauthorized packing opening.
•Intense vibrations (loosening of fastened parts, fatigue failures, etc.).
•Any other possible risk.
Make sure the storage temperature does not exceed the limits of –20 to +70°C (-4 to 158°F) for
medium/long term storage (days/months) and -25 to +75°C (-13 to 167°F) for short term storage (a few
hours) during transportation or shipment.
2.2. UNPACKING AND INSPECTION
Upon receipt of the materials, you should check the integrity of the packing and the contents. In case of
damage due to shipping, you should promptly and properly report to the shipper, supplying all necessary
information.
If the instruments are not for immediate use, we recommend that you check that all characteristics shown
on the instrument’s label meet order specifications (model, supply voltage and frequency, input/output
range, certification, tag etc.) as well as the actual application requirements.
If not installed, equipment should be stored following the recommendations of the previous section.
2.3. ENVIRONMENTAL CONDITIONS
HIS products, like most modern electronic equipment, can operate in wide temperature and humidity
ranges. However, practical consideration suggests a guideline on operating environment for best results.
•Keep operating temperature below 35°C (95° F), ideally between 20°C and 25°C (68 and 77°F),
avoiding wide and rapid temperature excursions.
•Control relative humidity within 40 to 60% to avoid risks of static charges or condensation.
•Limit the presence of corrosive atmosphere, fumes and dust, sealing and purifying the control room
area and using air filters in the cabinet air intakes (clean cable entry path), if necessary.
•Reduce vibrations (if any) to safe levels.

PRODUCT INSTALLATION MANUAL DOCT-B3K6 PAGE 9OF 21
2.4. INTRINSIC SAFETY
The HIS system can interface HART devices located in Hazardous areas by interposition of suitable
galvanically isolated Intrinsically Safe Barriers. The barriers must allow bi-directional HART signal
communication in addition to the normal 4-20mA loop current processing.
2.5. MOUNTING
The MUX 2700 is a plug-in unit that must be inserted in the appropriate termination board position.
Exercise care in the insertion to mate the connector's pins, then firmly press the module to engage the
connector. Finally, engage the quick lock tabs on either side to secure the module to the termination board.
The HPTB is designed to be mounted on a T-type or G-type DIN rail.
2.6. CABLES
HART signals are brought to the MUX 2700 from the field via 5.08mm 3-tier screw terminal blocks
designated TB1. The MUX 2700 communicates to the DCS via the ELCO style connectors designated J1-
J2. See Table 1 below for channel information.
Table 1 –Connector Function
Field Connector
Designation HPTB/32/TR-AI-03
Analog Input
TB1 Channels 1-32
Control Connector
Designation
J1 Channels 1-32

PRODUCT INSTALLATION MANUAL DOCT-B3K6 PAGE 10 OF 21
2.7. WIRING
The MUX 2700 is a plug-in unit and is connected to the HPTB by two 40 pin connectors. Therefore, all
electrical connections (supply, field connections, serial lines, etc.) are made at the termination board unit.
Refer to Figure 1 for a simplified representation of the termination board configuration and the overall
outside dimension of the product in inches.
Figure 1 –HPTB Configuration
HPTB/32/TR-AI-03

PRODUCT INSTALLATION MANUAL DOCT-B3K6 PAGE 11 OF 21
2.7.1. POWER
Connect 24 VDC to the 2-pin removable terminal at the end of the HPTB. The connector is polarized, so
you cannot insert it incorrectly. The polarity is marked on the terminals. A reverse polarity shunt diode and
series fuse protection are provided to avoid damaging the module in case of accidentally reversing the
polarity connection. In this case, the reverse voltage is clamped at –1.2 V and the fuse blows. Restore
correct supply polarity and replace the blown fuse. Be certain to reinstall a good, properly sized, new fuse.
WARNING!
Improper supply connections can seriously damage the instrument and result in risk of fire
or explosion in hazardous locations!
DC SUPPLY REQUIREMENTS: The MUX is nominally rated for 24 VDC but will function from
approximately 20-30 VDC. The MUX draws a maximum of 30mA from the supply. If the power LEDs fail to
light check that the polarity of the supply line is correct.
WARNING!
Note that a crude, poorly filtered or unregulated supply can produce destructive (hundreds
of volts) voltage spikes during supply transformer switch-off transient. This could cause
minor problems to electro-mechanical components like relays or solenoids but will surely
degrade or destroy electronic equipment.
SUPPLY CONDUCTORS SIZING: Since these HIS boards supply power for the AI channels, a single unit
can normally require up to 2.56A and its conductors should be sized accordingly. Pepperl+Fuchs
recommends 14 AWG or larger wire be used to power this product.
2.7.2. GROUNDING
The HPTB provides an earth terminal lug for connecting the various shield wires to earth. Also included
with the HPTB is a DIN rail mountable terminal block. Use of the terminal lug and terminal block for earth
grounding will provide the shortest path and best practice for grounding of the HPTB. A 10-14 AWG cable
should be secured between the terminal lug and DIN rail block which provides a single point to properly
ground field wiring cable shields. This terminal may not be necessary to use if best practice grounding
techniques are employed.
The HPTB board provides connections of the shield pins T, H, w, and FF for J1 though a customer
selectable jumper to provide direct connection to the earth terminal lug, or to provide this connection
through capacitive coupling. Refer to Table 2.
The HPTB also provides customer selectable capacitive coupling for the shielding. Setting the shield to be
direct coupled or capacitively coupled is accomplished through jumper shunts. Placing the jumper shunt
across the pins will bypass the capacitor and direct couple the corresponding shield to earth. Refer to
Table 2 for a complete list of the shunts and the associated shield. For best practice any shield should be
direct coupled at one end of the circuit.
Table 2 – Shield Configuration
Jumper Shunt # HPTB/32/TR-AI-03
Analog Input
JP1
RS-485 earth connection
JP2 J1 earth connections

PRODUCT INSTALLATION MANUAL DOCT-B3K6 PAGE 12 OF 21
2.7.3. RS-485
An RS-485 network permits up to 32 devices to communicate over a maximum of 1200m (4000 ft) of cable.
The length of this network can be extended if necessary by using RS-485 repeaters. The communication
occurs via a differential signal over a shielded twisted pair of wires. Per the RS-485 specification the signal
wires should be labeled “A” and “B”, but sometimes a “+” and “-“ are used instead. In these cases connect
the “+” to “B” and the “-“ to “A”.
NOTE: A MUX 2700 that is cross-wired on the RS-485 network will not be damaged, but it
also will not communicate.
Since the MUX 2700 is optically isolated it is important to link the signal grounds of the different network
nodes to the host ground through the cable shield. This helps prevent ground potential differences from
causing a loss of data or damage to equipment on the RS-485 network.
Many cable manufacturers make cable specifically designed for RS-485 networks. Pepperl+Fuchs Elcon
recommends using shielded twisted pair cabling and then utilizing the shield as the RS-485 network ground.
This shield should be grounded at the RS-485 converter if possible.
RS-485 wiring must be connected as shown in Figure 2. These wires carry data from the HIS to the PC via
an RS-485/RS-232 converter cable. Connect the converter to a serial port on the PC as indicated in the
converter’s documentation. Figure 2 – RS-485 Wiring

PRODUCT INSTALLATION MANUAL DOCT-B3K6 PAGE 13 OF 21
2.7.4. FIELD CONNECTIONS
All field wiring is connected via the 3-tier screw terminal block (TB1). To obtain best results from this device
the use of shielded cables is strongly recommended and in the case of cable lengths greater than 30m
shielded cables are required to ensure proper function of the HPTB. See Figures 3-5 below for specific
device connections. Figure 3 – Loop Powered Transmitters (2-wire)
HPTB/32/TR-AI-03
ABC
Field Terminal
Block (TB1) Transmitter
(2-wire)
Shield
Power (+)
4-20mA
Pepperl+Fuchs recommends that all shield drain wires be connected from as close to TB1 as possible to
the nearest grounding point and this point be linked to earth by as short a route as possible.

PRODUCT INSTALLATION MANUAL DOCT-B3K6 PAGE 14 OF 21
Figure 4 – HPTB Powered Transmitters (3-wire)
HPTB/32/TR-AI-03
ABC
Field Terminal
Block (TB1) Transmitter
(3-wire)
Power (+)
4-20mA
Shield
Common
Pepperl+Fuchs recommends that all shield drain wires be connected from as close to TB1 as possible to
the nearest grounding point and this point be linked to earth by as short a route as possible.

PRODUCT INSTALLATION MANUAL DOCT-B3K6 PAGE 15 OF 21
Figure 5 – Self-Powered Transmitters (4-wire)
HPTB/32/TR-AI-03
ABC
Field Terminal
Block (TB1) Transmitter
(4-wire)
4-20mA
Common
Shield Power
Supply
The HPTB has one common plane for Channels 1-16 and a second for Channels 17-32. Unless the
transmitter has galvanic isolation between its output and power supply the analog loop from the transmitter
will link the HPTB common to the transmitter power supply common.
Pepperl+Fuchs recommends that all shield drain wires be connected from as close to TB1 as possible to
the nearest grounding point and this point be linked to earth by as short a route as possible.

PRODUCT INSTALLATION MANUAL DOCT-B3K6 PAGE 16 OF 21
2.7.5. CONTROL CONNECTIONS
The HPTB provides ELCO style connectors (J1-J2) for connection directly to Triconex I/O modules. No
adapter or accessory hardware is required. As with field connections it is strongly recommended to use
shielded cables should the line length be greater than 30m.
2.7.6. HART COMMUNICATOR
In HART communications, there is one slave (field device) and up to two masters (e.g. Multiplexer, HART
Communicator, I/O module). The HART Communicator can be connected to the field side terminals as a
secondary master. In the software settings, the MUX 2700 must be the primary master in order to use the
HART Communicator.
There cannot be more than two masters. If three or more masters are connected, a primary/ secondary
conflict will occur and communications will cease with all devices on that loop. When the MUX 2700 is used
with a HART compatible I/O system, the MUX 2700 must be configured as the secondary master.
Otherwise, configure the MUX 2700 as the primary master. The HHT is a secondary master by default, and
can be connected to the loop when no other device on that loop is configured as a secondary master.
WARNING!
Do not connect the HART Communicator to any Intrinsically Safe field wiring unless the
communicator is approved as Intrinsically Safe and is suitable for the actual classification of
the specific hazardous location. Also consider the HART Communicator safety parameters
and equivalent capacitance and inductance before concluding that you can safely connect it
to the I. S. side of the circuit 
3. OPERATION
3.1. INITIAL SETUP
The default settings for each MUX 2700 are as follows:
Address = 1
Baud Rate = 9600
3.1.1. 2700 SETTINGS
The User Switches buffer has eight inputs from a low profile DIP switch reachable through the front label.
The functions of the switches are as follows:
•Switch 7 (T) Reserved for TEST purposes
•Switch 6 (R1) BAUD RATE 1
•Switch 5 (R0) BAUD RATE 0
•Switch 4 (B4) ADDRESS 4
•Switch 3 (B3) ADDRESS 3
•Switch 2 (B2) ADDRESS 2
•Switch 1 (B1) ADDRESS 1
•Switch 0 (B0) ADDRESS 0
Further information is given on the front and side labels. In particular, the side label gives the correct setting
of every DIP switch combination.

PRODUCT INSTALLATION MANUAL DOCT-B3K6 PAGE 17 OF 21
3.1.2. MUX ADDRESSING
The address of the MUX 2700 is determined by the DIP switches as noted above. Each MUX on the same
RS-485 network must have a different address, but they do not have to be sequential and do not
necessarily need to start at address 1. Possible addresses are 1-31. Address 0 is invalid and cannot be
used. Note that network properties of the software setup refers to “multi-dropping.” This refers to multiple
MUX 2700s on the same network, not multiple devices on the same I/O loop (also referred to as “multi-
dropping”). Multi-dropping should be enabled in the network setup.
3.1.3. BAUD RATE
The baud rate of the MUX 2700 must match the baud rate of the PC Com-Port and the RS-232/RS-485
converter. All three units must have the same baud rate to function properly. The baud rate can be either
9600 or 19200 and is selected as shown on the label located on the side of the MUX unit.
3.1.4. RS-232/RS-485 CONVERTER
An RS-232 to RS-485 converter must be placed between the HIS and the computer’s RS-232 port. P+F
recommends the Keithley M2000 converter for non-CE applications. Any standard converter is acceptable,
but other models have not been tested by P+F. Alternate brands are available with CE certification.
If only one RS-232 to RS-485 converter is used in setting up the system, then the RS-485 network must be
less than 1200 meters (4000 feet). If the network surpasses 1200 meters, an RS-485 repeater must be
used. The Keithley M2000 can function as a repeater instead of a converter. The repeater amplifies and
retransmits the original RS-485 signal enabling transmission over longer distances.
3.2. START-UP SEQUENCE
The proper start-up sequence for the HIS system is as follows:
1. Make all field and control connections to the termination board.
2. Connect RS-485 communications and adjust network settings as appropriate.
3. Plug the MUX 2700 into the termination board.
4. Apply 24VDC to HIS board or power up field devices.
5. After the MUX start-up sequence is complete then initiate AMS.
3.3. CONFIGURATION
Each channel of the HIS board can accommodate a SMART device. For details on device wiring please
refer to Section 2.7.4. For information on setting the shield jumpers refer to Section 2.7.2. No other
configuration is required on the HPTB.
3.4. MUX INDICATORS
Three LEDs on the top of the MUX 2700 indicate status. Normal operation is as follows :
•PWR ON – After power is applied the green LED will flash for a period of 15 seconds and then glow
solid. The 2700A MUX power LED will not flash. Power is applied to the MUX automatically when it
is plugged into the socket on the termination board.
•FAULT – This red LED should not be lit during normal operation.
•HART TX – This yellow LED shows communication with field devices.

PRODUCT INSTALLATION MANUAL DOCT-B3K6 PAGE 18 OF 21
3.5. MODES OF OPERATION
SCAN MODE - This command sent to the MUX 2700 from the software will instruct the MUX to periodically
scan each device automatically. Normally the MUX 2700 will only communicate with a device when
instructed by the software.
BURST MODE – This command instructs the field device to automatically send information without being
commanded to do so. This mode breaks from the normal master-slave relationship inherent in HART
communication, but the MUX 2700 will support it when burst mode is selected in the software.
3.6. SYSTEM OPERATION
Referring to Figure 6, the heart of the MUX 2700 is the microprocessor. One serial port together with the
HART modem generates the physical layer of the HART protocol, while the channel select circuit together
with the channel multiplexer links one specific channel (device) at a time. An RS-485 circuit completes the
link between the maintenance workstation PC and the field devices. The switch selectable circuit provides
information required by the MUX 2700 for initialization and configuration; specifically, the baud rate for
communications to the maintenance workstation PC and the MUX 2700 address.
Figure 6 – MUX Operation
USER
SWITCHES
HART
MODEM
CHANNEL
SELECT
M
U
L
T
I
P
L
E
X
E
R
Channel 32
Channel 1
SERIAL PORTS RS-485
CIRCUIT
MICROPROCESSOR
From the
Maintenance
Workstation
(Through the
RS-485/232
Converter)
1700 MUX Block diagram
MUX 2700 Block

PRODUCT INSTALLATION MANUAL DOCT-B3K6 PAGE 19 OF 21
4. TROUBLESHOOTING
4.1. GENERAL
Due to the modular nature of the HIS system, a communication failure may occur anywhere in the data
transfer link from the software to the field device. In order to identify where the loss of communication has
occurred, it is important to understand which components are working correctly. Often, some simple checks
will save hours of troubleshooting. Some of the most common mistakes are: improper wiring connections,
baud rate mismatches, improper network settings, and improper addressing of the MUX 2700.
4.2. MUX 2700
The LEDs on the front of the MUX 2700 provide a convenient indication to the user that the MUX 2700 is
operational. After the MUX 2700 self-test, the <Pwr On> light should be on, the <Fault> light should be off
and the <HART Tx> light may either be off or flashing steadily.
When power to the MUX 2700 is cycled all the lights will come on. Next the green <Pwr On> LED will flash
for approximately 15 seconds while the MUX undergoes a self-test. After the successful completion of the
self-test the LED will go solid on. For the next 60 to 120 seconds, the <HART Tx> light will flash three times
for each channel. During this time, the MUX 2700 is scanning each of the 32 channels. When it is finished,
the <HART Tx> LED will either flash steadily or turn off altogether. If you see all of the above occur, the
MUX 2700 is operating properly.
Note : The MUX 2700A will behave the same except the power LED will not flash during its
self-test.
In addition, the TEST setting on the option switches can be used to gain confidence that the module is
functioning. Follow the procedure below to use this feature:
1. With the power off, set the end switch to the TEST position (ON). The module should not be
connected to the RS-485 network, the RS-485 address switches have no effect. If an RS-485
terminal is connected to the module, the BAUD rate switches should be set.
2. Turn the power on. The LEDs should light for about 1 second each in sequence (RED, YELLOW,
GREEN…).
3. If the LEDs do not flash, there is a fault with the module and it should be returned for replacement.
4. To return to normal operation, remove power to the MUX 2700 and set the TEST switch to the OFF
position. Ensure that the correct BAUD rate is selected and that an RS-485 address is set. Then,
re-apply power.

PRODUCT INSTALLATION MANUAL DOCT-B3K6 PAGE 20 OF 21
If you suspect the MUX 2700 is not functioning properly, please refer to Table 4 below for a summary of
some possible problems. Table 4 – MUX 2700 Troubleshooting
Symptom
Cause
Solution
Lights flash sequentially TEST switch is ON Turn off the power
Set TEST switch off
Restart the system
No LEDs lit Power failed or fuse blown Check 24 VDC supply
Check <PWR ON> LED
Verify fuse intact
Yellow <HART TX> LED
continually flashes Scanning is enabled
Go to the configuration
properties of the MUX and
disable scanning mode
Red <FAULT> LED is lit Self-test fault Contact Pepperl+Fuchs
Technical Support for further
instructions
5. MAINTENANCE
Pepperl+Fuchs apparatus do not require any particular maintenance under normal operating conditions.
They are designed to operate trouble-free and with high stability for long periods.
WARNING!
Any repair made by unauthorized personnel may completely invalidate the safety
characteristics of the unit and could void all warranties. Repair not made by
Pepperl+Fuchs is fully at user's risk and responsibility. In addition, the warranty terms of
the unit will be null and void to all effect.
6. GLOSSARY
DCS Distributed Control System
FSK Frequency Shift Keying
HART® Highway Addressable Remote Transducer
HIS HART Interface Solution
HHT Hand Held Terminal
HPTB HART Panel Termination Board
IS Intrinsic Safety
PLC Programmable Logic Controller
