PERFECTPRO Rock Hart BT User manual

Operating instruction
Mode d’emploi
Gebruiksaanwijzing
Bedienungsanleitung
GB
NL
D
F
3A81YR6L00000

1
GB
IMPORTANT SAFETY INSTRUCTIONS
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
Read these instructions.
Keep these instructions.
Heed all warnings.
Follow all instructions.
Do not use this apparatus near water.
Clean only with dry cloth.
Do not block any ventilation openings. Install in accordance
with the manufacturer’s instructions.
Do not install near any heat sources such as radiators, heat
registers, stoves, or other apparatus (including ampliers) that
produce heat.
Do not defeat the safety purpose of the polarized or grounding-
type plug. A polarized plug has two blades with one wider
than the other. A grounding type plug has two blades and
a third grounding prong. The wide blade or the third prong
are provided for your safety. If the provided plug does not fit
into your outlet. Consult an electrician for replacement of the
obsolete outlet.
Protect the power cord from being walked on or pinched
particularly at plugs, convenience receptacles, and the point
where they exit from the apparatus.

2
11.
12.
13.
14.
15.
16.
17.
Only use attachments/accessories specified by the
manufacturer.
Use only with the cart, stand, tripod, bracket, or table specied
by the manufacturer, or sold with the apparatus. When a cart is
used, use caution when moving the cart/apparatus combination
to avoid injury from tip-over.
Unplug this apparatus during lightning storms or when unused
for long periods of time.
Refer all servicing to qualified service personnel. Servicing is
required when the apparatus has been damaged in any way,
such as power-supply cord or plug is damaged. liquid has been
spilled or objects have fallen into the apparatus, the apparatus
has been exposed to rain or moisture, does not operate
normally, or has been dropped.
To Reduce the Risk of Fire or Electric Shock, Do not Expose
This Appliance To Rain or Moisture.
The Shock Hazard Marking and Associated Graphical Symbol
is provided on the rear of unit.
Apparatus shall not be exposed to dripping or splashing and no
objects lled with liquids, shall be placed on the apparatus.

3
GB
18.
19.
20.
21.
22.
Excessive sound pressure on ear-and headphones could
impair the hearing ability. Higher setting that idle on the
equalizer leads to higher signal voltages on the output for ear
and headphones.
The power plug should be close to the radio, and easy to be
approached that during the emergency, to disconnect the power
from the radio, just unplug the power plug from the AC power
slot.
Where the MAINS plug or an appliance coupler is used as the
disconnect device, the disconnected device shall remain readily
operable.
The batteries shall not be exposed to excessive heat such as
sunshine, re or the like.
This apparatus is provided with protection against splashing
water (IPX4).
CAUTION: To reduce the risk of the electric shock, do not
perform any servicing other than that contained in the operating
instructions unless you are qualied to so.
WARNING! Warranty becomes void once the radio cabinet has
been opened or any modifications or alterations to the radio
have been made!

4

5
GB

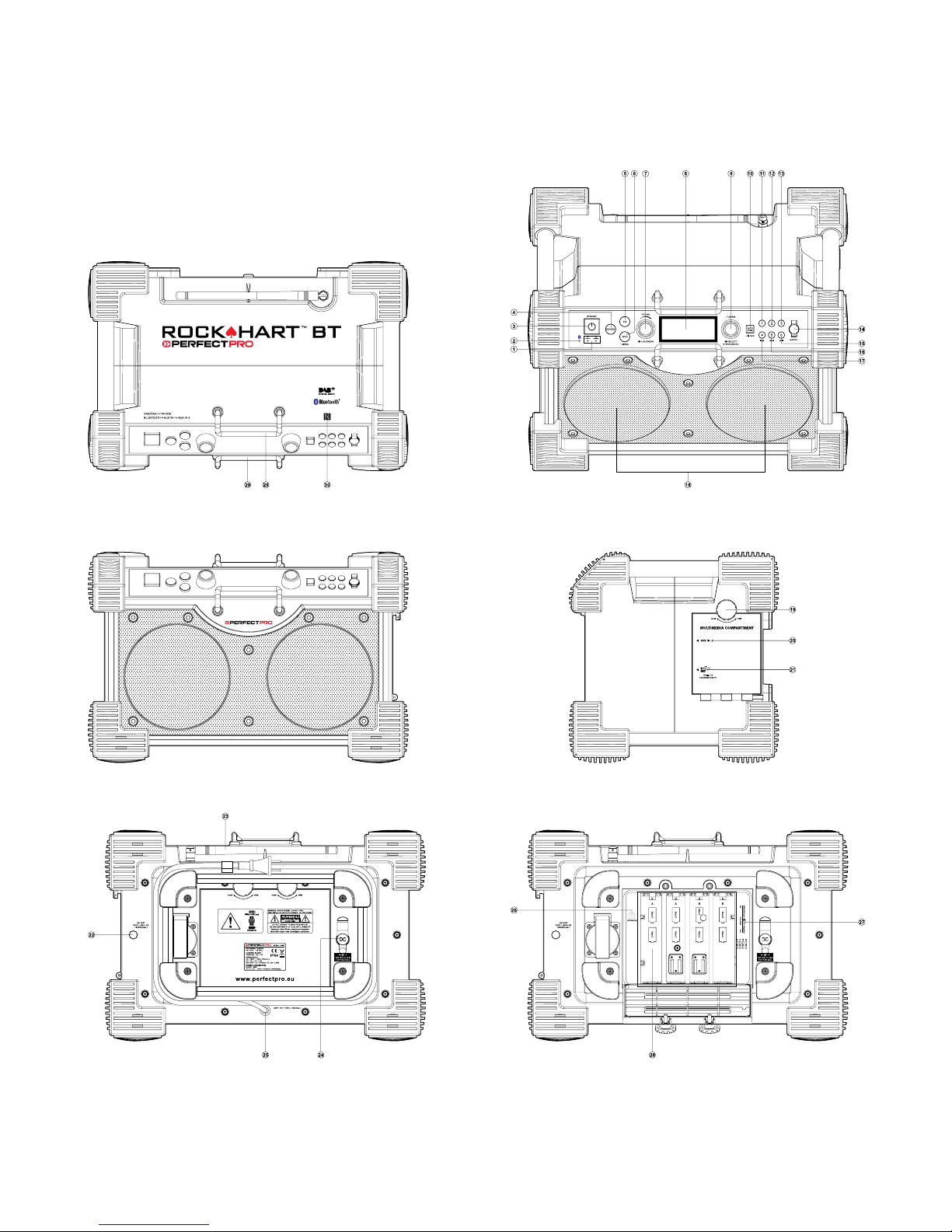

Control
Charge LEDs
Bluetooth status indicator
Standby button
Source button
EQ (equalizer) button
Info/Menu button
Volume control/Loudness
LCD display
Tuning control/Select/Stereo-Mono control
Auto tune button/Bluetooth pairing button
Preset 1 button
Preset 2 button
Preset 3 button
Aux in 1 socket
Preset 6 button/Play/Pause button
Preset 5/Fast forward button
Preset 4/Rewind button
Speakers
Multimedia compartment xture
Aux in 2 socket
USB charging socket
AC outlet
FM rubber antenna
DC IN socket
Power cord
Socket for software upgrade
NiMH/Alkaline batteries switch
Battery compartment
Display protection bar
NFC detection tag
15
13
12
14
2
5
11
7
9
10
3
4
1
8
6
30
28
27
29
17
20
26
22
24
25
18
19
16
23
21

6
Display
RDS indicator
Battery power
EQ indicator
Loudness On
Stereo indicator
Two Line text display
B
E
C
D
A
F

7
GB
Power the radio
A. Battery Operation
Turn the battery cover fixtures anti-clockwise to loosen and pull
down the battery cover. Insert 8 x D size (UM-1) battery into the
compartment. Ensure the battery is inserted in accordance with the
diagram shown. Close the battery cover and fasten the xture by
turning clockwise. If the radio is not to be used for any extended
period of time, it is recommended that the battery is removed from
the radio.

8
● Battery operation using alkaline batteries
1. Before you insert the batteries, if you use non-rechargeable
batteries, make sure the NiMH/Alkaline switch which located
inside the battery compartment is switched to Alkaline position. If
you use rechargeable batteries, make sure to switch NiMH/Alkaline
switch to NiMH position.
2. Reduced power, distortion and a “stuttering sound” are all signs
that the batteries need replacing.
● Battery operation using rechargeable batteries
1. Slide the battery switch to the NiHM position.
2. Insert 8 UM-1 batteries into spaces in the compartment. Make
sure all batteries are inserted with the correct polarity as shown on
the rear cabinet. The radio is also designed to be used with NiMH
rechargeable batteries.
Note:
Do not use a mix of old and new rechargeable batteries.
Do not use a mix of full and empty rechargeable batteries.
Do not use batteries that have a different mAh capacity
Do not use damaged or leaking batteries

9
GB
3. Make sure the radio is switched off and connect the AC power
cord into the AC socket.
When the charge indicator A and B light red indicating batteries are
charging. Batteries will be fully charged in around 9 hours. Both
the battery indicator A and B show steady green when the battery
charging is complete.
Note:
Duration for charging your battery fully can be varied according to
the mAh capacity of a battery. Higher mAh batteries required longer
charging time.
IMPORTANT:
Under some conditions the charging LED indicator may switch off
after ashing briey. This may happen if the batteries are already
freshly charged, or if the radio detects that you may be attempting
to recharge alkaline batteries or mixed different types of capacity of
rechargeable battery. In these cases the charging will be stopped.
2. AC operation
Before you plug the AC cord into the AC socket, be sure the voltage
is correct. If you have batteries in the radio and use the AC power
cord, the batteries will automatically be disconnected.
AC cable hook is designed to store the cord when the radio is not
in use.

10
IMPORTANT:
The mains plug is used as the means of connecting the radio to
the mains supply. The mains socket used for the radio must remain
accessible during normal use. In order to disconnect the radio from
the mains completely, the mains plug should be removed from the
mains outlet completely.
3. Powered via DC IN socket
The radio can be also powered via the DC IN socket which can
allow 12 Volt DC, which is designed to be powered by the vehicle
or the boat so you can take the radio with you outdoors or on the
boat.
An additional cigarette lighter cable is required (not supplied) for
this device.
Note:
Never use the 12 Volt socket in rainy or moist conditions to prevent
moist from entering the radio. Always keep the rubber cover on the
back well closed under these conditions.

11
GB
Automatically updating the clock
1. Press the Standby button to switch on your radio.
2. Press and hold the Menu button until the Advanced menu of the
current mode shows on the display.
3. Rotate the Tuning control until 'System ' appears on the display.
Press the Tuning control to enter the setting menu.
4. Rotate the Tuning control until 'Time' appears on the display.
Press the Tuning control to enter the setting menu.
5. Rotate the Tuning control until 'Auto update' appears on the display.
Press the Tuning control to enter the setting menu.
6. Rotate the Tuning control to choose an update option from 'Update
from Any', 'Update from DAB', Update from FM' or 'No update' as
required. The current update option will be marked with an asterisk.
Press the Tuning control to conrm your choice. The radio will
return to the previous menu.
Note:
If you select 'Update from Any', 'Update from DAB', Update from
FM' the current time received will be displayed. If no signal is found
you should either position the radio or its antenna so that a signal
can be received, or revert to manual clock mode.

12
Setting the clock manually
Your radio will set its clock automatically using the DAB or FM radio
signal. If no signal is available and you need to set the time
manually, please follow the procedure shown below. Please note
that the clock time can be set manually only when the radio is on.
1. Press and hold the Menu button until the Advanced menu of the
current mode shows on the display.
2. Rotate the Tuning control until “System” appears on the display.
Press the Tuning control to enter the menu setting.
3. Rotate the Tuning control until “Time” shows on the display.
Press the Tuning control to enter the setting menu.
4. Rotate the Tuning control until “Set Time/Date” appears on the
display. Press the Tuning control to enter the setting.
5. Now the hour digits ash on the display. Rotate the Tuning control
to set the desired hour. Press the Tuning control to conrm the
setting.
6. Now the minute digits flash on the display. Rotate the Tuning
control to set the desired minute. Press the Tuning control to
conrm the setting.

13
GB
● If the radio has been set to use a 12 hour format, there will be an
option here for setting AM or PM for the clock time.
7. The day flashes on the display. Rotate the Tuning control to
change the day as needed. Press the Tuning control to conrm
the setting.
8. The month ashes on the display. Rotate the Tuning control to
set the current month. Press the Tuning control to confirm the
setting.
9. The year ashes on the display. Rotate the Tuning control to set
the current year. Press the Tuning control to confirm the clock
setting. The display will show 'Time Saved' then exit the menu.

14
Using DAB for the rst time-DAB
1. Straighten up the antenna.
2. Press the Standby button to switch on the radio. If the radio has
been used before the last used mode will be selected.
3. Press the Source button to select DAB mode. The display will
show “DAB Mode” for a few seconds.
4. If this is the rst time the radio is used a quick scan of the DAB
Band III channels may be carried out. The display will show
‘Scanning’ (If the radio has been used before the last used station
will be selected instead.) During the scanning process, as new
stations are detected the station counter will increase and the
stations will be added to the list which is stored in the radio. The
bar graph indicates the progress of the scan.
5. When scanning is completed the radio will list the stations found
(in numeric-alpha order 0....9...A...Z), unless it has previously
been tuned to a DAB station. Rotate the Tuning control to scroll
through the list of available DAB radio stations. Press the Tuning
control to select the highlighted station. The display may show
'Connecting...' while the radio re-tunes. When a DAB station is
found, the display will show the station name on the upper line of
the text display and broadcast information on the lower line. Use
the Volume control to set the sound level as needed.
6. If the station list is still empty after the scan the display will show
‘No DAB Station” then return to the DAB menu. If no stations
are found it may be necessary to relocate your radio to a position
giving better reception.

15
GB
Selecting a station-DAB
1. When playing a DAB radio station, the display normally shows
the name of the current station with other related information.
2. Rotate the Tuning control to access the radio station list and to
scroll through the available stations.
3. Press the Tuning control to select the desired station. The display
may show 'Connecting...' while the radio re-tunes.
4. Use the Volume control to set the sound level as needed.
Note:
If the display shows 'Service Not Available' it may be necessary
to relocate your radio to a position giving better reception. A
question-mark in front of the station name merely indicates that the
station has not recently been detected by the radio. It may still be
available.
Secondary services-DAB
1. Certain radio stations may have one or more secondary services
associated with them. If a station has a secondary service associated
with it the display will show “>>” next to the station name on the
station list. The secondary service will then appear immediately
after the primary service as you press the Tuning control.
2. Press and release the Tuning control to select the station. Most
secondary services do not broadcast continually and if the
selected service is not available, the radio will re-tune to the
associated primary service.

16
Display modes
Your radio has a range of display options when in DAB mode:-
1. Press the Info button to cycle through the different options.
a. Text Displays text messages such as the artist
or track name, phone in number, traffic
alerts, etc.
b. Program Type Displays the type of station being listened
to such as Pop, Classic, News etc.
c. Multiplex Name/
Frequency
Displays the name of the DAB multiplex to
which the current station belongs as well
as its broadcast frequency.
d. Time & Date Displays the current Time & date.
e. Frequency &
channel
Displays frequency and channel number
for the currently tuned DAB station.
f . Bit rate and
audio type
Displays the digital bit rate and audio
coding information for the station being
listened to.
g. Signal strength Displays the strength for the station being
listened to. The signal strength graph can
be used when positioning the radio or its
antenna. For good reception the graph
should occupy three or more blocks.

17
GB
Finding new stations-DAB
From time to time, new DAB radio stations may become available.
Or you may have moved to a different part of the country. In this
case you may need to cause your radio to scan for new stations.
1. Press and hold the Menu button until the Advanced DAB menu
shows on the display.
2. Rotate the Tuning control until ‘Full scan’ is shown on the display.
3. Press the Tuning control to initiate the scan. The display will show
'Scanning' and your radio will perform a scan of the DAB Band III
frequencies. As new stations are found the station counter will
increase and stations will be added to the list. The bar graph
indicates the progress of the scan.
4. Alternatively press Auto tune button to scan for new stations.

18
Manual tuning-DAB
Manual tuning allows you to tune your radio to a particular DAB
frequency in Band III. Any new stations found will be added to the
station list. This function can also be used to assist the positioning
of the antenna or the radio to optimize reception for a specific
channel or frequency.
1. Press and hold the Menu button until the Advanced DAB menu
shows on the display.
2. Rotate the Tuning control until the display shows 'Manual tune'.
3. Press the Tuning control to enter the manual tuning mode.
4. Rotate the Tuning control to select the desired DAB channel.
Then press the Tuning control to conrm the selection. The open
block in the signal strength graph shows the minimum signal
strength needed for good DAB reception. The signal blocks will
go up and down showing the changing signal strength as you
adjust the antenna or the radio position. Any new radio stations
found on the tuned DAB multiplex will be added to the list stored
in the radio.
5. Press the Tuning control to return to normal tuning mode.

19
GB
Dynamic Range Control (DRC)-DAB
The DRC facility can make quieter sounds easier to hear when
your radio is used in a noisy environment.
There are three levels of compression:
DRC Off No compression applied.
DRC High Maximum compression applied.
DRC Low Medium compression applied.
1. Press the Standby button to switch on your radio.
2. Press the Source button until the DAB band is selected.
3. Press and hold the Menu button until the Advanced DAB menu
shows on the display.
4. Rotate the Tuning control until 'DRC ' appears on the display.
Press and release the Tuning control to enter the setting. The
display will show the current DRC value which will be marked
with an asterisk.
5. Rotate the Tuning control to select the required DRC setting.
6. Press the Tuning control to confirm the setting. After several
seconds the display will return to the normal radio display.
Note:
Not all DAB broadcasts are able to use the DRC function. If the
broadcast does not support DRC, then the DRC setting in the radio
will have no effect.
