PerfectSense PS-HC24-R User manual

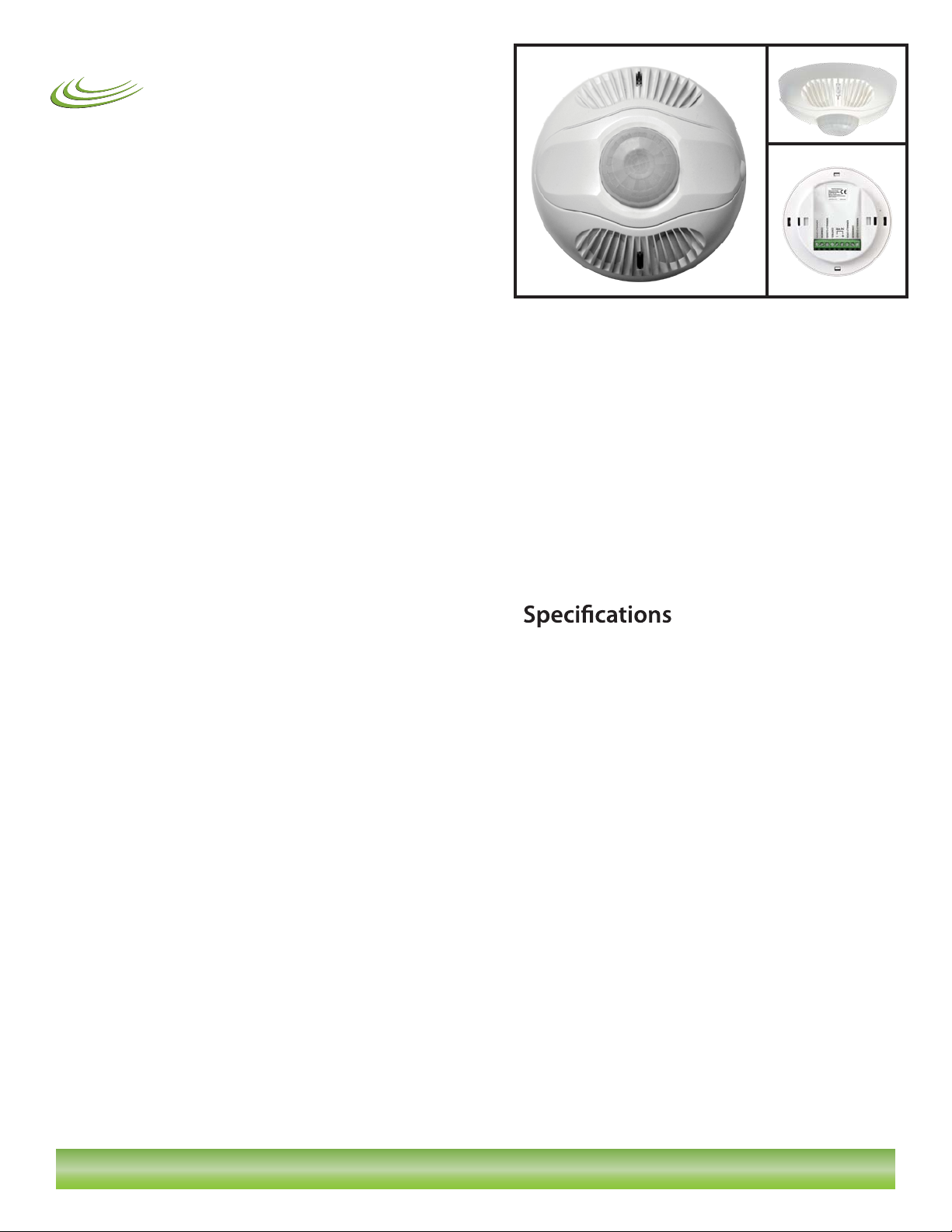

PS-HC24-R:
1000 sq ft 360° Sensor
High Definition Infrared Technology
Ceiling Mount | Low Voltage
Phone: [phone] www.nexlight.com Fax: [phone]
Electrical:
Power Requirements: 24VDC, from powerpack
Current Consumption: 15mA
Output: 24VDC active high logic control signal
with short circuit protection
Isolated Relays: 2 SPDT 1 Amp, 30 VDC Form C

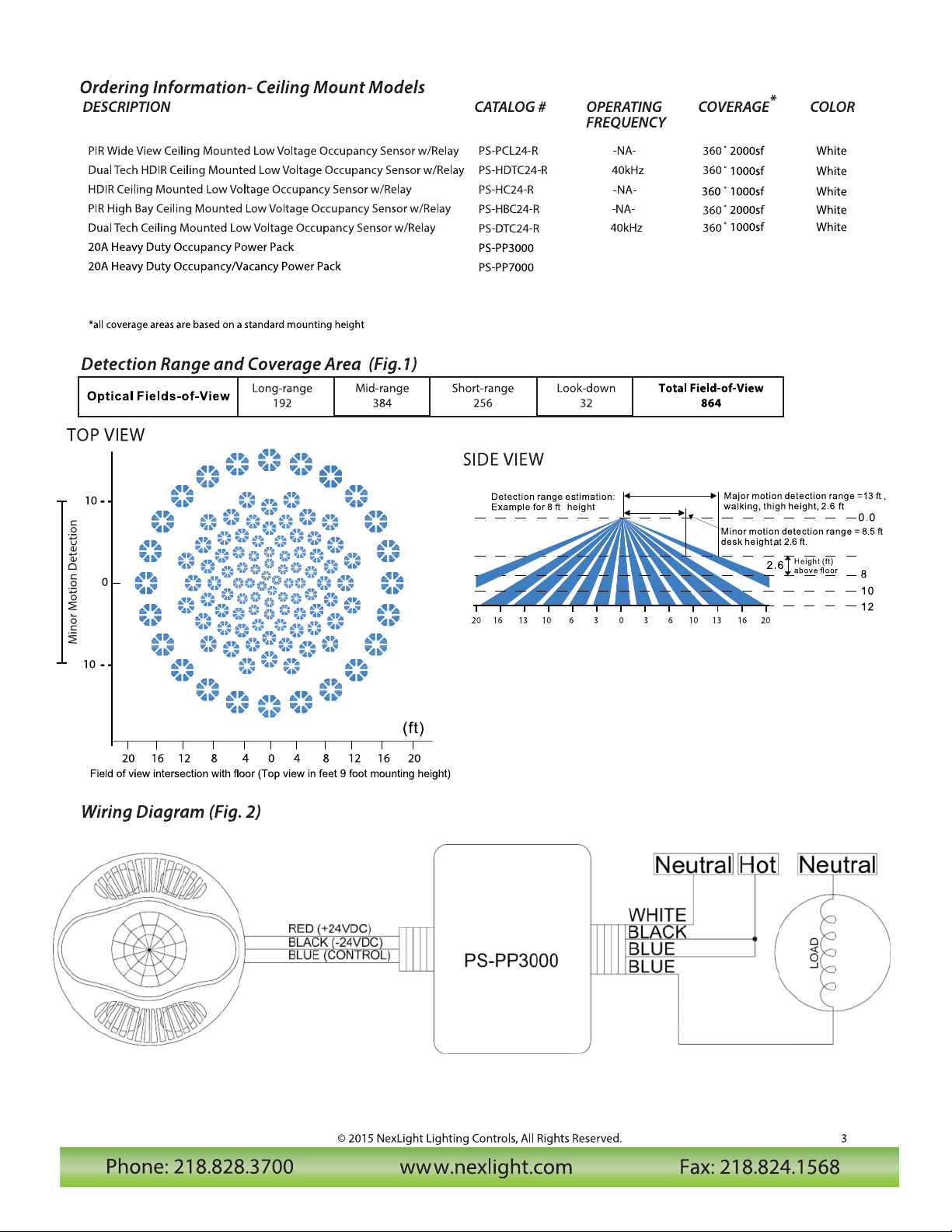

Wiring Diagram: See Fig. 2
Controls:
HDIR Sensitivity: 0-100% (Factory Set 50%)
Daylight Sensor: 20-320 FC (Factory Disabled)
Detection Range: See Fig. 1
Load Rating: Controls Class 2 Power Pack
Housing Material: High-Impact ABS
Color: White
Environment Temperature: -40ºF to 122ºF
Humidity: 0-95% Non Condensing
Installation: See Install Instructions
Dimensions: Diameter 4.33 in
Height 2.2 in
Supported with limited 5-year warranty
Title 24 Compliant
Meets ASHRAE 90.1 requirements
PerfectSense
®
Intelligent Building Occupancy Sensors
© 2015 NexLight Lighting Controls, All Rights Reserved. 1
Description:
The PS-HC24-R is a low voltage High Denition Infrared (HDIR)
Presence Sensor designed to work with any PerfectSense power
pack, to automatically control lighting in standard and cold
weather applications. This sensor utilizes an industry leading
8-Element Infrared detector for superior minor motion detec-
tion. The sensor operates in climates down to -40° Fahrenheit or
Celsius. Dual Form C Relays are present on the sensor to allow for
integration to NexLight’s 2-wire system and HVAC/BMS Systems.
The sensor turns the lights on and keeps them on while occu-
pancy is detected and will turn the lights o after the delayed-
OFF time has expired.
Operation of Sensor:
Motion detection by the HDIR sensor will turn ON the lights as
well as keep them ON. When motion is not detected, the lights
will turn OFF after the delayed-OFF time.
Walk-Through Mode:
The walk-through feature is useful when a room is momentarily
occupied, such as a storage room. When a person enters the
room, the lights will turn on and stay on for 2.5 minutes. After 2.5
minutes the lights will shut o.
Scenario A: If motion is detected within 10 seconds of the lights
shutting o, the sensor will proceed to standard operation (5s to
30m). After the lights shut o, the sensor will revert back to
walk-through mode.
Scenario B: If no motion is detected within 10 seconds of the
lights shutting o, the sensor will stay in walk through mode and
the next time it sees detection the lights will turn on for 2.5
minutes.
Daylight Sensor:
To enable daylight sensor operation, set Dip Switch 1 in Bank B
to OFF. This puts the sensor in a stand-by mode when the natural
light level exceeds the selected Foot Candles (FC) level inhibiting
the lights from turning ON.
LED Operation:
The Sensor has two LED indicators that, when enabled, will ash
when motion is detected. These LEDs are Enabled/Disabled via
DIP switch 2 in Bank B. When enabled, a red ash indicates that
motion has been detected by Infrared Technology.
Features:
• 1000 sq ft Range
• 300 sq ft minor motion detection range
• Patented HDIR 8-element Sensor
• 864 Optical Field-of View Pattern
• 360° Coverage Pattern
• Adjustable Time Delay (30 sec – 30 min)
• Walk-Through Mode
• Daylight Override Mode
• Mounts in drop ceilings and solid ceilings
• LED indication of occupancy sensing

Phone: [phone] www.nexlight.com Fax: [phone]
© 2015 NexLight Lighting Controls, All Rights Reserved. 2
Sensor Adjustments Console:
Sets the infrared range
Range setting
Full CCW = min.(OFF)
Full CW = max.
Passive Infrared Adjustment
Delayed-OFF time
Daylight Sensor Adjustment
Factory default setting is disabled. If installed
location calls for the use of daylight sensor this is
the adjustment for control of required ambient
light levels necessary to disable the automatic
ON control of the sensor when detecting occu-
pancy. NOTE: The daylight sensor function is not
applicable in rooms using manual ON control.
SWITCH FUNCTI ONS
Bank A OFF ON
Walk Through Walk Through Enable Walk Through Disable- - -Mode
Ba nk B
DisableEnable
LEDs Mode LEDs Enabled LEDs Disable
Test Mode OFF ON OFF = Enter/Exit Test Mode
N/A N/A N/A
SWITCH SETTINGS
SWITCH
A1
A2
A3
A4
B1
B2
B3
B4
N/A N/A N/A
N/A N/A N/A
All aspects of sensor operation can be adjusted here.
View of adjustments when cover is removed. Dip
Switch setting table below illustrates how to enable
and disable sensor functions.
DIP SWITCH SETTINGS
Each time motion is detected, the lights remain
activated for a pre-set time, which is set by the
O-time adjustment. The fully counter-clockwise
setting (30seconds) can be used for testing. If
motion is detected during the ON time, the timer
resets and lights will remain on until the full
PIR sensitivity can be dialed up or down to meet
the exact needs of anyspace. This adjustment is
helpful to ensure detection in all areas during a
walk test.
N/A N/A N/A
Daylight Mode Daylight Mode Daylight Mode
Note: Gray indicated factory default settings

Infrared Range
Range setting
Full CCW = min.(OFF)
Full CW = max.
Factory Default
Delayed-OFF time
30sec 5min 10min 20min 30min
Full CCW = min.(30 sec.)
Full CW = max.(30 min.)
Factory Default
Daylight Sensor
20 FC 40 FC 80 FC 160 FC 320 FC
Full CCW = Lights stay OFF
Full CW = Lights always turn ON (NO daylight override)
Factory Default

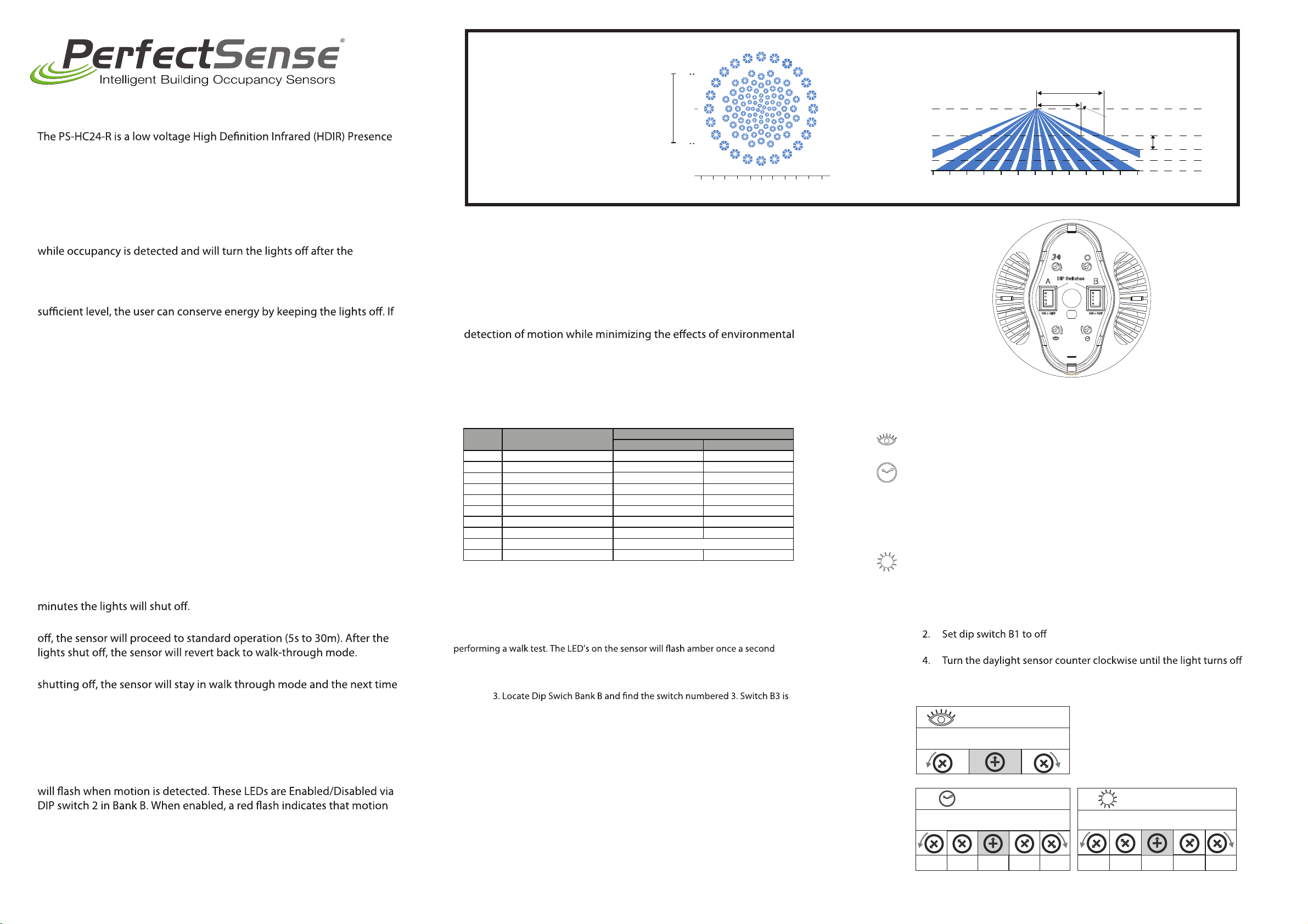

DETECTION AND ACTIVATION:
When a person enters a room, the sensor detects major body motion
and turns the light on. The light is kept on even as smaller body
movement is detected. This sensor’s detection sequence logic (DSL)
minimizes false triggering by continuously analyzes the motion
detection signal and adjusts internal operation to maximize the
and electrical noise.
OPERATION MODE ADJUSTMENT
SETTINGS:
(Fig. Operation control console)
All aspects of sensor operation can be adjusted here
1. Set the daylight sensor knob to fully counter clockwise (lowest level)
3. Turn the daylight sensor knob clockwise until the light turns on.
5. This will be the setting
AB
Switch Function
Settings
Off On
Bank A
A1
A2
A3
A4 Walk-Thru / Normal Walk-Thru Enabled Normal Occupancy
Bank B
B1 Daylight Sensor Enabled Disabled
B2 LED Indicator Enabled Disabled
B3 Test Mode Off-On-Off (Toggle Enter/Exit)
B4
Not Used
Not Used
Not Used
Not Used
DESCRIPTION:
Sensor designed to work with any PerfectSense power pack, to auto-
matically control lighting in standard and cold weather applications.
This sensor utilizes an industry leading 8-Element Infrared detector for
superior minor motion detection. The sensor operates in climates down
to -40° Fahrenheit or Celsius. Dual Form C Relays are present on the
sensor to allow for integration to NexLight’s 2-wire system and
HVAC/BMS Systems. The sensor turns the lights on and keeps them on
delayed-OFF time has expired.
There is a daylight sensor built into the sensor to allow for ambient light
override functionality. If the ambient light level in the room is at a
this setting is used, the controlled lighting load will only turn on if the
ambient light present is less than the desired setting.
INSTALLATION:
See the back of this installation manual for installation instructions. The
sensor is fully operational after 30 seconds of powering up the device.
OPERATION OF SENSOR
Delayed-OFF Time: The sensor is designed to turn the lights OFF if no
black twist knob designated for timer inside the control console. Depen-
dent upon environmental conditions and occupancy patterns, the
adapting patterns will modify the delayed-OFF time to match the
parameters of each installation.
Walk-Through Mode: The walk-through feature is useful when a room is
momentarily occupied, such as a storage room. When a person enters
the room, the lights will turn on and stay on for 2.5 minutes. After 2.5
Scenario A: If motion is detected within 10 seconds of the lights shutting
Scenario B: If no motion is detected within 10 seconds of the lights
it sees detection the lights will turn on for 2.5 minutes.
Daylight Sensor: To enable daylight sensor operation, set Dip Switch 1
in Bank B to OFF. This puts the sensor in a stand-by mode when the
natural light level exceeds the selected Foot Candles (FC) level inhibiting
the lights from turning ON.
LED Operation: The Sensor has two LED indicators that, when enabled,
has been detected by Infrared Technology.
Infrared Adjustment- For maximum range, set fully clockwise (CW). If
reduced range is required, then turn counterclockwise (CCW) and test
Delayed-OFF Time Adjustment: Each time motion is detected, the load
remains activated for a pre-set time, which is set by the Delayed-OFF
Time Adjustment, The fully CCW setting (30 seconds) can be used for
testing. The fully clockwise setting is 30 Minutes. If motion is detected
during the ON time, then the load remains activated until the full ON
time has passed since the latest motion detection.
Daylight Sensor Adjustment: This level needs to be set in a room where
natural light is at the desired level for the lighting load to not be turned
on. The sensor will still see motion (indicated by the red LEDS)
Test Mode: This mode is used to set the Delayed-OFF Time to 5 seconds for
while in test mode.
1. Ensure Power is On
2. Remove the cover from the Operation Control Console
defaulted to the OFF position.
4. To enter Test Mode, move the switch from OFF to ON and then back to
OFF. If B3 is already in the ON position, test mode can be entered by just
moving it back to the OFF position.
Notes for Test Mode:
1. The Delayed-OFF Time will remain in the 5 second test mode for 15
minutes. It will then automatically reset to the Delayed -OFF Time setting
as dened by the black adjustment knob in the control console and exit
test mode.
DETECTION AREA
TESTING THE SENSOR
TOP VIEW
Field of view intersection with floor (Top view in feet 9 foot mounting height)
0
201240 8 16
41220 16 8
10
10
Minor Motion Detection
(ft)
Detection range estimation:
Example for 8 ft height
Major motion detection range =13 ft ,
walking, thigh height, 2.6 ft
0.0
2.6 8
12
Height (ft)
above floor
10
Minor motion detection range = 8.5 ft
desk height,at 2.6 ft.
SIDE VIEW
0 3 6 10 13 16 2020 16 13 10 6 3
Motion detection by the HDIR sensor will turn ON the lights as well as
keep them ON. When motion is not detected, the lights will turn OFF
after the delayed-OFF time.
2. To manually take the sensor out of the test mode, move switch B3 from
OFF to ON and back to OFF again.

Hot (Black)
Neutral (White)
Load
Black
Blue
Blue
White
Black
White
Line
120/277/347VAC
60Hz
(typical power pack shown wire color may vary)
Red (24V+)
Blue (CTL)
Black (24V-)
Prepare and connect wires
1/2"
(1.3 cm)
Strip wire
(measure bare wire here)
Cut
(if necessary)
for removal of this product or reinstallation. This warranty is void if this product is installed improperly or in an improper environment, overloaded, misused, opened, abused, or altered in any manner, or is not used under normal operating conditions or not in accordance with any labels or instructions. There are no other or implied
LIMITED 5 YEAR WARRANTY AND EXCLUSIONS
INSTALLATION INSTRUCTIONS
WARNING:
TO AVOID FIRE, SHOCK, OR DEATH;TURN OFF POWER
at circuit breaker or fuse and test that power is before wiring!
power at
circuit breaker
Option B. Junction box
1. Use two #8 32 screws (not supplied) to fasten the base
ring tothe ceiling.
#8-32 Screws
(not supplied)
Octagon Box
4" x 1 1/2" deep
Low-Voltage
Wires
Insert wires intocorrect terminalblocks and tighten.
Be sure to double check correct wiring connections!
Power
Pack
Wiring to power pack
By masking sections,
you can block hallway traffic
Mask
Masking is not required in a corner mounting application.
Select mounting location
Use the included PIR Mask
when sensor location may
cause false ON’s due to
(For best results mount at least 6 feet away from air vents)
1
Option C. Base ring w/ mounting anchors
Low-Voltage Wires
Wallboard
Ceiling
Sensor
Base Ring
Sensor Base
Mounting Screws
(2 places)
Sensor Front Cover
Mounting Anchors
1. cut 2” hole in ceiling
2. mount sensor
2 in
5
2 3 4
Included Parts List:
Sensor (1) Base mounting ring (1)
Wall Anchors (3) Spring mounting clip (2)
PIR detection Mask (1) 7/8” Wall anchor screw (3)
Tools required for install:
Slotted/Phillips Screwdriver Wire Stripper
Pencil Wire Cutters
Hole Saw
FCC COMPLIANCE STATEMENT:
This device complies with part 15 and part 18 of the FCC rules. Operation is subject to the following two conditions: (1) This device must not
cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.
WARNINGS AND CAUTIONS:
•To be installed and/or used in accordance with appropriate
electrical codes and regulations.
• If you are unsure about any part of these instructions,
• Sensors must be mounted on a vibration free surface.
• All sensors must be mounted at least 6 feet away from air vents.
• Do not mount sensors closer than 10 feet from each other.
• Do not touch the surface of the PIR lens. Clean outer surface only.
2. Align the sensor’s two eyelets with the base ring’s two hooks.
3. Press the sensor onto the base ring.
5
Option A. Drop ceiling w/ mounting clips
A. remove mounting ring
3.375 in
Low Voltage Wires
Wallboard
Ceiling
Terminal Block
Connections
Mounting
Clips
B. install clips
C. cut 3.375” hole
in ceiling
D. mount sensor
2
11
5
NORMALLY CLOSED
NORMALLY OPEN
COMMON
NORMALLY OPEN
+
_
CONTROL
COMMON
NORMALLY CLOSED
CLOSED
NORMALLY
COMMON
NORMALLY
OPEN
NORMALLY
COMMON
NORMALLY
OPEN
CLOSED
24 Vdc

Phone: [phone] www.nexlight.com Fax: [phone]
© 2015 NexLight Lighting Controls, All Rights Reserved. 4
# Element Orientation Detection Area Description
8 Element IR of
PerfectSense
PS-HDTC24-R
!864 optical view patterns,
each cluster of 8-element
pattern makes detecting
very fine body movement
possible.
!360-degree coverage with
circular area, good
repeatability.
!Detect movements 20
degree across the optical
zone.
4 Element IR of
Ordinary Product
!224 optical view patterns.
!Detection coverage is not
full circle.
!Many blind spots.
2 Element IR of
Ordinary Product
(Industry Standard)
!62 optical view patterns.
!An ellipse shape detection
coverage, not full circle.
!Detect movement 40
degree across optical
zone.
Sensor Technology Comparison
HDIR technology signicantly surpasses known boundaries of IR sensor technology. Extending the capability of IR to new
levels of accuracy through a combination of patented sensor hardware and logic algorithms. The power behind this innova-
tion originates from a proprietary 8-element pyros infrared element that eclipses current competitive sensor logic technolo-
gies. Eight-Hundred and Sixty-Four (864) optical view patterns are achieved, delivering unmatched sensitivity for minor
motion events like hand and nger movements. Paired with ultrasonic technology for a complete solution designed to meet
the demands of Title 24 and ASHRAE 90.1.
