Performax shockwave 241-0963 User manual

2.3 AMP MULTI-TOOL
241-0963
Owner’s Manual
PRODUCT SPECIFICATIONS
Rating:
120 V, 60 Hz AC
Amperes:
2.3 A
Variable speed:
11,000–20,000 OPM (no load)
Weight:
3 lb 0 oz (1.35 kg)
Need Assistance?
Call us on our toll free customer support line:
1-866-349-8665
Technical questions
Replacement parts
Parts missing from package

2
Product specifications ………….…………………………………………………….
1
Table of contents ……………………………………………………………………...
2
General safety warnings ……………………………………………………………..
3–4
Eye, ear & lung protection ……………………………………………………………
3–4
Electrical safety ……………………………………………………………………….
4
Power tool safety ……………………………………………………………………...
5–6
General safety rules …………………………………………………………………..
5
Work area ………………………………………………………………….…………..
5
Electrical safety ……………………………………………………………………….
5
Personal safety ………………………………………………………………………..
5–6
Power tool use and care .…………………………………………………………….
6
Service …………………………………………………………………………………
6
Specific safety rules …………………………………………………………………..
7
Symbols ………………………………………………………………………………..
8
Know your multi-tool ………………………………………………………………….
9
Accessories ……………………………………………………………………………
9

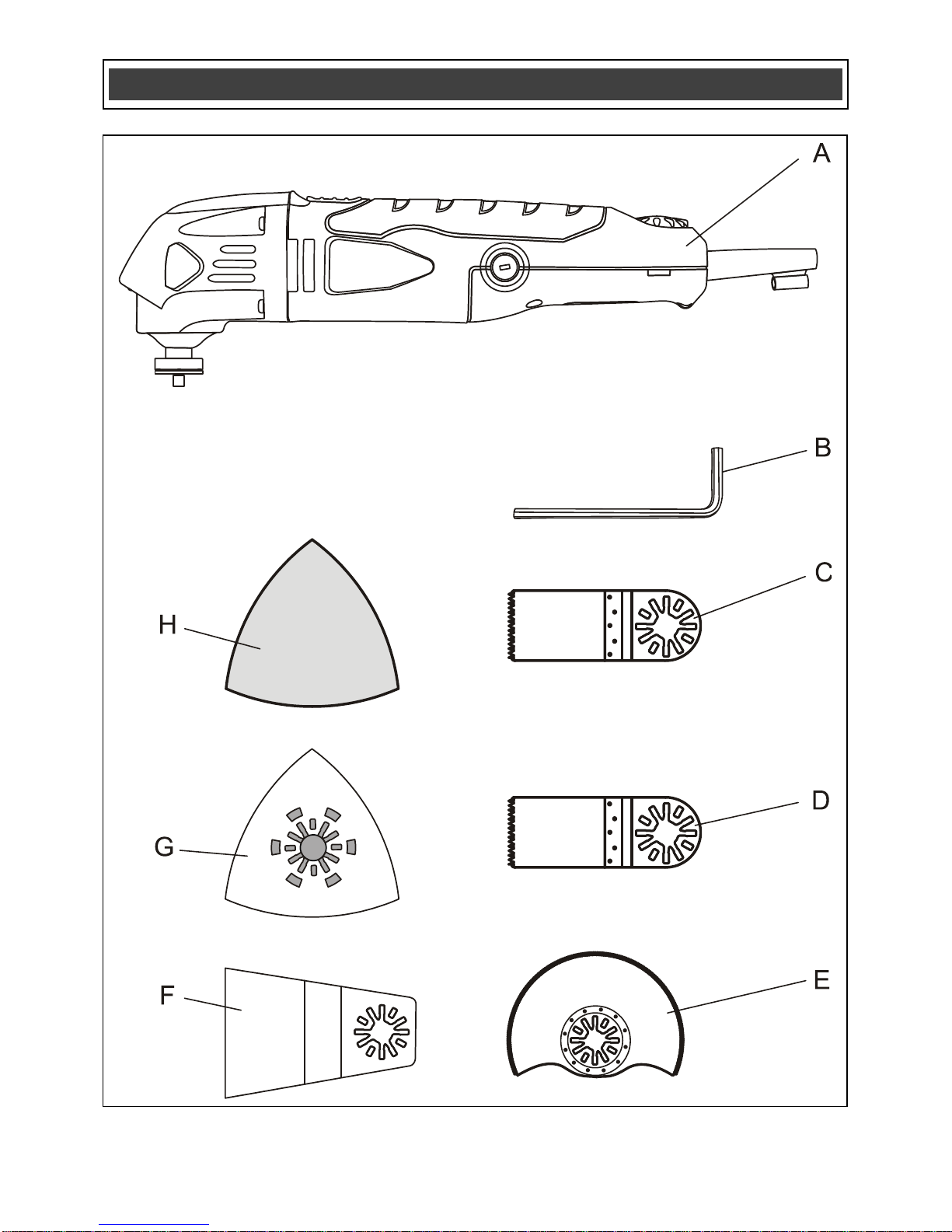

Contents ……………………………………………………………………………….
10–11
Assembly and operating ……………………………………………………………..
12–21
Installing accessories …………………………………………………………………
12–13
Installing sandpaper …………………………………………………………………..
13
ON/OFF switch ………………………………………………………………………..
14
LED worklight ………………………………………………………………………….
14
Speed control dial ……………………………………………………………….........
14–15
Flush cutting a door jamb and casing for installing flooring ………………………
16–17
Cutting a hole in wood flooring to install a heating vent …………………………..
17–18
Cutting a hole in drywall for installing an electrical outlet box ……………………
18–20
Using the detail sander attachment …………………………………………………
20
Using the scraper blade ……………………………………………………………...
21
Maintenance …………………………………………………………………………..
22–23
Exploded view …………………………………………………………………………
24
Parts list ………………………………………………………………………………..
25–26
Warranty ……………………………………………………………………….………
27
TABLE OF CONTENTS

3
EYE, EAR & LUNG PROTECTION
This instruction manual includes the following:
General Safety Rules
Specific Safety Rules and Symbols
Functional Description
Assembly
Operation
Maintenance
Accessories
!
ALWAYS WEAR EYE PROTECTION THAT CONFORMS WITH CSA
REQUIREMENTS or ANSI SAFETY STANDARD Z87.1
FLYING DEBRIS can cause permanent eye damage. Prescription
eyeglasses ARE NOT a replacement for proper eye protection.
WARNING: Non-compliant eyewear can cause serious injury if
broken during the operation of a power tool.
SAVE THESE INSTRUCTIONS FOR REFERENCE
WARNING: Use hearing protection, particularly during extended
periods of operation of the tool, or if the operation is noisy.
!
GENERAL SAFETY WARNINGS
WARNING: Before using this tool or any of its accessories, read this
manual and follow all Safety Rules and Operating Instructions. The important
precautions, safeguards and instructions appearing in this manual are not
meant to cover all possible situations. It must be understood that common
sense and caution are factors which cannot be built into the product.
!

4
ELECTRICAL SAFETY
WARNING: To avoid electrical hazards, fire hazards or damage to the
tool, use proper circuit protection.
This tool is wired at the factory for 120 V AC operation. It must be
connected to a 120 V AC, 15 A circuit that is protected by a time-delayed
fuse or circuit breaker. To avoid shock or fire, replace power cord
immediately if it is worn, cut or damaged in any way.
GENERAL SAFETY WARNINGS
WEAR A DUST MASK THAT IS DESIGNED TO BE USED WHEN
OPERATING A POWER TOOL IN A DUSTY ENVIRONMENT.
WARNING: Dust that is created by power sanding, sawing, grinding,
drilling, and other construction activities may contain chemicals that are
known to cause cancer, birth defects, or other genetic abnormalities. These
chemicals include:
Lead from lead-based paints
Crystalline silica from bricks, cement, and other masonry products
Arsenic and chromium from chemically treated lumber
The level of risk from exposure to these chemicals varies, according to how
often this type of work is performed. In order to reduce exposure to these
chemicals, work in a well-ventilated area, and use approved safety
equipment, such as a dust mask that is specifically designed to filter out
microscopic particles.
!

5
WARNING: Read all safety warnings
and instructions. Failure to follow the
warnings and instructions may result in
electric shock, fire and/or serious injury.
Save all warnings and instructions for
future reference.
Work area safety
Keep work area clean and well lit.
Cluttered or dark areas invite accidents.
Do not operate power tools in explosive
atmospheres, such as in the presence
of flammable liquids, gases or dust.
Power tools create sparks which may
ignite the dust or fumes.
Keep children and bystanders away
while operating a power tool.
Distractions can cause you to lose control.
Electrical safety
Power tool plugs must match the outlet.
Never modify the plug in any way. Do
not use any adapter plugs with earthed
(grounded) power tools. Unmodified
plugs and matching outlets will reduce risk
of electric shock.
Avoid body contact with earthed or
grounded surfaces such as pipes,
radiators, ranges and refrigerators.
There is an increased risk of electric shock
if your body is earthed or grounded.
Do not expose power tools to rain or
wet conditions. Water entering a power
tool will increase the risk of electric shock.
Do not abuse the cord. Never use the
cord for carrying, pulling or unplugging
the power tool. Keep cord away from
heat, oil, sharp edges or moving parts.
Damaged or entangled cords increase the
risk of electric shock.
When operating a power tool outdoors,
use an extension cord suitable for
outdoor use. Use of a cord suitable for
outdoor use reduces the risk of electric
shock.
If operating a power tool in a damp
location is unavoidable, use a residual
current device (RCD) protected supply.
Use of a ground fault circuit interrupter
(GFCI) reduces the risk of electric shock.
Personal safety
Stay alert, watch what you are doing
and use common sense when operating
a power tool. Do not use a power tool
while you are tired or under the
influence of drugs, alcohol or
medication. A moment of inattention while
operating power tools may result in serious
personal injury.
Use personal protective equipment.
Always wear eye protection. Protective
equipment such as dust mask, non-skid
safety shoes, hard hat, or hearing
protection used for appropriate conditions
will reduce personal injuries.
Prevent unintentional starting. Ensure
the switch is in the off-position before
connecting to power source and/or
battery pack, picking up or carrying the
tool. Carrying power tools with your finger
on the switch or energizing power tools
that have the switch on invites accidents.
POWER TOOL SAFETY
!

6
PERSONAL SAFETY –cont’d
Remove any adjusting key or wrench
before turning the power tool on. A
wrench or a key left attached to a rotating
part of the power tool may result in
personal injury.
Do not overreach. Keep proper footing
and balance at all times. This enables
better control of the power tool in
unexpected situations.
Dress properly. Do not wear loose
clothing or jewelry. Keep your hair,
clothing and gloves away from moving
parts. Loose clothes, jewelry or long hair
can be caught in moving parts.
If devices are provided for the
connection of dust extraction and
collection facilities, ensure these are
connected and properly used. Use of
dust collection can reduce dust-related
hazards.
Power tool use and care
Do not force the power tool. Use the
correct power tool for your application.
The correct power tool will do the job
better and safer at the rate for which it was
designed.
Do not use the power tool if the switch
does not turn it on and off. Any power
tool that cannot be controlled with the
switch is dangerous and must be repaired.
Disconnect the plug from the power
source and/or the battery pack from the
power tool before making any
adjustments, changing accessories, or
storing power tools. Such preventive
safety measures reduce the risk of starting
the power tool accidentally.
Store idle power tools out of the reach
of children and do not allow persons
unfamiliar with the power tool or these
instructions to operate the power tool.
Power tools are dangerous in the hands of
untrained users.
Maintain power tools. Check for
misalignment or binding of moving
parts, breakage of parts and any other
condition that may affect the power
tool’s operation. If damaged, have the
power tool repaired before use. Many
accidents are caused by poorly maintained
power tools.
Keep cutting tools sharp and clean.
Properly maintained cutting tools with
sharp cutting edges are less likely to bind
and are easier to control.
Use the power tool, accessories and
tool bits etc. in accordance with these
instructions, taking into account the
working conditions and the work to be
performed. Use of the power tool for
operations different from those intended
could result in a hazardous situation.
Hold power tool by insulated gripping
surfaces, because the blade may
contact its own cord. Cutting a "live" wire
may make exposed metal parts of the tool
"live" and could give the operator an
electric shock.
Service
Have your power tool serviced by a
qualified repair person using only
identical replacement parts. This will
ensure that the safety of the power tool is
maintained.
POWER TOOL SAFETY

7
WARNING: Know your multi-tool.
Do not plug the tool into the power
source until you have read and
understand this Instruction Manual.
Learn the tool’s applications and
limitations, as well as the specific
potential hazards related to this tool.
Following this rule will reduce the risk of
electric shock, fire, or serious injury.
Always wear eye protection.
Any power tool can throw
foreign objects into your eyes
and cause permanent eye
damage. ALWAYS wear safety goggles
(not glasses) that comply with ANSI safety
standard Z87.1. Everyday glasses have
only impact resistant lenses. They ARE
NOT safety glasses.
WARNING: Glasses or goggles
not in compliance with ANSI Z87.1
could cause serious injury when they
break.
Always keep hands out of the path of the
saw blade. Avoid awkward hand positions
where a sudden slip could cause your
hand to move into the path of the saw
blade.
Secure workpiece. Use clamps or a vice to
hold the workpiece. It is safer than using
your hand and it frees both hands to
operate the tool.
Make sure there are no nails or foreign
objects in the part of the workpiece to be
cut or sanded.
To avoid injury from accidental starting,
always remove the plug from the power
source before installing or removing an
accessory.
Never use dull blades in the tool. They will
cut slower, leave rough cuts and break
easily due to added pressure and
excessive heat. They will also overload the
motor and cause premature failure of the
tool.
Never use damaged or bent blades. They
will be brittle and break easily possibly
causing injury to the operator.
Never touch a saw blade immediately after
using the tool. The blade will be extremely
hot and will burn your hand.
Only use accessories designed for use
with this tool.
SPECIFIC SAFETY RULES
!
SAVE THESE INSTRUCTIONS FOR REFERENCE
!

8
V
Volts
A
Amperes
Hz
Hertz
W
Watts
kW
Kilowatts
Microfarads
L
Liters
kg
Kilograms
H
Hours
N/cm2
Newtons per square
centimeter
Pa
Pascals
Min
Minutes
S
Seconds
Alternating current
Three-phase alternating
current
Three-phase alternating
current with neutral
Direct current
No load speed
Alternating or direct
current
Class II construction
Splash-proof
construction
Watertight construction
Protective grounding at
grounding terminal,
Class I tools
Revolutions or
reciprocations per
minute
Diameter
Off position
Arrow
Warning symbol
SYMBOLS
WARNING: Some of the following symbols may appear on the multi-
tool. Study these symbols and learn their meaning. Proper interpretation of
these symbols will allow for more efficient and safer operation of this tool.
!
3042597
JD2545U
LISTED
This symbol designates that this tool is
listed with U.S. requirements by
ETL Testing Laboratories, Inc.
Conforms to UL Std. 745-1, 745-2-4.

9
AVAILABLE ACCESSORIES
WARNING: Use only accessories
that are recommended for this multi-
tool. Follow the instructions that
accompany the accessories. The use of
improper accessories may result in
injury to the operator or damage to the
tool.
Before using any accessory, carefully read
the instructions or the owner’s manual for
the accessory.
Saw blades
Scraper blades
Sandpaper
WARNING: If any part is missing or
damaged, do not plug the tool into the
power source or install any accessory until
the missing or damaged part is replaced.
KNOW YOUR MULTI-TOOL
ACCESSORIES
!
!
ON/OFF switch
Speed control dial
Air vents
Accessory
holder
Hex key
holder
LED worklight

10
CONTENTS
Carefully unpack the multi-tool. Compare
the contents against the "MULTI-TOOL
COMPONENTS" chart below.
NOTE: See illustration of the multi-tool on
Page 11.
WARNING: To avoid fire or toxic
reaction, never use gasoline, naphtha,
acetone, lacquer thinner or similar
highly volatile solvents to clean the
tool.
CONTENTS
MULTI-TOOL COMPONENTS
KEY
DESCRIPTION
QTY
A
Multi-tool
1
B
5 mm Hex key
1
C
Universal end cut
blade for cutting wood
1
D
End cut blade for
cutting soft metal and
wood
1
E
Half circle saw blade
for cutting wood &
drywall
1
F
Rigid scraper blade
1
G
Sanding pad
1
H
Sandpaper
80 grit
120 grit
180 grit
9
9
9
Nylon tote (not shown)
1
Owner’s Manual
1
!

11
CONTENTS

12
INSTALLING ACCESSORIES
All accessories are installed on the multi-
tool in a similar manner. For the purposes
of describing the accessory installation, the
half circle blade is used.
DANGER: Always remove the plug
from the power source before installing
or removing accessories or sandpaper.
Failing to remove the plug from the
power source may result in the tool
accidentally being started and causing
serious injury to the operator.
1. Remove the screw (1) and washer (2)
from the accessory holder (3) by
turning the screw counter clockwise.
Use the 5 mm Hex key (4) if the screw
is too tight to be removed by hand
(Fig. 1).
2. Place the blade (5) on the accessory
holder (Fig. 2).
NOTES:
a) Make sure the alignment slots (6) in
the blade fit over the alignment pins
(7) in the accessory holder and the
printed side of the blade is facing the
tool.
b) The blade can be mounted at various
angles left or right of center if
required.
3. Thread the screw (1) through the
washer (2) and the blade and into the
accessory holder threaded hole (8).
4. Turn the screw clockwise until it is
finger tight.
ASSEMBLY AND OPERATING
!
ASSEMBLY AND OPERATINGASSEMBLY AND OPERATING
Fig. 2
Fig. 1

13
INSTALLING ACCESSORIES –cont’d
NOTES:
a) Check to make sure the convex curve
of the washer (9) is facing the head of
the screw and the slots in the edge of
the washer fit over the alignment pins
in the accessory holder.
b) Make sure the alignment slots in the
blade are still mated with the
alignment pins in the accessory
holder.
5. Firmly tighten the screw with the 5 mm
hex key.
NOTE: Check to make sure the slots in the
blade are still mated with the alignment
pins on the accessory holder after the
screw is fully tightened.
INSTALLING SANDPAPER
1. Install the hook & loop sanding pad (1)
onto the tool (Fig. 3).
2. Firmly press the sandpaper (2) onto
the hook & loop pad.
NOTES:
a) Place the sandpaper so the holes in the
sandpaper line up with the matching holes
in the hook & loop pad.
b) Press the sandpaper firmly onto the
hook & loop pad.
3. To remove the sandpaper, simply peel
the sandpaper away from the hook &
loop pad (Fig. 4).
ASSEMBLY AND OPERATING
Fig. 2
Fig. 3
Fig. 4

14
ON/OFF SWITCH
1. To turn the tool ON, slide the ON/OFF
switch (1) toward the front of the tool
(Fig. 5).
2. To turn the tool OFF, slide the
ON/OFF switch toward the rear of the
tool.
LED WORKLIGHT
This tool is equipped with an LED worklight
(Fig. 6). The worklight (1) will automatically
turn ON when the tool switch is turned ON.
It will turn OFF when the tool switch is
turned OFF.
SPEED CONTROL DIAL
The speed of the tool can be adjusted to
run the tool at speeds varying between
11,000 OPM and 20,000 OPM by rotating
the speed control dial (1) located toward
the rear of the tool housing (Fig. 7).
1. To increase the speed, rotate the
speed control dial clockwise.
2. To decrease the speed, rotate the
speed control dial counter clockwise.
NOTE: Speed #1 is the lowest speed.
Speed #6 is the highest speed.
The optimal speed setting will vary
depending upon the type of accessory
being used, the surface being worked and
the complexity of the project. For general
recommendations, see the chart on the
following page.
ASSEMBLY AND OPERATING
Fig. 6
Fig. 5
Fig. 7

15
Project
Accessory
Speed
Drywall
Half circle
blade
Maximum
Restoring
windows
Half circle
blade
Medium
Door jamb
Wood blade
Maximum
Door casing
Wood blade
Med / max
Wood
dowels
Wood blade
Maximum
Floor vent
Wood blade
Med / max
PVC pipe
Wood blade
Medium
Glued
flooring
Scraper
Medium
Sanding
Sander
Med / max
ASSEMBLY AND OPERATING
For safety reasons, the operator must
read the sections of this Owner’s
Manual entitled “GENERAL SAFETY
WARNINGS”, “POWER TOOL
SAFETY”, “SPECIFIC SAFETY RULES”
and “SYMBOLS” before using this
multi-tool.
Verify the following every time the
multi-tool is used:
1. Safety glasses, safety goggles, or
face shield are being worn.
2. Hearing protection is being worn.
3. The blade or sandpaper is in good
condition.
4. The accessory is properly
tightened onto the accessory
holder of the tool.
Failure to observe these safety rules
will significantly increase the risk of
injury.
WARNING
!

16
FLUSH CUTTING A DOOR JAMB AND
CASING FOR INSTALLING FLOORING
The multi-tool can be used to flush cut a
door jamb and casing to allow space for
the new flooring to fit neatly under the door
jamb and casing. For the purpose of
demonstrating the procedure, floor tile is
being used.
1. Install the end cutting saw blade for
wood in the tool (Fig. 2 Pages 12&13).
NOTE: The blade should be centered on
the tool housing and NOT installed in the
90° position.
2. Place a scrap piece of floor tile (1) on
the floor about 1/2" (12.5 mm) from
the door jamb (2) (Fig. 8).
NOTE: Make sure the “good” side of the
tile is facing upward to provide a smooth
surface for the blade to follow.
3. Place the tool with the saw blade (3)
lightly touching the surface of the tile
and the cutting teeth NOT touching
the surface to be cut.
4. Set the speed to the fastest speed
and turn the tool ON (Fig. 5 & 7
on Page 14).
5. When the tool reaches its maximum
set speed, carefully plunge the blade
into the door jamb while sliding the
blade along the floor tile.
NOTE: Hold the tool tightly and do not put
too much forward pressure on the saw
blade when cutting, as this will cause the
tool to vibrate excessively.
ASSEMBLY AND OPERATING
Fig. 8

17
FLUSH CUTTING A DOOR JAMB AND
CASING FOR INSTALLING FLOORING –
cont’d
6. Continue to make several plunge cuts
until the bottom of the door jamb and
casing are completely cut off and the
loose pieces (4) can be easily
removed.
Follow the same basic procedure for
installing carpet, using a thicker spacer
that is the same thickness of the carpet
being installed.
CUTTING A HOLE IN WOOD FLOORING
TO INSTALL A HEATING VENT
The multi-tool can be used to cut a hole in
wood flooring for installing a heating vent.
1. Install the plunge cutting saw blade for
wood in the tool (Fig. 2 Pages 12&13).
NOTE: The blade should be centered on
the tool housing and NOT installed in the
90° position.
2. Place the floor vent on the floor and
use a soft lead pencil to trace the
required rectangular hole (1) on the
flooring (Fig. 9).
3. Place the saw blade (2) near the floor
surface in the middle of one of the
cutting lines.
4. Set the tool speed at a medium speed
and turn the tool ON (Fig. 5 & 7 on
Page 14).
NOTE: The tool and blade should be at a
45° angle to the floor to allow the corner of
the blade to plunge cut into the flooring.
ASSEMBLY AND OPERATING
Fig. 8
Fig. 9

18
CUTTING A HOLE IN WOOD FLOORING TO
INSTALL A HEATING VENT –cont’d
5. While holding the tool tightly, slowly
plunge the corner of the blade into the
flooring until it cuts through the
flooring. Once the plunge cut is
complete, set the tool to its highest
speed and complete the cut to the
corner of the rectangle.
6. Turn the saw OFF, remove it from the
cut and proceed to cut in the opposite
direction to complete the cut for the
first side of the rectangle.
7. Repeat steps #4, #5 & #6 to cut the
remaining three sides of the rectangle.
8. When all cuts are complete, use a flat
blade screw driver to carefully pry the
cut-out from the floor.
NOTE: Do NOT use the saw blade to pry
the cut-out from the floor. You will break
the blade. If the cut-out is not easy to pry
from the floor, check to make sure each
line is cut completely into the corner of the
rectangle.
CUTTING A HOLE IN DRYWALL FOR
INSTALLING AN ELECTRICAL OUTLET
BOX
The multi-tool can be used to cut a hole in
drywall for installing an electrical outlet
box.
1. Install the half circle saw blade for
wood & drywall in the tool (Fig. 2
Pages 12&13).
ASSEMBLY AND OPERATING

19
CUTTING A HOLE IN DRYWALL FOR
INSTALLING AN ELECTRICAL OUTLET BOX –
cont’d
NOTE: The blade should be centered on
the tool housing and NOT installed in the
90° position.
2. Place the outlet box on the drywall
and use a soft lead pencil to trace the
required rectangular hole (1) on the
drywall (Fig. 10).
3. Place the corner edge of the saw
blade (2) near the drywall in the
middle of one of the cutting lines.
4. Set the speed to the highest speed
and turn the tool ON (Fig. 5 & 7 on
Page 14).
5. When the tool reaches its maximum
speed, carefully plunge the blade into
the drywall until it cuts through the
drywall. Complete the cut to the
corner of the rectangle.
NOTE: Hold the tool tightly and do not put
too much pressure on the saw blade when
cutting.
6. Turn the saw OFF, remove it from the
cut and proceed to cut in the opposite
direction to complete the cut for the
first side of the rectangle.
7. Repeat steps #4, #5 & #6 to cut the
remaining three sides of the rectangle.
8. When all cuts are complete, use a flat
blade screw driver to carefully pry the
cut-out from the drywall.
ASSEMBLY AND OPERATING
Fig. 10

20
CUTTING A HOLE IN DRYWALL FOR
INSTALLING AN ELECTRICAL OUTLET BOX –
cont’d
NOTE: Do NOT use the saw blade to pry
the cut-out from the drywall. You will break
the blade. If the cut-out is not easy to pry
from the drywall, check to make sure each
line is cut completely into the corner of the
rectangle.
USING THE DETAIL SANDER
ATTACHMENT
1. Install the sanding pad on the multi-
tool as outlined in Fig. 2 on Pages
12 &13.
2. Install the sandpaper on the sanding
pad as outlined in Fig. 3 & 4 on
Page 13.
3. Set the speed control wheel between
#4 and #6 as outlined in Fig. 7 on
Page 14.
4. Turn the switch ON as outlined in
Fig. 5 on Page 14.
This tool is designed for detail sanding on
small surface areas. Place the sandpaper
surface of the sanding pad on the
workpiece to be sanded. Keep the tool
moving to avoid gouging the surface. Use
coarse sandpaper and lower speeds when
sanding rough surfaces and for removing
previous finishes. Use fine sandpaper and
higher speeds to produce the smoothest
surface
ASSEMBLY AND OPERATING
