Perle C-110-M2ST2 User manual

P/N 5500307-12
Perle 10/100 Ethernet
Media Converter
Module
Installation Guide
Unmanaged Managed
C-110-M2ST2 CM-110-M2ST2
C-110-M2SC2 CM-110-M2SC2
C-110-M2LC2 CM-110-M2LC2
C-110-S2SC20 CM-110-S2SC20
C-110-S2LC20 CM-110-S2LC20
C-110-S2SC40 CM-110-S2SC40
C-110-S2SC80 CM-110-S2SC80
C-110-S2SC120 CM-110-S2SC120
C-110-S1SC20U CM-110-S1SC20U
C-110-S1SC20D CM-110-S1SC20D
C-110-S1SC40U CM-110-S1SC40U
C-110-S1SC40D CM-110-S1SC40D

Perle 10/100 Media Converter Module – Installation Guide
2
Overview
This document contains instructions necessary for the installation and
operation of the Perle 10/100 Ethernet Media Converter Module(s) (C-
110 and CM-110) that are used in conjunction with a Perle MCR Chassis.
The C-110 are unmanaged media converter modules, and the CM-110
are the managed versions. These products convert a 10/100Base-T
connection (copper) to a 100Base-X connection (fiber). The fiber
connection can be either single mode (SM) or multimode (MM) and can
operate over different wavelengths and distances, depending on the
model (see table below). For information on management options of the
CM-110 module, refer to the MCR-MGT Module User’s Guide.
Model Connector Mode - Distance Wavelength
C-110-M2ST2
CM-110-M2ST2 ST MM – 2 km/1.2 mi. 1310 nm
C-110-M2SC2
CM-110-M2SC2 SC MM – 2 km/1.2 mi. 1310 nm
C-110-M2LC2
CM-110-M2LC2 LC MM – 2 km/1.2 mi. 1310 nm
C-110-S2SC20
CM-110-S2SC20 SC SM – 20 km/12.4 mi. 1310 nm
C-110-S2LC20
CM-110-S2LC20 LC SM - 20 km/12.4 mi. 1310 nm
C-110-S2SC40
CM-110-S2SC40 SC SM - 40 km/24.9 mi. 1310 nm
C-110-S2SC80
CM-110-S2SC80 SC SM - 80 km/49.7 mi. 1550 nm
C-110-S2SC120
CM-110-S2SC120 SC SM - 120 km/74.6 mi. 1550 nm
C-110-S1SC20U
CM-110-S1SC20U SC SM - 20 km/12.4 mi. 1310/1550 nm
C-110-S1SC20D
CM-110-S1SC20D SC SM - 20 km/12.4 mi. 1550/1310 nm
C-110-S1SC40U
CM-110-S1SC40U SC SM - 40 km/24.9 mi. 1310/1550 nm
C-110-S1SC40D
CM-110-S1SC40D SC SM - 40 km/24.9 mi. 1550/1310 nm
Note 2: Please refer the Perle web site for the most up to date
Installation guides, models and specifications:
http://www.perle.com/

Perle 10/100 Media Converter Module – Installation Guide
3
Installation
The module comes equipped with a bank of DIP switches and
jumpers for setting configuration.
The default dip switch settings (all switches in the UP position) and
default jumper settings will work for most installations.
The following steps are used to configure the Perle 10/100 Ethernet
Media Converter Module:
1. Set the Auto-MDIX jumper (optional).
2. Set the Auto-Config jumper (CM-110 only) (optional)
3. Set the DIP switch settings (optional).
4. Insert the Media Converter Module into the Chassis.
5. Connect the fiber cable.
6. Connect the copper cable.
Auto-MDIX Jumper
Note: The factory settings for Auto-MDIX will work for most
installations, but if there is a need to modify the settings, follow the
procedure below.

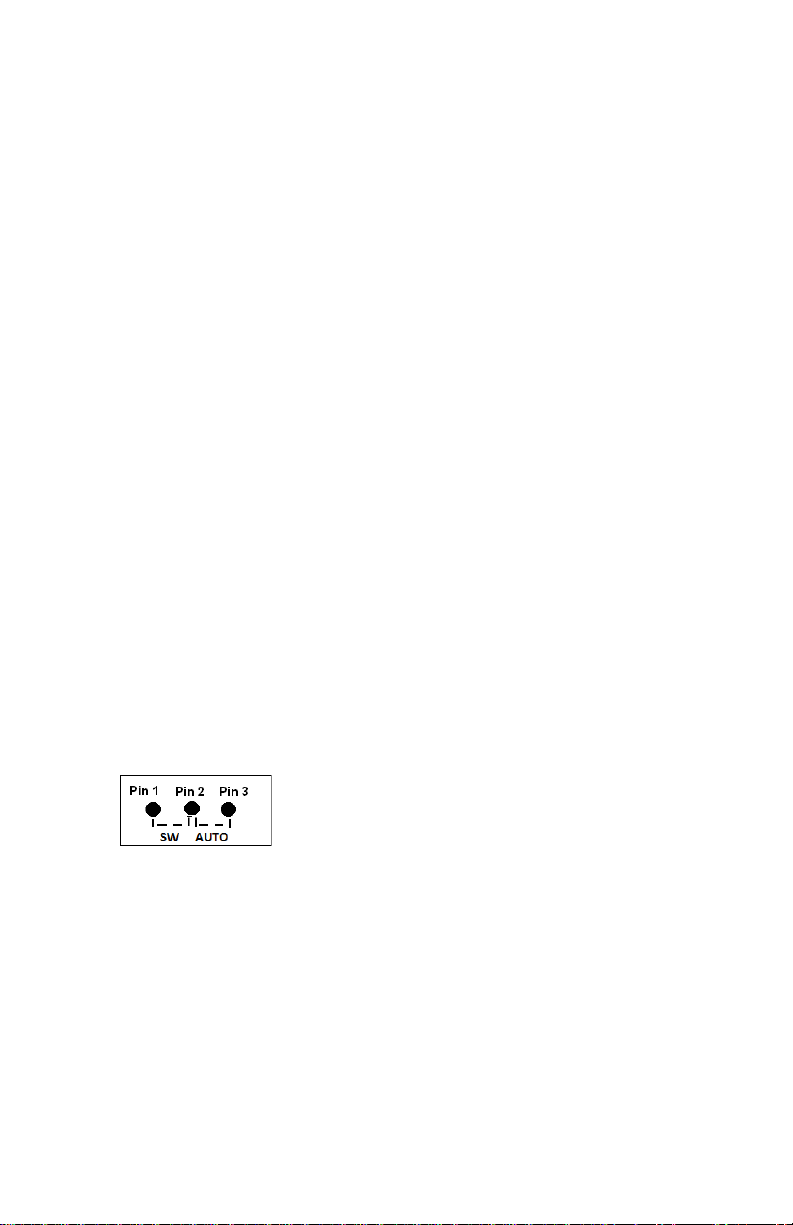

The AUTO-MDIX jumper (J5) is located on the upper edge, at the
midpoint of the module (see diagram below for labelling).. By
covering or strapping pins 2 and 3(AUTO), the C-110 and CM-110
will automatically detect the Ethernet cable’s polarity and
configure itself as either an MDI or an MDIX device. By covering
or strapping pins 1 and 2(MDIX), the C-110 and CM-110 will
operate as an MDIX device Removing the strapping is the same
as AUTO.
NOTE: The default jumper setting is AUTO

Perle 10/100 Media Converter Module – Installation Guide
4
Auto-Config Jumper (CM-110 only)
The Auto-Config jumper (J6) is located just below the Auto-MDIX
jumper (see above). Refer to the diagram below for labelling. This
jumper only applies to CM-110 modules.
Strapping pins 1 and 2 of the jumper will set the module in SW
mode and strapping pins 2 and 3 will set it in Auto Config mode.
Auto: When set to Auto the module will, at power-up, check its
internal flash memory to see if configuration information has been
downloaded to it from a management module. If so it will use this
as its running configuration. If there is no configuration in flash it
will read the settings of the DIP switches and use those as its
running configuration.
SW: When set to SW (Switch), the module will, at power-up, read
the settings of the DIP Switches and use those as its running
configuration. It will ignore any configuration information in its
flash memory.
NOTE: The default jumper setting is Auto

Perle 10/100 Media Converter Module – Installation Guide
5

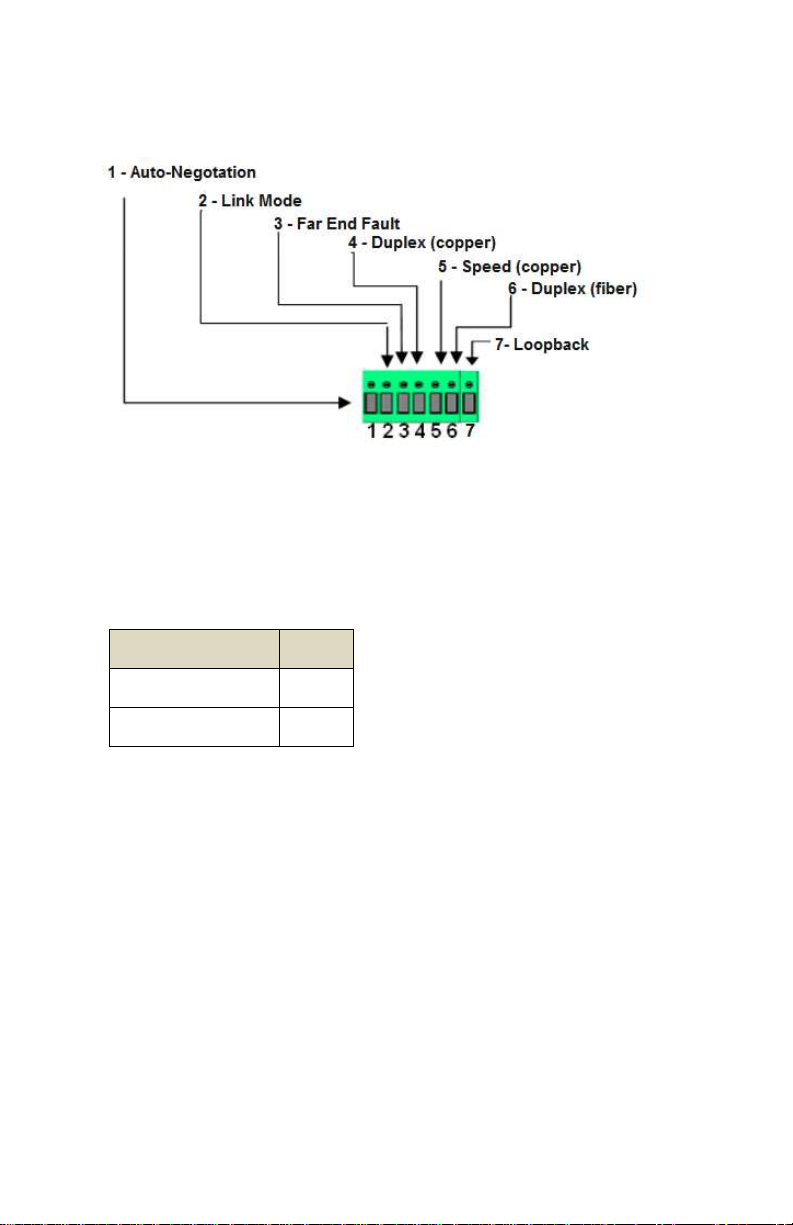

DIP Switches
DIP Switch Settings
Auto Negotiation (Switch 1)
Switch Position
Mode
Up (default) Auto
Down Off
Note: Auto negotiation should only be turned off, if the copper link
partner does not support Auto Negotiation or fixed settings are
required by the copper link partner.
Auto: In this mode of operation the Media Converter Module will
negotiate Ethernet parameters on the copper connection. This will
ensure that the most optimal connection parameters will be used.
If the copper link partner does not support Auto negotiation, the
Media Converter Module will parallel detect to 10 or 100 Mbps
and force Half Duplex mode as per IEEE specifications.
Off: When the Auto Negotiation switch is set to the OFF position,
the Media Converter Module will not negotiate the Ethernet
parameters with the copper link partner. The parameters used by

Perle 10/100 Media Converter Module – Installation Guide
6
the Media Converter Module will be determined by the Duplex
(switch 4) and Speed (switch 5) dip switch settings.
Link Mode (Switch 2)
Switch Position
Mode
Up (default) Link Pass-Through Mode
Down Standard Mode
Link Pass-Through: In this mode, the link state on one
connection is directly reflected through the Media Converter
Module to the other connection. If the link is lost on one of the
connections, then the other link will be brought down.
With Media Converters on both ends of the fiber link and both
setup for Link Pass-Through, a loss of copper link on the far end
device will propagate through both Converters and will result in a
loss of copper link at the near end device. This would, in effect,
resemble a direct copper connection
Standard Mode: In this mode, the links on the fiber and copper
sides can be brought up and down independently of each other. A
loss of link on either the fiber or copper port can occur without
affecting the other connection.
Far End Fault (Switch 3)
Switch Position
Mode
Up (default) Enabled
Down Disabled
Enabled: If the Media Converter Module detects a loss of receive
fiber signal, it will transmit a FEF signal to the remote Media
Converter. This, in effect, notifies the fiber link partner that an
error condition exists on the fiber connection.

Perle 10/100 Media Converter Module – Installation Guide
7
If the remote Media Converter is set up for Far End Fault (FEF)
and the local Media Converter is set up with Link Pass-Through, a
loss of fiber link on either the transmit or receive line will be
passed through to the local copper connection thus notifying the
connected device.
If the Media Converter has been set to Link Pass-Through mode,
the effect will be the same as FEF, since the link loss on the fiber
receiver will result in bringing down the copper link, which will in
turn cause the transmit fiber link to be brought down.
Note: If it is required to either generate or detect the FEF signal,
then the FEF switch needs to be set.
Disabled: The Media Converter Module will not monitor for or
generate Far End Fault.

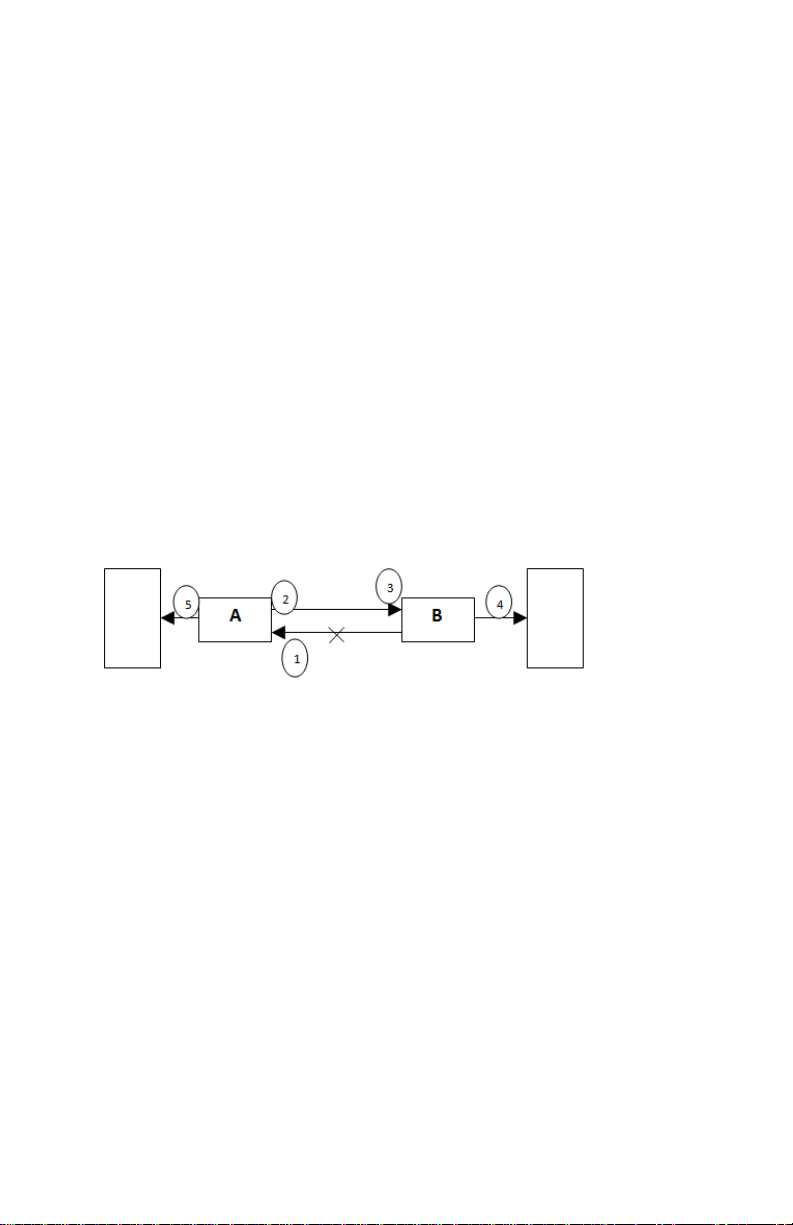

The following diagram is an illustration of the operation of this feature.
(A) – Remote Media Converter setup for Far End Fault Enabled,
Auto Negotiation – OFF and Link Mode – Standard.
(B) – Local Media Converter setup for Far End Fault - Enabled,
Link Pass-Through - On and Auto Negotiation - OFF
1 – (A) Loses fiber connection on its receiver.
2 – (A) Sends FEF.
3 – (B) Detects FEF signal and shuts down the fiber link.
4 – (B) Drops link on copper connection because Link Pass-
Through is configured.
5 – (A) Link on copper connection is not affected because Link
Mode is set to Standard.

Perle 10/100 Media Converter Module – Installation Guide
8
Duplex (copper) (Switch 4)
Switch Position
Mode
Up (default) Full
Down Half
Note: When Auto Negotiation (SW1) is set to Off, the Media
Converter will use this Duplex setting for its copper connection.
Up: The Media Converter Module will be set to Full Duplex mode.
Down: The Media Converter Module will be set to Half Duplex
mode.
Speed (copper) (Switch 5)
Switch Position
Mode
Up (default) 100
Down 10
Note: When Auto Negotiation (SW1) is set to Off, the Media
Converter Module will use this Speed setting for its Ethernet
copper connection.
Up: The Media Converter will be fixed at 100 Mbps.
Down: The Media Converter will be fixed at 10 Mbps.

Perle 10/100 Media Converter Module – Installation Guide
Duplex (fiber) (Switch 6)
Switch Position
Mode
Up (default) Full
Down Half
Up: The Media Converter Module’s fiber link will be set to Full
Duplex Mode.
Down: The Media Converter Module’s fiber will be set to Half
Duplex Mode.
Loopback (Switch 7
Switch Position
Mode
Up (default) Disabled
Down Enabled
Disabled: This is the setting for normal operation. The switch
must be set to this position in order for data to pass through the
Media Converter Module.
Enabled: This is a test mode. All data received on the receive
(RX) fiber connection is looped back to the transmit (TX) fiber
connection. The state of the copper link is not relevant since no
data is passed through to the copper side. This mode will override
all other switch settings.

Perle 10/100 Media Converter Module – Installation Guide
10
Installing or Replacing Media Converter
Modules
Caution: Observe electrostatic discharge precautions
when installing the Media Converter Module(s) into the
Chassis. Failure to observe this caution could result in
damage to the Media Converter Module(s) and /or chassis.
The Perle Media Converter Modules can be installed in any
available slot and in any order within the Chassis.
Installing or Replacing a Media Converter Module
1. Remove the Media Converter Module from its packaging.
2. Using a cross-head screwdriver, remove the screw holding
the face plate to the Chassis to reveal the slot opening.
3. Set the jumpers and DIP switches on the Media Converter
Module to the desired operating mode.
4. Locate the top and bottom alignment guides inside the
Chassis.
5. Using the module alignment guides gently slide the module
into the slot until it becomes flush with the front of the
Chassis. Light pressure may be needed to seat the module.
Do not force the module as you might cause some damage.
If there is resistance, remove the module, check the module
connector for damaged or incorrectly aligned pins, if there is
no damage, retry module insertion.
6. Tighten the captive retainer screw to ensure the Media
Converter Module is locked in place.

Perle 10/100 Media Converter Module – Installation Guide
11
7. Remove the dust cap from the fiber connector and connect
the fiber and copper cables.
Removing Media Convert Modules
1. Loosen the captive retainer screw on the front of the Media
Converter Module and gently pull the Media Converter
Module out.
2. If not inserting a replacement, cover the opened slot with a
face plate and secure the screw
Installing the Duplex Fiber Cable
Locate a 100Base-X compliant duplex (2 strands) fiber cable with
appropriate connectors.
Connect the fiber cables from the Media Converter Module to the
other Media Converter/switch/fiber device ensuring that the RX
and TX are reversed (crossed) at the opposite end.
.

Perle 10/100 Media Converter Module – Installation Guide
12
Installing the Simplex Fiber Cable
•Locate a 10/100Base-X compliant simplex (1 strand) fiber
cable with appropriate connectors.
•Connect the fiber cable from one Media Converter Module to
the other Media Converter/switch/fiber device.
Installing the Copper Cable
•Locate 10/100Base-T compliant copper cables with male,
RJ-45 connectors installed at both ends.
•Connect the RJ-45 cable between the Perle Media
Converter Module and the device.
Note: The Perle Media Converter Module supports Auto-MDIX
which allows a straight-through or cross-over Ethernet cable. See
page 4 in this guide for jumper positions.

Perle 10/100 Media Converter Module – Installation Guide
13
Operation

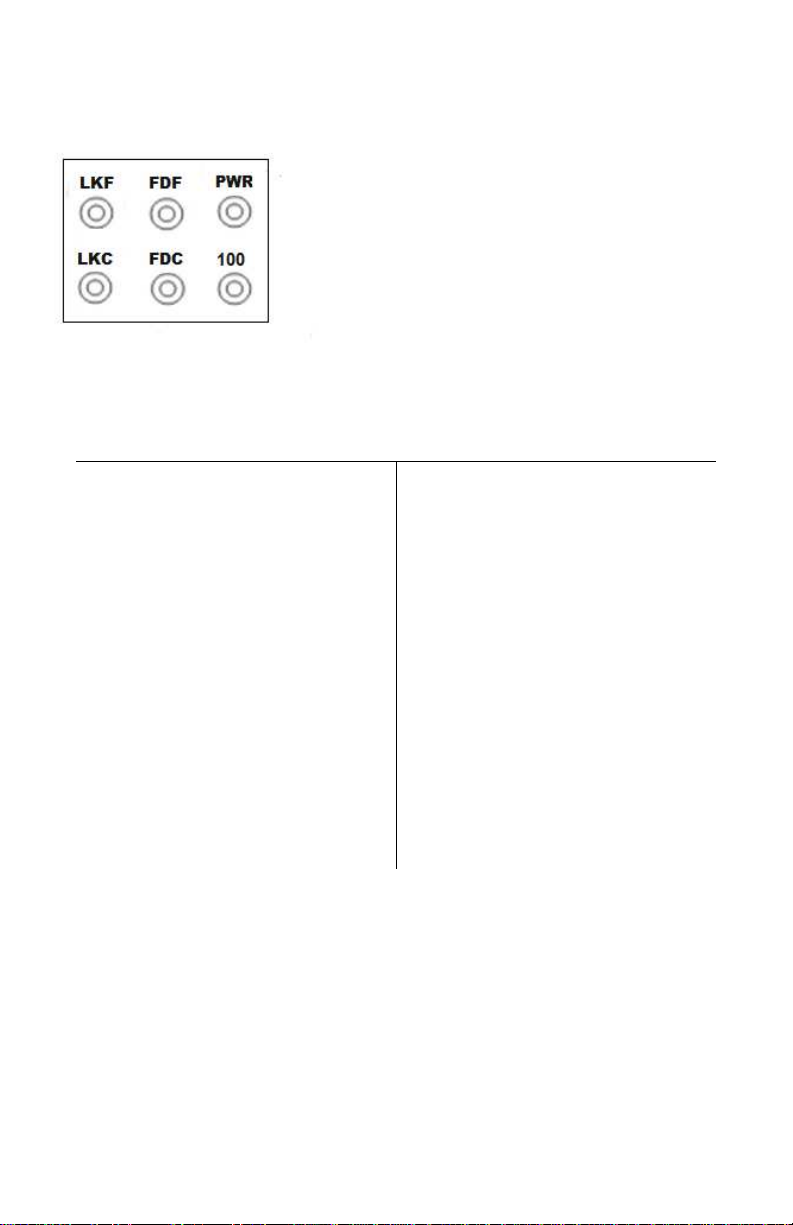

Status LED
The Perle 10/100 Ethernet Media Converter Modules have six single
color status LEDs located on the face plate of the module.
PWR
On – Power is on; module is
operating normally
Blinking (slow)– The module is in
Loopback mode.
Blinking (fast) – The module has a
hardware failure.
FDF (fiber)
On – Full Duplex Mode.
Off – Half Duplex Mode.
LKF (fiber )
On – The fiber link is present
Off – No fiber link is present.
Blinking (fast) – The fiber link is
present and receiving data.
100 (copper speed)
On – 100 Mbps
Off – 10 Mbps
FDC (copper)
On – Full Duplex Mode.
Off – Half Duplex Mode.
LKC (copper)
On – The copper link is present.
Off – No copper link present.
Blinking (fast) – The copper link is
present and receiving data.

Perle 10/100 Media Converter Module – Installation Guide
14
Other Features
Auto-MDIX:
Auto-MDIX (automatic medium-dependant interface crossover)
detects the signalling on the 10/100BASE-T interface to determine
the type of cable connected (straight-through or crossover) and
automatically configures the connection.
Error Recovery:
In certain configurations, and under specific conditions where the
Media Converter Module brings down a link to convey status,
there is potential for a deadlock. Recovery is achieved by
momentarily restoring the link to see if the original failure has
been resolved. If it has not, the link will be forced down again,
however if the original problem has been resolved, the link will be
restored.
Pause (IEEE 802.3xy):
Integrated Pause signalling is an IEEE feature that temporarily
suspends data transmission between two devices in the event that
one of the devices becomes overwhelmed. The Perle Media
Converter Module can generate and respond to Pause messages.

Perle 10/100 Media Converter Module – Installation Guide
15
Troubleshooting
General
•Ensure that the Media Converter Module is securely seated in
the chassis. The PWR LED should be on.
•Ensure both devices on either end of the fiber are compatible.
If using a simplex fiber connection, ensure that you have both
an Upstream (U) and Downstream (D) Media Converter.
•Ensure all cabling is of the correct type and is in good working
order.
•For duplex fiber connections, ensure the RX and TX has been
reversed between the two Media Converters.
No connectivity
If unable to get full connectivity with all DIP switches in the UP
position, these methods are recommended for troubleshooting.
Method 1
1. If the Module is a CM-110, set the Auto-Config jumper (J6) to
SW so that DIP switches are being read.
2. Set the Link mode to Standard (SW2 – Down) on both Media
Converters. Leave all other switches in the Up position.
3. Connect the near end device to the copper connection. The
LKC LED indicates good copper connection. If the LKC LED
is not lit, then check the copper cable and the attached
device. Repeat for the far end Media Converter.
4. Connect the fiber cable to both Converters. The LKF LED
indicates good fiber connection. If no LKF LED then check
the fiber cabling.
5. Return converters to desired configuration.

Perle 10/100 Media Converter Module – Installation Guide
16
Method 2:
The fiber connection can also be verified by configuring the
remote Media Converter for loopback mode. The LKF LEDs on
both Media Converters should be lit. Data should pass through
the local converter, over the fiber connection to the remote
Media Converter. At the remote Media Converter, the data will
be looped back and passed through the fiber, once again, to
pass through the local converter to the copper link.
Note: If troubleshooting a CM-110, setting the Auto-Config
jumper (J6) to SW will ensure the DIP switches are being read.

Perle 10/100 Media Converter Module – Installation Guide
17
Technical Specifications
Power Input/Consumption 12V DC / 2.1 W
Operating Temperature: 0 °C to 50 °C (32 °F to 122 °F)
Storage Temperature: -25 °C to 70 °C (-13 °F to 158 °F)
Operating Humidity: 5% to 0% non-condensing
Storage Humidity: 5% to 5% non-condensing
Operating Altitude: Up to 3,048 m (10,000 ft)
MTBF: (C-110) 577,872 hours
(CM-110) 561,817 hours
Fiber Optic Specifications:
Model Mode Wavelength
(nm) TX Power (dB) RX Power (dB) Budget (dB)
C-110-M2ST2
CM-110-M2ST2 MM TX: 1310
RX: 1310
Min: -20
Max: -12
Min: -31
Max: -14 11
C-110-M2SC2
CM-110-M2SC2 MM TX: 1310
RX: 1310
Min: -20
Max: -12
Min: -31
Max: -14 11
C-110-M2LC2
CM-110-M2LC2 MM TX: 1310
RX:1310
Min: -20
Max: -12
Min: -30
Max: -14 10
C-110-S2SC20
CM-110-S2SC20 SM TX: 1310
RX:1310
Min: -18
Max: -7
Min: -32
Max: -3 14
C-110-S2LC20
CM-110-S2LC20 SM TX: 1310
RX:1310
Min: -15
Max: 0
Min: -34
Max: -5 19
C-110-S2SC40
CM-110-S2SC40 SM TX: 1310
RX:1310
Min: -5
Max: 0
Min: -34
Max: -3 29
C-110-S2SC80
CM-110-S2SC80 SM TX: 1550
RX:1550
Min: -5
Max: 0
Min: -34
Max: -3 29
C-110-S2SC120
CM-110-S2SC120 SM TX: 1550
RX: 1550
Min: 0
Max: 5 Min: -35 Max: -3
35
C-110-S1SC20U
CM-110-S1SC20U SM TX: 1310
RX:1550
Min: -14
Max: -8
Min: -32
Max: -3 18
C-110-S1SC20D
CM-110-S1SC20D SM TX: 1550
RX:1310
Min: -14
Max: -8
Min: -32
Max: -3 18
C-110-S1SC40U
CM-110-S1SC40U SM TX: 1310
RX:1550
Min: -8
Max: -3
Min: -33
Max: -3 25
C-110-S1SC40D
CM-110-S1SC40D SM TX: 1550
RX:1310
Min: -8
Max: -3
Min: -33
Max: -3 25

Perle 10/100 Media Converter Module – Installation Guide
18
Fiber Cabling Requirements:
MM: 50/125 microns or
62.5/125 microns
SM: 9/125 microns
Ethernet Copper Cabling Requirements:
•Category 5 UTP or STP
•24-22 AWG
•Straight through or Ethernet crossover
Note: Please refer the product page on the Perle website for the
most up to date list of models and specifications.
http://www.perle.com/

Perle 10/100 Media Converter Module – Installation Guide
1
Compliance Information
FCC
This product has been found to comply with the limits for a Class A digital device,
pursuant to Part 15 of the FCC rules. These limits are designed to provide
reasonable protection against harmful interference when the equipment is
operated in a commercial environment. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance with
the instructions in this Guide, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is likely to cause
harmful interference, in which case the user will be required to correct the
interference at his/her own expense.
EN 55022, Class A
WARNING This is a Class A product. In a domestic environment this product may
cause radio interference in which case the user may be required to take adequate
measures.
EN 55024, Class A
Laser Safety – IEC 60825-1:2007
This product meets Class I Laser safety requirements per IEC-60825-1:2007
standard and complies with FDA/CDRH 21 CFR1040.10 and 21 CFR1040.11.
WARNING: Visible and invisible laser radiation may be present when cables are
not connected. Do not stare into the beam or view the beam directly with optical
instruments. Failure to observe this warning could result in an eye injury or
blindness.
WARNING: Use of controls, adjustments or the performance of procedures other
than those specified herein may result in hazardous radiation exposure.

Perle 10/100 Media Converter Module – Installation Guide
20
Warranty / Registration
Perle’s standard Lifetime Warranty provides customers with return
to factory repairs for Perle products that fail under the conditions
of the warranty coverage. Details can be found at:
http://www.perle.com/support_services/warranty.shtml
Contacting Technical Support
Contact information for the Perle Technical Assistance Center
(PTAC) can be found at the link below. A Technical Support
Query may be made via this web page.
www.perle.com/support_services/support_request.shtml
Copyright
© 2010 Perle Systems Limited
All rights reserved. No part of this document may be reproduced or used in any form
without written permission from Perle Systems Limited.
