Perle S-1110HP-XT User manual

S-1110HP-XT Hi-PoE Media Converters
perle.com/products/media-converters/s-1110hp-xt-hi-poe-media-converters.shtml
IEEE 802.3bt Compliant PoE & Fiber Media Conversion
10/100/1000Base-T to 100/1000Base-X Fiber
Dual Fiber SC/ST or Single Fiber SC Connectors
Supplies IEEE 802.3bt Hi-PoE PSE (up to 100W) power
Compatible with IEEE 802.3af PoE and IEEE 802.3at PoE+ PoE devices
Dual or Single 10/100/1000Base-T PoE ports

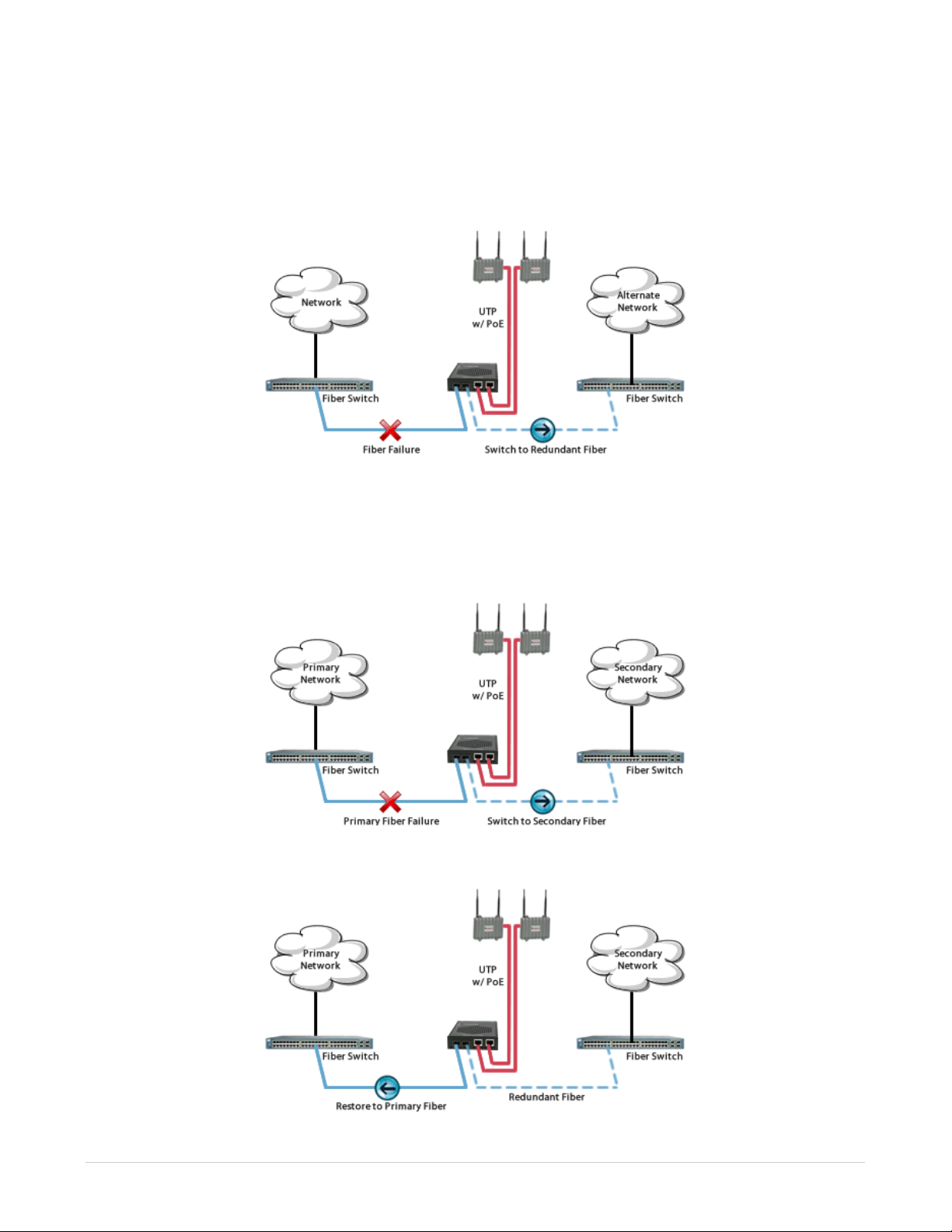

Advanced features: PD Reset, Fiber redundancy, Smart Link Pass-Through, Fiber
Fault Alert, Auto-MDIX and Loopback
-40F to +167F (-40C to +75C) extended operating temperature

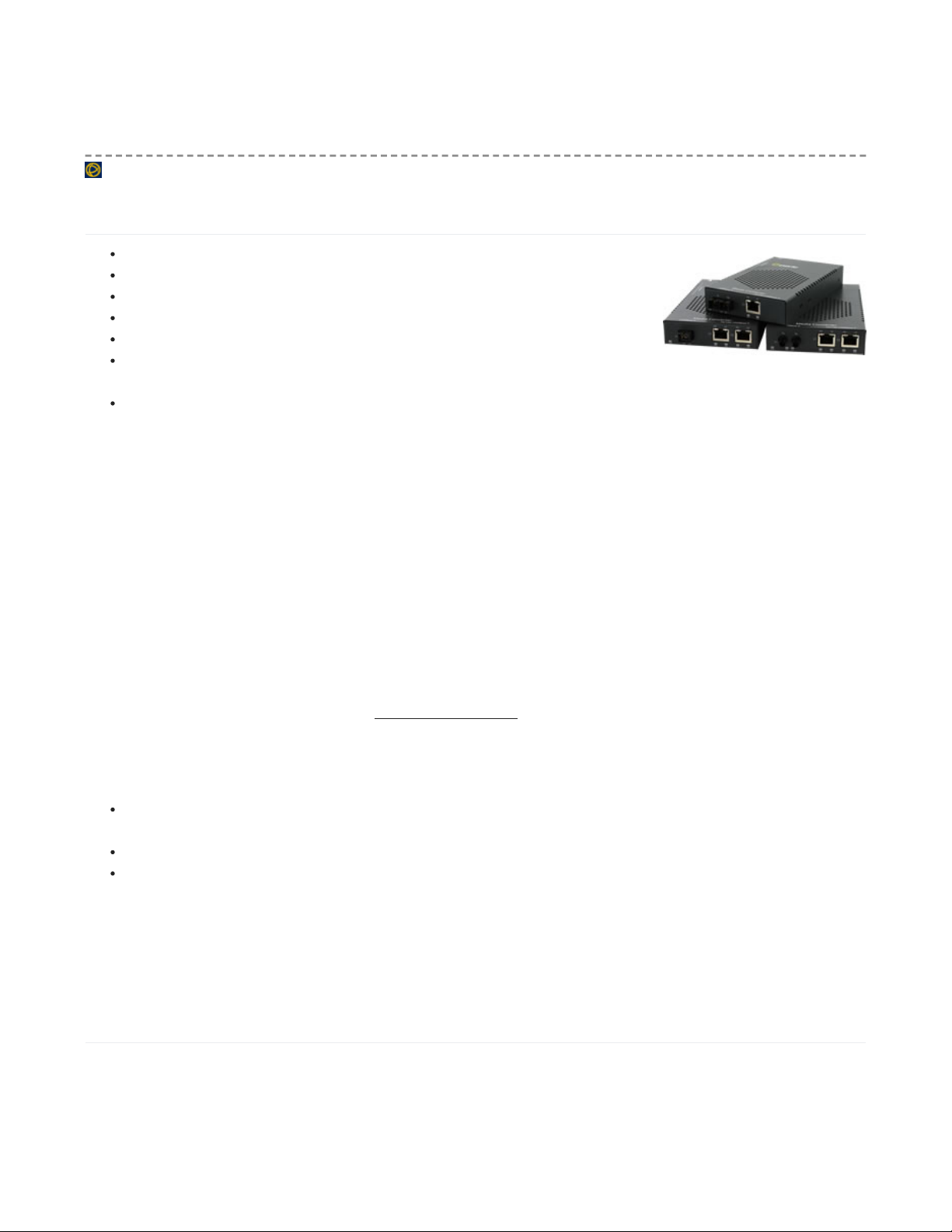

Perle S-1110HP-XT Fiber Media Converters transparently connect copper to fiber while providing up to 100 Watts of IEEE
802.3bt compliant Hi-PoE PSE power to standards-based compliant devices. Equipment found in traffic management, oil
and gas pipelines, weather tracking, industrial and outdoor applications must function in temperatures that cannot be
supported by a commercial based media converter. With an operating temperature -40F to +167F (-40C to +75C) this Hi-
PoE Media Converter is ideal for use with industrial devices subjected to harsh environments and severe temperatures such
as pan-tilt-zoom (PTZ) security cameras with heaters, 802.11ax/ac wireless access points, alarms, traffic controllers,
sensors and tracking devices.
Perle Hi-PoE Media Converters are classified as Power Sourcing Equipment (PSE). While using standard UTP cables that
carry Ethernet data, Perle Hi-PoE media converters provide power to Powered Devices (PDs) that support the IEEE 802.3bt
PoE standard (up to 100W of power) or pre-standard solutions including UPoE, 4PPoE, PoE++, UltraPoE, 4 Pair PoE, etc.
As this standard is fully backwards compatible with the existing IEEE 802.3af PoE and IEEE 802.3at PoE+ standards, all of
those PD's are also supported. The S-1110HP-XT Fiber Media Converter features single or dual 10/100/1000Base-T RJ45
ports to power one or two PD’s per converter. Learn more about PoE
S-1110HP-XT Fiber Media Converters come with fixed fiber ports that support multimode or single mode fiber with dual
ST/SC connectors or single strand fiber SC connectors.
extend the life of non-fiber based equipment by enabling data transmission from 10/100/1000Base-T devices over
1000Base-X fiber
extend the distance of an existing network by linking CAT5/6/7 cabling to multimode or single mode fiber up to 10km
protect Ethernet data from EMI noise and interference by inter-connecting your copper-Ethernet devices over fiber.
Network Administrators can "see-everything" with Perle's advanced features such as Auto-Negotiation, Auto-MDIX, Link
Pass-Through, Fiber Fault Alert, and Loopback. This allows for more efficient troubleshooting and less on-site maintenance.
These cost and time saving features, along with a lifetime warranty and free worldwide technical support, make Perle S-
1110HP PoE Media Converters the smart choice for IT professionals.
S-1110HP-XT Hi-PoE Media Converter Features

Power Over
Ethernet
( PSE )
Fully Compliant with IEEE 802.3bt Type 3 and 4 PSE
Performs the Power Sourcing Equipment ( PSE ) function on 1 or 2 UTP ports for IEEE 802.3bt
compliant devices.
All models support Type 1 ( PoE ), Type 2 ( PoE+ ), Type 3 (Hi-PoE) and Type 4 (Hi-PoE) PD gear
Advanced
Power
Management
Enable/Disable PSE power by UTP port
Single or Dual PD signature detection
Over-Current Protection
PD power classification detection ( Class 0 )
PD Power
Reset
Ideal for remotely resetting equipment, this configurable function performs a momentary power reset to
the attached Powered Device (PD). When enabled, the media converter will, upon loss of fiber RX, turn
off PSE output power supplied to the PD device for 2 seconds then turn the power back on and leave it
on until such time that another fiber RX link is lost (after it was re-established). When disabled, a loss of
fiber RX has no effect on PSE power to the PD device(s).
Powered
Device
Support
Type: 1, 2, 3, and 4 PDs
Class: 1, 2, 3, 4, 5, 6, 7, 8 PDs
Supports both Single-Signature and Dual-Signature PD connections
Multiport
Configurations
2 port: 1x 10/100/1000Base-T and 1x 1000Base-X fixed fiber port
3 port: 2x 10/100/1000Base-T and 1x 1000Base-X fixed fiber port
Power Strain
Relief strap
Included with all models, a strain relief strap is provided to ensure a solid and secure power connection
to the media converter. Ideal for areas that may be exposed to vibration.
Auto-
Negotiation
(802.3u)
The media converter supports auto negotiation. The 1000Base-X fiber interface negotiates according to
802.3 clause 37. The 10/100/1000Base-T negotiates according to 802.3 clause 28 and 40. The
1000Base-X will link up with its partner after the highest common denominator (HCD) is reached and
the copper has linked up with its partner. The 1000Base-X will continue to cycle through negotiation
transmitting a remote fault of offline (provided this is enabled through the switch setting) until the copper
is linked up and the HCDs match.
The media converter supports auto-negotiation of full duplex, half duplex, remote fault, full duplex
pause, asymmetric pause and Auto MDI-X.
Auto-MDIX Auto-MDIX (automatic medium-dependant interface crossover) detects the signaling on the copper
Ethernet interface to determine the type of cable connected (straight-through or crossover) and
automatically configures the connection when enabled. The media converter can also correct for wires
swapped within a pair.
The media converter will adjust for up to 120ns of delay skew between the 1000Base-T pairs.

Smart Link
Pass-Through
When the Link Mode switch is placed into Smart Link Pass-Through mode, the copper Ethernet port will
reflect the state of the 1000Base-X media converter port. This feature can be used whether fiber auto-
negotiation is enabled or disabled.
Fiber Fault
Alert
With Fiber Fault Alert the state of the 1000Base-X receiver is passed to the 1000Base-X transmitter.
This provides fault notification to the partner device attached to the 1000Base-X interface of the media
converter. If the 1000Base-X transmitter is off as a result of this fault it will be turned on periodically to
allow the condition to clear should the partner device on the 1000Base-X be using a similar technique.
This eliminates the possibility of lockouts that occur with some media converters. Applies only when
fiber auto-negotiation is disabled.
Pause (IEEE
802.3xy)
Pause signaling is an IEEE feature that temporarily suspends data transmission between two devices in
the event that one of the devices becomes overwhelmed. The media converter supports pause
negotiation on the 10/100/1000Base-T connection and 1000Base-X fiber connection.
With Autoneg on the device will advertise sym and asymmetric pause
With Autoneg off – Pause receive and send will be disabled
Duplex Full and half duplex operation supported.
Jumbo
Packets
Transparent to jumbo packets up to 10KB.
VLAN Transparent to VLAN tagged packets.
Remote
Loopback
Capable of performing a loopback on the 1000Base-X fiber interface.
Not what you are looking for? View all Perle Media Converters.
Need help? Contact Perle.
Power
Input Supply
Voltage
52 - 57 vDC
Power
Consumption
1 x 10/100/1000Base-T port models: 4 watts
2 x 10/100/1000Base-T port models: 4.7 watts
Note: for the HP PoE SFP models the numbers above don’t include the SFP power consumptions
Power Over
Ethernet (PSE)
up to 100 watts per port

Power Connector 2-Pin pluggable terminal block
Indicators
Power ( PWR ) This green LED is turned on when power is applied to the media converter. Otherwise it is off. The
LED will blink slowly when either fiber port is in Loopback test mode. The LED will blink quickly if
there is a hardware failure where the reason code can be identified through a combination of
FDF,LKF, FDC and PSE indicator LEDs
Fiber link on /
Receive activity
( LKF 1/2 )
This green LED is operational only when power is applied. The LED will blink along with
transmit/receive data on the fiber port
If a loss of link on the copper port results in a Link Passthrough condition to the fiber port, this LED
will blink at a rate of once every 2 seconds until the condition is cleared.
Copper link on /
Receive activity
( LKC 1/2 )
This green LED is operational only when power is applied. The LED will blink along with
transmit/receive data on the 10/100/1000 UTP port
If a loss of link on the copper port results in a Link Passthrough condition to the fiber port, this LED
will blink at a rate of once every 2 seconds until the condition is cleared.
Fiber Duplex
( FDF 1/2 )
This green LED is operational only when power is applied. The LED is on when the
10/100/1000Base-X link is operational in full duplex mode. The LED is off when in half duplex. If the
Auto-Neg switch is turned off, this LED will always be on
Copper Duplex
( FDC 1/2 )
This green LED is operational only when power is applied. The LED is on when the
10/100/1000Base-T link is operational in full duplex mode. The LED is off when in half duplex
100/1000 This multi-color LED is operational only when power is applied. The LED is green when the speed of
the copper ethernet port is running at 1000 Mbps. The LED is yellow when the speed of the copper
Ethernet port is running at 100 Mbps. The LED is off when in 10 Mbps.

PSE Status ( PSE
1/2 )
This LED will signify the status of the PSE function. Using multi-color and blinking the unit will show
the following status for the PSE;
GREEN — Solid: The PSE has successfully detected a compliant PD and is applying power over
the UTP (for legacy pin out simply show active power when applied)
YELLOW — Solid: The PSE is not active. This means the PSE has been configured to provide
power, but the PD is :
Not connected
Has not detected a compliant PD and is not applying power
PSE has turned off power for Reset function
OFF — PSE function switch disabled
RED — Blinking: Error Conditions
Capacitance too High — 1 blink
Resistance too Low or short circuit — 2 blinks
Resistance too high or open circuit — 3 blinks
Switches - accessible through a side opening in the chassis
Auto-Negotiation
(802.3u)
Enabled (Default) - The media converter uses 802.3u Auto-negotiation on the 10/100/1000Base-T
interface. It is set to advertise full duplex, half duplex, pause and remote fault capabilities.
Disabled - The media converter sets the port according to the position of the speed and duplex
switches.

Link Mode Link Mode provides a transparency to the state of the copper link allowing for simplified trouble
shooting from the devices connected to the media converter.
Normal (Default — Up)
With Fiber Auto Negotiation enabled when the copper link goes down the 1000Base-X link is
brought down. The 1000Base-X link will advertise Remote Fault (Link Fault).
With Fiber Auto Negotiation disabled the state of the copper link has no effect on the 1000Base-X
link.
Smart Link Pass Through (Down)
With Fiber Auto Negotiation enabled the behavior is as follows. When the copper link goes down the
1000Base-X link is brought down. The 1000Base-X link will advertise Remote Fault (Link Fault).
When Remote Fault (Link Fault) is received on the 1000Base-X interface the copper transmitter will
be turned off. When the copper receiver is off the 1000Base-X transmitter will be turned off. When
the 1000Base-X receiver goes off the copper transmitter will be turned off.
With Fiber Auto-Negotiation disabled the behavior is as follows. When the copper receiver is off the
1000Base-X transmitter will be turned off. When the 1000Base-X receiver goes off the copper
transmitter will be turned off.
Fiber Fault Alert The Fiber Fault Alert switch has meaning when Auto-Negotiation is disabled
Enabled (Default - Up)
When the 1000Base-X receiver is off the 1000Base-X transmitter is turned off. Periodically the
1000Base-X receiver will be turned on for a short period to allow the condition to clear if the
1000Base-X link partner is using a similar feature.
Disabled (Down)
Loopback The media converter can perform a loopback on the 1000Base-X fiber interface.
Disabled (Default - Up)
Enabled - The 1000Base-X receiver is looped to the 1000Base-X transmitter. The copper transmitter
is taken off the interface.
Speed Copper 100 (Default)
10
Duplex Copper Full (Default)
Half
Fiber Negotiation Up: The Media Converter will negotiate Ethernet parameters on the fiber connection. This will
ensure that the most optimal connection parameters will be in effect. If connecting to another Perle
Media Converter, this parameter should be set to Auto. The Media Converter Module will advertise
1000Mbps, Full and Half Duplex, no Pause.
Down: The Media Converter Module’s fiber will be fixed to 1000Mbps, Full Duplex.

Auto-MDIX
(Internal Strap)
If Auto-Negotiation (802.3u) is enabled, the media converter determines the current cable pinout to
use on the copper interface. If Auto-Negotiation (802.3u) is disabled the Media converter will use the
RX Energy method on the copper interface to set the port MDI or MDIX whichever is appropriate.
Enabled (Default) - Either a straight-through or crossover type cable can be used to connect the
media converter to the device on the other end of the cable.
Disabled - If the partner device on the other end of the cable does not have the Auto-MDIX feature a
specific cable, either a straight-through or crossover will be required to ensure that the media
converter's transmitter and the partner devices transmitter are connected to the others receiver. The
Media converter's 100Base-TX port is configured as MDI-X with this switch setting.
PSE Power Settable for each UTP port available.
When enabled (UP), the media converter will perform a Power Sourcing Equipment (PSE) function
as per IEEE802.3bt standard.
Default is "enabled"
PD Power Reset This is a technique to perform a power reset on a PD device(s) attached.
When enabled ( down ), the media converter will upon loss of link on any fiber port, turn off PSE
output power to the PD device(s) for 2 seconds then turn the power back on. The power remains on
until any fiber link transitions from up to down again.
With Passthrough enabled ( Link Mode enabled and Fiber Auto-Negotiation enabled ) , a loss of link
on the fiber resulting from a loss of link on the copper, a PD Power Reset till still occur.
When PD Power Reset disabled, loss of fiber link has no effect on PSE power to the PD device(s).
PoE power vs
Ethernet CAT
CAT3 and above for PoE power up to 15.4 watts
CAT5 and above for PoE power between 15.4 watts and up to 30 watts
CAT6 and above for PoE power between 30 watts and up to 100 watts
Note: always choose the highest Ethernet CAT category between desired speed and PoE power
Connectors
10/100/1000Base-
T
RJ45 connector
2 pair CAT5, EIA/TIA 568A/B or better cable for 10/100.
4 pair CAT5 UTP cable for Gigabit.
Note: always choose the highest Ethernet CAT category between desired speed and PoE power
Magnetic Isolation 1.5kv

Fixed Fiber Dual multimode or single mode ( Duplex ) fiber - SC, ST
Single strand fiber ( Simplex ) - SC
Filtering
Filtering 1024 MAC Addresses
Frame Specifications
Buffer 1000 Kbits frame buffer memory
Size Maximum frame size of 10,240 bytes -- Gigabit
Maximum frame size of 2048 bytes -- Fast Ethernet
Environmental Specifications
Operating
Temperature
-40 C to 75 C (-40 F to 167 F)
Storage
Temperature
-40 C to 85 C (-40 F to 185 F)
Operating
Humidity
5% to 90% non-condensing
Storage Humidity 5% to 95% non-condensing
Operating Altitude Up to 3,048 meters (10,000 feet)
Heat Output
( BTU/HR )
1 x 10/100/1000Base-T port models: 13.65 BTU/hr
2 x 10/100/1000Base-T port models: 16 BTU/hr
MTBF (Hours)* 342019
Chassis Metal with an IP20 ingress protection rating
Mounting
Din Rail Kit Optional
Rack Mount Kit Optional
Product Weight and Dimensions
Weight 0.4 Kg, 1.0 lbs (no power adaptor)
Dimensions 150 x 95 x 26 mm, 5.9 x 3.7 x 1.0 inches
Packaging
Shipping Weight 0.56 kg, 1.2 lbs

Shipping
Dimensions
300 x 200 x 70 mm, 11.81 x 7.87 x 2.75 inches
Regulatory Approvals
Emissions FCC Part 15 Class A, EN55022 Class A
CISPR 22 Class A
CISPR 32:2012/EN 55032:2012 (Class A)
CISPR 24:2010/EN 55024:2010
EN61000-3-2
Immunity EN55024
Electrical Safety UL 60950-1
IEC 60950-1(ed 2); am1, am2
EN 62368-1:2014 + A11:2017
CE
Environmental Reach, RoHS and WEEE Compliant
Other ECCN: 5A991
HTSUS Number: 8517.62.0050
Perle Limited Lifetime Warranty
*Calculation model based on MIL-HDBK-217-FN2 @ 30 °C

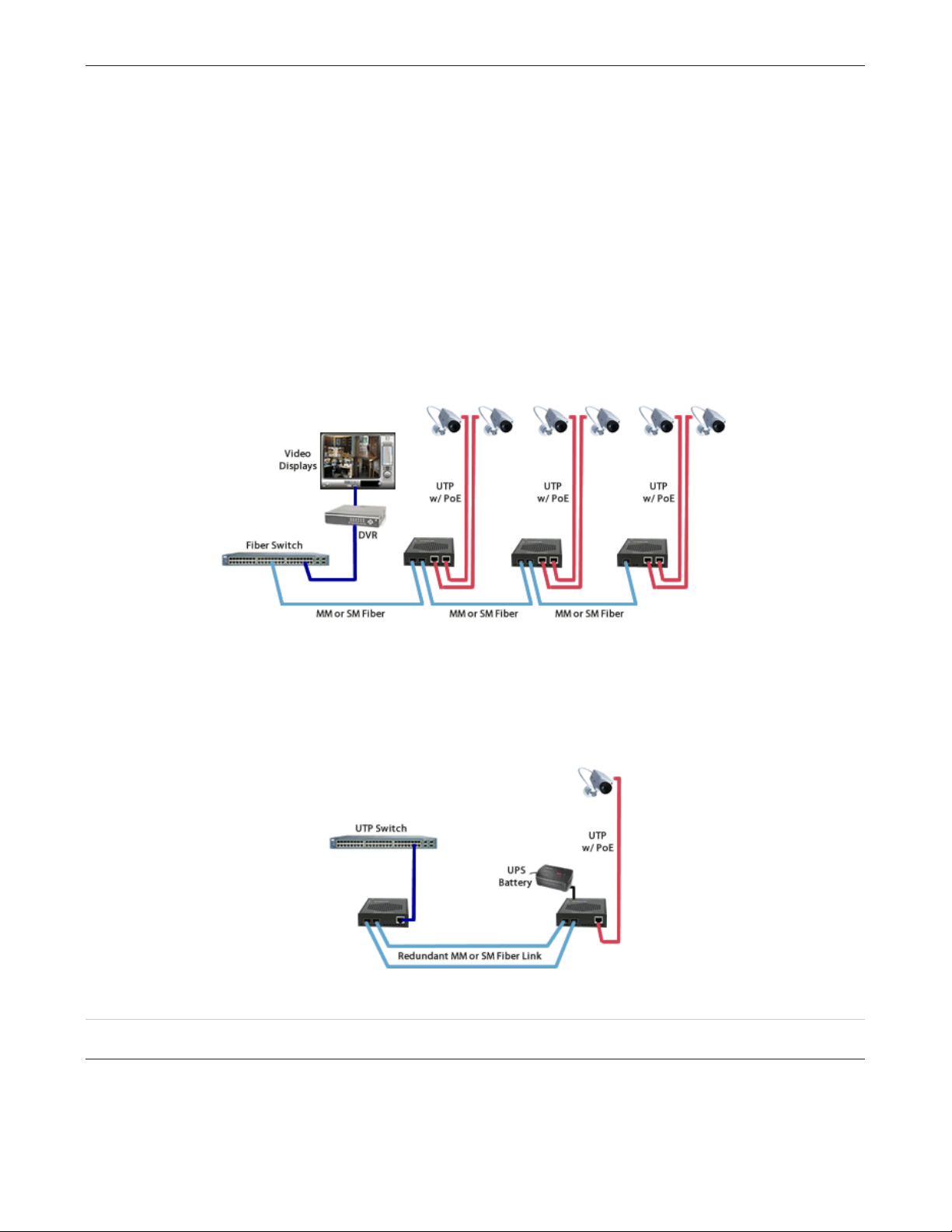

Gigabit Fiber to IP Cameras

Connect 10/100/1000 IP Cameras to Gigabit Backbone
Extend the reach to IP cameras using fiber media converters. Security cameras are typically installed in remote locations
throughout a facility. For cameras that are in the ceiling or other inaccessible areas like rooftops, light poles, along
fences, pipelines and transit routes, the cost of bringing electrical power to each camera is eliminated by powering the
equipment through the UTP cable using a PoE media converter. Cameras with features like Pan-Tilt-Zoom ( PTZ),
heaters, de-icers, or blowers generally require higher power (30-100 Watts), making the Perle S-1110HP PoE Media
Converters the ideal solution.
Fiber is run from an existing data closet to an area with access to power. The Hi-PoE Media Converter can be powered
by 57vDC or standard 100 to 240 AC power. The media converter is attached to the power supply and the fiber cable.
Copper (UTP or STP cable) Ethernet can be extended another 100 meters to the IP camera. The Hi-PoE Media
Converter is converting the data from fiber to copper, adding power and transmitting it to the security camera.
To simplify cabling, multiport PoE media converters enable chaining, with a fiber uplink port and a fiber downlink port, of
the fiber between media converters ( also known as a bus architecture ).
A second option is to have redundant fiber links for installations requiring fiber facility protection. There is an active fiber
port and a protection fiber port that can support a fiber failure switchover of less than 50 milliseconds. The Hi-PoE media
converter supplies power to the camera, and has power protection from an Uninterruptible Power Supply (UPS) battery
back-up. In the event of a fiber cut and a loss of power, the camera continues to send data on the protection link.

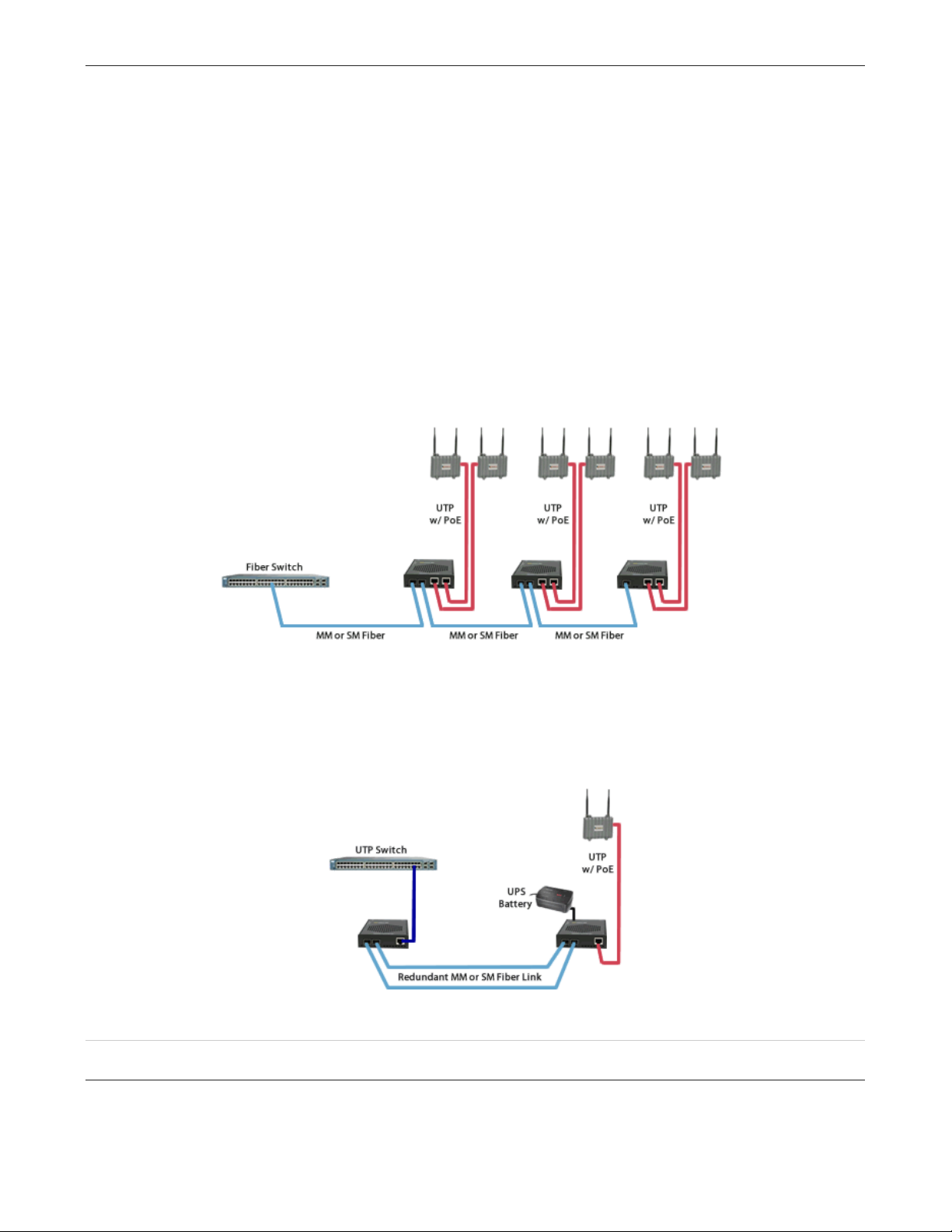

Gigabit Fiber to Wireless Access Points

Connect 10/100/1000 Wireless Access Points to Gigabit Backbone
Extend the reach to wireless access points ( AP ) using fiber media converters. When a company deploys a wireless
network in their office or large warehouse, APs need to be set up throughout the facility to ensure complete coverage for
reliability. The network manager will likely need to extend further than the 100 meters allowed by copper cable to reach
many of the APs.
For wireless access points that require 30-100 Watts, such as those meeting the 802.11ax standard, 802.11ac standard
or containing dual radios, the Perle S-1110HP PoE Media Converter is the ideal solution.
Fiber is run from an existing data closet to an area with access to power. The Hi-PoE Media Converter can be powered
by 57vDC or standard 100 to 240 AC power. The media converter is attached to the power supply and the fiber cable.
Copper (UTP or STP cable) Ethernet can be extended another 100 meters to the Wireless Access Point. The Hi-PoE
Media Converter is converting the data from fiber to copper, adding power and transmitting it to the WAP.
To simplify cabling, multiport PoE media converters enable chaining, with a fiber uplink port and a fiber downlink port, of
the fiber between media converters ( also known as a bus architecture ).
A second option is to have redundant fiber links for installations requiring fiber facility protection. There is an active fiber
port and a protection fiber port that can support a fiber failure switchover of less than 50 milliseconds. The PoE+ media
converter supplies power to the camera, and has power protection from an Uninterruptible Power Supply (UPS) battery
back-up. In the event of a fiber cut and a loss of power, the camera continues to send data on the protection link.

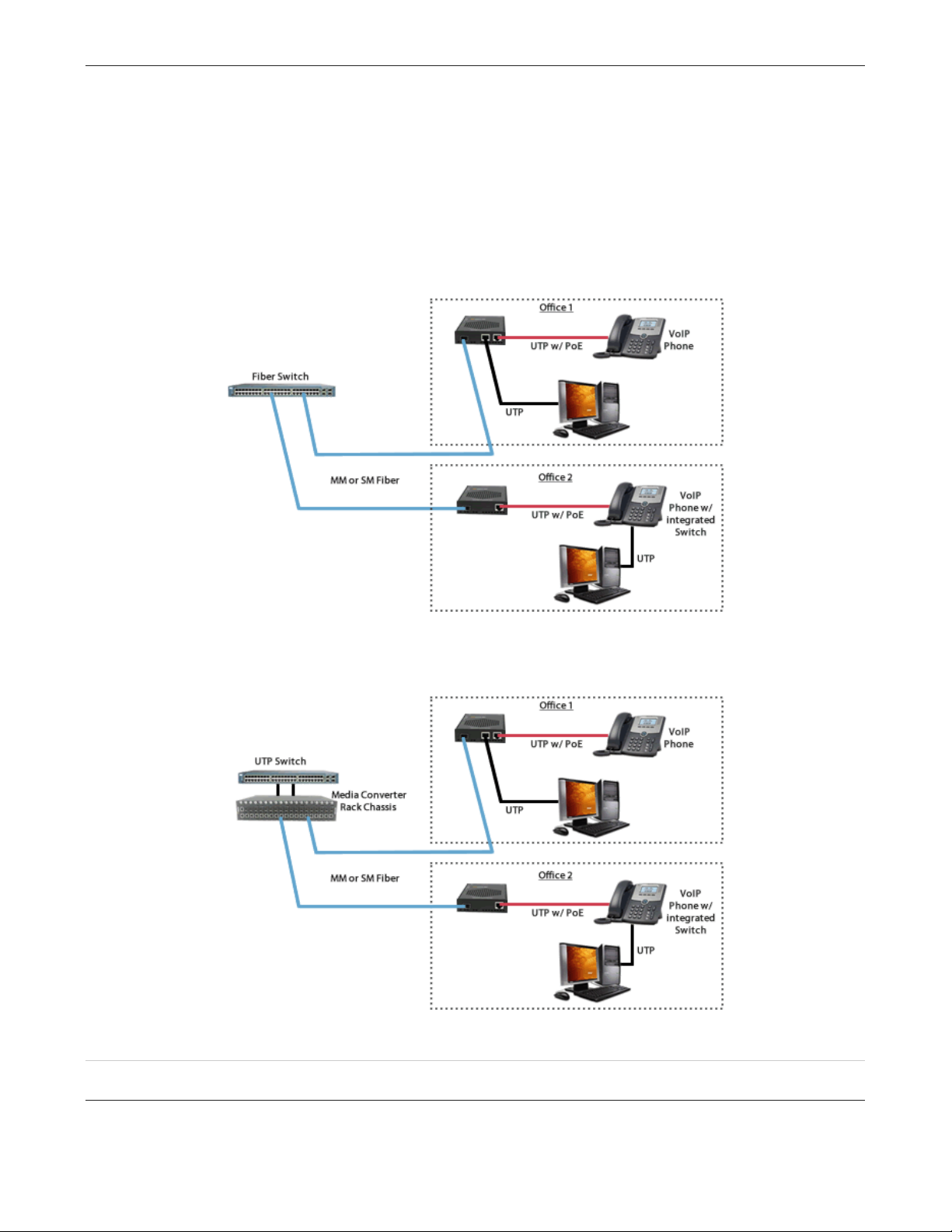

Gigabit Fiber to the Desktop / VoIP ( Voice over IP ) Phones

Connect 10/100/1000 workstations and VoIP Phones to a Gigabit Backbone
Extend the reach to your workstation and VoIP phones using fiber media converters. For VoIP phones that require 30-100
Watts power, such as those containing dual radios, the Perle S-1110HP PoE Media Converter is the ideal solution.
Fiber is run from an existing data closet to an area with access to power. The Hi-PoE Media Converter can be powered
by 57vDC or standard 100 to 240 AC power. The media converter is attached to the power supply and the fiber cable.
Copper (UTP or STP cable) Ethernet can be extended another 100 meters to the IP Phone. The Hi-PoE Media
Converter is converting the data from fiber to copper, adding power and transmitting it to the IP Phone.
Redundant Dual-Fiber Uplink
Assured Fiber Uplink Connectivity for your critical equipment
When extending the reach of your critical Ethernet equipment using fiber media converters, a dual fiber port media

converter with Fiber Redundancy capability provides a fast switch-over of link traffic from one fiber connection to the
other converters.
Two modes of operation are possible.;
1. Redundant Fiber : When the primary link fails, the media converter redirects traffic to the other fiber port within 50ms.
2. Redundant Primary : When the primary link fails, the media converter redirects traffic to the secondary fiber port
within 50ms. Upon restoration of the primary fiber link, traffic is automatically redirected back to the primary fiber.

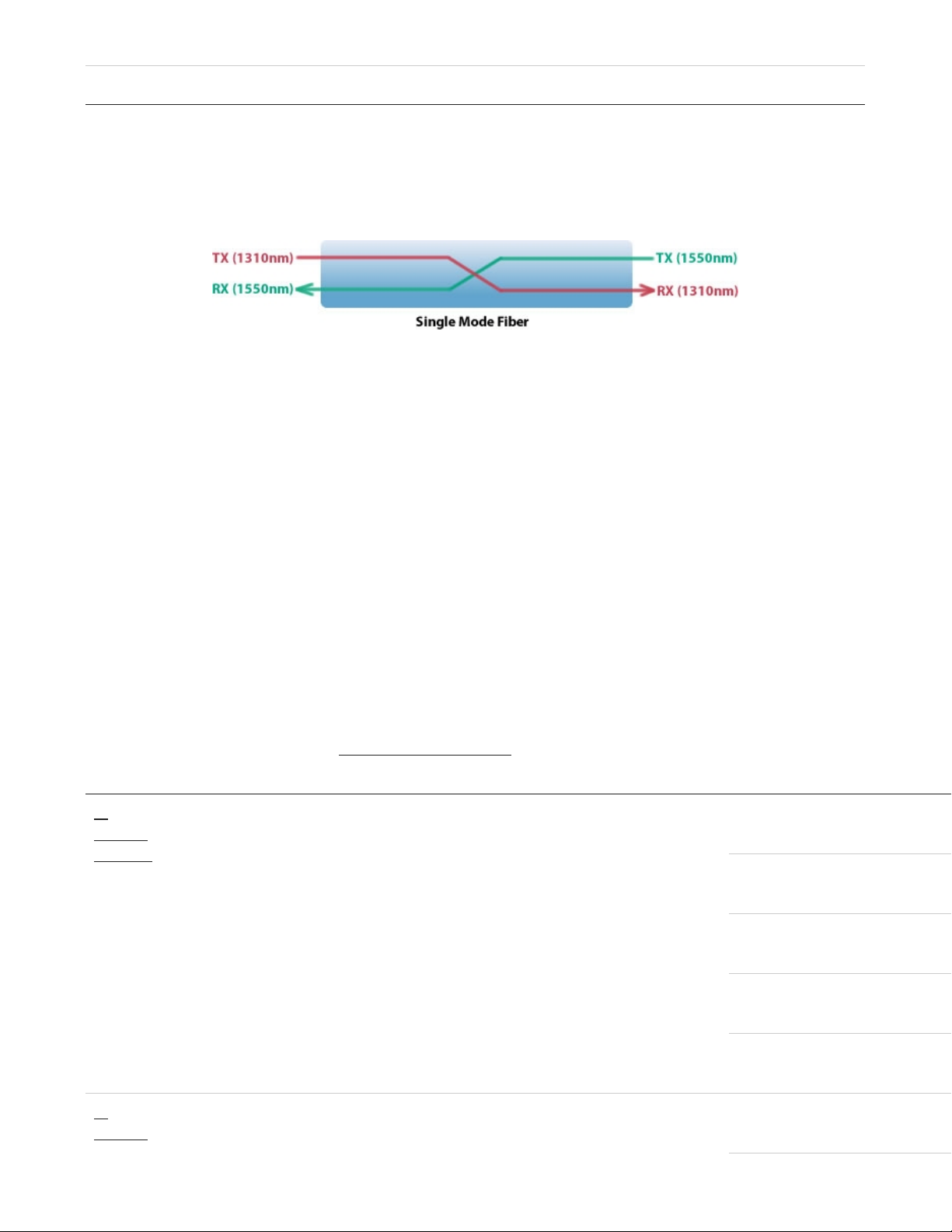

Single Mode / Single Fiber
Connect copper ports over a single fiber strand ( also referred to as “Bi-Directional” BiDi )
When Single Strand fiber is used, a pair of Single Fiber Media Converters is needed for the copper to fiber conversion.
Perle Single Fiber Media Converters are also referred to as “Up/Down” models. For example the S-1110HP-SC05U (“Up”)
and S-1110HP-SC05D (“Down”), shown below, must be used in pairs. An “Up” must be matched with a “Down” peer to
deal with transmit and receive frequencies separately.
S-1110HP-SC05US-1110HP-SC05D
The majority of installations for single mode fiber media converters are of the “dual connector” or “dual fiber” type where
one fiber connection is used for transmit, the other for receive. These are physically “crossed” to match up the
Transmit/Receive links.
However, to reduce costs, or where there are limits on available fiber, WDM technology may be utilized. WDM uses
separate transmit and receive frequencies to communicate on a single fiber strand. WDM technology relies on the fact
that optical fibers can carry many wavelengths of light simultaneously without interaction between each wavelength.
Thus, a single fiber can carry many separate wavelength signals or channels simultaneously.
So remember, if Single Strand fiber is used, you will need an “Up” Media Converter on one side and a “Down” Media
Converter on the other for copper to fiber conversion.
Select a Model to obtain a Part Number - S-1110HP-XT Hi-PoE
Model
Fiber Port
Connector Type
Transmit
(dBm)
Receive
(dBm) Power
Budget
(dBm)
Wavelength
(nm)
Fiber
Type
Core
Size
(um)
Modal
Bandwidth
(MHz*Km)
Operating
DistanceMin Max Min Max
S-
1110HP-
SC05-XT
Dual SC 1000Base-
SX
-9.5 -4.0 -17 -3.0 7.5 850 MMF 62.5 160 220 m
(722 ft)
62.5 200 275 m
(902 ft)
50 400 500 m
(1,640 ft)
50 500 550 m
(1,804 ft)
50 2000 1000 m
(3281 ft)
S-
1110HP-
Dual ST 1000Base-
SX
-9.5 -4.0 -17 -3.0 7.5 850 MMF 62.5 160 220 m
(722 ft)

ST05-XT 62.5 200 275 m
(902 ft)
50 400 500 m
(1,640 ft)
50 500 550 m
(1,804 ft)
50 2000 1000 m
(3281 ft)
S-
1110HP-
SC10-XT
Dual SC 1000Base-
LX/LH
-9.5 -3.0 -20 -3.0 10.5 1310 MMF* 62.5 500 1000 m
(3281 ft)
50 400 550 m
(1,804 ft)
50 400 550 m
(1,804 ft)
SMF ** - 10 km
(6.2 mi)
S-
1110HP-
ST10-XT
Dual ST 1000Base-
LX/LH
-9.5 -3.0 -20 -3.0 10.5 1310 MMF* 62.5 500 550 m
(1,804 ft)
50 400 550 m
(1,804 ft)
50 400 550 m
(1,804 ft)
SMF ** - 10 km
(6.2 mi)
S-
1110DHP-
SC05-XT
Single SC 1000Base-
SX
-9.5 -3.0 -20 -3.0 10.5 850 MMF 62.5 160 220 m
(722 ft)
62.5 200 275 m
(902 ft)
50 400 500 m
(1,640 ft)
50 500 550 m
(1,804 ft)
50 2000 1000 m
(3281 ft)
S-
1110DHP-
ST05-XT
Single ST 1000Base-
SX
-9.5 -3.0 -20 -3.0 10.5 850 MMF 62.5 160 220 m
(722 ft)

62.5 200 275 m
(902 ft)
50 400 500 m
(1,640 ft)
50 500 550 m
(1,804 ft)
50 2000 1000 m
(3281 ft)
S-
1110DHP-
SC10-XT
Single SC 1000Base-
LX/LH
-9.5 -3.0 -20 -3.0 10.5 1310 MMF* 62.5 500 550 m
(1,804 ft)
50 400 500 m
(1,640 ft)
50 500 550 m
(1,804 ft)
SMF ** - 10 km
(6.2 mi)
S-
1110DHP-
ST10-XT
Single ST 1000Base-
LX/LH
-9.5 -3.0 -20 -3.0 10.5 1310 MMF* 62.5 500 550 m
(1,804 ft)
50 400 500 m
(1,640 ft)
50 500 550 m
(1,804 ft)
SMF ** - 10 km
(6.2 mi)
Single Fiber Models Recommended use in pairs
Model Connector Type
Transmit
(dBm)
Receive
(dBm) Power
Budget
(dBm)
Wavelength
(nm)
Fiber
Type
Core
Size
(um)
Modal
Bandwidth
(MHz* Km)
Operating
DistanceMin Max Min Max
S-
1110HP-
SC10U-
XT
Single SC 1000Base-
BX-U
-9.0 -3.0 -20 -3.0 11 1310 / 1490 SMF ** - 10 km
(6.2 mi)
S-
1110HP-
SC10D-
XT
Single SC 1000Base-
BX-D
-9.0 -3.0 -20 -3.0 11 1490 / 1310 SMF ** - 10 km
(6.2 mi)

S-
1110DHP-
SC10U-
XT
Single SC 1000Base-
BX-U
-9.0 -3.0 -20 -3.0 11 1310 / 1490 SMF ** - 10 km
(6.2 mi)
S-
1110DHP-
SC10D-
XT
Single SC 1000Base-
BX-D
-9.0 -3.0 -20 -3.0 11 1490 / 1310 SMF ** - 10 km
(6.2 mi)
The minimum fiber cable distance for all converters listed is 2 meters.
*A mode-conditioning adapter as specified by the IEEE standard, is required regardless of the span length. Note how the
mode conditioning adapter for 62.5-um fibers has a different specification from the mode-conditioning adapter for 50-um
fibers.
**ITU-T G.652 SMF as specified by the IEEE 802.3z standard.
Media Converter Accessories
4 DIN Rail Mount Bkt DIN Rail Mounting Kit
MCSM Standalone media converter wall mount bracket
