Perle S-10GRT-SFP User manual

P/N 5500432-10 (Rev-E)

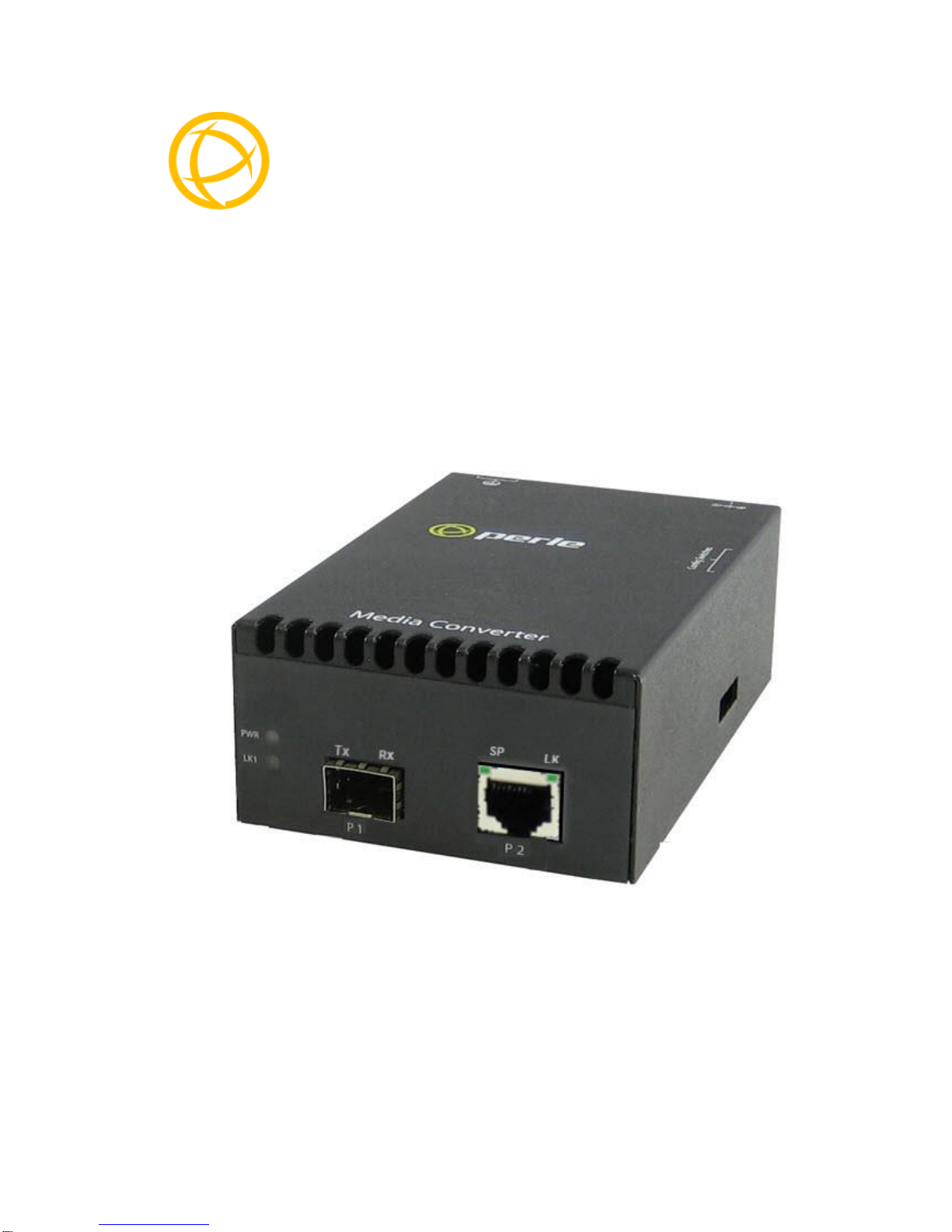

Perle S-10GRT-SFP
Media Converter
Installation Guide

Perle S 10GRT-SFP Media Converter Installation Guide 2
Overview
This document contains instructions necessary for
the installation and operation of the Perle
S-10GRT-SFP Standalone Media Converter. This
media converter contains one pluggable
transceiver port that permits insertion of a
SFP/SFP+ and one integrated rate converting
(10/100/1G/2.5G/10G RJ45 copper port. This
media converter can use either Perle Systems or
third party MSA compatible 1G/10G SFP+ modules.
See the Technical Specifications section in this
guide for supported models.
Visit Perle’s web site for the most up to date
Installation guides, models and specifications.
http://www.perle.com/
Getting to know your S-10GRT-
SFP Media Converter
Your Perle 10-GRT-SFP Standalone Media
Converter package consists of the following items:
•S-10GRT-SFP with one RJ45 copper port and
one SFP/SFP+ transceiver port.
•Grounding screws
•Country specific power adapter
•Power cord strain relief clip
•Four rubber feet
•This guide

Perle S 10GRT-SFP Media Converter Installation Guide 3
Front View

Perle S 10GRT-SFP Media Converter Installation Guide 4
Installation
The default switch setting (all switches in the UP
position) will work for most installations.
These are the steps required to configure the
media converter.
1. Set the DIP switch settings. (optional)
2. Insert the appropriate SFP/SFP+ into the
transceiver port.
3. Connect the fiber cable.
4. Connect the RJ45 (copper cable).

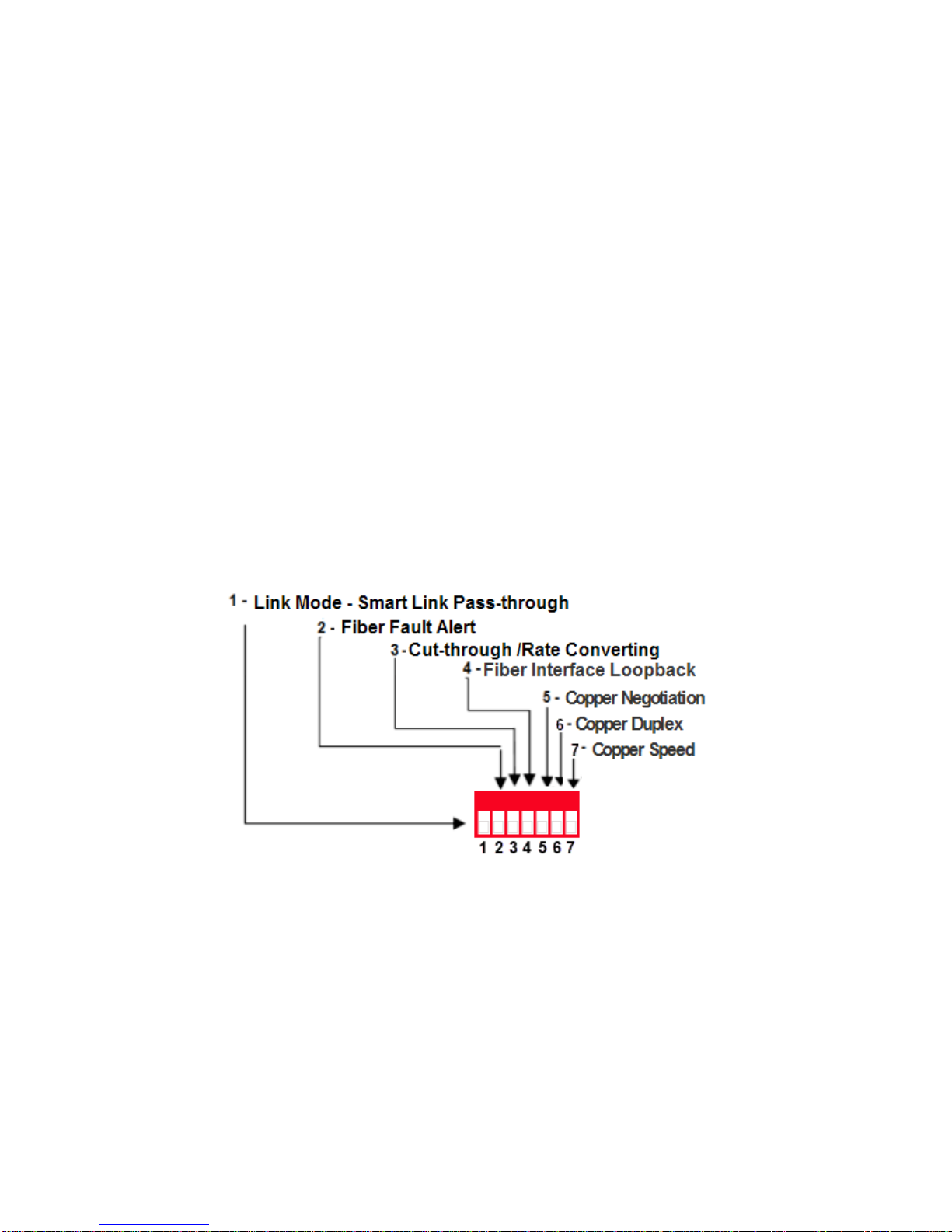

DIP Switches

Perle S 10GRT-SFP Media Converter Installation Guide 5
DIP Switch Settings
The DIP switches are located on the side of the
unit.
Note: Switch changes made when the unit is
powered up take effect immediately and will result
in a link reset on both ports.
Link Mode (Switch 1)
Switch Position
Mode
Up (default)
Smart Link Pass-through
Down
Standard
Smart Link Pass-through: In this mode, the link
state on one port connection is directly reflected
through the media converter to the other port
connection. If link is lost on one of the connections,
then the other link will be brought down by the
media converter.
Standard: In this mode, the links can be brought up
and down independently of each other. A loss of
link on either connection can occur without
affecting the other connection.
Fiber Fault Alert (Switch 2)
Switch Position
Mode
Up (default)
Enabled
Down
Disabled
Enabled: If the media converter detects a loss of
signal on the fiber port, the media converter
notifies the link partner on that same port that an
error condition exists by bringing down the link.

Perle S 10GRT-SFP Media Converter Installation Guide 6
Disabled: The media converter will not monitor for
fiber fault.

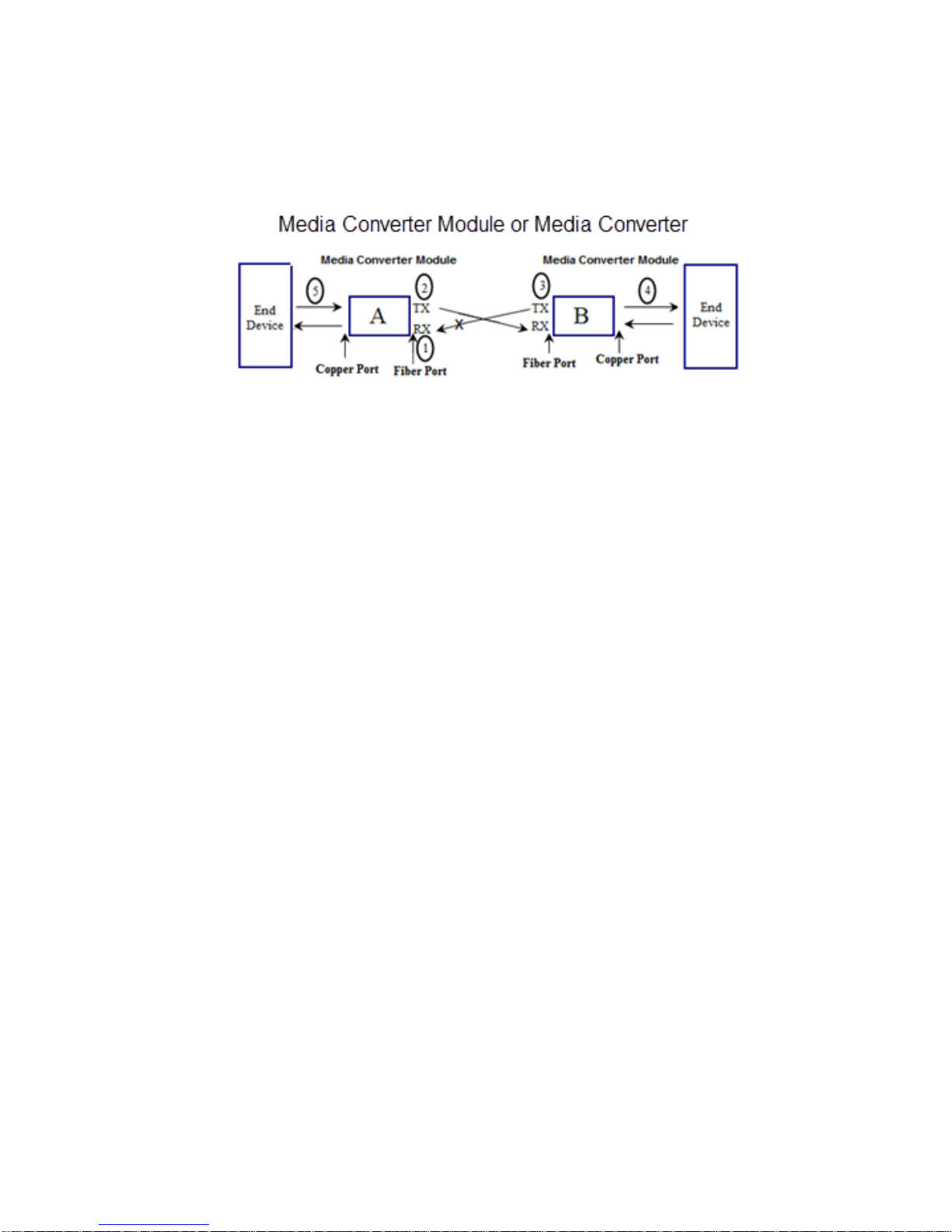

Fiber Fault Alert Sample
Config
Media Converter A Configuration
•Link Mode –Standard Mode
•Fiber Fault Alert
Media Converter B Configuration
•Link Mode–Smart Link Pass through Mode
•Fiber Fault Alert

Perle S 10GRT-SFP Media Converter Installation Guide 7
Sequence of Events
1. Media Converter Aloses fiber connection (RX).
2. Media Converter Anotifies the remote Media
Converter that there is a fault on the Link.
3. Media Converter Bdetects loss of fiber link on
receiver (RX).
4. Media Converter Bturns off transmitter (TX).
Cut-through / Rate converting (Switch 3)
Switch Position
Type
Up (default)
Rate converting
Down
Cut-through
Rate converting: Both ports can operate at the
same or different speeds.
Cut-through: Both ports need to be the same
speed and set to full duplex mode.
Fiber Interface Loopback (Switch 4)
Switch Position
Mode
Up (default)
Disabled
Down
Enabled
Disabled: When disabled, the media converter will
not be in Fiber loopback mode.
Enabled: When enabled, the media converter will
be in Fiber loopback mode.

Perle S 10GRT-SFP Media Converter Installation Guide 8
Copper Negotiation (Switch 5)
Switch Position
Mode
Up (default)
Auto
Down
Manual
Auto: The media converter will auto negotiate
copper link parameters.
Manual: The media converter will use the
parameters as defined by Switch 6 and 7.
Copper Duplex (Switch 6)
Switch Position
Mode
Up (default)
Full Duplex
Down
Half Duplex
Note Switch 5 must be set to manual for this
setting to take affect.
UP: The copper port will be set to Full Duplex
mode.
Down: The copper port will be set to Half Duplex
mode.

Perle S 10GRT-SFP Media Converter Installation Guide 9
Copper Speed (Switch 7)
Switch Position
Mode
Up (default)
100Mbps
Down
10Mbps
Note Switch 5 must be set to manual for this
setting to take affect.
UP:The copper port will be fixed at 100 Mbps.
Down: The copper port will be fixed at 10 Mbps.

Perle S 10GRT-SFP Media Converter Installation Guide 10

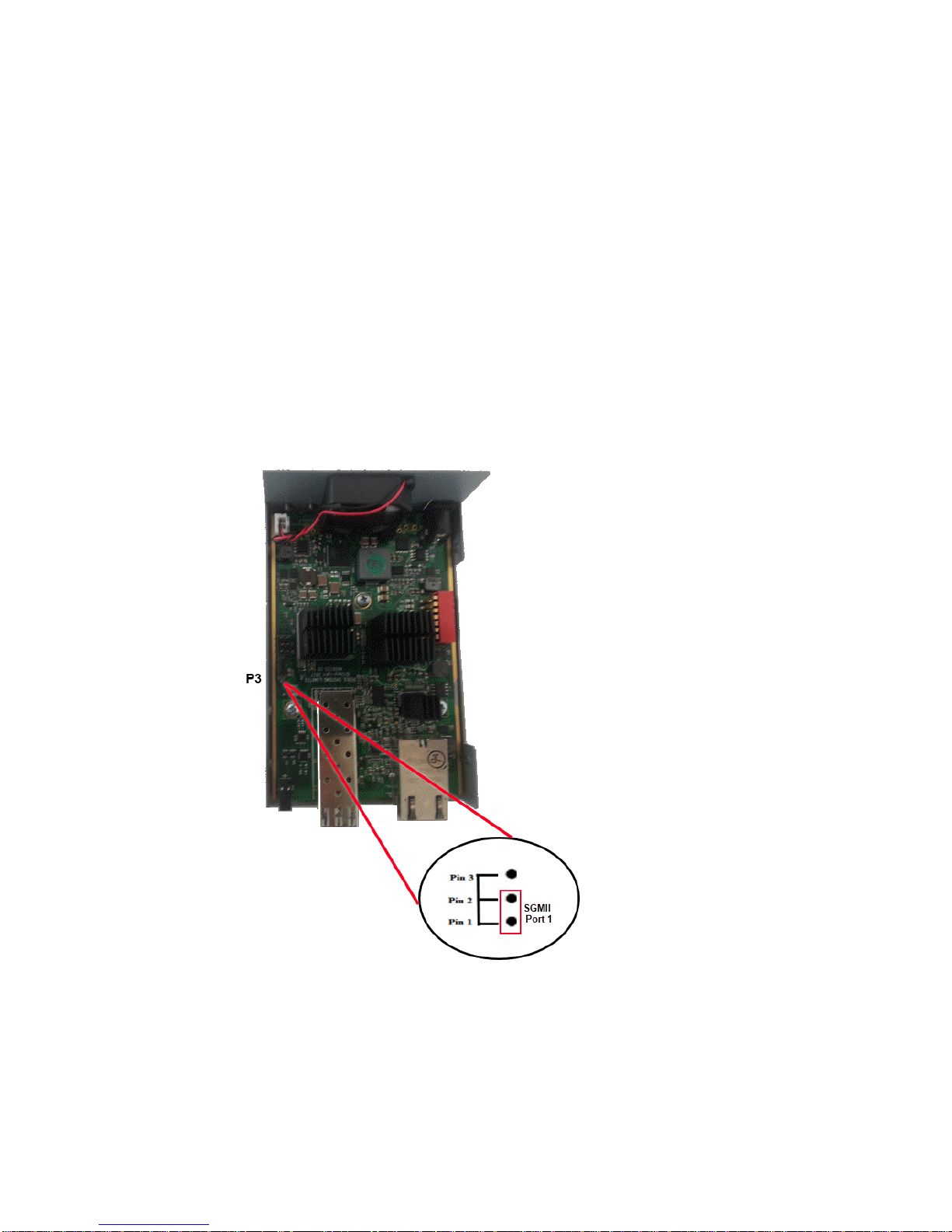

SGMII Interface Support
The Perle Standalone Media Converter supports
SGMII on the SFP interface for the SFPs that require
1000 Mbps SGMII.
1. Remove the top of the unit to access the
internal jumpers.
2. The SGMII jumper is located on the outer edge,
at the midpoint of the card (P3). Jumper Pin 1
and Pin 2.

Perle S 10GRT-SFP Media Converter Installation Guide 11
Operation
Status LED
The Perle S-10GRT-SFP media converter LEDs
statuses.
PWR –Power/Test
Green On: Power is on and the module is in normal
operation mode.
Green blinking slowly: the module is in test or
loopback mode.
Red Solid: Hardware error detected. (See PWR Red
LED Errors)
Red Blinking quickly: Error detected. (See LK1/LK
Errors)
LK1 –Port 1 Activity
On: Fiber link present.

Perle S 10GRT-SFP Media Converter Installation Guide 12
Blinking quickly: Fiber link present and receiving
data.
Blinking slowly: The fiber link has been taken down
as a result of Smart Link Pass-Through.
Off: No fiber link present.
SP –Port 2 Speed
Green: 2.5G/10G
Yellow: 100M/1G
Off: 10M
LK –Port 2 Activity
On: Copper link present.
Blinking quickly: Copper link present and receiving
data.
Blinking slowly: The copper link has been taken
down as a result of Smart Link Pass-Through.
Off: No copper link present.
LK1 / LK Error Codes
LK1
LK
Meaning
Off
Off
Incompatible SFP/SFP+
On
On
Internal Error
Off
On
Mismatch in Cut-though mode
On
Off
SFP/SFP+ communication error

Perle S 10GRT-SFP Media Converter Installation Guide 13
PWR-Red LED Errors
LK1
LK
Meaning
Blinking
n/a
Blinking one second on, 3 seconds
off: the maximum specified
operating temperature within the
inserted module has been
exceeded
Off
Off
Internal Hardware.
Grounding the Chassis
If your installation requires additional grounding
follow this procedure.
Grounding the chassis requires the following items:
✓One grounding lug (not provided)
✓One 18-12 AWG wire (not provided)
Note: For your safety, when installing this
equipment, always ensure that the chassis ground
connection is installed first and disconnected last

Perle S 10GRT-SFP Media Converter Installation Guide 14

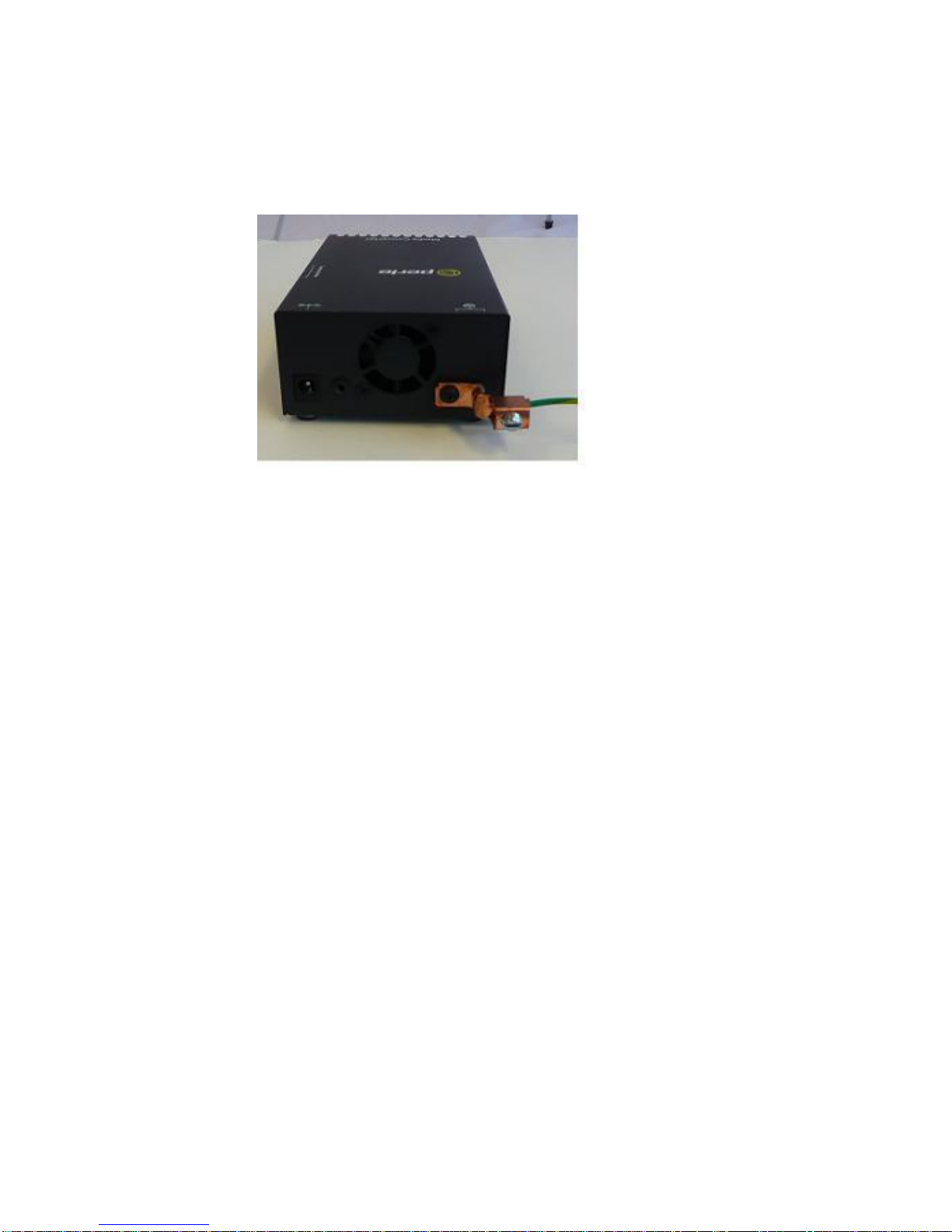

Attaching the Grounding Lug
1. Attach the grounding lug to one end of an 18-
12 AWG wire.
2. Attach the grounding lug to the chassis and
secure with the grounding screw(s).

Perle S 10GRT-SFP Media Converter Installation Guide 15
Attaching the Power Cord Strain
Relief Clip
1. Feed the power cord through the opening in
the power cord relief clip.
2. Attach the power cord relief clip to the chassis
and secure with the provided screw.
Installing the SFP Fiber Module
1. Locate appropriate fiber module and insert into
the opening.
2. Ensure the SFP/SFP+ module is properly seated.
3. Proceed with fiber cable connection.

Perle S 10GRT-SFP Media Converter Installation Guide 16

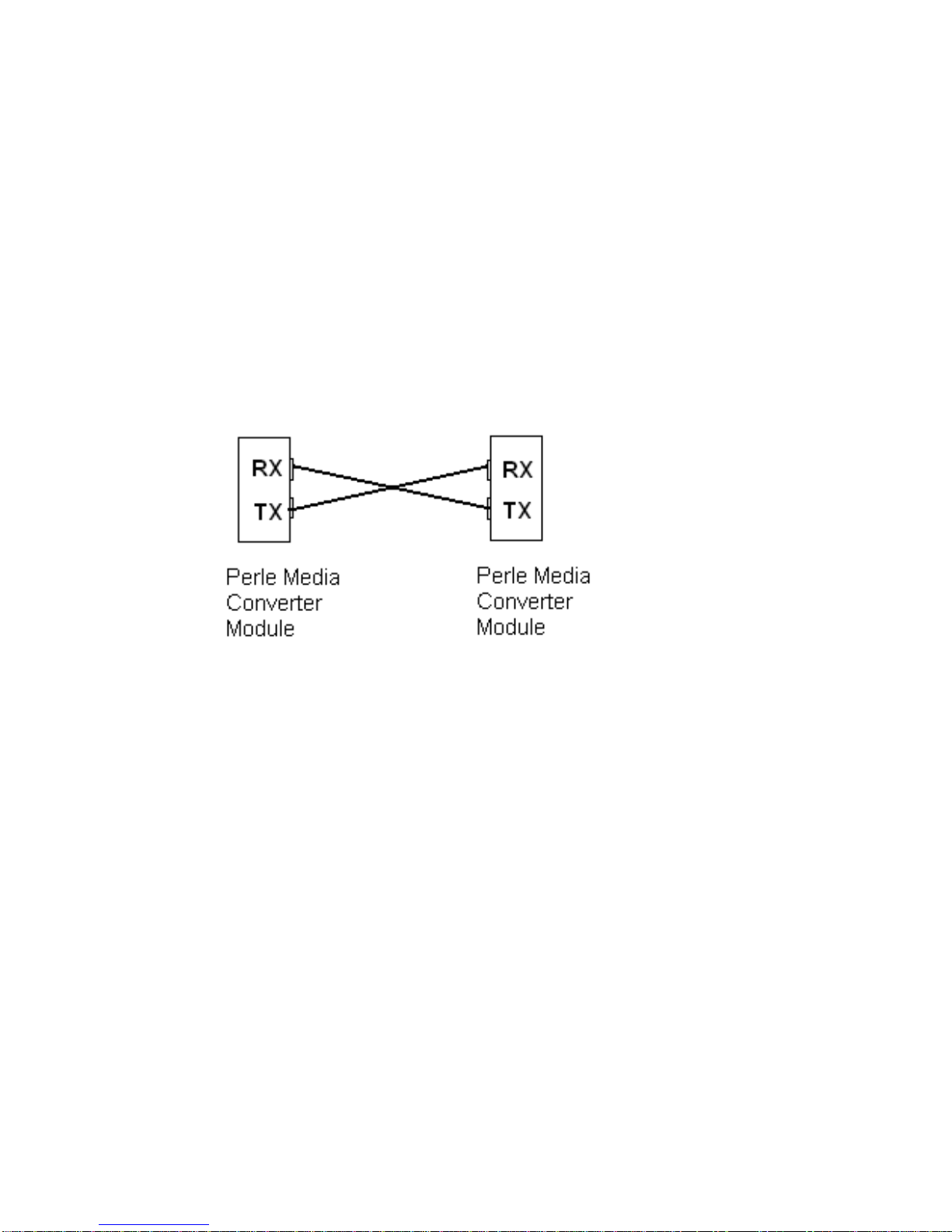

Installing the Duplex Fiber Cable
1. Locate a 1000/10GBase-X compliant duplex (2
strands) fiber cable with appropriate
connectors.
2. Connect the fiber cables from the SFP/SFP+ to
the other Media Converter/switch/fiber device
ensuring that the RX and TX are reversed
(crossed) at the opposite end.

Perle S 10GRT-SFP Media Converter Installation Guide 17
Installing the Simplex Fiber
Cable
1. Locate a 1000/10GBase-X compliant simplex (1-
strand) fiber cable with appropriate connectors.
2. Connect the fiber cable from the SFP/SFP+ to
the other media converter/switch/fiber device.
Installing the Copper Cable
1. Locate 10/100/1000/10GBase-T compliant
copper cables with male, RJ45 connectors
installed at both ends.
2. Connect the RJ45 cable between the media
converter and the device.
Note: The Perle Media Converter supports Auto-
MDIX which allows a straight-through or cross-over
Ethernet cable.

Perle S 10GRT-SFP Media Converter Installation Guide 18
Temperature Protection
Every S-10GRT-SFP comes equipped with an
internal fan to provide cooling to the unit. The fan
will come on during power up and then turn off. It
will only come on when the temperature inside the
case becomes elevated. If the module is operating
above its specified maximum operating
temperature, the S-10GRT-SFP will reduce the
power to the module. The S-10GRT will continue to
monitor the operating temperature of the unit
until the temperature is below the maximum
operating temperature and then the S-10GRT-SFP
will return the module to normal operating.
Loopback Mode
Perle Standalone media converters can be put into
loopback mode for diagnosis purposes. A packet
generator and analyzer must be used to generate
and capture the packets in this mode.

Perle S 10GRT-SFP Media Converter Installation Guide 19
Technical Specifications
Maximum
power
consumption
(watts)
15.5 Watt Max, includes modules
Current
Consumption
@12v
1.3 amps
Pluggable
Fiber
Transceiver
IEEE 802.3ae (10G-Base-R)
10 Gigabit SFP+ slot support
10GBase-R
Standard SFP Power level 1 (1 watt)
and level 2 (1.5 watts) as per SFP-
8431
Operating
Temperature:
0°C-50°C (32°F - 122°F)
Storage
Temperature:
-25°C-70°C (-13°F -158°F)
Operating
Humidity:
5% to 90% non-condensing
Storage
Humidity:
5% to 95% non-condensing
Operating
Altitude:
Up to 3,048 m (10,000 ft)
Weight:
0.36kg, 0.79 lbs

Perle S 10GRT-SFP Media Converter Installation Guide 20
The following applies to the Perle S-10GRT-SFP
Media Converter.
*Actual rating is dependent on the power
consumption of the SFP/SFP+ module inserted.
Supported 10 Gigabit Fiber pluggable
transceivers
IEEE 802.3as compliant
•10GBase-SR
•10GBase-LMR
•10GBase-LR
•10GBase-ER
•10GBase-ZR
CWDM/DWDMBase
Supported 10 Gigabit Copper pluggable
transceivers
SFP+ Direct Attach Cable (DAC). Also known as:
•Twinax
•10GBase-CU
•10GSFP+Cu
•10GBase-CX1
•10GBase-CR1
Note: Passive and Active cable types are supported
Supported Gigabit Fiber SFP’s
•1000Base-SX
•1000Base-LX/LH
•1000Base-EX
•1000Base-ZX
•1000-Base-BX
CWDM/DWDMBase
