Perle S-10GT-SFP User manual

Perle 10GT
Media Converters
Installation Guide
S-10GT-SFP
S-10GT-XFPH
Part #5500336-10

Perle S-10GT Media Converter Installation Guide
2
Overview
This document contains instructions necessary for the installation
and operation of the Perle S-10GT Standalone Media Converters.
Each media converter contains one pluggable transceiver port that
permits insertion of a SFP+ / XFP fiber module or SFP+ / XFP
copper module and one integrated RJ-45 (copper) port. These
media converter can use either Perle Systems or third party MSA
compatible 10G XFP or SFP+ modules including support for the
following standards: 10GBase-SR, 10GBase-LR, 10GBase-ER,
10GBase-LRM and 10GBase-ZR. The S-10GT supports one low
power transceiver (SFP+), whereas the S-10GT-XFPH supports
one high power (up to power level 4) transceiver (XFP).
Note: The S-10GT Media Converter can operate as a 1G Media
Converter if a 1G fiber transceiver has been inserted into the
SFP+ transceiver port.
Visit Perle’s web site for the most up to date Installation guides,
models and specifications: http://www.perle.com/
Getting to know your S-10GT Media Converter
Your S-10GT Media Converter consists of the following items:
•S-10GT chassis with one RJ-45 port and one transceiver port
•Grounding screws (for improved chassis grounding)
•Country specific power adapter
•Power cord strain relief clip
•Four rubber feet
•This guide
Model Port 1 Port 2
S-10GT-SFP SFP+ RJ-45
S-10GT-XFPH XFP RJ-45

Perle S-10GT Media Converter Installation Guide
3

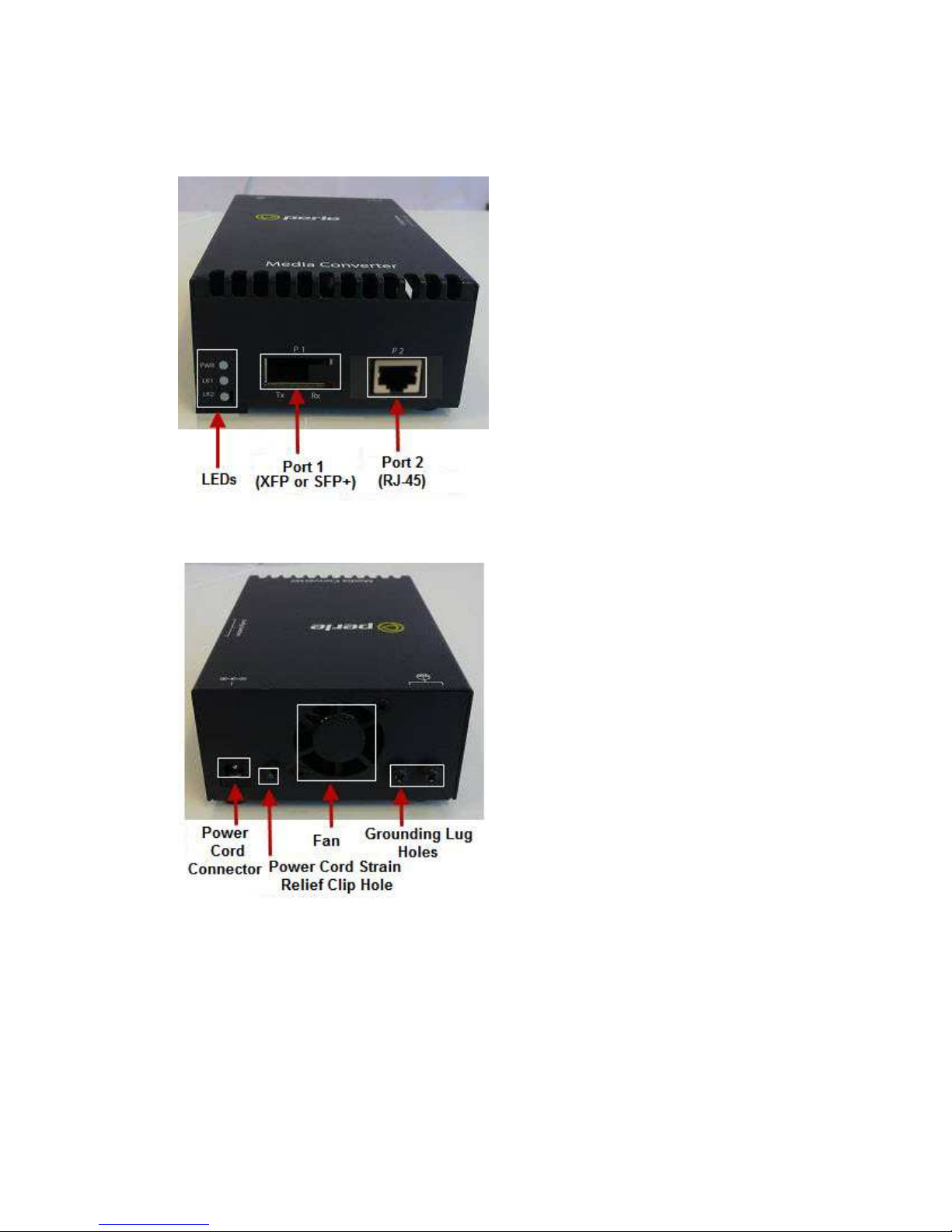

Front and Rear Panel Components
Front View
Rear View

Perle S-10GT Media Converter Installation Guide
4
Installation
The default switch setting (all switches in the UP position) will work
for most installations. These are the steps required to configure
the Perle S-10GT standalone media converter:
•Set the DIP switch settings. (optional)
•Connect the grounding lug. (optional)
•Connect the power cord strain relief clip. (optional)
•Insert the fiber module.
•Connect the fiber.
•Connect the RJ-45 (copper cable).
•Using the Perle supplied power adapter, plug the power cord
into the power cord connector at the rear of the chassis.
•Plug the other end of the power adapter into an appropriate
power outlet.
Note: The S-10GT Chassis should always be grounded for safe
and proper operation. See Grounding the S-10-GT Chassis
S-10GT-SFP or S-10GT-XFPH

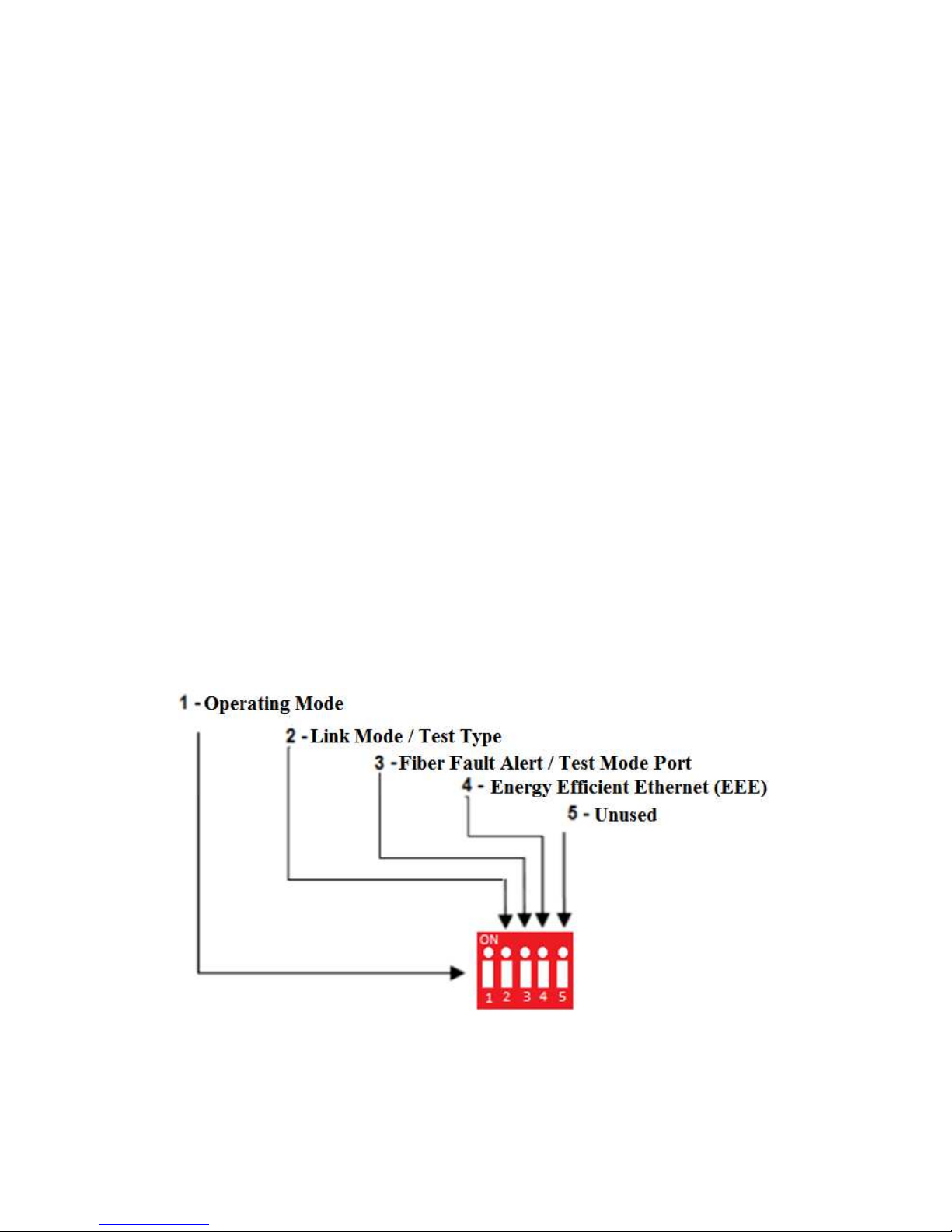

DIP Switch Settings
The DIP switches are accessible through the opening in the side
of the enclosure.
Note: Switch changes made when the product is powered up take
effect immediately and will result in a link reset on both ports.
Operating Mode (Switch 1)
Switch Position Mode
Up (default) Data
Down Test
Data: In Data mode, data will flow between the fiber connection
and the copper port.
Test: Test Mode is used to run diagnostics, enable loopback and
for running the Built In Link Test.
Note: The Operation Mode (Switch 1) affects the function of DIP
Switch 2 and 3 when in Test Mode.
Link Mode (Switch 2 – Data Mode)
Switch Position Mode
Up (default) Smart Link Pass-Through Mode
Down Standard Mode
Smart Link Pass-Through: In this mode, the link state on one
port connection is directly reflected through the media converter to
the other port connection. If the link is lost on one of the
connections, then the other link will be brought down by the media
converter.
Standard Mode: In this mode, the links can be brought up and
down independently of each other. A loss of link on either
connection can occur without affecting the other fiber connection

Perle S-10GT Media Converter Installation Guide
6
Test Function (Switch 2 – Test Mode)
Switch Position Type
Up (default) Built In Link Test (BILT)
Down Loopback
Built In Link Test: Set Switch 2 to the UP position for the S-10GT
media converter to initiate the Built In Link Test on port 1. These
tests consist of the media converter generating test patterns to be
sent out on port 1 to the remote media converter. If the remote
media converter is also a compatible 10GBaseT media converter
then the remote media converter will automatically be put into test
mode.
Note: The BILT can operate on 10G modules. This feature can
also be used with Perle C-10GT or CM-10GT media converters.
Loopback: If Switch 2 is down, the specified port will be forced
into loopback mode (switch 3 determines the port number). Data
received on the receiver (RX) will be looped back to the transmitter
(TX) connection. This mode is not used in conjunction with BILT. It
can be used when other data generation methods are used.

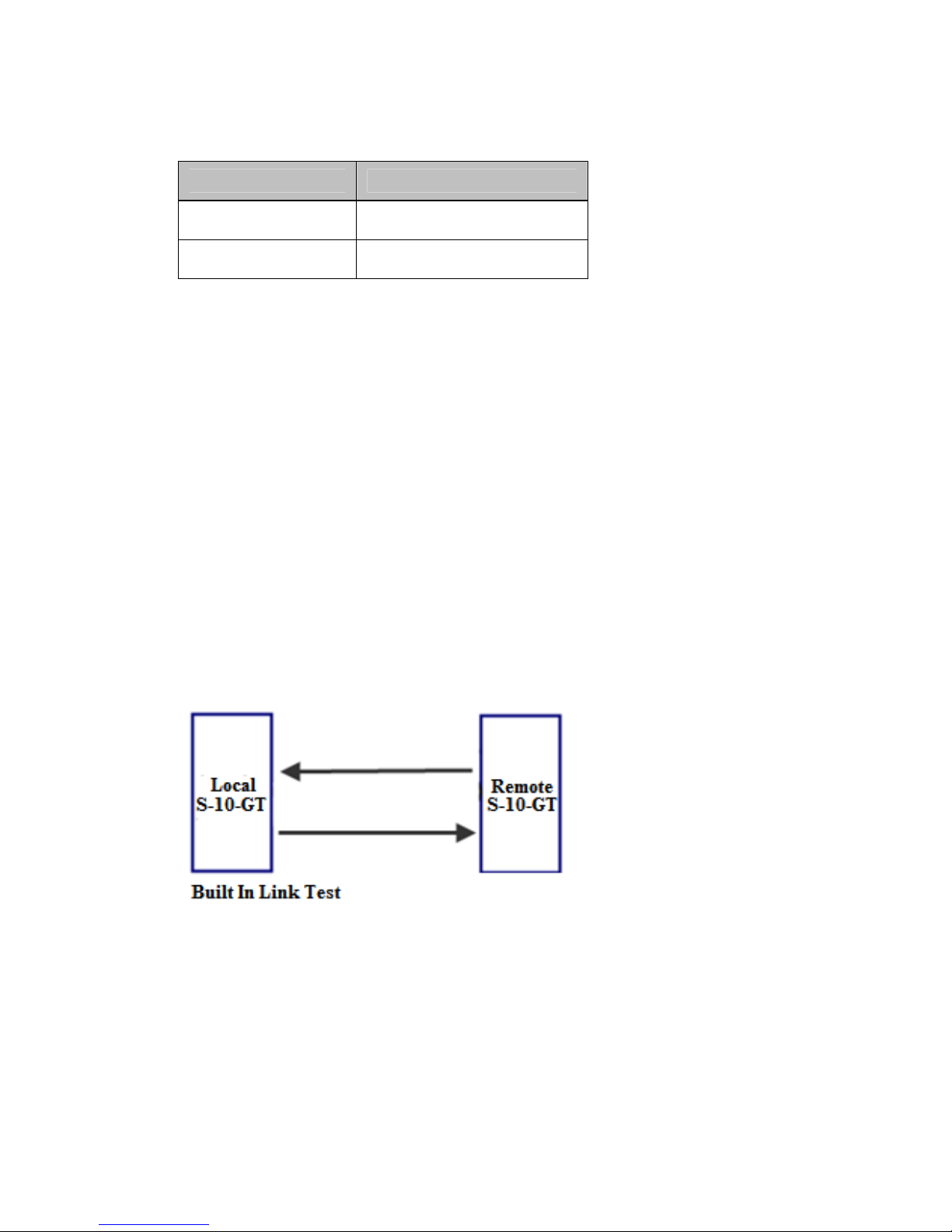

Illustration of the Built In Link Test
Local S-10GT Configuration
Test Mode (Switch 1 Down)
Test Function (Switch 2 Up)
Remote-S-10GT Configuration
All switches in the Up position

Perle S-10GT Media Converter Installation Guide
7
Sequence of Events
•The Local S-10GT sends the Remote S-10GT a signal to go
into test mode.
•The Remote S-10GT media converter turns on test mode.
•Built In test data is sent from the Local S-10GT media
converter to the Remote S-10GT media converter.
•The Remote S-10GT media converter analyses the received
test data and sends its own test data plus a diagnostic code
back to the Local S-10GT media converter.
•If the PWR LED on the Local S-10GT blinks red, this
connection may require further testing. The PWR LED should
flash green to indicate that there have been no errors in the
last second.
•The Built in Link Test continues to run until Switch 1 on the
Local S-10GT media converter is set to Data mode.
Fiber Fault Alert (Switch 3 – Data Mode)
Switch Position Mode
Up (default) Enabled
Down Disabled
Enabled: If the media converter detects a loss of signal on the
fiber port, the media converter notifies the link partner on that
same port that an error condition exists by bringing down the link.
Disabled: The media converter will not monitor for fiber fault.
Illustration of the FFA feature
Media Converter A Configuration
Link Mode Standard Mode
Fiber Fault Alert
Media Converter B Configuration
Link Mode Smart Link Pass through Mode
Fiber Fault Alert

Perle S-10GT Media Converter Installation Guide
8
Sequence of Events
1. Media Converter Aloses fiber connection (RX).
2. Media Converter A notifies the remote Media Converter that
there is a fault on the Link.
3. Media Converter Bdetects loss of fiber link on receiver RX.
4. Media Converter Bturns off transmitter (TX).
Port Selection (Switch 3 – Test Mode)
Switch Position Port
Up (default) 1
Down 2
When loopback mode is selected (Switch 1 and Switch 2 down),
this switch specifies which port to enable loopback mode on.
This switch is not used for BILT test mode, since it only runs on
port 1.
Energy Efficient Ethernet (EEE) (Switch 4)
Switch Position Mode
Up (default) Enabled
Down Disabled
Enabled: When enabled, the media converter will auto negotiate
this capability with the attached EEE compliant devices/servers.
Disabled: The media converter will not auto negotiate this
capability with the attached EEE compliant devices/servers.

Perle S-10GT Media Converter Installation Guide
9
Operation
Powering up the Perle Media Converter
1. Connect the Perle supplied power adapter to the media
converter.
2. Turn on the power at the source.
3. Check that the PWR LED light is lit.

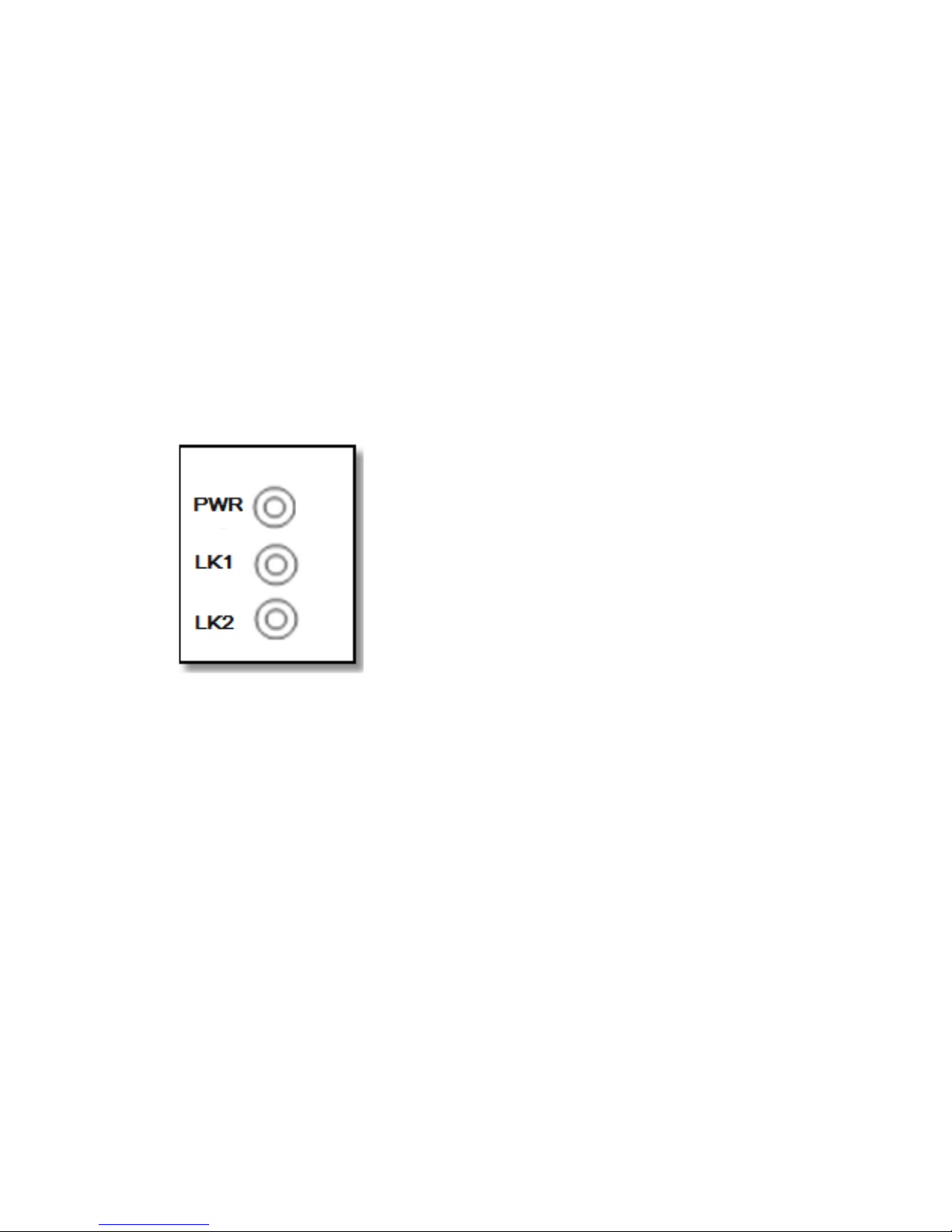

Status LED
The Perle 10GT Media converters have three status LEDs located
on the front panel of the unit.
PWR - Power/Test
Green On: Power is on and the unit is in normal operation mode.
Green blinking slowly:the unit is in test or loopback mode.
Red blinking slowly while in Test mode: indicates an error
within the last second.
Red Solid: During power up - hardware error detected.
Red Blinking quickly:Error detected. (See LK1 LK2 Error
Codes).

Perle S-10GT Media Converter Installation Guide
10
LK1- Port 1 Activity
On: Fiber link present.
Blinking quickly:Fiber link present and receiving data.
Blinking slowly:The fiber link has been taken down as a result of
Smart Link Pass-Through.
Blinking one second on, 3 seconds off: the maximum specified
operating temperature within the inserted module has been
exceeded.
Off: No fiber link present.
LK2 – Port 2 Activity
On: Copper link present.
Blinking quickly:Copper link present and receiving data.
Blinking slowly:The copper link has been taken down as a result
of Smart Link Pass-Through.
Blinking one second on, 3 seconds off: the maximum specified
operating temperature within the inserted module has been
exceeded.
Off: No copper link present.
LK1 LK2 Error Codes
LK1 LK2 Meaning
Off Off Incompatible SFP+ or XFP
Off On Power Budget exceeded – XFP’s requesting more power than
specified port rating.
On Off SFP+ or XFP communication error – S-10GT unable to
communicate with module
On On Internal Error
Grounding the S-10-GT Chassis
If your installation requires additional grounding follow this
procedure.
Grounding the chassis requires the following items:
•One grounding lug (not provided)
•One 18-12 AWG wire (not provided)
•Cross-head screwdriver (not provided)

Perle S-10GT Media Converter Installation Guide
11
Note: For your safety, when installing this equipment, always
ensure that the chassis ground connection is installed first and
disconnected last.

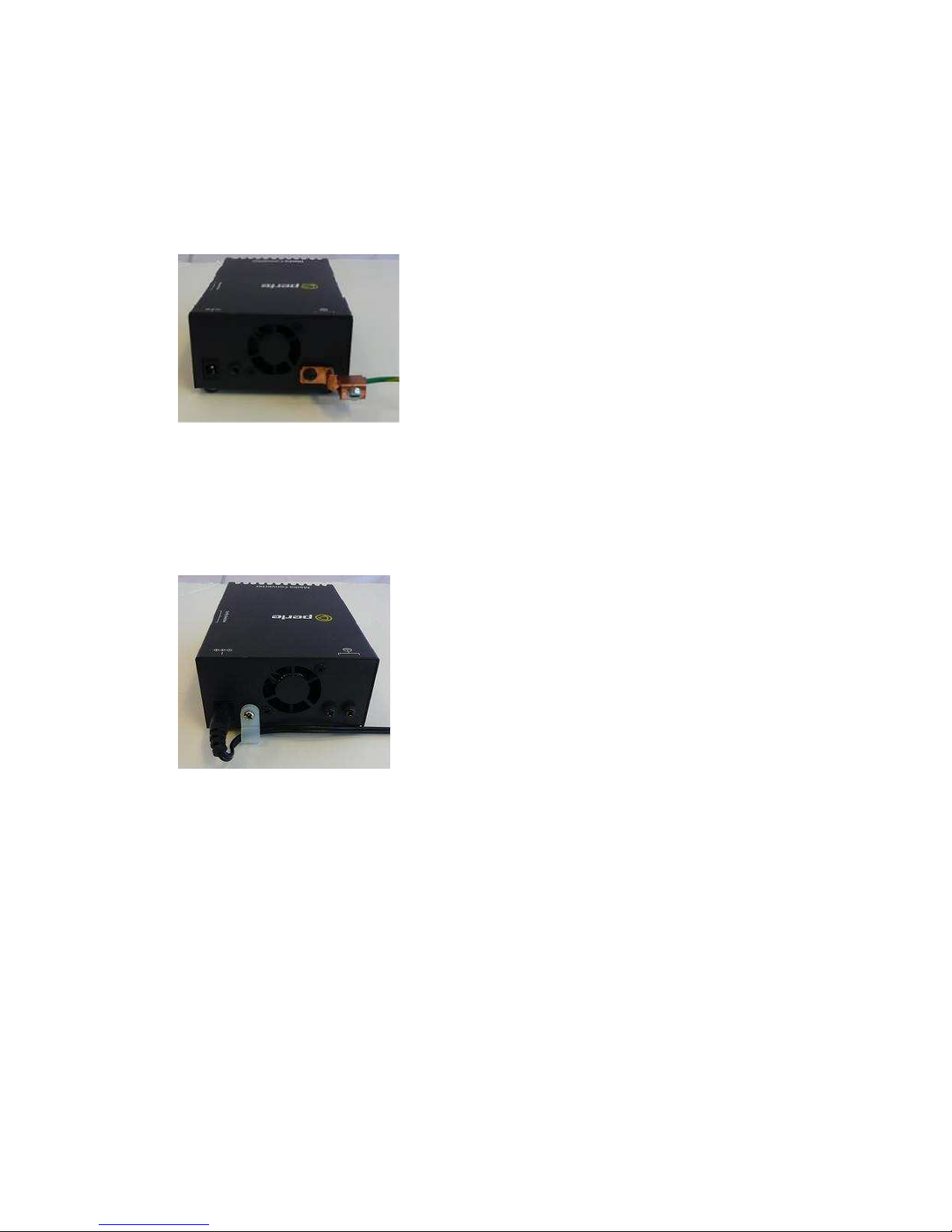

Attaching the Grounding Lug
1. Attach the grounding lug to one end of an 18-12 AWG wire.
2. Attach the grounding lug to the chassis and secure with the
grounding screw(s).
Attaching the Power Cord Strain Relief Clip
1. Feed the power cord through the opening in the power cord
relief clip.
2. Attach the power cord relief clip to the chassis and secure with
the provided screw.
3. Plug the power cord into the AC power connector at the rear
of the chassis.
4. Plug the other end of the power cord into an appropriate
power outlet.

Perle S-10GT Media Converter Installation Guide 12
Module Temperature Protection
Every S-10GT comes equipped with an internal fan to provide
cooling to the unit. The fan will come on during power up and then
turn off. It will only come on when the temperature inside the case
becomes elevated. If the module is operating above its specified
maximum operating temperature, the S-10GT will reduce the
power to the module. The S-10GT will continue to monitor the
operating temperature of the unit until the temperature is below the
maximum operating temperature and then the S-10GT will return
the module to normal operating.

Perle S-10GT Media Converter Installation Guide
13
Troubleshooting
General
Ensure power is supplied to the media converter – use of the
Perle supplied power adapter is highly recommended.
Ensure that the SFP+ or XFP module is inserted into the
transceiver port.
Ensure that the copper cabling (RJ-45) meets Ethernet copper
cabling requirements. See Copper Cable Requirements in
this guide.
No connectivity
If unable to get full connectivity with all DIP switches in the UP
position, these procedures can be used for troubleshooting.
Built In Link Test
Choose one side of the link to generate the test data (master side)
and one side to receive and analyse the test data (slave side).
1. Set Switch 1 down and Switch 2 to the Up position (Built In
Link Test) on the master side.
2. The master side automatically sends test data to the slave
side.
3. The slave side analyses the received test data and sends its
own test data plus a diagnostic code back to the master side.
4. If the PWR LED on the master side blinks red then this
connection may require further testing.
5. If the PWR LED on the master side blinks green after several
seconds of testing, then the SPF+/XFP link is passing the Built
In Link Test.
6. The Built in Link Test continues to run until Switch 1 on the
master side is set back to Data mode.

Perle S-10GT Media Converter Installation Guide
14
Loopback Test
This mode is not used in conjunction with BILT.
1. If either media converter is not a Perle 10GT unit then you
need to set loopback mode on one of the media converters.
(See the User’s Guide that came with that media converter).
2. Use an alternative way to generate data to the unit set in
loopback mode. Data received on the receiver (RX) will be
looped back to the transmitter (TX) connection. Use a third
party application to analyses the received data.

Perle S-10GT Media Converter Installation Guide
15
Technical Specifications
Power Input/Consumption 9-30VDC
S-10GT-SFP+ 1.1A Max, (0.8A at 12VDC)
Operating Temperature 0°C -50°C (32°F - 122°F)
Storage Temperature -25°C -70°C (-13°F -158°F)
Operating Humidity 5% to 90% non-condensing
Storage Humidity 5% to 95% non-condensing
Operating Altitude Up to 3,048 m (10,000 ft)
Power Input/Consumption 9-30VDC
S-10GT-XFPH 1.7A Max, (1.25A at 12VDC)
Operating Temperature 0°C -50°C (32°F - 122°F)
Storage Temperature -25°C -70°C (-13°F -158°F)
Operating Humidity 5% to 90% non-condensing
Storage Humidity 5% to 95% non-condensing
Operating Altitude Up to 3,048 m (10,000 ft)
SFP+ and XFP Support
•MSA Compliant SFP+
•MSA complaint Class 1,2,3 and 4 XFP modules for the S-
10GT-XFPH
•1G copper modules
•1G fiber modules
•SFP+ supports CX1 modules
•XFP supports CX4 modules
Fiber Cabling Requirements
MM: 50/125 microns, 62.5/125 microns
SM: 9/125 microns
Copper Cable Requirements
•Category 6A
•Straight through or Ethernet crossover

Perle S-10GT Media Converter Installation Guide
16
Compliance Information
FCC
This product has been found to comply with the limits for a Class A digital device,
pursuant to Part 15 of the FCC rules. These limits are designed to provide
reasonable protection against harmful interference when the equipment is operated
in a commercial environment. This equipment generates, uses, and can radiate
radio frequency energy and, if not installed and used in accordance with the
instructions in this Guide, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful
interference, in which case the user will be required to correct the interference at
his/her own expense.
EN 55022 Class A
WARNING This is a Class A product. In a domestic environment this product may
cause radio interference in which case the user may be required to take adequate
measures.
EN 55024 Class A
Contacting Technical Support
Contact information for the Perle Technical Assistance Center
(PTAC) can be found at the link below. A Technical Support Query
may be made via this web page.
www.perle.com/support_services/support_request.shtml
Warranty / Registration
Perle’s standard Lifetime Warranty provides customers with return
to factory repairs for Perle products that fail under the conditions of
the warranty coverage. Details can be found at:
http://www.perle.com/support_services/warranty.shtml
Copyright © 2013 Perle Systems Limited
All rights reserved. No part of this document may be reproduced or used in any form
without written permission from Perle Systems Limited.
