Perle C-1110-M2SC05 User manual

P/N 5500308-13
Perle 10/100/1000 Ethernet
Media Converter
Module
Installation Guide
Unmanaged Managed
C-1110-M2SC05 CM-1110-M2SC05
C-1110-M2LC05 CM-1110-M2LC05
C-1110-S2LC10 CM-1110-S2LC10
C-1110-S2SC10 CM-1110-S2SC10
C-1110-S2LC40 CM-1110-S2LC40
C-1110-S2SC70 CM-1110-S2SC70
C-1110-S2LC70 CM-1110-S2LC70
C-1110-S1SC10U CM-1110-S1SC10U
C-1110-S1SC10D CM-1110-S1SC10D
C-1110-SFP CM-1110-SFP

Perle 10/100/1000 Media Converter Module – Installation Guide
2
Overview
This document contains instructions necessary for the installation
and operation of the Perle 10/100/1000 Media Converter Module(s)
(C-1110 and CM-1110) to be used in conjunction with a Perle MCR
chassis. The C-1110’s are unmanaged media converter modules,
and the CM-1110’s are the managed versions. These products
convert a 10/100/1000Base-T cable connection (copper) to a
1000Base-X connection (fiber). The fiber connection can be either
single mode (SM) or multimode (MM) and can operate over different
wavelengths and distances, depending on the model selected (see
table below).
For information on the management options of the CM-1110 module,
refer to the MCR-MGT Module User’s Guide.
Model Connector Mode - Distance Wavelength
C-1110-M2SC05
CM-1110-M2SC05 SC MM - 550 m/1804 ft. 850 nm
C-1110-M2LC05
CM-1110-M2LC05 LC MM - 550 m/1804 ft. 850 nm
C-1110-S2LC10
CM-1110-S2LC10 LC SM - 10 km/6.2 mi. 1310 nm
C-1110-S2SC10
CM-1110-S2SC10 SC SM - 10 km/6.2 mi. 1310 nm
C-1110-S2LC40
CM-1110-S2LC40 LC SM - 40 km/24.9 mi. 1310 nm
C-1110-S2SC70
CM-1110-S2SC70 SC SM - 70 km/43.5 mi. 1550 nm
C-1110-S2LC70
CM-1110-S2LC70 LC SM - 70 km/43.5 mi. 1550 nm
C-1110-S1SC10U
CM-1110-S1SC10U SC SM - 10 km/6.2 mi. 1310/1490 nm
C-1110-S1SC10D
CM-1110-S1SC10D SC SM - 10 km/6.2 mi. 1490/1310 nm
C-1110-SFP
CM-1110-SFP SFP Note 1
Note 1: Fiber characteristics will vary by SFP Fiber module
Note 2: Please refer the Perle web site for the most up to date
Installation guides, models and specifications:
http://www.perle.com/

Perle 10/100/1000 Media Converter Module – Installation Guide
3
Installation
The module comes equipped with a bank of DIP switches and
jumpers for setting configuration. The default dip switch settings
(all switches UP) and default jumper settings will work for most
installations
The following steps are used to configure the Perle 10/100/1000
Ethernet Media Converter Module:
1. Insert SFP Module (SFP Models only)
2. Set the Auto-MDIX jumper setting (optional).
3. Set the Auto-Config jumper (CM-1110 only) (optional)
4. Set the DIP switch settings (optional).
5. Insert the Media Converter Module into the chassis.
6. Connect the copper cable.
7. Connect the fiber cable.
.
Auto-MDIX Jumper
Note: The factory settings for Auto-MDIX will work for most
installations, but if a settings change is needed, follow the
procedure below.
The AUTO-MDIX jumper (J5) is located on the upper edge, at the
midpoint of the module (see diagram below for labelling).. By
covering or strapping pins 2 and 3(AUTO), the C-1110 and CM-
1110 will automatically detect the Ethernet cable’s polarity and
configure itself as either an MDI or an MDIX device. By covering
or strapping pins 1 and 2(MDIX), the C-1110 and CM-1110 will
operate as an MDIX device
Removing the strapping is the same as AUTO.
NOTE: The default jumper setting is AUTO

Perle 10/100/1000 Media Converter Module – Installation Guide
4
Auto-Config Jumper (CM-1110 only)
The Auto-Config jumper (J6) is located just below the Auto-MDIX
jumper (see above). Refer to the diagram below for labelling. This
jumper only applies to CM-1110 modules.
Strapping pins 1 and 2 of the jumper will set the module in SW
mode and strapping pins 2 and 3 will set it in Auto Config mode.
Auto: When set to Auto the module will, at power-up, check its
internal flash memory to see if configuration information has been
downloaded to it from a management module. If so it will use this
as its running configuration. If there is no configuration in flash it
will read the settings of the DIP switches and use those as its
running configuration.
SW: When set to SW (Switch), the module will, at power-up, read
the settings of the DIP Switches and use those as its running
configuration. It will ignore any configuration information in its
flash memory.
NOTE: The default jumper setting is Auto

Perle 10/100/1000 Media Converter Module – Installation Guide
5

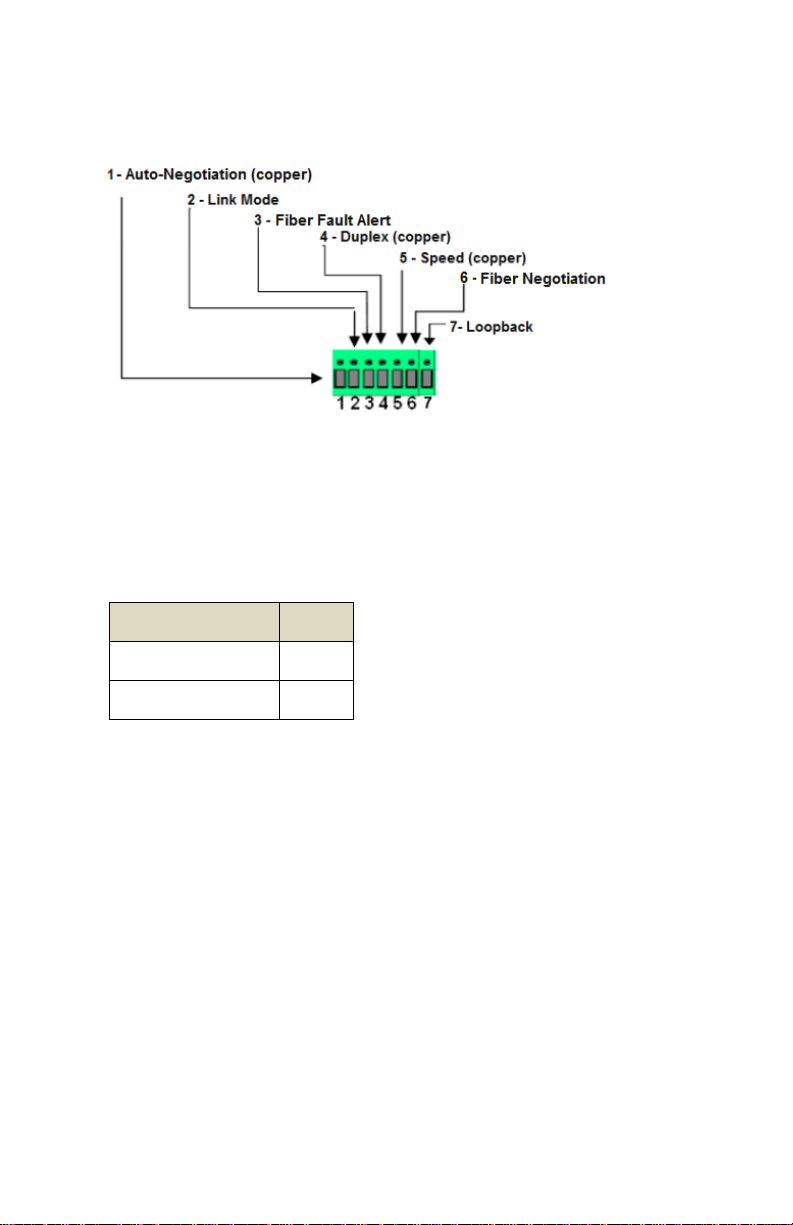

DIP Switches
DIP Switch Settings
Auto Negotiation (copper) (Switch 1)
Switch Position
Mode
Up (default) Auto
Down Off
Note: Auto negotiation should only be turned off, if the copper link
partner does not support Auto Negotiation and fixed settings are
required by the copper link partner.
Auto: When enabled, the Media Converter Module will negotiate
with its link partner to determine the most optimal parameters for
this connection. The C-1110 and CM-1110 will advertise
capabilities of 10,100 and 1000 Mbps, full and half duplex as well
as pause, and remote fault capabilities to the link partner.
If the copper link partner does not support Auto negotiation, the C-
1110 and CM-1110 will parallel detect to 10 or 100 Mbps and
force Half Duplex mode as per IEEE specifications.
Off: When the Auto Negotiation switch is set to the OFF position,
the Media Converter Module will not negotiate the Ethernet

Perle 10/100/1000 Media Converter Module – Installation Guide
6
parameters with the copper link partner. The parameters used by
the Media Converter Module will be determined by the Duplex
(switch 4) and Speed (switch 5) DIP switch settings.
Link Mode (Switch 2)
Switch Position
Mode
Up (default) Smart Link Pass-Through Mode
Down Standard Mode
Smart Link Pass-Through: In this mode, the link state on one
connection is directly reflected through the Media Converter
Module to the other connection. If link is lost on one of the
connections, then the other link will be brought down by the Media
Converter Module.
With Media Converters on both ends of the fiber link and both
setup for Link Pass-Through, a loss of copper link on the far end
device will propagate through both Converters and will result in a
loss of copper link at the near end device. This would, in effect,
resemble a direct copper connection.
Standard Mode: In this mode, the links on the fiber and copper
sides can be brought up and down independently of each other. A
loss of link on either the fiber or copper port can occur without
affecting the other connection.
Fiber Fault Alert (Switch 3)
Switch Position
Mode
Up (default) Enabled
Down Disabled
Enabled: If the Media Converter Module detects a loss of signal
on the fiber receiver, it will immediately disable its fiber transmitter
signal. This, in effect, notifies the fiber link partner that an error
condition exists on the fiber connection.

Perle 10/100/1000 Media Converter Module – Installation Guide
7
If the remote Media Converter is set up for Fiber Fault Alert (FFA)
and the local Media Converter is set up with Link Pass-Through, a
loss of fiber link on either the transmit or receive line will be
passed through to the local copper connection thus notifying the
connected device.
If the Media Converter has been set to Smart Link Pass-Through
mode, the effect will be the same as FFA, since the link loss on
the fiber receiver will result in bringing down the copper link, which
will in turn cause the transmit fiber link to be brought down.
Note: This feature only takes effect if Fiber Negotiation has been
turned off.
Disabled: The Media Converter Module will not monitor for or
generate Fiber Fault Alert.

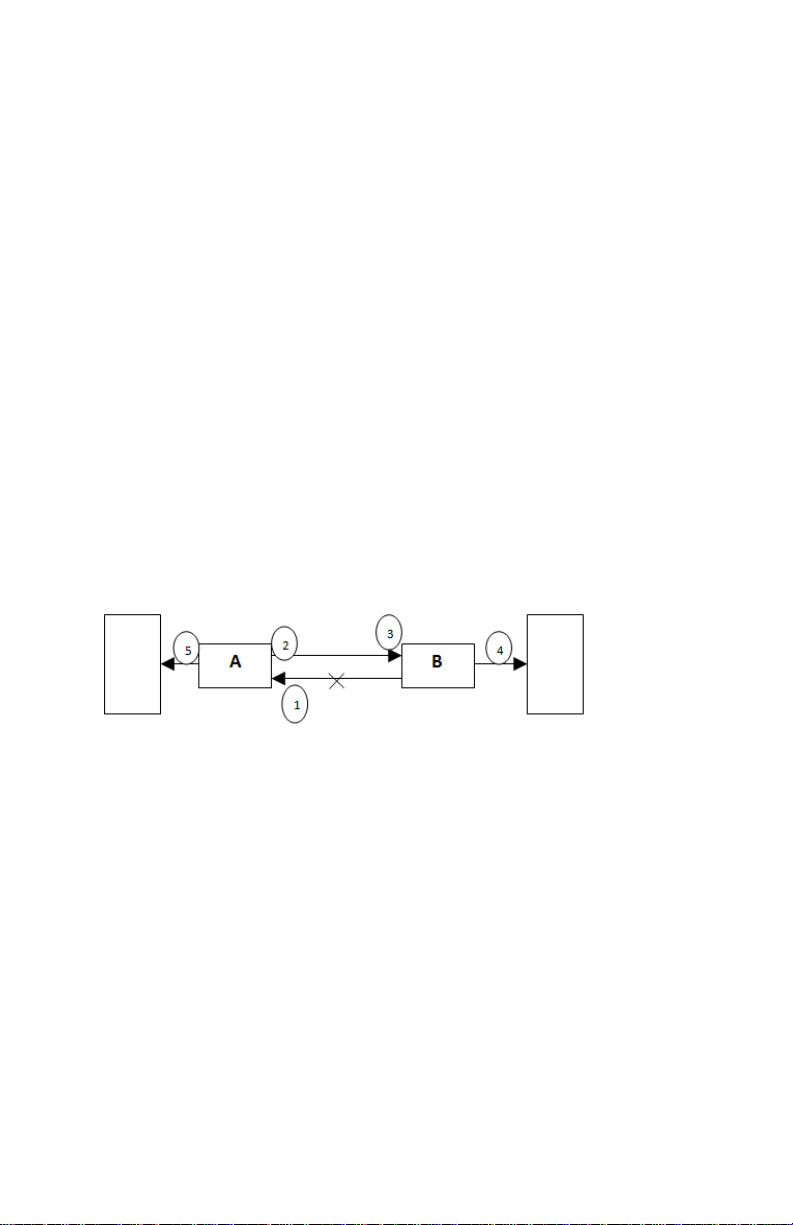

The following diagram is an illustration of the operation of this
feature.
(A) – Remote Media Converter setup for Fiber Fault Alert
Enabled, Fiber Negotiation – OFF and Link Mode – Standard.
(B) – Local Media Converter setup for Fiber Fault Alert -Enabled,
Smart Link Pass-Through - Enabled and Fiber Negotiation - OFF
1 – (A) Loses fiber connection on its receiver.
2 – (A) disables fiber transmitter.
3 – (B) Detects loss of link on its fiber receiver.
4 – (B) Drops link on copper connection because Smart Link
Pass-Through is configured.
5 – (A) Link on copper connection is not affected because Smart
Link Mode is set to Standard.

Perle 10/100/1000 Media Converter Module – Installation Guide
8
Duplex (copper) (Switch 4)
Switch Position
Mode
Up (default) Full
Down Half
Note: When Auto Negotiation (SW1) is set to Off, the Media
Converter will use this Duplex setting for its copper connection.
Up: The Media Converter Module will be set to Full Duplex mode.
Down: The Media Converter Module will be set to Half Duplex
mode.
Speed (copper) (Switch 5)
Switch Position
Mode
Up (default) 100
Down 10
Note When Auto Negotiation (SW1) is set to Off, the Media
Converter Module will use this switch setting for its Ethernet
copper speed setting.
Up: The Media Converter will be fixed at 100 Mbps.
Down: The Media Converter will be fixed at 10 Mbps.

Perle 10/100/1000 Media Converter Module – Installation Guide
Fiber Negotiation (Switch 6)
Switch Position
Mode
Up (default) Auto
Down Off
Up: The Media Converter will negotiate Ethernet parameters on
the fiber connection. This will ensure that the most optimal
connection parameters will be in effect. If connecting to another
Perle Media Converter, this parameter should be set to Auto. The
Media Converter Module will advertise 1000Mbps, Full and Half
Duplex, no Pause.
Down: The Media Converter Module’s fiber will be fixed to
1000Mbps,,Full Duplex.
Loopback (Switch 7)
Switch Position
Mode
Up (default) Disabled
Down Enabled
Disabled: This is the setting for normal operation. The switch
must be set to this position in order for data to pass through the
Media Converter Module.
Enabled: This is a test mode. All data received on the receive
(RX) fiber connection is looped back to the transmit (TX) fiber
connection. The state of the copper link is not relevant since no
data is passed through to the copper side. This mode will override
all other switch settings.

Perle 10/100/1000 Media Converter Module – Installation Guide
10
Installing or Replacing Media Converter
Modules
Caution: Observe electrostatic discharge precautions
when installing the Media Converter Module(s) into the
Chassis. Failure to observe this caution could result in
damage to the Media Converter Module(s) and /or chassis.
The Perle Media Converter Modules can be installed in any
available slot and in any order within the chassis.
Installing or Replacing a Media Converter Module
1. Remove the Media Converter Module from its packaging.
2. Using a cross-head screwdriver, remove the screw
holding the face plate to the Chassis to reveal the slot
opening.
3. Set the jumpers and DIP switches on the Media Converter
Module to the desired operating mode.
4. Locate the top and bottom alignment guides inside the
Chassis.
5. Using the module alignment guides gently slide the
module into the slot until it becomes flush with the front of
the Chassis. Light pressure may be needed to seat the
module. Do not force the module as you might cause
some damage. If there is resistance, remove the module,
check the module connector for damaged or incorrectly
aligned pins, if there is no damage, retry module insertion.
6. Tighten the captive retainer screw to ensure the Media
Converter Module is locked in place.

Perle 10/100/1000 Media Converter Module – Installation Guide
11
7. Remove the dust cap from the fiber connector and
connect the fiber and copper cables.
Removing Media Convert Modules
1. Loosen the captive retainer screw on the front of the Media
Converter Module and gently pull the Media Converter
Module out.
2. If not inserting a replacement, cover the opening slot with a
face plate and secure the screw.
Installing the SFP Fiber Module
•C-1110-SFP and CM-1110-SFP require an SFP fiber
module. Locate appropriate fiber module and insert into
opening.
•Ensure the SFP module is properly seated.
•SFP module may be inserted before or after the Media
Converter module is inserted into the chassis.
•Proceed with cable connections.

Perle 10/100/1000 Media Converter Module – Installation Guide
12
Installing the Duplex Fiber Cable
•Locate a 1000Base-X compliant duplex (2 strands) fiber
cable with appropriate connectors.
•Connect the fiber cables from the Media Converter to the
other Media Converter/switch/fiber device ensuring that the
RX and TX are reversed (crossed) at the opposite end.
Installing the Simplex Fiber Cable
•Locate a 1000Base-X compliant simplex (1 strand) fiber
cable with appropriate connectors.
•Connect the fiber cable from the Media Converter Module to
the other Media Converter/switch/fiber device.
Installing the Copper Cable
•Locate 10/100/1000Base-T compliant copper cables with
male, RJ-45 connectors installed at both ends.
•Connect the RJ-45 cable between the Perle Media
Converter Module and the device.
Note: The Perle Media Converter Module supports Auto-MDIX
which allows a straight-through or cross-over Ethernet cable. See
page 4 in this guide for jumper positions.

Perle 10/100/1000 Media Converter Module – Installation Guide
13
Operation
Status LED
The Perle 10/100/1000 Rate converting Media Converter
Module’s have six status LEDs located on the face plate of the
module.
PWR
On – Power is on; module is
operating normally
Blinking (slow)– The module is in
Loopback mode.
Blinking (fast) – The module has a
hardware failure.
FDF (fiber)
On – Full Duplex Mode.
Off – Half Duplex Mode.
LKF (fiber )
On – Fiber link is present.
Off – No fiber link present.
Blinking (slow) – Copper link down
but fiber link appears functional.
Blinking (fast) – Fiber link is up and
receiving data.
100/1000 (copper speed)
Green – 1000 Mbps
Yellow – 100 Mbps.
Off – 10 Mbps (if link is present).
FDC (copper duplex)
On – Full Duplex Mode.
Off – Half Duplex Mode.
LKC (copper)
On – Copper link is present.
Off – No copper link present.
Blinking (slow) – Fiber link down
but copper link appears functional.
Blinking (fast) – Copper link is up
and receiving data

Perle 10/100/1000 Media Converter Module – Installation Guide
14
Other Features
Auto-MDIX:
Auto-MDIX (automatic medium-dependent interface crossover)
detects the signalling on the 10/100/1000BASE-T interface to
determine the type of cable connected (straight-through or
crossover) and automatically configures the connection.
Error Recovery:
In certain configurations, and under specific conditions where the
Media Converter Module brings down a link to convey status,
there is potential for a deadlock. Recovery is achieved by
momentarily restoring the link to see if the original failure has
been resolved. If it has not, the link will be forced down again,
however if the original problem has been resolved, the link will be
restored.
Pause (IEEE 802.3xy):
Integrated Pause signalling is an IEEE feature that temporarily
suspends data transmission between two devices in the event that
one of the devices becomes overwhelmed. The Perle Media
Converter Module can generate and respond to Pause messages.

Perle 10/100/1000 Media Converter Module – Installation Guide
15
Troubleshooting
General
•Ensure that the Media Converter Module is securely seated in
the chassis.
•Ensure both devices on either end of the fiber are compatible.
If using a simplex fiber connection, ensure that you have both
an Upstream (U) and Downstream (D) Media Converter.
•Ensure all cabling is of the correct type and is in good working
order.
•For duplex fiber connections, ensure the RX and TX has been
reversed between the two Media Converters.
No connectivity
If unable to get full connectivity with all DIP switches in the UP
position these methods are recommended for troubleshooting.
Method 1
1. If the Module is a CM-1110, set the Auto-Config jumper (J6)
to SW so that DIP switches are being read.
2. Set the Link mode to Standard (SW2 – Down) on both Media
Converters. Leave all other switches in the Up position.
3. Connect the near end device to the copper connection. The
LKC LED indicates good copper connection. If the LKC LED
is not lit, then check the copper cable and the attached
device. Repeat for the far end Media Converter.
4. Connect the fiber cable to both Media Converters. The LKF
LED indicates good fiber connection. If no LKF LED then
check the fiber cabling.
5. Return converters to their desired configuration.

Perle 10/100/1000 Media Converter Module – Installation Guide
16
Method 2:
The fiber connection can also be verified by configuring the
remote Media Converter for loopback mode. The LKF LEDs on
both Media Converters Modules should be lit. Data should pass
through the local converter, over the fiber connection to the
remote Media Converter. At the remote Media Converter, the data
will be looped back and passed through the fiber, back to the local
Media Converter Module and passed to the copper link.

Perle 10/100/1000 Media Converter Module – Installation Guide
17
Technical Specifications
Power Input/Consumption 12V DC / 2.6 W
Operating Temperature: 0 °C to 50 °C (32 °F to 122 °F)
Storage Temperature: -25 °C to 70 °C (-13 °F to 158 °F)
Operating Humidity: 5% to 0% non-condensing
Storage Humidity: 5% to 5% non-condensing
Operating Altitude: Up to 3,048 m (10,000 ft)
MTBF: (C-1110) 534,120 hours
(C-1110-SFP) 636,848 hours (without SFP)
(CM-1110) 520,375 hours
(CM-1110-SFP) 617,404 hours (without SFP)
Fiber Optic Specifications:
Model Mode Wavelength
(nm) TX Power (dB) RX Power (dB) Budget (dB)
C-1110-M2SC05
CM-1110-M2SC05 MM TX: 850
RX: 850
Min: -9.5
Max: -4
Min: -17
Max: -3 7.5
C-1110-M2LC05
CM-1110-M2LC05 MM TX: 850
RX: 850
Min: -9.5
Max: -4
Min: -17
Max: -3 7.5
C-1110-M2LC10
CM-1110-M2LC10 MM TX: 1310
RX:1310
Min: -9.5
Max: -3
Min: -20
Max: -3 10.5
C-1110-S2SC10
CM-1110-S2SC10 SM TX: 1310
RX:1310
Min: -9.5
Max: 3
Min: -20
Max: -3 10.5
C-1110-S2LC40
CM-1110-S2LC40 SM TX: 1310
RX:1310
Min: -3
Max: 2
Min: -23
Max: -3 20
C-1110-S2SC70
CM-1110-S2SC70 SM TX: 1550
RX:1550
Min: -2
Max: 5
Min: -23
Max: -3 21
C-1110-S2LC70
CM-1110-S2LC70 SM TX: 1550
RX:1550
Min: 0
Max: 5
Min: -23
Max: -3 23
C-1110-S1SC10U
CM-1110-S1SC10U SM TX: 1310
RX:1490
Min: -9
Max: -3
Min: -20
Max: -3 11
C-1110-S1SC10D
CM-1110-S1SC10D SM TX:1490
RX:1310
Min: -9
Max: -3
Min: -20
Max: -3 11

Perle 10/100/1000 Media Converter Module – Installation Guide
18
Fiber Cabling Requirements:
MM: 50/125 microns or
62.5/125 microns
SM: 9/125 microns
Ethernet Copper Cabling Requirements:
•Category 5 UTP or STP
•24-22 AWG
•Straight through or Ethernet crossover
Note: Please refer the product page on the Perle website for the
most up to date list of models and specifications.
http://www.perle.com/

Perle 10/100/1000 Media Converter Module – Installation Guide
1
Compliance Information
FCC
This product has been found to comply with the limits for a Class A digital device,
pursuant to Part 15 of the FCC rules. These limits are designed to provide
reasonable protection against harmful interference when the equipment is
operated in a commercial environment. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance with
the instructions in this Guide, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is likely to cause
harmful interference, in which case the user will be required to correct the
interference at his/her own expense.
EN 55022, Class A
WARNING This is a Class A product. In a domestic environment this product may
cause radio interference in which case the user may be required to take adequate
measures.
EN 55024, Class A
.
Laser Safety – IEC 60825-1:2007
This product meets Class I Laser safety requirements per IEC-60825-1:2007
standard and complies with FDA/CDRH 21 CFR1040.10 and 21 CFR1040.11.
WARNING: Visible and invisible laser radiation may be present when cables are
not connected. Do not stare into the beam or view the beam directly with optical
instruments. Failure to observe this warning could result in an eye injury or
blindness.
WARNING: Use of controls, adjustments or the performance of procedures other
than those specified herein may result in hazardous radiation exposure.

Perle 10/100/1000 Media Converter Module – Installation Guide
20
Warranty / Registration
Perle’s standard Lifetime Warranty provides customers with return
to factory repairs for Perle products that fail under the conditions
of the warranty coverage. Details can be found at:
http://www.perle.com/support_services/warranty.shtml
Contacting Technical Support
Contact information for the Perle Technical Assistance Center
(PTAC) can be found at the link below. A Technical Support
Query may be made via this web page.
www.perle.com/support_services/support_request.shtml
Copyright
© 2010 Perle Systems Limited
All rights reserved. No part of this document may be reproduced or used in any form
without written permission from Perle Systems Limited.
