Perle S-110-P User manual

P/N 5500318-12
Perle PoE/PoE+
10/100 Ethernet
Media Converters
Installation Guide
S-110P
S-110PP
S-110P-SFP
S-110PP-SFP

Perle PoE/PoE+ 10/100 Ethernet Media Converter
Installation Guide
2
Overview
This document contains instructions necessary for the installation
and operation of the Perle Standalone PoE/PoE+ 10/100 rate
converting Media Converters (S-110P). These products have the
ability to convert 10/100Base-T cable connections (copper) to
100Base-X connection (fiber). The Perle media converters
function as a PoE switch, and support a variety of port
configurations. These media converters function as Power
Sourcing Equipment (PSE) and can power up one Powered
Device (PD) using standard UTP cables that carry Ethernet data.
The S-110P models are compatible with Powered Devices that
comply with the IEEE 802.3af standard and the S-110PP models
are compatible with Powered Devices that comply with both the
IEEE 802.3af and the 802at-2009 standards. The fiber connection
can be either single mode (SM) or multimode (MM) and can
operate over different wavelengths and distances, depending on
the model selected (see table below).
POE/POE+
PoE (P)
PoE+ (PP)
Connector
(xx) Mode Distance Wavelength (TX/RX)
S-110P-M2xx2
S-110PP-M2xx2 SC/ST MM 2 km/1.2 mi. 1310 nm
S-110P-S2xx20
S-110P-S2xx20 SC/ST SM 20 km/12.4 mi. 1310 nm
S-110P-S2xx40
S-110PP-S2xx40 SC/ST SM 40 km/24.9 mi. 1310 nm
S-110P-S2xx80
S-110PP-S2xx80 SC/ST SM 80 km/49.7 mi. 1550 nm
S-110P-S2xx120
S-110PP-S2xx120 SC/ST SM 120 km/74.6. 1550 nm
S-110P-S1SC20U
S-110PP-S1SC20U SC SM 20 km/12.4 mi. 1310/1550 nm
S-110P-S1SC20D
S-110PP-S1SC20D SC SM 20 km/12.4 mi. 1550/1310 nm
S-110P-S1SC40U
S-110PP-S1SC40U SC SM 40 km/24.9 mi. 1510/1590 nm
S-110P-S1SC40D
S-110PP-S1SC40D SC SM 40 km/24.9 mi. 1590/1510 nm
S-110P-SFP
S-110PP-SFP SFP NOTE 1

Perle PoE/PoE+ 10/100 Ethernet Media Converter
Installation Guide
3
Installation
The default DIP switch settings (all switches in the UP position)
will work for most installations.
These are the steps required to configure the Perle S-110P
Ethernet media converter:
1. Insert SFP Module (SFP Model only).
2. Set the DIP switch settings (if required).
3. Set the Powering Option Jumpers (if required).
4. Install and connect the fiber cable.
5. Install and connect the copper cable.
6. Install the Power cord Relief clip (optional).
7. Power up the media converter.
Power Sourcing Pinouts
When Power Sourcing is enabled on a copper port, the S-110P
will provide power to the connected PD device over the Ethernet
cable (see PSE function on Dip Switch configurations). The wire
pairs on the cable used for delivering power will depend on the
device. The following options are available.
PoE Option
RJ-45 Alternative A Alternative B Legacy
1 positive
2 positive
3 negative
4 positive negative
5 positive negative
6 negative
7 negative positive
8 negative positive

Perle PoE/PoE+ 10/100 Ethernet Media Converter
Installation Guide
4
UTP (copper) Power
PoE
•IEEE 802.3af (PoE) up to 15.4 Watts for the UTP port.
PoE+
•IEEE 802at-2009 (PoE+)
•Up to 30 Watts on UTP port
•PoE+ models will also support 802.3af PDs (Type 1) and
PoE+ PDs (Type 2)
Powering Options Jumper Settings
Note: The factory settings for Power Sourcing Pinouts will work for
most installations as 802.3a and 802at-2009 ( POE/POE+)
devices will detect and sync to the correct POE option. However,
in the rare case that you need to modify the settings, the
procedure is below.

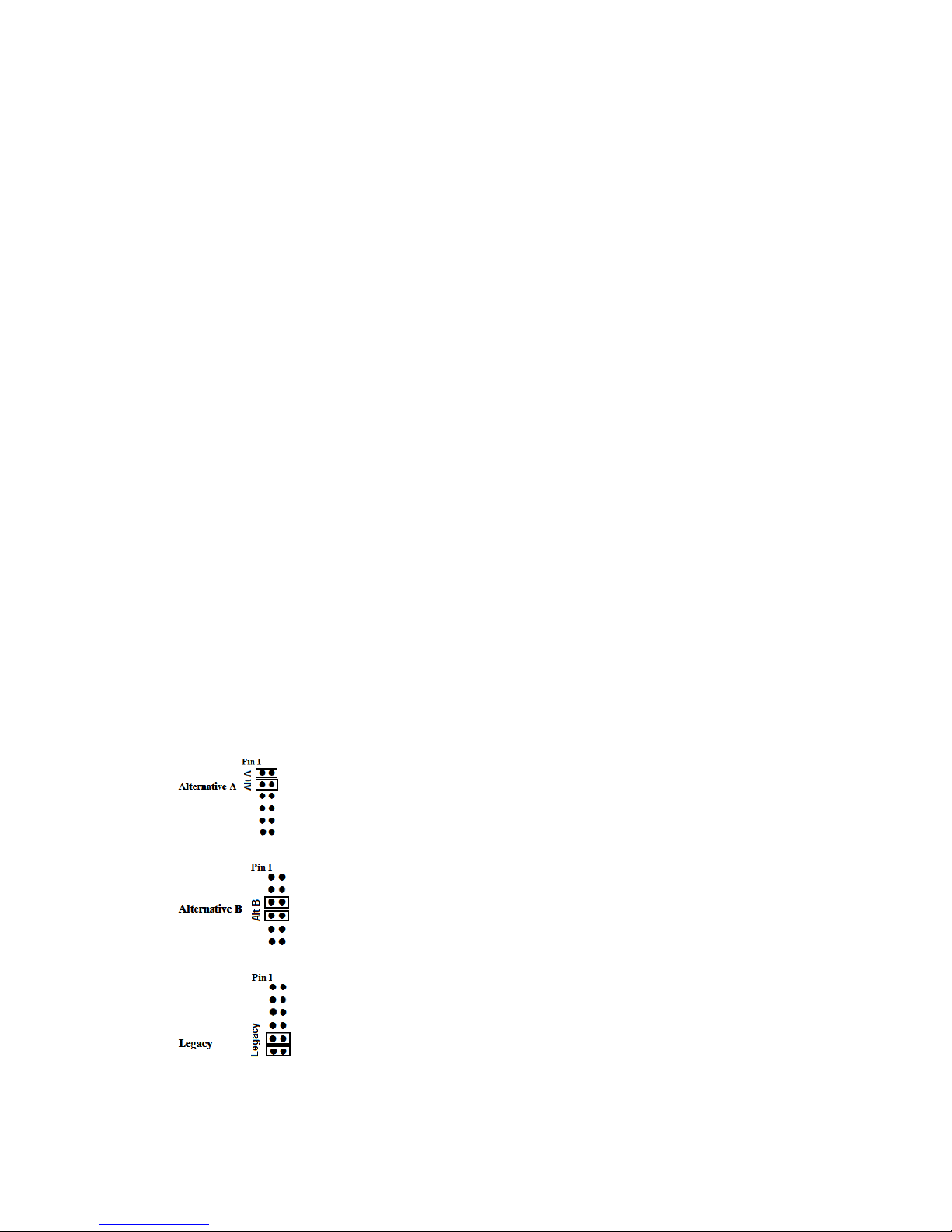

In order to select a powering option, the Power Options Jumper
settings must be set. Each copper port has a set of Power Option
jumpers. To access the Powering Options Jumper settings,
unscrew the six side screws on the case and remove the cover
plate. Locate the Power Option jumper set and strap the option
pins as detailed below.

Perle PoE/PoE+ 10/100 Ethernet Media Converter
Installation Guide
5
DIP Switches
The DIP switches for Bank 1 are accessible through the opening in
the side of the enclosure.
Bank 1
Bank 2
To access the DIP switches for Bank 2, unscrew the six side
screws on the case and remove the cover plate. Locate the jumper
set as detailed below.

Perle PoE/PoE+ 10/100 Ethernet Media Converter
Installation Guide
Bank 2
Note: All switch changes take effect immediately. Switch changes
will cycle power to the PD only if the PD Reset switch is set to On
or you make changes to the PSE Power switches.
DIP Switch Settings
Bank 1
Auto-negotiation (copper) (Switch 1)
Switch Position Copper Port
Up (default) Auto
Down Off
Note: Auto-negotiation should only be turned off, if the copper link
partner does not support Auto-negotiation and fixed settings are
required by the copper link partner.
Auto: When enabled, the media converter will negotiate with its
link partner to determine the most optimal parameters for this
connection. The S-110P will advertise capabilities of 10 and 100
Mbps, full and half duplex as well as pause to the link partner.
If the copper link partner does not support Auto-negotiation, the S-
110P will parallel detect to 10 or 100 Mbps and force Half Duplex
mode as per IEEE specifications.
Off: When the Auto-negotiation switch is set to the OFF position,
the media converter will not negotiate the Ethernet parameters

Perle PoE/PoE+ 10/100 Ethernet Media Converter
Installation Guide
7
with the copper link partner. The parameters used by the media
converter will be determined by the Copper Speed (Bank 2 -
switch 1) and Duplex Copper (Bank 2 - switch 2) DIP switch
settings. Pause receive and send will be disabled.
Link Pass-Through Mode (Switch 2)
Switch Position Mode
Up (default) Link Pass-Through Mode
Down Standard Mode
Link Pass-Through Mode: In this mode, the link state on one
connection is directly reflected through the media converter to the
other connection. If link is lost on one of the connections, then the
other link will be brought down by the media converter.
If the installation has a media converter on both ends of the fiber
link and both are set-up for Link Pass-Through, then a loss of
copper link on the far end device will propagate through both
media converters and will result in a loss of link at the near end
device.
Standard Mode: In this mode, links on the fiber and copper sides
can be brought up and down independently of each other. A loss
of link on either the fiber or copper port can occur without affecting
the other connection.

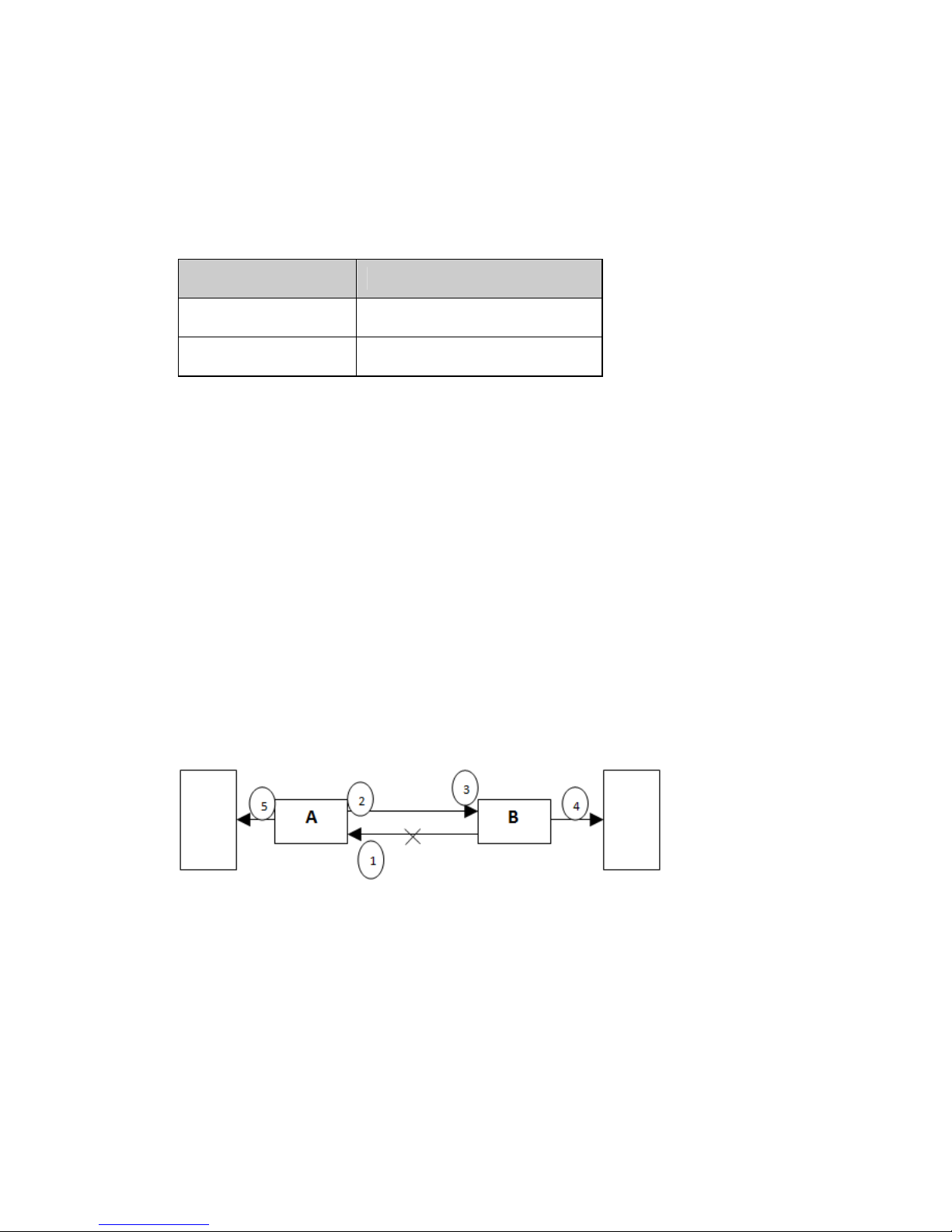

Link Pass-Through Behaviour
(A) – Remote Media Converter setup for Far End Fault Enabled,
Auto-negotiation – OFF and Link Mode – Standard.
(B) – Local Media Converter setup for Far End Fault enabled, Link
Pass-Through On and Auto-negotiation - OFF
1. (A) Loses fiber connection on its receiver.
2. (A) Sends FEF.
3. (B) Detects FEF signal and shuts down the fiber link.

Perle PoE/PoE+ 10/100 Ethernet Media Converter
Installation Guide
8
4. (B) Drops link on copper connection because Link Pass-
Through is configured.
5. (A) Link on copper connection is not affected because Link
Pass-Through Mode is set to Standard.
Far End Fault (Switch 3)
Switch Position Fiber Port
Up (default) Enabled
Down Disabled
Enabled: If the media converter detects a loss of signal on the
fiber receiver, it will immediately disable its fiber transmitter signal
on the same port. This, in effect, notifies the fiber link partner that
an error condition exists on the fiber connection.
If the remote media converter is set up for Far End Fault(FEF) and
the local media converter is set up with Link Pass-Through, a loss
of fiber link on either the transmit or receive line will be passed
through to the local copper connection thus notifying the
connected device.
If the media converter has been set to Link Pass-Through mode,
the effect will be the same as FEF, since the link loss on the fiber
receiver will result in bringing down the copper link, which will in
turn cause the transmit fiber link to be brought down.
Note: This feature only takes affect if Auto-negotiation (Switch 1)
has been turned Off.
Disabled: The media converter will not monitor for or generate Far
End Fault.
PSE Enable Copper (Switch 4 and 5)
Switch Position 4 Switch Position 5 Type
Up (default) Up (default) PSE enabled
normal detection
Up Down PSE enabled High capacitance
detection
Down Up PSE enabled
Legacy device

Perle PoE/PoE+ 10/100 Ethernet Media Converter
Installation Guide
9
detection
Down Down PSE disabled
These switches must be set in order to enable the power sourcing
function and to indicate the type of device detection required. If the
device type is unknown, the default should be used as per
IEEE802.3af/at standards.
Enabled: When enabled, the media converter will perform Power
Sourcing Equipment (PSE) functions as per IEEE802.3af (POE) or
802.3at-2009 (POE+) standards.
Disabled: When disabled the media converter will not perform
PSE functions.
PD Power Reset (Switch 6)
Switch Position Mode
Up (default) Disabled
Down Enabled
Disabled: When disabled, the loss of fiber link has no effect on
PSE power to the PD device.
Enabled: When enabled, if the media converter detects loss of link
on the fiber port it will turn off PSE output power to the PD device
connected to the copper port. After 2 seconds, the media
converter will restore power to the PD and the power will remain
on until the fiber link transitions from a link up to link down state.
Loopback Fiber (Switch 7)
Switch Position Mode
Up (default) Disabled
Down Enabled
Disabled: The loopback feature is disabled. This is default
position for normal operation. The switch must be set to this
position in order for data to pass through the media converter.
Enabled: This is a test mode. All data received on the receive
(RX) fiber connection is looped back to the transmit (TX) fiber
connection. The data link will be disabled; however power to the

Perle PoE/PoE+ 10/100 Ethernet Media Converter
Installation Guide
10
powered devices will be maintained. This mode will override all
other switch settings.
Bank 2
Speed Copper (Switch 1)
Switch Position Copper port
Up (default) 100
Down 10
100: When Switch 1 is in the Up position, the S-110P will force the
speed to 100 Mbps.
10: When Switch 1 is in the Down position the media converter will
force the speed to 10 Mbps.
Duplex Copper (Switch 2)
Switch Position Copper port
Up (default) Full Duplex
Down Half Duplex
Full Duplex: In the Up switch position; the media converter will be
set to Full Duplex mode.
Half Duplex: The media converter will be set to Half Duplex
mode.
Duplex Fiber (Switch 3)
Switch Position Copper port
Up (default) Full Duplex
Down Half Duplex
Note: When Auto-negotiation (SW1) is set to Off, the media
converter will use this Duplex setting for the copper port.
Full Duplex: In the Up switch position; the media converter will be
set to Full Duplex mode.

Perle PoE/PoE+ 10/100 Ethernet Media Converter
Installation Guide
11
Half Duplex: The media converter will be set to Half Duplex
mode.
Auto/MDIX (Switch 4)
Switch Position Copper port
Up (default) Auto
Down MDIX
Auto: In the Up switch position; the media converter will
automatically detect the Ethernet cable’s polarity.
MDIX: The S-110P will operate as a MDIX device.
Installing the SFP Fiber Module
SFP models only.
1. Locate the appropriate fiber module and insert the SFP into
the opening on the front of the media converter.
2. Ensure the SFP module is properly seated. The release latch
of the SPF fiber transceiver must be in the closed (up) position
before insertion.
3. The SFP module may be inserted before or after applying
power to the media converter.
4. Proceed with cable connections.
Installing the Duplex Fiber Cable
Locate a 100Base-X compliant duplex (2 strands) fiber cable with
appropriate connectors.
Connect the fiber cables from one media converter to the other
media converter/switch/fiber device ensuring that the RX and TX
are reversed (crossed) at the opposite end.

Perle PoE/PoE+ 10/100 Ethernet Media Converter
Installation Guide
12
Installing the Simplex Fiber Cable
•Locate a 100BASE-X compliant simplex (1 strand) fiber cable
with appropriate connectors. Ensure that the TX wavelength
matches the RX wavelength at the other end and the RX
wavelength matches the TX wavelength at the other end.
•Connect the fiber cable from one media converter to the other
media converter/switch/fiber device.
Installing the Copper Cable
•Locate 10/100Base-T compliant copper cables with the
appropriate connectors.
•Connect the RJ-45 cable between the Perle media converter
and the device.
Attaching the Power Cord Strain Relief
Clip
1. Remove the screw from the chassis that is closest to the
power cord connector.
2. Feed the power cord through the opening in the power cord
relief clip.
3. Attach the power cord relief clip to the chassis and secure with
the provided screw.
4. Plug the power cord into the AC power connector at the rear
of the chassis.

Perle PoE/PoE+ 10/100 Ethernet Media Converter
Installation Guide
13
5. Plug the other end of the power cord into an appropriate
power outlet.
Powering up the Perle Media Converter
•Connect the Perle supplied power adapter to the media
converter.
•Connect the power adapter to a power source.
•Check that the PWR LED is lit.

Perle PoE/PoE+ 10/100 Ethernet Media Converter
Installation Guide
14
Operation
Status LED
The Perle PoE/PoE+10/100 Rate converting Media converters
have status LEDs located on the front panel of the unit.
PWR
On – Power is applied to the unit
Blinking (slow) – Loopback mode - fiber interface is in loopback mode
Blinking (fast) Power On failure. See LED Pattern to determine pattern
combination and failure cause
LED Pattern
LKF LKC 100 PSE
Off Off On On SFP incompatible
All other LED patterns Internal hardware
failure
LKF- (Status on Fiber Link)
On – Fiber link is present
Off – No fiber link present
Blinking (fast) – Fiber link up and receiving data

Perle PoE/PoE+ 10/100 Ethernet Media Converter
Installation Guide
15
100- (Copper Port)
On – 100 Mbps (valid link and detected speed is 100 Mbps)
Off – 10 Mbps (if link is currently established)
LKC- (Link Status on Copper port)
On – Copper link is present
Off – No copper link present
Blinking (fast) – Copper link up and receiving data
PSE
Solid Green (Active) – The PSE has successfully detected a compliant
PD and is applying power over UTP.
Solid Orange (Inactive) – The PSE is not active. The PSE has been
configured to provide power, however
•a compliant PD not detected - no power applied
•a PSE has turned off power for Reset function
Off – (Disabled) The PSE function is disabled in the configuration.
Error conditions
A blinking red light is an error condition. The led light will cycle
with a 3 second stop interval between the error condition code.
PSE-LED
1 blink PD Capacitance too high
2 blinks PD Resistance too low or short circuit
3 blinks PD Resistance too high

Perle PoE/PoE+ 10/100 Ethernet Media Converter
Installation Guide
1
Other Features
Auto-MDIX
Auto-MDIX (automatic medium-dependent interface crossover)
detects the signalling on the 10/100BASE-T interface to determine
the type of cable connected (straight-through or crossover) and
automatically configures the connection.
Pause (IEEE 802.3xy)
Integrated Pause signalling is an IEEE feature that temporarily
suspends data transmission between two devices in the event that
one of the devices becomes overwhelmed with data. The Perle
media converter can generate and respond to Pause messages. If
Auto negotiation is set to On, the media converter will advertise
symmetrical and asymmetrical pause. If Auto negotiation is set to
Off, the Pause receive and send will be disabled.

Perle PoE/PoE+ 10/100 Ethernet Media Converter
Installation Guide
17
Troubleshooting
General
•Ensure power is supplied to the media converter. Only the
Perle provided power supply may be used.
•Ensure the remote device’s fiber connection type is
compatible with the media converter. If using a simplex fiber
connection, ensure that you have both an Upstream (U) and
Downstream (D) media converter.
•Ensure all cabling is of the correct type and is in good working
order.
•For duplex fiber connections, ensure the RX and TX has been
reversed between the two media converters.
No connectivity
If unable to get full connectivity with all DIP switches in the UP
position, this procedure is recommended for troubleshooting.
Method 1
1. Set the Link Pass-Through mode to Standard on both media
converters. Leave all other switches in the Up position.
2. Connect the copper device to the copper port on the media
converter. The LKC LED light indicates good copper
connection. If the LKC LED is not lit, then check the copper
cable and the attached device.
3. Repeat for the far end media converter.
4. Connect the fiber cable to both media converters. The LKF
LED indicates good fiber connection. If no LKF LED then
check the fiber cabling. Ensure the transmitter and receiver
pairs are crossed.
5. Return units to desired configuration.
Method 2:
The fiber connection can also be verified by configuring the remote
media converter for loopback mode. The LKF LEDs on both media
converters should be lit. Data should pass through the local
converter, over the fiber connection to the remote media
converter. At the remote media converter, the data will be looped

Perle PoE/PoE+ 10/100 Ethernet Media Converter
Installation Guide
18
back and passed through the fiber, back to the local converter and
passed to the copper link.
No Power to the PD
•Ensure that the PD is compatible with the S-110P. If the PD is
a POE+ device then a POE+ media converter must be used
(S-110PP)
•Ensure that the power supply being used is the one provided
with the product
•If the PD does not support Alternative A (including Legacy
PD’s), the Power Option Jumpers must be set accordingly.
Also ensure the correct pin out for the device.
•For proper detection of different classes of devices, the dip
switches must be set correctly.

Perle PoE/PoE+ 10/100 Ethernet Media Converter
Installation Guide
19
Technical Specifications
The following applies to all S-110P media converters:
Power Input / Consumption: 48V DC to 56V DC @ 6 W
Operating Temperature: 0°C to 50°C (32°F to 122°F)
Storage Temperature: -25°C to 70°C (-13°F to 158°F)
Operating Humidity: 5% to 90% non-condensing
Storage Humidity: 5% to 95% non-condensing
Operating Altitude: Up to 3,048 m (10,000 ft)
Dimensions: 80 mm by 120 mm by 26 mm
MTBF
No Power
supply POE POE+
1 SFP / 1 copper ports 437,237 hours 229,220 hours 81,386 hours
1 SC/ST / 1 copper 385,526 hours 214,161 hours 79,404 hours
Fiber Optic Specifications:
PoE (P)
PoE+ (PP)
Mode Wavelength
(nm) TX Power (dB) RX Power (dB) Budget (dB)
S-110P-M2xxC2
S-110PP-M2xxC2 MM TX: 1310
RX: 1310 Min: -20 Max: -12 Min: -31 Max: -14 11
S-110P-S2SC20
S-110PP-S2SC20 SM TX: 1310
RX: 1310 Min: -18 Max: -7 Min: -32 Max: -3 14
S-110P-S2ST20
S-110PP -S2ST20 SM TX: 1310
RX: 1310 Min: -15 Max: -8 Min: -32 Max: -3 17
S-110P-S2xx40
S-110PP -S2xx40 SM TX: 1310
RX :1310 Min: -5 Max: 0 Min: -34 Max: -3 29
S-110P-S2SC80
S-110PP-S2SC80 SM TX: 1550
RX: 1550 Min: -5 Max: 0 Min: -34 Max: -3 29
S-110P-S2ST80
S-110PP-S2ST80 SM TX: 1550
RX: 1550 Min: -5 Max: 5 Min: -34 Max: -3 29
S-110P-S2SC120
S-110PP-S2SC120 SM TX: 1550
RX: 1550 Min: 0 Max: 5 Min: -35 Max: -3 35

Perle PoE/PoE+ 10/100 Ethernet Media Converter
Installation Guide
20
S-110P-S2ST120
S-110PP-S2ST120 SM TX: 1550
RX: 1550 Min: 0 Max: 5 Min: -35 Max: 0 35
S-110P-S1SC20U
S-110PP-S1SC20U SM TX: 1310
RX: 1550 Min: -14 Max: -8 Min: -32 Max: -3 18
S-110P-S1SC20D
S-110PP-S1SC20D SM TX: 1550
RX:1310 Min: -14 Max: -8 Min: -32 Max: -3 18
S-110P-S1SC40U
S-110PP -S1SC40U SM TX: 1310
RX:1550 Min: -8 Max: -3 Min: -33 Max: -3 25
S-110P-S1SC40D
S-110PP -S1SC40D SM TX: 1550
RX:1310 Min: -8 Max: -3 Min: -33 Max: -3 25
S-110P-SFP
S-110PP-SFP SFP Note 1 Note 1 Note 1 Note 1
Fiber Cabling Requirements:
MM: 50/125 microns or 62.5/125 microns
SM: 9/125 microns
Ethernet Copper Cabling Requirements:
•Category 5 UTP or STP
•24-22 AWG
•Straight through or Ethernet crossover
Note: Please refer the product page on the Perle website for the
most up to date models and specifications.
http://www.perle.com/
