Petra 900 series User manual

User’s Manual
Copyright 2010 by J&A USA Inc.
Printed in USA
Pedicure Spa
PETRA
COLLECTION
Please read user’s Manual thoroughly
before using pedicure spa

Table of Contents
Table of Contents
Introduction & Safety
Identify Parts & Description
Consideration
Specification
Dimension
Drainage Connection
Installation Summary
Maintenance ( Dura-Jet)
Maintenance (Magna-Jet (OPTIONAL)
Discharge Pump

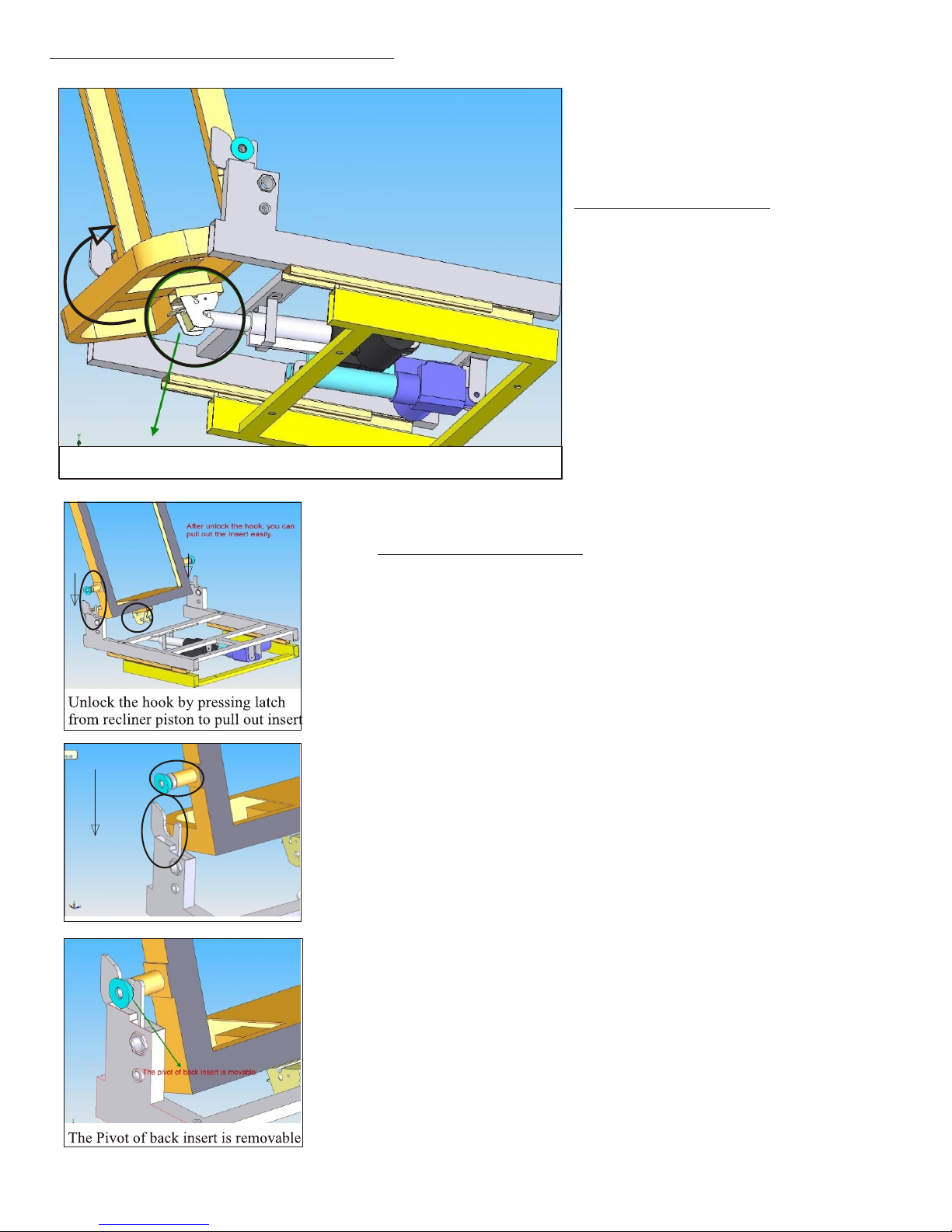

Chair / Backrest attachment
Disinfecting Pedicure spa
User Recomendation

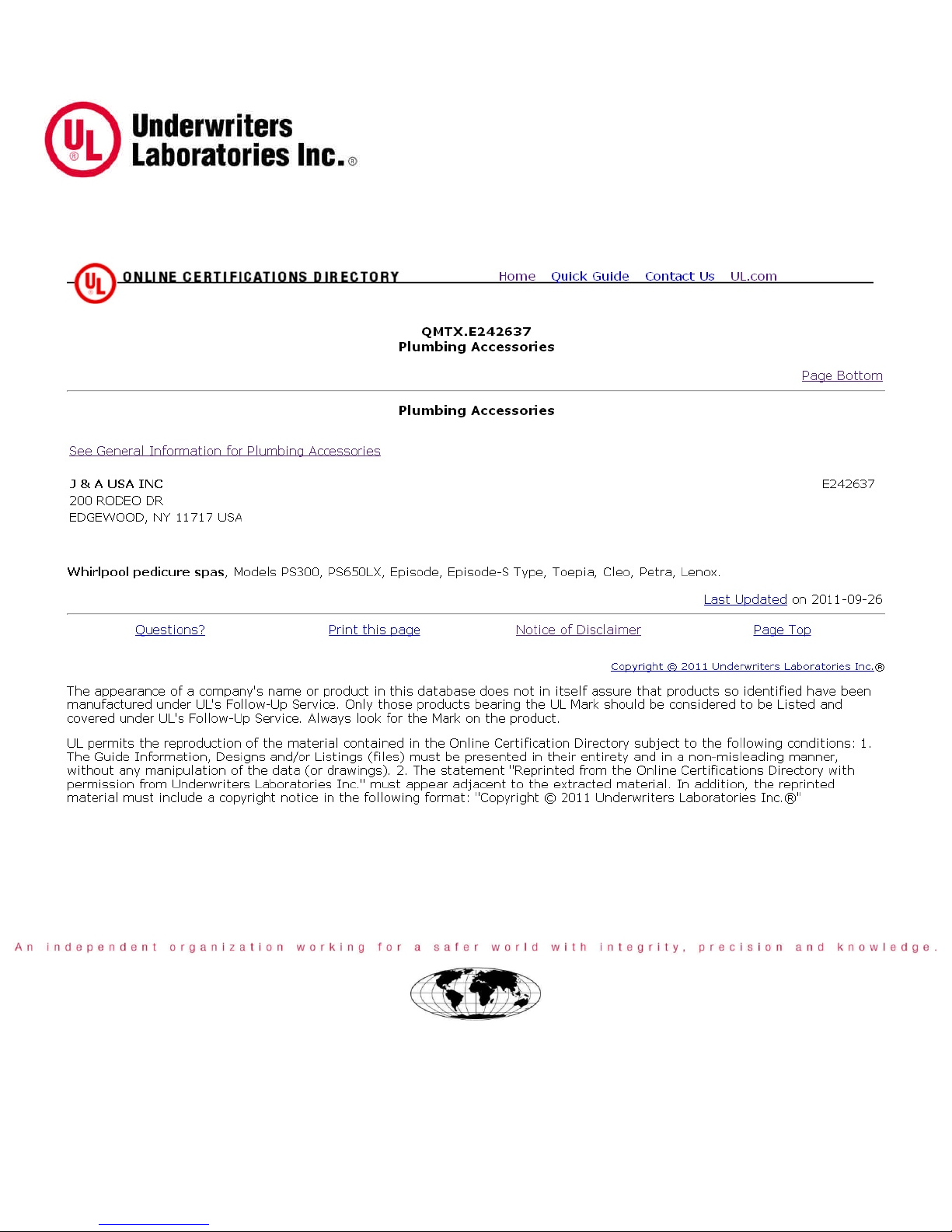

UL Certificate
Back Flow Prevention Device
Warranty

Important requirements
The MFG requires that you contact your local, licensed plumber and licensed electrician to install your new spa. Installation MUST
be in compliance with all local and state building codes. Your pedicure spa can not operate efficiently or safely unless it is provided
with adequate electrical power, sufficient water pressure, proper water temperature, and required drainage capabilities. Contact your
local building inspector for information and local code compliance procedure that need to be followed when having your new pedicure
spa installed. Subsequent inspections and approvals that may be required are the responsibility of the purchaser.
Thank you for choosing Petra series , This finest Whirlpool Pedicure Spa has been develop by UN (United Pedicure Spa)
a subsidiary of J&A USA Inc., to bring quality and exquisitely balanced design yet afford-ability and dependability when
properly use. Please read this entire manual thoroughly before installation and use
Precaution
- Do not stand in the basin of the spa.
- Excessive water temperature is dangerous and should be checked before use. Maximum water Temperature should not exceed
100F (38C).
- Always enter and exit the spa slowly and carefully.
- Never bring or operate any electrical device near pedicure spa.
- The unit has a weight capacity of 250 pounds.
Health Warning
Individuals whose feet or legs are inflamed or have open wounds should not be allowed to use the pedicure spa at any time. The
technician should advise clients to consult their physician before using the spa if there is any sign of fungal infection, swelling,
fracture, or persistent pain. In some cases diabetics may experience improved circulation in their feet, but should first consult their
physician prior to receiving a pedicure.
If the client experiences any pain or discomfort, discontinue the use of the pedicure spa
immediately.
Shipment Inspection
Examine the components immediately upon arrival to make sure no damages to the pedicure spa base and chair during the shipment. It
is very important that you notify the driver directly and notation should be on the face of the freight bill or bill of lading of any
damage. Failure to note damage on the bill of lading may prevent any claims you may have against the carrier.
If concealed or damage is found, you MUST notify the carrier at once and request an inspection. DO NOT DISCARD THE
SHIPPING CARTON If receiver sign the carrier clean receipt of goods that have been damaged in transit .Do so at your own risk
and expense.
PLEASE TAKE TIME TO READ THIS MANUAL THOROUGHLY BEFORE USE. If you have any questions or
concerning with our pedicure spa, Please contact our customer service and technical support at 631-243-3336 ext 121,
Monday through Friday 9AM - 5PM or email us at www[email protected]

Basin
J&A US A
Standard Pipless Motor
(D3)
Optional Pipeless Motor
(MG)

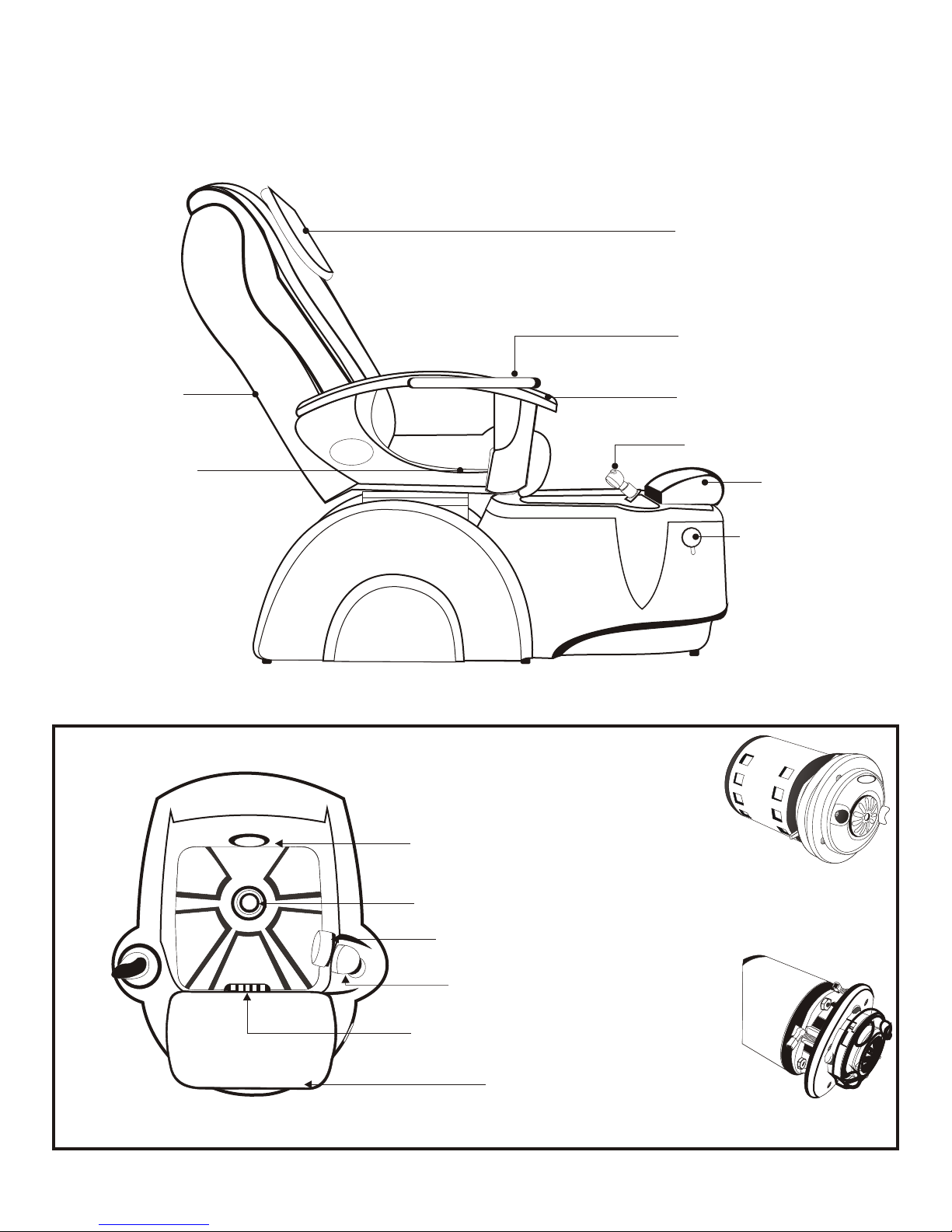

Identification
Comfort Pillow
Backrest Cover
Back Mechanism
Cover Easy Access Up & Down
Armrest
Remote Controller
Pouch
Dual Functional
Shower Sprayer
Three Stage
Adjustable FootRest
Hygienize functional
Drain Handle
Granule Bowl
Petra 900 Series
Light
Drain Plug
Drain Knob
Dura Jet III
Urethane Footrest
Dual Functional Shower Sprayer
Due to the continuous improvement on all our products; Specification, Characteristics, Packing, Colors, Designs are subject to change without notice.

Basin
A UJ& SA
Standard Pipless Motor
(D3)
Optional Pipeless Motor
(MG)
Light
Drain Plug
Drain Knob
Dura Jet III
Urethane Footrest
Dual Functional Shower Sprayer
Due to the continuous improvement on all our products; Specification, Characteristics, Packing, Colors, Designs are subject to change without notice.
Identification
Petra RMX Series
Back Mechanism
Cover
Remote Controller
Pouch
Comfort Pillow
Easy Access Up & Down
Armrest
Manicure Tray
Dual Functional
Shower Sprayer
Adjustable FootRest
Hygienize functional
Drain Handle

Important Considerations
Electrical Service
Water Supply
All plumbing connections must conform to local codes.
Water supply to the spa should be provided with adequate water pressure and water temperature.
Water pressure
To fill the basin correctly up to level, Normal water pressure of 30 to 80 P.S.I is required.
Water temperature
The hot water supply temperature must not exceed 140 . Adjust your hot water accordingly. For hot and cold water supply
fittings and drain fittings location, see below diagram .Carefully connect the water supply line to the appropriate fittings
located on the rear of the pedicure spa.
Backflow Preventive Device (Dual Check Valve)
All J&A pedicure spas are equipped with Back flow Preventive Device Dual Check Valve.
The pedicure spa Drain must meet local plumbing codes. Check valve for Drain (not Provided) Must be installed by a licensed
plumber. Also Pedicure spa must be securely fasten to the floor.
Specification
Tested and certified to meet ANSI/ASSE standard 1024. CSA certified to standard No.B64.6
Drain Facilities
ANSI - American National Institute, ASME - American Society of Mechanical Engineers, CSA - Canadian Standard
Association IAPMO - International Association of Plumbing and Mechanical Officials, UL - Underwriters Laboratory
110V, 60Hz, 15Amp GFCI protected grounded circuit MUST be used to supply power each individual pedicure spa.
And the main circuit breaker MUST be at 25Amp. For maximum of two units per each electrical outlet.
Pressure / Temperature
Maximum Pressure: 150 psi (10 bars)
Minimum Pressure: 10 psi (69kPa)
Working Temperature: 33F to 140F constant; intermittent to 180f
(0.6C to 60C sustained; intermittent to 82.2C)
Maximum Recommended Flow: 15gpm (571pm)
Due to Town and / or State requirement/s are varies in building code, if the Town and / or State requires
Vaccum Breaker, As the Plumber MUST provide Vaccum Breaker according to building code
requirement.
Installation Summary
The installation must comply with local, state, and federal building, plumbing and electrical codes, where applicable. A
licensed plumber should complete the plumbing of the pedicure spa.
Note: Failure to comply with federal, state, or local codes and ordinances will result in warranty being nullified and
void.
** Vaccum Breaker

Due to continuous improvements on all our products, specification, characteristics, packing, color, designs are subject to
change without notice.

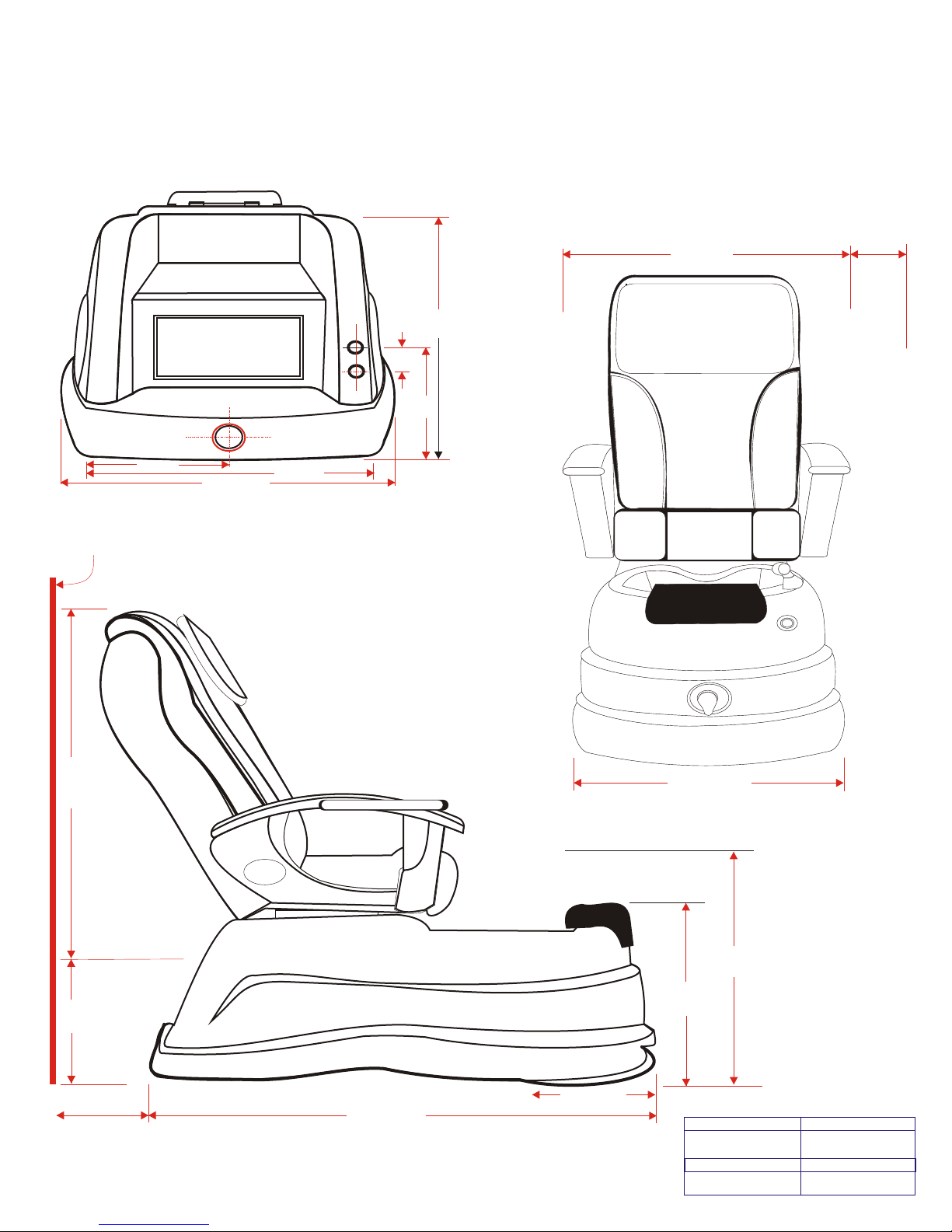

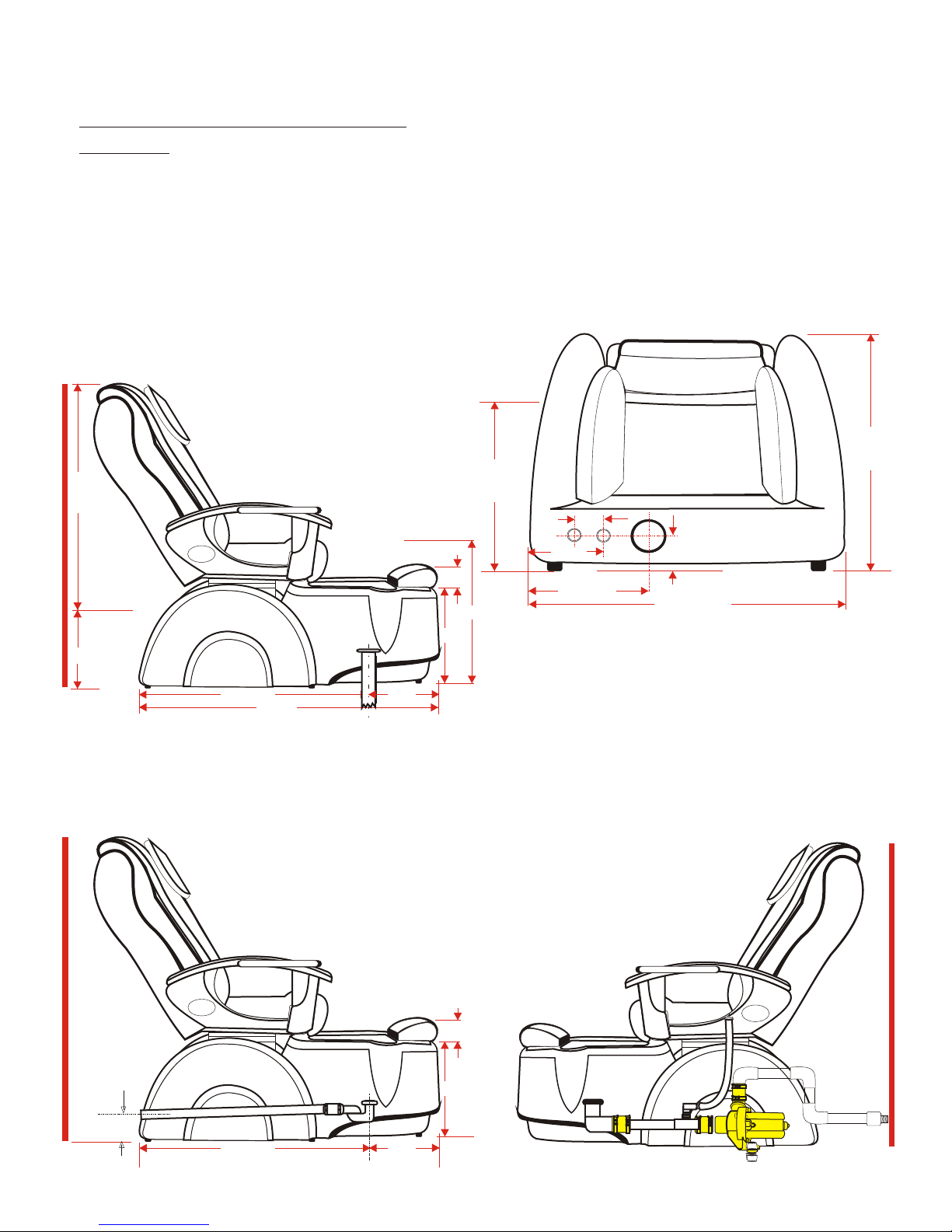

Dimension & Weight (Net)
Dimension & Weight (Shipping)
Capacity of Tub
Switch
Power Source
Plumbing Source
Warranty
PT-RMX
Stool
PT-900
PT-RMX
Stool
PT-900
Petra 900
Petra RMX
Dedicated 15Amp Wall Outlet Require
Pipe - less whirlpool motor
Discharge Pump (Optional)
Massage System
Hot Water
Cold Water
Drain
Unit
Optional Item
55L x 28.75W x 57.25H 182 lbs
20.25L x 27.25W x 17H 19 lbs
57L x 28.25W x 55H 180 lbs
66L x 37W x 38H 300 lbs
20.25L x 27.25W x 17H 19lbs
66L x 37W x 38H 285 lbs
5 U.S Gallon
4.5 U.S Gallon
On / Off Air Activated Switch
120Vac, 0.4 Amp. 60Hz,
115Vac, 3.2 Amp. 60Hz
120Vac, 60Hz
0.5 inches (Fitting Provided)
0.5 inches (Fitting Provided)
1.5 inches (See Plumbing Instruction)
One Year
120 Days
Specification
Petra Series 900

Manufactured by:
Model & Dimension:
Date:
Prepared by:
J&A USA Inc. 09/01/2012
Petra series 900
Side/Rear/Front J&A USA Inc.
Revised
17 ½”
7 3/4”
2 ”
27 3/4” 20 ½”
10 1/4”
20”
24”
17 ½”
57”
10”
45”
13 3/4”
Wall
PETRA 900

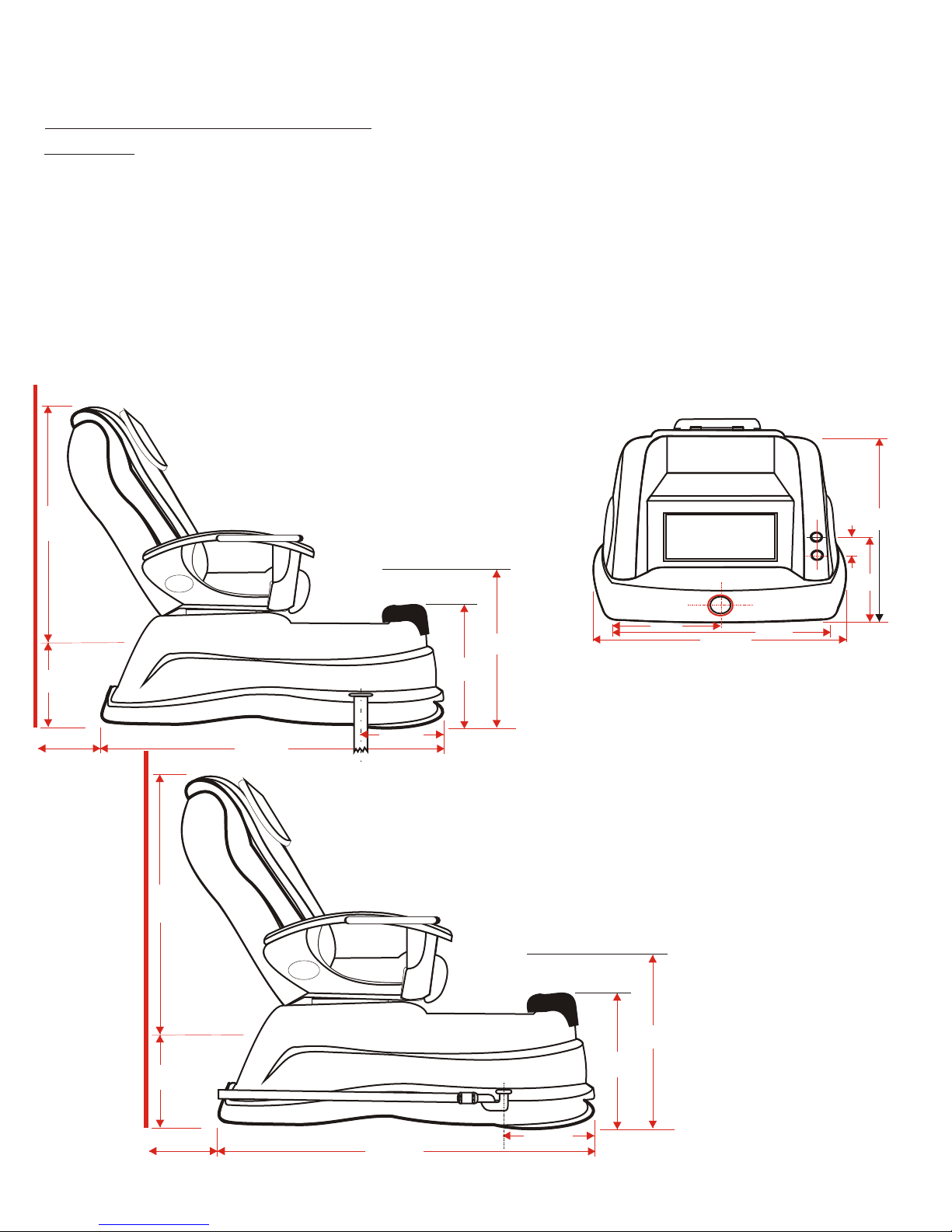

DIMENSION
28 1/4”
30 1/4” 7 3/4”

45 ½”
11 3/4”
15” 55”
37” 18”
17”
3 1/4”
25”

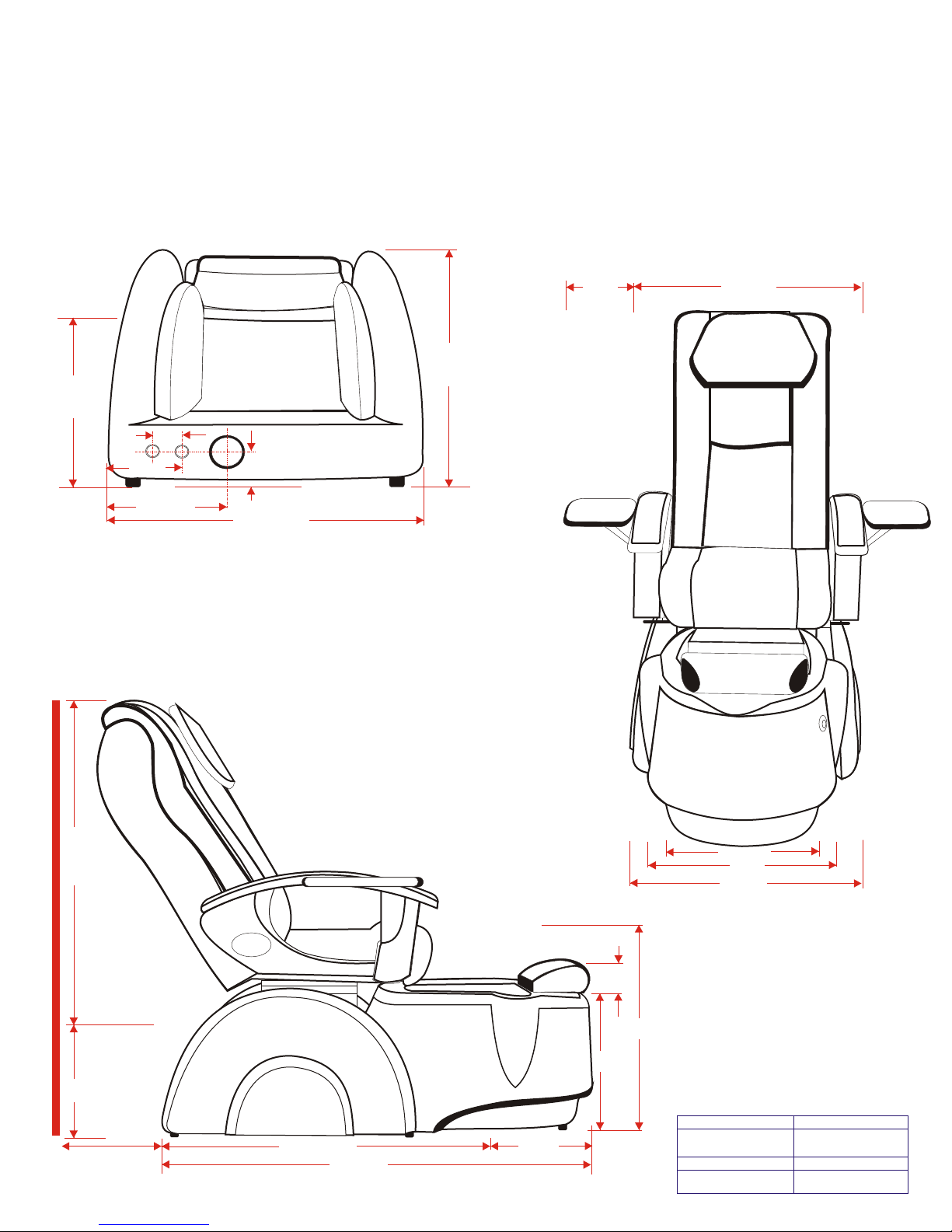

Petra -RMX
Dimension
Manufactured by:
Model & Dimension:
Date:
Prepared by:
J&A USA Inc. 09/01/2012
Petra series RMX
Side/Rear/Front J&A USA Inc.
Revised
28 ½”
17”
13 3/4”
28”
7 3/4”
28 3/4”
15 ½”
2 3/4”
2”
11 3/4”
10 ½”
6 ½”

Back Flow Prevention Device (Dual Check Valve)
Device Name
Device MFG
Device Model
Device Spec.
Device Pressure
Device Temp.
Specification
Dual Check Valve Backflow Preventor
WATTS Regulator Company / North Andover, MA
WATTS 3/8 7, 7C and 3/4 H7, H7C
ANSI/ASSE Standard 1024 & 1032, CSA Certified NO.B64.6
Max, minimum pressure 150 psi. - 10 psi, Recommended Flow 10 gpm
33F - 144F Consistent; Intermittent to 180F
Pedicure spa is/are equipped with the subject device as standard feature, sold to following state
Effective April 01 2005: AZ, CA, NE, NV, OR, TX and WA
Effective June 15 2005: IL, MN, WI and MI
Effective May 01 2007: CT

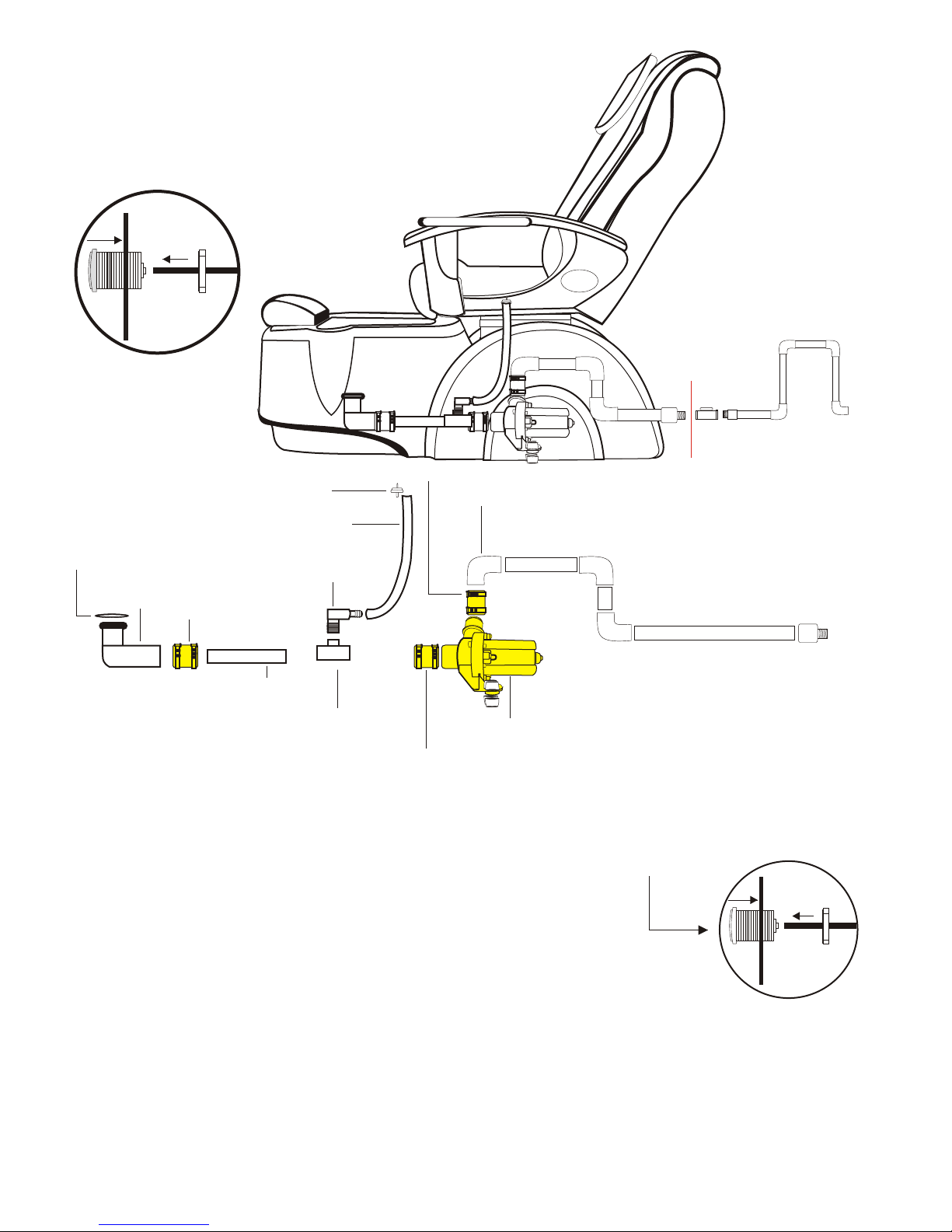

DRAIN
Power Drain
(See detailed power drain pump)
BASEMENT DRAIN CONNECTION
WALL DRAIN CONNECTION
Petra - RMX
45 ½”
11 3/4”
55”
37” 18”
17”
3 1/4”
25”
37” 18”
17”
3 1/4”
2 3/4”
28 3/4”
15 ½”
2 3/4”
2”
11 3/4”
10 ½”
6 ½”

Back Flow Prevention Device (Dual Check Valve)
Device Name
Device MFG
Device Model
Device Spec.
Device Pressure
Device Temp.
Specification
Dual Check Valve Backflow Preventor
WATTS Regulator Company / North Andover, MA
WATTS 3/8 7, 7C and 3/4 H7, H7C
ANSI/ASSE Standard 1024 & 1032, CSA Certified NO.B64.6
Max, minimum pressure 150 psi. - 10 psi, Recommended Flow 10 gpm
33F - 144F Consistent; Intermittent to 180F
Pedicure spa is/are equipped with the subject device as standard feature, sold to following state
Effective April 01 2005: AZ, CA, NE, NV, OR, TX and WA
Effective June 15 2005: IL, MN, WI and MI
Effective May 01 2007: CT
DRAIN
Petra - 900
14”
14”
24”
24”
17 ½”
17 ½”
57”
57”
10”
10”
45”
45”
13 3/4”
13 3/4”
17 ½”
7 3/4”
2 ”
27 3/4” 20 ½”
10 1/4”
BASEMENT DRAIN CONNECTION
Power Drain
(See detailed power drain pump)

Installation Specifications Summary
Warning: Failure to comply with federal, state or local codes and ordinances will result in warranty being null and void.
As stated, the pedicure spa installation must comply with all plumbing and electrical codes. A licensed plumber and
licensed electrician must complete the applicable connections of the pedicure spa.
Location and support
Select a level location. The floor structure beneath the pedicure spa must be capable of supporting the occupied pedicure
spa.
For the seat back to fully recline, the pedicure spa base must be mounted as follow from the wall as shown below:
*** When chair slide all the way back – would require 20 inches from the wall***
*** When chair slide in the middle – would require 15 inches from the wall***
*** When chair slide all the way to the front – would require 12 inches from the wall***
Above measurement are based on with back cushion is all the way reclined
Due to continuous improvements on all our products, specification, characteristics, packing, color, designs are subject to
change without notice.
See Detailed info
on top of the page

1. Read and follow all instructions before using the equipment.
2. Keep the cord out of heavy traffic area. To avoid fire hazard NEVER put the cord under the rugs, near heat generating
devices.
3. Always turn off the equipment before servicing.
4. Do not drop or insert any object into any openings.
5. Do not operate any equipment with a damage parts.
6. Any other use not recommended by the manufacturer may electrical shock or injury to persons.
7. Never use outdoors
8. Do not attempt to repair or adjust any electrical or mechanical functions on the unit.
When using electrical equipment, basic safety precautions should always be followed to reduce the
risk of fire, electrical shock, and injury to persons, including the following:
Safety Instructions

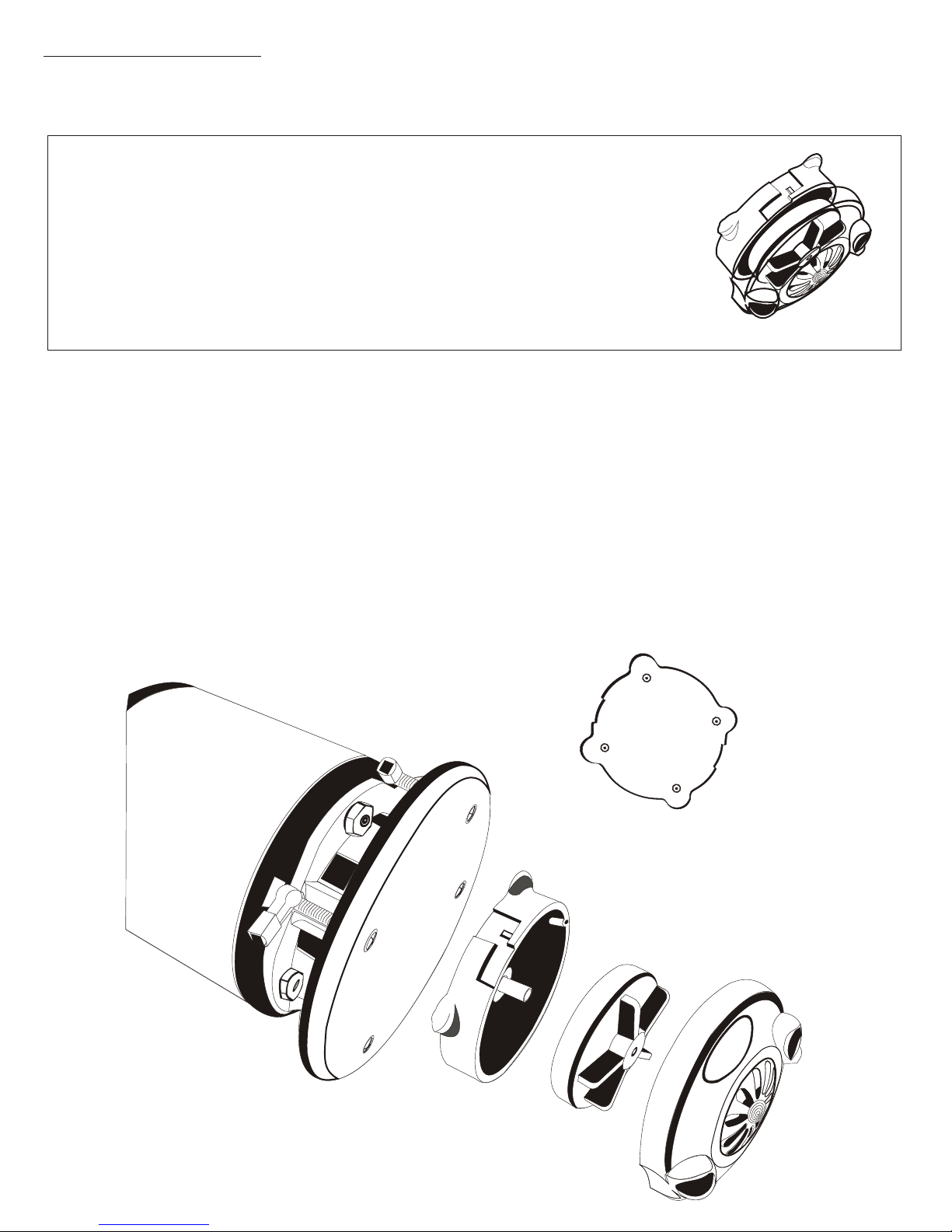

Cleaning Instruction
1. Ensure the unit is off
2. Remove the front cover
3. Remove the impeller and impeller cover
4. Use anti-bacterial solution ( EPA registered) to clean all plastic parts.
5. Reassemble the front cover
DURA-JET III Specifications
Model: DURA_JETIII -
Pump: Dual Air Jet Flow
Mounting: Single 3.5” hole
Auto tighten Mounting screws(4)
&S
JA U A
120Vac, 0.4 Amp. 60Hz,
1. Dual powerful massage jet-streams
2. Jet assembly can be attached from the pump for
quick cleaning and sanitizing.
3. Built-in electronic sensor for pump control.
4. AC motor (long life)
5. Extremely low power consumption .
6. Manufactured in USA.
Feature
Dura-Jet III

When using electrical equipment, Basic safety precautions must be followed to reduce the risk of fire, electrical shock, and
injury to Persons.
1. Read and follow all instructions before using the equipment.
2. Keep electrical cord out of heavy traffic area. To avoid fire hazard NEVER place electrical cord under the rug, near heat
Generating devices.
3. Always turn power off the equipment before service.
4. Do not drop or insert any object into any openings.
5. Do not operate any equipment with damaged parts.
6. Any other use not recommended by the manufacturer may cause electrical shock or cause injury to person/s.
7. Never use it outdoors
8. Do not attempt to repair or adjust any electrical or mechanical.

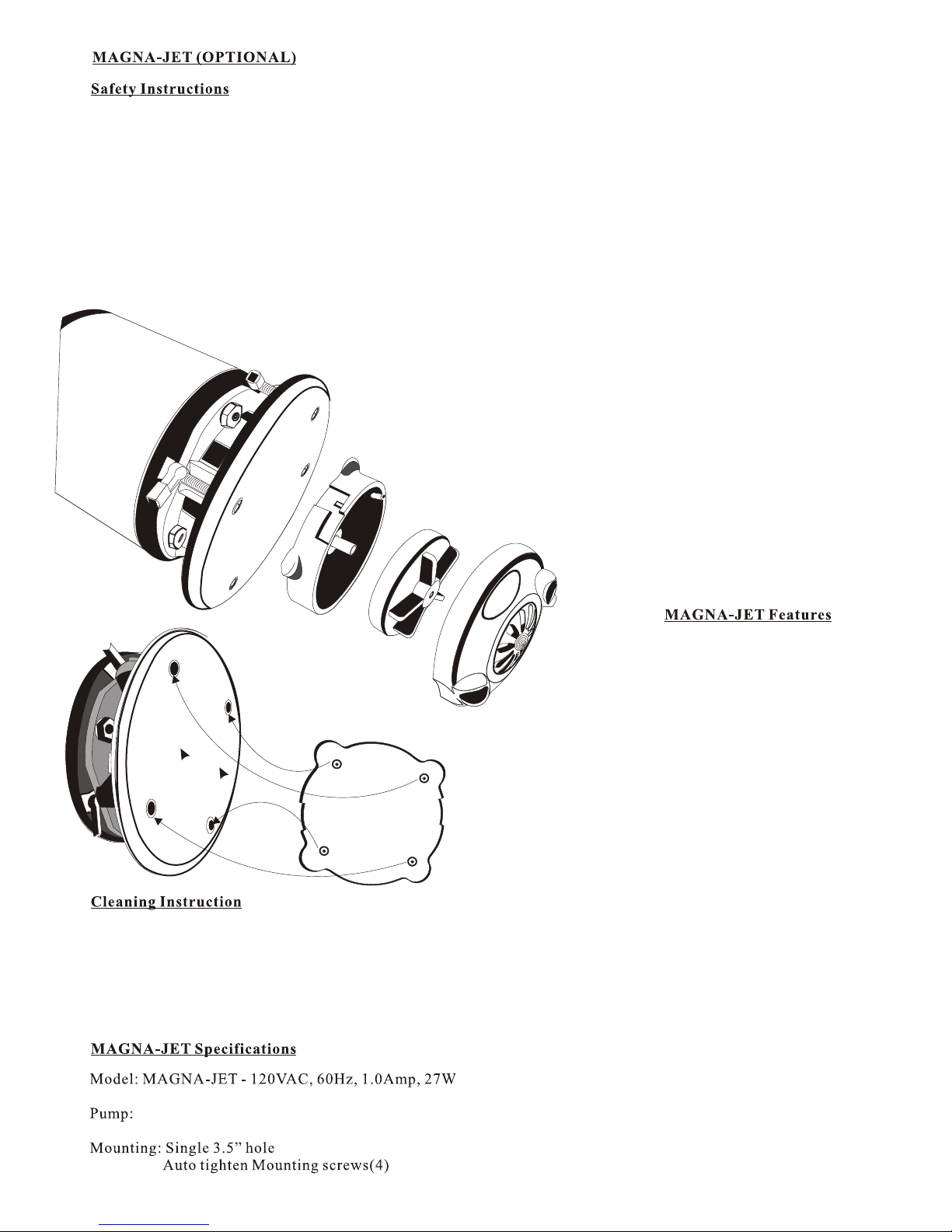

1. Hydro dual massage jet stream
2. Magnetic whirlpool jet cover can be remove for quick
cleaning and sanitizing.
3. Built-In electronic sensor for pump control.
4. AC Whirlpool motor (long life)
5. Very low power consumption (27W)
6. Manufactured in USA.
1. Turn off the unit and wait until the motor is fully stops.
2. Hold Hydro whirlpool jet cover firmly and pull to separate from the round magnetic field.
3. Turn hydro whirlpool jet cover to left to open and pull out impeller.
4. Use Anti - Bacterial solution (EPA Registered) to clean all parts.
5. After sanitize all parts, place impeller and close hydro whirlpool jet cover to turn right to lock
6. Hold firmly the whirlpool cover jet and gently place it onto the round magnetic field. Do not release the hydro whirlpool jet cover until
Jet cover is on the round magnetic housing.
Diameter
Hydro-Massage Dual jet Flow
Magnetic
Jet Base
Magnetic
Impeller Magnetic
Whirlpool jet cover
Motor
Round
Magnetic Field (housing)

How to USE Magnetic jet !
Bottom View of
Magnetic Jet Base
WARNING: DO NOT RUN DRY, BASIN MUST FILLED WITH WATER TO LEVEL INDICATOR.
CAUTION: MAGNETIC JET COVER ASSEMBLY MUST ALIGN WITH DISCHARGE PORT
POSITIONED AT 3/9 O’CLOCK.
WHEN READY TO USE, MAKE SURE JET COVER IS POSITIONED AT 3 /9 OCLOCK FOR
PROPER WHIRLPOOL ACTION IN THE BASIN. IF JET COVER IS NOT ALIGN AT 3/9 O’CLOCK,
WATER WILL SPLASH OUTSIDE OF THE BASIN.
PROPER WAY TO USE MAGNETIC JET SYSTEM
1- FILL THE WATER TO WATER LEVEL INDICATOR.
2- HOLD MAGNETIC JET FIRMLY TO BRING CLOSER TO THE ROUND MAGNETIC FILED AND DO NOT RELEASE
THE MAGNETIC JET PREMATURELY OR THIS WILL CAUSE IMPACTS ON THE JET COVER AND THE ROUND
MAGNETIC FIELD(HOUSING) SHORTENING THE LIFE EXPECTANCY OF THE JET COVER. WHEN THE JET
COVER NEARS THE ROUND MAGNETIC FIELD, PLACE JET COVER ONTO THE FOUR DIMMPLE AREA (SEE
DIAGRAM). THE JET COVER MUST ALIGN WITH DISCHARGE PORTS POSITIONED AT 3/9 O’CLOCK.
3- WHEN FINISHED WITH CLIENT, DO NOT REMOVE MAGNETIC JET UNTIL MOTOR IS FULLY STOPPED.
4- WHEN MOTOR IS FULLY STOPPED, REMOVE MAGNETIC JET COVER FROM THE MOTOR AND REMOVE JET
COVER AND IMPELLER FOR SANITIZATION.
Motor
Round
Magnetic Field (housing)
Magnetic
Jet Base
Magnetic
Impeller Magnetic
Whirlpool jet cover

Operation Instruction
Warning ! DO NOT RUN DRY
1. Turn to open drain plug. 3 to 5 second for air to release from the pipe
2. Press On/Off switch to activate timer.
3. At any time, water drain completely from the basin. Press
On/Off switch to stop or built in two minute timer.
On/Off
Switch
Fastner
1-3/8” Hole
for On/Off Switch
Figure 1
1. Make a hole ( size 1-3/8”) for the On/Off switch as shown (see fig 1). Pre-
drill required.
2. Placed a 1/8” clear hose into the rear of the switch and on/off switch into the
hole.
3. The discharge pump kit is made to fit onto the pedicure unit. (see fig 2)
4. Connect E-Z connector onto the drain elbow.
5. Plug discharge pump outlet into the two minute timer outlet
6. Plug two minute timer into the wall outlet.
7. It is very important that tip of the clear tub remain above the water Level with
one loop as shown.
** Please cut to fit 1” Flex hose to your size**
Discharge Pump
Installation Instruction
On/Off
Switch
Fastner
Elbow (1 ½”)
(LARGE Rubber Coupling)
(LARGE Rubber Coupling)
3/4” PVC Pipe x 8 ½ ”
HANNING DPO 40 - 020
(SMALL Rubber Coupling)
3/4 x 3/4” Elbow
Rubber Gasket
3/4” x 5.5”
3/4 PVC Pipe
3/4” x 3.5”
3/4” PVC Pipe 3/4” x 13.5”
3/4” PVC Pipe
3/4 SLIP X ½” Male Adaptor
TEE 3/4 X 3/4 X ½
Poly Insert 90 Elb ½”
Clear Tubing 3/4 OD ½”ID
Air Check Valve
½” Outlet
Plumber MUST install
CHECK Valve (to prevent
backflow)
Petra - RMX

Placing Backrest in Correct position
1
2
Pivot
‘U” Frame
Pull latch upward to release
Detachment of Backrest
* Pull latch lever upward to release from recliner piston.
* As Arrow indicates, bring backrest to fold onto the seat.
* Disconnect all cables ( recliner, slider)
Fig.1
Fig.2
Fig.3
Attachment of Backrest
* On the lower portion of both side of the backrest, there are pivots (Fig.1)
* Align both pivots correctly so they rest perfectly onto the “U”pivot frame (Fig.2)
* Once both pivots sit snugly on the “U” pivot frame, align the release latch with the
Recliner piston and snap close.
Before operating the chair upon attachment, check following items to
ensure proper operation
* Figure 1: shows Pivot and “U”pivot frame at correct alignment / be sure to clear wire
* Figure 2: Close-up view of pivot and “U” pivot frame.
* Figure 3: shows correct pivot alignment.

DISINFECTING YOUR PEDICURE SPA
Note: Please be advised that it is responsibility of purchaser/user to adhere strictly to the following procedure.
Any non-compliance will be considered negligence of the purchaser/user.
The Bureau of barbering and cosmetology requires that salons using whirlpool pedicure spas use the following disinfecting
Procedures to ensure proper cleaning and maintenance of the equipment, and to prevent bacterial infection. For your clients
safety, always use the regulations as a minimum standard for cleaning and disinfecting.
Chair maintenance
Please see chair manual for Do and Don't
At the end of the day:
1. Remove the intake suction screen, All debris trapped behind the screen of each pedicure spa must be removed.
And the screen and the inlet shall be washed with soap or detergent and water
2. Before replacing the screen, Totally immersed the screen into an EPA- registered disinfectant with bactericidal,
Fungicidal, and virucidal activity.
3. Finally, flush the whirlpool system with low-suding detergent and warm OR an EPA - registered cleanser for
10 minutes. Rinse with clean fresh water and drain.
Note:
Cleaning or sanitizing is NOT disinfecting. According to the CDC and EPA, disinfecting occours only when there is a
reduction of pathogenic microbes at 99.999%. Sanitizing is a only reduction of 99.9%. Cleaning of whirlpool pedicure spa
requires surfactant and chelating detergents that are low foaming and have ability to remove body oils, organic oil
additives, mineral oil, skin cell, nail clippings, etc.. that can accumulate both in the basin and the jets which may become
fertile area for micro organism to grow.
Note:
The use of oil based products can build up in the whirlpool system causing clogging in the jet and build up onto the surface
of the basin. Adherence to the above cleaning will minimize build up thus the manufacturer recommend not to use mineral
oil based product.

USER RECOMMENDATION
PLEASE READ THE MANUAL THROUGHLY BEFORE USE TO ENSURE CORRECT
OPERATION.
THOSE UNDER A DOCTORS CARE OR WHO ARE EXPERIENCING ONE OR
MORE OF THE FOLLOWING DONDITIONS SHOULD CONSULT THEIR DOCTOR
BEFORE USE.
- You are receiving medical treatment or are feeling ill.
- Your body shows any cute symptoms.
- You have heart disease.
- You are pregnant or having a menstrual period.
- Your doctor has ordered you to rest.
- You have a back disorder resulting from an accident or disease.
- You have a high fever.
- You have sensory disorders.
- You have medical electrical device (e.g. pacemaker).
- You have service interruption in the circulation of the legs.
- You are diabetic.
FAILURE TO DO SO MAY RESULT IN ACCIDENTS AND HEALTH PROBLEMS.
