PHI VILLA AH-FP-30CHE User manual

ELECTRIC HEATER
INSTRUCTION MANUAL
AH-FP-30CHE
ATTENTION:
1.Find a location for the electric heater that is
protected from direct sunlight.
2.Do not plug the electric heater into the power
outlet before you read all instructions.

1
IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS FOR FUTURE USE
WHEN USING ELECTRICAL APPLIANCES, BASIC PRECAUTIONS SHOULD
ALWAYS BE FOLLOWED TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK,
AND INJURY TO PERSONS, INCLUDING THE FOLLOWING:
Read all instructions before using this heater. Failure to follow these important safety
instructions may cause fire, electric shock or damage.
Following proper safety and operating instructions is the responsibility of the owner.
1) Grounding (If necessary) - this heater is for use on 120 volts. DO NOT attempt to
modify the plug in any way or use adaptor to defeat the purpose of the grounding
feature.
2) This heater is hot when in use. To avoid burns, do not let skin come in direct
contact with hot surfaces. The grill directly in front of the heater outlet becomes hot
during heater operation.
3) Front of fireplace should remain not blocked while in use.
4) CAUTION: Extreme caution is necessary when any heater is used by or near
children or those with disabilities. Never leave the heater operating unattended.
5) Do not operate any heater with a damaged cord or plug or after the heater
malfunctions, has been dropped or damaged in any manner. Take heater to
authorized service facility for examination, electrical or mechanical adjustment or
repair.
6) Under no circumstance should this electric heater be modified. Parts having to be
removed for servicing must be replaced by a certified repair center prior to
operating this electric heater again.
7) Do not use outdoors or anywhere it can get wet. This heater is not intended for use
in bathrooms, laundry areas and similar indoor locations. Never locate heater in
bathrooms, laundry areas and similar indoor locations. Never locate this appliance
where it may fall into a bathtub or other water container.
8) Do not run cord under carpeting. Do not cover cord with throw rugs, runners, or
similar coverings. Arrange cord away from traffic area and where it will not be
tripped over.
9) To disconnect heater, turn off all controls, then remove plug from outlet.
10)Connect to property grounded outlets only.
11) Do not insert or allow foreign objects to enter any ventilation or exhaust opening as
this may cause an electric shock or fire, or damage the heater.
12)To prevent a possible fire, do not block air intakes or exhaust in any manner. Do
not use on soft surfaces, like a bed, where openings may become blocked.
13)CAUTION: A heater has hot and arcing or sparking parts inside. Do not use it in
areas where gasoline, propane, paint, or flammable liquids are used or stored or
where the unit will be exposed to flammable vapors. The heater should not be

2
used as a drying rack for clothing. Do not hand any decorations on the heater.
14)Do not modify this heater. Use this heater only as described in this manual. Any
other use not recommended by the manufacturer may cause fire, electric shock, or
injury to persons.
15)Avoid the use of an extension cord because the extension cord may overheat and
cause a risk of fire. However, if you have to use an extension cord, the cord shall
be No.16AWG minimum size and rated not less than 1875 watts, and 3-wire cord
with grounding type plug and cord connector.
16)Do not plug this product into a receptacle controlled by a wall switch or dimmer.
17)Always use a certified electrician should new circuits or outlets be required.
18)Always disconnect power before performing any cleaning, maintenance or
relocation of the heater.
19)For off-season storage, keep in a dry place.
NOTE: Procedures and techniques that are considered important enough to
emphasize.
CAUTION: Procedures and techniques, which, if not carefully followed, will result in
damage to the equipment or personal property or may cause personal injury.
WARNING: Procedures and techniques, which, if not carefully followed, will expose
the user to the risk of serious injury, illness or death.
WARNING:
This heater and parts become hot when in use. The area directly around and under
the heater must be clear and free of any obstructions.
DO NOT ALLOW CHILDREN TO OPERATE THIS HEATER. KEEP CHILDREN AND
PETS AWAY FROM HEATER AND CONTROLS.
Electrical Parameter
Power supply: 220-240V AC
Frequency: 50Hz
Power: 2000W
NOTE: If the supply cord is damaged, it must be replaced by the manufacturer, its
service agent or similarly qualified persons in order to avoid a hazard.

3
Getting Started
Remove the appliance from the box.
Remove any packaging from the appliance.
Place the packaging inside the box and either store or dispose properly.
Helpful Advice Before Fitting

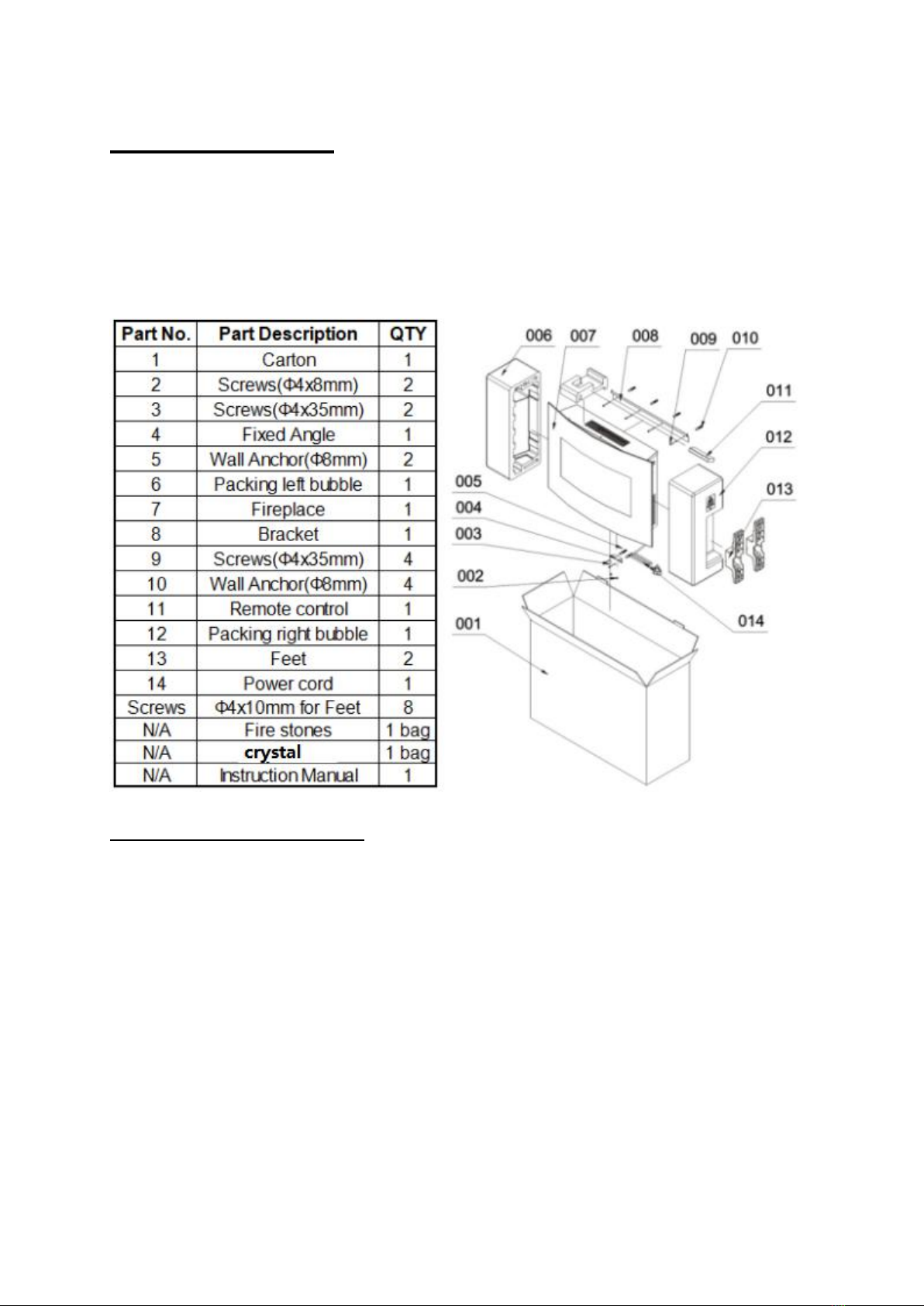

Please retain all packaging until you have checked and counted all the parts and the
contents of the fixing pack against the parts list.
The fixing pack contains small items which should be kept away from young children
We suggest that you open the fixing pack and place all the contents into a container,
therefore reducing the risk of losing any small pieces before Installation.

4
Installation
Caution: This heater can be installed in two ways(Wall Hanging & Portable Standing),
which can be selected according to your preference.
Important Safety Instructions
When using this electrical appliance, basic precautions should be followed to reduce the
risk of fire, electric shock, and injury to person, including the following:
a) Get the glass off first
b) Do not connect the appliance until properly fixed to the wall and the instructions is
read fully.
c) The minimum distances must be observed.
d) For installation of the appliance, care must be taken not to damage concealed
cables.
e) Please be careful while drilling the holes.
f) This appliance is designed to be permanently fixed to a wall at a minimum height
of 300mm.The wall bracket must be fitted horizontally and the cable routed to the
bottom right of the heater.
g) A height of 600mm from bottom of heater to floor is recommended for optimum
viewing of fuel bed.

5
TAPE 1. Wall Hanging
Step 1: Select the wall location where you want to hang your electric heater.
Use the bracket(Part No.8) as a table template to draw a horizontal line using a level
and mark 4 drill holes for the 4 anchor screws.
Note: The holes are for mounting of heater and it shall be level so that the heater can
be mounted properly and leveled. See Fig. A
Step 2: Drill 4 holes 8 mm (5/16in) in diameter and 43mm (1.7in) deep on the marked
locations. Clean the holes from dust and install the wall anchors into the holes, then
gently tap them into place with a hammer until the flange of the wall anchor is flush
with the wall surface. See Fig. B.
Step 3: Secure the mounting bracket to the wall anchors using the 4 anchor screws
as shown in Fig. C.

6

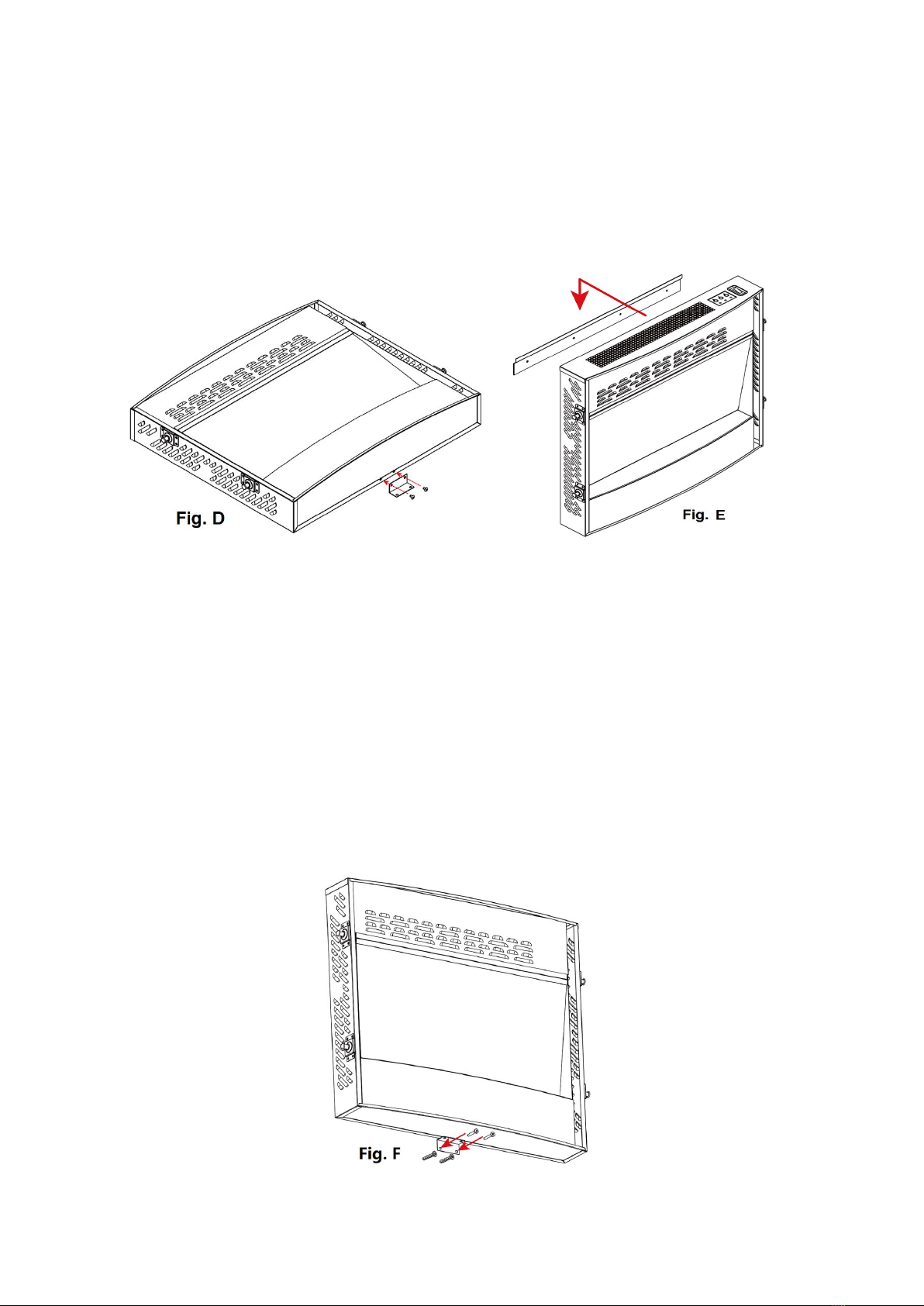

Step 4: Attach the fixing angle(Part No.4) to bottom of the appliance using 2 short
screws (Part No.3). See Fig. D
Step 5: Carefully lift the appliance and mount it to the metal wall bracket.
Do not let the appliance go until you are sure it is safely engaged to the bracket.
See Fig.E
Step 6: Now mark the hole position for fixing the angle.
Carefully remove the appliance from the bracket, drill 2 holes 8 mm (5/16in) in
diameter and 43 mm (1.7 in) deep on the marked locations.
Clean the holes from dust, install the supplied wall anchors into the holes, and gently
tap them into place with a hammer until the flange of the wall anchor is flush with the
wall surface.
Then Lift up the appliance again, engage it to the bracket and finally fix the angle with
screws as shown in Fig. F.

7
Step 7: Put the fire stones(I) &artificial logs into the heater. See Fig. G.
Step 8: Replace the front glass panel and secure it with screws. See Fig. H

8
Type 2. Portable Standing
Fix the stand feet (Part No.18) by installing 8 screws.
Then present it in anywhere you prefer.
Step A: The box contains two plastic feet and four screws for each foot.
Step B: Place the fireplace on a flat, stable surface with the back of the fireplace
resting on the surface.
Step C: Push the feet onto the base of the fireplace and fit the screws in place.
Step D: Stand the fireplace up and ensure that it is placed at least 15cm away from
the wall.

9
Operating Instructions
Once the electric heater has been properly installed and connected to a ground
electrical outlet, it is ready to operate.
Notes:
Ensure the circuit breakers for the power supply are turned on.
This machine uses remote control and touch screen to control the work of the
product.
During remote control and touch operation, the buzzer will beep once for each
effective operation.
The backlight of the touch screen is off, and the first operation of remote control or
touch is only to wake up the system, and the machine can be operated effectively
in the system wake-up state.
The temperature setting of this machine can only be adjusted between 50→77
Fahrenheit, and the whole process can be heated according to the user's set
temperature.
Main power switch:The power switch on the upper part of the machine is
closed, the buzzer beeps, and the backlight of the touch screen lights up once,
and the system enters the standby state; the switch is opened, that is, the main
power supply is cut off.
Control Panel Operation
The power switch located on the top right hand side of the product must be first switch on.
Press once the button to turn the fire and flame effect on. An orange indicator light will
appear to indicate the function is ON.
Press once the button for the low heat settings; press twice to switch the heat setting off.
Press once the button for the high heat settings; press twice to switch the heat setting off.

10
Remote Operation
Press once the button on the remote control this turns the fire and flame effect. The
same display show room temperature, date and clock lighten, flame show forth level.
The display will be unshow in 15s if no operation. Press any button to awaken display.
Press once the button on the remote control to switch it.
Press once the button on the remote control to set the desired flame brightness and
there will be 4 levels flame brightness available.
Press once the button on the remote control (if your fireplace has this function) to set
the desired flame color and there will be 10 flame colors available. They are orange,
red, green, blue and a mix between colors. Ten colors one cycle. Press the button 5 seconds, ten
colors automatic cycle by ten seconds.
Press once the button for the low heat settings; lighten on the display. Press twice
to switch the heat setting off.
Press once the button for the high heat settings; lighten on the display. Press
twice to switch the heat setting off.
Automatic heating operations (Intelligent Control)
Press once the button to open automatic, according to your timer setting.
1. If this day have no timer setting, the fire will be turn off
2. If room temperature is more than setting ,heat will be turn off
3. If room temperature is 5 degree less than setting ,heat will be turn on low setting
4. If room temperature is 5 degree more than setting ,heat will be turn on high setting
Date and time settings operations
It’s operated by supplied remote control.
Press once the button and continue to press the + button or the – button to set the hour (from
00-23).

11
Press again the button and Continue to + button or the – button to set the minute (from
00-59).
Press the button to select the date (Sunday to Saturday from left to right), wait 5s till no
twinkle for finish setting.
BT：This key is for blue tooth connection only. This Model is not included blue tooth function. So
please ignore it straight away.
Temperature settings operations
Press the + button to increase the temperature: press the - button to decrease the temperature
Note: The set temperature must be higher than the room temperature for the heat working.
Timing settings procedures
:Press the button 3s, the starts to twinkle.
OK: Press the button to choose the date first (From Sunday to Saturday).
Continue to press the + button or the – button to set the hour (Timer ON) and press the
button to transfer to the next setting.
Continue to press the + button or the – button to set the minute (Timer ON) and press the
button to transfer to the next setting. The ON symbol extinguishes and the OFF symbol
illuminates.
Continue to press the + button or the – button to set the hour (Timer OFF) and press the
button to transfer to the next setting.
Continue to press the + button or the – button to set the minute (Timer OFF) and press the
button to transfer to the next setting. The OFF symbol extinguishes.
Press the button, continue to press the + button or the – button to set the temperature.
Press the OK button to finish one day setting, continue to repeat before till finish one week and
turn off.
Mention:
5. If have not lighten, so this date timer setting void.
6. If you not press ok button ,it will just Set the cycle on that day
7. Press button 5s when the fire is turn off will reset all timer and temperature setting.
8. If there is no any operation after 15 seconds, display Light will off
Remote Control Battery Replacement:

12
Replace with a CR2025 battery and follow the diagram at the back of remote handset to install the
new battery.
Overheat Safety Cut-Off Function
This appliance is fitted with a safety cut-off which will operate if the fireplace overheats(e.g. Due to
blocked air vents). For safety reasons, the appliance will NOT automatically reset.
To reset the appliance, plug off the appliance from the mains supply for at least 15 minutes.
Reconnect the supply to the mains and switch on the appliance.
Maintenance:
WARNING: Completely disconnect power before attempting any maintenance or cleaning,
to reduce the risk of fire or electric shock. Maintenance should only be performed by a
certified technician.
Cleaning:
Before cleaning any parts of the fireplace make sure to first turn off the controls and then
unplug the unit from power source.
CAUTION: Wait until the unit has completely cooled before attempting any cleaning.
Cleaning Glass Panel: Remove dust with clean dry cloth. Remove fingerprints and
other marks from glass door by using a clean damp cloth. Do not use abrasive cleaners or
spray liquids on glass door surfaces.
Metal and metal painted parts should be cleaned with clean damp cloth only. Do not use
abrasive cleaners or spray liquids on these surfaces.
