PHI VILLA AH-FP-30F User manual

ELECTRIC HEATER
INSTRUCTION MANUAL
AH-FP-30F , AH-FP-36F
AH-FP-40F , AH-FP-48F
ATTENTION:
1.Find a location for the electric heater that is
protected from direct sunlight.
2.Do not plug the electric heater into the power
outlet before you read all instructions.

IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS FOR FUTURE USE
WHEN USING ELECTRICAL APPLIANCES, BASIC PRECAUTIONS SHOULD
ALWAYS BE FOLLOWED TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK,
AND INJURY TO PERSONS, INCLUDING THE FOLLOWING:
Read all instructions before using this heater. Failure to follow these important safety
instructions may cause fire, electric shock or damage. Following proper safety and
operating instructions is the responsibility of the owner.
1) Grounding (If necessary) - this heater is for use on 120 volts. DO NOT attempt to
modify the plug in any way or use adaptor to defeat the purpose of the grounding
feature.
2) This heater is hot when in use. To avoid burns, do not let skin come in direct
contact with hot surfaces. The grill directly in front of the heater outlet becomes hot
during heater operation.
3) Front of fireplace should remain not blocked while in use.
4) CAUTION: Extreme caution is necessary when any heater is used by or near
children or those with disabilities. Never leave the heater operating unattended.
5) Do not operate any heater with a damaged cord or plug or after the heater
malfunctions, has been dropped or damaged in any manner. Take heater to
authorized service facility for examination, electrical or mechanical adjustment or
repair.
6) Under no circumstance should this electric heater be modified. Parts having to be
removed for servicing must be replaced by a certified repair center prior to
operating this electric heater again.
7) Do not use outdoors or anywhere it can get wet. This heater is not intended for use
in bathrooms, laundry areas and similar indoor locations. Never locate heater in
bathrooms, laundry areas and similar indoor locations. Never locate this appliance
where it may fall into a bathtub or other water container.
8) Do not run cord under carpeting. Do not cover cord with throw rugs, runners, or
similar coverings. Arrange cord away from traffic area and where it will not be
tripped over.
9) To disconnect heater, turn off all controls, then remove plug from outlet.
10)Connect to property grounded outlets only.
11) Do not insert or allow foreign objects to enter any ventilation or exhaust opening as
this may cause an electric shock or fire, or damage the heater.
12)To prevent a possible fire, do not block air intakes or exhaust in any manner. Do
not use on soft surfaces, like a bed, where openings may become blocked.
13)CAUTION: A heater has hot and arcing or sparking parts inside. Do not use it in
areas where gasoline, propane, paint, or flammable liquids are used or stored or
where the unit will be exposed to flammable vapors. The heater should not be

used as a drying rack for clothing. Do not hand any decorations on the heater.
14)Do not modify this heater. Use this heater only as described in this manual. Any
other use not recommended by the manufacturer may cause fire, electric shock, or
injury to persons.
15)Avoid the use of an extension cord because the extension cord may overheat and
cause a risk of fire. However, if you have to use an extension cord, the cord shall
be No.16AWG minimum size and rated not less than 1875 watts, and 3-wire cord
with grounding type plug and cord connector.
16)Do not plug this product into a receptacle controlled by a wall switch or dimmer.
17)Always use a certified electrician should new circuits or outlets be required.
18)Always disconnect power before performing any cleaning, maintenance or
relocation of the heater.
19)For off-season storage, keep in a dry place.
NOTE: Procedures and techniques that are considered important enough to
emphasize.
CAUTION: Procedures and techniques, which, if not carefully followed, will result in
damage to the equipment or personal property or may cause personal injury.
WARNING: Procedures and techniques, which, if not carefully followed, will expose
the user to the risk of serious injury, illness or death.
WARNING:
This heater and parts become hot when in use. The area directly around and under
the heater must be clear and free of any obstructions.
DO NOT ALLOW CHILDREN TO OPERATE THIS HEATER. KEEP CHILDREN AND
PETS AWAY FROM HEATER AND CONTROLS.
Electrical Parameter
Power supply: 120V AC
Frequency: 60Hz
Power: 1500W
NOTE: If the supply cord is damaged, it must be replaced by the manufacturer, its
service agent
or similarly qualified persons in order to avoid a hazard.

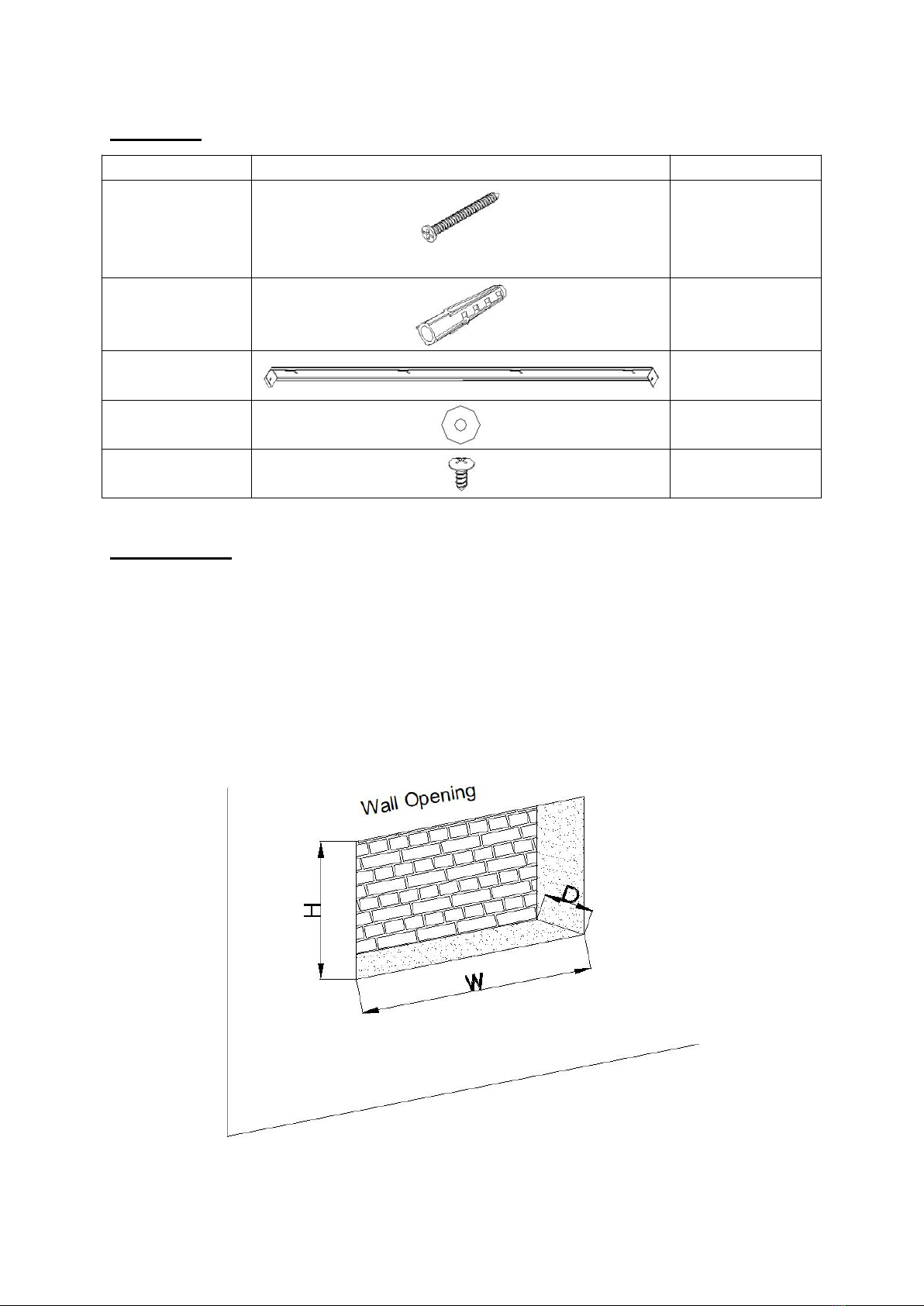

Parts list
REF NO
DESCRIPTION
QTY
A
#8 x 1”
8 PCS
B
8 PCS
C
1 PC
D
4 PCS
E
2 PCS
Installation:
Caution: This heater can be installed in two ways, which can be selected according to
your preference.
Type 1. Built-in Wall
Clearance: Please allow a minimum of 0.5” spacing from the rear of the unit to a wall.
Wall Opening Dimensions:
Note: Before installing the heater, please confirm the opening size of the wall.

Model
Unit Overall Dimensions
Cutout Dimensions(W*D*H)
AH-FP-30F
30” x 6.2” x17.7”
26.75”x 6.313”x 17.125”
AH-FP-36F
36” x 6.2” x17.7”
32.75”x 6.313”x 17.125”
AH-FP-40F
40” x 6.2” x17.7”
36.75”x 6.313”x 17.125”
AH-FP-48F
48” x 6.2” x17.7”
44.75”x 6.313”x 17.125”
Step 1: (1)Find the two mounting screws and remove them. (2)Remove the front cover
by pulling it upward (See Fig. A(1)and Fig.A(2)).
Fig. A(1) Fig. A(2)
Step 2: Secure the unit to the back wall using the 4 screws (A) as shown in Fig. B.
Fig. B
Step 3：Replace the front cover and secure it with two mounting screws (See Fig. C).

Fig. C
Type 2. Wall Hanging
Step 1: Select the wall location where you want to hang your electric heater. Draw a
horizontal line using a level and mark 4 drill holes for the 4 anchor screws.
Note: The holes are for mounting of heater and it shall be level so that the heater can
be mounted properly and leveled.
Step 2: Drill 4 holes 8 mm (5/16in) in diameter and 43 mm (1.7in) deep on the marked
locations. For holes that do not hit stud, use the supplied wall anchor. Install the wall
anchors into the holes and gently tap them into place with a hammer until the flange of
the wall anchor is flush with the wall surface. See Fig. B.
Step 3: Secure the mounting bracket to the wall anchors using the 4 anchor screws
and 4 washers as shown in Fig. C.

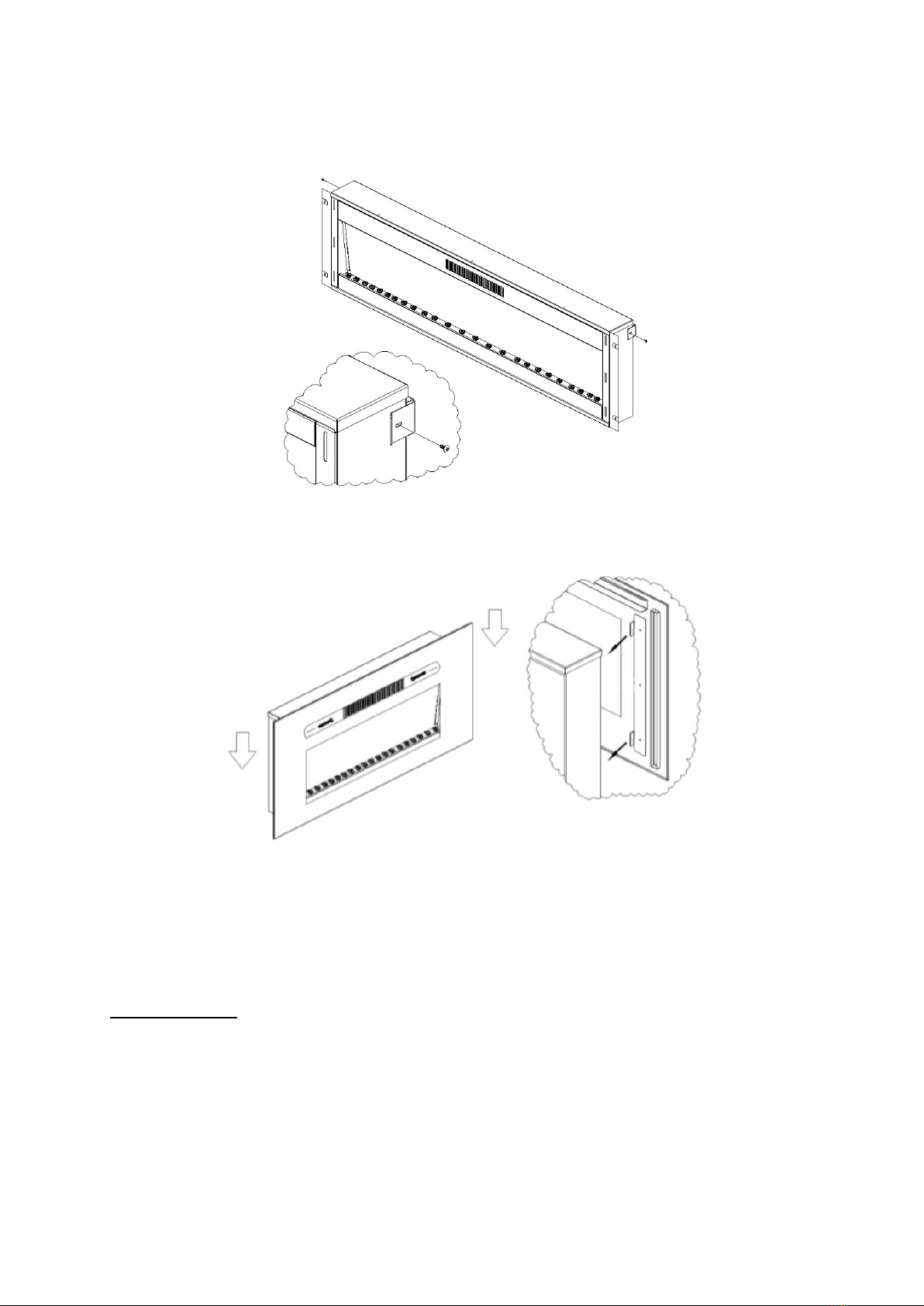

Step 4: (1)Find the two mounting screws and remove them. (2)Remove the front cover
by pulling it upward (See Fig. D(1)and Fig.D(2)).
Fig.D(1) Fig. D(2)
Step 5: Mount the heater on wall using the keyhole slots of the metal bracket at the
back of the heater. See Fig. E.
Make sure that the mounting bracket is completely engaged into the metal bracket at
the back of the heater.
Fig. E

Step 6: Secure the mounting bracket to the heater using 2 mounting screws. See Fig.
F.
Fig. F
Step 7：Replace the front cover and secure it with two mounting screws (See Fig. G).
Fig. G
OPERATION
After reading all the instructions, make sure that all the fireplace controls are in the
OFF position.
Plug the fireplace into a 15A/120V outlet.

Operation with The Control Panel
The controls are located at the front lower side of your heater.
: Press this button to turn ON the fireplace. The unit will beep. Press again to
turn off the fireplace and the fan will continue to work for 60 seconds without
heat.
: Press this button to change flame color. The unit will beep. Press once is
orange color. Press twice is orange and blue color. Press third is blue color.
: Press this button to change flame effect. The unit will beep. Press again to
decrease the flame intensity. There are 6 light intensities for your selection.
The flame optics will go lower under the sequence of 6,5,4,3,2 and 1. Pressing the
button again will stop the flame effect.
: Press this button to set the temperature. The unit will beep. Press this button to
the desired temperature. When desired ambient temperature is reached, the
heater will automatically stop heating. When the ambient temperature drops below the
desired temperature 2°C, the heater will resume heating.
Operation by The Remote Control
: Press this button to turn ON the fireplace. The unit will
beep. Press again to turn off the fireplace and the fan will
continue to work for 60 seconds without heat.
: Press this button to toggle between the two temperature
scales. The corresponding Celsius (C) or Fahrenheit (F)
LED indicates the current setting.
: Press this button for timer function. The letters '0H' to '8H'
will appear on the LED screen. '0H' means there is no set
running time and heater will run continuously. The letters '1H' to
'8H' mean the number of hours that the heater will operate before
shutting off.
: Press this button to change flame effect. The unit will beep. Press again to
decrease the flame intensity. There are 6 light intensities for your selection. The
flame optics will go lower under the sequence of 6,5,4,3,2 and 1. Pressing the
button again will stop the flame effect. By default, the flame color is orange. Hold it for
about 3 seconds to change flame color. The flame color will change under the

sequence of orange, orange and blue, blue.
: Press up or down button to the desired temperature. When desired ambient
temperature is reached, the heater will automatically stop heating. When the
ambient temperature drops below the desired temperature 2°C, the heater will
resume heating.
Remote Control Battery Replacement:
Replace with a CR2025 battery and follow the diagram at the back of remote handset
to install the new battery.
Maintenance:
WARNING: Completely disconnect power before attempting any maintenance or
cleaning, to reduce the risk of fire or electric shock. Maintenance should only be
performed by a certified technician.
Cleaning:
Before cleaning any parts of the fireplace make sure to first turn off the controls and
then unplug the unit from power source.
CAUTION: Wait until the unit has completely cooled before attempting any cleaning.
Cleaning Glass Panel: Remove dust with clean dry cloth. Remove fingerprints
and other marks from glass door by using a clean damp cloth. Do not use abrasive
cleaners or spray liquids on glass door surfaces.
Metal and metal painted parts should be cleaned with clean damp cloth only. Do not
use abrasive cleaners or spray liquids on these surfaces.
