Philips CEM210/98 User manual

Register your product and get support at
www.philips.com/welcome
CEM210
EN User manual

3
English
EN
Contents
1 Important 4
Safety 4
Notice 4
2 Your car audio system 6
Introduction 6
What’s in the box 6
Overview of the main unit 7
Overview of the remote control 8
3 Get started 10
Install the car audio 10
Install remote control battery 14
Turn on 15
Set clock 15
4 Listen to radio 16
Tune to a radio station 16
Store radio stations in memory 16
Tune to a preset station 16
Play with RDS 16
 3OD\DXGLRÀOHV 19
Play a disc 19
Play from USB 19
Control play 20
Search for an MP3/WMA track 20
View play information 20
Intro play 20
6KXIÁHSOD\ 20
Repeat play 20
Connect external sound source 21
6 Adjust sound 22
Adjust volume 22
Mute 22
Turn Dynamic Bass Boost (DBB) on/off 22
Select preset equalizer 22
Other sound settings 22
7 Adjust system settings 23
Select blackout setting 23
Turn demo mode on/off 23
Select start volume 23
Turn beep sound on/off 23
Turn display scroll on/off 23
Select shock-protect setting 24
Reset 24
8 Additional information 25
Detach the front panel 25
Replace fuse 25
Remove the unit 25
9 Product information 26
10 Troubleshooting 27

4
Notice
The making of unauthorized copies of
copy-protected material, including computer
SURJUDPVÀOHVEURDGFDVWVDQGVRXQG
recordings, may be an infringement of
copyrights and constitute a criminal offence.
This equipment should not be used for such
purposes.
This apparatus includes these labels:
Class II equipment symbol
This symbol indicates that the apparatus has a
double insulation system.
Recycling
Your product is designed and manufactured
with high quality materials and components,
which can be recycled and reused.
When you see the crossed-out wheel bin
symbol attached to a product, it means the
product is covered by the European Directive
2002/96/EC:
1 Important
Safety
Read and understand all instructions
before you use your apparatus. If damage
is caused by failure to follow instructions,
the warranty does not apply.
This apparatus is designed for negative
ground (earth) 12 V DC operation only.
To ensure safe driving, adjust the volume
to a safe and comfortable level.
Improper fuses can cause damage or
ÀUH:KHQ\RXQHHGWRFKDQJHWKHIXVH
consult a professional.
Use only the supplied mounting hardware
for a safe and secure installation.
To avoid short circuit, do not expose the
apparatus, remote control or remote
control batteries to rain or water.
Never insert objects into the ventilation
slots or other openings on the apparatus.
Clean the apparatus and frame with a
soft, damp cloth. Never use substances
such as alcohol, chemicals or household
cleaners on the apparatus.
Never place any objects other than discs
into the apparatus.
Never use solvents such as benzene,
thinner, cleaners available commercially,
or anti-static sprays intended for discs.
Visible and invisible laser radiation when
open. Avoid exposure to beam.
Risk of damage to the apparatus screen!
Never touch, push, rub or strike the
screen with any object.
Caution
Use of controls or adjustments or
performance of procedures other than herein
may result in hazardous radiation exposure or
other unsafe operation.
EN

5
6SHFLÀFDWLRQVDUHVXEMHFWWRFKDQJHZLWKRXW
notice. Trademarks are the property of
Koninklijke Philips Electronics N.V. or their
respective owners. Philips reserves the right
to change products at any time without being
obliged to adjust earlier supplies accordingly.
Never dispose of your product with other
household waste. Please inform yourself about
the local rules on the separate collection of
electrical and electronic products. The correct
disposal of your old product helps prevent
potentially negative consequences on the
environment and human health.
Your product contains batteries covered by
the European Directive 2006/66/EC, which
cannot be disposed of with normal household
waste.
Please inform yourself about the local rules on
separate collection of batteries. The correct
disposal of batteries helps prevent potentially
negative consequences on the environment
and human health.
This product complies with the radio
interference requirements of the European
Community.
This product complies with the requirements
of the following directives and guidelines:
72/245/EEC + 2006/28/EEC.
Environmental information
All unnecessary packaging has been omitted.
We have tried to make the packaging easy to
separate into three materials: cardboard (box),
polystyrene foam (buffer) and polyethylene
(bags, protective foam sheet.)
Your system consists of materials which can
be recycled and reused if disassembled by
a specialized company. Please observe the
local regulations regarding the disposal of
packaging materials, exhausted batteries and
old equipment.
$Q\FKDQJHVRUPRGLÀFDWLRQVPDGHWRWKLV
device that are not expressly approved by
Philips Consumer Lifestyle may void the user’s
authority to operate the equipment.
2009 © Koninklijke Philips Electronics N.V. All
rights reserved.
English
EN

6
a
hf
ij
g
dec
b
k
a
hf
ij
g
dec
b
k
2 Your car audio
system
Congratulations on your purchase, and
ZHOFRPHWR3KLOLSV7RIXOO\EHQHÀWIURPWKH
support that Philips offers, register your product
at www.philips.com/welcome.
Introduction
With the in-car audio system, you can enjoy
your drive while you listen to:
FM or AM (MW) radio
Audio from CD or MP3 disc
Audio from a USB drive
Audio from external devices

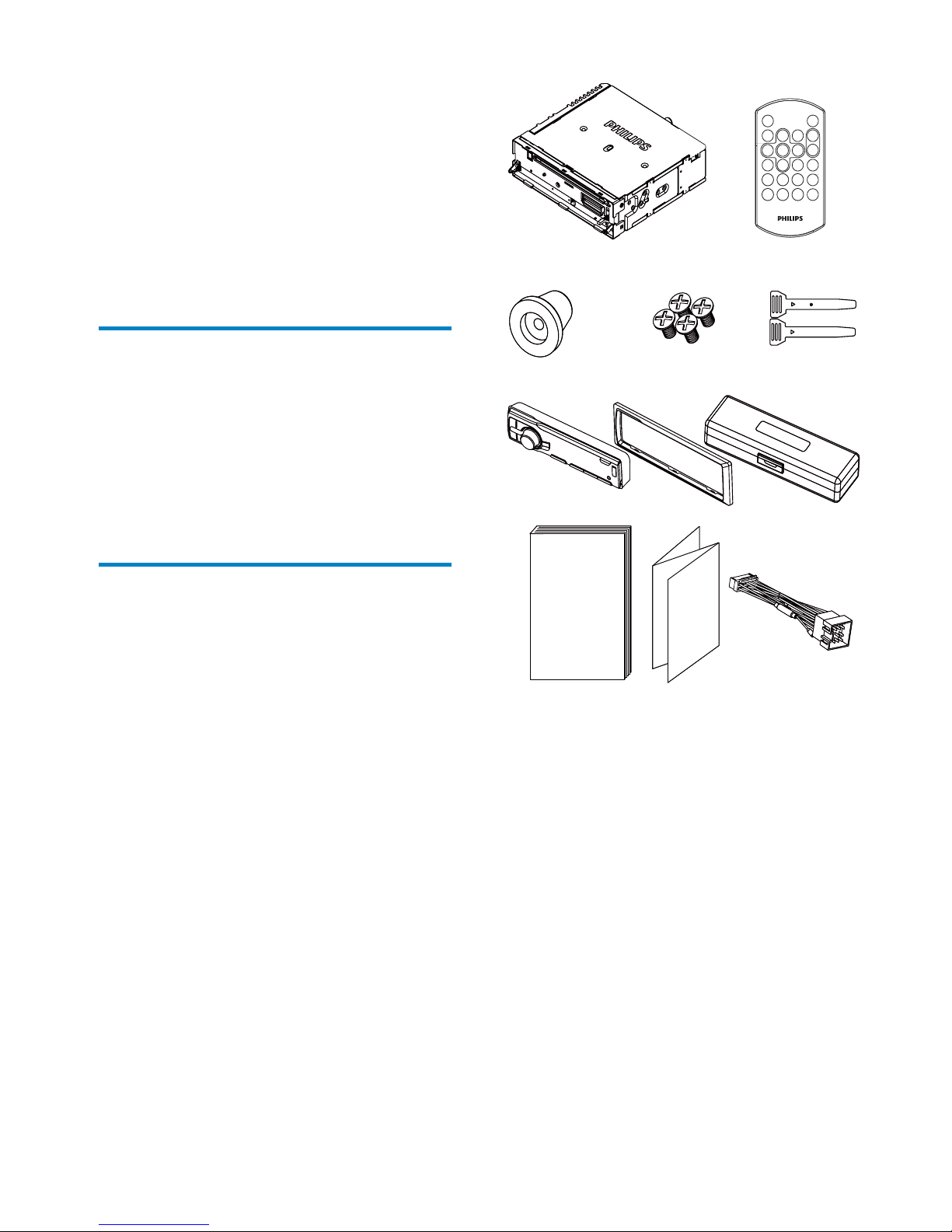

What’s in the box
Check and identify the contents of your
package:
aIn-car audio system
bRemote control
cRubber cushion
dScrew (4 pieces)
eDisassembly tool ( 2 pieces)
fFront panel
gTrim plate
hCarrying case for front panel
iUser manual
jQuick start guide
kStandard connector
EN

7
eMENU / DISP
Display radio frequency, clock and
radio program type (if available).
Display track, elapsed time, artist,
DOEXPWLWOHIROGHUÀOHDQGFORFN
Access system menu.
f
Return to previous menu.
Stop search.
Disable screen blackout.
gDisplay panel
h
Unlock the panel
Overview of the main unit
a
Select tuner band.
Select MP3/WMA folder.
Scroll up or down menu.
bDBB
Turn on or off Dynamic Bass Boost
(DBB) sound.
cSOURCE
Select audio source.
d/MUTE
Turn the unit on or off.
Adjust volume.
&RQÀUPVHOHFWLRQ
Enter characters for search.
Mute or restore volume.
abdghi
e
cf
s
w
u
t
v
r q po nml kj
abdghi
e
cf
s
w
u
t
v
r q po nml kj
English
EN

8

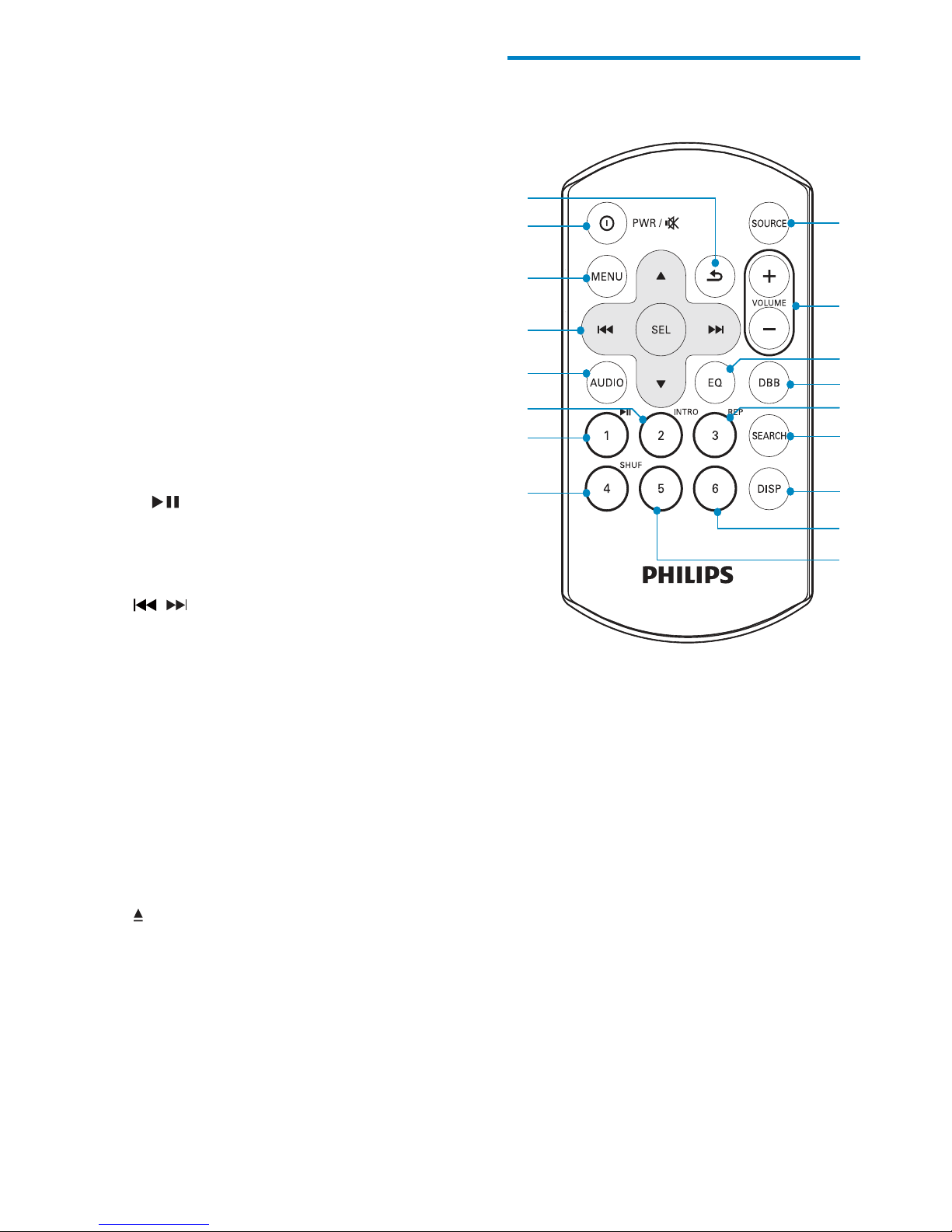

Overview of the remote
control
aSOURCE
Select audio source.
bVOLUME +/-
Adjust volume.
cEQ
Select EQ setting.
dDBB
Turn on or off Dynamic Bass Boost
(DBB) sound.
e3, REP
Select repeat play mode.
Select preset station no. 3.
fSEARCH
Store radio stations automatically.
Search a track or folder.
j
k
m
n
o
p
q
l
a
b
d
f
g
i
h
c
e
j
k
m
n
o
q
l
a
b
d
f
g
i
h
c
e
iUSB socket
jExternal device socket
k6
Select preset station no. 6
l5
Select preset station no. 5
mSHUF, 4
$FWLYDWHRUGHDFWLYDWHVKXIÁHPRGH
Select preset station no. 4
n3, REP
Set repeat play mode.
Select preset station no. 3
oINTRO, 2
Turn intro play on or off.
Select preset station no. 2
p1,
Start play
Pause or resume play.
Select preset station no. 1
q/
Tune to a radio station
Skip/search for a track.
rEQ/Audio
Select equalizer (EQ) setting.
Access audio setting menu.
sSEARCH
Store radio stations automatically.
Search a track or folder.
tPanel power connection
uDisc slot
v
Take disc out.
wRESET
Restore default settings.
EN

9
gDISP
Display radio frequency and clock.
Display track, elapsed time, artist,
DOEXPWLWOHIROGHUÀOHDQGFORFN
h6
Select preset station no. 6.
i5
Select preset station no. 5.
jSHUF, 4
$FWLYDWHRUGHDFWLYDWHVKXIÁHPRGH
Select preset station no. 4.
k1,
Start play.
Pause or resume play.
Select preset station no. 1.
lINTRO, 2
Turn intro play on or off.
Select preset station no. 2.
mAUDIO
Access audio setting menu.
nNavigation buttons
 /
Tune for radio station
Skip/search for MP3/WMA track.
 /
Select tuner band.
Select MP3/WMA folder.
 SEL
&RQÀUPVHOHFWLRQ
oMENU
Access system menu.
pPWR,
Turn the unit on or off.
Mute or restore volume.
q
Return to previous menu.
Disable screen blackout.
English
EN

10
Note on the power supply lead (yellow)
When you connect other devices to this
apparatus, ensure that the rating of the
car circuit is higher than the total fuse
value of all the connected devices.
Notes on speaker connection
Never connect speaker wires to the
metal body or chassis of the car.
Never connect speaker wires with stripes
to one another.

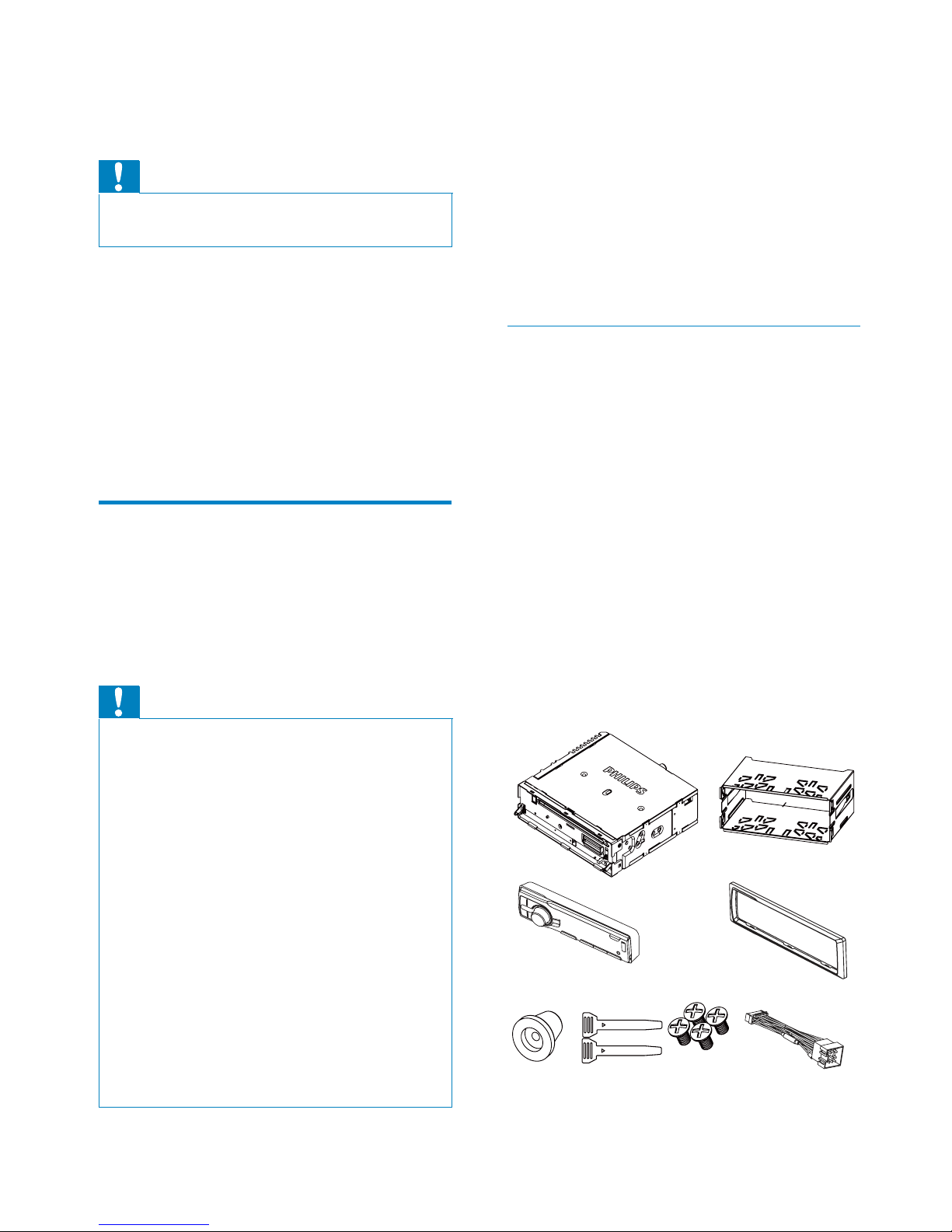

Overview of parts
These are the supplied parts needed to
connect and install this unit.
aIn-car audio system
bSleeve
cFront panel
dTrim plate
eRubber cushion
fDisassembly tools
gScrews (4 pieces)
hISO connector
ab
c
efgh
d
3 Get started
Caution
Use the controls only as stated in this user
manual.
Always follow the instructions in this chapter in
sequence.
If you contact Philips, you will be asked for the
model and serial number of your apparatus.The
model number and serial number are on the
bottom of your apparatus.Write the numbers
here:
Model No. __________________________
Serial No. ___________________________
Install the car audio
These instructions are for a typical installation.
However, if your car has different requirements,
make the corresponding adjustment. If you have
any questions regarding installation kits, consult
your Philips car audio dealer.
Caution
This unit is designed for negative ground
(earth) 12 V DC operation only.
Always install this unit in the car dashboard.

Other locations can be dangerous as the rear
of the unit heats up during use.
To avoid short-circuit: before you connect,

ensure that the ignition is off.
Ensure that you connect the yellow and red

power supply leads after all other leads are
connected.
Ensure that all loose leads are insulated with

electrical tape.
Ensure that the leads do not get caught under

screws orin parts that will move (e.g. seat rail).
Ensure that all ground (earth) leads are run to

a common ground (earth) point.
Use only the supplied mounting hardware for a

safe and secure installation.
,PSURSHUIXVHVFDQFDXVHGDPDJHRUÀUH

When you need to change the fuse, consult a
professional.
EN

11
Connector Connect to
1 ANTENNA Antenna
2 REAR LINE
OUT R
Rear right
speaker
3 REAR LINE
OUT L
Rear left speaker
Connection: for cars without ISO
connectors
Caution
Be sure to connect the black ground (earth)
OHDGÀUVW
1 &RQQHFWWKHDQWHQQDDQGDPSOLÀHUDV
illustrated, if applicable.
L-CHR-CH
AMP
a
c
b
L-CHR-CH
AMP
a
c
b
Connection: for cars with ISO
connectors
Caution
Ensure that all loose leads are insulated with
electrical tape.
1Pull out the ISO connectors from car
dashboard and connect them to the
bigger end of the supplied standard
connector.
2Connect the other end of the supplied
standard connector to the unit.
3 &RQQHFWWKHDQWHQQDDQGDPSOLÀHUDV
illustrated, if applicable. You can connect
WKHFDUDXGLRWRWKHDPSOLÀHUWKURXJK
RCA-TO-RCA cables (not supplied).
English
EN

12
eREDIgnition key +12V DC
when ON/ACC
fBLUEMotor/electric antenna
relay control lead/
$PSOLÀHUUHOD\FRQWURO
lead
gBLACKGround
h ORANGE Illumination switch
i YELLOW To the +12V car battery
which is energized at all
times
4Connect the supplied standard connector
to the unit.
Tip
The pin arrangement for the ISO connectors
depends on the type of vehicle you drive.
Make sure to make the proper connections to
prevent damage to the unit.
Mount in the dashboard
1If the car does not have an on-board
drive or navigation computer, disconnect
the negative terminal of the car battery.
If you disconnect the car battery in
a car that has an on-board drive or
navigation computer, the computer
may lose its memory.
If the car battery is not disconnected,
to avoid short-circuit, ensure that
bare wires do not touch each other.
Connector Connect to
1 ANTENNA Antenna
2 REAR LINE
OUT R
Rear right
speaker
3 REAR LINE
OUT L
Rear left speaker
2Cut off the bigger end of the supplied
standard connector.
3Check the car’s wiring carefully and
connect them to the supplied standard
connector.
1 Green/black strip Left speaker
(Rear)
2 White/black strip Left speaker
(Front)
3 Gray/black strip Right speaker
(Front)
4 Purple/black strip Right speaker
(Rear)
b
a
c
d
aa
bcd
ab
ef
cd
ghi
b
c
d
EN

13
5Install the sleeve into the dashboard and
EHQGWKHWDEVRXWZDUGWRÀ[WKHVOHHYH
Note
6NLSWKLVVWHSLIWKHXQLWLVQRWÀ[HGE\VOHHYH
but by supplied screws.
6Place the supplied rubber cushion over
the end of the mounting bolt.
183 mm
53mm
5mm
5mm5mm
2Remove the two screws on the top of the
unit.
3Remove the mounting sleeve with the
supplied disassembly tools.
4Ensure that car dashboard opening is
within these measurements:
English
EN

14
4Release the panel to engage the left side.
Install remote control battery
Caution
Risk of explosion! Keep batteries away from
KHDWVXQVKLQHRUÀUH1HYHUGLVFDUGEDWWHULHV
LQÀUH
Risk of decreased battery life! Never mix

different brands or types of batteries.
Risk of product damage! When the remote

control is not used for long periods, remove
the batteries.
Perchlorate Material - special handling may

apply. See www.dtsc.ca.gov/hazardouswaste/
perchlorate.
)RUÀUVWWLPHXVH
1Remove the protective tab to activate the
remote control battery.
To replace the remote control battery:
1Open the battery compartment.
2Insert 1 CR2025 batteries with correct
polarity (+/-) as indicated.
3Close the battery compartment.
7Slide the unit into the dashboard until you
hear a click sound.
8Reconnect the negative terminal of the
car battery.
Attach the front panel
1Attach the trim plate.
2Insert the right side of the panel in the
chassis until it is correctly engaged.
3Press the left side of the panel and point
the left hole at the left pillar.
EN

15
Turn on
1Press to turn on the unit.
To turn off the unit, press for 3
seconds.
Set clock
1Press MENU/DISP for 3 seconds.
2Press or repeatedly until the
currently time is displayed.
3Turn clockwise to set hour.
4Press WRFRQÀUP
5Turn anti-clockwise to set minute.
6Press WRFRQÀUP
View clock
1Press MENU/DISP repeatedly until the
clock is displayed.
English
EN

16
Store radio stations in
memory
You can store up to 6 stations in each band.
Store staions automatically
1Press SEARCHÀUVWWKHQSUHVV .
The six strongest stations of the»
selected band are saved in preset
channel automatically: FM1,FM2,FM3
1-6, AM1, AM2.
Store staions manually
1Tune to a station that you want to store.
(see ‘Tune to a radio station’ on page 16)
2Press one of the numbered buttons 1to
6for 3 seconds.
The station is saved in the selected»
channel.
Tune to a preset station
1Press or to select band.
2Press the number button 1to 6to select
the preset station.
Play with RDS
The RDS (Radio Data System) function
operates only in areas with FM stations
broadcasting RDS signals. If you tune to an RDS
station, an RDS icon and information about the
presenter, station or program is displayed.
Turn on RDS
Note
The default setting for RDS is off.
4 Listen to radio
Tune to a radio station
1Press SOURCE repeatedly to select
Tuner.
2Press or to select band: [FM1],
[FM2],[FM3],[AM1], or [AM2] .
3Press or to tune to a radio station
manually.
The radio station is broadcast.»
To search for a radio station»
automatically, press or for 3
seconds.
Select tuner sensitivity
You can adjust the tuner sensitivity if you want
to receive more radio stations or only stations
with strong signal.
1Press MENU/DISP for over 2 seconds.
2Press or repeatedly until [LOCAL]
or [DX] is displayed.
3Rotate to select a setting:
[ LOCAL] (local): Only stations with
strong signal can be broadcast.
[ DX] (distance): Stations with strong
and weak signals can be broadcast.
Select stereo/mono broadcasting
For stations with weak signals: to improve the
reception, change to monoaural sound.
1Press MENU/DISP for 3 seconds.
2Press or repeatedly until [STEREO]
or [MONO] is displayed.
3Turn to select a setting:
 [STEREO]: stereo broadcast.
 [MONO]: mono broadcast.
EN

17
19 SOCIAL Social Affairs
20 RELIGION Religion
21 PHONE IN Phone In
22 TRAVEL Travel
23 LEISURE Leisure
24 JAZZ Jazz Music
25 COUNTRY Country Music
26 NATION M National Music
27 OLDIES Oldies Music
28 FOLK M Folk Music
29 DOCUMENT Documentary
30 TES Alarm Test
31 ALARM Alarm
Select alternate frequencies
If the radio signal come from the current
station is poor, you can turn on the AF
(Alternate Frequency) function to let the
unit searches for another station with
stronger signal but with the same program
LGHQWLÀFDWLRQDVWKHFXUUHQWVWDWLRQ
automatically.
1Press MENU/DISP for 3 seconds.
2Press or repeatedly until [AF] is
displayed.
3Turn to select a setting:
 [AF ON]: Turn on the AF mode.
 [AF OFF]: Turn off the AF mode.
Set region for AF tuning
<RXFDQGHÀQH$)WXQLQJUHJLRQ
[REG
ON]
Only stations in the current
region can be tuned to
automatically.
[REG
OFF]
All stations can be tuned to
automatically.
1Press MENU/DISP for 3 seconds.
2Press or repeatedly until [REG]
(Regional Radio) is displayed.
1Press MENU/DISP for 3 seconds.
2Turn to select [RDS ON]:
The RDS function is turned on.»
Select program type
Before tuning to RDS stations, you can select
program type and let the unit search only for
programs of the selected category.
1Press SEARCH until [PTY SCH] is
displayed, then press WRFRQÀUP
2Turn to select a type, then press to
FRQÀUP
Item Program type Description
1 NEWS News services
2 AFFAIRS Politics and
current affairs
3 INFO Special
information
programs
4 SPORT Sports
5 EDUCATE Education
and advanced
training
6 DRAMA Radio plays and
literature
7CULTURE Culture, religion
and society
8SCIENCE Science
9VARIED Entertainment
programs
10 POP M Pop music
11 ROCK M Rock music
12 MOR M Light music
13 LIGHT M Light classical
music
14 CLASSICS Classical music
15 OTHER M Special music
programs
16 WEATHER Weather
17 FINANCE Finance
18 CHILDREN Children’s
programs
English
EN

18
3Turn to select a setting.
5HFHLYHWUDIÀFDQQRXQFHPHQW
,I\RXGRQRWZDQWWRPLVVWUDIÀF
announcement during enjoying music, you
FDQWXUQRQWKH7$7UDIÀF$QQRXQFHPHQW
function.
1Press MENU/DISP for 3 seconds.
2Press or repeatedly until [TA] is
displayed.
3Turn to select a setting:
 [TA ON]:KHQWKHUHLVWUDIÀF
announcement, the unit switches
to the tuner mode (regardless of
the current mode) and begins to
broadcast the announcement on
WUDIÀFFRQGLWLRQV:KHQWKHWUDIÀF
announcement is over, it returns to
the previous mode.
 [TA OFF]7UDIÀFDQQRXQFHPHQW
does not cut in.
Set RDS clock
You can use time signal that is broadcast
together with the RDS signal to set the clock
of the unit automatically.
1Press MENU/DISP for 3 seconds.
2Press or repeatedly until [CT] is
displayed.
3Turn to select a setting:
 [CT ON]: Turn on the RDS clock.
Time shown on the unit synchronize
with that on the RDS station.
 [CT OFF]: Turn off the RDS clock.
Tip
The accuracy of the transmitted time depends
on the RDS station that transmits the time
signal.
EN

19
Tip
If the disc is blocked in the disc compartment,
press and hold until the disc comes out.
Play from USB
Note
Ensure that the USB device contains playable
music.
Insert the USB device
1Open the cover marked on the front
panel.
2Insert the USB device into the USB
socket.
The unit starts playing from the USB»
device automatically.
5 Play audio files
Note
Ensure that the disc or device contains playable
ÀOHV
Play a disc
Note
You cannot play CDs encoded with copyright
protection technologies.
You can play commercially available audio CDs
and these discs:
CD-Recordables (CD-R)
CD-Re-writables (CD-RW)
MP3 CDs
WMA CDs
Note
Ensure that the disc contains playable content.
1Press on the front panel to release the
panel.
2Insert a CD with the printed side facing
up.
3Close the panel.
Play starts automatically.»
To pause CD play, press 1 .
To resume CD play, press 1 again.
Remove the CD
To take out the CD,
1Press .
2Press beside the disc slot.
English
EN

20
Artist
Album
Title
Folder
File
Clock
Intro play
<RXFDQSOD\WKHÀUVWVHFRQGVRIHDFKWUDFN
1During play, press INTRO, 2 to select:
 [INT ON]$IWHUWKHÀUVW
seconds of each track have been
played, play stops.
 [INT OFF] : Cancel intro play and
start normal play.
6KXIÁHSOD\
You can play the tracks in random order.
1During play, press SHUF, 4 to select:
 [SHUF ON]VWDUWVKXIÁHSOD\IRUDOO
tracks.
 [SHUF OFF]FDQFHOVKXIÁHSOD\
Repeat play
1During play, press 3, REP repeatedly to
select:
 [RPT TRK] (repeat one track): play the
current track repeatedly.
 [RPT DIR] (repeat a folder): play all tracks
in the current folder repeatedly.
 [RPT ALL] (repeat all tracks): play all
tracks repeatedly.
 [RPT OFF]: cancel repeat.
Remove the USB device
1Press to turn off the unit.
2Remove the USB device.
Control play
To select a folder, press or .
To skip to the previous/next track, press
or .
To search backward/forward rapidly
within the current track, press or
for 3 seconds.
To pause, press 1,.
To resume play, press 1,again.
Search for an MP3/WMA
track
1Press SEARCH.
Search menu is displayed.»
»[FOLD SCH]: search by folder
sequence.
»[FILE SCH]: search by track name.
2Turn to select [FILE] and then press
WRFRQÀUP
3Turn to enter a character and then
press .
4Repeat step 3 until the search term is
complete.
5Press for 3 seconds to start search.
:KHQVHDUFKLVÀQLVKHGDOLVWRI»
matching tracks are displayed.
6Turn to skip over the list.
7Press to select a track.
View play information
1During play USB device, press
MENU/DISP repeatedly to view:
Track number and elapsed play time
EN

21
Connect external sound
source
1Connect the external sound source to
MP3 LINK socket with a 3.5 mm cable.
2Press SOURCE repeatedly until [MP3
LINK] is displayed.
3Operate the external component (refer
to the instructions supplied with the
external component).
English
EN
