Philips CEM200/51 User manual

CEM200
Register your product and get support at
www.philips.com/welcome
EN User manual

3
English
EN
7 Adjust system settings 19
Select blackout setting 19
Turn demo mode on/off 19
Select start volume 19
Turn beep sound on/off 20
Turn display scroll on/off 20
Select shock-protect setting 20
Reset 21
8 Additional information 21
Detach the front panel 21
Replace fuse 21
Remove the unit 22
9 Product information 22
10 Troubleshooting 23
11 Glossary 24
Contents
1 Important 4
Safety 4
Notice 4
2 Your car audio system 6
Introduction 6
What’s in the box 6
Overview of the main unit 7
Overview of the remote control 8
3 Get started 9
Install the car audio 9
Install remote control battery 13
Turn on 14
Set clock 14
4 Listen to radio 14
Tune to a radio station 14
Store radio stations in memory 15
Tune to a preset station 15
Play with RDS 15
5 Play audio files 17
Play a disc 17
Control play 17
Search for an MP3/WMA track 17
View play information 17
Intro play 18
Shuffle play 18
Repeat play 18
Connect external sound source 18
6 Adjust sound 18
Adjust volume 18
Mute 18
Turn Dynamic Bass Boost (DBB) on/off 18
Select preset equalizer 18
Other sound settings 19

4
Notice
The making of unauthorized copies of
copy-protected material, including computer
programs, files, broadcasts and sound
recordings, may be an infringement of
copyrights and constitute a criminal offence.
This equipment should not be used for such
purposes.
This apparatus includes these labels:
Class II equipment symbol
This symbol indicates that the apparatus has a
double insulation system.
1 Important
Safety
Read and understand all instructions•
before you use your apparatus. If damage
is caused by failure to follow instructions,
the warranty does not apply.
This apparatus is designed for negative•
ground (earth) 12 V DC operation only.
To ensure safe driving, adjust the volume•
to a safe and comfortable level.
Improper fuses can cause damage or•
fire. When you need to change the fuse,
consult a professional.
Use only the supplied mounting hardware•
for a safe and secure installation.
To avoid short circuit, do not expose the•
apparatus, remote control or remote
control batteries to rain or water.
Never insert objects into the ventilation•
slots or other openings on the apparatus.
Clean the apparatus and frame with a•
soft, damp cloth. Never use substances
such as alcohol, chemicals or household
cleaners on the apparatus.
Never place any objects other than discs•
into the apparatus.
Never use solvents such as benzene,•
thinner, cleaners available commercially,
or anti-static sprays intended for discs.
Visible and invisible laser radiation when•
open. Avoid exposure to beam.
Risk of damage to the apparatus screen!•
Never touch, push, rub or strike the
screen with any object.
Caution
Use of controls or adjustments or•
performance of procedures other than herein
may result in hazardous radiation exposure or
other unsafe operation.
EN

5
Environmental information
All unnecessary packaging has been omitted.
We have tried to make the packaging easy to
separate into three materials: cardboard (box),
polystyrene foam (buffer) and polyethylene
(bags, protective foam sheet.)
Your system consists of materials which can
be recycled and reused if disassembled by
a specialized company. Please observe the
local regulations regarding the disposal of
packaging materials, exhausted batteries and
old equipment.
Any changes or modifications made to this
device that are not expressly approved by
Philips Consumer Lifestyle may void the user’s
authority to operate the equipment.
2009 © Koninklijke Philips Electronics N.V. All
rights reserved.
Specifications are subject to change without
notice. Trademarks are the property of
Koninklijke Philips Electronics N.V. or their
respective owners. Philips reserves the right
to change products at any time without being
obliged to adjust earlier supplies accordingly.
Recycling
Your product is designed and manufactured
with high quality materials and components,
which can be recycled and reused.
When you see the crossed-out wheel bin
symbol attached to a product, it means the
product is covered by the European Directive
2002/96/EC:
Never dispose of your product with other
household waste. Please inform yourself about
the local rules on the separate collection of
electrical and electronic products. The correct
disposal of your old product helps prevent
potentially negative consequences on the
environment and human health.
Your product contains batteries covered by
the European Directive 2006/66/EC, which
cannot be disposed of with normal household
waste.
Please inform yourself about the local rules on
separate collection of batteries. The correct
disposal of batteries helps prevent potentially
negative consequences on the environment
and human health.
This product complies with the radio
interference requirements of the European
Community.
This product complies with the requirements
of the following directives and guidelines:
2004/108/EC + 2006/95/EC.
English
EN

6
a
hf
ij
g
dec
b
k
a
hf
ij
g
dec
b
k
2 Your car audio
system
Congratulations on your purchase, and
welcome to Philips!To fully benefit from the
support that Philips offers, register your product
at www.philips.com/welcome.
Introduction
With the in-car audio system, you can enjoy
your drive while you listen to:
FM or AM (MW) radio•
Audio from CD or MP3 disc•
Audio from external devices•

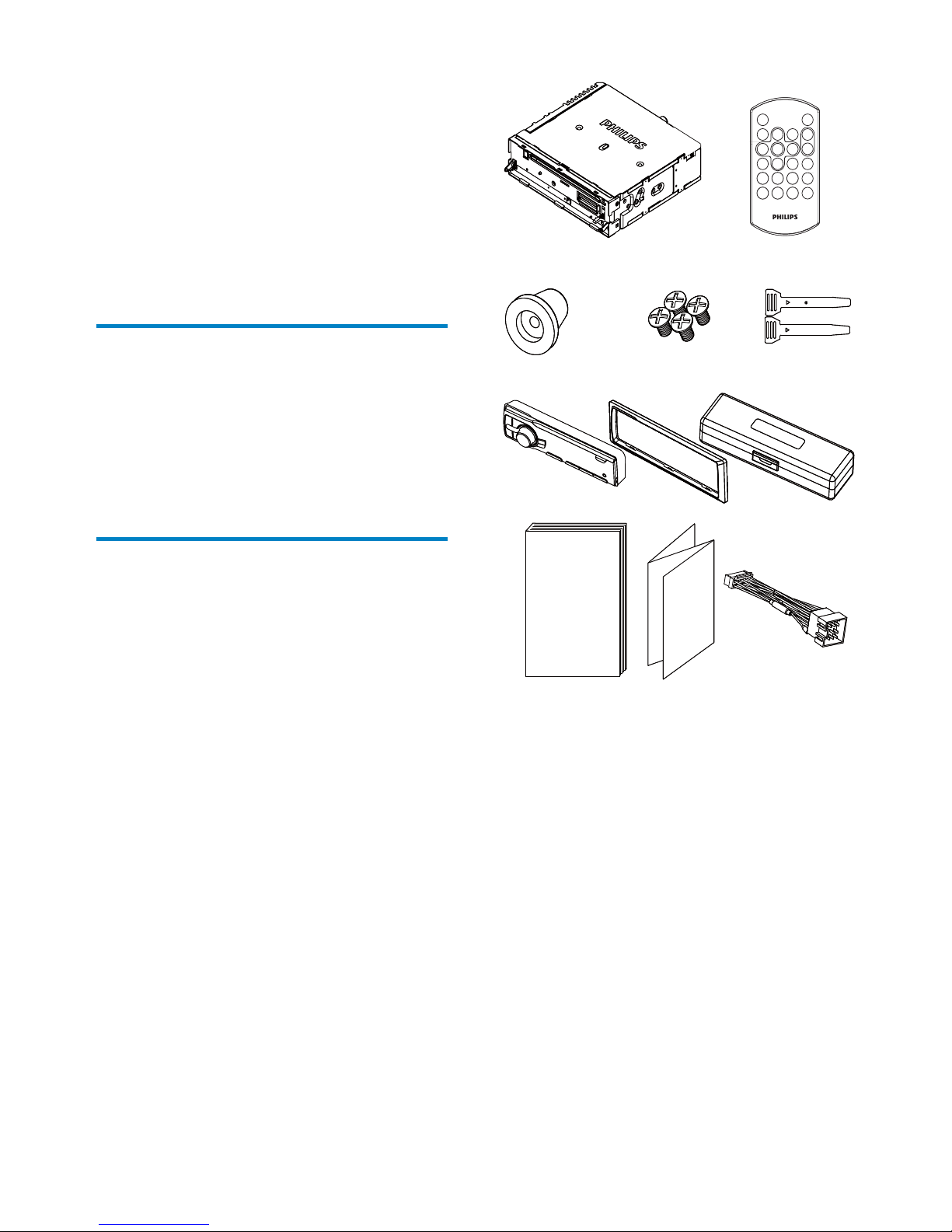

What’s in the box
Check and identify the contents of your
package:
aIn-car audio system
bRemote control
cRubber cushion
dScrew (4 pieces)
eDisassembly tool ( 2 pieces)
fFront panel
gTrim plate
hCarrying case for front panel
iUser manual
jQuick start guide
kStandard connector
EN

7
eMENU / DISP
Display radio frequency, clock and•
radio program type (if available).
Display track, elapsed time, artist,•
album, title, folder, file and clock.
Access system menu.•
f
Return to previous menu.•
Stop search.•
Disable screen blackout.•
gDisplay panel
h
Unlock the panel•
iExternal device socket

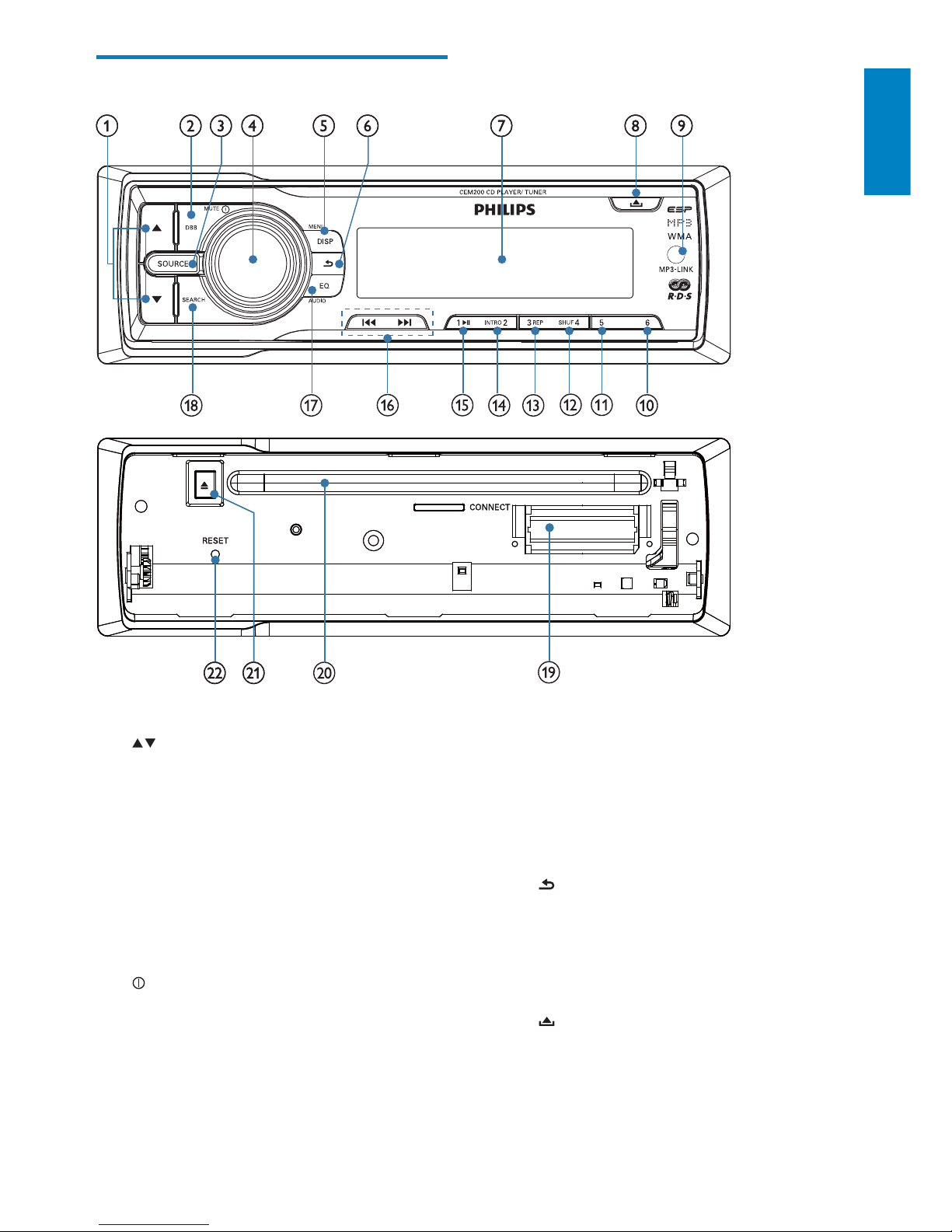

Overview of the main unit
a
Select tuner band.•
Select MP3/WMA folder.•
Scroll up or down menu.•
bDBB
Turn on or off Dynamic Bass Boost•
(DBB) sound.
cSOURCE
Select audio source.•
d/MUTE
Turn the unit on or off.•
Adjust volume.•
Confirm selection.•
Enter characters for search.•
Mute or restore volume.•
English
EN

8
Overview of the remote
control
aSOURCE
Select audio source.•
bVOLUME +/-
Adjust volume.•
cEQ
Select EQ setting.•
dDBB
Turn on or off Dynamic Bass Boost•
(DBB) sound.
e3, REP
Select repeat play mode.•
Select preset station no. 3.•
fSEARCH
Store radio stations automatically.•
Search a track or folder.•
j
k
m
n
o
p
q
l
a
b
d
f
g
i
h
c
e
j
k
m
n
o
q
l
a
b
d
f
g
i
h
c
e
j6
Select preset station no. 6•
k5
Select preset station no. 5•
lSHUF, 4
Activate or deactivate shuffle mode.•
Select preset station no. 4•
m3, REP
Set repeat play mode.•
Select preset station no. 3•
nINTRO, 2
Turn intro play on or off.•
Select preset station no. 2•
o1,
Start play•
Pause or resume play.•
Select preset station no. 1•
p/
Tune to a radio station•
Skip/search for a track.•
qEQ/Audio
Select equalizer (EQ) setting.•
Access audio setting menu.•
rSEARCH
Store radio stations automatically.•
Search a track or folder.•
sPanel power connection
tDisc slot
u
Take disc out.•
vRESET
Restore default settings.•
EN

9
3 Get started
Caution
Use the controls only as stated in this user•
manual.
Always follow the instructions in this chapter in
sequence.
If you contact Philips, you will be asked for the
model and serial number of your apparatus.The
model number and serial number are on the
bottom of your apparatus.Write the numbers
here:
Model No. __________________________
Serial No. ___________________________
Install the car audio
These instructions are for a typical installation.
However, if your car has different requirements,
make the corresponding adjustment. If you have
any questions regarding installation kits, consult
your Philips car audio dealer.
Caution
This unit is designed for negative ground•
(earth) 12 V DC operation only.
Always install this unit in the car dashboard.
•
Other locations can be dangerous as the rear
of the unit heats up during use.
To avoid short-circuit: before you connect,
•
ensure that the ignition is off.
Ensure that you connect the yellow and red
•
power supply leads after all other leads are
connected.
Ensure that all loose leads are insulated with
•
electrical tape.
Ensure that the leads do not get caught under
•
screws orin parts that will move (e.g. seat rail).
Ensure that all ground (earth) leads are run to
•
a common ground (earth) point.
Use only the supplied mounting hardware for a
•
safe and secure installation.
Improper fuses can cause damage or fire.
•
When you need to change the fuse, consult a
professional.
gDISP
Display radio frequency and clock.•
Display track, elapsed time, artist,•
album, title, folder, file and clock.
h6
Select preset station no. 6.•
i5
Select preset station no. 5.•
jSHUF, 4
Activate or deactivate shuffle mode.•
Select preset station no. 4.•
k1,
Start play.•
Pause or resume play.•
Select preset station no. 1.•
lINTRO, 2
Turn intro play on or off.•
Select preset station no. 2.•
mAUDIO
Access audio setting menu.•
nNavigation buttons
• /
Tune for radio station
Skip/search for MP3/WMA track.
• /
Select tuner band.
Select MP3/WMA folder.
• SEL
Confirm selection.
oMENU
Access system menu.•
pPWR,
Turn the unit on or off.•
Mute or restore volume.•
q
Return to previous menu.•
Disable screen blackout.•
English
EN

10
Connection: for cars with ISO
connectors
Caution
Ensure that all loose leads are insulated with•
electrical tape.
1Pull out the ISO connectors from car
dashboard and connect them to the
bigger end of the supplied standard
connector.
2Connect the other end of the supplied
standard connector to the unit.
3Connect the antenna and amplifier as
illustrated, if applicable. You can connect
the car audio to the amplifier through
RCA-TO-RCA cables (not supplied).
Note on the power supply lead (yellow)
When you connect other devices to this•
apparatus, ensure that the rating of the
car circuit is higher than the total fuse
value of all the connected devices.
Notes on speaker connection
Never connect speaker wires to the•
metal body or chassis of the car.
Never connect speaker wires with stripes•
to one another.
Overview of parts
These are the supplied parts needed to
connect and install this unit.
aIn-car audio system
bSleeve
cFront panel
dTrim plate
eRubber cushion
fDisassembly tools
gScrews (4 pieces)
hISO connector
ab
c
efgh
d
EN

11
2Cut off the bigger end of the supplied
standard connector.
3Check the car’s wiring carefully and
connect them to the supplied standard
connector.
1 Green/black strip Left speaker (Rear)
2 White/black strip Left speaker (Front)
3 Gray/black strip Right speaker (Front)
4 Purple/black strip Right speaker (Rear)
e RED Ignition key +12V DC when
ON/ACC
f BLUE Motor/electric antenna relay
control lead/Amplifier relay
control lead
gBLACK Ground
h ORANGE Illumination switch
i YELLOW To the +12V car battery
which is energized at all times
b
a
c
d
aa
bcd
ab
ef
cd
ghi
b
c
d
Connector Connect to
1 ANTENNA Antenna
2 REAR LINE OUT R Rear right speaker
3 REAR LINE OUT L Rear left speaker
Connection: for cars without ISO
connectors
Caution
Be sure to connect the black ground (earth)•
lead first.
1Connect the antenna and amplifier as
illustrated, if applicable.
Connector Connect to
1 ANTENNA Antenna
2 REAR LINE OUT R Rear right speaker
3 REAR LINE OUT L Rear left speaker
L-CHR-CH
AMP
a
c
b
L-CHR-CH
AMP
a
c
b
English
EN

12
3Remove the mounting sleeve with the
supplied disassembly tools.
4Ensure that car dashboard opening is
within these measurements:
5Install the sleeve into the dashboard and
bend the tabs outward to fix the sleeve.
Note
Skip this step if the unit is not fixed by sleeve•
but by supplied screws.
183 mm
53mm
5mm
4Connect the supplied standard connector
to the unit.
Tip
The pin arrangement for the ISO connectors•
depends on the type of vehicle you drive.
Make sure to make the proper connections to
prevent damage to the unit.
Mount in the dashboard
1If the car does not have an on-board
drive or navigation computer, disconnect
the negative terminal of the car battery.
If you disconnect the car battery in•
a car that has an on-board drive or
navigation computer, the computer
may lose its memory.
If the car battery is not disconnected,•
to avoid short-circuit, ensure that
bare wires do not touch each other.
2Remove the two screws on the top of the
unit.
EN

13
Attach the front panel
1Attach the trim plate.
2Insert the right side of the panel in the
chassis until it is correctly engaged.
3Press the left side of the panel and point
the left hole at the left pillar.
4Release the panel to engage the left side.
Install remote control battery
Caution
Risk of explosion! Keep batteries away from•
heat, sunshine or fire. Never discard batteries
in fire.
Risk of decreased battery life! Never mix
•
different brands or types of batteries.
Risk of product damage! When the remote
•
control is not used for long periods, remove
the batteries.
Perchlorate Material - special handling may
•
apply. See www.dtsc.ca.gov/hazardouswaste/
perchlorate.
6Place the supplied rubber cushion over
the end of the mounting bolt.
7Slide the unit into the dashboard until you
hear a click sound.
8Reconnect the negative terminal of the
car battery.
5mm5mm
English
EN

14
4 Listen to radio
Tune to a radio station
1Press SOURCE repeatedly to select
Tuner.
2Press or to select band: [FM1],
[FM2], [FM3], [AM1], or [AM2] .
3Press or to tune to a radio station
manually.
The radio station is broadcast.»
To search for a radio station•
automatically, press or for 3
seconds.
Select tuner sensitivity
You can adjust the tuner sensitivity if you want
to receive more radio stations or only stations
with strong signal.
1Press MENU/DISP for over 2 seconds.
2Press or repeatedly until [LOCAL]
or [DX] is displayed.
3Rotate to select a setting:
[• LOCAL] (local): Only stations with
strong signal can be broadcast.
[• DX] (distance): Stations with strong
and weak signals can be broadcast.
Select stereo/mono broadcasting
For stations with weak signals: to improve the
reception, change to monoaural sound.
1Press MENU/DISP for 3 seconds.
2Press or repeatedly until [STEREO]
or [MONO] is displayed.
3Turn to select a setting:
• [STEREO]: stereo broadcast.
• [MONO]: mono broadcast.
For first-time use:
1Remove the protective tab to activate the
remote control battery.
2Open the battery compartment.
3Insert 1 CR2025 batteries with correct
polarity (+/-) as indicated.
4Close the battery compartment.
Turn on
1Press to turn on the unit.
To turn off the unit, press• for 3
seconds.
Set clock
1Press MENU/DISP for 3 seconds.
2Press or repeatedly until the
currently time is displayed.
3Turn clockwise to set hour.
4Press to confirm.
5Turn anti-clockwise to set minute.
6Press to confirm.
View clock
1Press MENU/DISP repeatedly until the
clock is displayed.
EN

15
Turn on RDS
Note
The default setting for RDS is off.•
1Press MENU/DISP for 3 seconds.
2Turn to select [RDS ON]:
The RDS function is turned on.»
Select program type
Before tuning to RDS stations, you can select
program type and let the unit search only for
programs of the selected category.
1Press SEARCH until [PTY SCH] is
displayed, then press to confirm.
2Turn to select a type, then press to
confirm.
Item Program type Description
1 NEWS News services
2 AFFAIRS Politics and current
affairs
3 INFO Special information
programs
4 SPORT Sports
5 EDUCATE Education and
advanced training
6 DRAMA Radio plays and
literature
7CULTURE Culture, religion and
society
8SCIENCE Science
9VARIED Entertainment
programs
10 POP M Pop music
11 ROCK M Rock music
12 MOR M Light music
13 LIGHT M Light classical music
14 CLASSICS Classical music
15 OTHER M Special music programs
16 WEATHER Weather
17 FINANCE Finance
Store radio stations in
memory
You can store up to 6 stations in each band.
Store staions automatically
1Press SEARCH first, then press .
The six strongest stations of the»
selected band are saved in preset
channel automatically: FM1,FM2,FM3
1-6, AM1, AM2.
Store staions manually
1Tune to a station that you want to store.
(see ‘Tune to a radio station’ on page 14)
2Press one of the numbered buttons 1to
6for 3 seconds.
The station is saved in the selected»
channel.
Tune to a preset station
1Press or to select band.
2Press the number button 1to 6to select
the preset station.
Play with RDS
The RDS (Radio Data System) function
operates only in areas with FM stations
broadcasting RDS signals. If you tune to an RDS
station, an RDS icon and information about the
presenter, station or program is displayed.
English
EN

16
2Press or repeatedly until [REG]
(Regional Radio) is displayed.
3Turn to select a setting.
Receive traffic announcement
If you do not want to miss traffic
announcement during enjoying music, you
can turn on the TA (Traffic Announcement)
function.
1Press MENU/DISP for 3 seconds.
2Press or repeatedly until [TA] is
displayed.
3Turn to select a setting:
• [TA ON]: When there is traffic
announcement, the unit switches
to the tuner mode (regardless of
the current mode) and begins to
broadcast the announcement on
traffic conditions. When the traffic
announcement is over, it returns to
the previous mode.
• [TA OFF]: Traffic announcement
does not cut in.
Set RDS clock
You can use time signal that is broadcast
together with the RDS signal to set the clock
of the unit automatically.
1Press MENU/DISP for 3 seconds.
2Press or repeatedly until [CT] is
displayed.
3Turn to select a setting:
• [CT ON]: Turn on the RDS clock.
Time shown on the unit synchronize
with that on the RDS station.
• [CT OFF]: Turn off the RDS clock.
Tip
The accuracy of the transmitted time depends•
on the RDS station that transmits the time
signal.
Item Program type Description
18 CHILDREN Children’s programs
19 SOCIAL Social Affairs
20 RELIGION Religion
21 PHONE IN Phone In
22 TRAVEL Travel
23 LEISURE Leisure
24 JAZZ Jazz Music
25 COUNTRY Country Music
26 NATION M National Music
27 OLDIES Oldies Music
28 FOLK M Folk Music
29 DOCUMENT Documentary
30 TES Alarm Test
31 ALARM Alarm
Select alternate frequencies
If the radio signal come from the current
station is poor, you can turn on the AF
(Alternate Frequency) function to let the
unit searches for another station with
stronger signal but with the same program
identification as the current station
automatically.
1Press MENU/DISP for 3 seconds.
2Press or repeatedly until [AF] is
displayed.
3Turn to select a setting:
• [AF ON]: Turn on the AF mode.
• [AF OFF]: Turn off the AF mode.
Set region for AF tuning
You can define AF tuning region:
[REG
ON]
Only stations in the current
region can be tuned to
automatically.
[REG
OFF]
All stations can be tuned to
automatically.
1Press MENU/DISP for 3 seconds.
EN

17
Control play
To select a folder, press• or .
To skip to the previous/next track, press•
or .
To search backward/forward rapidly•
within the current track, press or
for 3 seconds.
To pause, press• 1,.
To resume play, press• 1,again.
Search for an MP3/WMA track
1Press SEARCH.
Search menu is displayed.»
»[FOLD SCH]: search by folder
sequence.
»[FILE SCH]: search by track name.
2Turn to select [FILE] and then press
to confirm.
3Turn to enter a character and then
press .
4Repeat step 3 until the search term is
complete.
5Press for 3 seconds to start search.
When search is finished, a list of»
matching tracks are displayed.
6Turn to skip over the list.
7Press to select a track.
View play information
1During play, press MENU/DISP
repeatedly to view:
Track number and elapsed play time•
Artist•
Album•
Title•
Folder•
File•
Clock•
5 Play audio files
Note
Ensure that the disc or device contains playable•
files.
Play a disc
Note
You cannot play CDs encoded with copyright•
protection technologies.
You can play commercially available audio CDs
and these discs:
CD-Recordables (CD-R)•
CD-Re-writables (CD-RW)•
MP3 CDs•
WMA CDs•
Note
Ensure that the disc contains playable content.•
1Press on the front panel to release the
panel.
2Insert a CD with the printed side facing
up.
3Close the panel.
Play starts automatically.»
To pause CD play, press 1• .
To resume CD play, press 1• again.
Remove the CD
To take out the CD,
1Press .
2Press beside the disc slot.
Tip
If the disc is blocked in the disc compartment,•
press and hold until the disc comes out.
English
EN

18
6 Adjust sound
Adjust volume
1Turn clockwise/anticlockwise to
increase/decrease volume.
Mute
You can turn off the sound of your audio.
1During play, press MUTE .
To turn the sound back on, press•
MUTE again.
Turn Dynamic Bass Boost
(DBB) on/off
1Press DBB, the current setting is
displayed:
»[DBB ON] :The Dynamic Bass Boost
(DBB) function is on.
»[DBB OFF] :The DBB function is off.
2Press DBB again to change the DBB
setting.
Select preset equalizer
1Press EQ/Audio.
The current Equalizer setting is displayed.»
2Press EQ/Audio again repeatedly to
select a preset EQ:
• [OPTIMAL] (optimal)
• [FLAT] (flat)
• [POP] (pop)
• [USER] (user)
• [TECHNO] (techno)
• [ROCK] (rock)
• [CLASSIC] (classic)
• [JAZZ] (jazz)
Intro play
You can play the first 10 seconds of each track.
1During play, press INTRO, 2 to select:
• [INT ON] : After the first 10
seconds of each track have been
played, play stops.
• [INT OFF] : Cancel intro play and
start normal play.
Shuffle play
You can play the tracks in random order.
1During play, press SHUF, 4 to select:
• [SHUF ON]: start shuffle play for all
tracks.
• [SHUF OFF]: cancel shuffle play.
Repeat play
1During play, press 3, REP repeatedly to
select:
• [RPT TRK] (repeat one track): play the
current track repeatedly.
• [RPT DIR] (repeat a folder): play all tracks
in the current folder repeatedly.
• [RPT ALL] (repeat all tracks): play all
tracks repeatedly.
• [RPT OFF]: cancel repeat.
Connect external sound
source
1Connect the external sound source to
MP3 LINK socket with a 3.5 mm cable.
2Press SOURCE repeatedly until [MP3
LINK] is displayed.
3Operate the external component (refer
to the instructions supplied with the
external component).
EN

19
7 Adjust system
settings
Select blackout setting
You can set the screen to turn off automatically
after the unit is idle for 10 or 20 seconds.
1Press MENU/DISP for 3 seconds.
2Turn to select a setting:
• [BKO 10 S] : Turn off the screen
automatically 10 seconds after last
operation.
• [BKO 20 S] : Turn off the screen
automatically 20 seconds after last
operation.
• [BKO OFF] : Never turn off the
screen.
Turn demo mode on/off
When demo mode is on, when the unit is
idle for more than 2 minutes, all functions are
displayed.
1Press MENU/DISP for 3 seconds.
2Press or repeatedly to until [DEMO]
is displayed.
The screen shows current Demo»
mode setting.
3Turn to select a setting:
• [DEMO ON] : Turn on the demo
mode.
• [DEMO OFF] : Turn off the demo
mode.
Select start volume
Each time you turn on the unit, it can play at the
last listened volume or at the preset volume.
1Press MENU/DISP for 3 seconds.
Other sound settings
You can also edit user preset EQ.
1Press EQ/Audio for 3 seconds.
2Press or repeatedly to select the
item to be adjusted:
• [BAS] (bass) range: -7 to +7.
• [TRE] (treble) range: -7 to +7.
• [BAL] (balance) range: 12L to 12R. (L
= left speaker, R = right speaker)
• [FAD] (fader) range: 12R to 12F. (R =
rear speaker, F = front speaker)
3Turn to select a value.
English
EN

20
Turn display scroll on/off
For track information that is longer than the
display panel: you can select to cut off the
remainder of the text, or scroll to display the
full text.
Note
If any special characters are present in the•
MP3 track name or album name, it may not
display correctly on the screen because these
characters are not supported.
Some WMA is protected by Digital Rights
•
Management (DRM), it cannot be played on
the unit.
Folders/files exceed the supported limit of the
•
unit are not displayed or played.
1Press MENU/DISP for 3 seconds.
2Press or repeatedly to until [ROLL
ON] or [ROLL OFF] is displayed.
3Turn to select a setting:
• [ROLL ON] (scroll on): Auto scroll
during play.
• [ROLL OFF] (scroll off): No auto
scroll display.
Select shock-protect setting
You can select the shock protection setting,
depending on the stability of your car and the
condition of the road.
1Press MENU/DISP for 3 seconds.
2Press or repeatedly until [ESP] is
displayed.
3Turn to select a setting:
• [ESP 10 S]: select this when the road
is smooth and there are few bumps.
• [ESP 40 S]: select this when the road
is bumpy and unstable.
2Press or repeatedly to until [V -
LAST] or [V - ADJ] is displayed.
3Turn to select a setting:
• [V - LAST] : Each time you turn on
the unit, the volume remains from its
previous use.
• [V - ADJ] : Each time you turn on
the unit, the volume is at the preset
level.
Store preset volume
You can turn on the unit at a preset volume.
1Select [V - ADJ] as the start volume.
2Press MENU/DISP for 3 seconds.
3Press or repeatedly to until [A-VOL]
is displayed.
4Turn to select a value: 0 - 47.
Turn beep sound on/off
Each time you press a button, the unit beeps.
You can turn off/on this beep sound.
1Press MENU/DISP for3 seconds.
2Press or repeatedly to until [BEEP
ON] or [BEEP OFF] is displayed.
3Rotate to select a setting:
• [BEEP ON]: Turn on the beep
sound.
• [BEEP OFF]: Turn off the beep
sound.
EN

21
8 Additional
information
Detach the front panel
You can detach the front panel to deter theft.
1Press to release the panel.
2Press the left side of the panel rightward.
3Pull the panel towards you to detach it
from the chassis.
4Store the panel in the supplied carry case
to protect it from dirt or damage.
Replace fuse
If the fuse is damaged,
1Check the electric connection.
2Buy a fuse that matches the voltage of the
damaged fuse.
3Replace the fuse.
Reset
You can reset the unit to its default setting.
1Detach the front panel (see ‘Detach the
front panel’ on page 21).
2Press the reset button by using a ball-
point pen or a similar tool.
Preset adjustments such as preset»
channels and sound adjustments are
erased.
English
EN
