Philips LC4.1HE User manual

Published by WS 0572 Customer Service Printed in the Netherlands Subject to modification EN 3122 785 15790
©
Copyright 2005 Philips Consumer Electronics B.V. Eindhoven, The Netherlands.
All rights reserved. No part of this publication may be reproduced, stored in a
retrieval system or transmitted, in any form or by any means, electronic,
mechanical, photocopying, or otherwise without the prior permission of Philips.
Colour Television Chassis
LC4.1HE
AB
Supplement to manual LC4.1E AB: 3122 785 15310
E_14520_000.eps
170904
Contents Page
1. Technical Specifications, Connections, and Chassis
Overview 2
2. Safety Instructions, Warnings, and Notes 3
3. Directions for Use 3
4. Mechanical Instructions 4
5. Service Modes, Error Codes, and Fault Finding 6
6. Block Diagrams, Test Point Overviews, and
Waveforms
Wiring Diagram 15” 7
Wiring Diagram 20” & 23” 8
Block Diagram Video 9
Block Diagram Audio & Control 10

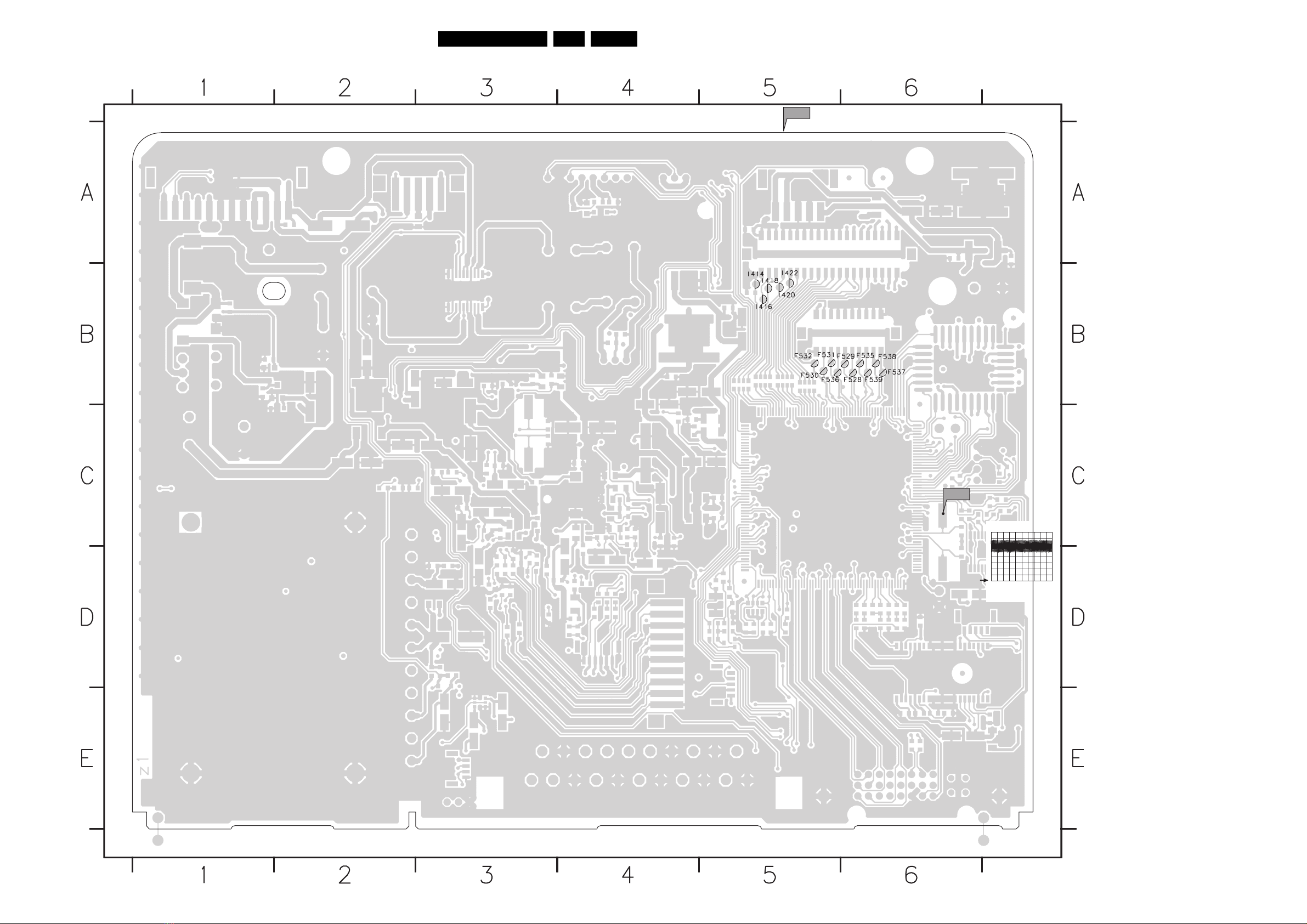

Testpoint Overview SSB (Top Side) 11
Testpoint Overview SSB (Bottom Side) 12

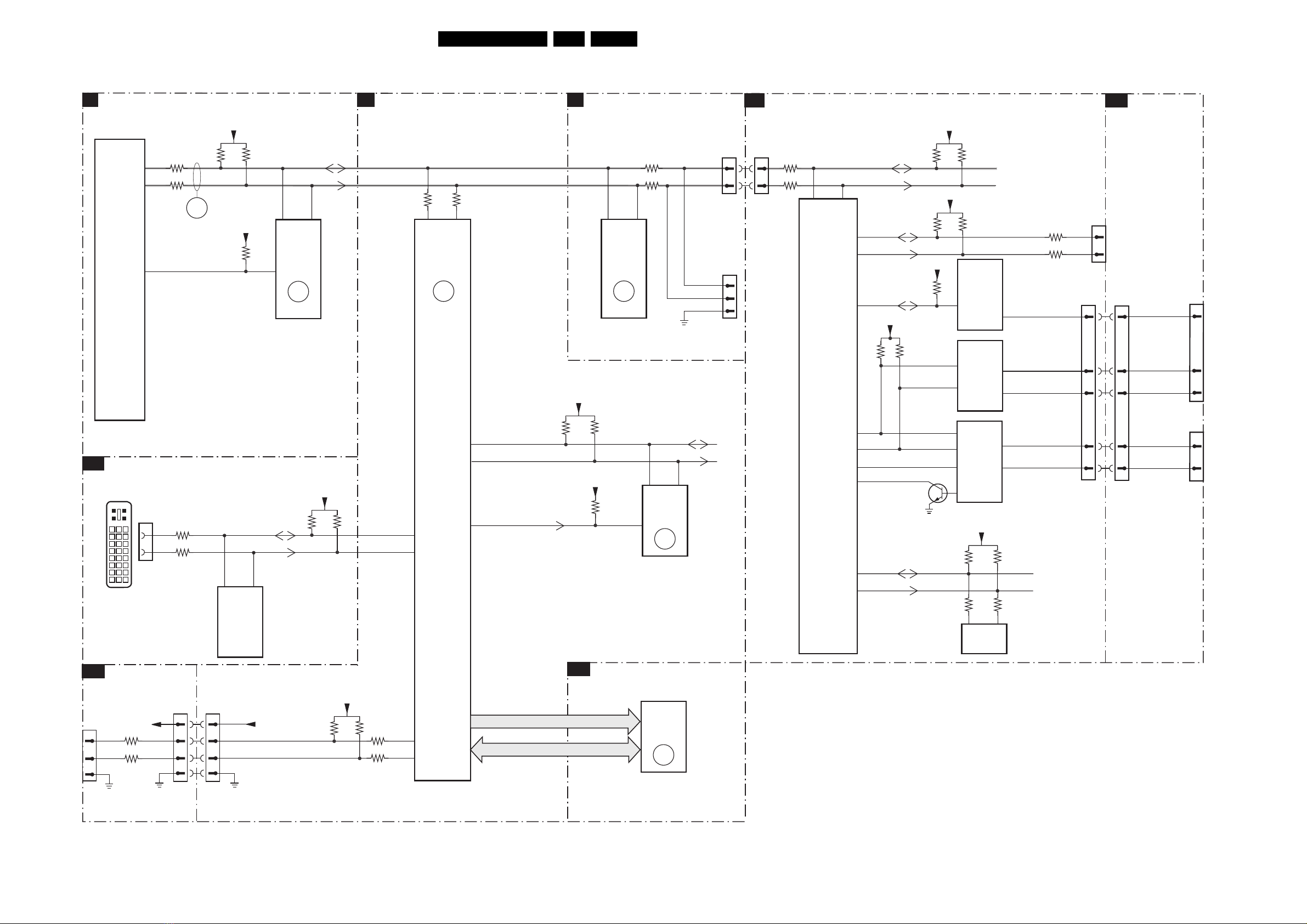

I2C Overview 13
Supply Voltage Overview 14
7. Circuit Diagrams and PWB Layouts Diagram PWB

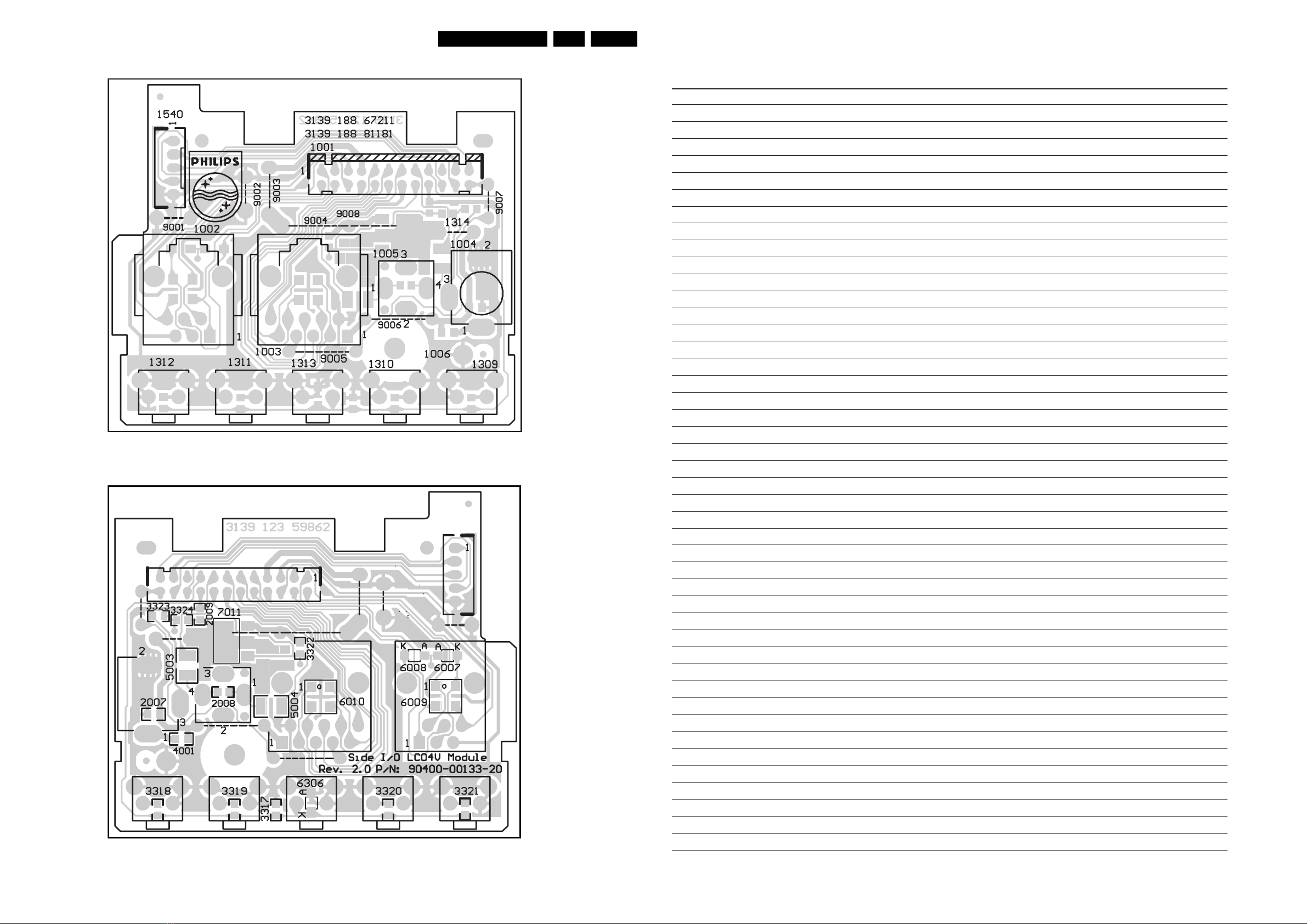

Side I/O Panel & LKB 15” (D)15 16

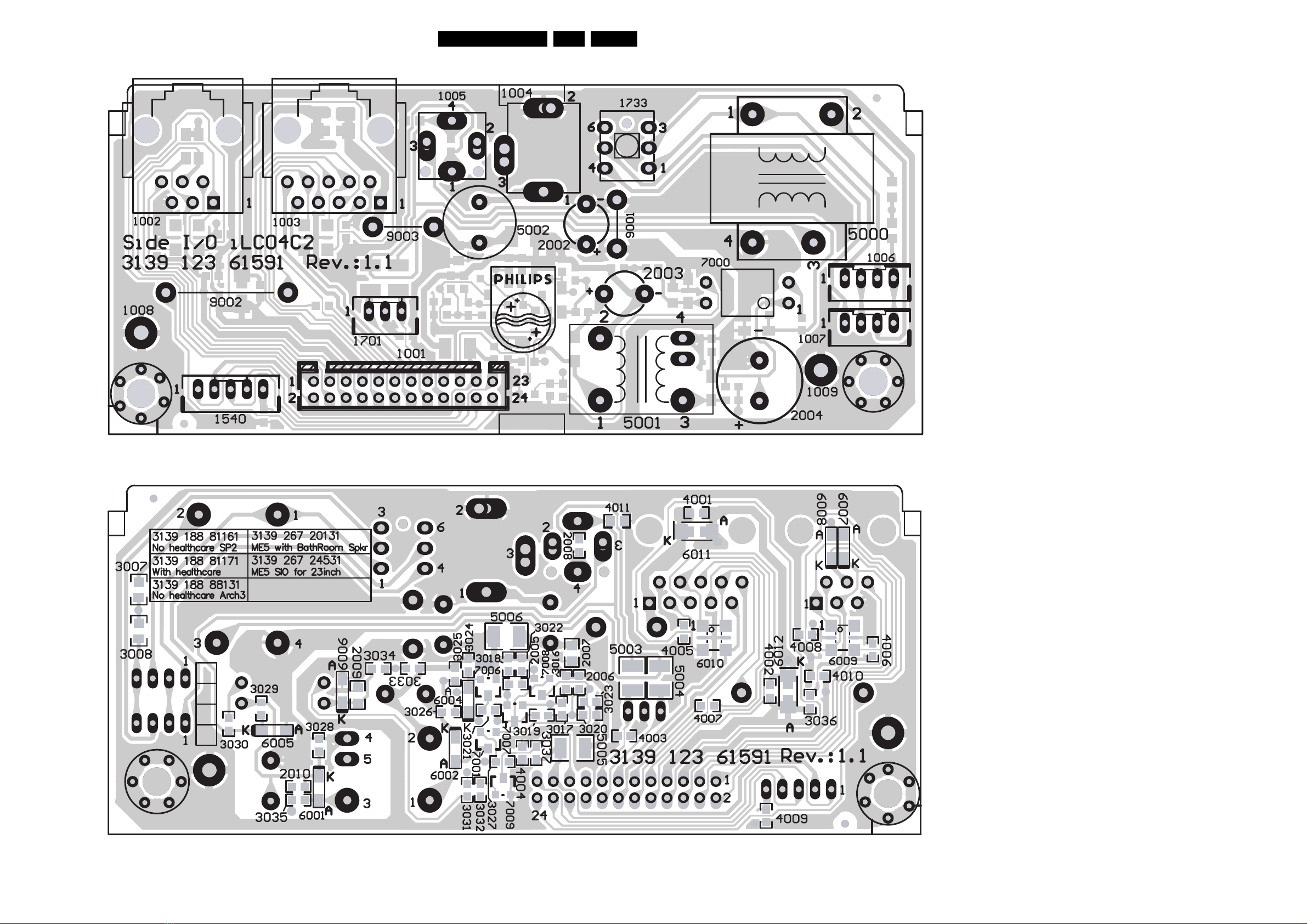

Side I/O & Panel & LKB 20” & 23” (D)17 18

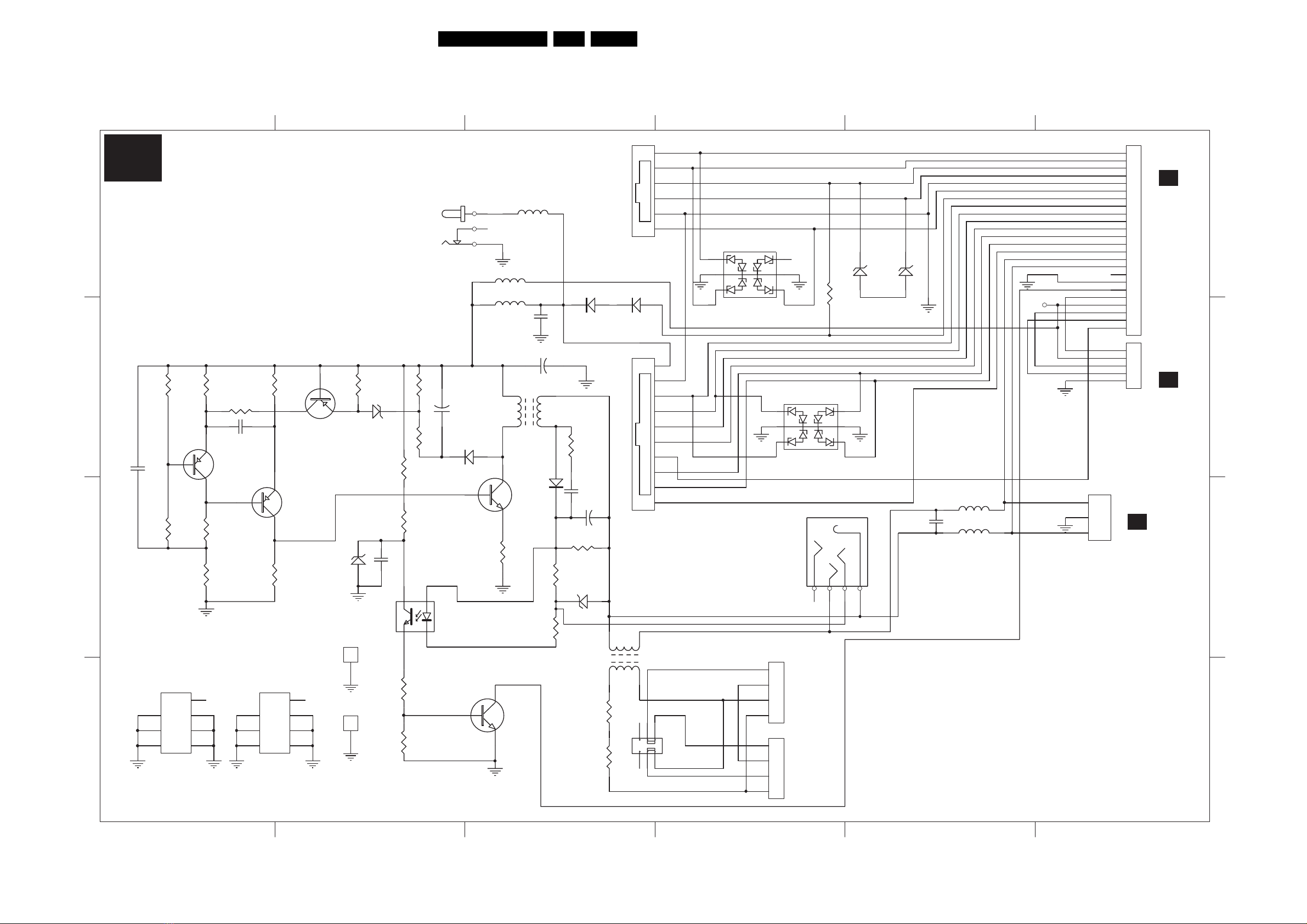

i-Board Panel (HC)19 20
LED and IR Panel (J)21 22
LCD Clock Panel (J)23
8. Alignments 25
9. Circuit Descriptions, Abbreviation List, and IC Data
Sheets 28
Abbreviation List 28
IC Data Sheets 28
10. Spare Parts List 29
11. Revision List 32

Technical Specifications, Connections, and Chassis Overview
EN 2 LC4.1HE AB1.
1. Technical Specifications, Connections, and Chassis Overview
Index of this chapter:
1.1 Technical Specifications
1.2 Connection Overview
1.3 Chassis Overview
Notes:
• Only information that is related to the iTV module, is
published in this manual. For the other information, see the
relevant chassis manual (order code on front page).
• Some models in this chassis range have a different
mechanical construction. The information given here is
therefore model specific.
• Figures below can deviate slightly from the actual situation,
due to the different set executions.
• Specifications are indicative (subject to change).
1.1 Technical Specifications
1.1.1 Vision
Display type : LCD
Screen size : 15” (38 cm), 4:3
: 20” (51 cm), 4:3
: 23” (58 cm), 16:9
Resolution (HxV pixels) : 1024x768 (15”)
: 640x480 (20”)
: 1366x768 (23”)
Contrast ratio : 500: 1 (15”)
: 350 : 1 (20”)
: 450 : 1 (23”)
Light output (cd/m2) : 450 (15” + 20”)
: 500 (23”)
Response time (ms) : 16 (15” + 23”)
: 25 (20”)
Viewing angle (HxV degrees) : 130x100 (15”)
: 176x176 (20”)
: 140x125 (23”)
Tuning system : PLL
TV Colour systems : PAL B/G, D/K, I
: SECAM B/G, D/K, L/L’
Video playback : NTSC
: PAL
: SECAM
Supported computer formats : 640x480 (all)
: 720x400 (15”+23”)
: 640x480 (15” + 23”)
: 832x624 (15” + 23”)
: 800x600 (15” + 23”)
: 1024x768 (15” + 23”)
: 1280x768 (23”)
Supported video formats : 640x480i-1fH (all)
: 640x480p-2fH
(15”+23”)
: 720x576i-1fH (all)
: 720x576p-1fH (all)
: 1280x720p-3fH
(15”+23”)
: 1920x1080i-2fH
(15”+23”)
Presets/channels : 125 presets
Tuner bands : VHF
: UHF
: S-band
: Hyper-band
: FM-radio
1.1.2 Sound
Sound systems : FM-mono
: AM-mono
: FM-stereo B/G
: NICAM B/G, D/K, I, L
: AV Stereo
: Virtual Dolby
Surround
Maximum power (WRMS) : 2 x 2 (15”)
: 2 x 5 (20” + 23”)
1.1.3 Miscellaneous
Power supply:
- Mains voltage (VAC) : 90 - 240 (15”+ 23”)
: 100 - 250 (20”)
- Mains frequency (Hz) : 50 / 60
Ambient conditions:
- Temperature range (°C) : +5 to +40
- Maximum humidity : 90% R.H.
Power consumption (values are indicative)
- Normal operation (W) : ≈42/55/92
- Stand-by (W) : < 1/1.5/3
Dimensions (WxHxD cm) : 47.2x30.8x7.65 (15”)
: 58.3x38.6x8.7 (20”)
: 71.6x37.5x9.8 (23”)
Weight (kg) : 5 (15”)
: 8.5 (20”)
: 8.8 (23”)
1.2 Connection Overview
Note: The following connector colour abbreviations are used
(acc. to DIN/IEC 757): Bk= Black, Bu= Blue, Gn= Green, Gy=
Grey, Rd= Red, Wh= White, and Ye= Yellow.
1.2.1 Side Connections
Figure 1-1 Side I/O: 15” (left side), 20”+23” (right side)
F_15790_002.eps
211105
F_15790_003.eps
211105

Safety Instructions, Warnings, and Notes EN 3LC4.1HE AB 2.
Mini Jack: Audio Head phone - Out
Bk - Head phone 32 - 600 ohm / 10 mW ot
Cinch: Video CVBS - In, Audio - In
Ye - Video CVBS 1 VPP / 75 ohm jq
Wh - Audio L 0.5 VRMS / 10 kohm jq
Rd - Audio R 0.5 VRMS / 10 kohm jq
Mini Jack: DVI-Audio - In
1 - Ground Y Gnd H
2 - Ground C Gnd H
3 - Video Y 1 VPP / 75 ohm j
4 - Video C 0.3 VPP / 75 ohm j
S-Video (Hosiden): Video Y/C - In
1 - Ground Y Gnd H
2 - Ground C Gnd H
3 - Video Y 1 VPP / 75 ohm j
4 - Video C 0.3 VPP / 75 ohm j
12VDC - In (15-inch models)
1 - Supply +12 VDC j
2 - Ground Gnd H
3-n.c.
Mini Jack: Speaker - Out (20 + 23-inch models)
- Loudspeaker 8 ohm ok
RJ45: DATA2 (Xpress Box- In/Out)
1 - +12V +12 V / 1 W k
2 - GND Gnd H
3-H
SYN Signal k
4-V
SYN Signal k
5 - TXD232 Signal
6 - RXD232 Signal
7 - SDA3_IR-OUT Signal k
8 - DCM-POR Signal k
9 - CVBS-terr Signal k
10 - GNDA Gnd H
RJ12: DATA1 (HM-Link - In/Out)
1 - LED_in < 0.3 V, active low j
2 - IR_in < 0.3 V, active low j
3-MODE Vcc j
4 - TV Power Status 4.5 to 5 V - TV “On”, < 0.3V -
TV “Stdby”, High impedance -
TV “Off” k
5 - GND Gnd H
6 - IR_out Signal k
1.2.2 Rear I/O connections
Rear connections are the same as for the LC4.1E.
1.3 Chassis Overview
Figure 1-2 PWB locations (depending on model)
2. Safety Instructions, Warnings, and Notes
See the relevant chassis manual (order code on front page).
3. Directions for Use
See the relevant chassis manual (order code on front page).
F_15790_005.eps
061205
BSMALL SIGNAL
BOARD
POWER SUPPLY
PA N E L
E
TOP CONTOL
PANEL
HC
i-BOARD
D
SIDE I/O PANEL
D
iTV SIDE I/O
PA N E L
iTV LED & IR
PA N E L J

Mechanical Instructions
EN 4 LC4.1HE AB4.
4. Mechanical Instructions
Index of this chapter:
4.1 Service Position
4.2 Cable Dressing
4.3 Assy/Panel Removal
4.4 Set Re-assembly
Notes:
• Only information that is related to the iTV module, is
published in this manual. For the other information, see the
relevant chassis manual (order code on front page).
• Figures below can deviate slightly from the actual situation,
due to the different set executions.
• Follow the disassembling instructions in described order.
Note: To diagnose the set with ComPair it is not needed to
open the set entirely.
To access the ComPair connector, proceed with the following:
1. Manually unlock and remove the cover cap.
2. Remove the tape shielding that covers the ComPair
connector (1).
Note: Make sure that both the ComPair connector and the
UART connector are shielded off with a piece of insulating tape
after repair for ESD reasons. Place this tape over the holes in
the rear cover of the set.
Figure 4-1 ComPair connector
4.1 Service Position
4.1.1 Foam Bars
Figure 4-2 Foam bars
The foam bars (order code 3122 785 90580) can be used for
all types and sizes of Flat TVs. By laying the plasma or LCD TV
flat on the (ESD protective) foam bars, a stable situation is
created to perform measurements and alignments. By placing
a mirror under the TV, you can easily monitor the screen.
4.2 Cable Dressing
Figure 4-3 Cable dressing (15-inch model)
E_14520_034.eps
160904
1
E_06532_018.eps
170504
F_15790_004.eps
051205

Mechanical Instructions EN 5LC4.1HE AB 4.
4.3 Assy/Panel Removal
4.3.1 Rear Cover
Warning: Disconnect the mains power cord before you remove
the rear cover.
1. Remove the screws that secure the rear cover.
2. Lift the rear cover from the cabinet cautiously. Make sure
that wires and other internal components are not damaged
during cover removal.
4.3.2 i-Board Panel
Figure 4-4 i-Board panel
1. Disconnect all cables from the panel.
2. Untwist the fixation lip [1] c.c.w. with a pair of pliers.
3. Remove the panel.
4.3.3 Side I/O Panel
Figure 4-5 Side I/O panel
1. Disconnect the cable [1] from the panel.
2. Release the two fixation clamps [2] and lift the panel out of
the bracket.
4.4 Set Re-assembly
To re-assemble the whole set, execute all processes in reverse
order.
Notes:
• While re-assembling, make sure that all cables are placed
and connected in their original positions. See Figure "Cable
dressing". Also make sure that the anti-static copper foils
are not damaged and that they make good electrical
contact with the metal frame. Be careful with the fragile
LVDS cable.
F_15800_004.eps
201205
1
F_15800_005.eps
071205
1
2
2

Service Modes, Error Codes, and Fault Finding
EN 6 LC4.1HE AB5.
5. Service Modes, Error Codes, and Fault Finding
See the relevant chassis manual (order code on front page).
Personal Notes:
E_06532_012.eps
131004

Block Diagrams, Test Point Overviews, and Waveforms 7LC4.1HE AB 6.
6. Block Diagrams, Test Point Overviews, and Waveforms
Wiring Diagram 15”
F_15790_006.eps
061205
LEFT
SPEAKER
BSSB
POWER
SUPPLY
+
INVERTER
TUNER
1910
12P
RIGHT
SPEAKER
JITV IR
MODULE
i2 ITV SIDE
IO FOR C2
5P
1540
1751
5P
1401
4P
1010
10P
1404
20P
LVDS CONNECTOR
TO DISPLAY
20P
1007
8P
1684
3P
1701
3P
1462
5P
J2
4P
J1
4P
HC I BOARD
J10
3P
J6
8P
J3
5P
1332
4P
1200
12P
CN1
5P
POWER IN
1001
2P
1111
4P
1108
10P
1105
4P
1110
3P
DSIDE I/O
1540
5P
J4
24P
1001
24P
8910
8951
8462
8010
8401
8870
8701
8403
8408
8404
8406
8105
8105
1951
5P
1684
3P
ETOP CONTROL
8684
Wiring 15”
1360
2P3
1362
2P3
1365
2P3
1367
2P3
TO DISPLAY
TO DISPLAY

8LC4.1HE AB 6.
Block Diagrams, Test Point Overviews, and Waveforms

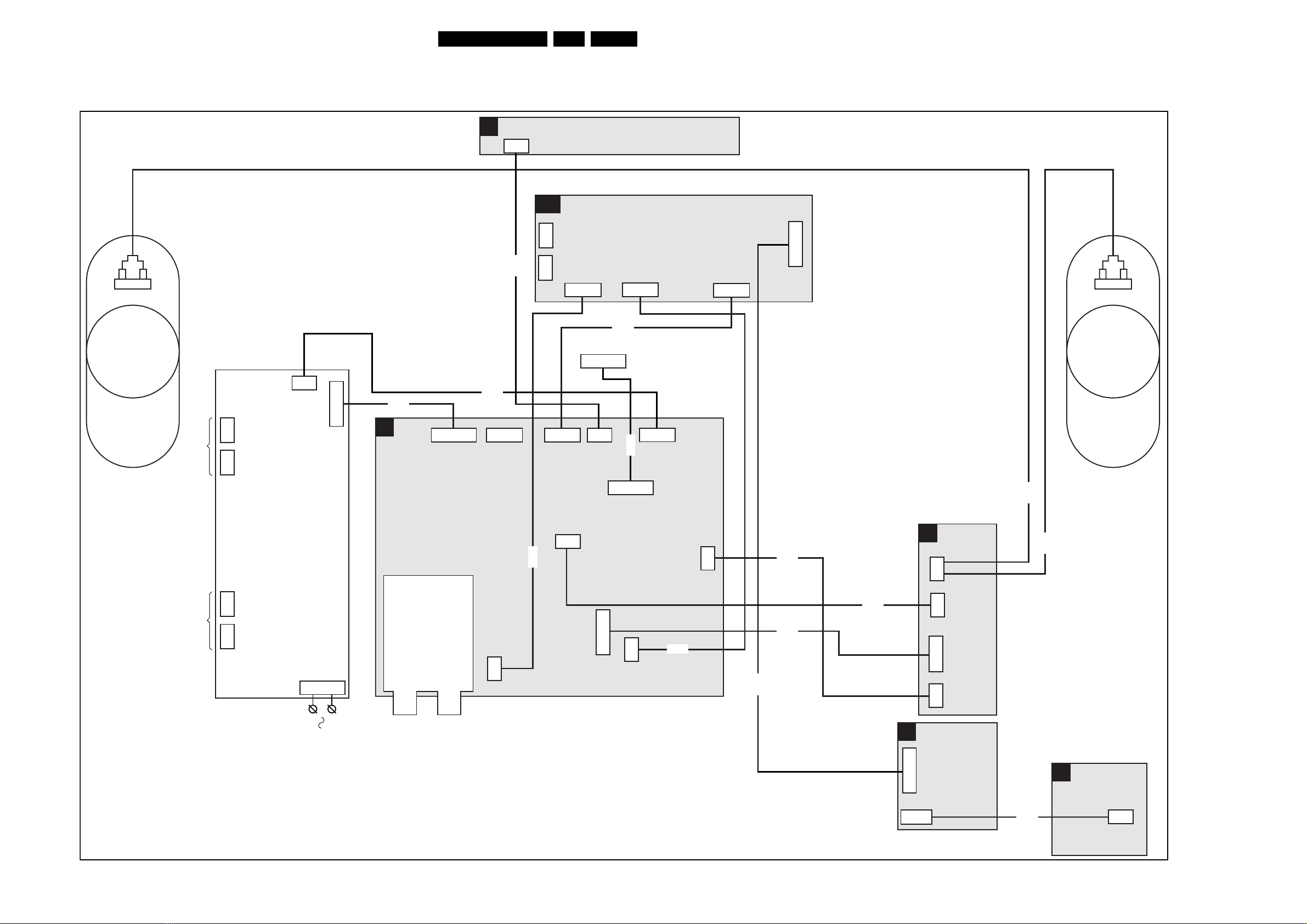

Wiring Diagram 20” & 23”
F_15790_007.eps
061205
LEFT
SPEAKER
B
SSB
POWER
SUPPLY
+
INVERTER
TUNER
1910
12P
RIGHT
SPEAKER
J
ITV IR
MODULE
i2
ITV SIDE
IO FOR C2
5P
1540
1751
5P
1401
4P
1010
10P
1404(1402)
20P(40P)
LVDS CONNECTOR
TO DISPLAY
20P(40P)
1007
8P
1684
3P
1701
3P
1462
5P
J2
4P
J1
4P
HC
I BOARD
J10
3P
J8
6P
J3
5P
1332
4P
1684
3P
E
TOP CONTROL
I
AUDIO
AMPLIFIER
1704
5P 1703
2P
1706
5P
1200
12P
1260
3P
O
CLOCK
MODULE
J1
4P
POWER IN
1001
2P
1111
4P
1108
10P
1105
4P
1107
5P
D
SIDE I/O
1540
5P
J4
24P
1001
24P
8910
8910
8400
8405
8462
8010
8401
8870
8409
8403
8107
8751
8408
8404
(8402)
8406
8105
8105
THE NUMBERS BETWEEN ( )
ARE FOR THE 20” DISPLAYS
WIRING 20” AND 23”
8684
3P
1701

Block Diagrams, Test Point Overviews, and Waveforms 9LC4.1HE AB 6.
Block Diagram Video
1302
UR1316S
TV IN
TUNER
2321
11
1328 VIF2
VIF1
8
7
2
4513311 RF_AGC
SCL
SDA
DC
AC AGC
Detect
1101
20
7
16
15
11
CVBS_SC1_AV1_IN
21
1
SCART 1
104
105
95
71
70
74
19
SC1_CVBS_RF_OUT
EF
7101
52 51 50 49
EF
7014
R_SDTV
EF
7013
G_SDTV
EF
7012
B_SDTV
44
43
42
55 54 53 59 58 56
107
62
7461
27
3
7
25
1
5
R_MUX
R_MUX
R_MUX
17
14
11
VS_PC 2
HS_PC 12
7463
1
13
V_SDTV
H_CS_SDTV CS_HSYNC
VSYNC
14
15
7510
1
5
4
8182
181
1485
15
18
23
24
17
+5VSWI
14
9
10
11
2
1
ANALOG
INPUT
PORT
DVI/HDMI
INPUT
PORT
7403
MX29LV040QC
SDRAM
1Mx32x4
RMDATA
RMADDR
7401
GM5221H
GRAPHIC
ZOOM
DISPLAY
TIMING
GEN.
VIDEO
ZOOM
OSD CONTROLLER
OUT BLENDER
BRIGHTNESS/CONTRAST/HUE/SAT
SYSTEM
7402
M24C32
EEPROM
(NVM)
4Kx8
1404
2
5
3
4
7
6
8
9
10
12
15
18
20
19
14
16
PAN_VCC
RGB/Pr Pb Insert
YUV Interface
RGB Matrix
Blue & Black
Strech
Gamma Corr.
PAL/NTSC/
SECAM
Decoder &
Baseband
Delay
Sync Sep
H-OSC
H-Shift
H-Drive
Vertical &
East-West
Geometry
CVBS/Y
VDRB
H/V HOUT
RO
GO
BO
INSSW3
Chroma
Yint
R/Pr-3 G/Y3 B/Pb-3 YOUT VOUT UOUT VIN UIN YSYNC
B_OSD
G_OSD
R_OSD
Fast Blanking
Peaking
SCAVEM
U/V Delay
Skin Tone
U/V Tint
Saturation
YUV
YUV in/out
SAT
SCAVEM
on text
Dig. 2H/4H
Combfilter
Y Delay Adj.
c
cvbs/y
Sound
Traps
Video
Switch
+
Control
Uint
Vint
CVBS1
HS_PC
VS_PC
B_Pb_PC
G_Y_PC
R_Pr_PC
RX0n
RX0p
RXCp
RXCn
RX1n
RX1p
RX2p
RX2n
ROM
INTERFACE
QSS Mixer
AM Demod. AM
QSS/FM
1330 7
8
2SIF2
SIF1
99
100
I044
I041
I039
IF-TER 22
13
21
14
20
19
15
16
18
17
119
118
124
123
129
128
132
133
151
147
142
7011
TDA15021H1
V_SDTV
H_CS_SDTV
DVI-I
CONNECTOR
8
STATUS_1
67
+5SW_a
+VTUN
18 916
17
24
C5
C1 C2
C3 C4
28
8
27
26
25
F_15790_008.eps
061205
SD_PCHD_SEL
10,11
2
1108 1010
2
44
1
5
SVHS
24
3
1101
1102
AV3_C_IN
AV3_CVBS_Y_IN
86
SC1_FBL_IN
SC1_R_V_IN
SC1_G_Y_IN
SC1_B_U_IN
B2
AV3_CVBS_Y_IN
AV3_C_IN
LV_E0_TX0-
LV_E9_TX3+
LV_E1_TX0+
LV_E2_TX1-
LV_E3_TX1+
LV_E7_TXC+
LV_E6_TXC-
LV_E4_TX2-
LV_E5_TX2+
LV_E8_TX3-
1402
1
31
33
35
37
39
42
TO DISPLAY (20”) TO DISPLAY (15” , 23”)
23
SCALER
B7
PC_HD_SEL
EXT 1
VIDEO
IN
S-VHS
FM IN
7316
SSIF
B2
SEL_IF
B2
7320 3
6323
AV3_CVBS_Y_IN
AV3_C_IN
B_Pb_PC
G_Y_PC
R_Pr_PC
SD_PCHD_SEL
22
B7
1
38
31
37
32
36
35
29
30
34
33
LV_O 0
LV_O 7
LV_O 1
LV_O 2
LV_O 3
LV_O 9
LV_O 8
LV_O 4
LV_O 5
LV_O 6
SDA_IO
SCL_IO
WC
93
92
84
7
6
5
48
47
43
44
55
49
45
46
FHSYNC
PD20
PD21
HSHCLK
FVSYNC
PD22
PD23
FED
PA N _ V C C
EG1
ER0
EG0
ER1
ER7
ER6
ER2
ER3
ER5
ER4
EB3
EG4
EB2
EG5
EB1
EB0
EG2
EG3
EG7
EG6
EB5
EB4
EB7
EB6
ER(0-8)
EG(0-8)
EB(0-8)
LV_E0_TX0-
LV_E9_TX3+
LV_E1_TX0+
LV_E2_TX1-
LV_E3_TX1+
LV_E7_TXC+
LV_E6_TXC-
LV_E4_TX2-
LV_E5_TX2+
LV_E8_TX3-
2057
2056
2027
SC1_CVBS_RF_OUT
H_CS_SDTV
V_SDTV
1462 J3
44
33
11
22
B2
B2
Q2
CVBSTERR
+5VA
Q11
+5VA
Q10
HSYNC
Q9
+5VA
Q8
VSYNC
J4 1001
99
13 13
88
1003
9
3
4
HSYN
VSYN
CVBSterr
B2
B8
B8
B8
For ITV
only
TO SMART CARD
EXPRESS BOX
F306
F313
F315
F312
F314
F499
F503
F534
HD_FILTER
21
B1
TUNER + VIF
B10
REAR IO SCART
B2
HERCULES
B8
SCALER I/O
B6
SCALER
VIDEO
D
SIDE AV
HERCULES
B8
SYNC INTERFACE
HC
I-BOARD
I2
MODULE SIDE I/O
ONLY FOR ITV SETS
B7
SCALER

10LC4.1HE AB 6.
Block Diagrams, Test Point Overviews, and Waveforms
Block Diagram Audio & Control
B4
AUDIO AMPLIFIER
I
AUDIO AMPLIFIER (20”, 23”)
B2
HERCULES
B1
TUNER + IF
AUDIO
B10
REAR IO SCART
B10
REAR IO SCART
D
SIDE AV
D
SIDE AV
CONTROL
i2
MODULE SIDE I/O
J
IR LED PANEL
B3
HERCULES
HC
I-BOARD
B2
HERCULES
E
KEYBOARD CONTROL
i2
SIDE AV (20”, 23”)
1001
4
3
LEFT
SPEAKER
RIGHT
SPEAKER
60
61 AUDOUTLSR
AUDOUTLSL
1701
33
1110
11
7217
TDA15021H
1302
UR1316S
TV IN
FM IN
TUNER
2321
11
45
SCL
SDA
QSS Mixer
AM Demod.
AM
1330 7
8
2SIF2
SIF1
AD Conv.
Std Stereo
Decoder
21
1
1101
21
1
SC1_L_RF_OUT
SC1_R_RF_OUT
SCART 1
PC
AUDIO
IN
PC_AUDIO_L
PC_AUDIO_R
53
54
L_SC1_AV1_IN
R_SC1_AV1_IN
L_SC1_AV1_IN
R_SC1_AV1_IN
34
35
56
57
SCART 1
62
63
36
37
99
100
33
IF-TER
IFOUT
F306
AUDIO
SELECT
ADC/DAC
AUDIO
CONTROL
Vol/Treb/
Bass
Features
DACs
I2S
Processor
QSS/FM
MUTE
POWER_DOWN
SOUND_ENABLE
F_15790_009.eps
061205
6323
7320
3
SEL_IF_SDM
B2
OUT_MUTE MUTE
1751
44
1706
22
55
MUTE
7370
1101
6
2
1102
66
77
AV3_L_IN
AV3_R_IN
AV3_L_IN
AV3_R_IN
49
50
1108 1010
7712
TDA1517ATW
12,13
8,9
18
3
SC1_L
SC1_R
1104
4
3
EXT_MUTE
1
12
13
7602
74HC08PW
B2
3
11
MUTE
&
&2
EXT 1
AUDIO
L/R IN
EXT 1
3
1
10
SIFF
7316
PC_AUDIO_L
PC_AUDIO_R
99
10 10
STANDBY
B2
11
7752
7702
7703
11
STANDBY
B2
7712
TDA1517ATW
2
5
14
7
AUDOUTLSR
AUDOUTLSL
9
8
7703-2
7703-1
19
16
2
1
R+
R-
L+
L-
1704
44
1107
55
11
22
1106
11
22
1001 J4
1002
1
2
3
4
5
6
44
22
1540 1540
6540B
6540A
7540
7542
7541
3544
6541
GND
+5VA
VS
OUT
55
33
11
PC-TV-LED
LED-SEL
IR
3540 +5VA
Red
Green
LED_CTRL
RD_GR_LED
RC_IR
+5V
LEDIN_CLK
IRIN_DATA-IN
MODE
STATUS_DATA-OUT
GND
IR_OUT
LEDIN_CLK
IRIN_DATA-IN
MODE
STATUS_DATA-OUT
GND
IR_OUT
LED_CTRL
+5V
RD_GR_LED
RC_IR
33
44
55
66
17 17
20 20
21 21
22 22
23 23
71
66
J6 1007
55
22
PC_TV_LED_OUT 97
7011
TDA15021H1
115
107
120
7060
+3V3STBY
+5VSW
3063
6060
33
LED_SEL_OUT
RC_IR
+5V
PC-TV-LED
LED-SEL
LIGHT-SENSOR
IR
To Smart Card
Express Box
LEDIN_CLK_TXD_SCL1
IR_IN_DATA-IN_RXD_SDA1
MODE
STATUS_DATA_OUT
U5
P89C664
40
PC_TV_LED
13
10
11
114 SEL_IF
4015
SERVICE
SDM
116 STATUS_1
B3
102 EXT_MUTE
B3
111 SOUND-ENABLE
122 STANDBY
B3
B1
MICRO
CONTR.
HERCULES
See Blockdiagram
I²C
U3
HEF4053BT
4
9
18
44
+3V3STBY
+3V3STBY
LED-SEL
U4
HEF4053BT
15
IR_IN_TV
1
LIGHT-SENSOR
1309
1310
1311
1312
1314
Channel+
Channel-
Volume+
Volume-
Menu
KB
1684
22
1684
KEYBOARD
IR_OUT CONTR.
4MULTI
PLEX
MULTI
PLEX
1001
11
10
98 TV_IRQ
B5
B4
99 TV_SC_COM
B5
6073
126
128
6076
POWER_DOWN
B4 B5
B3
B3
FOR 20”, 23”
DISPLAY
FOR 15”
DISPLAY
3
1701
1
BATHROOM
SPEAKER
1005
FOR 20”, 23”
DISPLAY
HEAD
PHONE
1313
Power

Block Diagrams, Test Point Overviews, and Waveforms 11LC4.1HE AB 6.
Testpoint Overview SSB (Top Side)
3139 123 6019.1
F_15310_025.eps
270605
X1
X1 SERVICE TESTPOINT
500mV / div DC
5ms / div
X1
F528 B6
F529 B6
F530 B5
F531 B5
F532 B5
F535 B6
F536 B5
F537 B6
F538 B6
F539 B6
I414 B5
I416 B5
I418 B5
I420 B5
I422 B5

12LC4.1HE AB 6.
Block Diagrams, Test Point Overviews, and Waveforms
Testpoint Overview SSB (Bottom Side)
3139 123 6019.1 F_15310_026.eps
270605
F002 C4
F003 B2
F004 A3
F005 D4
F006 D3
F007 E2
F009 A3
F013 B3
F014 B5
F015 B4
F017 A2
F018 A3
F020 B3
F021 B3
F022 B4
F023 C2
F026 C3
F029 D3
F034 D3
F040 D4
F041 D4
F042 D3
F043 D3
F044 D3
F045 D3
F050 A3
F051 A3
F099 B2
F101 E4
F102 E4
F103 E4
F104 E3
F105 E3
F106 E3
F107 E3
F108 E3
F109 E3
F110 E2
F111 E2
F112 E2
F113 E2
F114 E3
F115 E3
F116 E3
F301 E5
F302 E4
F303 D4
F305 D5
F306 D5
F307 D5
F308 E4
F309 D4
F310 B3
F311 D5
F312 C5
F313 C5
F314 C5
F315 C5
F401 D1
F402 D1
F403 C1
F404 C2
F405 C2
F406 C2
F407 C2
F408 D1
F409 C1
F410 C1
F411 C1
F412 C1
F413 C1
F414 B1
F415 B1
F416 C1
F417 C2
F455 C2
F456 C2
F457 C2
F471 E1
F472 D1
F473 D2
F474 E1
F475 E1
F476 E1
F477 D1
F478 E1
F479 E1
F480 E1
F481 E1
F484 E1
F485 E1
F487 E2
F489 D1
F497 D2
F498 E2
F499 C1
F501 D1
F502 D3
F503 C1
F504 D1
F505 D1
F506 E2
F507 E2
F533 B1
F534 B2
F707 B4
F708 A4
F710 A5
F751 D6
F752 D6
F753 C6
F903 A5
F904 A6
F905 A6
F906 A6
F907 A6
F908 A6
F909 A6
F910 A6
F911 B5
F912 C5
F913 B5
F914 A6
F951 A1
F952 A1
F954 B3
I005 B5
I008 D3
I009 B4
I011 D4
I015 B3
I016 D4
I017 B4
I018 B4
I019 B4
I020 B4
I022 C5
I034 D3
I035 D3
I036 D3
I039 D1
I040 C3
I041 D2
I043 D3
I044 D2
I046 D3
I047 D3
I048 D3
I049 D3
I051 D3
I052 D3
I053 D3
I055 C3
I056 B3
I057 D2
I058 C2
I059 C3
I060 C2
I061 C2
I062 C3
I063 B3
I064 B3
I067 C3
I068 B3
I069 D3
I070 C3
I071 B3
I082 D5
I091 C2
I093 B3
I094 B4
I096 B4
I098 A3
I101 E4
I102 E4
I103 E4
I104 E3
I105 E3
I106 E3
I107 E3
I108 E3
I109 E3
I110 E2
I111 E2
I112 E4
I113 D4
I114 E4
I115 D3
I116 E3
I301 D5
I302 D5
I303 D5
I304 D5
I306 D5
I307 D5
I308 D5
I310 D5
I401 D2
I402 D2
I403 C1
I404 C1
I405 D2
I406 D2
I407 D2
I408 D2
I410 C2
I411 C2
I412 C2
I413 A2
I419 A1
I438 B1
I451 B2
I462 D1
I463 D1
I464 D1
I483 E1
I484 E2
I485 E1
I486 E1
I487 E1
I488 E1
I492 C1
I493 C1
I494 C1
I496 C1
I512 D1
I513 D1
I514 D1
I516 D2
I517 E2
I518 D3
I701 A4
I705 A5
I706 B4
I707 A4
I708 A5
I709 B4
I710 B4
I711 A4
I714 A5
I715 B5
I719 B5
I720 A5
I721 B3
I722 A3
I751 C6
I752 D6
I753 D6
I901 B6
I902 C6
I904 B6
I905 A6
I906 B6
I907 B6
I908 C6
I909 A6
I910 B6
I911 B6
I912 B6
I951 B1
I952 A1
I953 A1
I954 A1
I955 A1
I956 B2
I957 A2

Block Diagrams, Test Point Overviews, and Waveforms 13LC4.1HE AB 6.
I2C Overview
HERCULES TUNER + IF
B1
I²C
B2
SCALER IO (OPTIONAL)
B8
SCALER
B6
I-BOARD
HC SIDE I/O
i2
B7
SCALER
SIDE I/O
D
SDA
SCL
20
HERCULES
SET
PROCESSOR
21
54
1302
UR1316S
TUNER
ERR
10
78 77
7401
GM5221
SCALER
ERR
4
ERR
6
F_15790_011.eps
061205
+3V3STBY
3356
3353
56
7099
M24C16
EEPROM
NVM
ERR
9
NVM_WP
+3V3STBY
3097
25 1331
1
2
3
SERVICE
CONNECTOR
COMPAIR
18 916
17
24
C5
C1 C2
C3 C4
1485
7
6
56
7490
M24C02
EEPROM
256x8
DCC_DVI_5V
3514
3495
SDA_DVI
SCL_DVI
DVI-D
CONNECTOR
SDA_IO
SCL_IO
56
7402
M24C32
EEPROM
93
92
+3V3_DVDD
3443
3414
ERR
8
NVM_WPP
7403
MX29LV040
FLASH
ROM
ERR
4
ADDRESS
DATA
84
80
79
SDA
SCL
7
JTAG_SDA_UART_TX
JTAG_SCL_UART_RX
72
71
+3V3_DVDD
3401
3402
RMDATA
RMADDR
7
7011
TDA15021H1
32
U5
P89C664
8 bit
MICRO
CONTROLLER
R26
R25
+5VD
R24
R23
SDA2
SCL2
22
21
2
3
J1
+5VD
R39
R40
U3
HEF4053BT
MULTI
PLEXER
SDA3
23 13
+5VD
R69
14
U7
ST202ECD
RS232
TRANCIEVER 13
14
U2
HEF4053BT
MULTIPLEX.
2
12
12
11
TXD
RXD
14
15
IR-IN_DATA-IN_
RXD_SDA1
LEDIN_CLK_
TXD_SCL1
CLK_LED-IN_SCL1
DATA-IN_SDA1
3
13
44
43
TO
CLOCK MODULE
(Optional)
5
7
1332
33
J2
22
TXD232
RXD232
TXD
RXD
+5VD
RP1
RP1
Q12
R67
R68
24 24
1001
11 11
J4
10 10
7
6
1003
5
TXD232
RXD232
SDA3_IR-OUT
TO SMART CARD
EXPRESS BOX
22
11
2
1002
1
IRIN_DATA-IN
LEDIN_SCL1
TO SMART CARD
EXPRESS BOX
3430 3431
3442
3441
1111
22
1401
33
11
44
+3V3_DVDD
+3V3STBY
3
1112
2
13123
3124
UART DOR
SERVICE
SDA1
SCL1
56
U8
MC24C16
R35
R34
24
25
+5VD
RP5
RP5
3303
3302
ITV
INTERFACE
+3V3_DVDD
3444
3497
3496
SDA
SCL
3353
3354

14LC4.1HE AB 6.
Block Diagrams, Test Point Overviews, and Waveforms
Supply Voltage Overview
B5
TV SUPPLY
B1
TUNER + IF
B2
HERCULES
B3
HERCULES
B4
AUDIO AMPLIFIER +PROCESSING
B6
SCALER
B7
SCALER
B8
SCALER IO
B9
SUPPLY
B10
REAR IO SCART
I
AUDIO AMPLIFIER
J
ITV IR MODULE
HC
I-BOARD
O
CLOCK BOARD (OPTIONAL)
i2
MODULE SIDE I/O
SUPPLY
PANEL
(PSU)
+
INVERTER
SUPPLY LINE OVERVIEW
1
1910
2
3
4
5
6
7
8
9
10
11
12
LAMP_ON_OFF
BACK_LIGHT_ADJ1
STANDBY
POWER_DOWN
1200
HC
TO J10
I BOARD
(20”, 23”)
1260
1001
AUD_SUP
+3V3STBY
+12VSW
7920
IN OUT
COM
+12VSW +8VSW_TV
7930
MC34063AD
SUPPLY
IC
5930
+12VSW
7936
3935
3937
1
6
5931 5932
+5VSW
+VTUN
5932
6910
B2
B2
B7
B7
+3V3STBY
+3V3STBY
+5VSW
+5VSW
+VTUN
+VTUN
B5
B5
B5
+8VSW_TV
+8VSW_TV
+3V3STBY
+3V3STBY
+5VSW
+5VSW
B5
B5
B5
+1V8_B
+1V8_B
+1V8_A
+1V8_A
B3
B3
+5VSW
+5VSW
+3V3STBY
+3V3STBY
B5
B5
7004
+1V8_A
7001
7003
7002
DECDIG
+1V8_B
B2
3003
3004
3002
3001
1007
5
+3V3STBY
+3V3STBY
AUDIO_SUP
AUD_SUP
+5VSW
+5VSW
B5
B5
B5
+3V3STBY
+3V3STBY
+3V3_DVDD
+3V3_AVDD
5401
5404
B5
+1V8
+1V8
+1V8_DVDD
+1V8_AVDD
5402
5403
B9
+5VSW
+5VSW
PA N _VCC
PAN_VCC
B5
B9
+3V3STBY
+3V3STBY
+5VSW
+5VSW
VDD
B5
B5
5520
1485
5
DCC_DVI_5V
5485
6486
6485
+3V3STBY
+3V3STBY
PAN_VCC
B5
5955 7954
7953*
IN OUT
COM
5959*
5957* 5961
7952
PA N EL_
POWER_
CTL
*SEE DIVERSITY LIST
+1V8
7955
IN OUT
COM
+5VSW
+5VSW
+3V3_AVDD
+3V3_AVDD
B6
+3V3_DVDD
+3V3_DVDD
B6
AUD_SUP
1
1703
+5VA
1
1540
+3V3STBY
J2
1+3V3STBY
+3V3
L1
+5V
U1
SMPS
CONTR
L4
D2
+5VA
+5VD
L5
L6
J4
21
7
+5V
J10
1+12V** +12V**
J1
1
B3
1007
O
1442
i2
1001
PSU
1260
(20”,23”)
1442
1VDDVDD
HC
J1 L1
12V**
7
1001
1
1004
+5V
21
1540
1
J
1540
i2
1540
HC
J4
12VDC
IN
(15”)
F_15790_010.eps
061205
B2
B2
HC
J2
B7
B7
PSU
1200
12V*
12V*
B1,B2,B3,
B4,B6,B8,
B9
B4
B9
B1,B2,B3,
B4,B7,B8,
B10
B1
B2
B5
5956*
+12VSW
B9
B5
5958*
B7
B6
1540
1
PSU
CN1
(15”)
PA N _VCC_IN
4,5
B9
TO 1951
SSB
(15”)
CN1
F903
F905
F906
F913
F912
15”
1003
1
12V
*For 15” 12V Supply for I-Board is
comming from external supply
Module Side I/O (1004)
+12V*
+12V
**For 20”, 23” 12V Supply for I-Board
is comming from PSU (1260)
15”
15”

Circuit Diagrams and PWB Layouts 15LC4.1HE AB 7.
7. Circuit Diagrams and PWB Layouts
Side I/O Panel & LKB 15”
1 2 3 4 56
A
B
C
D
654321
D
C
B
A
3026
41.7R
3020
2K2
3025
41.7R
3023
560R
3019
1K
3022
1K5
3021 1K-NL
3027
0R
+
2003
2.2uF, 25V-NL
1
2
3
4
1006
4B-PH-K-S
1
2
3
4
1007 4B-PH-K-S
1
2
3
4
5
6
7
8
9
10
1003
10PIN-CONN
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
1001
B24B-PHDSS-B
2
3
1
1004
TC18-041-03
1
2
3 4
1005
LGT1509-0200
1
2
3
45001
PH 3112 338 3088
1
2
3 4
5000
LITAI 320417-3
12
34
7000
TCET110-3G
1
2
3
4
5
6
1733
SPPH4
AK 6005
BZX384-C10
AK
6004
BZX384-C5V1-NL
1
23
7006
BC857BW-NL
1
23
7008
BC857BW-1
1
2
3
7007
BC857BW-1
1
32
7001
BC847BW-1
+
2004
1000uF,16V
+
2002
100U,50V
2006
100nF
2005 4n7F
AK
6007
6V5C-483XZB
AK
6008
6V5C-483XZB
3029
220R
3007
10R, 0805
3016
5K6 3018
1K8
3017
5K6
3028
2.2K
3024
1K-NL
5002
10uH
5003
6.8uH
5004
6.8uH
2008
2n2
6002
BAS316
6001
BAS316
1
3
2
4
5
6
6009
BZA408B
1
3
2
4
5
6
6010
BZA408B
2007
2U2
3030
1K
TO TV Board
TO LoudSPK
3031
10K
3032
10K
1
3
2
7009
BC847BW-1
LEDIN_SCL1
IRIN_DATA-IN
MODE_12V
STATUS_DATA-OUT
DGND
IR OUT
12V HSYN
VSYN
TXD232
RXD232
DCM-POR
CVBSterr
GNDA HP-ROUT
HP-LOUT
TO i-BOARD
PEND IR
R+
R+
R-
R-
L+
L-
L-
L+
3033
0R
3034
0R
1
2
3
4
5
6
1002
6PIN-CONN
AK
6006
BZX384-C5V1-NL
2009
L
N
-Fu2.2
LED_CTRL
+5V
RD_GR_LED
RC_IR
1
2
3
1701
3B-PH-K-S
1
2
3
4
5
1540
5B-PH-K-S
TV_12V
HSYN
VSYN
TXD232
RXD232
DCM-POR
CVBSterr
GNDA
3008
10R, 0805
5006 6.8uH
3035
1K
2010
100pF
5005 6.8uH
6011
PRLL4001
6012
PRLL4001
RJ45
RJ12
1
2
34
5
6
9
MH1
MOUNTING_HOLE
1
2
34
5
6
9
MH2
MOUNTING_HOLE
1
1008
1_PIN_CONN
TV_12V
1
1009
1_PIN_CONN
SDA1
3036
Res, 0603
MODE_12V
HC
TO IR MODULE
J
TO SSB
B
i2
SIDE I/O 15”
F_15790_012.eps
071205
3139 123 5986.2

16LC4.1HE AB 7.
Circuit Diagrams and PWB Layouts
Layout Side I/O Panel 15” (Top Side)
Layout Side I/O Panel 15” (Bottom Side)
F_15790_013.eps
061205
3139 123 5986.2
F_15790_014.eps
061205
3139 123 5986.2
Personal Notes:
E_06532_012.eps
131004

Circuit Diagrams and PWB Layouts 17LC4.1HE AB 7.
Side I/O & Panel & LKB 20” & 23”
123456
A
B
C
D
654321
D
C
B
A
3026
41.7R
3020
2K2
3025
41.7R
3023
560R
3019
1K
3022
1K5
3021 1K-NL
3027
0R
+
2003
2.2uF, 25V-NL
1
2
3
4
1006
4B-PH-K-S
1
2
3
4
1007 4B-PH-K -S
1
2
3
4
5
6
7
8
9
10
1003
10PIN-CONN
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
1001
B24B-PHDSS-B
2
3
1
1004
TC18-041-03
1 2
3
4
1005
LGT1509-0200
1
2
3
45001
PH 3112 338 3088
1
2
3 4
5000
LITA I 320417-3
12
3 4
7000
TCET110-3G
1
2
3
4
5
6
1733
SPPH4
AK
6005
BZX 384-C10
A K
6004
BZX 384-C5V1-NL
1
23
7006
BC857BW-NL
1
2
3
7008
BC857BW-1
1
23
7007
BC857BW-1
1
3
2
7001
BC847BW-1
+
2004
1000uF,16V
+
2002
100U,50V
2006
100nF
2005 4n7F
A K
6007
BZX 384-C5V 6
A K
6008
BZX384-C5V6
3029
220R
3007
10R, 0805
3016
5K6 3018
1K8
3017
5K6
3028
2.2K
3024
1K-NL
5002
10uH
5003
6.8uH
5004
6.8uH
2008
2n2
6002
BA S316
6001
BA S316
1
3
2
4
5
6
6009
BZA408B
1
3
2
4
5
6
6010
BZA408B
2007
2U2
3030
1K
TO TV Board
TO LoudSPK
3031
10K
3032
10K
1
32
7009
BC847BW-1
LEDIN_SCL1
IRIN_DA TA-IN
MODE_12V
STATUS_DA TA -OUT
DGND
IR OUT
12V HSYN
VSYN
TXD 232
DCM-POR
CVBSterr
GNDA HP-ROUT
HP-LOUT
Trd
PEND IR
R+
R+
R-
R-
L+
L-
L-
L+
3033
0R
3034
0R
1
2
3
4
5
6
1002
6PIN-CONN
A K
6006
BZX 384-C5V1-NL
2009
2.2uF-N L
LED_CTRL
+5V
RD_GR_LED
RC_IR
1
2
3
1701
3B-PH-K-S
1
2
3
4
5
1540
5B-PH-K-S
TV_12V
HSYN
VSYN
TXD 232
RXD 232
DCM-POR
CVBSterr
GNDA
3008
10R, 0805
5006 6.8uH
3035
1K
2010
100pF
5005 6.8uH
6011
PRLL 4001
6012
PRLL 4001
1
2
3 4
5
6
9
MH1
MOUNTING_HOLE
1
2
3 4
5
6
9
MH2
MOUNTING_HOLE
1
1008
1_PIN_CONN
TV_12V
1
1009
1_PIN_CONN
SDA1
3036
Res, 0603
MODE_12V
124011
JUM PER
3037
10K
+5V
4007 0R
RXD 232
12
9002
JUM PER
1 2
9003
JUM PER
SDA1
12V
1 2
4001
JUM PER
1 2
4002
JUM PER
1 2
4003
JUM PER
1 2
4004
JUM PER
1 2
4005
JUM PER
1 2
4006
JUM PER
1 2
4008
JUM PER
1 2
4009
JUM PER
1 2
4010
JUM PER
1 2
9001
JUM PER
TO i-BOARD
RJ45
RJ12
HC
TO IR MODULE
J
TO SSB
B
i2
SIDE I/O 20” & 23”
F_15790_015.eps
071205
3139 123 6159.1

18LC4.1HE AB 7.
Circuit Diagrams and PWB Layouts
Layout Side I/O Panel 20” & 23” (Top Side)
Layout Side I/O Panel 20” & 23” (Bottom Side)
F_15790_016.eps
061205
3139 123 6159.1
F_15790_017.eps
061205
3139 123 6159.1

Circuit Diagrams and PWB Layouts 19LC4.1HE AB 7.
i-Board Panel
i-BOARD
HC
F_15800_006.eps
240505
3139 123 6133.3
123456
A
B
C
D
654321
D
C
B
A
L1
6u8
+3V3STBY+12V +3V3
R50
1R5
X1
16MHz
8
7
6
5
1
2
3
4
Drive
Ipk Sense
Vcc
Comparato r
Inv. I/p
Sw i tc h
Coll ec to r
Sw i tc h
Emi tt er
Timing
Capacito r
Ground
Coll ec to r
U1
MC34063AD
R2
220R
R49 1R5
R5
2K7
R6 470R
R4
1K0
C2
100pF
A K
D2
SS24
L3
68uH
+C1
220uF, 16V
+C3
220uF, 16V
L4
6.8uH
+C4
220uF, 16V
+5V
L5
6.8uH - 1008 +
C5
100uF, 16V
+C6
100uF, 16V
L6
6.8uH - 1008
+5VD
+5VA
1
2
3
4
J1
4P-CONN-TYCO
LCD Clock
SDA2
SCL2
L7 Ferrite bead
+5V
C7 100nF
To TV
BD
SDA
SCL
SR
+3V3STBY
1
2
3
4
5
J3
5P-CONN-SR-V
To TV
BD
SR
To Side
I/O
R7
100R 1
3
2
Q2
BC847BW
R8
68R
R9
220R
+5VA
C8
100nF
HSYN
VSYN
LEDI N_CLK_TXD_SCL1
IR-IN_DATA-IN_RXD_SDA1
MODE
ST A T US_D AT A _OUT
IR_OUT
GND
+12V
HSYNC
VSYNC
TXD232
RXD232
DCM_POR
GNDA
HP_ROUT _RC-PULL UP
HP_LOUT
PEND_I R
+12V
Za
14
Zb
15
Zc
4
Sa
11
Sb
10
Sc
9
Vdd 16
Y1a13
Y0a12
Y1b 1
Y0b 2
Y1c 3
Y0c 5
Vss8
Vee7
E6
U2
HEF4053BT
R10 100R
R11 100R
+5VA
C9
100nF
IRIN_DATA-IN
DATA-I N_SDA1
Za
14
Zb
15
Zc
4
Sa
11
Sb
10
Sc
9
Vdd 16
Y1a13
Y0a12
Y1b 1
Y0b 2
Y1c 3
Y0c 5
Vss8
Vee7
E6
U3
HEF4053BT
R13 100R
C11 100nF
+5VA
Tristate
STATUS_DATA_OUT1
R15 10K
R16 100R
1
2
3
Q3
BC857BW
R17
150R
+5VA
1
3
2
Q4
BC847BW
R18
1K0
R19
10K
+5VA
1
32
Q5
BC847BW
R20
10K
Za
14
Zb
15
Zc
4
Sa
11
Sb
10
Sc
9
Vdd 16
Y1a13
Y0a12
Y1b 1
Y0b 2
Y1c 3
Y0c 5
Vss8
Vee7
E6
U4
HEF4053BT
C12 100nF
+5VA
IB_IROUT
IR_IN TV
1
2
3
4
5
6
7
8
9
10
J5
10P-CONN-SR-V
SR
SR
LC04V
LC04C
HP_ROUT _RC-PULL UP
HP_LOUT
PC_T V _L ED
LED_SEL
GND
LI GHT SENSO R
IR_IN TV
KEYBOARD_TVINTP
P50_I TV
PC_T V _L ED
LED_SEL
LI GHT SENSO R
+3V3S
+3V3S
P1. 5/CEX 2
1
P1.6/SCL
2
P1.7/SDA
3
RST
4
P3. 0/RxD
5
NIC*
6
P3.1/T xD
7
P3.2/INT0
8
P3.3/INT1
9
P3. 4/ CEX3/T0
10
P3.5/CEX4/T1
11
P3. 6/ WR 12
P3. 7/ RD 13
XTAL2 14
XTAL1 15
VSS16
NIC* 17
P2. 0/ A8 18
P2. 1/ A9 19
P2. 2/A1 0 20
P2. 3/A1 1 21
P2. 4/A1 2 22
P2.5/A1323
P2.6/A14 24
P2. 7/A1525
PSEN 26
ALE 27
NIC
*28
EA/Vpp29
P0.7/AD730 P0.6/A D6 31 P0.5/AD532 P0. 4/ A D 4 33
P0. 3/ AD3
34
P0. 2/ AD2
35
P0. 1/ AD1
36
P0. 0/ AD0
37
VCC
38
NIC*
39
P1. 0/ T 2
40
P1. 1/ T 2 EX
41
P1. 2/ ECI
42
P1. 3/ CEX 0
43
P1. 4/ CEX 1
44
U5
P89C664HBBD
1 8 2 7 36 4 5
RP2
10K-RP
1 8 27
36
4 5
RP3
10K-RP
+5VD +5VD
IR_IN TV
RJI R_I N
PC_T V _L ED _OU T
R21
100R
LED_SEL_OUT
R22 1K
LIGHT SENSOR
R24
4K7
R23
4K7
R25 100R
R26 100R
+5VD
SCL SDA
C13 27pF
C14 27pF
RXD
TXD
R28
10K
R27
10K
+5VD
R29
2K2
+5VD
1
3
2
Q6
BC847BW
R31
22K
R32
22K
L11
6.8uH - 1008
C25
1uF
+5VD
RST
1VCC2
GND
3
U6
DS1813
R30
5K6
1 2
SW1
Tact Switch, SKQNABD010
DCM_POR
CLK_LED- I N_SCL1
C16 27pF
C17 27pF
1 8
2 7
3 6
4 5
RP4
10K-RP
RX D TXD
TXD RXD
+5VD
STATUS_DATA_OUT1
R33 100R
1 2
J8
2P-Shrouded-HDR
1 2
3
J9
3P-CONN-SR-V
SPARE IO
SR
R34 100R
R35 100R
SCL1
SDA1
C1+ 1 V+
2
C1- 3
C2+ 4
C2- 5
V-
6
T2_OUT
7
R2_IN
8R2_OUT 9
T2_IN 10
T1_IN 11
R1_OUT 12 R1_IN
13
T1_OUT
14
GND
15 VC
C16
U7
ST202ECD
TXD232
RXD232
C18
100nF
C19 100nF
C20 100nF
C21
100nF
+
C22
100uF, 16V
L12
6u8- 1008
+5V
C24 100nF
C23 100nF
R36 100R
R37 100R
TXD
RXD
GNDA
PEN D_ I R
Fr om TV
RC_IR
PC_TV _LED
R38
220R
1
2
3
4
5
6
7
8
J6
8P-CONN-PH-V
P50_I TV
KEYBOARD_TV INTP
IB_IROUT
L8
6.8uH - 1008
+5V
+C26
100uF, 16V C27
100nF
1
2
3
J10
3P-CONN-PH-B
C28
10uF
+5VD
IR_
PULLUP_S
W
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
J4
24P-CONN-PHDSS-B
PC_T V _L ED _OU T
+5V
L10 6u8- 1008
LED_SEL_OUT
RC_IR
GNDA
RC_IR
R40
4K7
R39
4K7
R44
10K
+5VD
C35 10nF
C31
10nF
C30
10nF
C32 10nF
C33
10nF
C34
10nF
C36
1uF
C29
10uF
D3
BZX 384-C5V6
R48
22K
1
32
Q7
BC847BW
C37
10nF
1
2
3
Q8
BC857BW
R51
10K
R52
47K
1
32
Q9
BC847BW
R55
4K7
R54
10K
R53
47K
+5VA
VSYN
VSY N C
1
23
Q10
BC857BW
R56
10K
R57
47K
1
32
Q11
BC847BW
R60
4K7
R59
10K
R58
47K
+5VA
HSYN
HSYNC
R62 100R
R61 100R
1 8
2 7
3 6
4 5
RP5
10K-RP
C38
27pF
C39
27pF
E0 1
E1 2
E2 3
VSS4 SDA
5
SCL
6
WC
7
VCC
8
U8
MC24C16
SCL1
SDA1
C40 1nF
18
2 7
3 6 4 5
RP1
10K-RP
1
32
Q12
BC847BW
1
32
Q13
BC847BW
R63
47K
R64
10K
R67
100R
R68
100R
C42
100nF
C41
Reserve
SDA3
TV_POR
+5VD
+5VD
SDA2
SCL2
+5VD
R69 10K
SDA3
R70 100R
R72
1K
LCM_POW
LCM_POW
R71
0R
R73
4K7
C15
1uF
1
2
3
4
5
J7
5P-CONN-TYCO
LCM_POW
SDA2
SCL2 1
23
Q14
PBSS5140U
R75 0R
R74 100R
L13
BLM21P221SN1D
L14
BLM21P221SN1D
R76
10K
+5VA
C43
1uF
R79 10K
R80
10K
R780R
R77 10K
C44 100nF
C45
10nF
1
32
Q15
BC847BW
R82
10K
R83
1K
+5VA
R81 0R
R84
0R
HP_ROUT_RC-PULLUP
VSYNC
R85
10K
R86
10K
R1
100R
LED_SEL
R3
100R
1
32
Q1
BC847BW
R12
10K
LED_
SEL_OUT
R14
2K2
R47
4K7
R46 4K7
+C46
100uF, 16V
R41
0R
D1
BZX384-C2V7
CVBST ERR
CVBST ERR
IN
3
GND
2
OUT 1
U9 LED50CZ
R87
NFR254R7
M2
R42
0R
R43
0R
1
2
3
4
J2
4P-CONN-SR-V
DGND
CVBST ERR

20LC4.1HE AB 7.
Circuit Diagrams and PWB Layouts
Layout i-Board Panel (Top Side)
Layout i-Board Panel (Bottom Side)
F_15800_007.eps
240505
3139 123 6133.3
F_15800_008.eps
240505
3139 123 6133.3
