Philips AJ 3650 User manual

Clock Radio AJ 3650
User Manual
AJ3650_12_EN 1/25/08 14:49 Page 1

REPEAT ALARM/BRIGHTNESS CONTROL
DATE/SET TIME AUTO SCAN
FOCUS
DISPLAY
0
9
1
23
4
5
8
7
6
1
AJ3650_12_EN 1/25/08 14:49 Page 2

DC IN 7.5V
Model No. : AJ3650/12
DC 3V CR2032 (Backup Battery)
Ext AC-DC Adaptor
DC 7.5V 1A
Designed and Developed by Philips, Holland
Clock memory
back up
CR2032 battery
PUSH
TUNING
PRESET
+
+
VOLUME
(
&
@
!#
$
*
%
^
2
AJ3650_12_EN 1/25/08 14:49 Page 3

3
5
6
7
1
2
4
3
4
AJ3650_12_EN 1/25/08 14:49 Page 4

English
SUPPLIED ACCESSORIES
– 1 switching power adapter
(Model: DSA-9W-69F EU 075100, Input: 100-240V~50/60 Hz, 0.5 A,
Output: 7.5 V, 1.0 A)
– 1 outdoor temperature sensor
FRONT and TOP PANEL (See 1)
1PROJECTION/IMAGE FLIP
–toggles projection on and off
–LED light on/off indication
–switches project brightness levels between: bright, dim, very dim
–press and hold it to flip the image
2 RADIO
– switches the radio on/off
– displays radio frequency
3SLEEP
– switches sleep timer between: 15->30-> 60->90->120->OFF
4ALARM 1
– press it to switch on or off ALARM 1
– press and hold it to set time and alarm sound of ALARM 1
–press it to display status of ALARM 1
5ALARM 2
– press it to switch on or off ALARM 2
– press and hold it to set time and alarm sound of ALARM 2
–press it to display status of ALARM 2
6 REPEAT ALARM/BRIGHTNESS CONTROL
–turns off the alarm temporarily and repeats alarm after 9 minutes
–
press it to turn on blue background light
– press and hold it to turn off blue background light
AJ3650_12_EN 1/25/08 14:49 Page 5

7 AUTO SCAN
–in tuner mode, press and hold it to scan radio stations automatically and
stores them as preset stations
–clock and projection mode, press and hold it to search the outdoor tempera-
ture sensor
8 DATE/SET TIME
–press and hold it to
set time, date, and year
–press it to display date and day of week
9DISPLAY
– press it to toggle between indoor and outdoor temperatures
– press and hold it to display indoor temperature, outdoor temperature, and day of
week cyclically
0FOCUS
– adjusts focus of the projector to make projection clear

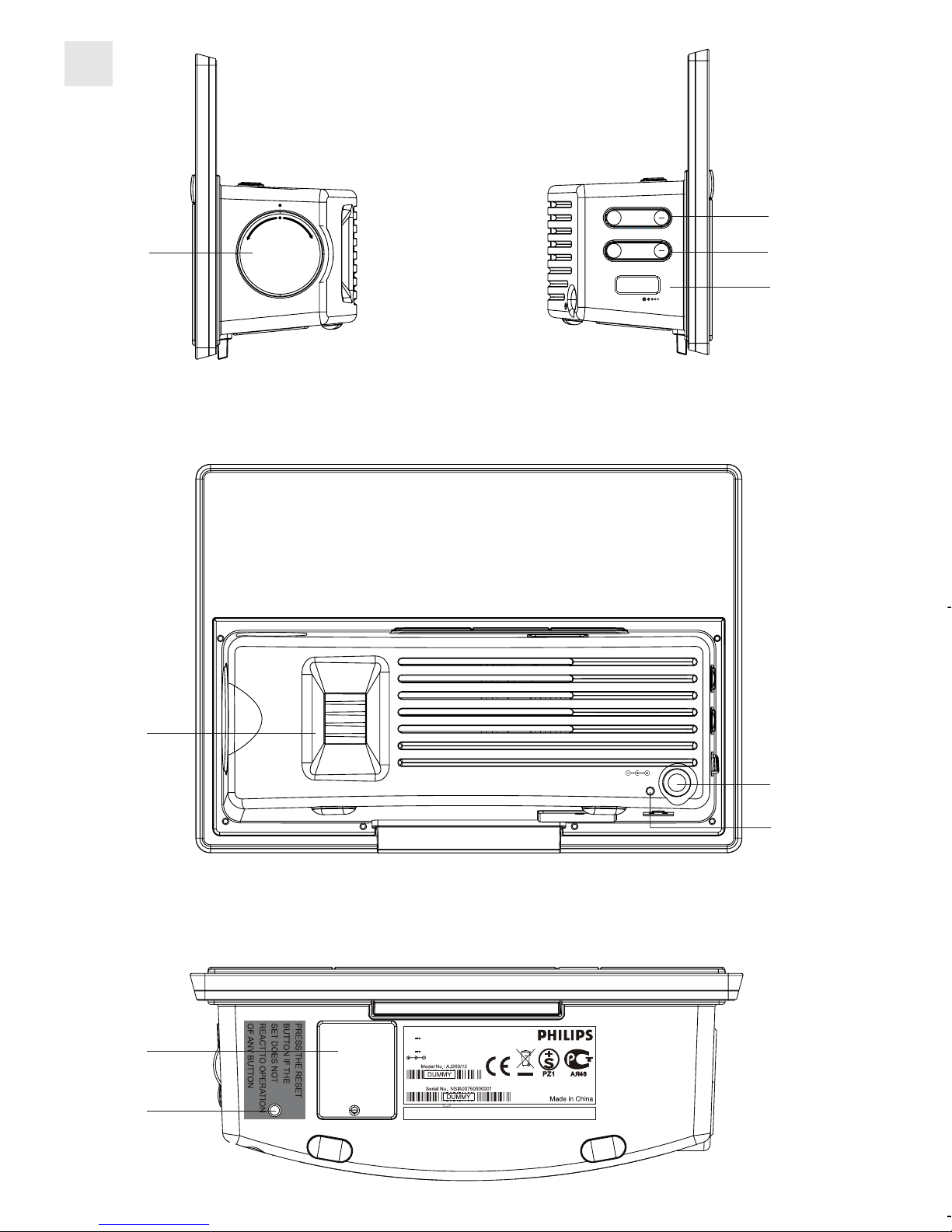

LEFT, RIGHT, and BACK PANEL
(See 2)
! PUSH
–
press it to pop out the projection lens for angle adjustment
@ PRESET +/-
– selects a preset station
– press and hold it to set current frequency as the preset station
– adjusts the preset station number in radio mode
– selects a track of relaxation music during setting sleep timer
#TUNING +/-
– tunes to radio stations
– sets time, date, and year
– selects alarm sounds during alarm setting
$VOLUME
– adjusts the sound level
AJ3650_12_EN 1/25/08 14:49 Page 6

% DC IN
– socket for AC/DC 7.5 V adapter
^ Pigtail
–temperature sensor and antenna to enhance FM reception
& RESET
– press if the set does not react to operation of any button
* Battery compartment
– holds the clock backup battery
( IMAGE ROTATE
– rotates the image by 90 degrees clockwise or counterclockwise

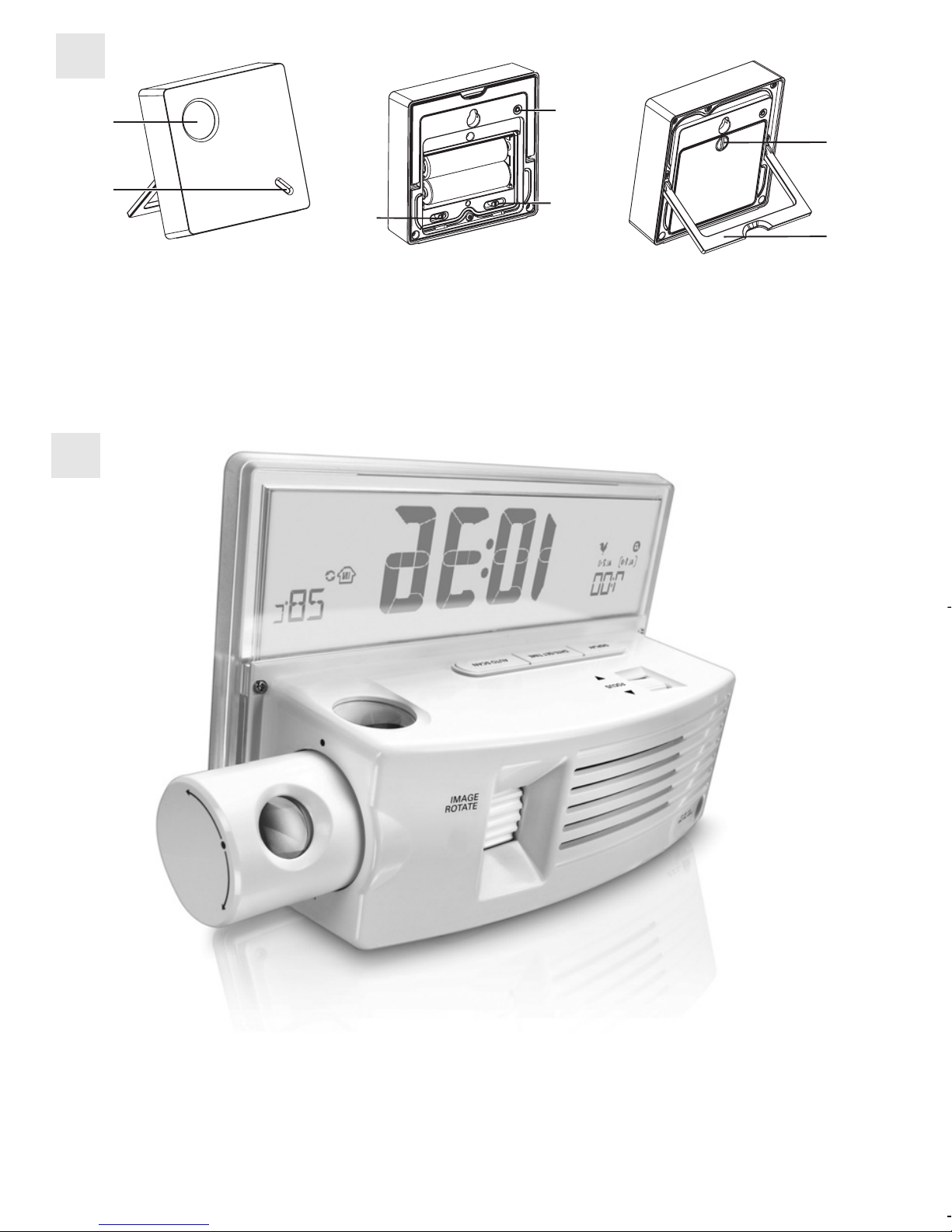

Controls on the sensor (See 3)
1LCD display
–shows current temperature, and low battery indication of the sensor
2LED light
– flashes when the sensor is transmitting
3RESET
– resets to start transmitting
4(oC oF) Slide Switch
– selects between Centigrade (oC) or Fahrenheit (oF) temperature unit dis-
play
5CHANNEL 1/ 2 /3
– selects RF channel to transmit and receive between the senor and the
main unit
6Door lock
– turns to lock and un-lock the sensor door.
7Sensor support
– pulls out to stand the sensor
POWER SUPPLY
Mains adapter
1
Connect the mains adapter to the set's DC IN socket and to the power socket.
2 Always disconnect the mains adapter if you are not using the set.
AJ3650_12_EN 1/25/08 14:49 Page 7

Helpful hints:
To avoid damage to the set, use only the adapter supplied!
SETTING THE CLOCK
The clock uses 24-hour time format.
Important!
Pull out the plastic protective sheet to activate the clock backup battery
(CR2032). This battery is included and installed in the set.
Manual setting
1. Press and hold DATE/SET TIME to enter the clock setting mode.
™
Year digits start flashing.
2. Hold down or press TUNING +/- repeatedly to set the current year.
3. Press DATE/SET TIME to confirm.
™ Month digits start flashing.
4. Hold down or press TUNING +/- repeatedly to set the current month.
5. Press DATE/SET TIME to confirm.
™ Date digits start flashing.
6. Hold down or press TUNING +/- repeatedly to set the current date.
7. Press DATE/SET TIME to confirm.
™ Date and Month indicators, D and M, start flashing.
8. Press TUNING +/- repeatedly to set the desired date format.
9. Press DATE/SET TIME to confirm.
™ Hour digits start flashing.
10. Hold down or press TUNING +/- repeatedly to set the current hour.
11. Press DATE/SET TIME to confirm.
™ Minute digits start flashing.
12. Hold down or press TUNING +/- repeatedly to set the current minute.
13. Press DATE/SET TIME to confirm.
™ Hr and offset number start flashing.
14. Press TUNING +/- repeatedly to set the desired hour offset value.
15. Press DATE/SET TIME to confirm.
RADIO
AJ3650_12_EN 1/25/08 14:49 Page 8

TUNING TO RADIO STATONS
Automatic tuning
•Press and hold TUNING +/- to automatically tune to the next or previous station of
sufficient reception.
Manual tuning
•Press TUNING +/- briefly or repeatedly until you reach the desired frequency.
To improve reception:
Extend and position the pigtail fully to obtain optimum reception.
STORING PRESET STATIONS
You can store up to a total of 15 radio stations in the memory.
Manual scanning
1. Tune to your desired station (see TUNING TO RADIO STATONS ).
2. To store a preset station, hold down
PRESET +/- briefly until the preset number
appears.
3. Press PRESET +/- repeatedly to select the preset station number.
•You can overwrite a preset station by storing another frequency in its place.
Automatic scanning
1. Press and hold AUTO SCAN until the frequency digits start flashing.
™
The set scans all available stations and stores them as preset stations in
sequence.
™ The set starts to play preset 1 when finishes scanning.
LISTENING TO RADIO
1. Press RADIO once to switch on the radio.
™ Display shows the radio frequency of the last selected station briefly
before returning to the clock time. Your preset station is also shown if you
are listening to a preset station.
2. Adjust volume by turning VOLUME .
3.
Press RADIO to switch off.
Helpful hints:
AJ3650_12_EN 1/25/08 14:49 Page 9

– When clock time is displayed, to view the current radio frequency,
•Press RADIO
twice.
•For preset stations, press the respective PRESET button once or repeatedly.
USING THE ALARM
Two different alarm times can be set. This can be useful when you and your part-
ner need to be woken up at different time. Besides, you can set different alarm
sounds respectively among tuner or sounds of nature.
SETTING THE ALARM
1. Press and hold ALARM 1 until hour digits start flashing.
2.
Hold down or press TUNING +/- repeatedly to set the desired hour.
3. Press ALARM 1 to confirm.
™ Minute digits start flashing.
4. Hold down or press TUNING +/- repeatedly to set the desired minute.
5. Press ALARM 1 to confirm.
™ starts flashing.
6. Press TUNING +/- repeatedly to select the desired alarm sound.
7. Press ALARM 1 to confirm.
8. Repeat the steps above but press ALARM 2 instead of ALARM 1 to set the
other alarm.
Helpful hints:
– If you have selected radio as the alarm sound, make sure you have properly tuned
to a station and set the volume before turning off the radio.
– To check the alarm time setting for ALARM 1 or ALARM 2, press ALARM 1 or
ALARM 2.
– It is not possible to adjust the alarm time during an alarm call or alarm repeating mode.
SWITCHING OFF THE ALARM
REPEAT ALARM
This repeats your alarm call at 9 minute intervals.
• During the alarm call, press REPEAT ALARM /BRIGHTNESS CONTROL .
™ A larm sound indicator flashes during a repeat alarm.
• Repeat if desired.
AJ3650_12_EN 1/25/08 14:49 Page 10

DEACTIVATING THE ALARM COMPLETELY
• Press ALARM 1or ALARM 2button once or more until the disappears.
SLEEP
About Sleep
This set has a built-in sleep timer, which enables the radio to be automatically
switched off or relaxation music volume to be turned down gradually after a set
period of time.
Setting and switching off SLEEP
1. Press SLEEP .
™ Time to sleep flashes.
2. Press SLEEP repeatedly to switch between:15->30->60->90->120->OFF.
3. Press PRESET +/- repeatedly to select next or previous in-built relaxation
music.
4. To cancel sleep, switches the timer to OFF.
USING THE PROJECTION
With this projection feature, you can conveniently project the clock time onto a
surface e.g. walls ceiling (furniture and glass are not recommended).
1. Press PROJECTION/IMAGE FLIP to switch on projection.
™ The Projection lens and LED indicator light up.
2. Turn the FOCUS wheel to make the projection image clearest.
3. Press and hold PROJECTION/IMAGE FLIP to flip the projected image vertically,
along the horizontal axis.
4. Push the projection cone to pop it out (See
4 ).
5. To change the projection slightly to a different angle, turn the IMAGE ROTATE
wheel (maximum 90 degree left or right).
6. Press PROJECTION/IMAGE FLIP to switch between: bright, dim, very dim and off.
Helpful hints:
– Turn the projection lens right upside before trying to push it back into the set.
Warning:
– The projection light might harm your eye. Please do not look at the projection lens
directly.
AJ3650_12_EN 1/25/08 14:49 Page 11

USING THE SENSOR TO DETECT OUTDOOR TEMPERATURE (See 3)
The main unit comes with an outdoor sensor. Using the sensor, the unit is capa-
ble to measure and display outdoor temperature through receiving data trasmit-
ted from the sensor placed at other location.
1. Place the sensor in a desired open area. The place must be within 50 meters
away from the main unit. Make sure the sensor is loaded with the batteries.
•For the first time using the outdoor sensor and the main unit, press
RESET located on the sensor back, and RESET located in the bottom of the
main unit. Then, the main unit will begin to receive transmission from the
sensor.
2. To update the outdoor temperature from the sensor any time, press and hold
AUTO SCAN for 5 seconds.
™ The temperature will be updated from the sensor about every 3 minutes.
™ When the outdoor temperature is updating with the sensor searching,
is displayed on the main unit.
To Improve the sensor reception
In case of intermittent/no connection,
•Slide the CHANNEL switch to Channel 2or 3, located in the battery com-
partment of the sensor, then repeat the setup connection described above.
•Reduce the distance between the sensor and the main unit.
•Press and hold AUTO SCAN for about 3 seconds to start searchings for the
remote sensor signal.
Note:
– Each time you change a channel, press RESET both on the sensor and main
unit, and then press and hold AUTO SCAN on the main unit to search the
sensor.
AJ3650_12_EN 1/25/08 14:49 Page 12

INDOOR TEMPERATURE
The set can also automatically measure and display current temperature in
Centigrade.
• Press DISPLAY to toggle the display between indoor temperature and out-
door temperature.
•Press and hold DISPLAY
to display indoor temperature, outdoor temperature,
and day of week cyclically
.
™ is displayed.
•To select between oC or oF reading, use the (oC oF) slide switch (located in
the battery compartment).
LOW BATTERY INDICATION
When the batteries of the sensor is running low, the low battery icon will be dis-
played on the main unit, or the sensor, indicating that the batteries should be
replaced soon.
MAINTENANCE & SAFETY
• Do not expose the set to humidity, rain, sand or excessive heat caused by
heating equipment or direct sunlight.
• To clean your set, use a soft damp cloth or chamois leather. Do not use clean-
ing products, which contain benzene, thinner, etc. as these may harm the
housing.
ENVIROMENTAL INFORMATION
We have reduced the packaging to its minimum using only paper and cardboard.
Your set consists of materials which can be recycled if disassembled by a
specialized company. Please observe local regulations on the disposal of
packing materials and old equipment.
AJ3650_12_EN 1/25/08 14:49 Page 13

TROUBLESHOOTING
If a fault occurs, first check the points listed below before taking the set for repair.
If you are unable to remedy a problem by following these hints, consult your dealer or
service centre.
WARNING: Under no circumstances should you try to repair the set yourself, as this
will invalidate the guarantee. Do not open the set as there is a risk of
electric shock!
No sound
–Volume not adjusted
•Adjust the volume
No display backlight / display malfunction/ radio and alarm do not
function
–The set is out of power
•Connect AC/DC adapter to power supply
Display error / no reaction to any controls
–Electrostatic discharge
•
Press the RESET hole on the bottom of the set with a ball-pen. Or disconnect
set from AC/DC adapter for 5 minutes, and then re-plug the adapter.
Intermittent crackling sound during FM reception
–Weak signal
• Extend and position the pigtail aerial
The alarm does not work
– Alarm time / mode not set
•See SETTING THE ALARM
–ALARM not tuned to a radio station or volume level is too low
•Make sure that the set is tuned to a radio station before you set the radio as alarm
sound and volume level is high enough.
AJ3650_12_EN 1/25/08 14:49 Page 14

Blurry projection
–Angle between the projection surface too large
•Adjust the angle.
–Focus is not proper
•Turn
FOCUS wheel.
The main unit cannot read or update outdoor temperature from
the sensor
–No signal or weak signal.
•Reset both the main unit and the sensor. Or improve the sensor reception. See
“Using the sensor to detect outdoor temperature”.
This product complies with the radio interference requirements of the
European Union.
The typeplate and production number are located inside the battery
compartment.
AJ3650_12_EN 1/25/08 14:49 Page 15

Disposal of your old product
Your product is designed and manufactured with high quality materials
and components, which can be recycled and reused.
When this crossed-out wheeled bin symbol is attached to a product it
means the product is covered by the European Directive 2002/96/EC.
Please inform yourself about the local separate collection system for electrical
and electronic products.
Please act according to your local rules and do not dispose of your old prod-
ucts with your normal household waste. The correct disposal of your old prod-
uct will help prevent potential negative consequences for the environment and
human health.
AJ3650_12_EN 1/25/08 14:49 Page 16

Printed in China ALJW-0801
Meet Philips at the Internet
http://www.philips.com
Clock radio
English
AJ3650_12_EN 1/25/08 14:49 Page 17
