Philips AJ300D/79 User manual

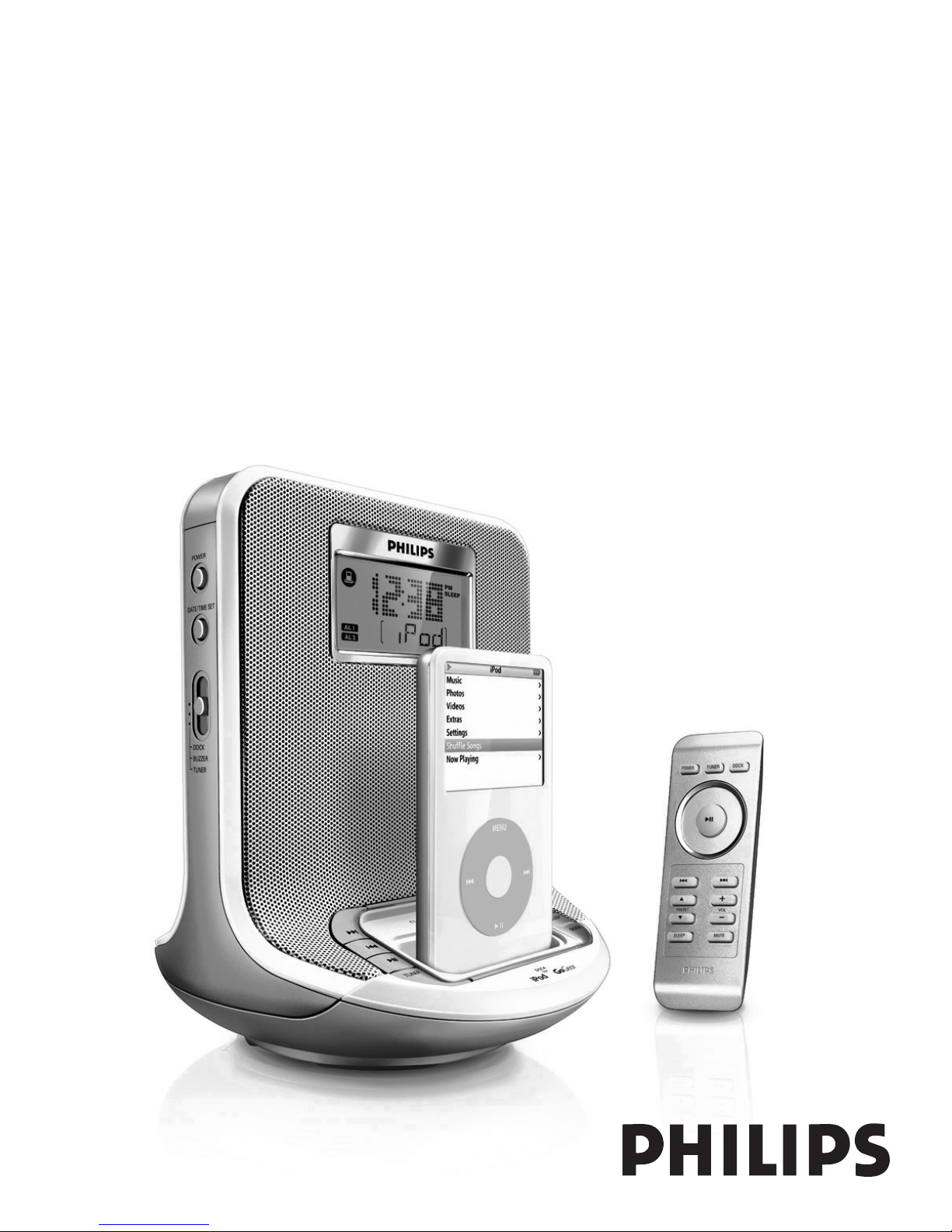

Docking Entertainment System AJ300D
User manual
IFU_AJ300D_apac_eng(79) 2006.11.10 15:16 Page 1

DOCK
@
0
7
1
2
3
4
8
9
2
7
5
#
1
&
*
(
$
^
3
POWER
PRESET VOL
MUTE
SLEEP
TUNER
AUX 6
5
!
8
4
6
)
%
1
IFU_AJ300D_apac_eng(79) 2006.11.10 15:16 Page 2

2
3
4
IFU_AJ300D_apac_eng(79) 2006.11.10 15:16 Page 3

English
SUPPLIED ACCESSORIES
– 1XAC/DC 18V adapter
– Docking kit
•1X Apple iPod dock (pre-installed with AJ300D);1 X Philips GoGear jukebox
dock;
• dock adapters (8 adapters for different iPod types, and 4 adapters for
different Philips GoGear types)
– 1XAUX-IN cable
CONTROLS (See 1)
1POWER
–switches the system on or to standby mode
–stops active alarm for 24 hours
–deactivates the sleep function
2
¡1 /2™
–adjust clock/alarm time
–selects previous/next tracks in the dock mode
–fast searches forward/backward in the dock mode (only available to iPod)
3PRESET 1-5
–stores, recalls and shows radio station
4SLEEP
–activates the sleep function
– deactivates the sleep function
5DOCK
–selects dock mode for Apple iPod and Philips GoGear
6TUNER/ AUX
–selects FM radio mode
–selects AUX mode
72;
–starts/pauses playback in the dock mode
–selects 12 hour or 24 hour mode
8VOL+/-
– adjusts the sound level
IFU_AJ300D_apac_eng(79) 2006.11.10 15:16 Page 4

9
MUTE
–switches playback sound off and on.
0Display
– shows clock/alarm times and status of the set
!Dock connector (30 pins)
– connects iPod/Philips GoGear player
@
ALM 2
– activates/confirm ALARM 2 time setting
–displays ALARM 2 time
–switches off ALARM 2 time
#
REPEAT ALARM / BRIGHTNESS CONTROL
–switches off the alarm for a 9 minute period
–changes the brightness of the display illumination
$POWER jack
– socket for AC/DC 18V adapter
%
Pigtail –improves FM reception
^
ALM 1
– activates/confirm ALARM 1 time setting
–displays ALARM 1 time
–switches off ALARM 1 time
&TIME SET
–activates/confirm clock time/date setting
*
(Wake-up mode) DOCK•BUZZER •TUNER
–selects alarm mode: dock, buzzer or radio
(AUX IN jack (3.5 mm)
– connects to external audio source
)
RESET
–clears clock time setting
POWER SUPPLY
Mains adapter
1
Connect the mains adapter to the set's DC 18V socket and to the power socket.
Helpful hints: To avoid damage to the set, use only the adapter supplied!
The type plate is located on the bottom of the set.
IFU_AJ300D_apac_eng(79) 2006.11.10 15:16 Page 5

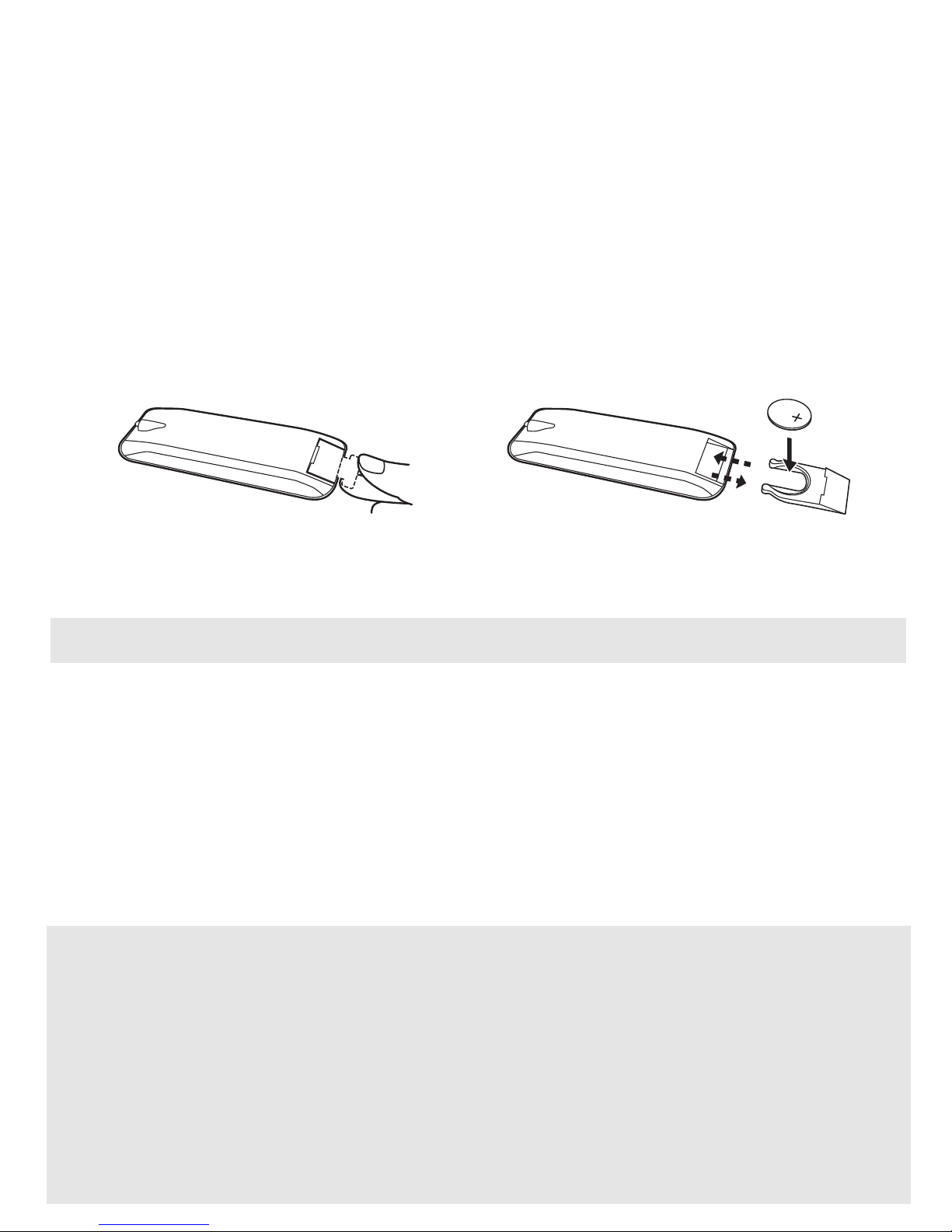

Remote control
Important!
• Before using the remote control, remove the insulation plastic tab as
shown in the figure.
• If the remote control does not function correctly or the operating
range is reduced, replace the battery with a new (CR2025) type
battery.
1. Pull the battery tray out as shown in the figure.
2. Replace a new battery according to polarity indication, and fully insert the
battery tray back to the original position.
Battery contain chemical substances, so they should be disposed of
properly.
SELF-POWERED BACK-UP
The self-powered back-up conveniently allows your preset stations, alarm and clock
time settings to be stored for up to 10 minutes when there is a power interruption
e.g. AC power failure. The complete clock radio and backlight illumination will be
switched off.
If power supply returns after 10 minutes and the display shows:
•clock time blinking - indicates you need to re-adjust the clock time.
2
3
1
CAUTION
Visible and invisible laser radiation. If the cover is open, do not look
at the beam.
High voltage! Do not open.You run the risk of getting an electric
shock. The machine does not contain any user-serviceable parts.
Modification of the product could result in hazardous radiation of
EMC or other unsafe operation.
IFU_AJ300D_apac_eng(79) 2006.11.10 15:16 Page 6

BASIC OPERATION.
Switching on the system
•Press POWER.
™
The system will switch to the last selected source.
•Press TUNER/AUX or DOCK.
™
The system will switch to the selected source.
Switching the system to standby mode
•In any source mode, press POWER.
Switching off the volume temporarily
Press MUTE on the remote control to stop sound play-back instantly.
™ Playback will continue without sound and the display shows MUTE .
•To start sound playback you can:
– press MUTE again;
– adjust the volume controls;
– change source.
Illumination brightness
Press REPEAT
ALARM / BRIGHTNESS CONTROL once or more.
• The brightness of the display can be adjusted:
Bright ➟Low ➟Off ➟Bright
.
SETTING THE CLOCK AND DATE
1. In any mode, press and hold TIME SET until clock digits flashes.
2.
Press 2; to select 12 Hours/ 24 Hours mode.
3. Hold down or press ¡1 /2™ repeatedly to set and adjust the hours.
4. Press TIME SET to confirm.
™ The clock digits for the minutes flash.
5. Repeat the steps 3 - 4 until you complete all the other settings for minutes,
year, month and days.
IFU_AJ300D_apac_eng(79) 2006.11.10 15:16 Page 7

TUNER
1
Press TUNER/AUX once to switch on the radio (FM only).
™ Display shows the radio frequency of the last selected waveband. Your pre-
set station is also shown if you are listening to a preset.

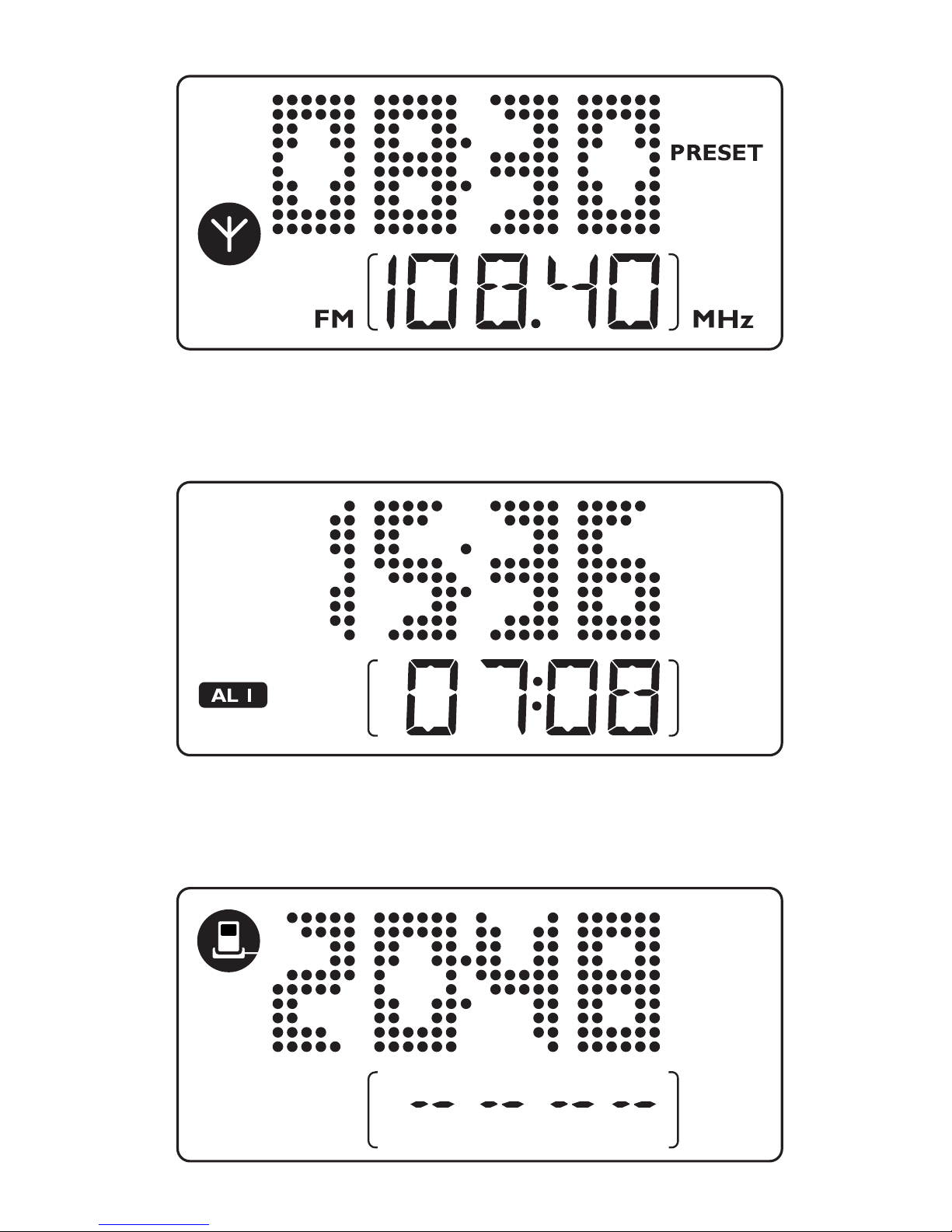

( See 2 )
2
Adjust the sound using VOL+/- .
3To select preset stations, press the respective PRESET button (1-5).
TUNING TO RADIO STATIONS
1Press and hold ¡1 /2™ until the frequency in the display starts changing.
™Display shows “Scrh” during automatic tuning.
™After the system tunes to a station of sufficient reception, display shows its frequency.
•To tune to a weak station, press
¡1 /2™ briefly and repeatedly until an
optimal reception is found.
To improve reception (FM):
Extend and position the pigtail fully to obtain optimum reception.
STORING AND USING PRESET STATIONS
You can store up to 5 FM radio stations in the memory.
1Tune to your desired station (see TUNING TO RADIO STATIONS).
2To store a preset, hold down briefly on a PRESET button 1-5 until you hear a dou-
ble beep.
™
Display shows the preset number of your station.
3Repeat steps 1 and 2 to store your other stations.
•You can overwrite a preset station by storing another frequency in its place.
4
Press a PRESET button 1-5 (or PRESET 4/ 3on the remote control) to listen to
a preset station.
™
To display clock time, press 2; on the set.
USING THE ALARM
GENERAL
Two different alarm times can be set. This can be useful when you need to be
woken up at a different time e.g. during the week and at the weekend, and you
can set different wake-up modes:
•tuner mode.
•buzzer mode. The gentle wake buzzer alarm increases its beep tone frequency within seconds.
•dock mode (only for Apple iPod and Philips GoGear SA9100 and SA9200)
IFU_AJ300D_apac_eng(79) 2006.11.10 15:16 Page 8

SETTING THE ALARM TIME (See 3)
1In any mode, press and hold ALM1 or ALM2 for two seconds.
™
ALM1 / ALM2 icon and the hour digits flash. And the icon for the current
alarm mode also flashes.
2 Hold down or press ¡1 /2™ repeatedly to set and adjust the hours.
3Press ALM1 or ALM2 to confirm.
™ ALM1 / ALM2 icon and the minutes digits flash. And the icon for the cur-
rent alarm mode also flashes.
4 Hold down or press ¡1 /2™ repeatedly to set and adjust the mintues.
5Press ALM1 or ALM2 to confirm.
SETTING THE ALARM MODE
1Press POWER to switch to standby mode.
2
Select your choice of alarm mode: either docked player ( only for Apple iPod and
Philips GoGear SA9100 and SA9200),
buzzer, or radio by using the
DOCK•BUZZER •TUNER slider.
• At the set alarm time, the docked player ( only for Apple iPod and Philips GoGear
SA9100 and SA9200)
or radio or buzzer will switch on automatically.
Helpful hints:
– If you have selected TUNER alarm mode,make sure you have properly tuned to a
station before turning off the set.
– If you have selected DOCK alarm mode ( only for Apple iPod and Philips GoGear
SA9100 and SA9200), make sure you have docked the compatible player, or the
buzzer mode will be selected automatically.
– To check the alarm time setting for ALM1 or ALM2, press ALM1 or ALM2.
SWITCHING OFF THE ALARM
There are three ways of switching off the alarm. Unless you cancel the alarm
completely, the 24-hour ALARM RESET will be automatically selected after 59
minutes from the time your alarm first goes off.
24 HOUR ALARM RESET
If you want the alarm mode to be stopped immediately but also wish to retain
the same alarm setting for the following day:
• Press POWER .
IFU_AJ300D_apac_eng(79) 2006.11.10 15:16 Page 9

REPEAT ALARM
This repeats your alarm call at 9 minute intervals.
• During the alarm call, press REPEAT ALARM / BRIGHTNESS CONTROL..
™ Display shows ALM1 or ALM2 flashing during a repeat alarm.
• Repeat if desired (up to a maximum of 6 times).
CANCELING THE ALARM COMPLETELY
• Press ALM 1or ALM 2button once or more until ALM1 or ALM2 disappears.
DOCK (See 4)
By connecting the iPod/Philips GoGear to your AJ300D, you can listen to the
sound of the docked player through the powerful speakers of the Hi-Fi system.
Important!
• AJ300D comes with two dock types. Use the designated dock type, as
indicated on the top panel of the dock supplied, to work with either
Apple iPod or Philips GoGear.
COMPATIBLE PORTABLE PLAYER
•
Most Apple iPod models with 30-pin dock connector as follows:
20GB, 40GB, 20/30GB photo, 40/60GB photo, 30GB video, 60GB video, mini
and nano.
•Philips GoGear players with dock connectors as follows:
- HDD1420, HDD1620, HDD1630, HDD1635;
- HDD1820, HDD1830, HDD1835;
- HDD1840, 1850;
- HDD6320, HDD6330
- SA9100, SA9200
CHANGING THE DOCK
The iPod connector is pre-installed with the AJ300D main unit. For Philips
GoGear users, change to the supplied Philips GoGear connector before use.
1 Slide the dock switch located near the dock connector to .
2 Take the dock out.
3Correctly place the suitable dock in. Then firmly hold down the dock, and
simultaneously push the dock switch back to position.
IFU_AJ300D_apac_eng(79) 2006.11.10 15:16 Page 10

DOCK ADAPTERS
Before plugging your player in the dock, snap the suitable dock adaptor into the
dock to provide a snug fit for the player to be docked.
Selecting the correct dock adaptor
• For the iPod dock, 8 dock adaptors of different type, as indicated at the back of
the adaptor, are included to fit the following iPod:
20GB, 40GB, 20/30GB photo, 40/60GB photo, 30GB video, 60GB video, miniand
nano.
• For the Philips GoGear dock, 4 dock adaptors of different type are included.
Each adaptor is marked a number from “1” to “4” at its back. These numbers
indicate the fit Philips GoGear players as follows:
“1” = HDD6320/6330
“2” = HDD1420/1620/1630/1635/1820/1830/1835
“3” = HDD1840/1850
“4” = SA9100/SA9200
PLAYING APPLE iPod/PHILIPS GoGear USING AJ300D
1
Snap the compatible iPod/GoGear into the dock connector.
2 Press DOCK to switch on the dock mode.
• Make sure that you have powered on Philips GoGear before selecting DOCK
source.
™ On the AJ300D’s display, “HDD” is displayed when GoGear player is
connected, or “iPod” is displayed when iPod is connected.
3For iPod, the connected player will play automatically.
• For Philips GoGear, press 2; to start playback if the playback doesn’t start.
Notes:
–
In dock mode, if no player is docked for 15 minutes, AJ300D will come to standby.
– By using the buttons ( 2;, ¡1, 2™ and VOLUME ) on the AJ300D and its
remote control, the following disc playback features are available: Play/Pause,
selecting next/previous track, fast forwarding/rewinding (only available to Apple
iPod) and changing volume.
– The buttons ( 2;, ¡1, 2™ and VOLUME ) on the AJ300D and its remote control
can work only with playback of the audio contents stored on the docked player.
CHARGING iPod/PHILIPS GoGear BATTERY USING THE DOCK
Docking your iPod/Philips GoGear and connecting the dock to AJ300D, you can
IFU_AJ300D_apac_eng(79) 2006.11.10 15:16 Page 11

charge the iPod/GoGear in the standby mode and power-on mode of AJ300D.
SLEEP
This set has a built-in sleep timer, which enables the radio to be automatically
switched off after a set period of time. There are five sleep time options.
Setting and switching off SLEEP
1 Set your timer by pressing SLEEP repeatedly until the desired timer option appears.
™ Selections are follows (time in minute):
120=90=60=30=15=OFF=120
2 The set will turn off automatically at the selected time.
3 To cancel sleep, press either:
–
POWER
– SLEEP once or more until SLEEP disappears from the display.
Reset
Should your set receive external interference e.g. static electricity from carpets, thun-
derstorms, etc. RESET allows you to clear all previous settings and start up again.
•Use a ballpoint pen to press the RESET hole found on the bottom of the set.
CONNECTING AN EXTERNAL DEVICE
You can listen to the sound of the connected external device through your
AJ300D’s speakers.
1 Press TUNER/AUX twice to select AUX mode.
2 Use the supplied AUX-IN cable to connect AJ300D’s AUX IN jack to an AUDIO
OUT or headphone jack on an external equipment (such as CD player, or VCR).
Notes:
–
In AUX mode, if the AUX-IN cable is not connected for 15 minutes, AJ300D will
come to standby.
IFU_AJ300D_apac_eng(79) 2006.11.10 15:16 Page 12

MAINTENANCE & SAFETY
• Install the unit near the AC outlet and where the AC power plug can be easily
reached.
• The apparatus shall not be exposed to dripping or splashing.
• Do not expose the set to humidity, rain, sand or excessive heat caused by
heating equipment or direct sunlight.
• To clean your set, use a soft damp cloth or chamois leather. Do not use cleaning
products, which contain benzene, thinner, etc. as these may harm the housing.
SPECIFICATIONS
Frequency response ................................................................80 Hz – 20 KHz
Sound pressure level ...................................................................90 dB @ 1m
IFU_AJ300D_apac_eng(79) 2006.11.10 15:16 Page 13

TROUBLESHOOTING
If a fault occurs, first check the points listed below before taking the set for repair.
If you are unable to remedy a problem by following these hints, consult your dealer or
service centre.
WARNING: Under no circumstances should you try to repair the set yourself, as this
will invalidate the guarantee. Do not open the set as there is a risk of
electric shock!
No sound
–Volume not adjusted
•Adjust the volume
–The set is muted.
•Press”MUTE” on the remote control to active playback sound.
Display error / no reaction to any controls
–Electrical malfunction
•
Unplug the power cord, then re-plug.
Intermittent crackling sound during FM reception
–Weak signal
•
Extend and position the pigtail aerial
The alarm does not function
– Alarm time/ mode not set
•See SETTING THE ALARM (Dock mode is for Apple iPod and Philips GoGear
SA9100 and SA9200.)
–Volume too low for radio
•Increase the volume
Dock operation
– The menu navigation or photo playback of the docked player cannot be car-
ried out through the buttons on AJ300D or its remote control.
•The buttons on AJ300D and its remote control can control playback of audio con-
tents only. To navigate the menu, use the controls on the docked player.
–
Some buttons on AJ300D and its remote control have no function.
•The buttons ( 2;, ¡1, 2™ and VOLUME ) function only. For Philips GoGear, fast
forwarding/rewinding is not available.
IFU_AJ300D_apac_eng(79) 2006.11.10 15:16 Page 14

ENVIROMENTAL INFORMATION
All unnecessary packaging material has been omitted. The packaging can
be easily separated into three materials: cardboard, polystyrene and plas-
tic.
Your set consists of materials which can be recycled if disas-
sembled by a specialized company. Please observe the local
regulations regarding the disposal of packaging, dead batteries
and old equipment.
IFU_AJ300D_apac_eng(79) 2006.11.10 15:16 Page 15

Printed in China PDCC-JH-AZ-0645
Meet Philips at the Internet
http://www.philips.com
Clock radio
English
IFU_AJ300D_apac_eng(79) 2006.11.10 15:16 Page 16

Notes for iPod connection
1. The docking entertainment system is compatible with all the existing Apple iPod models with 30-pin
connector.
2. Four adaptors are included to fit different iPod models including iPod touch (8GB, 16GB), iPod
classic (80GB, 160GB), iPod nano 3rd generation (4GB, 8GB), iPod the 5th generation (30GB, 60GB,
80GB), iPod nano 2nd generation (2GB, 4GB, 8GB) and iPod nano 1st generation (1GB, 2GB, 4GB ).
English
C
M
Y
CM
MY
CY
CMY
K
iPod_05_R.eps 2008-02-19 2:42:23 PMiPod_05_R.eps 2008-02-19 2:42:23 PM
