Philips AZ5740 User manual

Register your product and get support at
AZ5740
EN User manual

English
1 Important
Safety
Important Safety Instructions
aRead these instructions.
bKeep these instructions.
cHeed all warnings.
dFollow all instructions.
eDo not use this apparatus near water.
fClean only with dry cloth.
gDo not block any ventilation openings. Install in accordance
with the manufacturer’s instructions.
hDo not install near any heat sources such as radiators, heat
registers, stoves, or other apparatus (including ampliers) that
produce heat.
iProtect the power cord from being walked on or pinched,
particularly at plugs, convenience receptacles, and the point
where they exit from the apparatus.
j Only use attachments/accessories specied by the
manufacturer.
kUse only with the cart, stand, tripod, bracket, or table
specied by the manufacturer or sold with the apparatus.

When a cart is used, use caution when moving the cart/
apparatus combination to avoid injury from tip-over.
lUnplug this apparatus during lightning storms or
when unused for long periods of time.
m Refer all servicing to qualied service personnel.
Servicing is required when the apparatus has been damaged in
any way, such as power-supply cord or plug is damaged, liquid
has been spilled or objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture, does not
operate normally, or has been dropped.
nBattery usage CAUTION – To prevent battery leakage which
may result in bodily injury, property damage, or damage to
the unit:
Install all batteries correctly, + and - as marked on the unit.•
Do not mix batteries (old and new or carbon and alkaline,•
etc.).
Remove batteries when the unit is not used for a long•
time.
oApparatus shall not be exposed to dripping or splashing.
pDo not place any sources of danger on the apparatus (e.g.
liquid lled objects, lighted candles).
qThis product may contain lead and mercury. Disposal of
these materials may be regulated due to environmental
considerations. For disposal or recycling information, please
contact your local authorities or the Electronic Industries
Alliance: www.eiae.org.
rWhere the MAINS plug or an appliance coupler is used as the
disconnect device, the disconnect device shall remain readily
operable.

Warning
Never remove the casing of this apparatus.•
Never lubricate any part of this apparatus.•
Never place this apparatus on other electrical equipment.•
Keepthisapparatusawayfromdirectsunlight,nakedamesorheat.•
Never look into the laser beam inside this apparatus.•
Ensure that you always have easy access to the power cord, plug or•
adaptor to disconnect this apparatus from the power.
Notice
Anychangesormodicationsmadetothisdevicethatarenot
expressly approved by Philips Consumer Lifestyle may void the user’s
authority to operate the equipment.
Environmental information
All unnecessary packaging has been omitted. We have tried to make
the packaging easy to separate into three materials: cardboard (box),
polystyrene foam (buffer) and polyethylene (bags, protective foam
sheet.)
Your system consists of materials which can be recycled and reused
if disassembled by a specialized company. Please observe the local
regulations regarding the disposal of packaging materials, exhausted
batteries and old equipment.
Recording and playback of material might require consent. See
Copyright Act 1956 and The Performer’s Protection Acts 1958 to
1972.
The making of unauthorized copies
of copy-protected material, including
computerprograms,les,broadcasts

and sound recordings, may be an infringement of copyrights and
constitute a criminal offence. This equipment should not be used for
such purposes.
Manufactured under license from Dolby Laboratories.
Dolby and the double-D symbol are trademarks of
Dolby Laboratories.
This apparatus includes this label:
Windows Media and the Windows logo are
trademarks, or registered trademarks of Microsoft
Corporation in the United States and/or other countries.
2 Your DVD Soundmachine
Congratulations on your purchase, and welcome to Philips!To fully
benetfromthesupportthatPhilipsoffers,registeryourproductat
www.philips.com/welcome.
Introduction
With this unit, you can enjoy:
Video from DVD/VCD/SVCD or USB devices.•
Audio from discs, radio, tape, or USB devices.•
Pictures from Kodak/JPEG discs, or USB devices.•

The unit supports the following media formats:
You can play DVD discs with the following region codes:
DVD region code Countries
China
What’s in the box
Check and identify the contents of your package:
Main unit•
Remote control•
AC power cord•
Composite AV cable•
User manual•
Quick start guide•
Recordable
ReWritable

Overview of the main unit
aLIFT TO OPEN
Open/close the disc compartment.•
bTUNING
Tune to radio stations.•
AZ5740
SUBTITLE
FM
TAPE
USB
DISC
l
g
h
i
a
e
f
b
d
n
o
c
j
q
p
k
m

cSUBTITLE
Select a subtitle language.•
dVOLUME
Adjust volume.•
eAUDIO
For CD/MP3 discs, select an audio mode.•
For DVD, select an audio language.•
fDisplay panel
Show current status.•
g
Jack for a USB mass storage device.•
hMODE
Select a play mode.•
i
Stop play.•
j
Start or pause play.•
/
• SEARCH/Skip to the previous/next track.
Search within a track/disc/USB.•
• ALBUM/Skip to the previous/next album.
kIR
The remote control sensor.•
lSource selector
Turn on or off the unit, or select a source.•

mTape controls
RECORD
Start to record.•
PL AY
Start tape play.•
SEARCH /
Fast rewind/forward the tape.•
STOP/OPEN
Stop the tape play or open the tape door.•
PAUSE
Pause tape play or pause recording.•
n
Jack for headphone.•
oAC MAINS
Socket for the power cord.•
pAV OUT
Transmit audio/video to a connected device.•
qTelescopic antenna
Improve FM reception.•

Overview of the remote control
aMUTE
Mute volume.•
bNumeric keypad
Selectatrack/title/ledirectly.•
Input password.•
cALBUM +/-
Skip to the previous/next album.•
v
t
r
p
u
s
q
o
n
m
f
g
h
i
k
l
a
b
c
d
e
j

d/ / /
Navigate through the menu.•
For JPEG discs, rotate the picture.•
Move an enlarged picture up/down/left/right.•
/
For DVD/MP3/VCD/SVCD/CD discs, search backward or•
forward.
e/
Skip to the previous/next chapter/track.•
fPAUSE
Pause or resume playback.•
gAUDIO
For CD/MP3 discs, select an audio mode.•
For DVD, select an audio language.•
hGOTO
For DVD/SVCD/VCD, go to the desired title, chapter or•
time.
For CD/MP3, go to the desired album/track.•
iPROG
Program tracks.•
jSHUFFLE
Play in random order.•
kDISPL AY
Show current status.•
For pictures, select slide show mode.•
lSYSTEM MENU
Display/exit the system menu.•

mDISC MENU
For DVD, display the root menu.•
For VCD/SVCD, select PBC ON/OFF.•
nRETURNTITLE
Return to the previous menu.•
oREPEAT
Play a track repeatedly.•
pREPEAT A-B
Repeataspecicsectionwithinatrack/disc.•
qANGLE
Selects a different viewing angle of a DVD.•
rSUBTITLE
Select a subtitle language.•
s
Start play.•
t
Stop play.•
uOK
Conrmaselection.•
vZOOM+/-
Zoom into or out of an image.•

3 Get started
Caution
Use of controls or adjustments or performance of procedures other•
than herein may result in hazardous radiation exposure or other
unsafe operation.
Always follow the instructions in this chapter in sequence.
If you contact Philips, you will be asked for the model and serial number
of this apparatus.The model number and serial number are on the
bottom of the apparatus.Write the numbers here:
Model No. __________________________
Serial No. ___________________________
Install remote control batteries
Caution
Riskofexplosion!Keepbatteriesawayfromheat,sunshineorre.•
Neverdiscardbatteriesinre.
Risk of decreased battery life! Never mix different brands or types
•
of batteries.
Risk of product damage! When the remote control is not used for
•
long periods, remove the batteries.
1Open the battery compartment.
2Insert 2 AA batteries with correct polarity (+/-) as indicated.

3Close the battery compartment.
Connect TV
1Connect the black end of the supplied video cable to the AV
OUT socket on this unit.
2Connect the yellow plug to the VIDEO INPUT socket on the
TV.
3Connect the red plug to the AUDIO INPUT socket marked
“R”.
4Connect the white plug to the AUDIO INPUT socket marked
“L”.
3
1
2
TV
IN

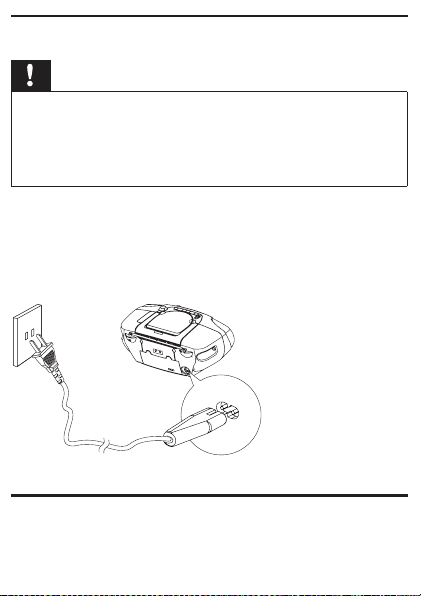

Connect power
Caution
Risk of product damage! Ensure that the power supply voltage•
corresponds to the voltage printed on the bottom of the unit.
The type plate is located on the bottom of the main unit.
•
Before connecting the AC power cord, ensure you have completed•
all other connections.
1Switch the voltage selector at the bottom of the unit to the
local power line voltage.
2Connect the AC power cable to:
the main unit.•
the wall socket.•
Turn on
1Push the source selector on the main unit to
DISC/USB/FM/TAPE .

Turn off
1Push the source selector on the main unit to OFF.
Find the correct viewing channel
1Push the source selector to DISC to switch to disc mode.
2Turn on the TV and switch to the correct video-in channel in
one of the following ways:
Go to the lowest channel on your TV, then press the•
Channel Down button until you see the blue screen.
Press the source button repeatedly on the remote control•
of your TV.
Tip
The video-in channel is between the lowest and highest channels and•
may be called FRONT, A/V IN, VIDEO etc. See the TV user manual
on how to select the correct input on the TV.
Select TV system that match the connected
TV
This DVD player is compatible with both NTSC and PAL. For the
playback of a DVD disc on this DVD soundmachine, the color systems
of the TV set and DVD player should match.
1Press SYSTEM MENU.
2Select [SYSTEM SETUP] >[TV SYSTEM], and then press .
3 Press▼/▲toselectoneoftheoptionsbelowandthenpress
OK.

[NTSC] For TV with NTSC color system.
[PAL] For TV with PAL color system.
[AUTO] For TV with multiple color systems.
4Press SYSTEM MENU to exit.
Change system menu language
1Press SYSTEM MENU.
2Press / keys to select [LANGUAGE SETUP] page, then
press▼.
3 Press▼/▲keystohighlightoneoftheoptionsbelow,then
press .
• [OSD LANGUAGE]: Select this to change the language of
this DVD soundmachine screen display menu.
• [MENU LANG]: Select this to change the language of disc
menu.
4 Press▼/▲keystoselectalanguageandpressOK.
5Press SYSTEM MENU to exit the menu.
Note
Depending on the DVD or VIDEO CD, some operations may be•
different or restricted.
If the “INVALID KEY” appears on the TV screen when a button is
•
pressed, it means the function is not available on the current disc or
at the current time.

4 Play
Play disc
1Push the source selector on the main unit to DISC.
2Lift to open the disc compartment.
3Insert a disc with the printed side facing up, then close the disc
compartment.
4Press to start play.
To pause/resume play, press• PAUSE .
To stop play, press• .
To skip to a track, press• / .
To search within a track/disc, press and hold• / , then
release to resume normal play.
Use the disc menu
When you load a (S)VCD disc, a menu may be displayed on the TV
screen.
To access or exit the menu manually:
1Press DISC MENU.
For VCD with PlayBack Control (PBC) feature (version 2.0 only):
With the PBC feature, you can play VCD interactively according to
the menu screen.
1During play, press DISC MENU to enable/disable PBC.
When PBC is enabled, the menu screen is displayed.»
When PBC is disabled, normal play is resumed.»
To return to the previous menu, press• RETURN.

For DVD
1During playback, press DISC MENU to return to disc menu.
If the current disc/title has a menu, the menu will appear on»
the screen. Otherwise, the disc menu will be displayed.
2Press / / / to select the desired title or chapter, and then
press or OK.
Playback start from the selected title or chapter.»
Select an audio language
You can select an audio language on DVDs with multiple sound
tracks or VCDs with multiple audio channels.
1During play, press AUDIO repeatedly to select a language.
Tip
If the selected audio channel is unavailable, the default disc audio•
channel is used.
Select a subtitle language
You can select a subtitle language only on DVDs.
During play, press repeatedly• SUBTITLE to select different
subtitle languages.
The feature is disc dependant.»

Play from USB
Note
Ensure that the USB device contains playable audio contents for•
supported formats. (See “USB playability information”)
1Flip open the USB socket cover.
2Plug the USB device into the socket.
3Push the source selector on the main unit to USB.
4Press to start play.
To pause/resume play, press• PAUSE .
To stop play, press• .
Tosearchwithinanaudiole,pressandhold• / , then
release to resume normal play.
Play tape
Note
When you play or record a tape, the sound source cannot be•
changed.
1Push the source selector on the main unit to TAPE .
2Open the tape button cover.
3Press STOP/OPEN on the main unit to open the tape door.
4Load the tape with the open side upward and the full spool to
the left.
