Philips DVP4000MKI/69 User manual

Published by KC-TE 0604 AV System Printed in the Netherlands Subject to modification 3139 785 31720
DVD PLAYER
CLASS 1
LASER PRODUCT
©Copyright 2005 Philips Consumer Electronics B.V. Eindhoven, The Netherlands.
All rights reserved. No part of this publication may be reproduced, stored in a
retrieval system or transmitted, in any form or by any means, electronic,
mechanical, photocopying, or otherwise without the prior permission of Philips.
Version 1.0
DVP4000MKI/69/78/93 & DVP4000MKII/69/78/93
Table of Content
DVP4000MKI
Service Hints (DVD4000MKI & MKII) ........................ 2
Block Diagram ......................... 3
Wiring Diagram ......................... 4

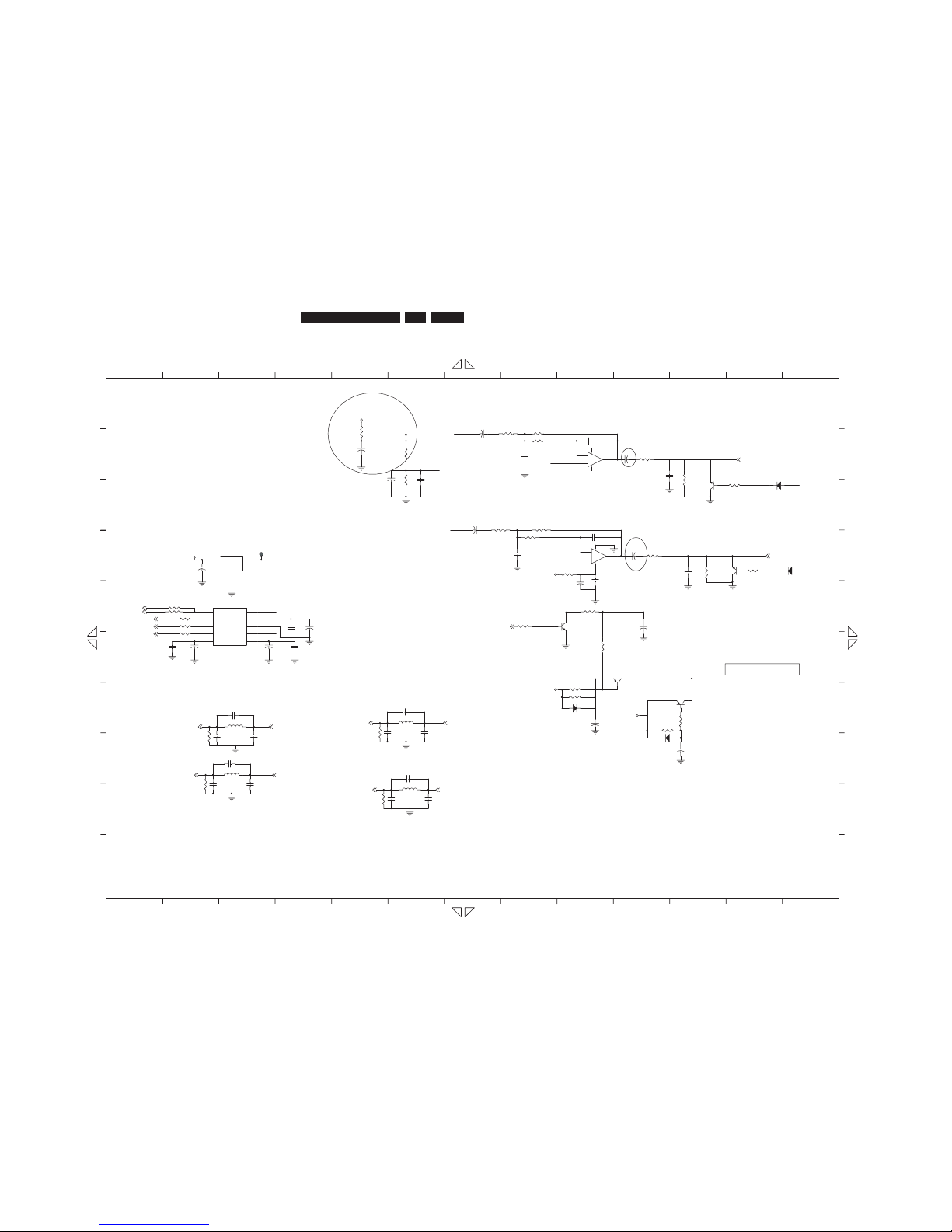

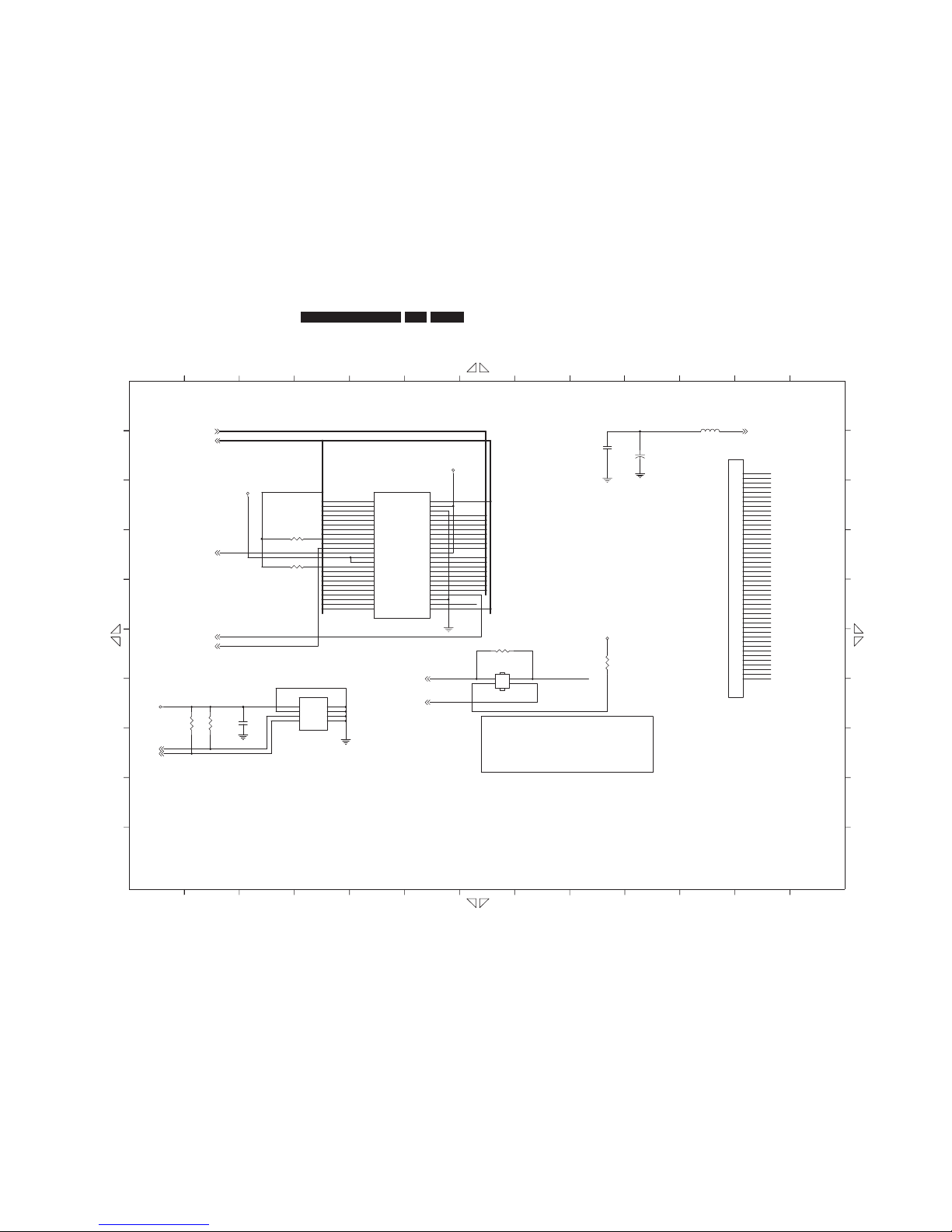

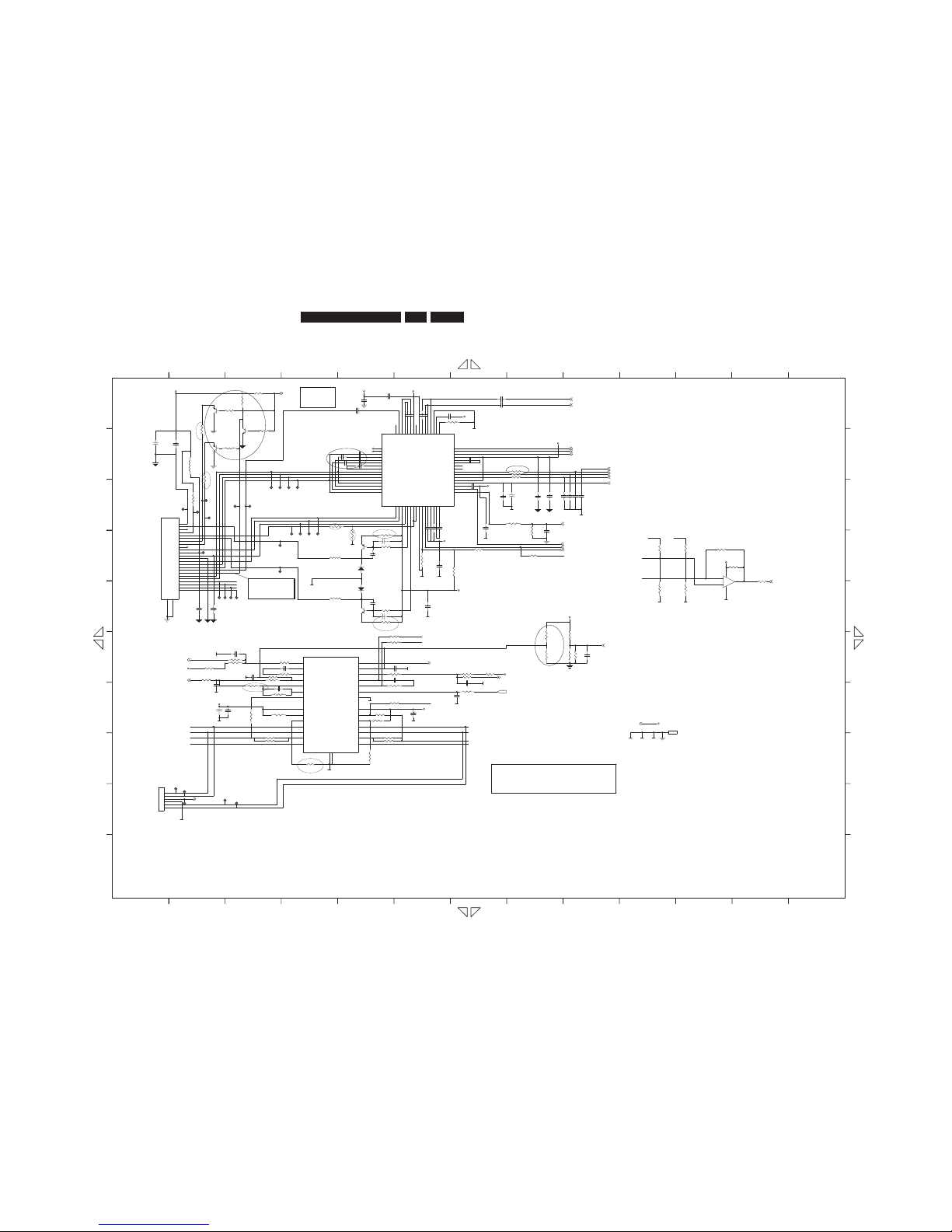

Mono Board Circuit Diagram ......................... 5

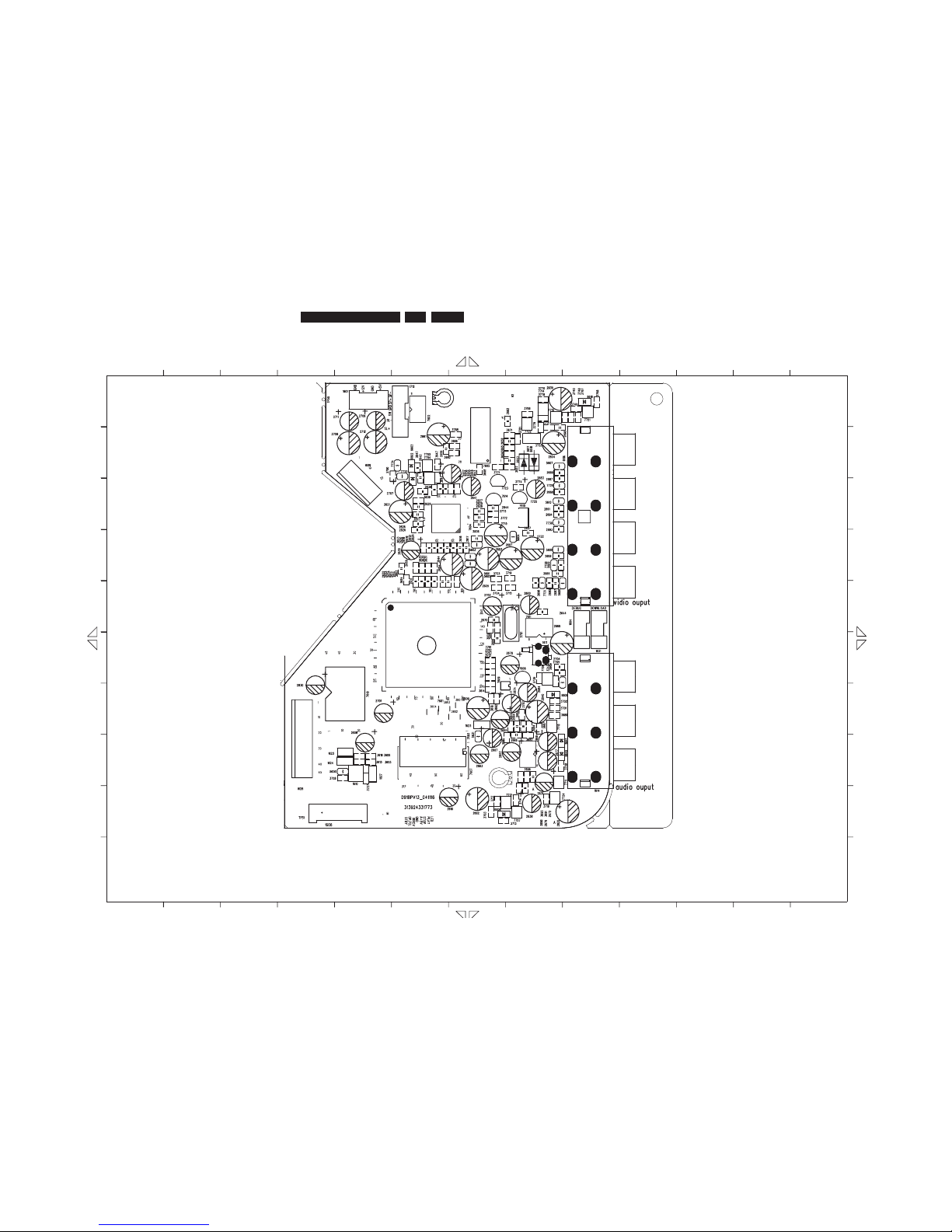

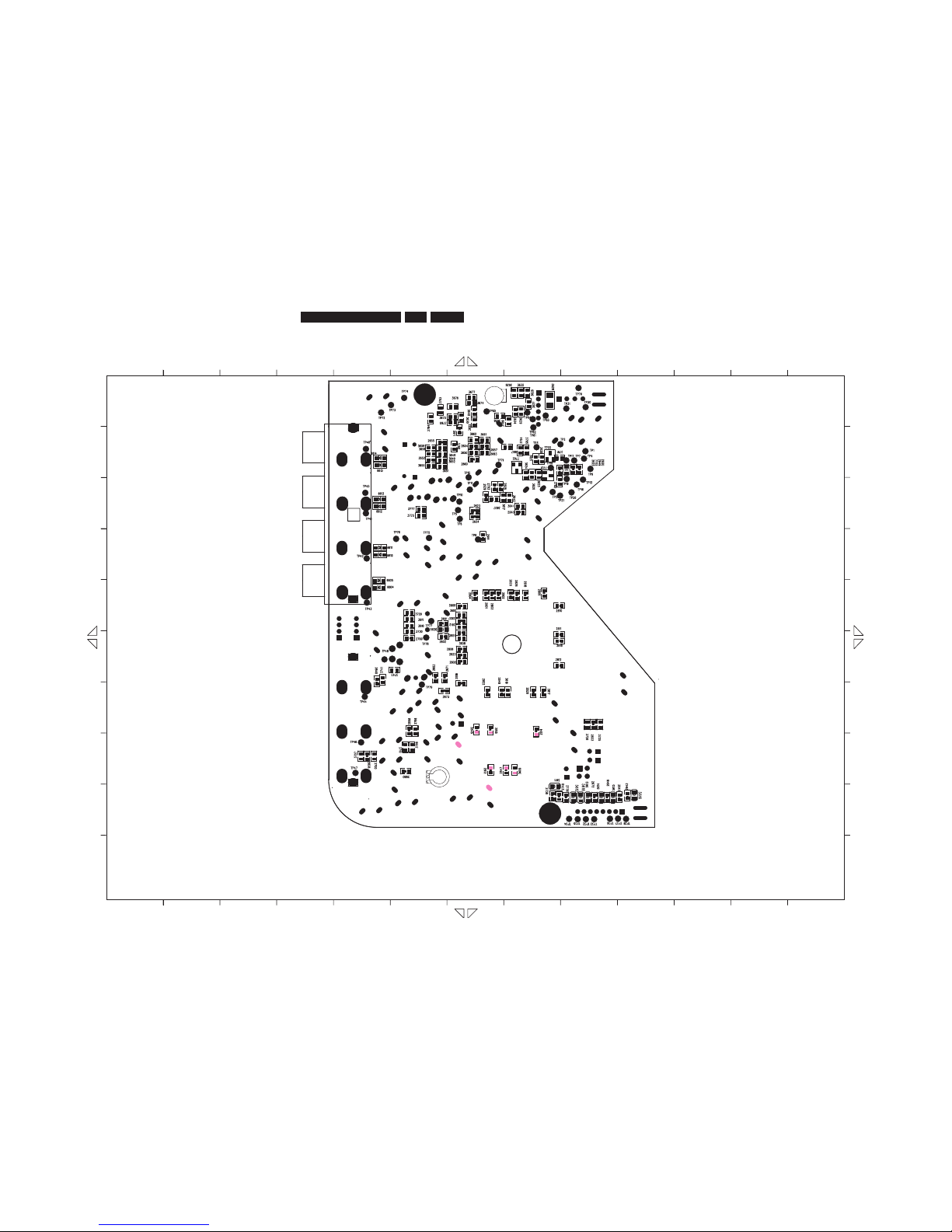

Mono Board Layout ......................... 10

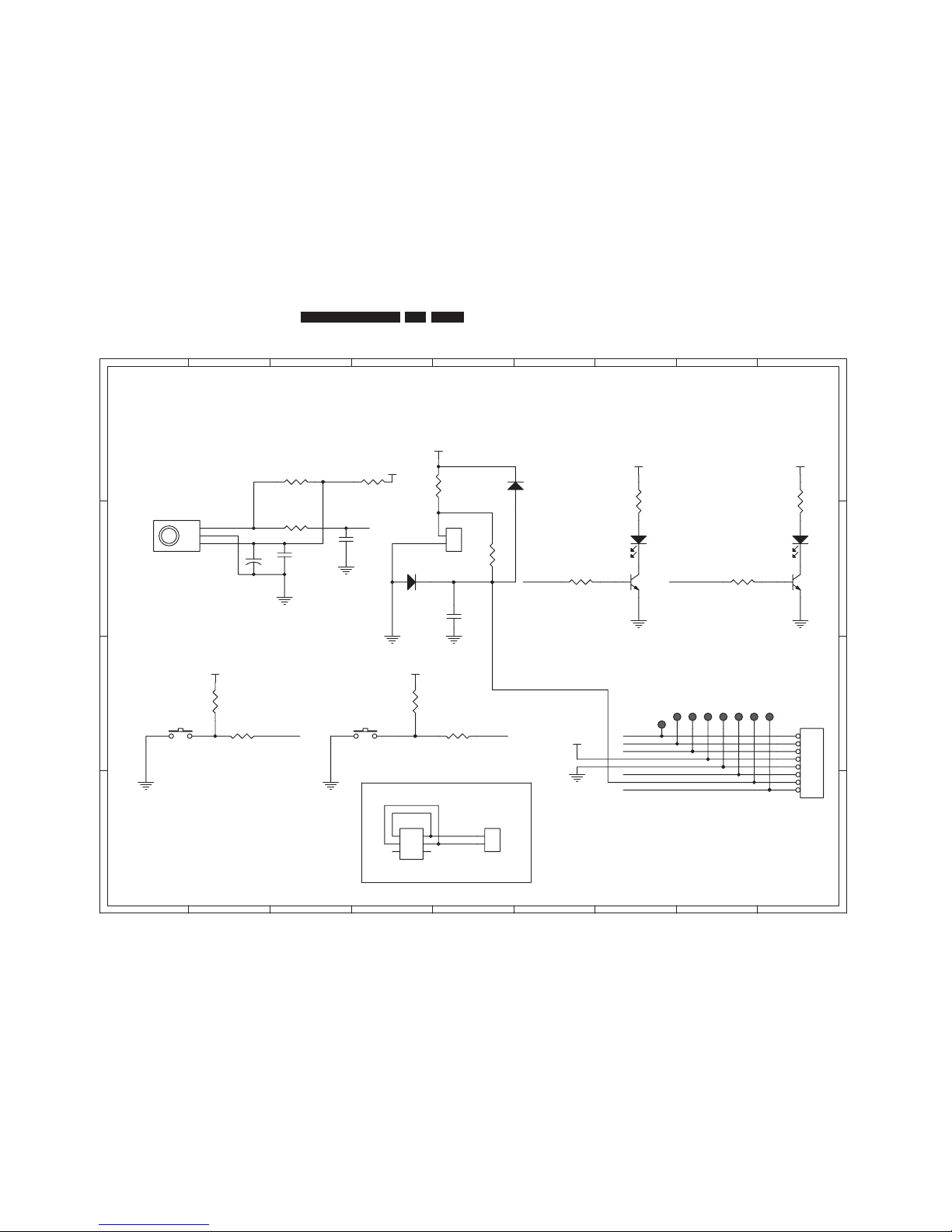

Front Board Circuit Diagram ......................... 12
Front Board Layout ......................... 13
DVP4000MKII
Block Diagram ......................... 15
Wiring Diagram ......................... 16
Mono Board Circuit Diagram ......................... 17
Mono Board Layout ......................... 22
Front Board Circuit Diagram ......................... 24
Front Board Layout ......................... 25
Firmware Upgrading and
Diagnostic Software ......................... 27
Testing Instructions ......................... 28
DVP4000 Exploded View ......................... 30
DVP4000MKI & MKII
Spare Parts List ......................... 31

EN 2 3139 785 3172x
Service Hints (DVP4000MKI & DVP4000MKII)
CAUTION
CHARGED CAPACITORS ON THE SERVO BOARD MAY DAMAGE THE DRIVE
ELECTRONICS WHEN CONNECTING A NEW DRIVE.THAT’S WHY, BESIDES THE SAFETY
MEASURES LIKE
• SWITCH OFF POWER SUPPLY
• ESD PROTECTION
ADDITIONAL ACTIONS MUST BE TAKEN BY THE REPAIR TECHNICIAN.
The following steps have to be done when replacing the defective loader :
1. Dismantling of the loader to access the ESD protection point if necessary.
2. Solder the ESD protection point*.
3. Disconnect flexfoil cable from the defective loader.

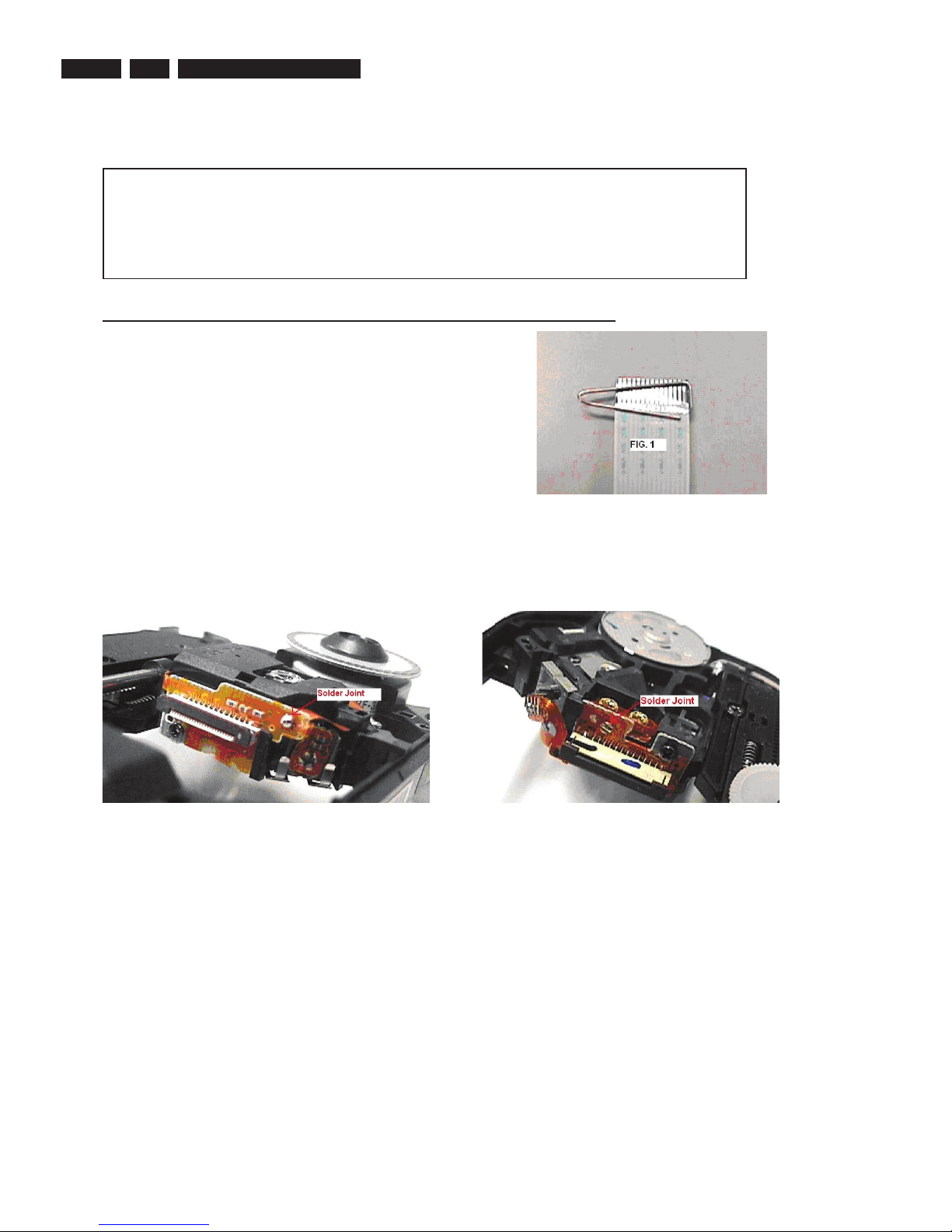

4. Put a paper clip on the flexfoil to short-circuit the contacts (fig.1)
5. Replace the defective loader with a new loader.
6. Remove paperclip from the flexfoil and connect it to the new loader.
7. Remove solder joint on the ESD protection point.
ATTENTION: The laser diode of this loader is protected against ESD by a solder joint which shortcircuits the laserdiode to ground.
For proper functionality of the loader this solder joint must be remove after connection loader to the set.
Type 1 Type 2
(ESD protection point is accessible from top of loader) (ESD protection point is accessible from bottom of the loader)
*Only applicable for defective loader needed to be sent back to supplier for failure analysis and to support backcharging
evidence.
This is also applicable for all partnership workshops.
DVP4000MKI

EN 3
3139 785 3172x
DVP4000MKI
DVP4000MKI

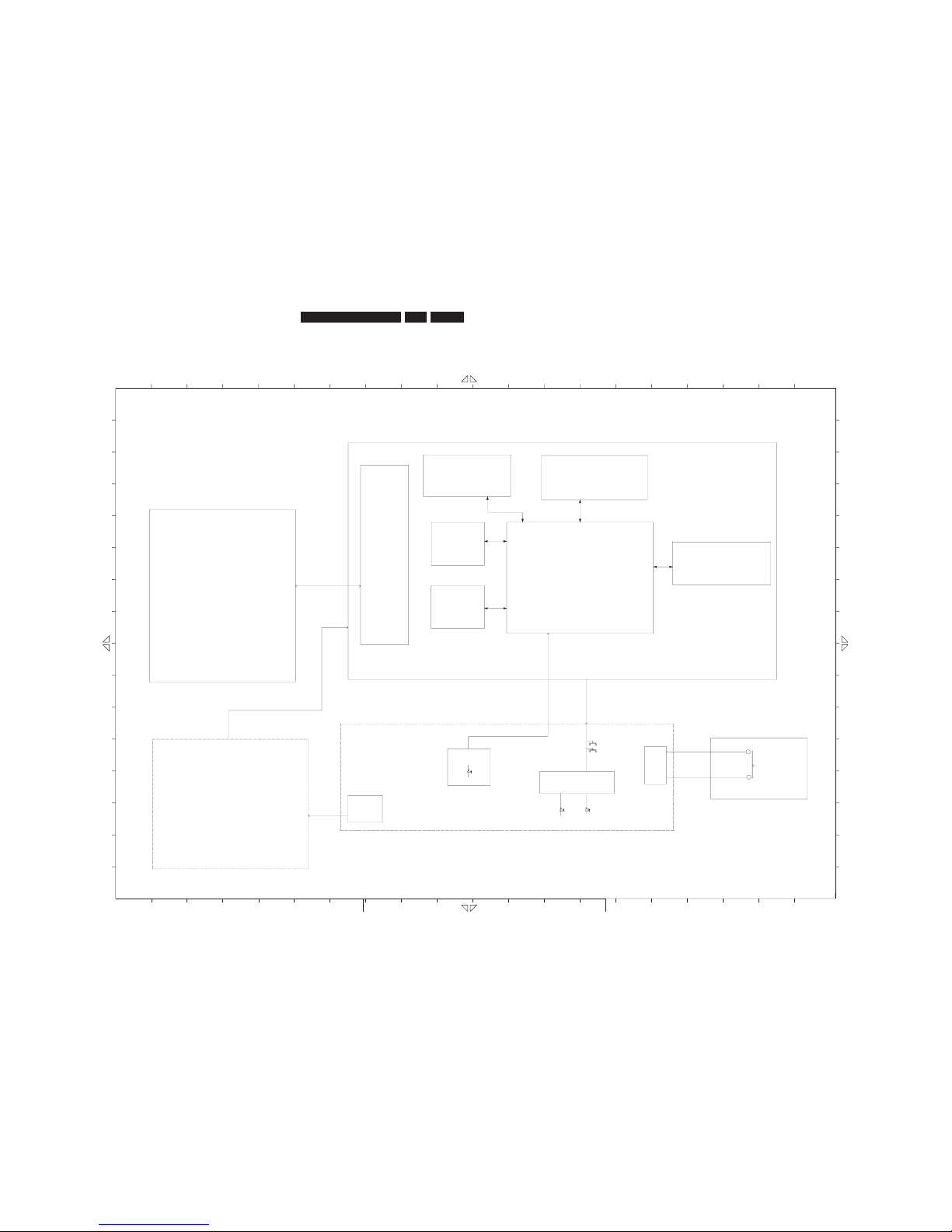

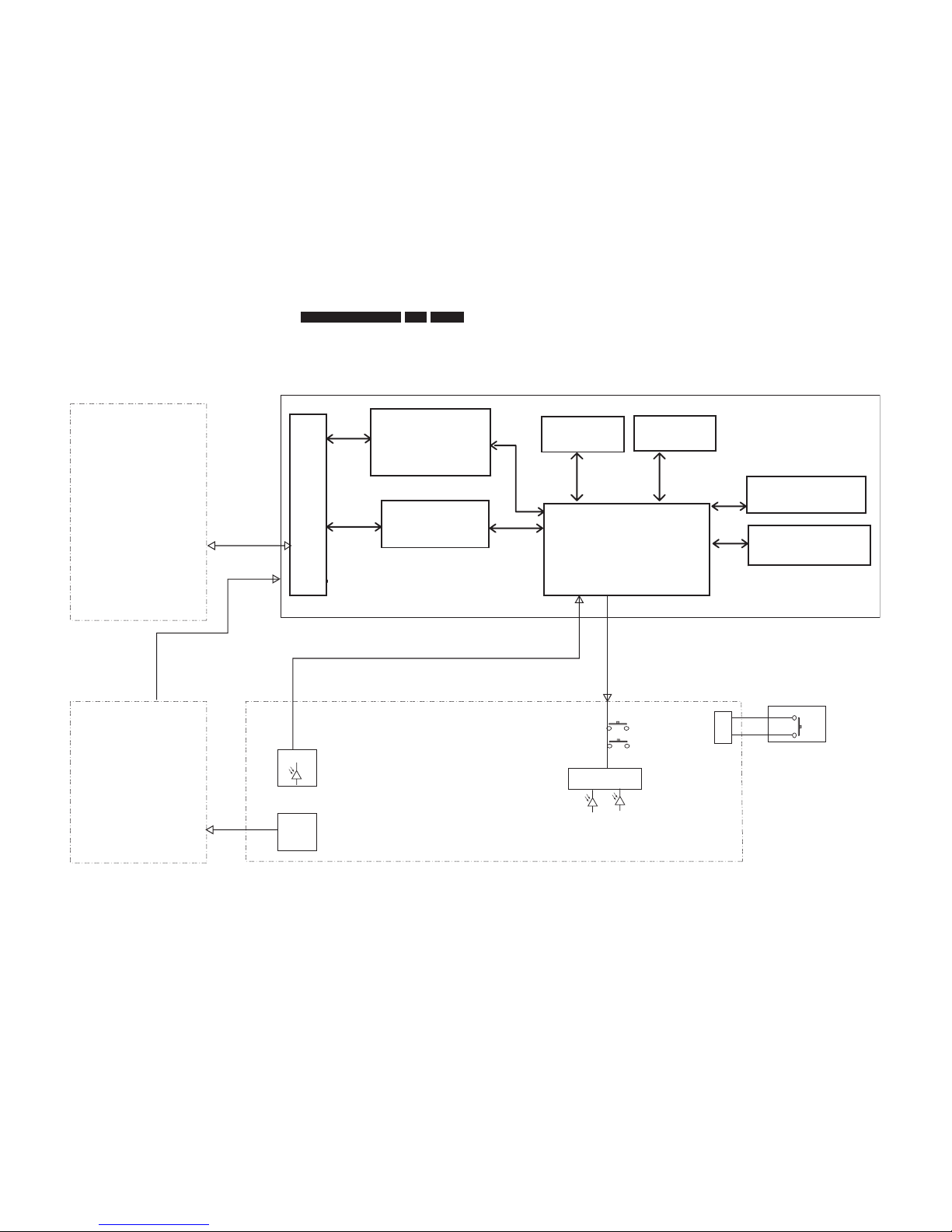

Block Diagram
DOOR LOCKING SWITCH
2 X LEDs
POWER
BUTTON
RECEIVER
15 16
L
16
11
A
K
O
J
LOADER MODULE
1402
E
F
A
KHM-310AHC
POWER SUPPLY
FRONT BOARD
MPEG BOARD
H
K
L
J
4Mb FLASH
SST39VF400A
2-CH AUDIO DAC
CS4345
P
P
N
20
12
17 191812
18
14
B
C
D D
345
MOTOR DRIVER
AM5868
16Mb SDRAM
IS42S16100
10 11
C
B
ANALOG VIDEO OUTPUT
CVBS/Y/C/Y/Pb/Pr
ZR36862
MPEG DECODER IC
632
G
H
87
F
17
G
E
10
2015 191413
113
1
M
I
2 6789
I
M
N
O
495
3139 249 2755

EN 4
3139 785 3172x
DVP4000MKI
CN202
CN201
1601
1712
1609
1604
1608
124
25
26
1 F-
2 F+
3 T+
4 T-
5 C
6 D
7 CD/DVD
8 RF
9 A
10 B
11 F
12 GND-PD
13 Vc
14 VCC
15 E
16 NC
17 VR-CD
18 VR-DVD
19 LD-CD
20 MD
21 HFM
22 NC
23 LD-DVD
24 GND-LD
25 GND
26 GND
1609
Screw Post
Note:
The cable 1902 will be damaged by the
screw if to lay it on the screw post during
assembling bottom and top cabinet.
1
1
1
1
4
12
1 VCC (5V)
2 GND
3 -12V
4 GND
1601
1 STBYLED
2 OPEN/CLOSE
3 RC
4 GND
5 VCC
6 STOP
7 PLAY
8 LED
1608
1 SP-
2 SP+
3GND
4HSW
5SL-
6SL+
1712
1901
1902
1903
1405
1406
1906
1409
1904
PSU
MPEG Board
Front Board
Door Locking Switch
1905
The ferrite ring is only for provision only
1
KHM310AHC
KHM310AHC
Wiring Diagram

EN 5
3139 785 3172x
Mono Board Circuit Diagram
DVP4000MKI
J
I
H
G
F
E
D
C
B
A
17 65432 1312111098
1312111098
7
654321
J
I
H
G
F
E
D
C
B
A
DOWN_LOAD_I/F
SW DEBUG
Low =
Standby
DSPVCC18
SPDIF
Y_R_V/OUT#
IR
+5VD
CTR_STBY
CTR_STBY
+3.2V
+2.5V
STB
COAX_SPDIF
CVBS_G_Y/OUT#
DSPVCC33
VCC33
CVBS_C/OUT# CVBS_G_Y/OUT#
VCC33
Y_R_V/OUT#
CTR_STBY
CVBS_C/OUT#
C_B_U_OUT#
C_B_U_OUT#
GND
CTR_STBY
D+5V
COAX_SPDIF
DUPTD0
DUPTD1
DUPRD0
DUPRD1
SPDIF
DSPVCC33
RF33V
DSPVCC33
CVBS_C/OUT CVBS_G_Y/OUT
C_B_U/OUT
STB
Y_R_V/OUT
MAIN_R
OP/CL
IRRCV
STOP
STBY
LED
MAIN_L
PLAY
SGND VGND AFEGNDRFGND DSPVCC18
RFA5V
A+5VL
DSPVCC33
A+12V
D+5V
RF33V
M5V
D+5V
VCC33
VCC33VCC33
DSPVCC33
VCC33
VCC33
D+5V
A+5VL
D+5V
D+5V
3743
91R
3777
NM
7723
PSS8050
2
13
5611 FB220R
TP74
1.
2844
0.1uF
6616
9.1V
3748
NM
H2
H2
1
2
3 4
5
6 7 8 9
1
2
34
5
6 7 8 9
+
2707
47uF/16V
12
1631
NM
1
2
3
4
2675 1nF
5608
FB75R
TP70
1
.
5609 FB220R
2703
0.1uF
3742
68R
TP71
1
.
3769
1K
+
2834
100uF/16V
TP30
1.
6605
1N4148
12
2738 1nF
5607 FB75R
TP31
1.
5612 FB220R
+
2715
100uF/16V
12
5613 FB220R
TP32
1
.
6617
1N4001
1 2
5610
FB75R
TP33
1
.
6618
1N4001
1 2
6612
1N4148
1 2
TP75
1.
TP34
1.
5628 FB220R
+
2709
47uF/16V
12
6615
1N4148
12
1601
Power
1
2
3
4
6614
1N4148
1 2
+
2853
10uF/16V
1 2
TP36
1
.
3739
33R
TP37
1
.
3733 NM
3772
3.3K
3740 0R
TP39
1
.
3773
10K
2739 1nF
1606
VIDEO OUT
5
1
6
8
7
3
9 10
2
4
11
5606 FB75R
TP40
1.
2645 1nF
TP41
1.
5614 FB220R
3774
33R/1%
6611
1N4148
12
TP42
1.
3775
120R/1%
6613
1N4148
12
TP43
1.
TP72
1.
TP44
1.
2646 1nF
+
2712
220uF/16V
12
3721 100R
TP45
1.
+
2722
100uF/16V
12
TP46
1.
5618 FB220R
TP47
1.
2705
0.1uF
+
2839
100uF/16V
12
7614
TL431 1
2 3
Ref
AC
2704
11pF
6610
1N4148
1 2
3770
NM
2836
0.1uF
3741
150R
TP76
1.
2837
0.1uF
3768
1K
6604
1N4148
1 2
7715 NM
1
2 3
5615 FB220R
2698
0.1uF
3749
NM
7615
NM
1 2 3
ADJ/GND
OUT2
IN
1614
AUDIO OUT
1
5
3
4
6
2
7 8
H1
H1
1
2
3 4
5
6 7 8 9
1
2
34
5
6 7 8 9
3778
10K
3771
33R
+
2708
220uF/16V
12
7714
BC858
1
2 3
TP73
1.
TP50
TEST POINT
12
TP51
TEST POINT
12
7721
BC848
1
2 3
5616 FB220R
7726
BC848
1
2 3
TP35
1.
7722
SI2301BDS
3
1
2
7725
PSS8050
2
13
1604
NM
1
2
3
4
3767 1K
2643 1nF
1608
TO VFD
1
2
3
4
5
6
7
8
+
2711
47uF/16V
12
3779
470R
2740 1nF
GND
3139 243 3177

EN 6
3139 785 3172x
Mono Board Circuit Diagram
