Philips Sonicare DiamondClean 300 SERIES User manual

Philips Sonicare
DiamondClean
300 SERIES

2
1
3
4
5
6
7
8
9
10
Important ...................................................................................................
What’s in the box .....................................................................................
Before rst use .........................................................................................
Using your Sonicare .................................................................................
Getting used to your Sonicare ..............................................................
Travelling with your Sonicare .................................................................
Cleaning your Sonicare ...........................................................................
Storing your Sonicare ..............................................................................
Environment ..............................................................................................
Guarantee and service ............................................................................
3
6
7
8
10
11
12
13
14
15
English

Read this user manual carefully before you use the
appliance and save it for future reference.
Danger
• Keep the plugged-in charging base away from water. Do
not place or store it over or near water contained in a
bathtub, washbasin, etc. Do not immerse the charging
base or charging travel case in water or any other liquid.
After cleaning, make sure the charging base or charging
travel case is completely dry before you connect it to the
mains.
Warning
• Check if the voltage indicated on the appliance
corresponds to the local mains voltage before you
connect the appliance.
• Never use the charging base or charging travel case if it
is damaged in any way. If the charging base, the charging
travel case, the cord or the plug is damaged, always have
it replaced with one of the original type in order to avoid
a hazard.
• If the appliance is damaged in any way (brush head,
toothbrush handle), stop using it. This appliance contains
no user-serviceable parts. If the appliance is damaged,
contact the Consumer Care Centre in your country (see
chapter ‘Guarantee and service’).
• Do not use the charging base or charging travel case
outdoors or near heated surfaces.
3
1Important

4
• This appliance is not intended for use by persons
(including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction
concerning use of the appliance by a person responsible
for their safety.
• Children should be supervised to ensure that they do
not play with the appliance.
Caution
• Do not use the toothbrush in the bath or shower.
• If you have had oral or gum surgery in the previous
2 months, consult your dentist before you use the
toothbrush.
• Consult your dentist if excessive bleeding occurs after
using this toothbrush or if bleeding continues to occur
after 1 week of use.
• The Sonicare toothbrush complies with the safety
standards for electromagnetic devices. If you have a
pacemaker or other implanted device, contact your
physician or the device manufacturer of the implanted
device before you use the Sonicare.
• This appliance has only been designed for cleaning teeth,
gums and tongue. Do not use it for any other purpose.
Stop using the appliance and contact your doctor if you
experience any discomfort or pain.
• If you have medical concerns, consult your doctor before
you use the Sonicare.
• The Sonicare toothbrush is a personal care device and
is not intended for use on multiple patients in a dental
practice or institution.

5
• Stop using a brush head with crushed or bent bristles.
Replace the brush head every 3 months or sooner if
signs of wear appear.
• Do not clean the brush head in the dishwasher.
• Do not use other brush heads than the ones
recommended by the manufacturer.
• Supervise children while they are brushing until they have
established good brushing habits.
• If your toothpaste contains peroxide, baking soda
or bicarbonate (common in whitening toothpastes),
thoroughly clean the brush head with soap and water
after each use. This prevents possible cracking of the
plastic.
Electromagnetic elds (EMF)
This appliance complies with all standards regarding
electromagnetic elds (EMF). If handled properly
and according to the instructions in this user manual,
the appliance is safe to use based on scientic evidence
available today.

6

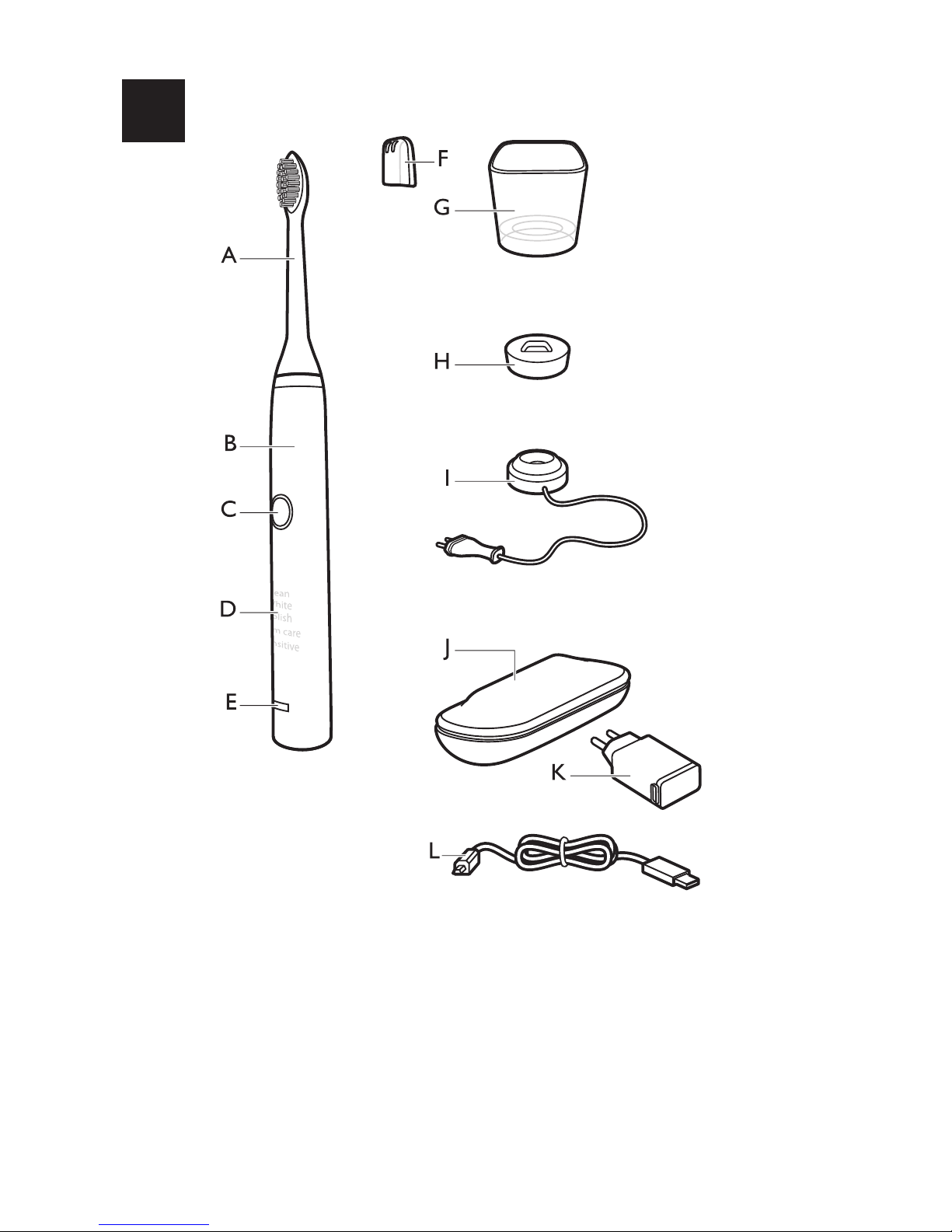

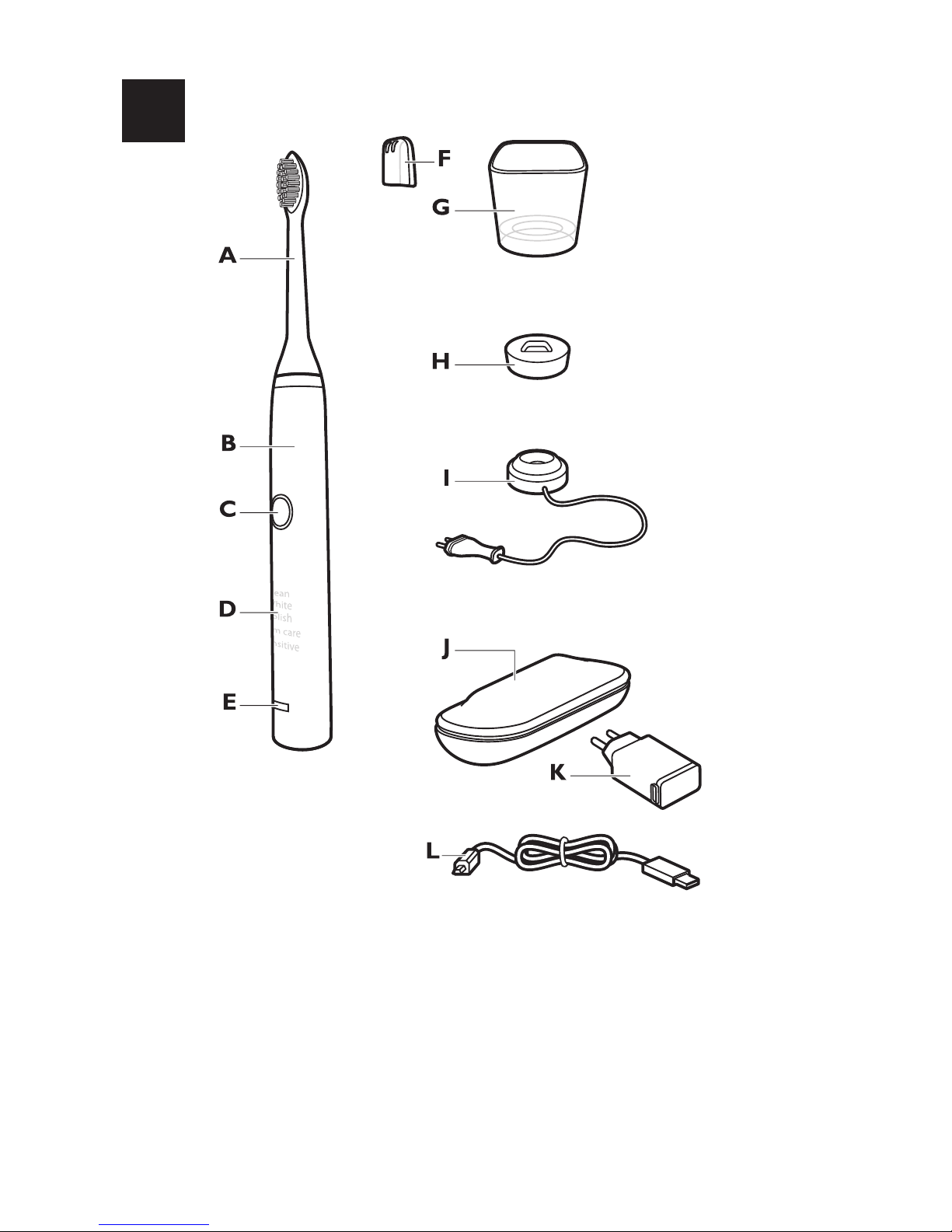

A Brush head
B Handle with ergonomic shape
C Recessed power on/off button
D Hidden brushing mode display
E Charge indicator
F Hygienic travel cap
G Charger glass (specic types only)
H Charging stand (specic types only)
I Charging base
J Charging travel case (specic types only)
K USB wall adapter (specic types only)
L USB cord (specic types only)
2

7

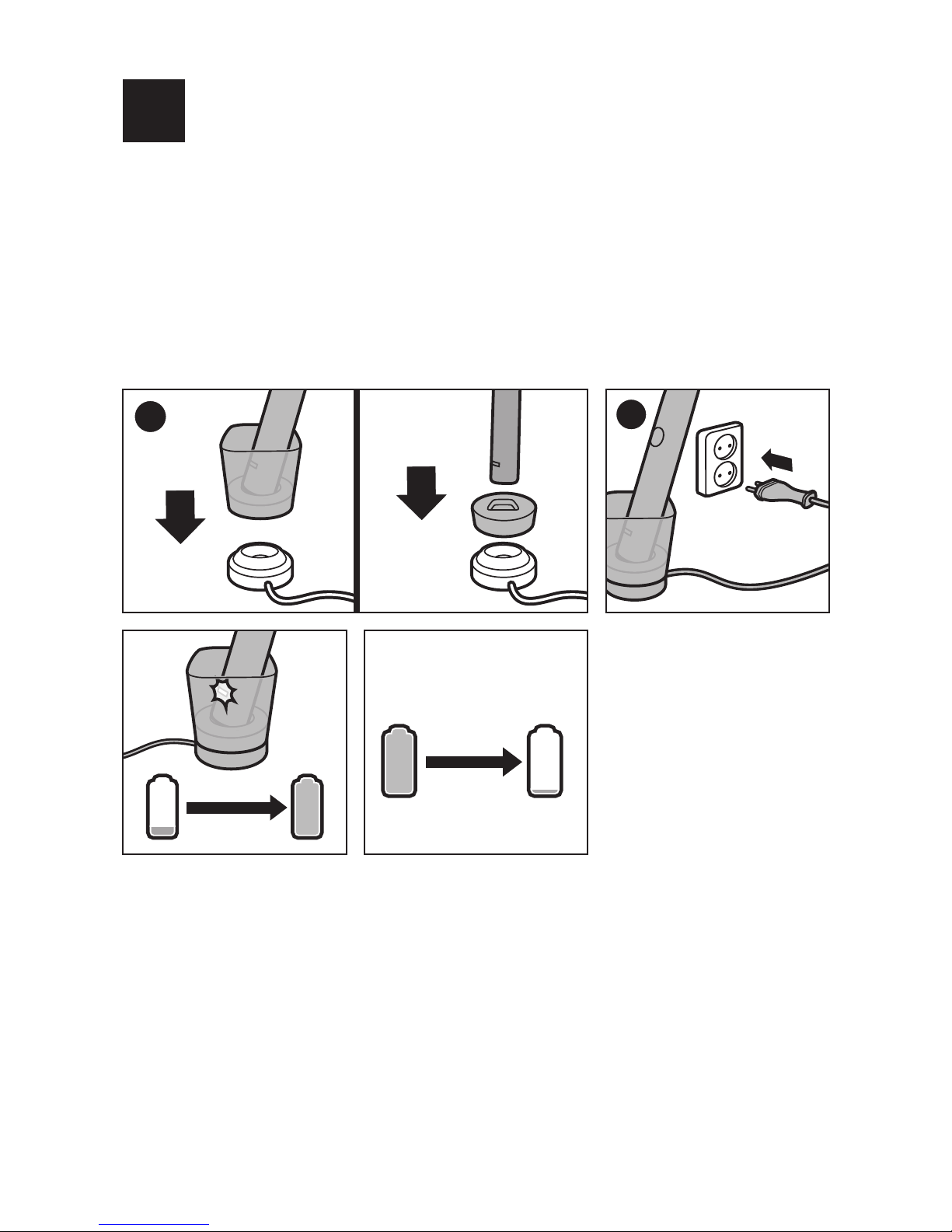

Charge your Sonicare - Charge for 24 hours before rst use. The charge indicator
ashes green until the Sonicare is fully charged. Rapid yellow ashing indicates that the
battery is low (fewer than 3 uses left). Your Sonicare has been designed to last up to 3
weeks on a single charge.
Read ‘Travelling with your Sonicare’ for additional charging methods.The charger glass
is designed to properly charge only one handle at a time. Do not place metallic objects
in the charger glass, as this may affect the charging process and may cause the charging
base to overheat. This charging base is not compatible with previous Sonicare models.
3Before rst use
1A
1
1B
3 weeks
2

8

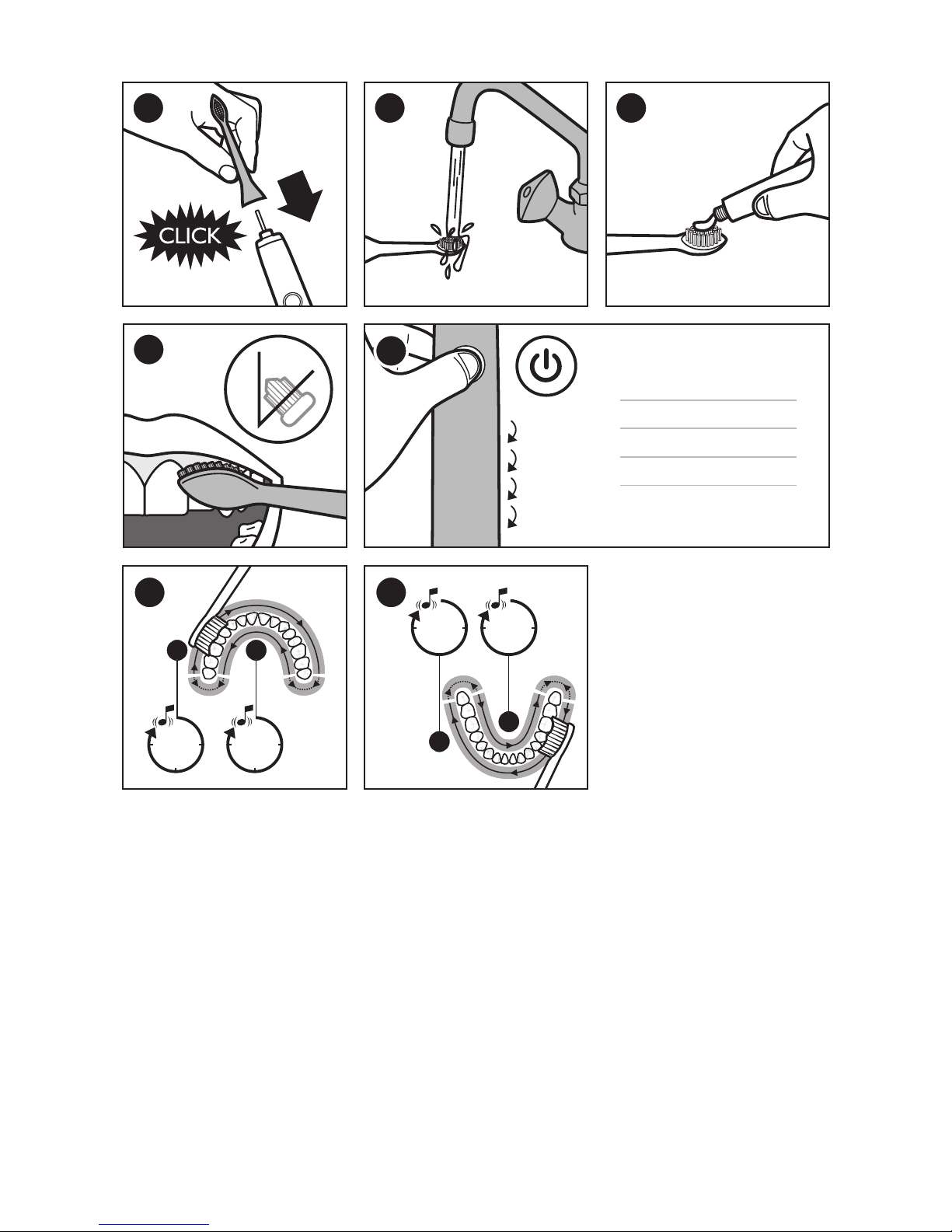

Brushing -Move the brush head slowly and gently across the teeth in a small back and
forth motion so the longer bristles reach between your teeth. Do not scrub like a manual
toothbrush. Apply light pressure to maximise Sonicare’s effectiveness and let the Sonicare
do the brushing for you. The Quadpacer is an interval timer that beeps and briey pauses
to remind you to brush the 4 sections of your mouth. Depending on the brushing mode
you have selected, the Quadpacer beeps at different intervals during the brushing cycle.
Your Sonicare has 5 modes:
Clean - The ultimate in plaque removal (standard mode).
White - Whitening mode of 2 minutes to remove surface stains, plus an additional
30 seconds to brighten and polish your front teeth.
Polish - Quick 1-minute mode to brighten and polish your front teeth.
Gum care - Complete mode combines Clean mode with an additional minute to gently
stimulate and massage your gums to improve gum health.
Sensitive - Extra gentle mode for sensitive teeth and gums.
4Using your Sonicare

9
Clean
White
Polish
Gum care
Sensitive
Clean 2 min.
➞
White
Polish
Gum care
Sensitive
➞
➞
➞
➞
2:30 min
1 min.
3 min.
2 min.
5
445º
7
4
3
4
3
30
sec.
30
sec.
6
11
30
sec.
12
30
sec.
123

10
100%
2sec.
➞OFF
➞ON

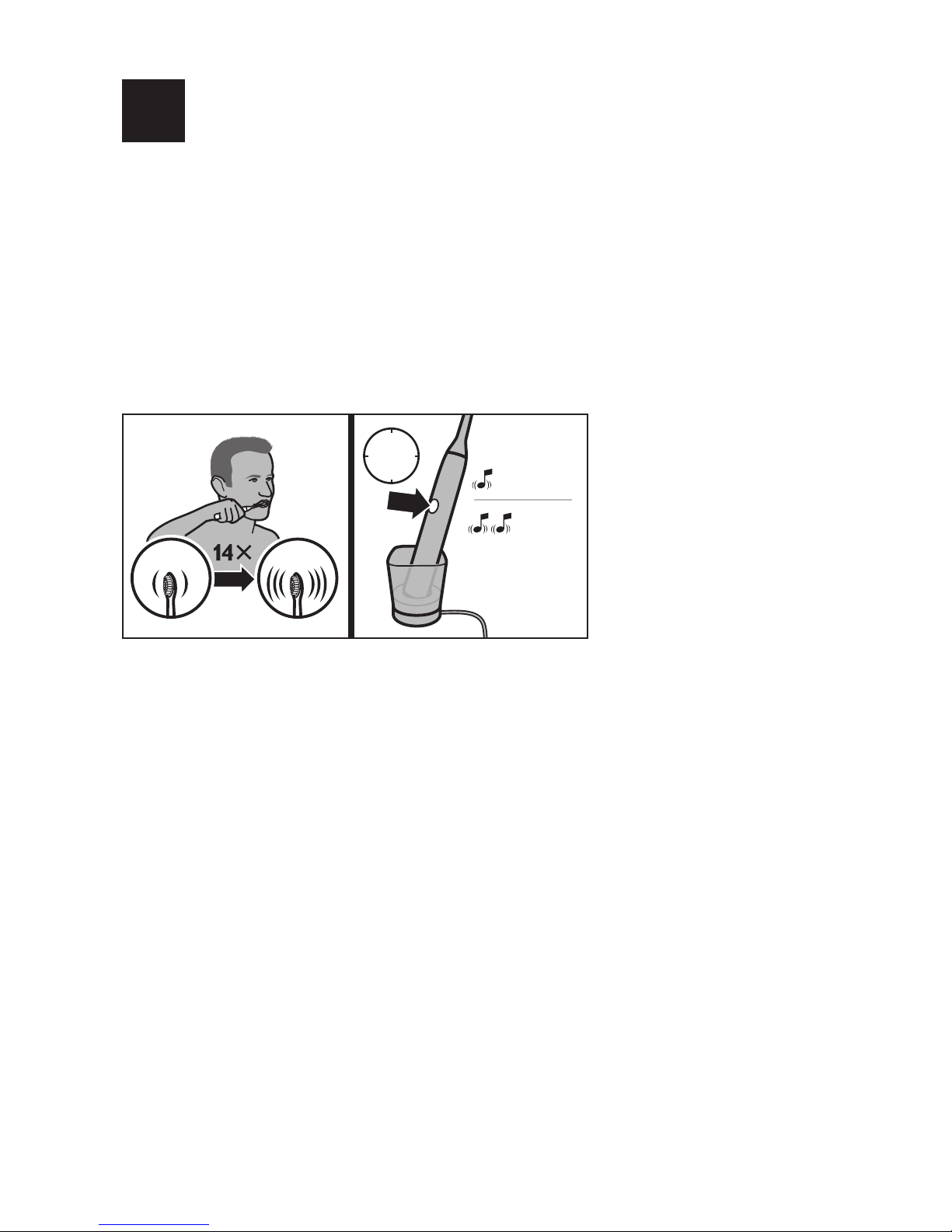

Easy-start - The Sonicare may feel ticklish upon rst use. To help you ease into the
Sonicare experience, the Easy-start feature gradually increases the sonic power over the
rst 14 brushings. Brushing must last at least 1 minute to properly advance through this
ramp-up cycle.
Easy-start may be deactivated - Place the handle in the plugged-in charging base or
charging travel case - Push and hold the on/off button for 2 seconds; 1 beep indicates the
Easy-start feature has been deactivated; 2 beeps indicate the feature has been reactivated.
Clinical studies must be performed with the Sonicare fully charged and the Easy-start
feature deactivated.
5Getting used to your Sonicare

11
12
1
2
1
3

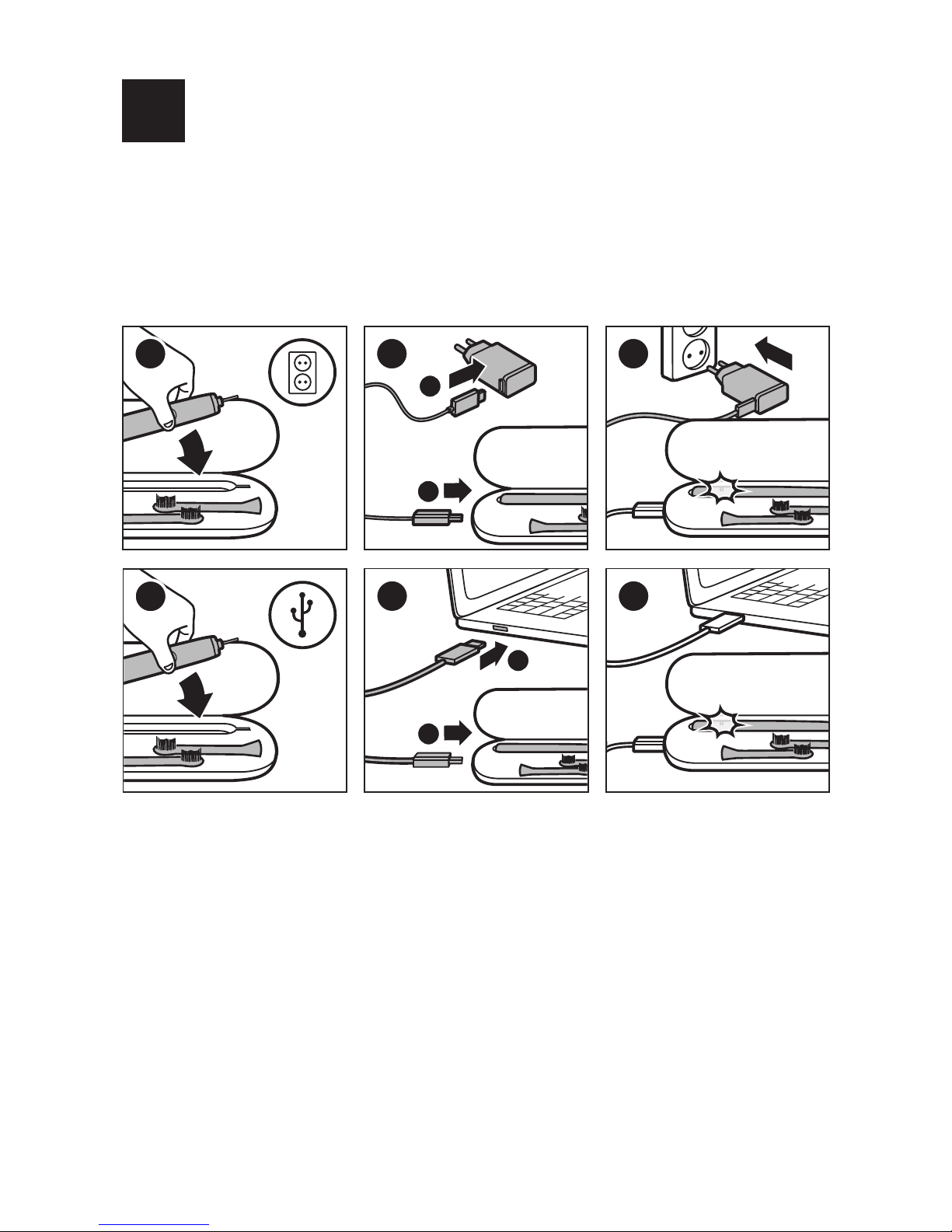

Charge via wall socket - Place the handle in the charging travel case, plug the USB cord
into the USB wall adapter and plug the USB wall adapter into a wall socket. The charge
indicator on the handle ashes green until the Sonicare is fully charged.
Charge via USB - Remove the USB cord from the USB wall adapter and insert the USB
plug into any USB port. Only use the USB wall adapter and USB cable provided.
6Travelling with your Sonicare
132
1
1
2

12
7Cleaning your Sonicare
3
4
6
5
7

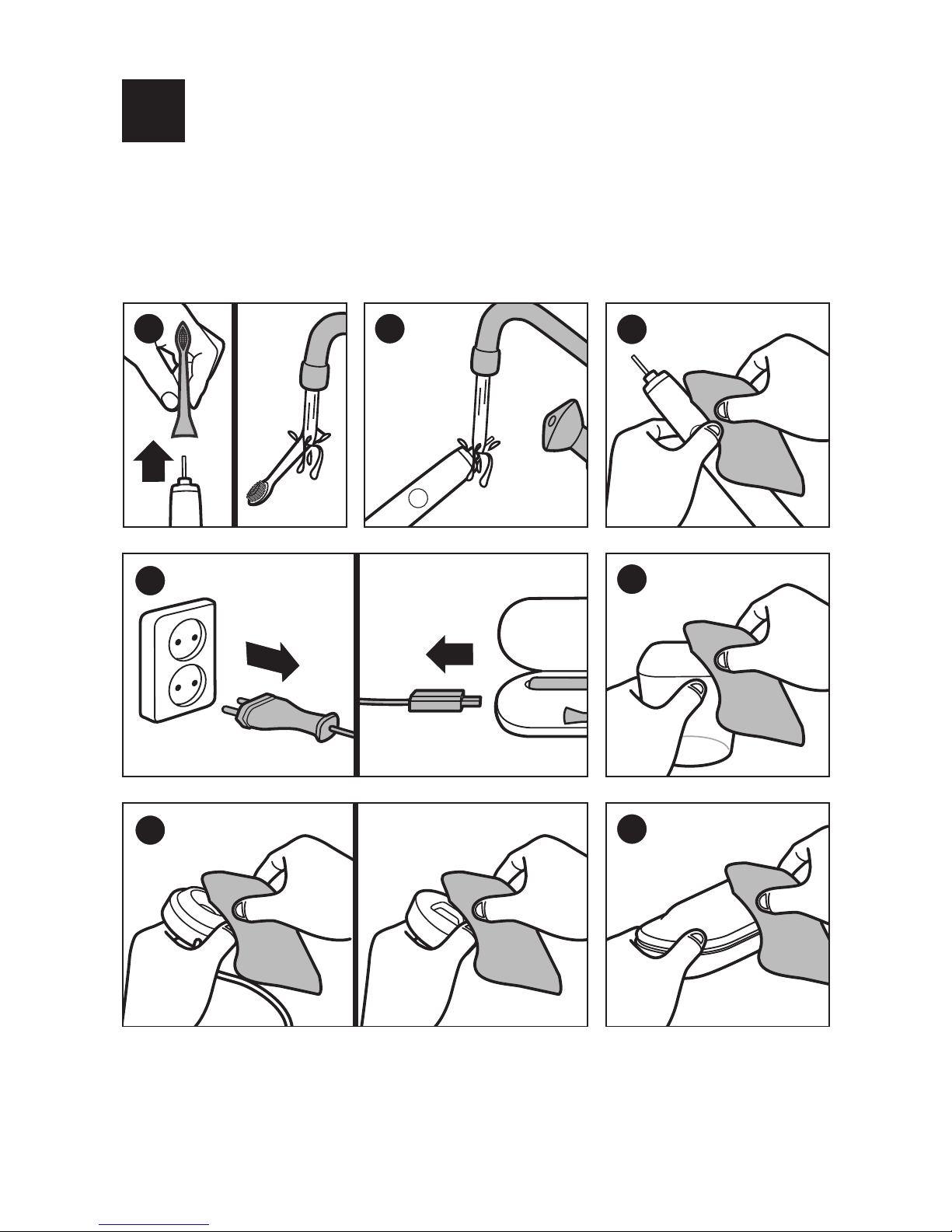

Clean the Sonicare periodically. Rinse the handle and the brush head. Wipe down all
surfaces with a soft cloth and mild soap, if desired. Do not use sharp objects to clean.
Only the charger glass is top rack dishwasher-safe. Do not clean brush head, handle,
charging base or charging travel case in the dishwasher.
12

13
8Storing your Sonicare
1

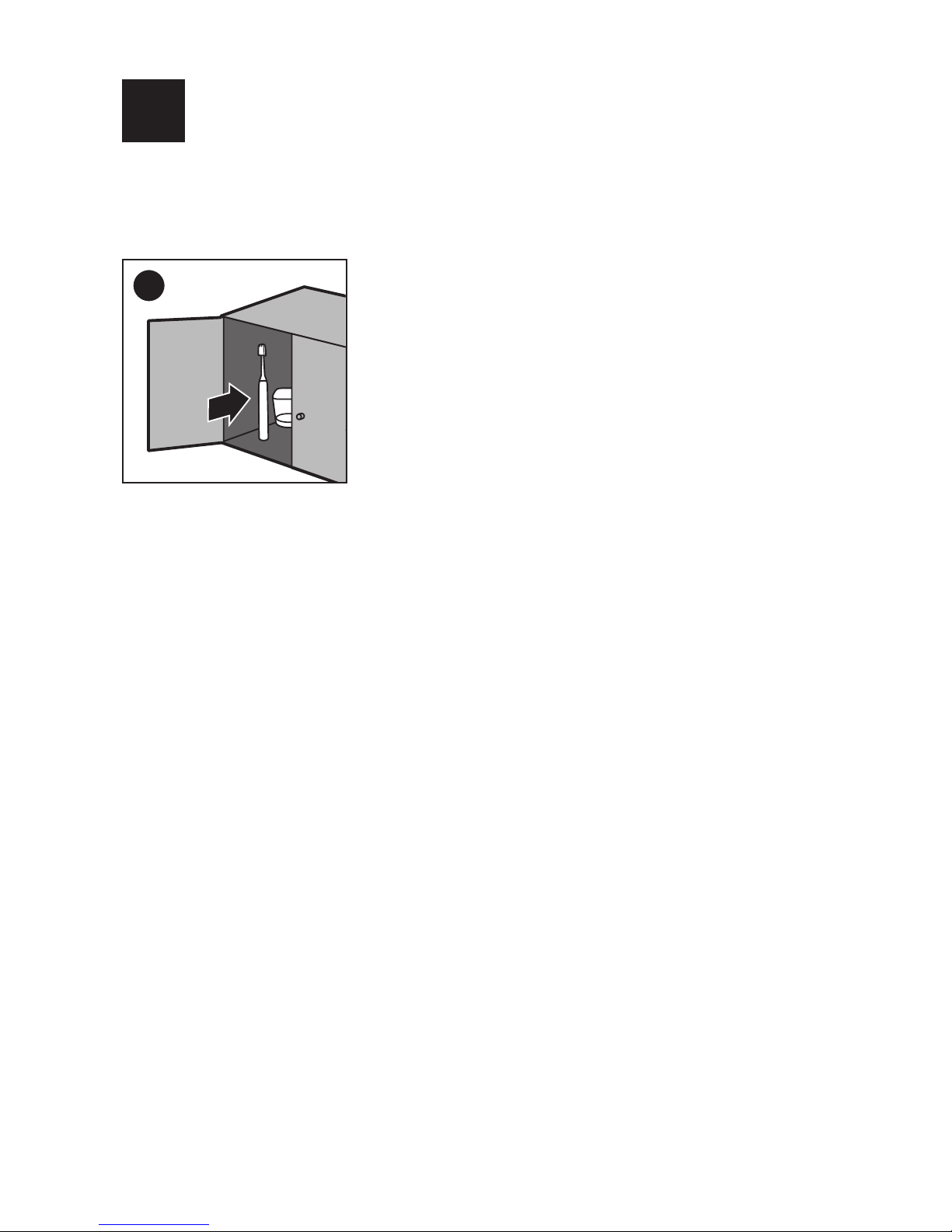

If you are not going to use the Sonicare for an extended period of time, unplug the charging
base, clean all parts and store them in a cool, dry place away from direct sunlight.

14
9Environment
Do not throw away the appliance with the normal household waste at the end of its life,
but hand it in at an ofcial collection point for recycling. Dispose of the rechargeable
battery at an ofcial collection point for batteries. By doing this, you help to preserve the
environment.

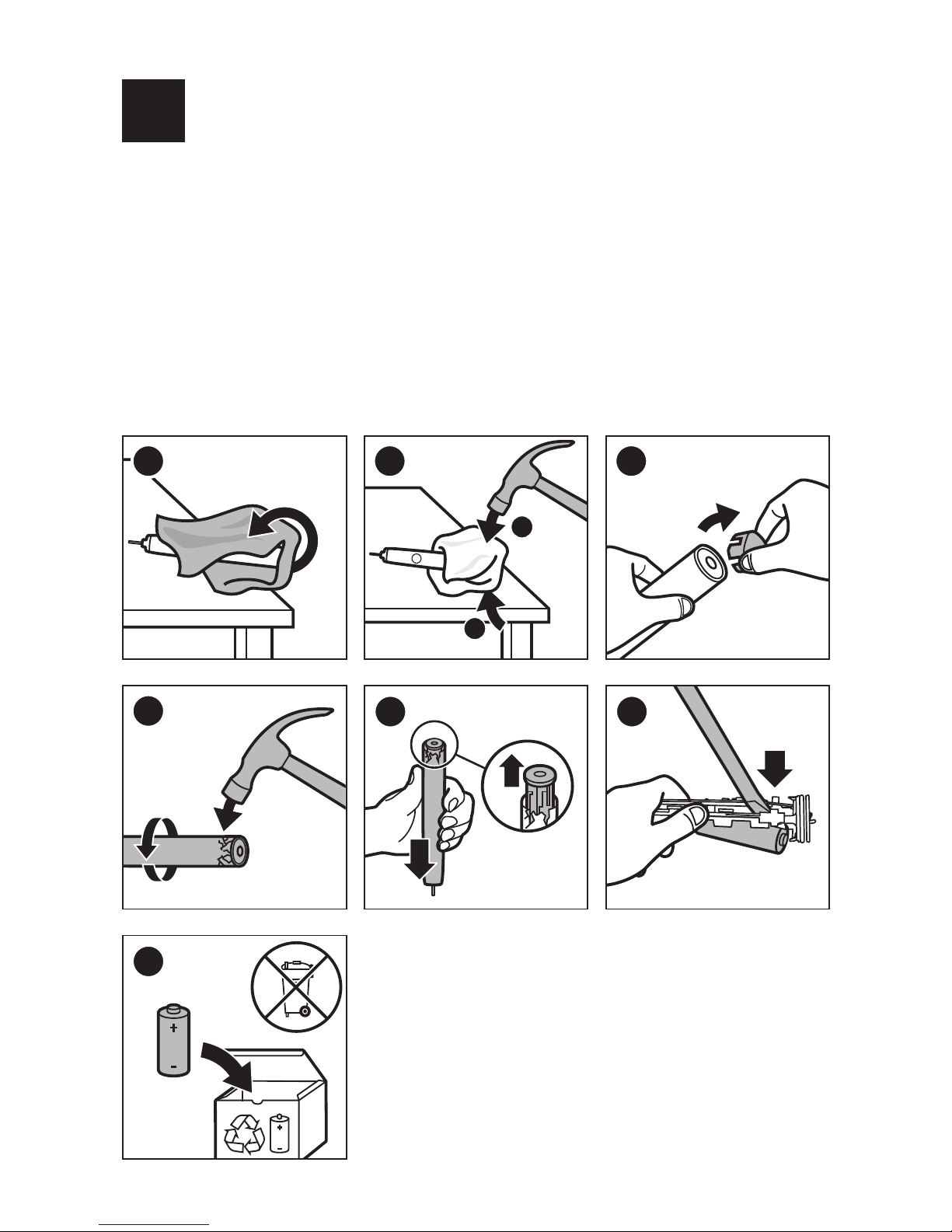

Only remove the rechargeable battery at the end of the product’s life.This
process is not reversible! Make sure the rechargeable battery is empty. Observe basic
safety precautions. To remove the rechargeable battery from the handle: Place the
handle on a solid surface and lightly tap the housing about 2.5cm from the bottom edge
with a hammer. Turn the handle 90 degrees and repeat until the bottom cap separates from
the handle.
12
1
2
3
56
+
–
+
_
+
–
7
4

15
PDF
www.philips.com/support
10
If you need service or information or if you have a problem, please visit the Philips website
at www.philips.com or contact the Philips Consumer Care Centre in your country. You nd
its phone number in the worldwide guarantee leaet. If there is no Consumer Care Centre
in your country, go to your local Philips dealer.
Guarantee restrictions
The terms of the international guarantee do not cover the following:
• Brush heads
• Damage caused by misuse, abuse, neglect, alterations or unauthorised repair.
• Normal wear and tear, including chips, scratches, abrasions, discolouration or fading.
Guarantee and service

2
1
3
4
5
6
7
8
9
10
중요 사항 ................................................................................................
구성품 .......................................................................................................
소닉케어 충전 방법 .....................................................................
소닉케어 사용 방법 .....................................................................
소닉케어 시작하기 ......................................................................
소닉케어 휴대 ..............................................................................
소닉케어 세척 ..............................................................................
소닉케어 보관 ..............................................................................
환경................................................................................................
품질 보증 및 서비스 ....................................................................
17
20
21
22
24
25
26
27
28
29
한국어

본 제품을 사용하기 전에 이 사용 설명서를 주의 깊게
읽고 나중에 참조할 수 있도록 잘 보관하십시오.
위험
•전원이 연결된 충전대는 물이 닿지 않는 곳에 보관
하십시오. 욕조, 세면대 등 물이 가까이 있는 곳에 두
거나 보관하지 마십시오. 그리고 충전대 또는 여행
용 충전 케이스를 물이나 기타 액체에 담그지 마십
시오. 세척 후에는 충전대 또는 여행용 충전 케이스
를 완전히 건조시킨 후 전원에 연결하십시오.
경고
•제품에 전원을 연결하기 전에, 제품에 표시된 전압
과 사용 지역의 전압이 일치하는지 확인하십시오.
•손상된 충전대 또는 여행용 충전 케이스는 사용하지
마십시오. 충전대, 여행용 충전 케이스, 코드 또는 플
러그가 손상된 경우 위험할 수 있으므로 반드시 정
품으로 교체하여 사용하십시오.
•제품에 손상된 부분(칫솔모, 칫솔 손잡이)이 나타나
면 사용을 중단하십시오. 이 제품에는 서비스되는
부품이 없습니다. 제품이 손상되면 필립스 고객 상
담실로 문의하십시오(‘품질 보증 및 서비스’란 참
조).
•충전대 또는 여행용 충전 케이스를 실외 또는 발열
되는 표면 근처에서 사용하지 마십시오.
17
1중요 사항

18
•신체적인 감각 및 정신적인 능력이 떨어지거나 경험
과 지식이 풍부하지 않은 성인 및 어린이는 혼자 제
품을 사용하지 말고 제품 사용과 관련하여 안전에
책임 질 수 있도록 지시사항을 충분히 숙지한 사람
의 도움을 받으십시오.
•어린이가 제품을 가지고 놀지 못하도록 지도해 주십
시오.
주의
•목욕이나 샤워 중에 사용하지 마십시오.
•최근 2개월 내에 구강 또는 잇몸 수술을 받은 경우
에는 칫솔을 사용하기 전에 치과 전문의와 상의하십
시오.
•본 제품을 사용한 후 출혈이 심하거나 1주일이 지나
도 증상이 호전되지 않는다면 치과 전문의와 상의하
십시오.
•소닉케어 칫솔은 국내 안전 기준에 따라 전자파 장
해 검정을 받은 제품입니다. 심장 박동 보조기 등 보
조 기구를 이식 받은 경우에는 주치의나 보조 기구
제조업체에 문의하여 충분히 이해한 후 소닉케어를
사용하십시오.
•본 제품은 치아와 잇몸, 그리고 혀만 세정할 수 있도
록 만들어졌으므로 다른 용도에는 사용하지 마십시
오. 사용 중 불편함이나 통증이 느껴지면 제품 사용
을 중단하고 의사와 상의하십시오.
•의료적 문제는 소닉케어를 사용하기 전에 치과 의사
와 상의하십시오.
•소닉케어 칫솔은 개인 용품이므로 치과나 기타 의료
시설에서 공용으로 이용하지 마십시오.

19
•눕거나 휘어진 칫솔모는 사용을 중단하십시오. 마모
증상이 나타나면 칫솔모를 교체하거나 3개월마다
정기적으로 교체하십시오.
•칫솔모를 식기세척기에서 세척하지 마십시오.
•제조업체에서 권장한 제품 이외의 칫솔모를 사용하
지 마십시오.
•어린이의 경우 올바른 양치 습관이 형성될 때까지
지도해 주십시오.
•사용하는 치약 성분에 과산화수소, 탄산수소나트륨,
중탄산염(미백 치약 주성분)이 포함된 경우, 이용하
고 나서 칫솔모를 비누로 닦고 물로 깨끗이 씻어내
십시오. 플라스틱 부분이 손상될 수 있습니다.
EMF(전자기장)
이 제품은 EMF(전자기장)와 관련된 모든 기준을 준수
합니다. 이 사용 설명서의 지침에 따라 적절하게 취급
할 경우 이 제품은 안전하게 사용할 수 있으며 이는 현
재까지의 과학적 증거에 근거하고 있습니다.

20
A 칫솔모
B 인체공학적 형태의 손잡이
C 매입형 전원 버튼
D 숨겨진 칫솔질 모드 디스플레이
E 충전 표시등
F 휴대용 위생 캡
2
G 충전기 유리 (특정 모델만 해당)
H 충전대 (특정 모델만 해당)
I 충전대
J 여행용 충전 케이스 (특정 모델만 해당)
K USB 벽면 어댑터 (특정 모델만 해당)
L USB 코드 (특정 모델만 해당)
