Philips HD9270 - Airfryer XL Manual
Manuals / Brands / Philips Manuals / Kitchen Appliances / HD9270 / User manual / PDF
Contents
1 Important
2 Introduction
3 General description
4 Before first use
5 Preparing for use
6 Using the appliance
6.1 Food table
6.2 Airfrying
6.3 Choosing the keep warm mode
6.4 Cooking with a preset
6.5 Changing to another preset
6.6 Making home-made fries
7 Cleaning
7.1 Cleaning table
8 Storage
9 Recycling

10 Guarantee and support
11 Troubleshooting
12 Documents / Resources
12.1 References
Important
Read this important information carefully before you use the appliance and save it for
future reference.
Always put the ingredients to be fried in the basket, to prevent them from coming into
contact with the heating elements.
Do not cover the air inlet and the air outlet openings while the appliance is operating.
Do not fill the pan with oil as this may cause a fire hazard.
Never immerse the appliance in water or any other liquid, nor rinse it under the tap.
Do not let any water or other liquid enter the appliance to prevent electric shock.

Never put any amount of food that exceeds the maximum level indicated in the
basket.
Never touch the inside of the appliance while it is operating.
Always make sure the heater is free and no food is stuck in heater.
Check if the voltage indicated on the appliance corresponds to the local mains
voltage before you connect the appliance.
Do not use the appliance if the plug, the mains cord or the appliance itself is
damaged.
If the mains cord is damaged, you must have it replaced by Philips, a service centre
authorised by Philips or similarly qualified persons in order to avoid a hazard.
This appliance can be used by children aged from 8 years and above and persons
with reduced physical, sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved. Children shall not play
with the appliance. Cleaning and user maintenance shall not be made by children
unless they are older than 8 years and supervised.
Keep the appliance and its cord out of reach of children less than 8 years.
Keep the mains cord away from hot surfaces.
Only connect the appliance to an earthed wall socket. Always make sure that the
plug is inserted into the wall socket properly.
This appliance is not intended to be operated by means of an external timer or a
separate remotecontrol system.
Do not place the appliance against a wall or against other appliances. Leave at least
10 cm free space on the back and sides and 10 cm free space above the appliance.
Do not place anything on top of the appliance.
Do not use the appliance for any other purpose than described in the user manual.
During hot air frying, hot steam is released through the air outlet openings. Keep your
hands and face at a safe distance from the steam and from the air outlet openings.
Also be careful of hot steam and air when you remove the pan from the appliance.
The accessible surfaces may become hot during use.
The pan, the basket and accessories inside the Airfryer become hot during use. Be
careful when you handle them.
Do not place the appliance on or near a hot gas stove or all kinds of electric stove

and electric cooking plates, or in a heated oven.
Never use light ingredients or baking paper in the appliance.
Do not place the appliance on or near combustible materials such as a tablecloth or
curtain.
Do not let the appliance operate unattended.
Immediately unplug the appliance if you see dark smoke coming out of the
appliance. Wait for the smoke emission to stop before you pull the pan out of the
appliance.
Storage of potatoes: The temperature shall be appropriate to the potato variety
stored and it shall be above 6°C to minimize the risk of acrylamide exposure in the
prepared foodstuff.
Do not plug in the appliance or operate the control panel with wet hands.
This appliance is designed to be used at ambient temperatures between 5°C and
40°C.
This appliance is intended for normal household use only. It is not intended for use in
environments such as staff kitchens of shops, offices, farms or other work
environments. Nor is it intended to be used by clients in hotels, motels, bed and
breakfasts and other residential environments.
Always return the appliance to a service centre authorised by Philips for examination
or repair. Do not attempt to repair the appliance yourself, otherwise the guarantee
becomes invalid.
If the appliance is used improperly or for professional or semi-professional purposes
or if it is not used according to the instructions in the user manual, the guarantee
becomes invalid and Philips refuses any liability for damage caused.
Always place and use the appliance on a dry, stable, level and horizontal surface.
Always unplug the appliance after use.
Let the appliance cool down for approx. 30 minutes before you handle or clean it.
Make sure the ingredients prepared in this appliance come out golden-yellow instead
of dark or brown. Remove burnt remnants. Do not fry fresh potatoes at a temperature
above 180°C (to minimise the production of acrylamide).
Be careful when cleaning the upper area of the cooking chamber: Hot heating
element, edge of Metal parts.
Always make sure that the food is fully cooked in the Airfryer.

Always make sure that you have the control over your Airfryer.
When cooking fatty food, the Airfryer could emit smoke.
Electromagnetic fields (EMF)
This Philips appliance complies with all applicable standards and regulations regarding
electromagnetic fields.
Automatic shut-off
This appliance is equipped with an automatic shut-off function. If you do not press a
button within 20 minutes, the appliance switches off automatically. To switch off the
appliance manually, press the power On/ off button.
Introduction
To fully benefit from the support that Philips offers, register your product at
www.philips.com/welcome.
Philips Airfryer is the only Airfryer with unique Rapid Air technology to fry your favorite
foods with little or no added oil and up to 90% less fat. Philips Rapid Air technology
cooks food all around as well as our starfish design for perfect results from your first bite
to your last. You can now enjoy perfectly cooked fried food—crispy on the outside
tender on the inside—Fry, grill, roast and bake to prepare a variety of tasty dishes in a
healthy, fast and easy way. For more inspiration, recipes and information about the
Airfryer, visit www.philips.com/kitchen or download the free NutriU App* for IOS® or
Android™.
*The NutriU app may not be available in your country. In this case please access your
local Philips website for inspiration.

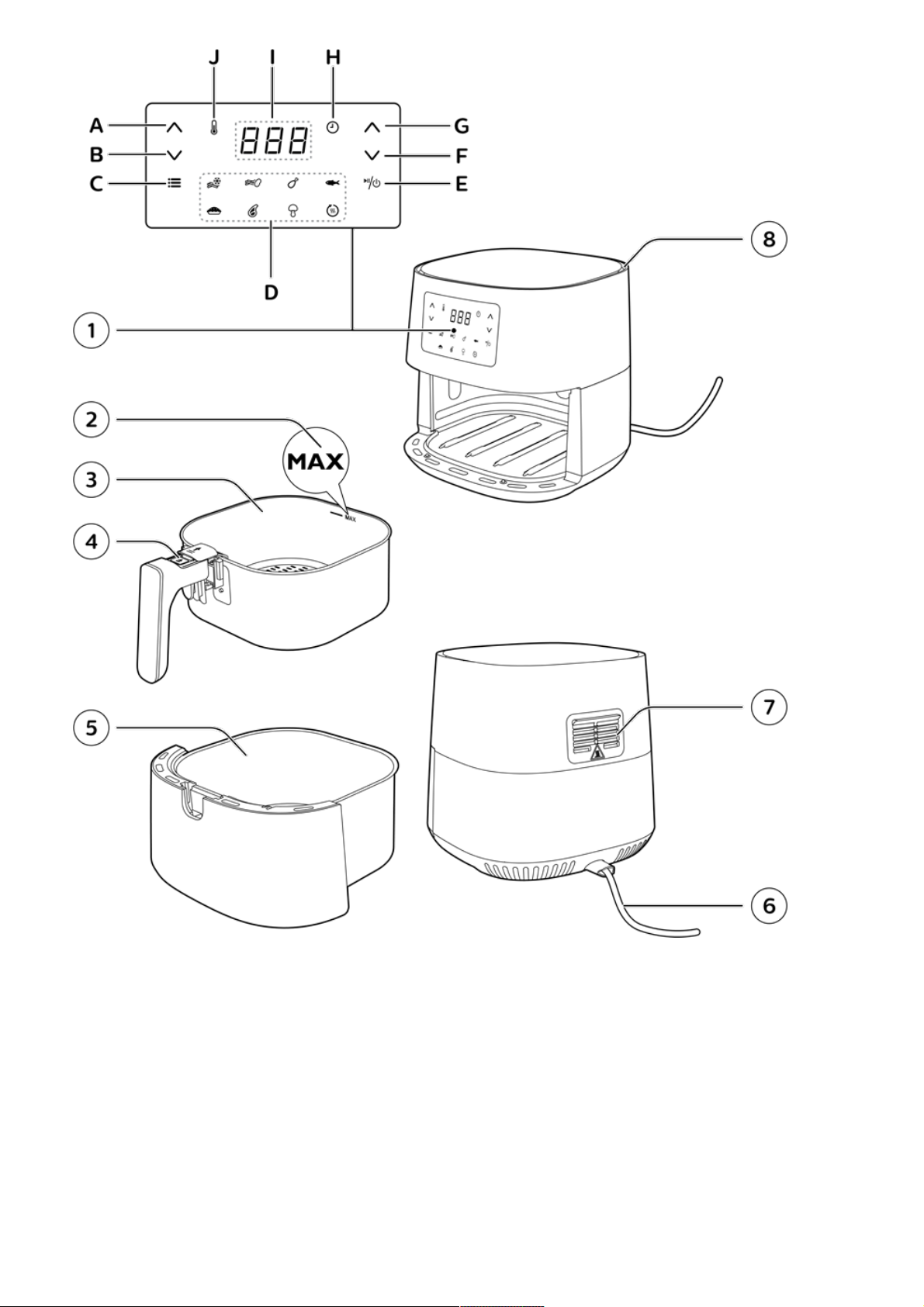

General description

1. Control panel
A. Temperature up button
B. Temperature down button
C. Menu button
D. Preset menus
E. On/Off button
F. Time down button

G. Time up button
H. Time indication
I. Screen
J. Temperature indication
2. MAX indication
3. Basket
4. Basket release button
5. Pan
6. Power cord
7. Air outlets
8. Air inlet
Before first use
1. Remove all packing material.
2. Remove any stickers or labels (if available) from the appliance.
3. Thoroughly clean the appliance before first use, as indicated in the cleaning
chapter.
Preparing for use
1. Place the appliance on a stable, horizontal, level and heat-resistant surface.
Note
Do not put anything on top or on the sides of the appliance. This could disrupt the
airflow and affect the frying result.
Do not place the operating appliance near or underneath objects that could be
damaged by steam, such as walls and cupboard.
Leave the rubber plug in the pan. Do not remove it before cooking.

Using the appliance
Food table
The table below helps you select the basic settings for the types of food you want to
prepare.
Note
Keep in mind that these settings are suggestions. As ingredients differ in origin, size,
shape as well as brand, we cannot guarantee the best setting for your ingredients.
When preparing larger amount of food (e.g. fries, prawns, drumsticks, frozen
snacks), shake, turn, or stir the ingredients in the basket 2 to 3 times in order to
achieve a consistent result.
Ingredients
Min.–
max.
amount
Time
(min)
Tem per a
ture Note
Thin frozen fries
(7x7 mm/0.3x0.3
in)
200-
800 g /
7-28 oz
14-
31 180°C/350°F Shake, turn or stir 2-3 times in between
Homemade fries
(10x10
mm/0.4x0.4 in
thick)
200-
800 g /
7-28 oz
20-
40 180°C/350°F Shake, turn or stir 2-3 times in between
Frozen chicken
nuggets
200-
600 g/
7-21 oz
9-20 200°C/400°F Shake, turn or stir halfway
Frozen spring rolls
200-
600 g/
7-21 oz
9-20 200°C/400°F Shake, turn or stir halfway
Hamburger
(around 150 g/5
oz)
1-5
patties
16-
21 200°C/400°F
Meat loaf 1200 g /
42 oz
55-
60 150°C/300°F Use the baking accessory
Meat chops
without bone
(around 150 g/5
oz)
1-4
chops
15-
20 200°C/400°F Shake, turn or stir halfway

Thin sausages
(around 50 g/1.8
oz)
2-10
pieces
11-
15 200°C/400°F Shake, turn or stir halfway
Chicken
drumsticks
(around 125 g/4.5
oz)
2-8
pieces
17-
27 180°C/350°F Shake, turn or stir halfway
Chicken breast
(around 160 g/6
oz)
1-5
pieces
15-
25 180°C/350°F
Whole chicken 1200
g/42 oz
60-
70 180°C/350°F
Whole fish
(around 300- 400
g/11-14 oz)
1-2 fish 20-
25 200°C/400°F
Fish filet (around
200 g/7 oz)
1-5 (1
layer)
25-
32
160°C /
325°F
Mixed vegetables
(roughly chopped)
200-
800
g/7- 28
oz
9-18 180°C/350°F
Set the cooking time according
to your own taste Shake, turn or
stir halfway
Muffins (around
50 g/1.8 oz) 1-9 13- 15 180°C/350°F Use the Muffin cups
Cake 500
g/18 oz
40-
45 160°C/325°F Use a cake pan
Pre-baked
bread/rolls
(around 60 g/ 2
oz)
1-6
pieces 6-8 200°C/400°F
Homemade bread 800 g /
28 oz
55-
65 150°C/300°F
Use the baking accessory
The shape should be as flat as
possible to avoid that the bread
touches the heating element
when rising.
Airfrying

This is an Airfryer that works on hot air. Do not fill the pan with oil, frying fat or
any other liquid.
Do not touch hot surfaces. Use handles or knobs. Handle the hot pan with
oven-safe gloves.
This appliance is for household use only.
This appliance may produce some smoke when you use it for the first time.
This is normal.
Preheating of the appliance is not necessary.
1. Put the plug in the wall outlet.
2. Remove the pan with the basket from the appliance by pulling the handle.
3. Put the ingredients in the basket.

Note
The Airfryer can prepare a large range of ingredients. Consult the 'Food table' for the
right quantities and approximate cooking times.
Do not exceed the amount indicated in the 'Food table' section or overfill the basket
beyond the 'MAX' indication as this could affect the quality of the end result.
If you want to prepare different ingredients at the same time, make sure you check
the suggested cooking time required for the different ingredients before you start to
cook them simultaneously.
4. Put the pan with the basket back into the Airfryer.
Never use the pan without the basket in it.
Do not touch the pan or the basket during and for some time after use, as
they get very hot.
5. Press the power On/Off button to switch on the appliance.
6. Press the temperature up or down button to choose the needed temperature.

7. Press the time up button to choose the needed time.
8. Press the On/Off button to start the cooking process.
Note
During cooking the temperature and time are shown alternately.
The last cooking minute counts down in seconds.
Refer to the food table with basic cooking settings for different types of food.
Tip
During cooking, if you want to change the cooking time or temperature, press the
corresponding up or down button at any time to do so.
To pause the cooking process, press the On/Off button. To resume the cooking
process, press the On/Off button again to continue the cooking process.
The device is automatically in pause mode when you pull out the pan and the basket.
The cooking process continues when the pan and the basket are put in the appliance
again.
To change the temperature unit from Celsius to Fahrenheit or the other way
around on your Airfryer, press the temperature up and down button at the

same time for about 10 seconds.
Note
If you do not set the required cooking time within 30 minutes, the appliance
automatically shuts off for safety reasons.
Some ingredients require shaking or turning halfway through the cooking time (see
'Food table'). To shake the ingredients, pull out the pan with the basket, place it on a
heat resistant work top, slide the lid and press the basket release button to remove
the basket and shake the basket over the sink. Then put the basket into the pan, and
slide them back into the appliance.
If you set the timer to the half of the cooking time and you hear the timer bell it is time
to shake or turn the ingredients. Be sure to reset the timer to the remaining cooking
time.
9. When you hear the timer bell, the cooking time has elapsed.
Note
You can stop the cooking process manually. To do this, press the On/Off button.
10. Pull out the pan and check if the ingredients are ready.

The Airfryer pan is hot after the cooking process. Always place it on a heat
resistant work top (eg. trivet, etc.) when you remove the pan from the device.
Note
If the ingredients are not ready yet, simply slide the pan back into the Airfryer by the
handle and add a few extra minutes to the set time.
11. To remove small ingredients (e.g. fries), lift the basket out of the pan by sliding
the lid first, and then pressing the basket release button.
After the cooking process, the pan, the basket, the interior housing and the
ingredients are hot. Depending on the type of ingredients in the Airfryer, steam may
escape from the pan.
12. Empty the basket contents into a bowl or onto a plate. Always remove the
basket from the pan to empty contents as hot oil may be in the bottom of the
pan.
Note
To remove large or fragile ingredients, use a pair of tongs to lift out the ingredients.
Excess oil or rendered fat from the ingredients is collected on the bottom of the pan.
Depending on the type of ingredients cooking, you may want to carefully pour off any

excess oil or rendered fat from the pan after each batch or before shaking or
replacing the basket in the pan. Place the basket on a heat-resistant surface. Wear
oven-safe gloves to pour off excess oil or rendered fat. Return the basket into the
pan.
When a batch of ingredients is ready, the Airfryer is instantly ready for preparing
another batch.
Note
Repeat steps 3 to 12 if you want to prepare another batch.
Choosing the keep warm mode
1. Press the menu button as often as the keep warm icon is blinking.
2. Press the On/Off button to start the keep warm mode.
Note
The keep warm timer is set to 30 minutes. To change the keep warm time (1 - 30
minutes), press the time down button. The time will be confirmed automatically.
The temperature cannot be changed in keep warm mode.
3. To pause the keep warm mode, press the On/Off button. To resume the keep
warm mode, press the On/Off button again.
4. To exit the keep warm mode, long press the On/Off button.
Tip

If food like French fries loses too much crispness during the keep warm mode, either
shorten the keep warm time by switching off the appliance earlier or crisp them up for
2-3 minutes at the temperature of 180°C/350°F.
Note
During the keep warm mode, the fan and heater inside of the appliance turn on from
time to time.
The keep warm mode is designed to keep your food warm immediately after it is
cooked in the Airfryer. It is not meant for reheating.
Cooking with a preset
1. Follow steps 1 to 5 in chapter "Airfrying".
2. Press the Menu button. The frozen snacks icon is blinking. Press the Menu
button as often as your needed preset is blinking.
3. Start the cooking process by pressing the On/Off button.
Note
In the following table you can find more information about the presets.
Preset
Preset
time
(min)
Preset
temperature
Weight
(Max.) Information

Frozen potato
based snacks
31 180°C/
350°F
800
g/28 oz
Potato based frozen snacks like
frozen French fries, potato wedges,
criss-cross fries etc.
Shake, turn or stir 2-3 times in
between
Fresh fries 38 180°C/
350°F
800
g/28 oz
Use mealy potatoes
10x10mm / 0.4x0.4 in thick cut
Soak 30 minutes in water, dry then
add ¼ to 1 tbsp of oil
Shake, turn or stir 2-3 times in
between
Chicken
drumsticks
27 180°C/
350°F
1000
g/35 oz
Up to 8 chicken drumsticks
Shake, turn or stir in between
Whole fish
around 300
g/11 oz
20 200°C/
400°F
600
g/21 oz
Cake 45 160°C/
325°F
500
g/18 oz
Use the XL baking accessory (199
x 189 x 80 mm)
Meat chops 20 200°C/
400°F
600
g/21 oz Up to 4 meat chops without bone
Mixed
vegetables
18 180°C/
350°F
800
g/28 oz
Roughly chopped
Use the XL baking accessory

Keep warm 30 80°C/
175°F N/A Temperature cannot be adjusted
Changing to another preset
1. During the cooking process long press the power On/Off button to stop the
cooking process. The device is then in stand-by mode.
2. Press the On/Off button again to turn on the device.
3. Press the menu button as often as your needed preset is blinking.
4. Press the On/Off button to start the cooking process.
Making home-made fries
To make great home-made fries in the Airfryer:

Choose a potato variety suitable for making fries, e.g. fresh, (slightly) floury potatoes.
It is best to air fry the fries in portions of up to 800 g/28 oz for an even result. Larger
fries tend to be less crispy than smaller fries.
1. Peel the potatoes and cut into sticks (10 x 10 mm/0.4 x 0.4 in thick).
2. Soak the potato sticks in a bowl of water for at least 30 minutes.
3. Empty the bowl and dry the potato sticks with a dish towel or paper towel.
4. Pour one tablespoon of cooking oil into the bowl, put the sticks in the bowl and
mix until the sticks are coated with oil.
5. Remove the sticks from the bowl with your fingers or a slotted kitchen utensil
so excess oil remains in the bowl.
Note
Do not tilt the bowl to pour all the sticks in the basket at once to prevent excess
oil from going into the pan.
6. Put the sticks into the basket.
7. Fry the potato sticks and shake the basket 2-3 times during cooking.
Cleaning
Let the basket, the pan, and the inside of the appliance cool down completely before
you start cleaning.
The pan, the basket, and the inside of the appliance have a non-stick coating. Do not
use metal kitchen utensils or abrasive cleaning materials as this may damage the
non-stick coating.
Clean the appliance after every use. Remove oil and fat from the bottom of the pan after
every use.
1. Press the power On/Off ( ) button to switch off the appliance, remove the plug
from the wall outlet and let the appliance cool down.
Tip
Remove the pan and the basket to let the Airfryer cool down more quickly.
2. Dispose of rendered fat or oil from the bottom of the pan.
3. Clean the pan and the basket in a dishwasher. You can also clean them with

hot water, dishwashing liquid and a non-abrasive sponge (see 'Cleaning table').
Note
Tip
Put the pan with the rubber plug in the dishwasher. Do not remove the rubber plug
before cleaning.
If food residues stuck to the pan or the basket, you can soak them in hot water
and dishwashing liquid for 10–15 minutes. Soaking loosens the food residues and
makes it easier to remove. Make sure you use a dishwashing liquid that can
dissolve oil and grease. If there are grease stains on the pan or the basket and
you have not been able to remove them with hot water and dishwashing liquid,
use a liquid degreaser.
If necessary, food residues stuck to the heating element can be removed with a
soft to medium bristle brush. Do not use a steel wire brush or a hard bristle brush,
as this might damage the coating on the heating element.
4. Wipe the outside of the appliance with a moist cloth.
Note
Make sure no moisture remains on the control panel. Dry the control panel with a
cloth after you have cleaned it.
5. Clean the heating element with a cleaning brush to remove any food residues.
