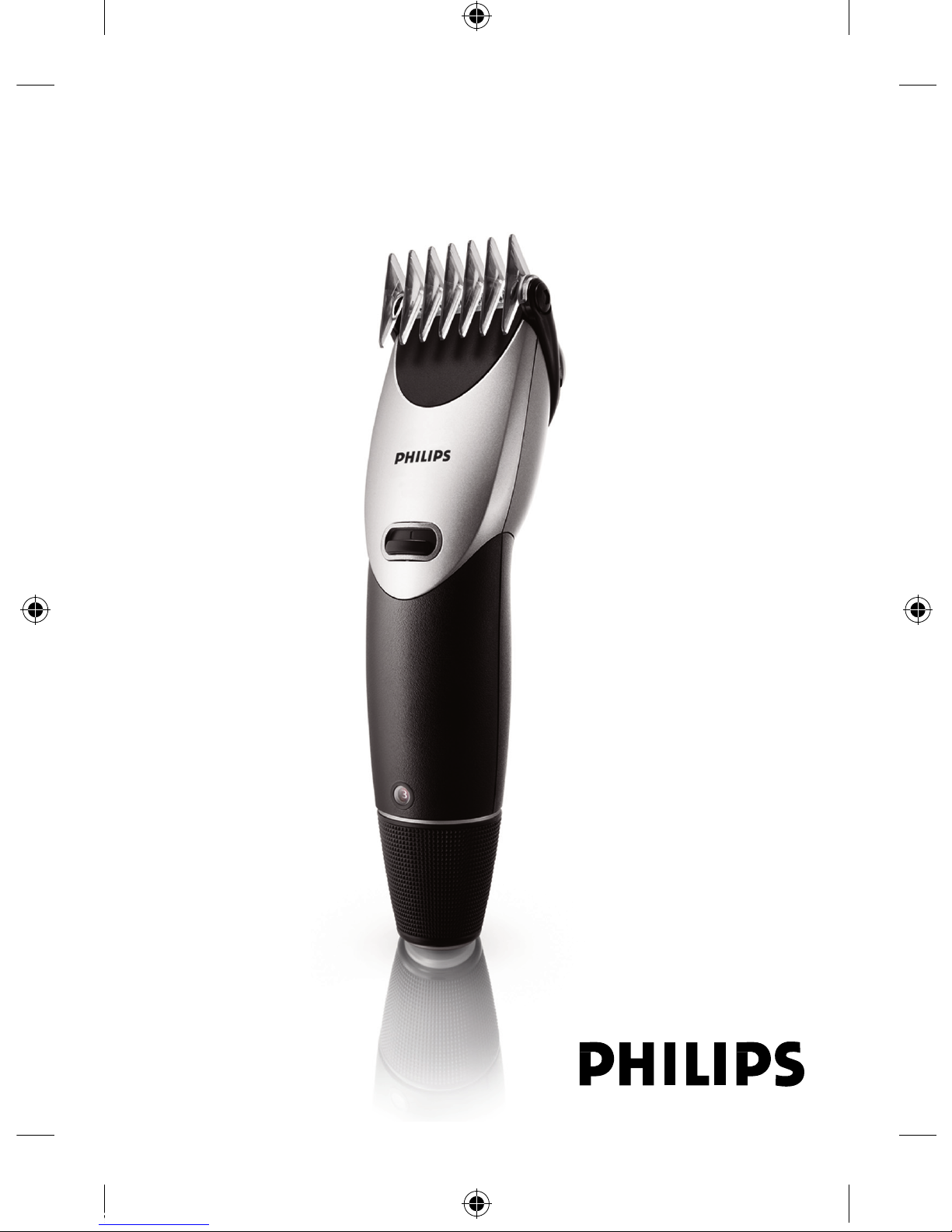

Philips QC5050/40 User manual

Hairclipper
QC5050, QC5010
4203.000.5452.3.indd 1 12-03-2007 14:33:15

2
4203.000.5452.3.indd 2 12-03-2007 14:33:16

3
1
4203.000.5452.3.indd 3 12-03-2007 14:33:18

4
4203.000.5452.3.indd 4 12-03-2007 14:33:18

QC5050,QC5010
ENGLISH 6
ESPAÑOL 12
FRANÇAIS (CANADA) 18
28
33
4203.000.5452.3.indd 5 12-03-2007 14:33:19

Introduction
Dear customer, you have made the right choice!Your new Philips super-
easy hair clipper adapts to the contours of the head and enables
comfortable use.To enjoy using the hair clipper we advise you to read the
following information.

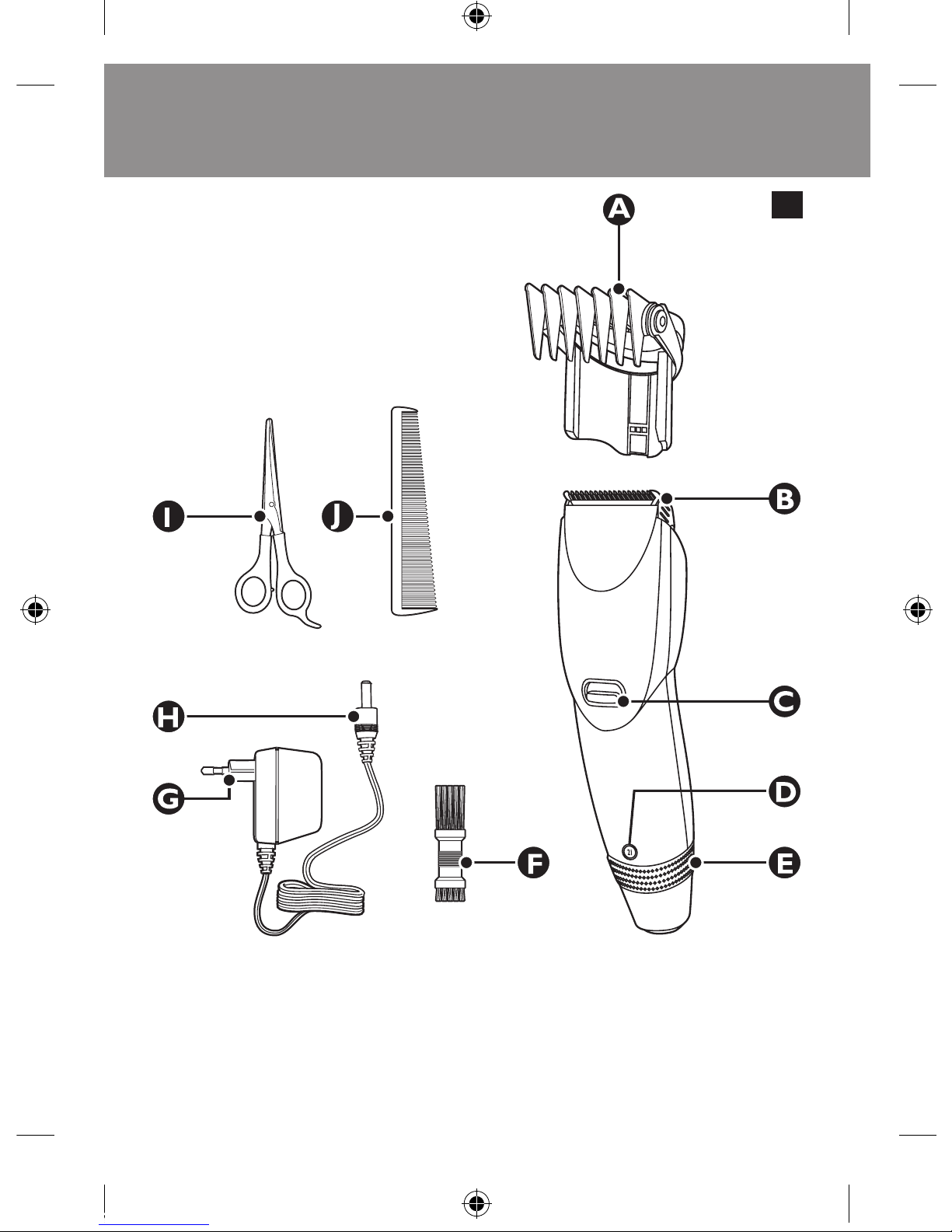

General description (Fig. 1)
ASmall comb
BMain cutting element
COn/off slide
DLength indicator
ELength lock (locks the hair length setting)
FCleaning brush
GAdapter
HAppliance plug
IScissors (QC5050 only)
JStyling comb (QC5050 only)
Important
Read this user manual carefully before you use the appliance and save
it for future reference.
Check if the voltage indicated on the appliance corresponds to the
local mains voltage before you connect the appliance.
If the adapter is damaged, always have it replaced with one of the
original type in order to avoid a hazard.
The adapter contains a transformer. Do not cut off the adapter to
replace it with another plug, as this causes a hazardous situation.
This appliance is not intended for use by persons (including children)
with reduced physical, sensory or mental capabilities, or lack of
experience and knowledge, unless they have been given supervision
or instruction concerning use of the appliance by a person
responsible for their safety.
Children should be supervised to ensure that they do not play with
the appliance.
Keep the appliance and the adapter dry (Fig. 2).
-
-
-
-
-
-
-
ENGLISH6
4203.000.5452.3.indd 6 12-03-2007 14:33:20

Use, charge and store the appliance at a temperature between 15°C
and 35°C.
This appliance is suitable for mains voltages from 220 to 240 volts.
Do not use a damaged adapter.
Do not use the appliance when one of the attachments is damaged
or broken as this may cause injury.
Only use the adapter supplied.
This appliance is only intended for clipping human scalp hair. Do not
use it for another purpose.
Electromagnetic elds (EMF)
This Philips appliance complies with all standards regarding
electromagnetic elds (EMF). If handled properly and according to the
instructions in this user manual, the appliance is safe to use based on
scientic evidence available today.
Charging (QC5050 only)
Charge the appliance for 8 hours (NiCd battery) or 12 hours (NiMh
battery) before you start using it for the rst time.
A fully charged appliance has a cordless clipping time of up to 35 minutes
(NiCd battery) or 50 minutes (NiMh battery).
Do not charge the appliance for more than 24 hours.
1 Make sure the appliance is switched off while charging.
2 Insert the appliance plug into the appliance (Fig. 3).
3 Insert the adapter into the wall socket.
The charging light will go on to indicate that the appliance is
charging (Fig. 4).
The charging light will not go out or change colour when the appliance
is fully charged.
Optimising the lifetime of the battery
After the appliance has been charged for the rst time, do not recharge it
between clipping sessions. Continue using it and recharge it only when
the battery is (almost) empty.
-
-
-
-
-
-
,
ENGLISH 7
4203.000.5452.3.indd 7 12-03-2007 14:33:21

Discharge the battery completely twice a year by letting the motor
run until it stops.
Do not keep the appliance plugged into a wall socket all the time.
If the appliance has not been used for a long time, it must be
recharged for 8 hours (NiCd battery) or 12 hours (NiMh battery).
Corded clipping
QC5050 only:
Do not run the appliance from the mains when the battery is fully
charged.
To use the hair clipper connected to the mains: switch the hair
clipper off, connect it to the mains and wait a few seconds before
switching it on.
QC5010 only:
1 Insert the appliance plug into the appliance. (Fig. 3)
2 Insert the adapter into the wall socket.
Using the appliance
Clipping with comb attachment
The hair length after cutting is indicated in millimetres on the
display.The settings correspond to the remaining hair length after
cutting.
The hair length after cutting is only visible when the comb is
attached.
1 Slide the comb attachment into the guiding grooves of the
appliance (‘click’). (Fig. 5)
Make sure that the arms of the comb attachment have been properly slid
into the grooves on both sides.
2 Set the comb to the desired hair length (3, 6, 9, 12, 15, 18 or
21 millimetres) by turning the length lock (Fig. 6).
3 Switch the appliance on (Fig. 7).
-
-
-
,
,
,
ENGLISH8
4203.000.5452.3.indd 8 12-03-2007 14:33:21

Tips
We advise you to start clipping at the highest setting and to reduce
the hair length in small steps until you reach the desired hair length.
If a lot of hair has accumulated in the comb, remove the comb
attachment and blow and/or shake the hair from the comb. Removing
the comb does not change the selected hair length setting.
Write down the hair length settings used to create a certain hairstyle
as a reminder for future clipping sessions.
Clipping without comb attachment:
You can use the clipper without comb attachment to contour the
neckline and the area around the ears.
Remove the comb attachment by pulling it off the appliance (Fig. 8).
Never pull at the exible top of the comb attachment. Always pull at the
bottom part.
The comb attachment keeps the cutting unit at a certain distance
from your head.This means that, if you use the clipper without the
comb attachment, your hair will be cut off very close to the skin.
Cleaning
Clean the appliance every time you have used it.
Do not use abrasives, scourers or liquids such as alcohol, petrol or
acetone to clean the appliance.
The appliance and the adapter may only be cleaned with the brush
supplied.
1 Make sure the appliance is switched off and disconnected from the
mains when you start cleaning it.
2 Remove the comb attachment by pulling it off the appliance (Fig. 8).
3 Push the middle part of the cutting unit upwards with your thumb
until it opens and then pull it off the appliance (Fig. 9).
Be careful that the cutting unit does not fall to the oor.
4 Clean the cutting unit with the brush supplied (Fig. 10).
-
-
-
,
,
ENGLISH 9
4203.000.5452.3.indd 9 12-03-2007 14:33:22

5 Also clean the inside of the appliance with the brush
supplied (Fig. 11).
6 Place the lug of the cutting unit into the slot and push the unit back
onto the appliance (‘click’) (Fig. 12).
This appliance does not need any lubrication.
Replacement
A worn or damaged cutting unit should only be replaced with an original
Philips cutting unit.
Push the middle part of the cutting unit upwards with your thumb
until it opens and then pull it off the appliance (Fig. 9).
Be careful that the cutting unit does not fall to the oor.
Place the lug of the new cutting unit into the slot and push the unit
back onto the appliance (‘click’) (Fig. 12).
Environment (QC5050 only)
Do not throw the appliance away with the normal household waste
at the end of its life, but hand it in at an ofcial collection point for
recycling. By doing this you will help to preserve the
environment (Fig. 13).
The built-in rechargeable battery contains substances that may pollute
the environment.Always remove the battery before discarding the
appliance or handing it in at an ofcial collection point. Dispose of the
battery at an ofcial collection point for batteries. If you have trouble
removing the battery, you can also take the appliance to a Philips service
centre, which will remove the battery for you and will dispose of it in an
environmentally safe way.
Disposal of the battery
Only remove the battery if it is completely empty.
1 Disconnect the appliance from the mains and let the appliance run
until the motor stops.
2 Push the middle part of the cutting unit upwards with your thumb
until it opens and then pull it off the appliance (Fig. 9).
,
,
,
ENGLISH10
