Mini300
petrol station lighting

Imagine an oasis of fresh clean light. One that sparkles and
radiates.Welcoming with clarity and space. Imagine moving
freely around, seeing vivid colours, minute details.All while
bathing in the clean white light. Now, imagine that you have
created all these sensations for less cost than anyone thought
possible. Better still, that you’ve actually reduced energy
consumption by a massive 35%.
Now you’re beginning to realise the power of 21st Century
petrol station lighting... with Philips.
The MASTER Collection – Lighting solutions that make business sense.
Offering best in class energy efficiency, lifetime reliability and lighting quality, Philips
MASTER Collection lamps, luminaires and control gears minimise your lighting
solution’s total cost of ownership.You can start enjoying significant savings and benefits
from day one by replacing your conventional lighting products with Philips MASTER
Collection upgrades.You can achieve even more dramatic savings and improvements
by switching your whole lighting system to the Philips MASTER Collection.

In today’s environment of continuous innovation, it’s not often
that a genuine breakthrough in technology is made. But that’s
exactly what the new Mini 300 is. Because instead of reducing
energy consumption by a few valuable percentage points,
the new Mini 300 slashes energy consumption by a massive 35%.
Add to that an unparalleled ‘daylight’ colour
rendering of Ra 96 and you can see just why
everyone is getting excited about the world’s most
efficient under-canopy luminaire yet invented.
Compare the new Mini 300 against the
current market leader, the MPF series:
35% less energy
Achieved by a special patented optic coating
(which reflects 97% of the light) and by use of a
150W lamp instead of the MPF’s 250/400W.
Significantly better colour rendering
Achieved by using the new CDM-TD lamp which
has a Colour Rendering Index of 96 (compared to
an index of 65 from the MPF series).This creates
an inviting atmosphere.
Smaller size
Smaller lamp means smaller housing and smaller
cut-out dimensions (36cm instead of 47cm), for a
more compact, stylish installation.
More safety
Specially engineered louvres shield drivers’
eyes from the burner, so even from a fast moving
vehicle drivers can clearly see people on
the forecourt.
More corporate identity
With the high colour rendering and a colour
temperature that creates a daylight impression
(4,200K), people see your true corporate colours
– as you intended.
More sparkle
The Mini 300’s minute burners are reflected on
surfaces as tiny pin-points of light. Cars sparkle and
everything looks brighter, cleaner.
Easier cleaning
The luminaire is IP65, which means that it is well
sealed. Moreover it is jet and dust proof for easy
hose spray cleaning.
More mounting possibilities
The new Mini 300 can be recessed or surface-
mounted in the canopy, or on poles and walls.
Easy installation
Just one man, just 10 minutes. Simply hang the
luminiare with the provided mounting accessories,
make the electrical connection, and swing the
luminaire into its locking position.
Easy upgrade
Upgrading from the MPF series is easy. A simple
adapter plate means that the same frames and
canopy cut-outs are used.
under-canopy lighting
the world’s most efficient
5
MINI 300 PETROL STATION LIGHTING

Even though the Mini 300 is
competitively priced, we’ve used only the
best quality materials and manufacturing
processes.This ‘no-compromise’ construction
policy results in easy installation and
long-lasting performance.
Unique to Philips, the 3D concept directs light to selected
vertical planes so that fuel pumps and car sides are
illuminated well. Conventional lighting mainly directs light
downwards, without attention to vertical surfaces.
As your customers approach the fuelling bay asymmetrical
beam spreads keep the light within your station’s
forecourt, accentuating your corporate image.
While at the fuel bay, the vertical surfaces of the fuel
pumps are clearly illuminated. Everything is visible:
pumps, people, columns and cars.
Improved safety – thanks to the tightly controlled
beam spread, there’s no glare from the burner
entering the driver’s eye on approach. So even at high
speeds, drivers can clearly see people filling up.
Galvanised steel mounting plate
Deep drawn aluminium housing
High precision, injection moulded frame
Patented optical system
with precision louvres
Precision reflector with the
Philips patented coating
Highly flexible silicone gasket
Temperature-toughened glass
Stainless steel bolts
Philips 3D lighting concept
DBP300 1xCDM-TD 150W
DCP300 1xCDM-TD 150W
The Mini 300 is bolted into the canopy and
comes with a mounting frame for fast, precision
installation.The frame also sandwiches the
cladding for a very sturdy fitting.
For surface mounting, the Mini 300 comes with
a special hinge plate that connects to the bracket
in any direction – making installation fast
and foolproof. DBP300 1xCDM-TD 150W TB
DCP300 1xCDM-TD 150W TB
The Mini 300 Beacon enhances the identity and
image of petrol stations by capturing the attention
of drivers even from a distance.The tightly controlled
beam spread feature minimizes glare ensuring safety
and visual comfort for drivers when they are
approaching, departing and under the canopy.
Sym WB
A-sym WB
7
MINI 300 PETROL STATION LIGHTING
6
MINI 300 PETROL STATION LIGHTING

150W150W150W
250W
400W
250W
MPF Square lay-out MINI 300
HPI-T 250W
HPI-T 400W
CDM-TD 150W
2847W
1815W
3X 415 = 1245
6X 269 = 1614
11 X 165 = 1815
36%Savings
150W150W150W
250W
250W
250W 2421W
1485W
9X 269 = 2421
9X 165 = 1485
39%Savings
150W150W 150W150W
250W
400W400W
250W
2736W
1650W
4X 415 = 1660
4X 269 = 1076
10 X 165 = 1650
40%Savings
150W150W 150W150W
Starting Gate lay-out
250W
250W250W
250W 2136W
1320W
8X 267 = 2136
8X 165 = 1320
38%Savings
Daylight visibility
Even with less energy, the Mini 300 creates a bright
‘sunny’ atmosphere.That’s because the sparkling light
and its high colour rendering are directed to vertical
as well as horizontal surfaces.The result? People feel
more alert and even happier.
Upgrade to 35% less
The schemes to the right show how luminaires using
250/400W lamps can be replaced by Mini 300s with
150W lamps. More Mini 300s will be necessary in
some schemes but the dramatic wattage reduction
from 250/400W to 150W always results in an
overall 35+% energy saving.
9
MINI 300 PETROL STATION LIGHTING
8
MINI 300 PETROL STATION LIGHTING

The Mini 300 is cost competitive and highly economical
to run – so why not use its superb daylight quality to
brighten up your approach areas and parking lots?
The whole petrol station experience becomes brighter,
cleaner and more enjoyable. And from a distance, the
petrol station becomes a crystal clear landmark.
Improved safety
And it’s not just your corporate image you’ll be
improving. Because, by providing the same type of
light at the approach and departure areas as used
in the forecourt you also improve the visibility and
safety of your customers. Especially when your
lighting schemes gradually adapt the driver’s eye,
helping the driver to adjust from the ‘yellow’ road
lighting. On average lighting levels should be
approximately 10 to 12% of those used in the
forecourt, but depending on a variety of
parameters Philips can advise on the exact levels
to optimise driver comfort and safety.
More inviting, especially for women
Market research shows that up to 95% of all
women feel anxious at nighttime petrol stations,
perceiving them to be dark intimidating places. But
with better, more natural lighting such feelings are
substantially reduced, creating greater customer
loyalty from everyone.
area lighting
brighten-up your approach areas
and extend your corporate image with
11
MINI 300 PETROL STATION LIGHTING

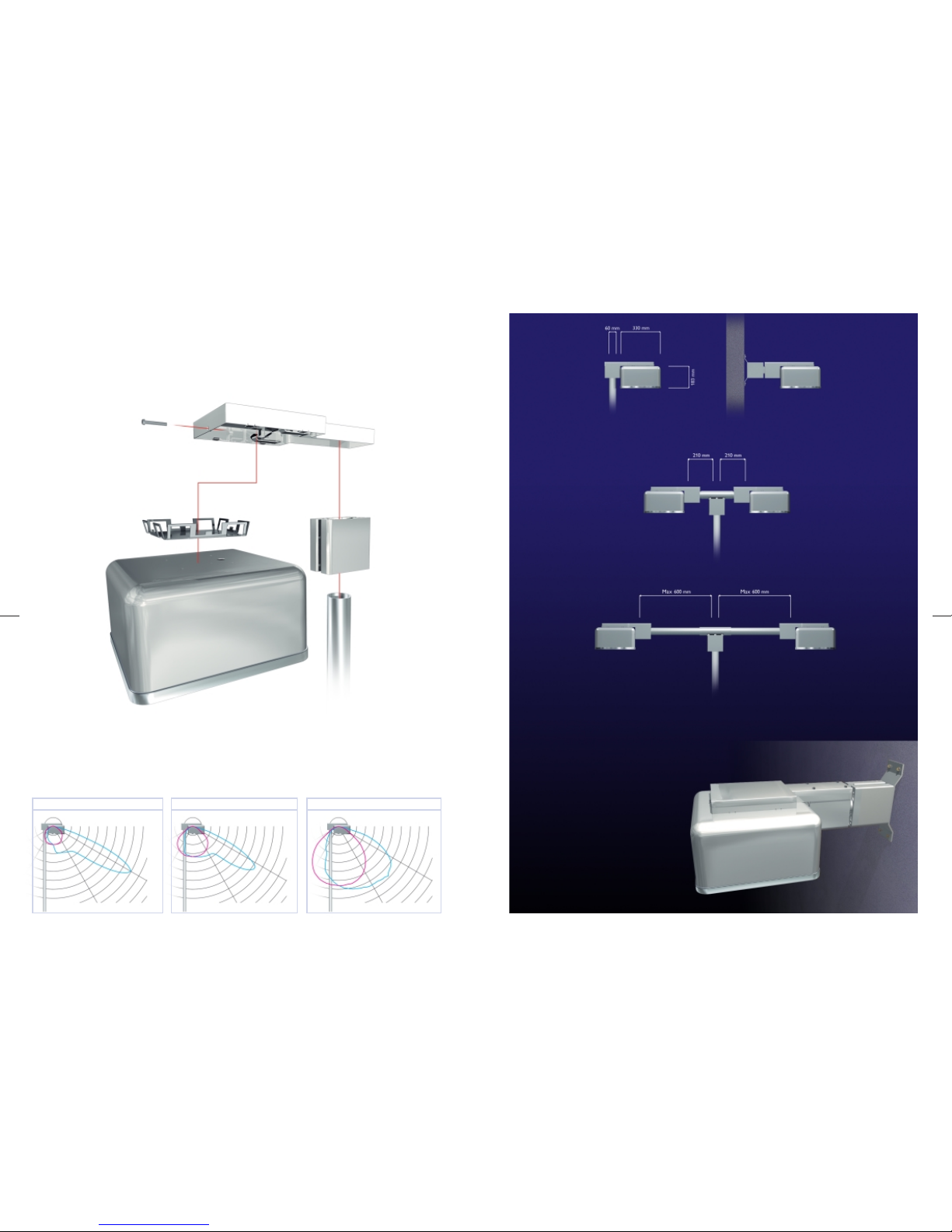

Easy-fit modular mountings
The Mini300 system comes with a standard mounting block for
pole- and wall-mounting solutions.
The result? Easy ordering and easy installation.
The mounting blocks can also be customised. For example, the
standard T-junction that positions two Mini 300’s either side of a
pole can be extended up to 60cm on both sides.
The wall mounting brackets can also be similarly extended.
Together with the choice of beam spreads you are assured of
consistent uniform lighting throughout all areas of your petrol
station experience.
DGP300 Wall bracket with DGP300
Pole T-piece with 2xDGP300
Pole T-piece with extended piping and 2xDGP300
DGP300 1xCDM-TD 150W/K A NB SI DGP300 1xCDM-TD 150W/K A MB SI DGP300 1xCDM-TD 150W/K A WB SI
300 450 600
90°
60°
30°0°
450 600 750
90°
60°
30°0°
450 600 750
90°
60°
30°0°
The choice of beam spreads includes asymmetrical-wide,
-medium and -narrow beams to ensure maximum safety
and optimal comfort.
13
MINI 300 PETROL STATION LIGHTING
12
MINI 300 PETROL STATION LIGHTING

185
183
400
344
325
325
400
335
335
330 330
For more than a decade, the specialist team of
petrol station lighting professionals at Philips has
pioneered under-canopy lighting. Each year
developing new ways to improve safety, reduce
costs and maximise customer satisfaction. But now
Philips Lighting introduces its most dramatic
innovation yet: the Mini 300. More light and more
quality than ever – for a massive 35% less energy.
Not surprisingly then, that recently one of the
world’s major oil companies chose the Mini 300
for a revolutionary canopy lighting system
powered by thin film solar panels. Read this
brochure and you’ll not only see why, but you’ll
want the Mini 300 for your stations.
Call your local Philips Lighting sales manager and
discover how Philips Lighting solutions will breathe
new life into all areas of your petrol stations.
From the approach roads and parking lots, to the
all-important forecourt and high margin shop
environment.
With Philips on your team, you’ll not only create a
truly welcoming atmosphere you’ll also improve
customer safety too, with better visibility thanks to
less glare and more natural light.
It all makes compelling sense – especially when
you think about the massive energy savings
you’ll be making.
Call today.
100%
90
80
70
60
50
40
30
20
10
0
1992 1995 1997 2001

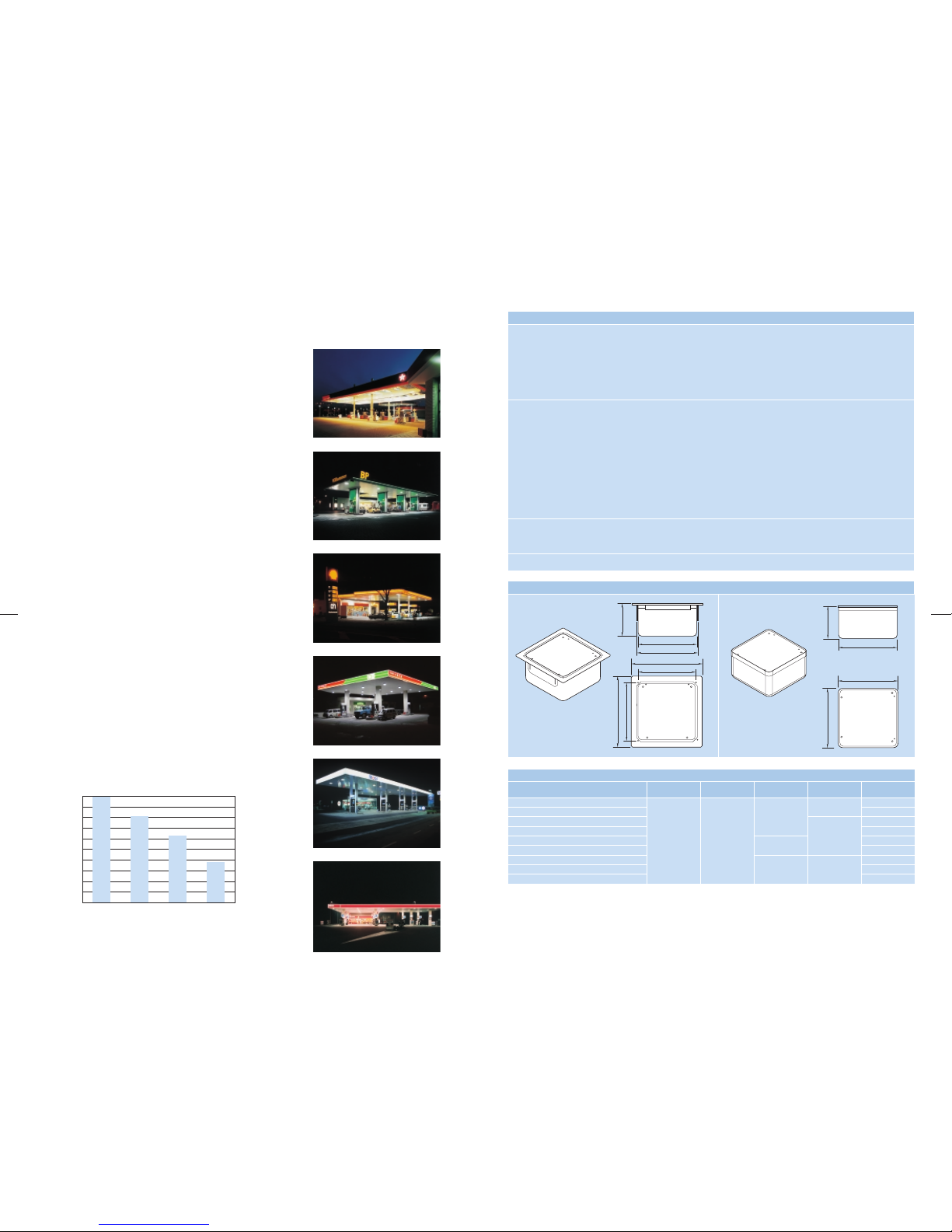

Yearly energy cost per typical station
14
MINI 300 PETROL STATION LIGHTING
Housing Deep drawn aluminium
Reflector High-quality aluminium with the Philips patented coating, integrated with precision louvres
Front glass Temperature-toughened
Mounting rim and plates Galvanized steel
Operating temperature -20°C – +45°C
Ingress protection IP65
Option Mini 300 Beacon Cover (transparent bowl)
Lamp Ceramic Discharge Metal Halide CDM-TD 150W
Lamp color temperature: 4,200K (3,000K color is available as an option)
Lumen output: 14,200 lumen (13,250 lumen for 3,000K lamp)
Efficacy : 95 lumen/watt
Color rendering index : 96
Average rated lifetime : 15,000 hours
Control gear Electromagnetic ballast: BSN150 L302 ITS (HF ballast is available upon request)
Mains : 220Vac/50Hz (other systems are available upon request)
Watt loss: 17W
Power Factor : >=0.85
Ignitor: SN58 (semi-parallel)
leaders in
petrol station lighting
Product dimensions
Product specifications
Mechanical
DBP 300 DCP 300 & DGP 300
Electrical
Installation Recessed
Surface-mounted
Pole-mounted
IEC598Product compliance
measurements in mm measurements in mm
Notes:
Standard product: 220V/50Hz / Standard lamp color: color temperature 4,200K
Other electrical systems for gears, electronic control gear, and lamp of color temperature 3,000K are available upon request
To replace MPF9xx luminiares, a recessed adaptor plate (ZBP300IP WH) is available upon request (no further
repairs required to the canopy ceiling).
Specifications subject to modification without prior notice.
K = Kombi (luminaire comes complete with lamp)
A = Asymmetrical light distribution
S = Symmetrical light distribution
WB = Wide beam light distribution
MB = Medium beam light distribution
NB = Narrow beam light distribution
WH = White color
SI = Silver color
Ordering Data
DESIGNED BY PHILIPS DESIGN HONG KONG 2003
CDM-TD 150W/942
9104 016 32480
9104 016 32580
9104 016 32680
9104 016 32780
9104 016 32880
9104 016 32980
9104 016 33080
9104 016 33180
9104 016 33280
440x420x255
370x370x255
440x395x255
1
Lamp
DBP300 1xCDM-TD 150W/942 K A WB MR WH
DBP300 1xCDM-TD 150W/942 K S WB MR WH
DBP300 1xCDM-TD 150W/942 K A WB WH
DBP300 1xCDM-TD 150W/942 K S WB WH
DCP300 1xCDM-TD 150W/942 K A WB WH
DCP300 1xCDM-TD 150W/942 K S WB WH
DGP300 1xCDM-TD 150W/942 K A WB SI
DGP300 1xCDM-TD 150W/942 K A MB SI
DGP300 1xCDM-TD 150W/942 K A NB SI
Product Description Ordering NumberDimensions
LxWxH (mm)
8
8.5
10
Packing weight
(kg)
Packing Unit
15
MINI 300 PETROL STATION LIGHTING

www.lighting.philips.com/apr
© 2003 Koninklijke Philips Electronics N.V.
All rights reserved, reproduction in whole or in part without permission is prohibited.
32 2 A42 3 001-01
Hong Kong – Philips Electronics
Hong Kong Ltd.
Lighting Asia Pacific Headquarters
27th Floor, Hopewell Centre
17 Kennedy Road,Wanchai, Hong Kong
Tel: + 852 28215300
Fax: + 852 28215342
E-mail: ltinfo.hongk[email protected]
Australia – Philips Lighting
Level 1, Philips House
65 Epping Road, North Ryde
NSW 2113, Sydney, Australia
Tel: + 612 9947 0000 or
1300 304 404 (toll free- local only)
Fax: + 612 9947 0325
E-mail: l[email protected]
China – Philips Lighting
No. 1805 HuYi Road, Malu Town
Jiading District, Shanghai, 201801, P.R.China
Tel: + 86 215915 4060
Fax: + 86 215915 4064
E-mail: l[email protected]
India – Philips Lighting
Lighting Division
Motorola Excellence Centre, 5th Floor
415/2 Mehrauli-Gurgaon Road
Sector -14, Haryana-122001, India
Tel: + 91124 509 1900
Fax: + 91124 509 1912
E-mail: l[email protected]
Indonesia – Philips Lighting
Gedung Philips
J1. Buncit Raya Kav. 99 -100
Jakarta 12510, Indonesia
Tel: + 62 318491674 or
0800 10 52678 (hotline-local only)
Fax: + 62 318473 240
E-mail: ltinfo[email protected]
Japan – Philips Lighting
Philips Building
13-37, Kohnan 2-chome
Minato-ku,Tokyo 108-8507, Japan
Tel: + 813 3740 5156
Fax: + 813 3740 5163
E-mail: l[email protected]
Korea – Philips Lighting
260-199 Itaewon-dong
Yongsan-ku, Seoul 140-200, Korea
Tel: + 82 2 709 1312
Fax: + 82 2 709 1350
E-mail: ltinfo.k[email protected]
Malaysia – Philips Lighting
76, Jalan Universiti
46200 Petaling Jaya
Selangor Darul Ehsan, Malaysia
Tel: + 60 3 7957 5511
Fax: + 60 3 7955 2739
E-mail: ltinfo.mala[email protected]
New Zealand – Philips Lighting
2 Wagener Place, Mt Albert
PO Box 1041,Auckland, New Zealand
Tel: + 64 9 815 4000 or
0800 454 448 (toll free- local only)
Fax: + 64 9 849 7812 or
0800 160 875 (toll free- local only)
E-mail: l[email protected]
Pakistan – Philips Lighting
F-54, S.I.T.E.
Karachi-75730, Pakistan
Tel: + 92 21256 0071
Fax: + 92 21257 8920
E-mail: l[email protected]
Philippines – Philips Lighting
Philips House
106 Valero St. Salcedo Village
1227 Makati City, Philippines
Tel: + 63 2 845 7840
Fax: + 63 2 816 6340
E-mail: l[email protected]
Singapore – Philips Lighting
620A Lorong 1 Toa Payoh
Singapore 319762, Singapore
Tel: + 65 6882 3530
Fax: + 65 6253 2343
E-mail: ltinfo.singapor[email protected]
Taiwan – Philips Lighting
25B, No.66, Chung Hsiao W. Road
Sec. 1,Taipei,Taiwan
Tel: + 886 2 2382 7666 or
0800 231099 (toll free- local only)
Fax: + 886 2 2382 4422
E-mail: l[email protected]
Thailand – Philips Lighting
515 Moo 4, Pattana 3 Road
Bangpoo Industrial Estate, Soi 8B
Preaksa, Samutprakarn 10280,Thailand
Tel: + 66 2 709 3300
Fax: + 66 2 740 4960-1
E-mail: l[email protected]
Vietnam – Philips Lighting
99-101Ham Nghi Street
Ward: Nguyen Thai Binh
District 1, Ho Chi Minh City,Vietnam
Tel: + 84 8 914 2248 Ex.304
Fax: + 84 8 914 2249
E-mail: l[email protected]
