Philips HD4680/55 User manual

ServiceManual
Philips Domestic Appliances and Personal Care
Published by Philips Domestic Appliances and Personal Care Printed in the Netherlands © Copyright reserved Subject to modification
Kettle
HD4680/55
07/06
PRODUCT INFORMATION
- Product meets the requirements regarding interference
suppression on radio and television.
- After the product has been repaired, it should function
properly and has to meet the safety requirements as laid
down officially established at this moment.
TECHNICAL INFORMATION
- Voltage : 220 - 240 V
- Frequency : 50 - 60 Hz
- Power consumption : 2000 - 2400 W
- Contents Kettle : 100 - 1000 cc
- Coloursetting : White / Sunflower orange
- SAP coding : HD4680/55

HD4680/55
2-3
DISASSEMBLY- AND RE-ASSEMBLY ADVISE
- Disassembly Heater assy.
Remove the base by unscrewing the 4 Torx screws.
Disconnect the wires that are connected to the heater assy.
Remove the Cir clip that fixes the heater assy.
Open the lid and gently push (force maybe needed) on the
inside of the heater.
The heater and Gasket will move out of the Kettle body.
Remove the Gasket from the heater.
- Re-assembly the heater assy.

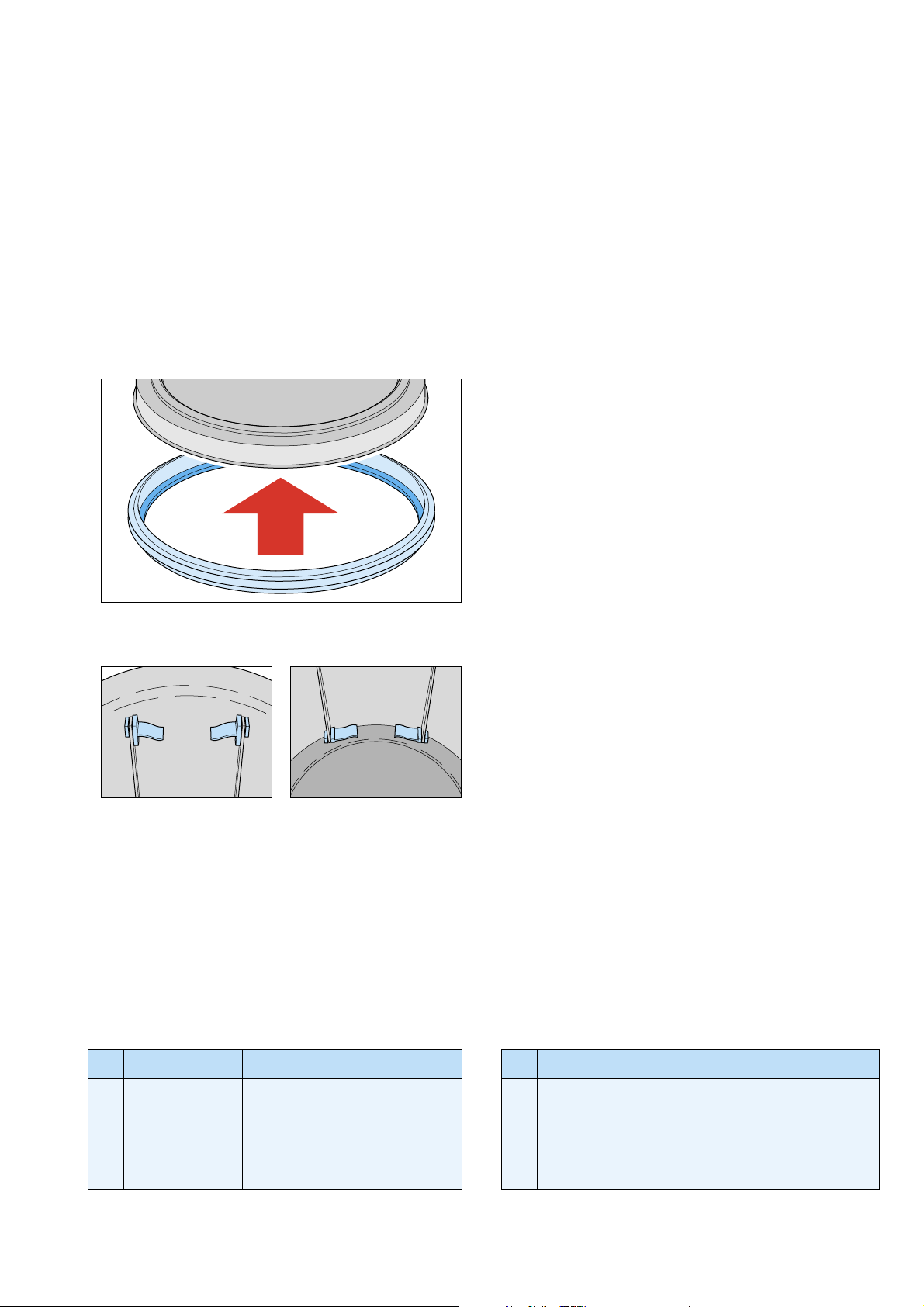

Place the gasket on the heater assy. (see picture for
placement details.)
Don’t forget to place the 2 filter stands (specific left and
right depended) in the housing. (see pictures for details)
Make the outside of the gasket and the inside of the Kettle
housing were the gasket will be placed wet with plain water.
Gently push the heater assy with gasket equable in the
Kettle body.
While pushing inwards check if the gasket keeps well
around the heater assy.
The heater assy and gasket has to be pushed over the ridge.
Check visual if the gasket is correct placed.
Reassembly the Cir clip for fixation of the heater assy.
By filling the kettle with plain water and leave it for half an
hour, you can check if the gasket properly sealed the Kettle.
Connect the wires again.
Fix the base again.
Check the functions of the Kettle.
REPAIR INSTRUCTION
- Electrical circuit
When the appliance does not work, check the electrical
Circuit.
- De-scaling
Fill the kettle with water up to three-quarters of the
maximum level indication and press the on/off switch.
After the kettle has switched itself off, add white vinegar
(8% acetic acid) or an appropriate descaler up to the
maximum level indication.
Leave the solution in the kettle overnight.
Empty the kettle and rinse the inside thoroughly.
Repeat this procedure if there is still some scale left in the
kettle.
- Cleaning filter
Clean the filter by rinsing it under a running tap.
If necessary, you can use a soft nylon brush.
The scale filter can also be cleaned in the dishwasher or
clean the filter by de-scaling it in the same way as the kettle.
Let the filter soak in a cup of warm water with some white
vinegar or an appropriate descaler.
Take the filter out of the cup and rinse it thoroughly.
OPTIONAL (accessories)
Commercial trade number
- Double action Filter : HD4983 (White)
PARTS LIST
Pos Service code Description
1*
2
3
4
5
9965 000 30285
9965 000 30286
9965 000 30287
9965 000 32709
4222 459 45068
Switch actuator Assy
Filter assy HD4983
Rubber foot set (3pcs)
CS7 connector
Lid assembly Sunflower orange
* Standardized part
Pos Service code Description
6
7
8
9
10
9965 000 30289
9965 000 38977
9965 000 30291
9965 000 30292
4222 459 45069
Steam switch
Heater assy HV 220-240V/2400W
Sealing ring
Cir -Clip
Base Bright white

HD4680/55
3-3
EXPLODED VIEW
3
2
1
4
6
10
9
8
7
5
